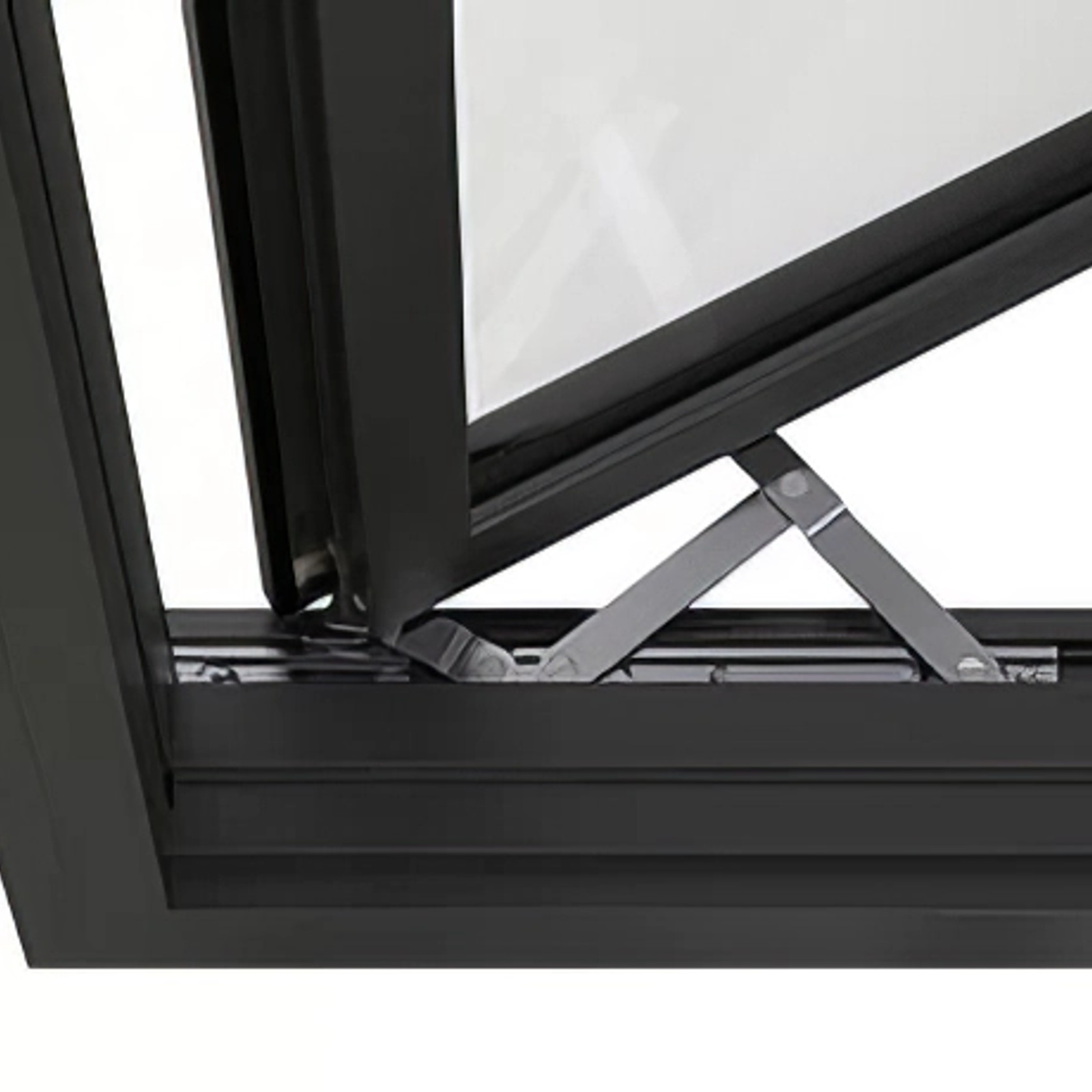

Casement Windows offer precise control of the sash opening through the superior dual arm scissor action of the Truth™ Bar Operator (available in black, silver and white hardware) with key lock. The stainless steel stays ensure the sash can be opened to a specific angle to draw cross breezes into the home for exceptional ventilation. Dual sash seals and adjustable snubbers ensure resistance against air and water infiltration for exceptional results in AS 2047 Windows and External Glazed Doors compliance testing.

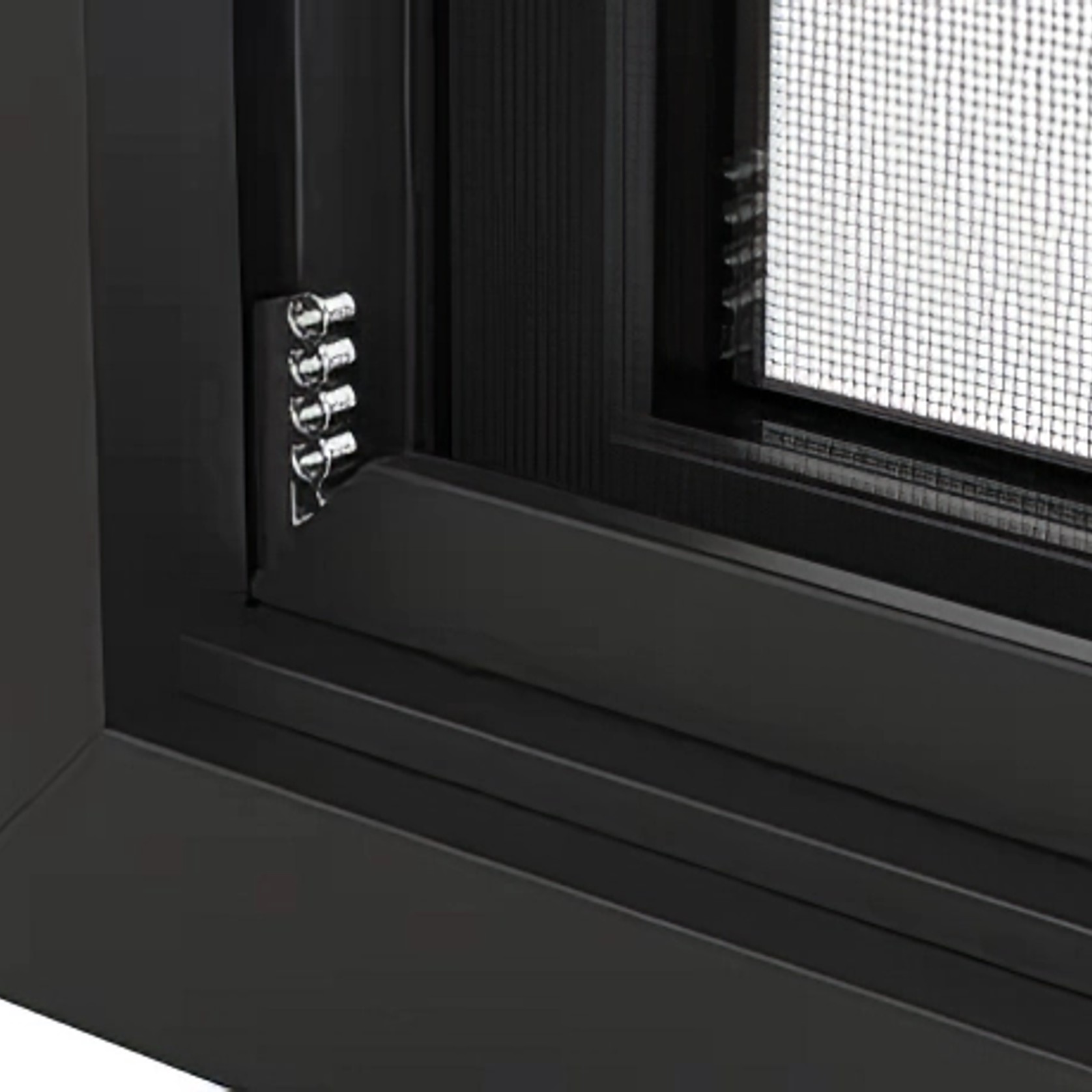

Casement Windows are glazed in accordance with AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification. Extruded flyscreens are a standard inclusion and fitted to the interior frame of the product which is powder coated in-house from a selection of 30 standard colours and textures; tested by the CSIRO for durability.

Details
  • Category
    Casement Windows
Specifications
  • Max Product Height: 6000mm
  • Max Product Width: 6000mm
  • Max Sash Height: 2750mm ⁽¹⁾
  • Max Sash Width: 800mm ⁽¹⁾
  • Glazing Capacity: 4mm - 24.76mm
  • Wind Rating: N1 - N3
  • Air Infiltration: 0.1 L/s.m²
  • Water Resistance: 600 Pa

⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.

  • Uw Value: 3.1 ⁽²⁾
  • SHGCw Value: 0.21 - 0.45 ⁽²⁾

²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.

Scope of use

Casement Windows are ideal for living areas and bedrooms, fitted with the superior dual arm scissor action of the Truth™ Bar Operator with key lock and compression latches to both the top and bottom of the sash.

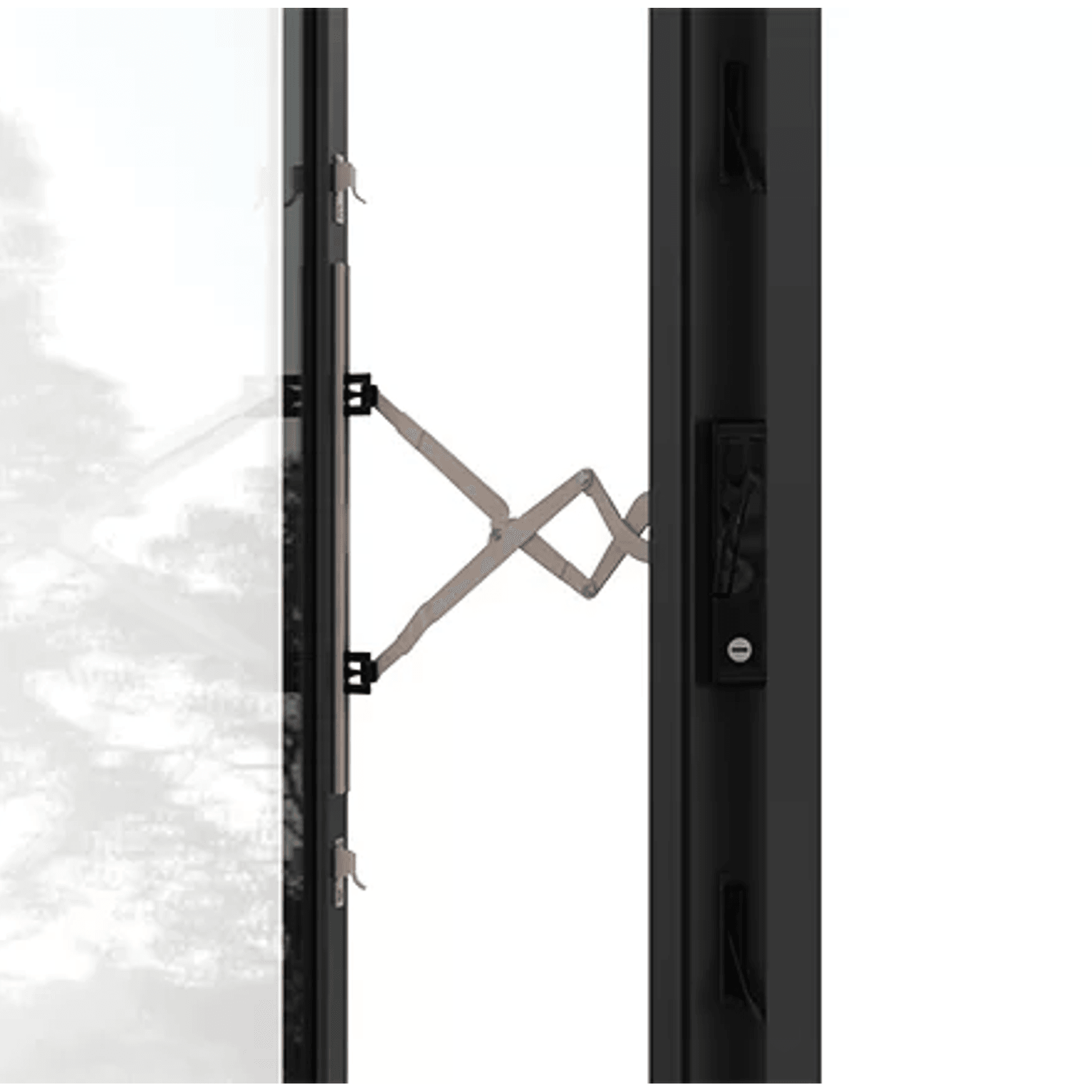

Truth™ Bar Operator

For unrivaled ease of operation the Truth™ Bar Operator features a superior dual arm scissor action with key lock which is neatly recessed into the product frame to minimise obstruction of window furnishings.

Truth™ Bar Operator hardware is available in black, silver and white.

Compression Latches

Commercial Series Casement Windows are fitted with Compression Latches to draw the sash in tightly against the dual sash seals.

Compression Latches are available in black, silver and white.

Installation Guide

The most vital aspect of correct function – is correct installation.

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

  • Linea Board
  • Hebel PowerPanel
  • Brick Veneer; and
  • Double Brick
