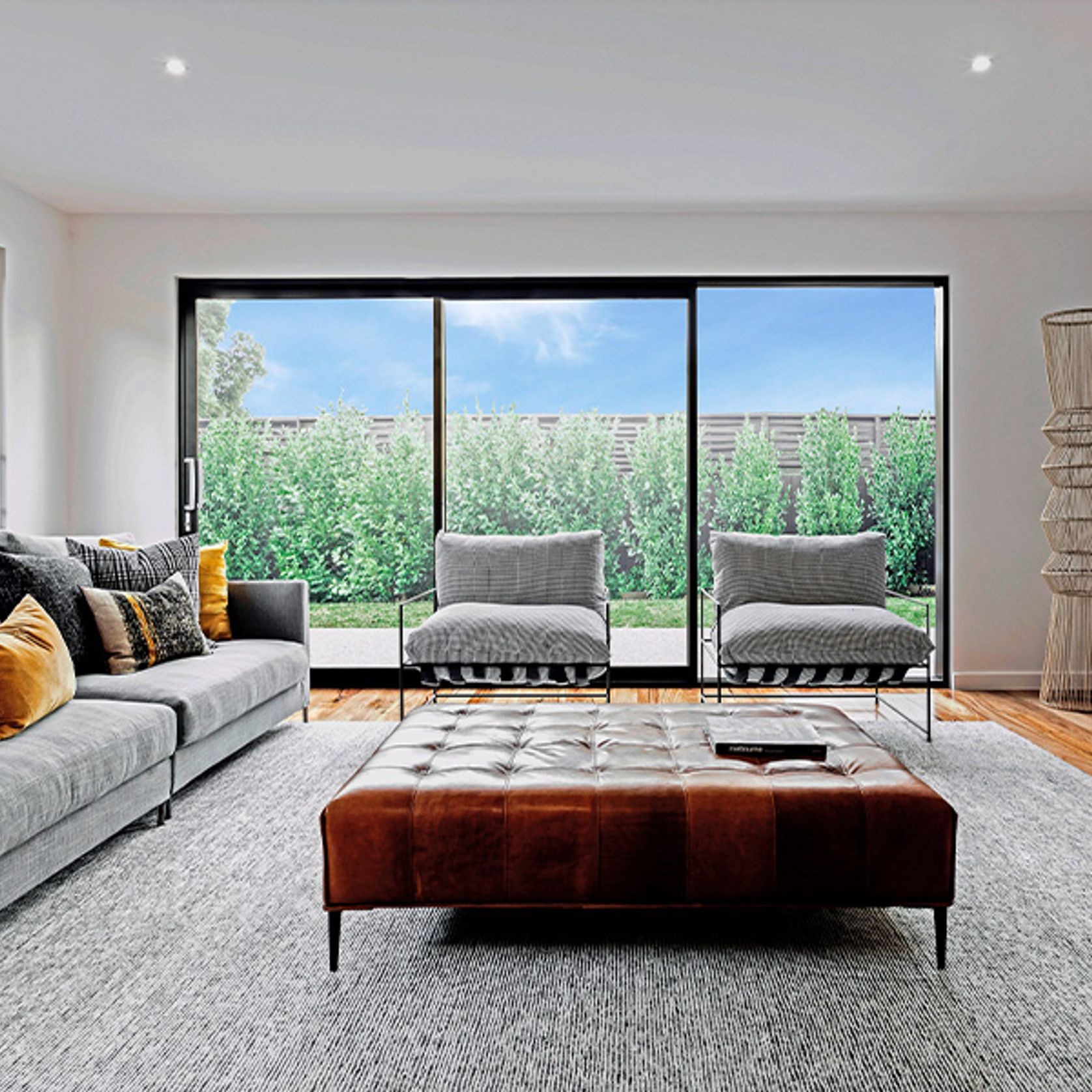

Stacker Door gallery detail image

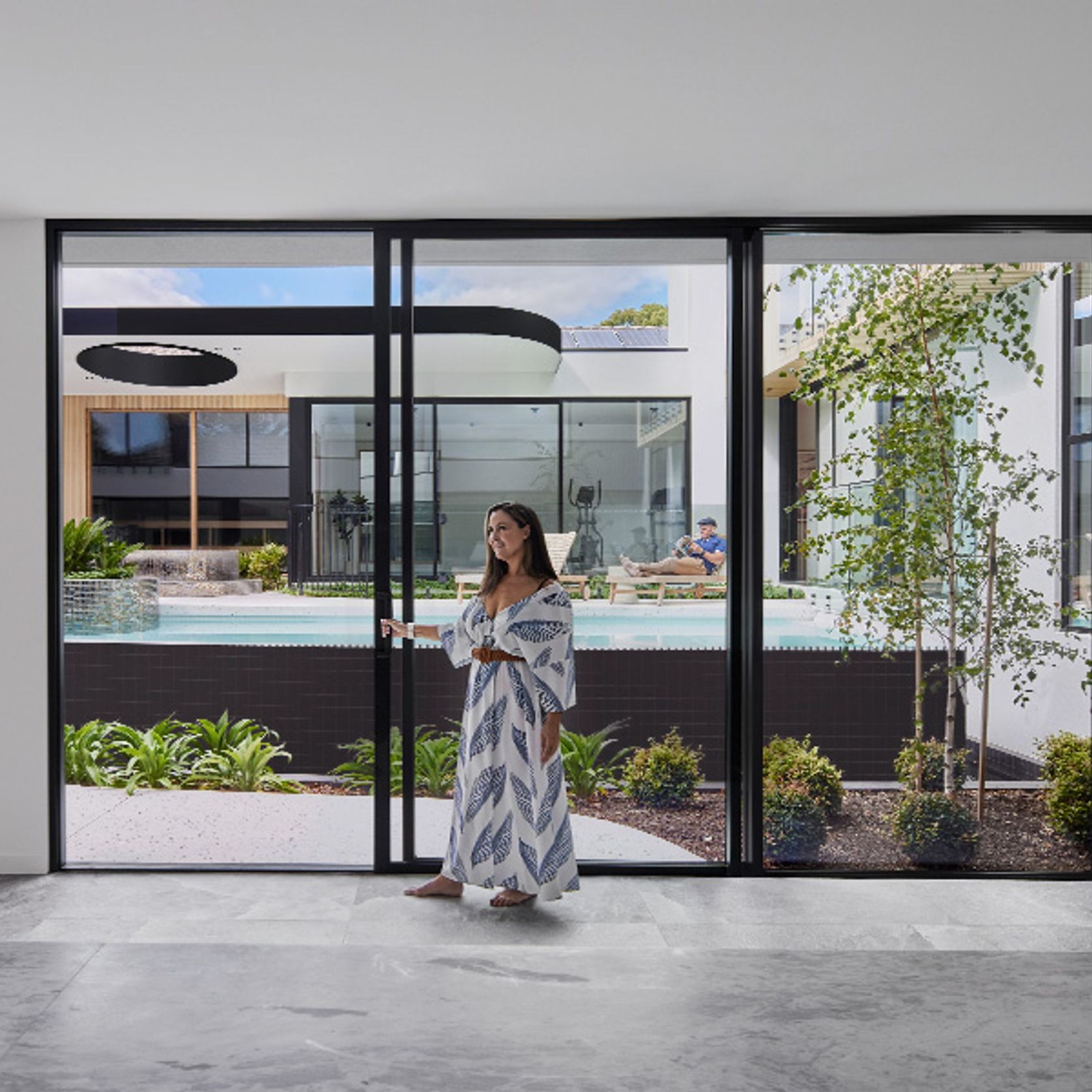

Stacker Door gallery detail image

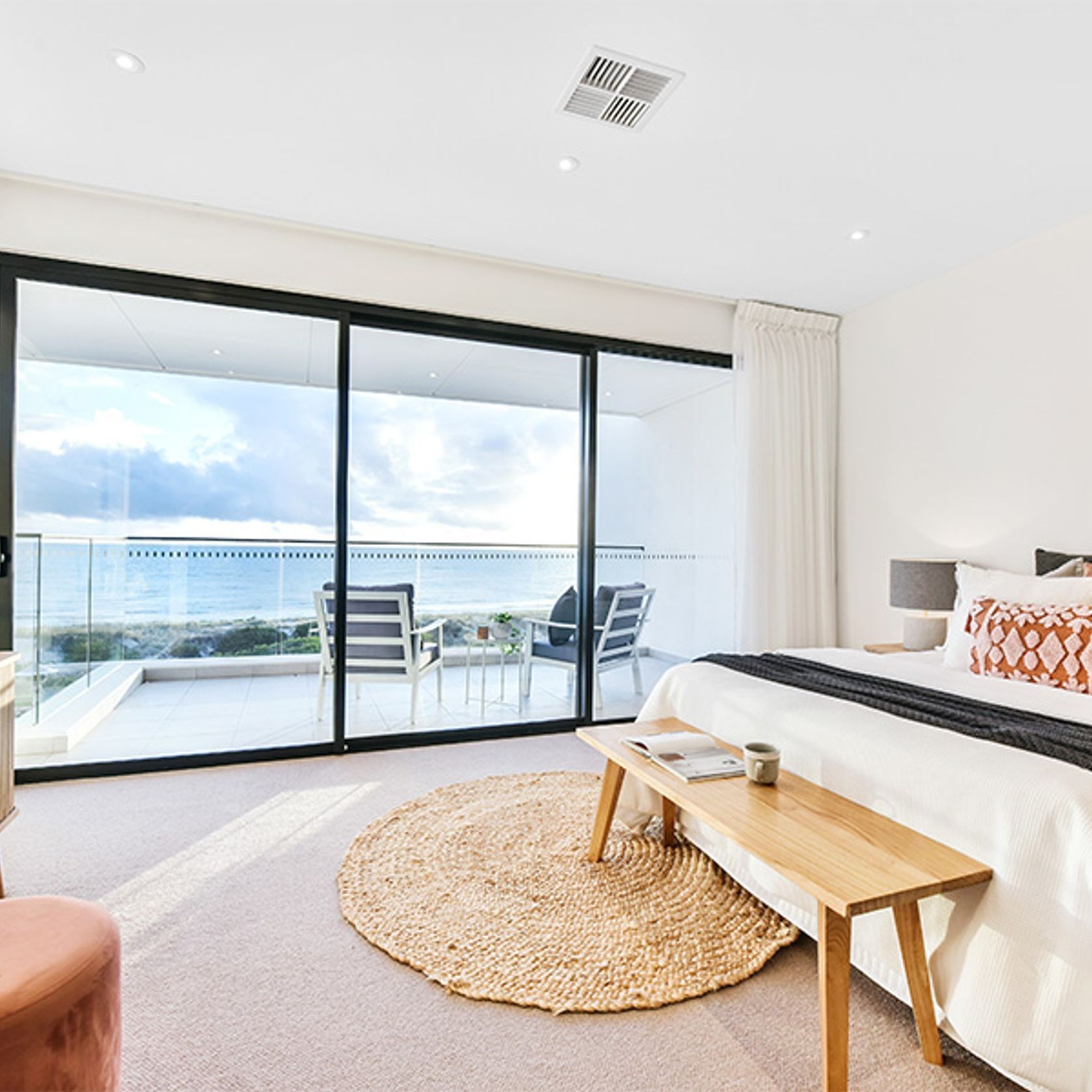

Stacker Door gallery detail image

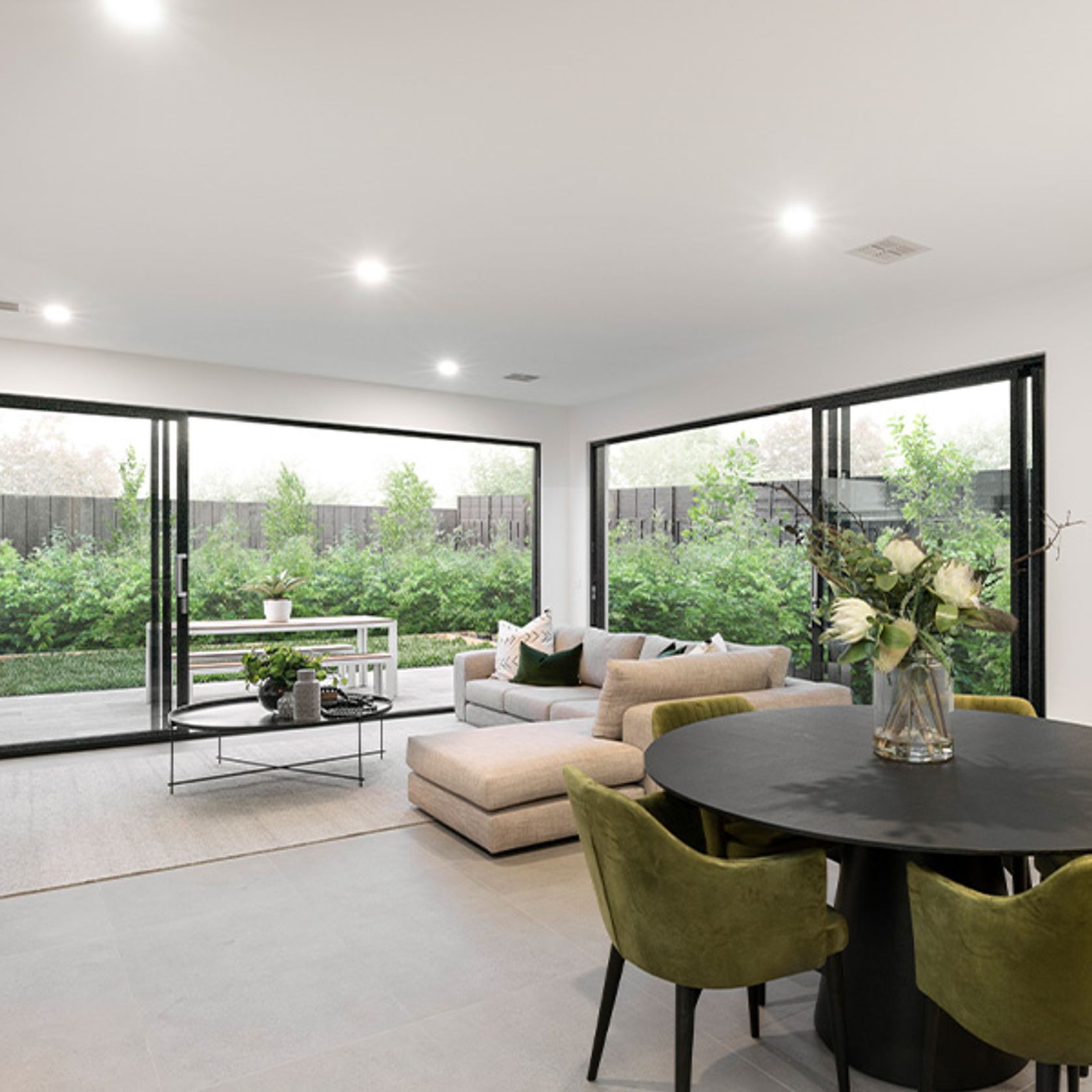

Stacker Door gallery detail image

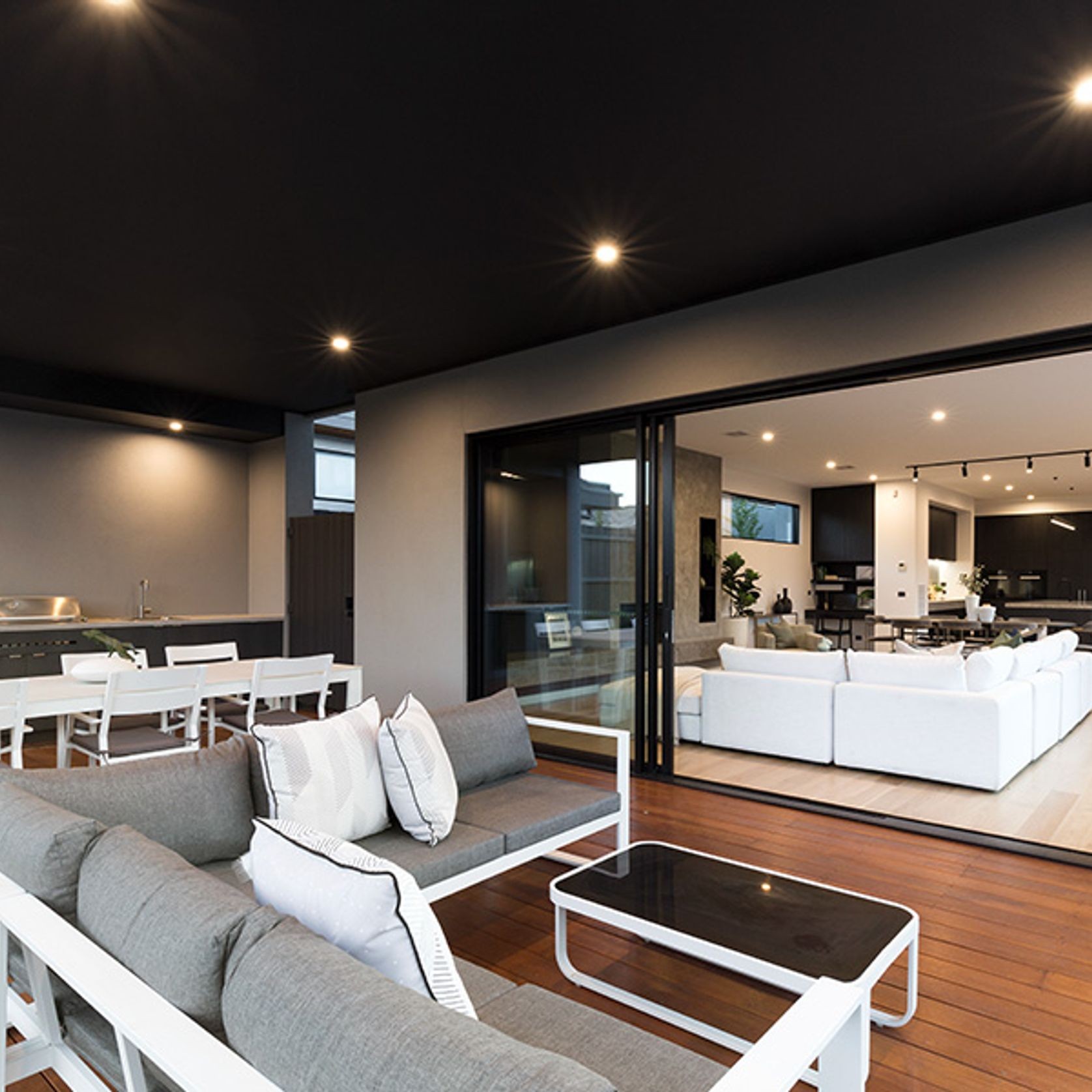

Stacker Door gallery detail image

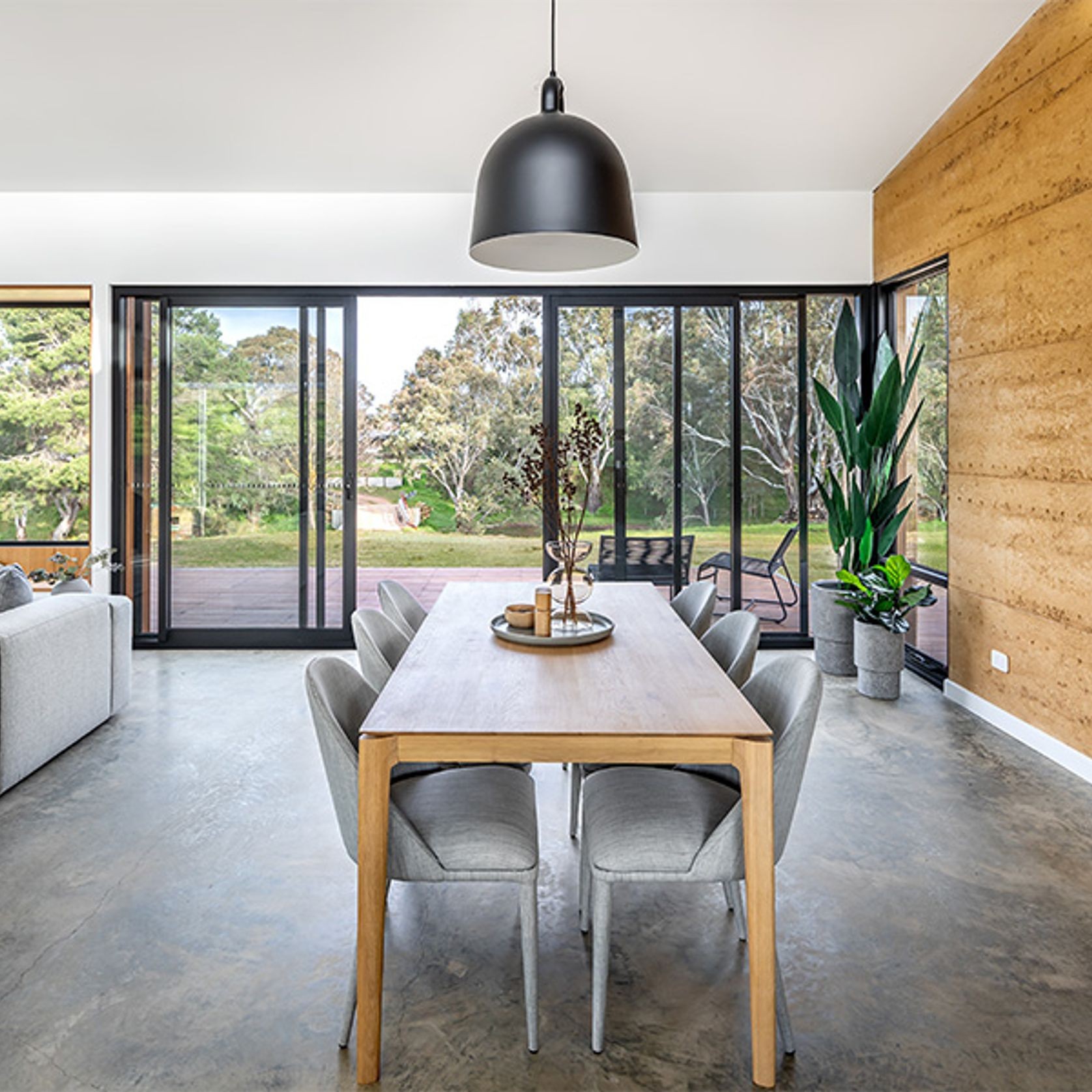

Stacker Door gallery detail image

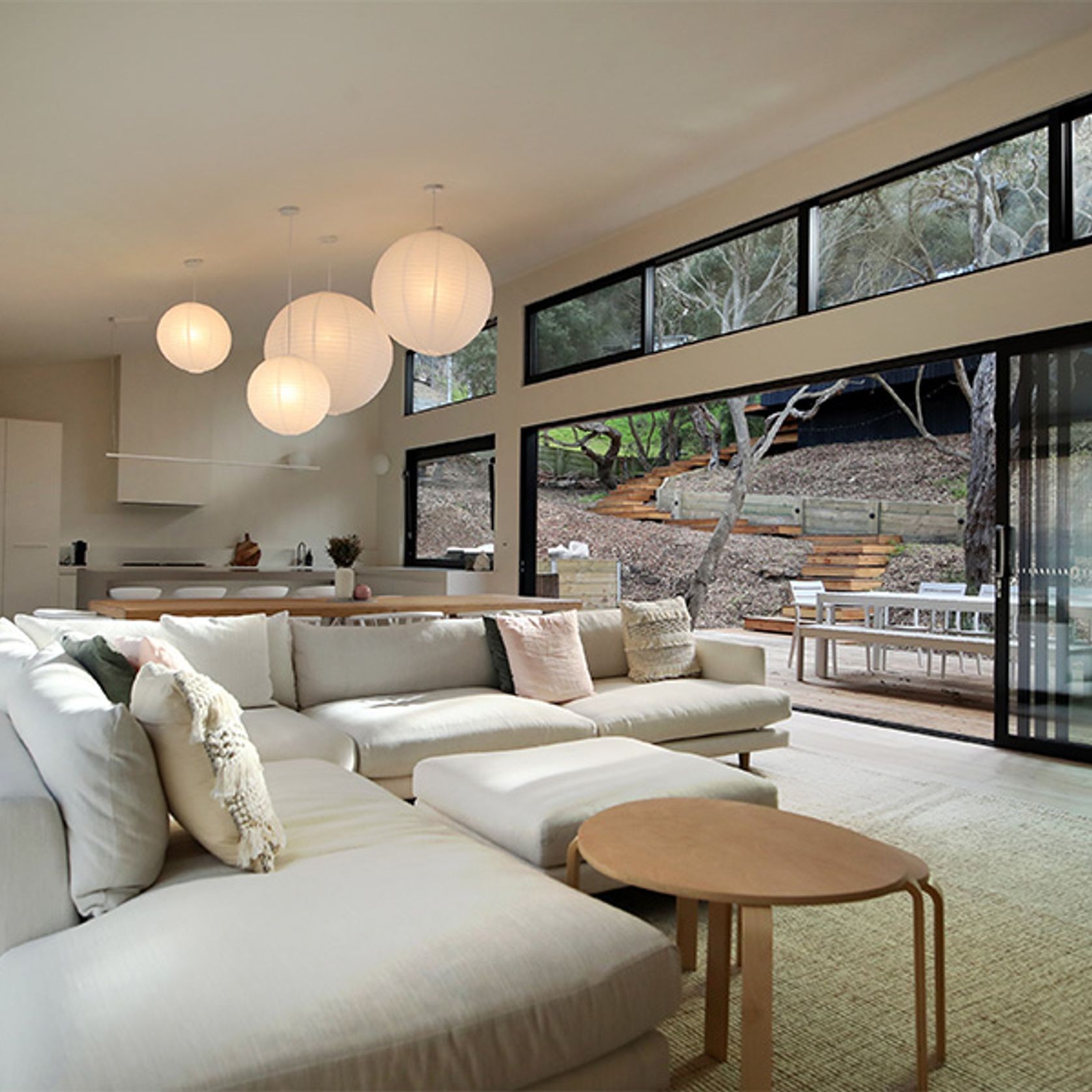

Stacker Door gallery detail image

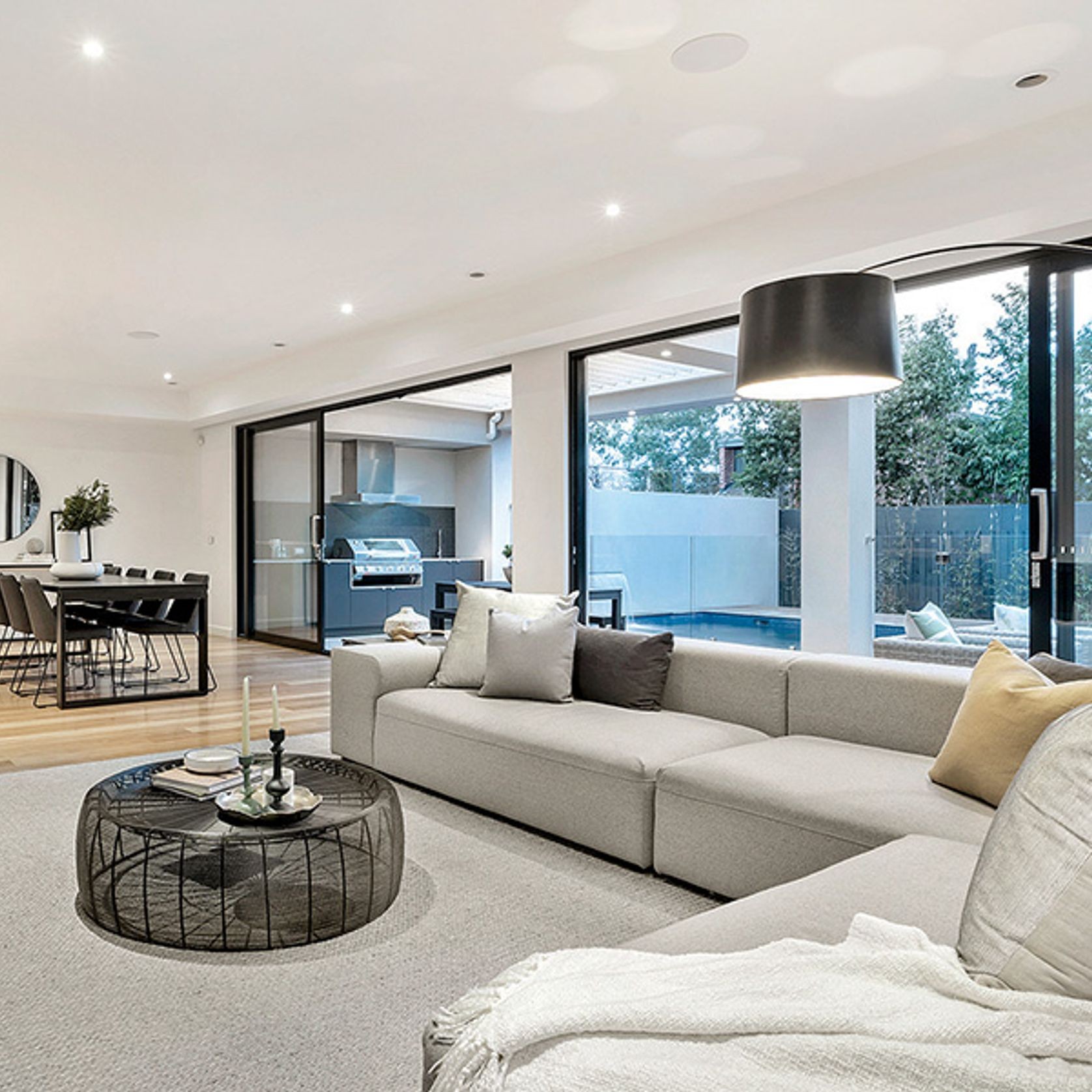

Stacker Door gallery detail image
Stacker Door gallery detail image

Commercial Series Stacker Doors feature a 50mm sill that can be rebated for zero threshold installation, (provided an allowance for water drainage), where heavy duty extrusions for strength and durability, allow product heights up to 3 metres and widths up to 12 metres. Adjustable Rollers with stainless steel bearings and the chevron-profiled replaceable Sill Track provides ease of operation, whilst rubber stops fitted to each panel ensure there is no damage to the frame when the door is opened. Quality seals provide resistance against air and water infiltration for exceptional results in AS 2047 Windows and External Glazed Doors compliance testing.

Stacker Doors are glazed in accordance with AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification. Stacker Doors are fitted with the Slimline, D-Pull or Architectural handle hardware, each available in 3 colours.

Details
  • Category
    Sliding Doors
Specifications
  • Max Product Height: 3050mm
  • Max Product Width: 12000mm
  • Max Panel Height: 3050mm ⁽¹⁾
  • Max Panel Width: 2400mm ⁽¹⁾
  • Glazing Capacity: 4mm - 24.76mm
  • Wind Rating: N1 - N3
  • Air Infiltration: 0.5 L/s.m²
  • Water Resistance: 300 Pa

⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.

  • Uw Value: 2.3 ⁽²⁾
  • SHGCw Value: 0.24 - 0.53 ⁽²⁾

⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.

Commercial Series – 150mm & 200mm Frame

Stacker Doors are custom made in 3, 4, 6 or 8-panel configurations, featuring multiple sliding panels to provide the largest openings for entertaining and ventilation.

High performance hardware solutions

Lockwood™ Architectural Handle

The Lockwood™ Architectural Handle (pictured left) features a contemporary design aesthetic. The Architectural Handle features an instile keylock with snib and is available in black, white and satin chrome.

Lockwood™ D-Pull & Slimline Handles

The Lockwood™ D-Pull Handle (pictured centre) features a classic design with comfort hold. The Lockwood™ Slimline Handle (pictured right) features a contemporary design with clean lines. Both the D-Pull and Slimline Handles feature a keylock and snib and are available in black, white and silver.

Extruded Flyscreen Door

Rylock Commercial Series Stacker Doors come standard with an extruded Flyscreen Door for 3 & 6-panel configurations only, fitted to the exterior of the product. The Flyscreen Door features a black latch that can be engaged to discourage insects from entering the home.

Speak with your Rylock Sales Consultant about various mesh and Barrier Screen options.

Installation Guide

The most vital aspect of correct function – is correct installation.

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

  • Linea Board
  • Hebel PowerPanel
  • Brick Veneer; and
  • Double Brick
