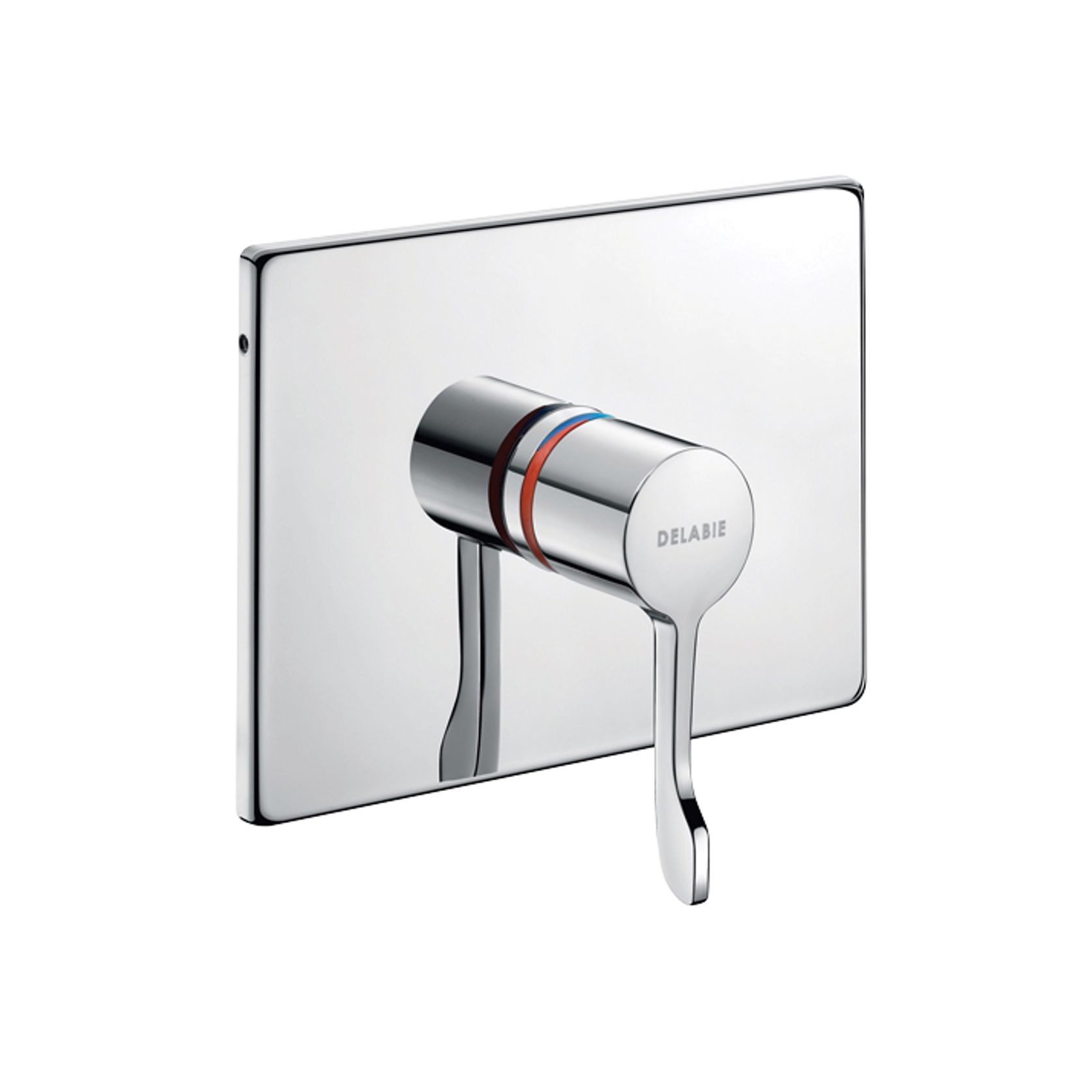

Delabie Securitherm Thermostatic Shower Mixer

By MacDonald Industries
Visit Website

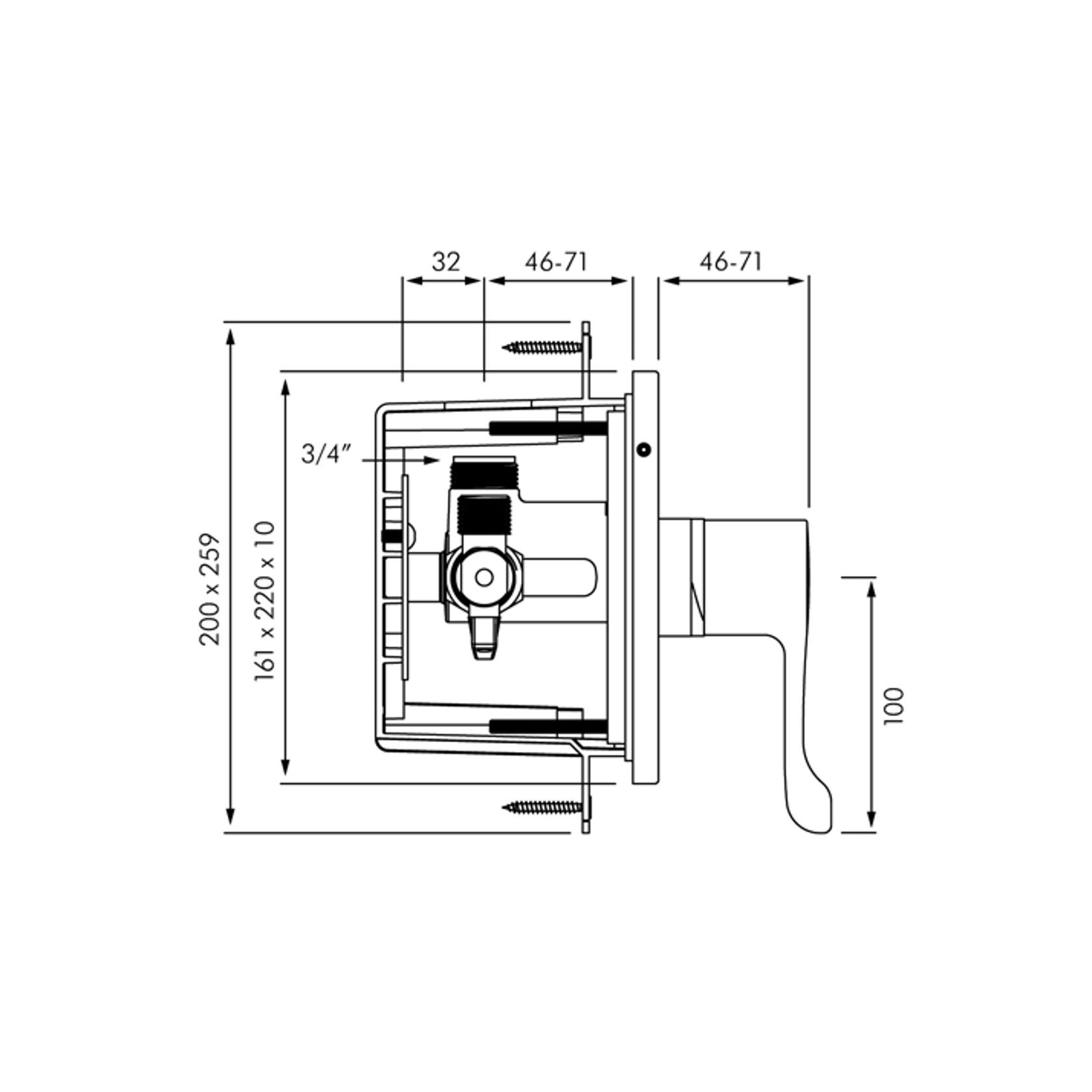

DELABIE Securitherm DEH9632 is a recessed mounted thermostatic single control shower mixer. Securitherm thermostatic mixer taps ensures immediate hot water shut off if the cold water supply fails. If the hot water fails the mixer also shuts off. Securitouch thermal insulation prevents burns to the user. Flow rate limited to 9L/min at 300kPa, 6L/min with shower head. Operating pressure is 100-500kPa, 300kPa is recommended. Easy to use hygienic control lever L.100mm. Temperature is limited to 39°C but is adjustable by the installer to the buildings' required maximum temperature. Supplied with M3/4” inlets with integrated filters and bright stainless steel cover plate 160x220mm. Order the DE790BOX water proofing installation kit for mounting (see models). Water proofing installation kit model DE790BOX is supplied with housing, protective cover, M1/2" isolation valves and temporary hydrualic connector.

Details
  • Category
    Shower Mixers
  • Brand
    Delabie
Specifications

Models:

DEH9632 - Shower mxier 9L/min with cover plate - 3 star WELS rating.
DE790BOX - Water proofing installation box.
DEH9632-SET - Complete set DEH9632 + DE790BOX - 3 star WELS rating.

MacDonald Industries
View locations (2)
Visit Website

Projects featuring
Delabie Securitherm Thermostatic Shower Mixer

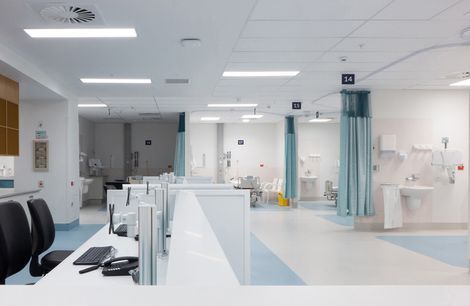

Auckland Hospital Clinical Decision Unit
Auckland Hospital Clinical Decision Unit
MacDonald Industries

More from
MacDonald Industries

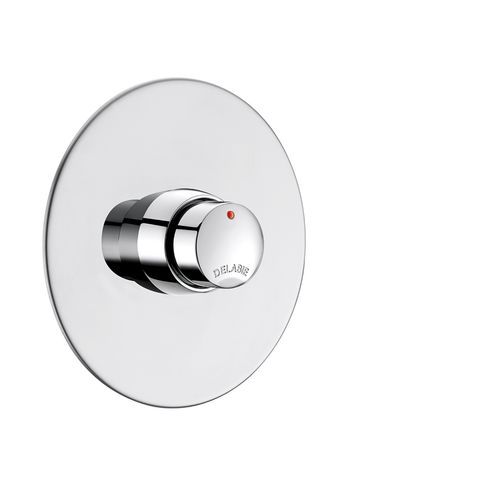

Delabie Temposoft 2 Shower Valve
Delabie Temposoft 2 Shower Valve
By MacDonald Industries

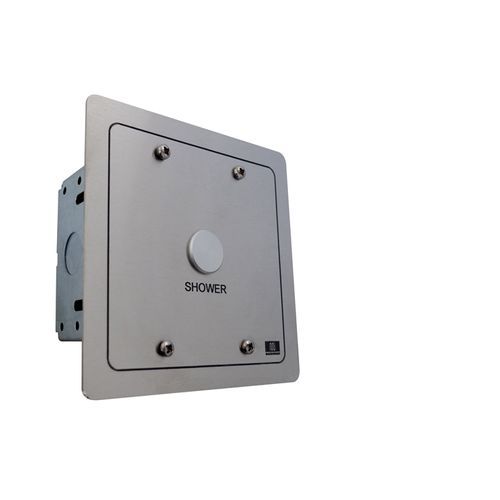

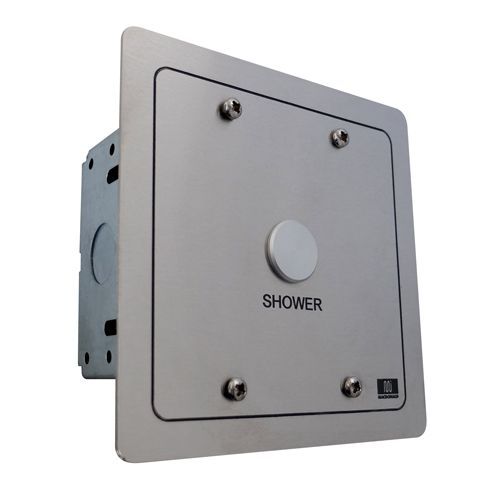

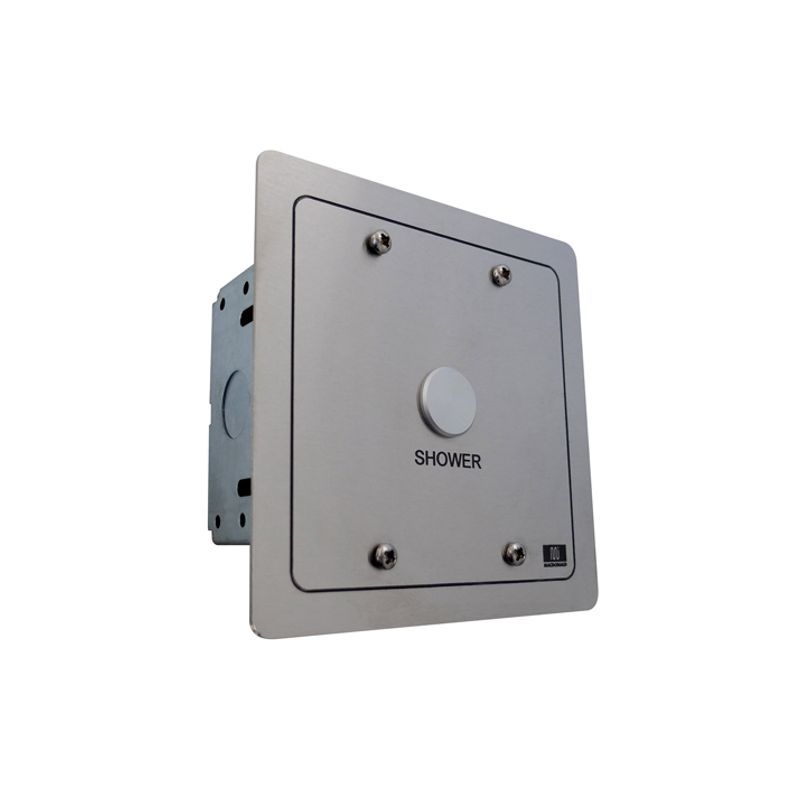

MacDonald Solo Electronic Shower Control
MacDonald Solo Electronic Shower Control
By MacDonald Industries
Zurn Elkay ezH2O Liv® Pro
Zurn Elkay ezH2O Liv® Pro
By MacDonald Industries
Up to
$4,795.00
ELKAY ezH2O® BOTTLE FILLING STATION
ELKAY ezH2O® BOTTLE FILLING STATION
By MacDonald Industries
KWC STAINLESS FLOOR MOUNTED WC c/w PRESS-FIT BRACKET
KWC STAINLESS FLOOR MOUNTED WC c/w PRESS-FIT BRACKET
By MacDonald Industries
Electrical and Manual Height Adjusted Benchtop
Electrical and Manual Height Adjusted Benchtop
By MacDonald Industries
TEMPOFLUX 3 With Recessed housing - Toilet Flushing
TEMPOFLUX 3 With Recessed housing - Toilet Flushing
By MacDonald Industries
Delabie Distravision Basin Mounted Soap Dispenser
Delabie Distravision Basin Mounted Soap Dispenser
By MacDonald Industries

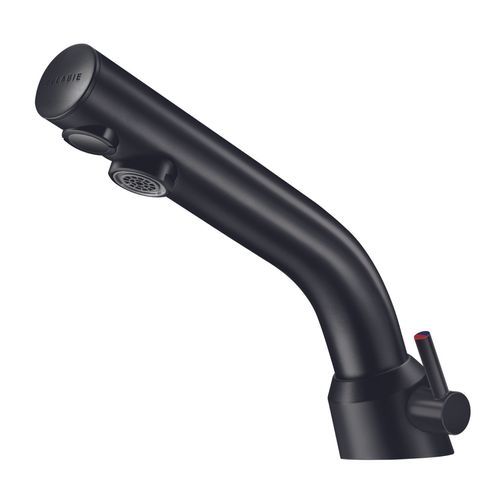

Delabie Black Binoptic Mix Electronic Mixer
