Customizable Thermal Solution. Dimond Advanced Non-Vented - engineered to redefine thermal efficiency with customizable R-values, effectively mitigating condensation challenges in diverse climates.
Part of the Advanced Roofing System Range, Dimond's Advanced Roofing Systems® is a range of cost-effective roofing systems engineered by Dimond Roofing. Practical, fully detailed and backed by Dimond, our Advanced Roofing Systems are suitable for a range of roofing profiles and are easily optimised for appearance, thermal and acoustic performance, providing the flexibility to enhance performance, all while meeting H1 compliance and client needs.

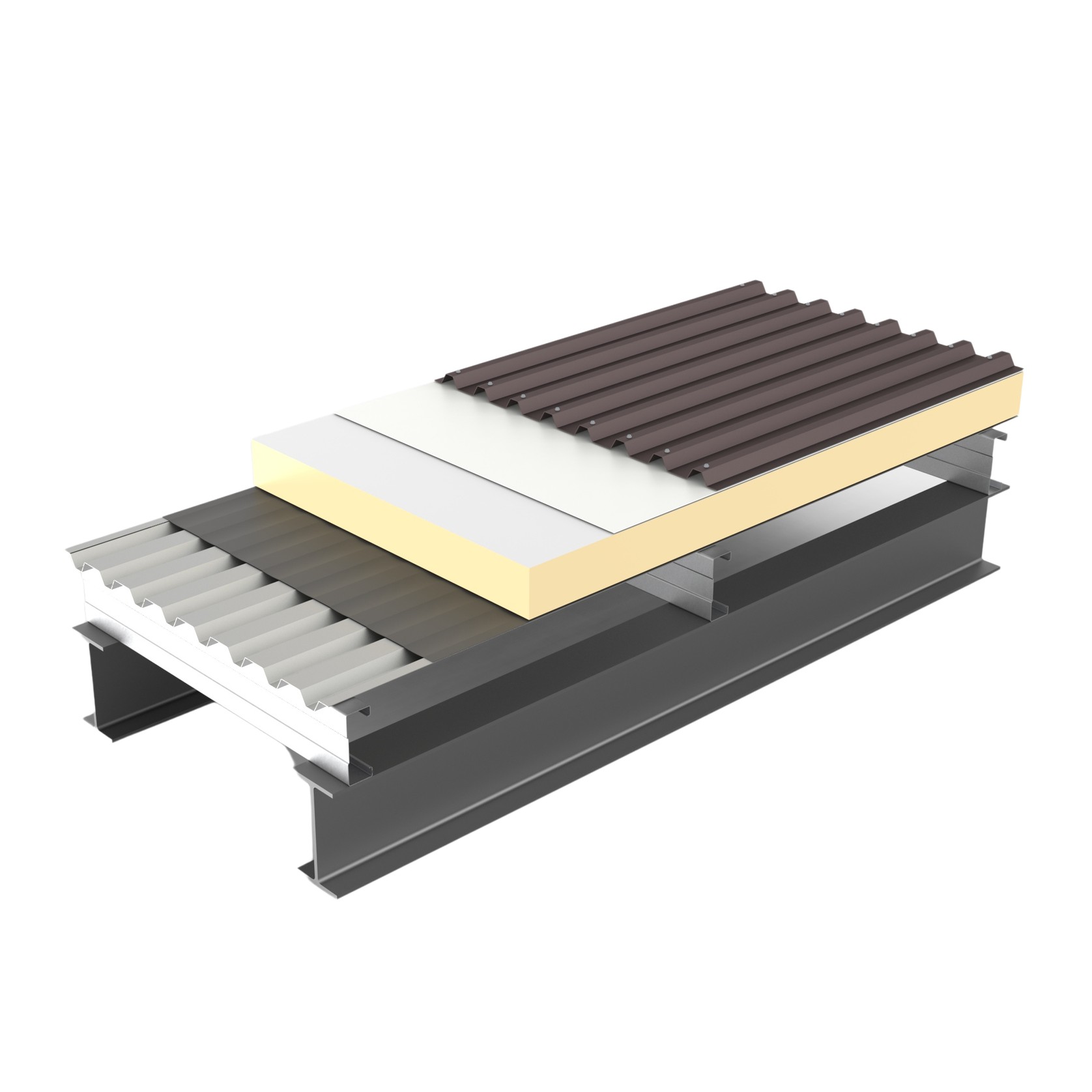

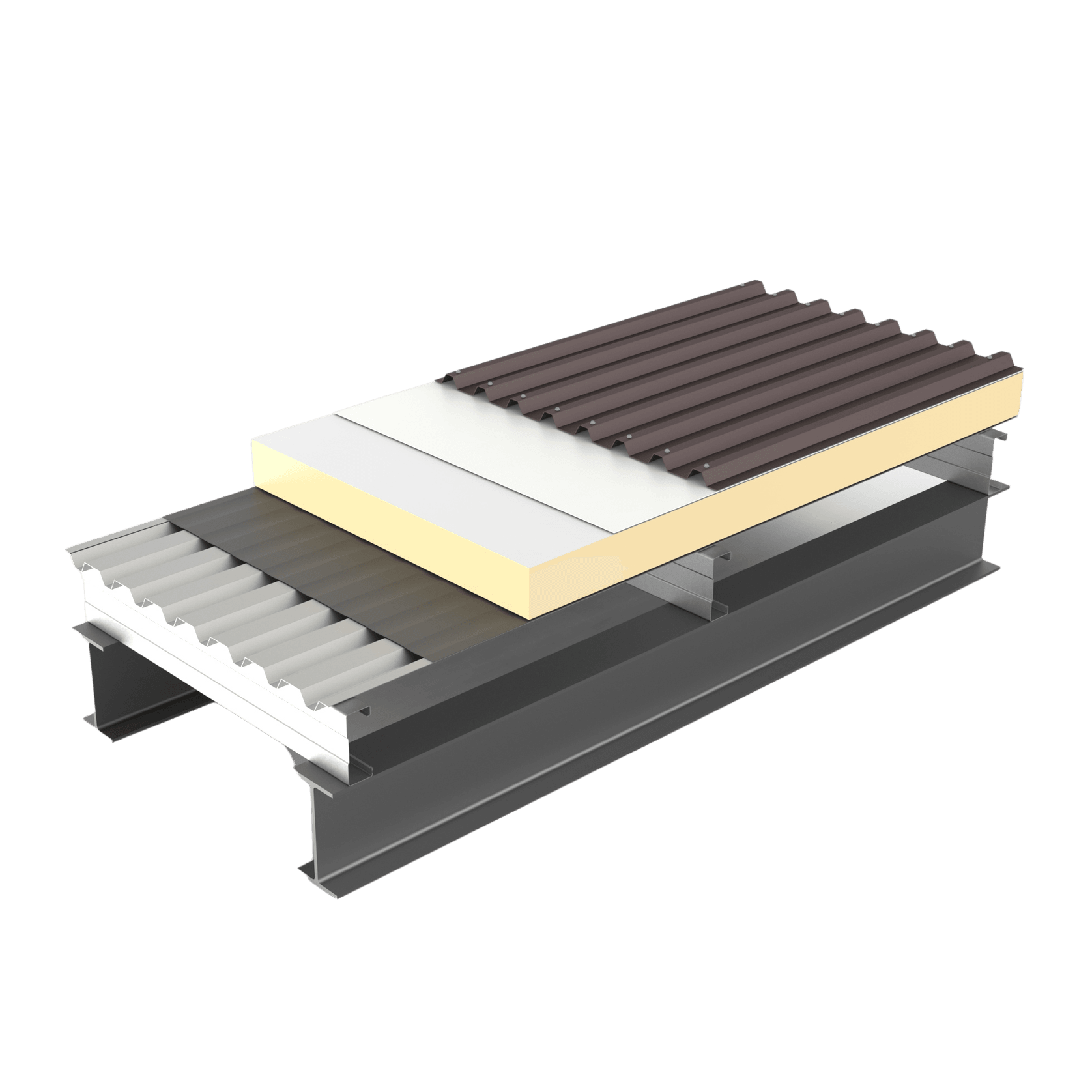

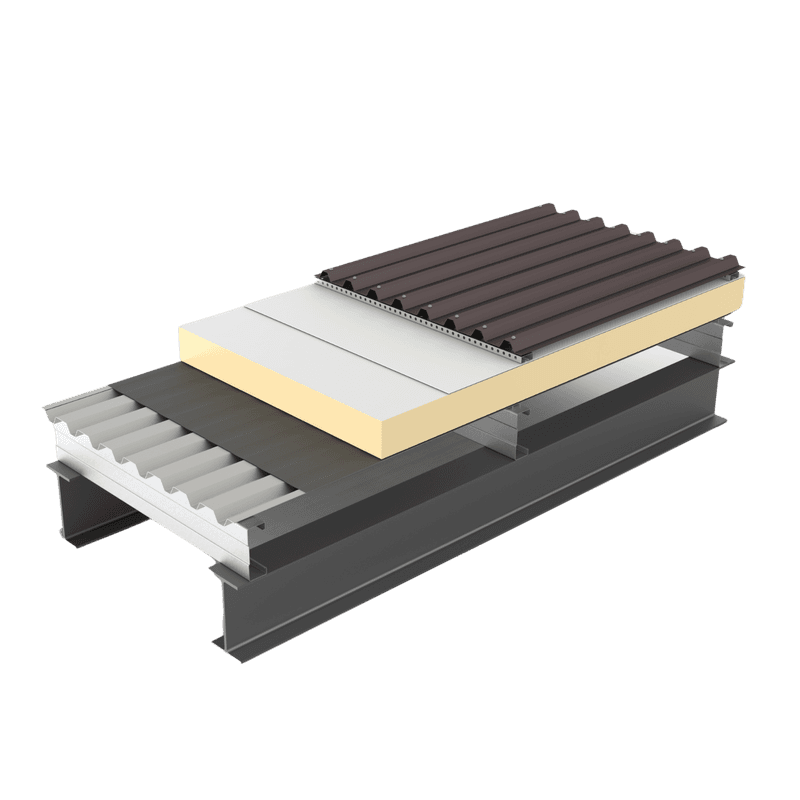

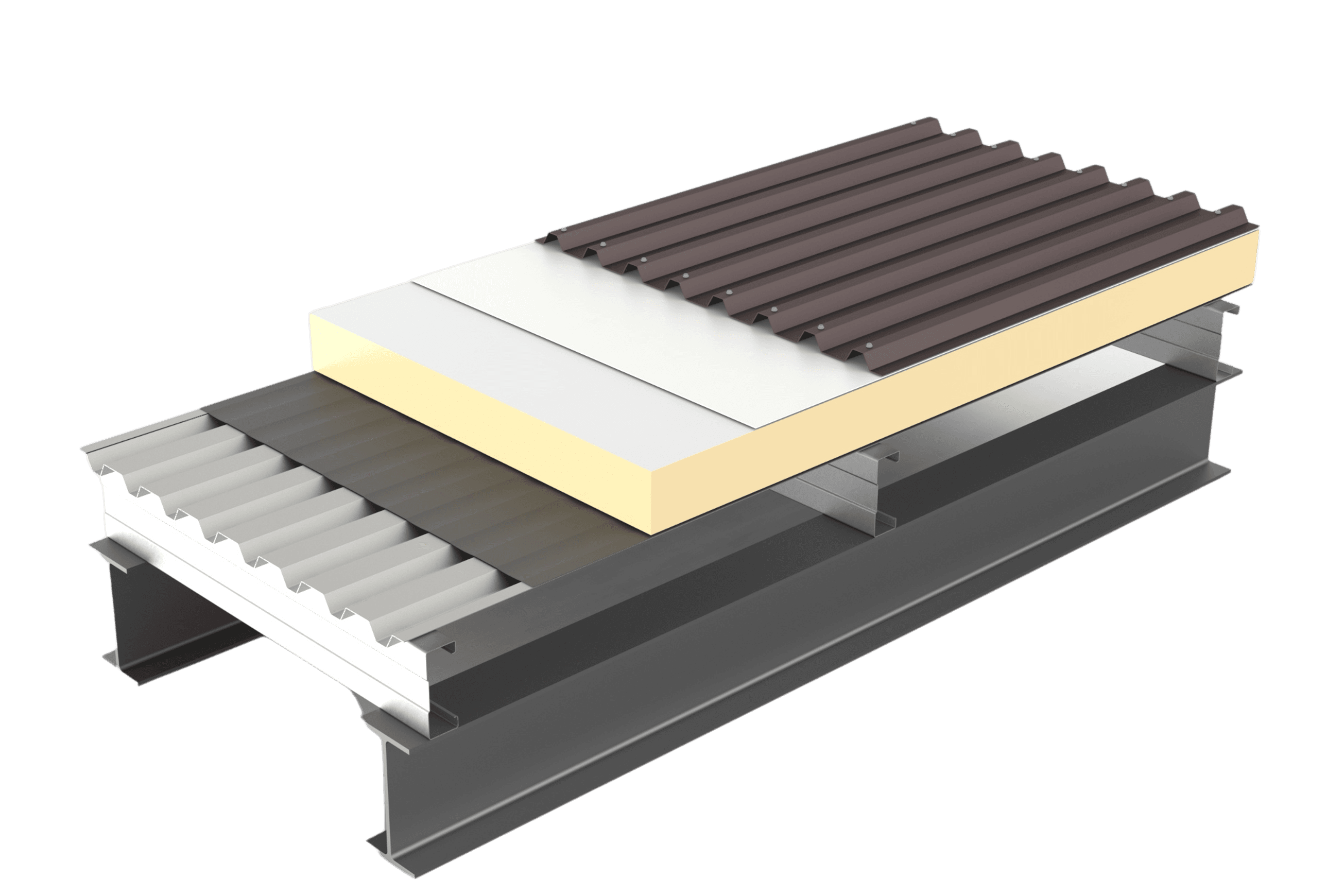

Dimond Advanced Non-Vented, utilizes a two-part water vapour and condensation control system, designed to perform effectively in all environments.
Product Details
- Product
- Dimond Advanced Non-Vented
- Category
- Steel Roofing
- Sold by
- Dimond Roofing
Dimond Roofing is specified by
Milieu: Architecture + DesignArchitects
Origin HeritageArchitects
Chow:Hill ArchitectsArchitects
Houston ArchitectsArchitects
Architecture BureauArchitects
Chaplin Crooks ArchitectsArchitects
Dalman ArchitectsArchitects
Team Green ArchitectsArchitects
BOONArchitects
MJWarchitectureArchitects
Borrmeister ArchitectsArchitects
Dorrington Atcheson ArchitectsArchitects
Hurley ArchitectsArchitects
106 ArchitectsArchitects
WSP ArchitectureArchitects
Sheppard & Rout ArchitectsArchitects
ASC ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Smith ArchitectsArchitects
Edwards White ArchitectsArchitects
HB ArchitectureArchitects
ACH Design LtdArchitectsPac StudioArchitects
Dravitzki Brown ArchitectureArchitects
DLA ArchitectsArchitects
Modal ArchitectureArchitectural Designers
Aspect RoofingRoofing Contractors
Architectural Designers New ZealandAssociations
Bosanac BuildersBuilders
Riverside StudioArchitectural Designers
Warren Adolph HomesBuilders
Aonui ArchitectureArchitecture & Design
Smith ConstructionBuilders
Turnkey HomesBuilders
ArkhēArchitectural Designers
VitruvionConstruction
M C Fearnley DesignArchitectural Designers
Turton BuildersBuilders
Studio H DesignArchitectural Designers
Husk Design + DraftArchitectural Designers
Cove ConstructionBuilders
STyla.designInterior Designers
O'Neil + Shirley ArchitectureArchitectural Designers
TCA GroupArchitectural Designers
Noel Jessop ArchitectureArchitectural Designers
Shaw Building LimitedBuilders
Central RoofingRoof Installers
Jeffrey Dennison BuildersBuilders
Landmark Homes New ZealandBuilders
Architecture StudioArchitectural Designers
Emandee HomesBuilders
eHausDesign & Build
staceyfarrell.comArchitecture & Design
Turner Road ArchitectureArchitectural Designers
Lapp & Toft ArchitectureArchitectural Designers
Anderson ArchitectureArchitectural Designers
ao architectureArchitectural Designers
Falloon BuildersBuilders
Higham ArchitectureArchitectural Designers
J Davis BuildersBuilders
Customizable Thermal Solution.
Dimond Advanced Non-Vented - engineered to redefine thermal efficiency with customizable R-values, effectively mitigating condensation challenges in diverse climates.
Part of the Advanced Roofing System Range, Dimond's Advanced Roofing Systems® is a range of cost-effective roofing systems engineered by Dimond Roofing. Practical, fully detailed and backed by Dimond, our Advanced Roofing Systems are suitable for a range of roofing profiles and are easily optimised for appearance, thermal and acoustic performance, providing the flexibility to enhance performance, all while meeting H1 compliance and client needs.
Dimond Advanced Non-Vented, utilizes a two-part water vapour and condensation control system, designed to perform effectively in all environments.
- Features
Thermal Performance:
- Utilizes PIR board core with customizable R-values (R2.0 to R7.0), ensuring tailored efficiency.
Condensation Management:
- Features a complete vapour barrier layer, separating internal and external environments to eliminate condensation concerns.
- Includes a two-part water vapour and condensation control system with vapour barrier and underlay.
Construction Timelines:
- Streamlines construction timelines with early close-in capability using Liner Deck and a self-adhesive vapour control layer.
Flexibility:
- Offers design flexibility with various options from the Dimond Range, allowing customization based on base metal, coating, and exposure zone.
Other Features:
- Suitable for all environments and cost-effective compared to the vented system.
- Has limitations on sheet length (up to 25m) due to thermal movement.
- Overcomes composite insulated roof panel limitations.
Limitations:
- Not intended for installation over a plywood liner.
- Roof pitch meets the minimum required pitch for the selected top sheet product.
- How it works
The Non-Vented Difference
Identifying the difference between Non-Vented and Vented.

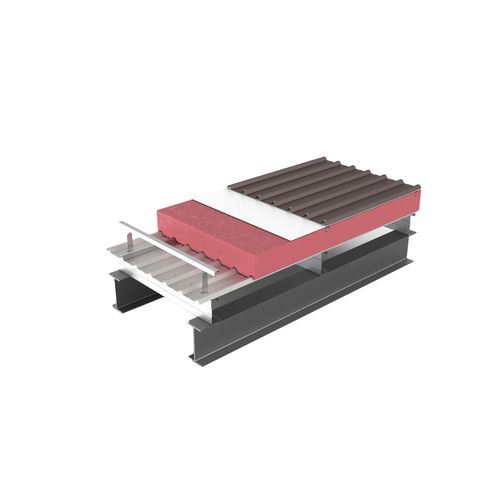

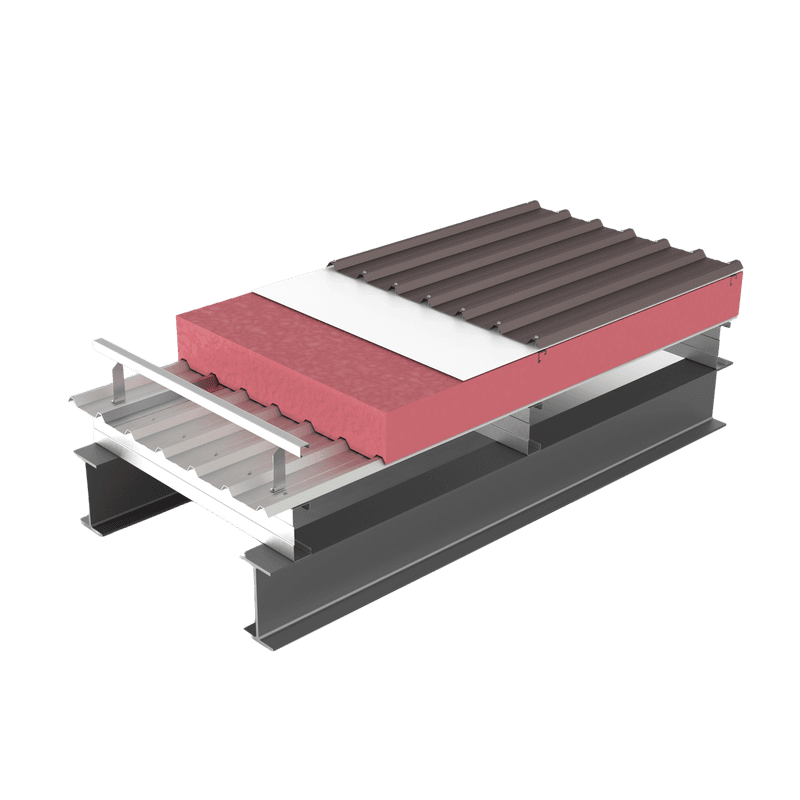

We recommend the vented roof rail on roof sheets over 25m and in freezing climates as the vented rail allows the top sheet to expand and retract separately from the components below. Additionally, in freezing conditions, it serves as a cold deck, minimizing the chances of ice damming.Environmental Challenges
New Zealand's inherently variable climate challenges occupant comfort in buildings, requiring effective insulation and moisture management to maintain year-round comfort and reduce energy consumption. Without the correct systems in place, the fluctuating weather conditions, ranging from hot summers to cold winters, can lead to thermal discomfort and moisture-related issues such as condensation and mould growth. Existing methods often fail to provide custom solutions for effective insulation and vapour barrier needs, resulting in inefficient thermal regulation and increased energy usage.Addressing the Challenge with the Advanced Non-Vented Solution
Dimond Advanced Non-Vented effectively tackles the challenge of New Zealand's variable climate by providing a ground-breaking solution for thermal performance. Its customizable R-values (R2.0 to R7.0) offer tailored efficiency, ensuring optimal insulation for different climatic conditions. The product eliminates condensation concerns with a complete vapour barrier layer, effectively separating internal and external environments to prevent moisture-related issues such as condensation and mould growth.Additionally, Dimond Non-Vented streamlines construction timelines with early close-in capability using NPM Liner Deck and a self-adhesive vapour control layer, ensuring efficient installation and minimizing construction-related disruptions. Compliant with Building Code and NZ Metal Roofing Code standards, Dimond Non-Vented assures weather-tightness, while its separable top skin allows precise customization, overcoming the limitations of composite insulated roof panels.
Furthermore, the integration of the Acoustic Board, Audioperf, effortlessly enhances acoustic performance, providing a comprehensive solution for occupant comfort in buildings across New Zealand's variable climate.
- The Components of the System
View for detail on the components here
