Enviro AAC Panel system 75mm

Solid floor panels for multi-level buildings

Autoclaved Aerated Concrete (AAC) is a lightweight concrete substrate that has all the benefits of building with concrete but its lightweight. The AAC Enviro Floor panels are 75mm thick.

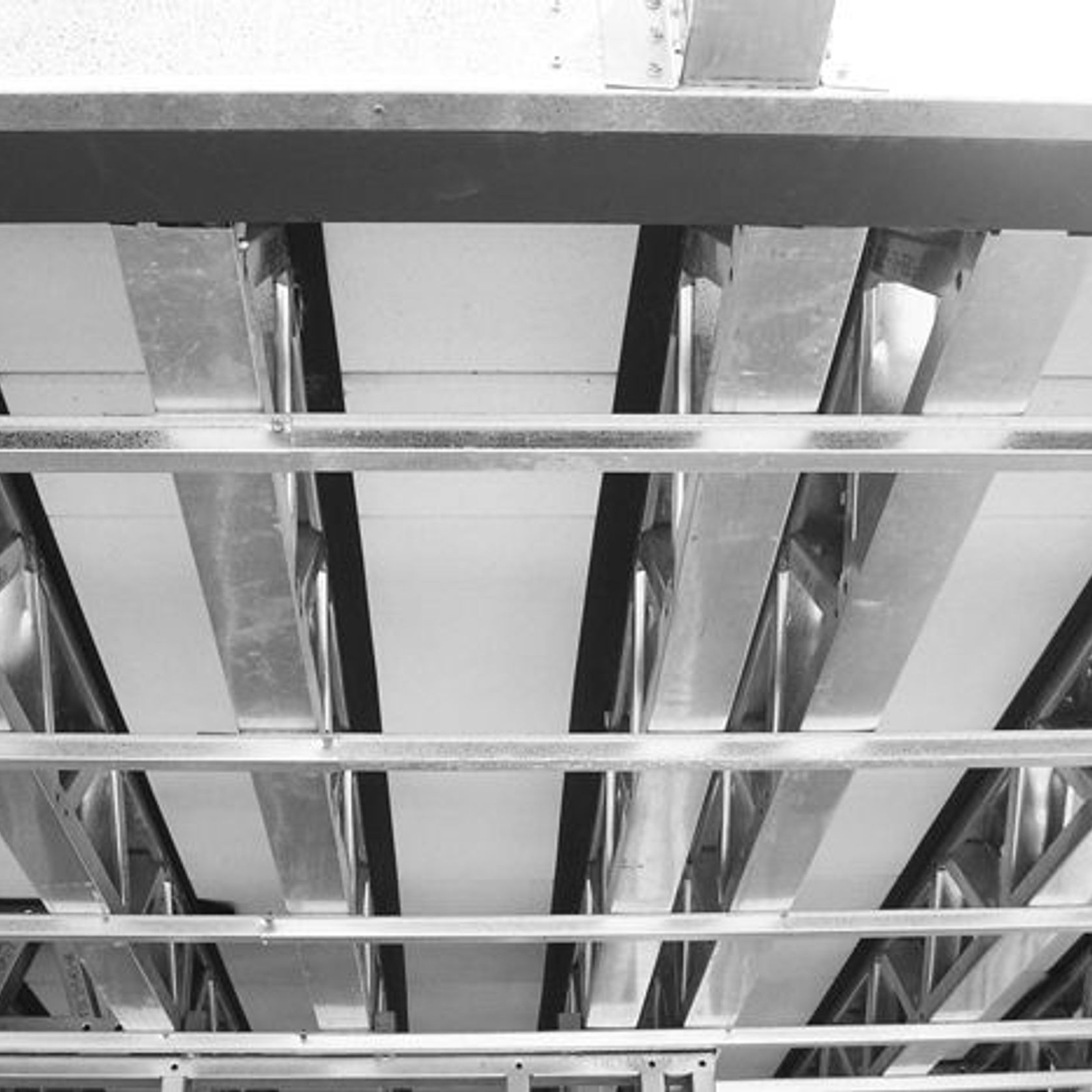

The panels are fixed to the floor framing of the building using galvanised bugle for timber framing or dual grip hexhead screws for steel framing. The panels are 600 mm wide, with a dry density of 520 kg/m3, about 1/5th that of concrete. Enviro 75 mm floor panels are available in a standard length of 2200 mm and upon request can be sourced in 1800 mm panels.

Details
  • Category
    Concrete Flooring
  • Range
    Building Products
Specifications

Dry Density- 525 kg/m3

In Service Density-600 kg/m3

Compressive Strenght- 4.0 MPA

Bending Strenght- 780N – 1000N or above

Dry Shrinkage Value- 0.8mm/m – 0.03% – 0.05% or 0.3-0.5mm/m

Water absorption (by volume)- Up to 30-35%

Thermal conductivity- 0.12 w/mk – 0.13 w/mk

Thermal resistivity- 0.56 m2 k/w

Sound Transmission Loss- 35dB for 1000Hz

Fire Resistance- 1.5 hours – 2 hours

Performance

ENVIRO AND THE ENVIRONMENT

  • Enviro is extremely energy efficient and produces no harmful pollutants during the production process.
  • 1 cubic m2 of raw material makes 4-5 cubic m2 of actually product saving mass earth production
  • Inert material is non hazardous and does not emit harmful gases or vapours
  • All the waste product product at point of manufacture is recycled back into the production process

Economics of Enviro

  • The thermal properties of Enviro are extremely efficient and should help Architects, builders and homeowners reduce their energy consumption.
  • Enviro is installed quickly and efficiently thence reducing vital building time during construction. The convenient sizes of the panel allows onsite cutting and wastage to be kept to a minimum.

Noise reduction

  • Enviro AAC has the unique ability to absorb noise and has a sound insulation value 7dB greater than other solid building materials of the same weight per surface area. The energy-efficient porous structure produces sound absorption along with mechanical vibration energy dampening, giving new dwellings both privacy in a peaceful surrounding, making this product even more environmentally friendly.

Thermal efficiency

  • The porous structure of Enviro has an extremely superior R-value rating than that of other masonry substrates combined with the air flow cavity gives the ability to keep a home warmer in winter and cooler in summer giving the homeowner the added advantage of extra insulation in their home.(see thermal insulation guide www.masonsplastabrick.co.nz)
