EuroSeam Flat-Lock Metal Cladding, supplied by the Linked Group, is an exceptional solution for external wall and roof cladding applications. Designed to combine aesthetic appeal with functional durability, this innovative cladding system is manufactured from high-quality materials, including Colorsteel®, pre-painted or plain aluminium, copper, and zinc, allowing for versatile design options.

Linked Group also provides a comprehensive range of flashings and components to ensure a complete and cohesive installation. The EuroSeam Flat-Lock profile features customizable shapes and sizes, along with the option to incorporate unique pressed patterns. With configurations available in horizontal, vertical, and diamond patterns, this cladding system offers architects and designers the flexibility to create striking facades that enhance any building's architectural expression.

Explore the possibilities with EuroSeam Flat-Lock Metal Cladding to elevate your building’s design and functionality.

Details
  • Category
    Metal Cladding, Facade Screens, Metal Roof Tiles
  • Range
    Azoda™
  • Brand
    EuroSeam™ Azoda™
  • Designer
    Linked Group Architectural Roofing & Cladding Supplier
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Package type
    Special packaging required
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
Specifications

EuroSeam Flat-Lock Metal Cladding offers versatile and durable solutions for architectural facades and roofing. Here’s a summary of its key features and specifications:

Materials:

  • Colorsteel®: 0.55 – 0.75 BMT
  • Aluminium: 0.70 – 0.90 BMT (pre-painted or plain)
  • Copper Finish: 0.60 – 0.80 mm
  • Zinc: 0.70 – 1.0 mm

Design Options:

  • Custom shapes and sizes available
  • Patterns can be pressed into the profiles

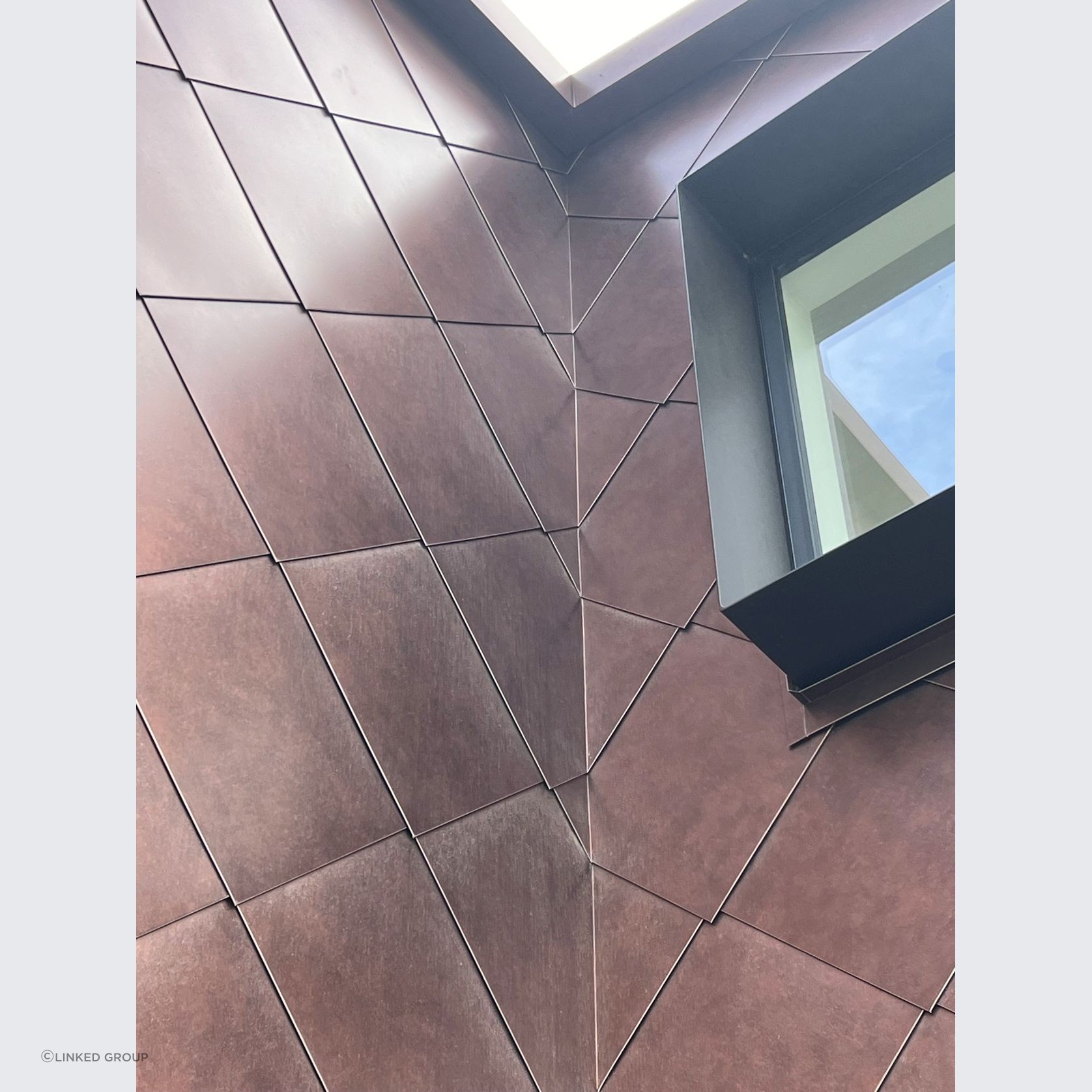

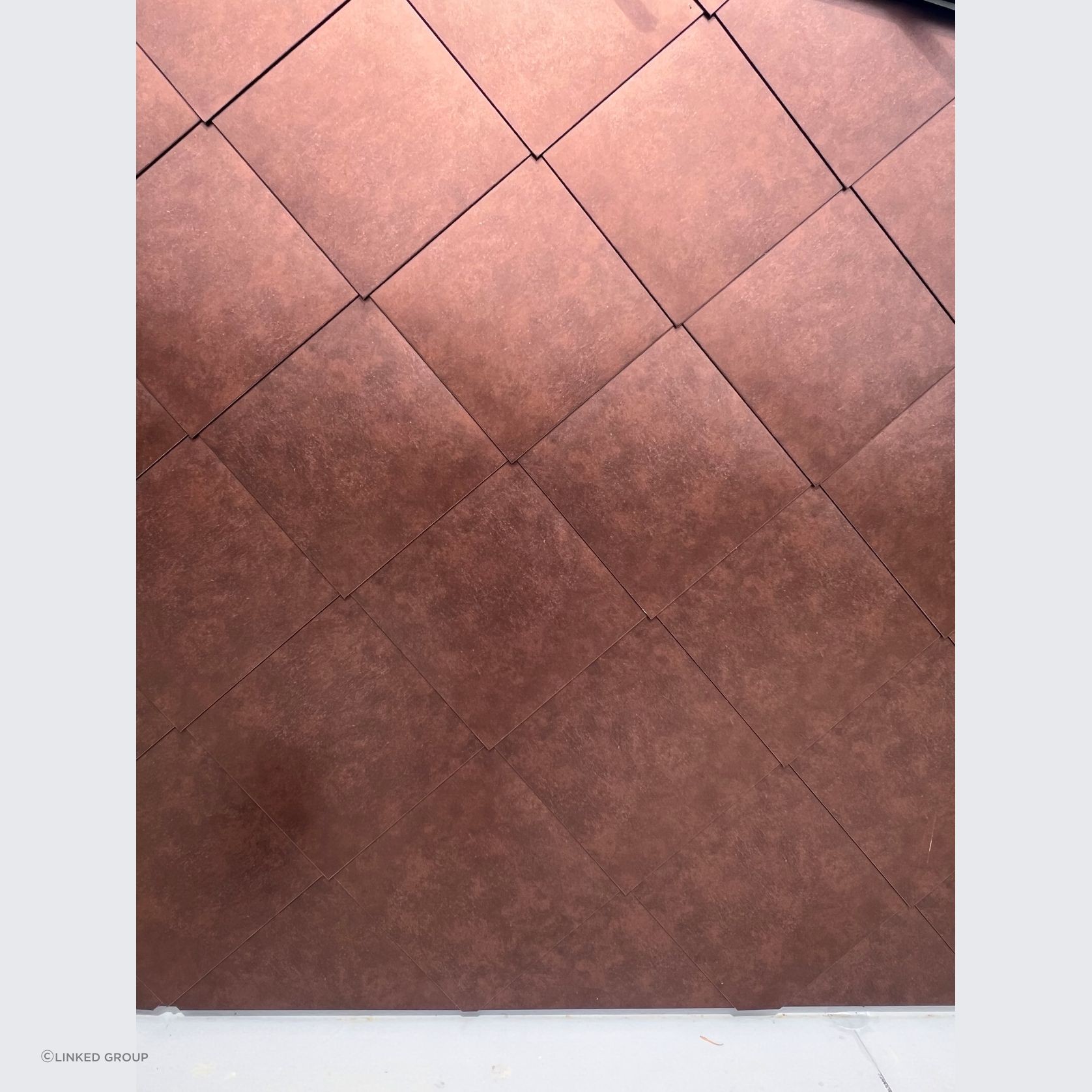

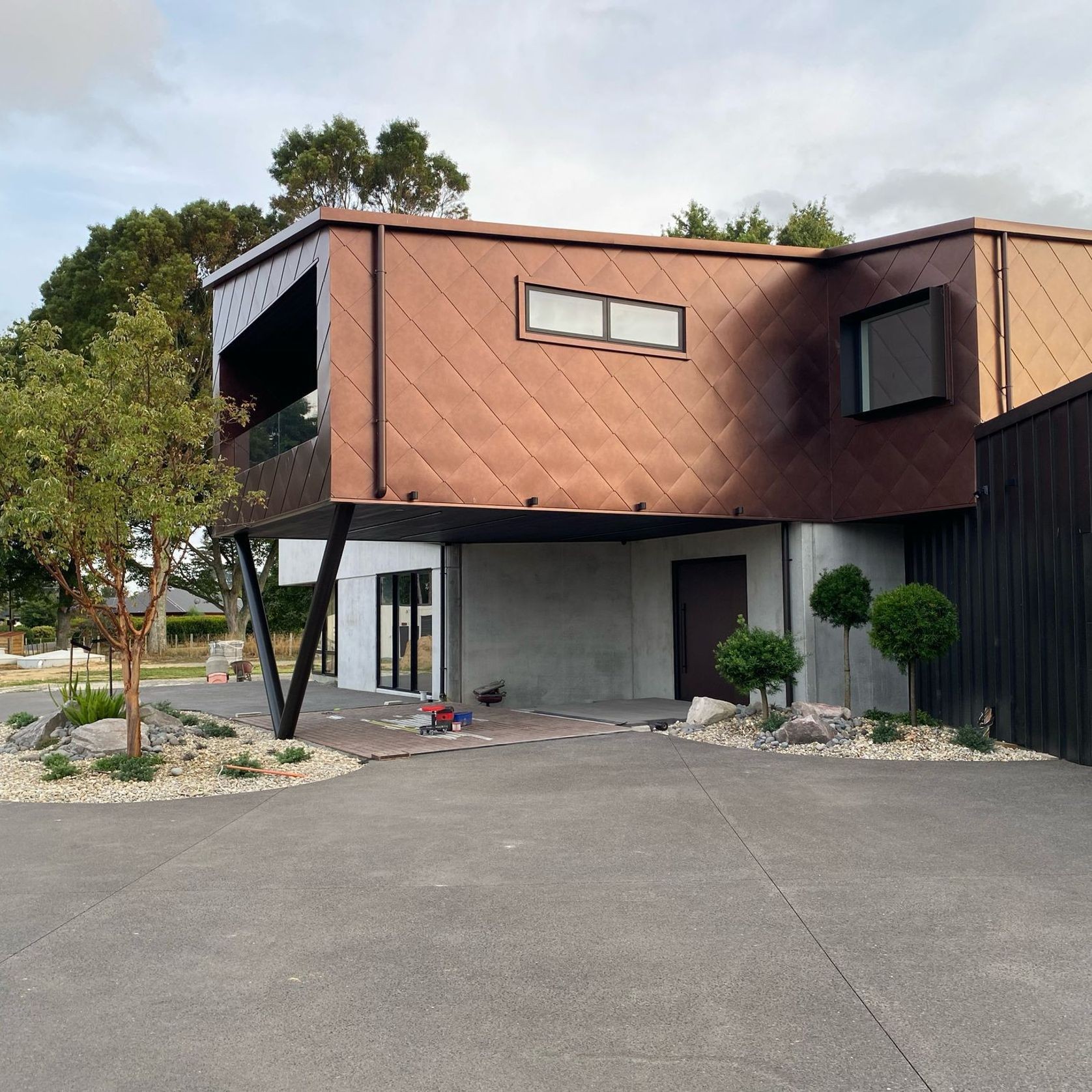

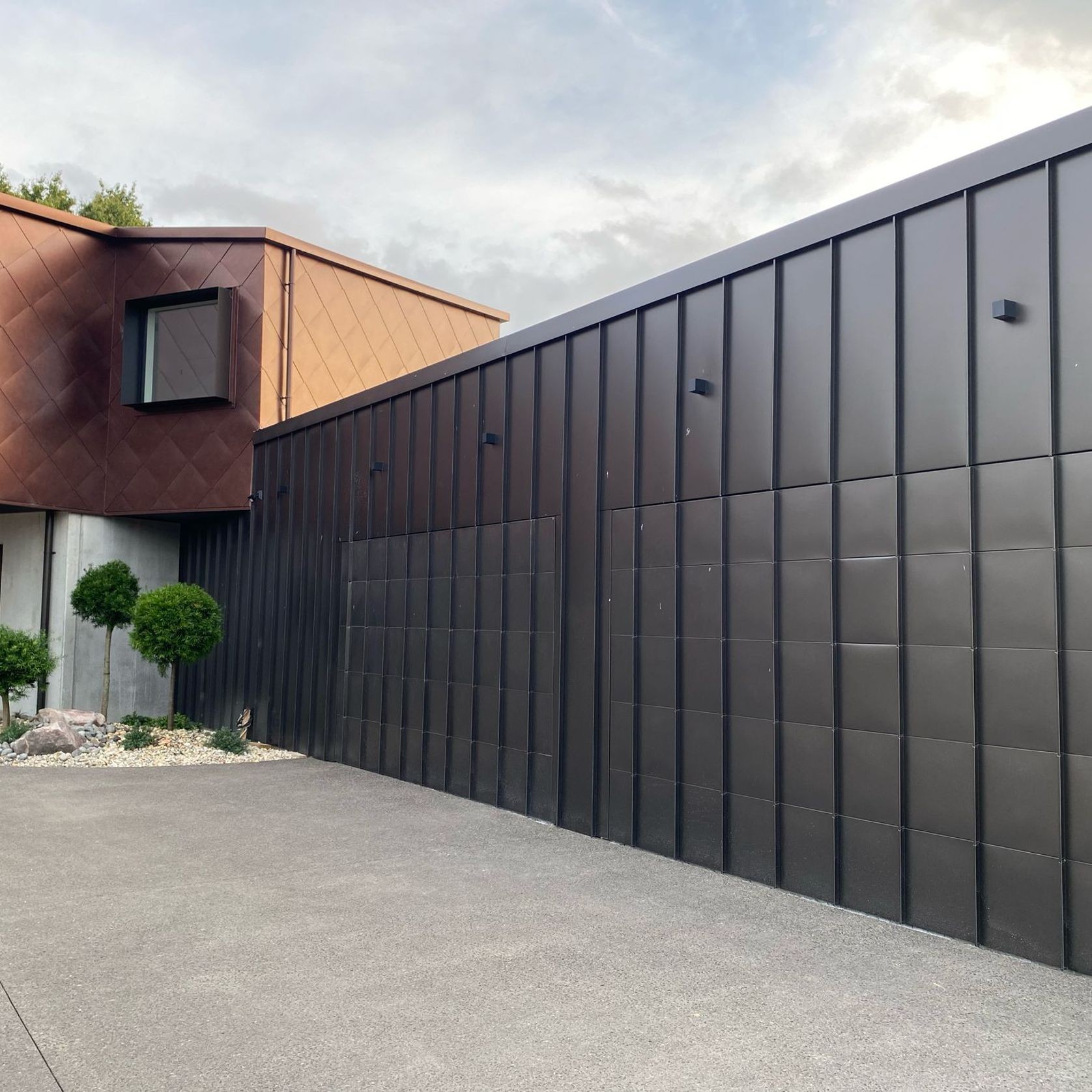

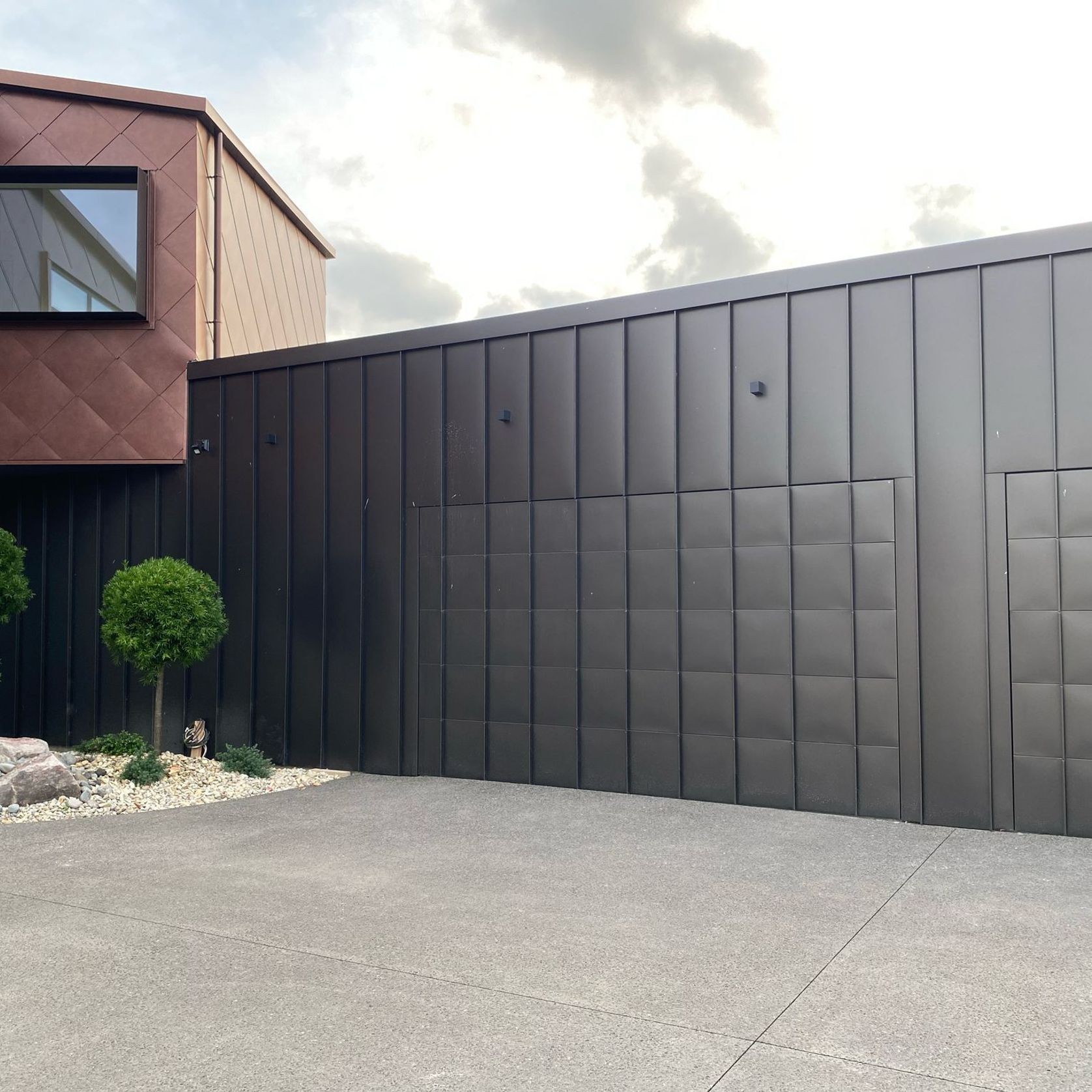

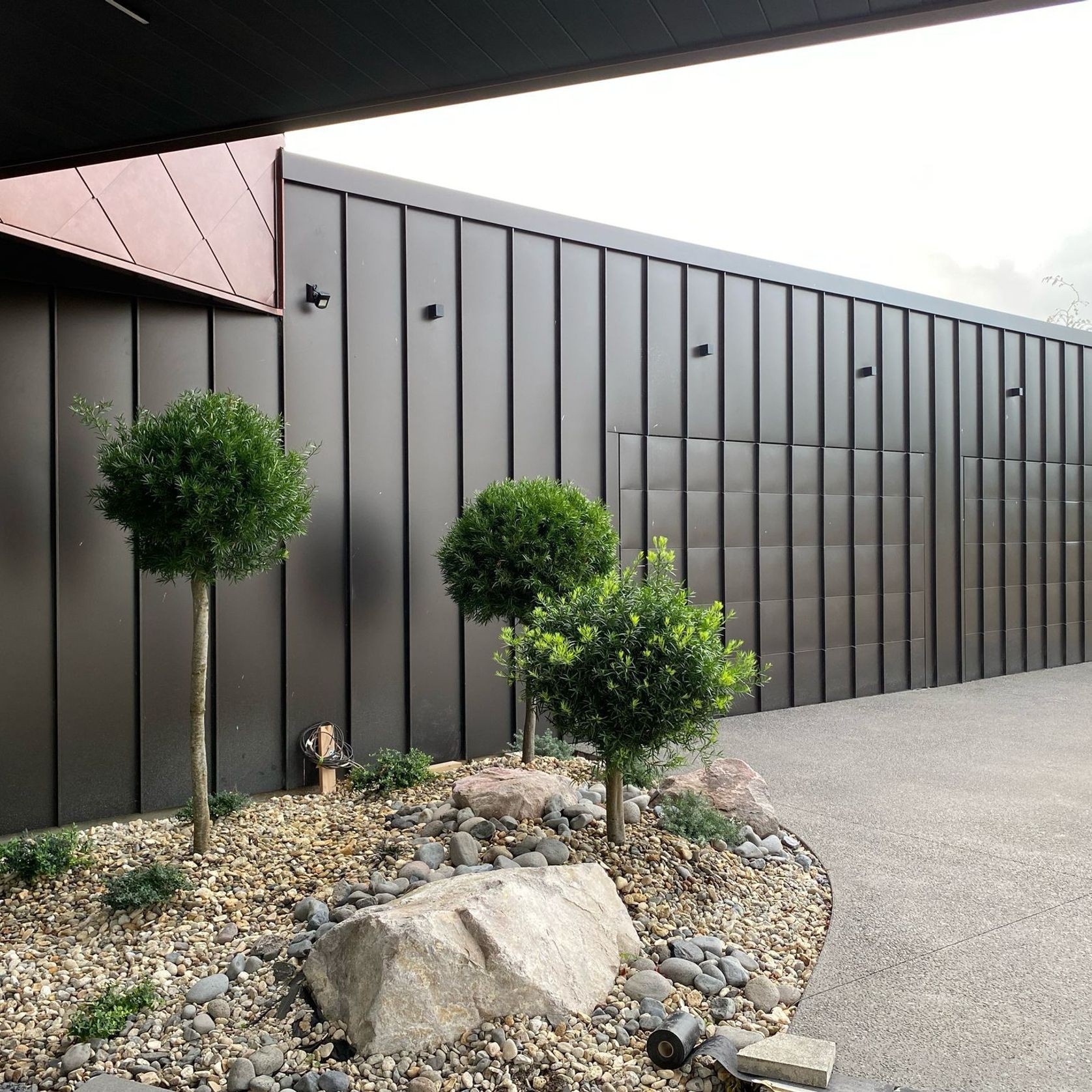

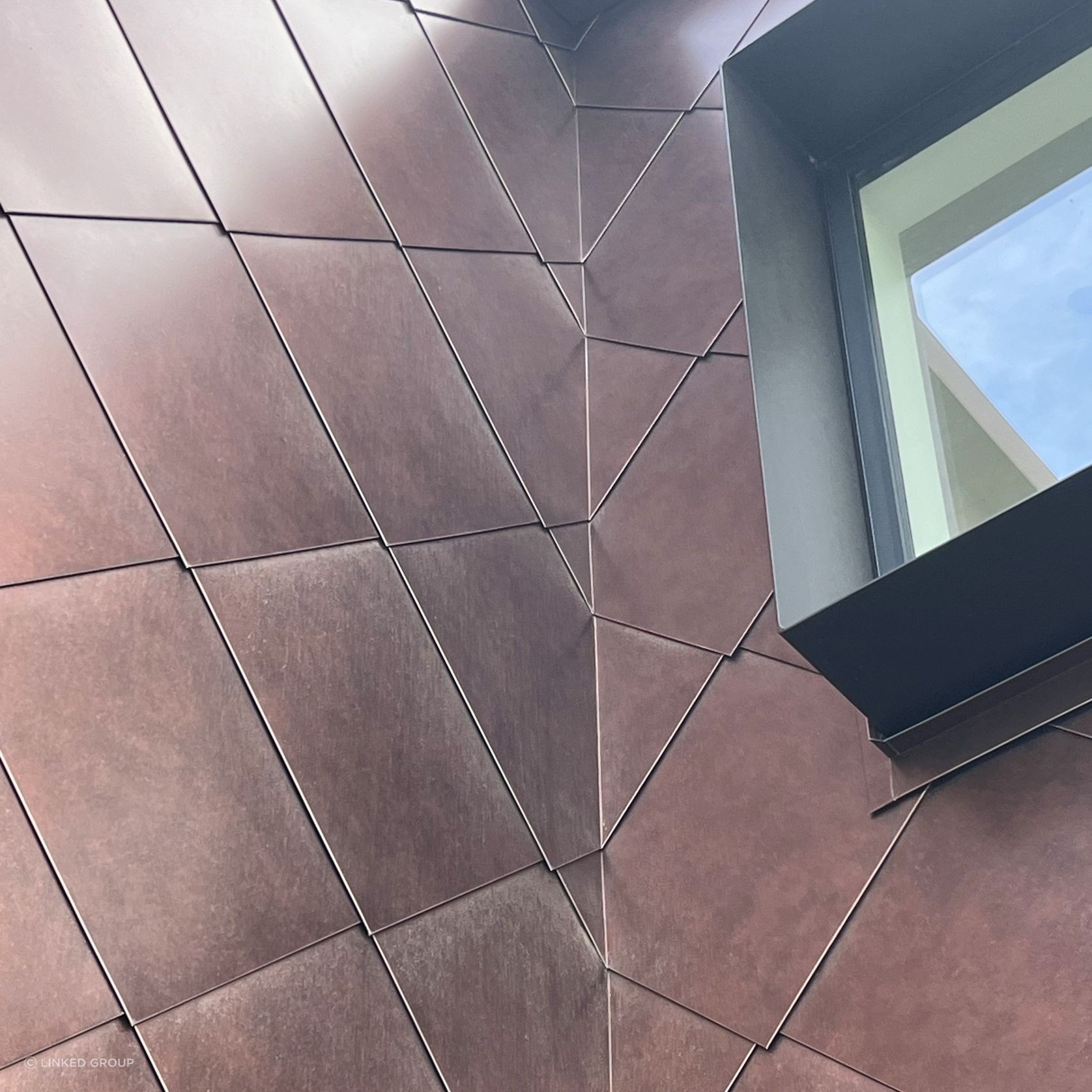

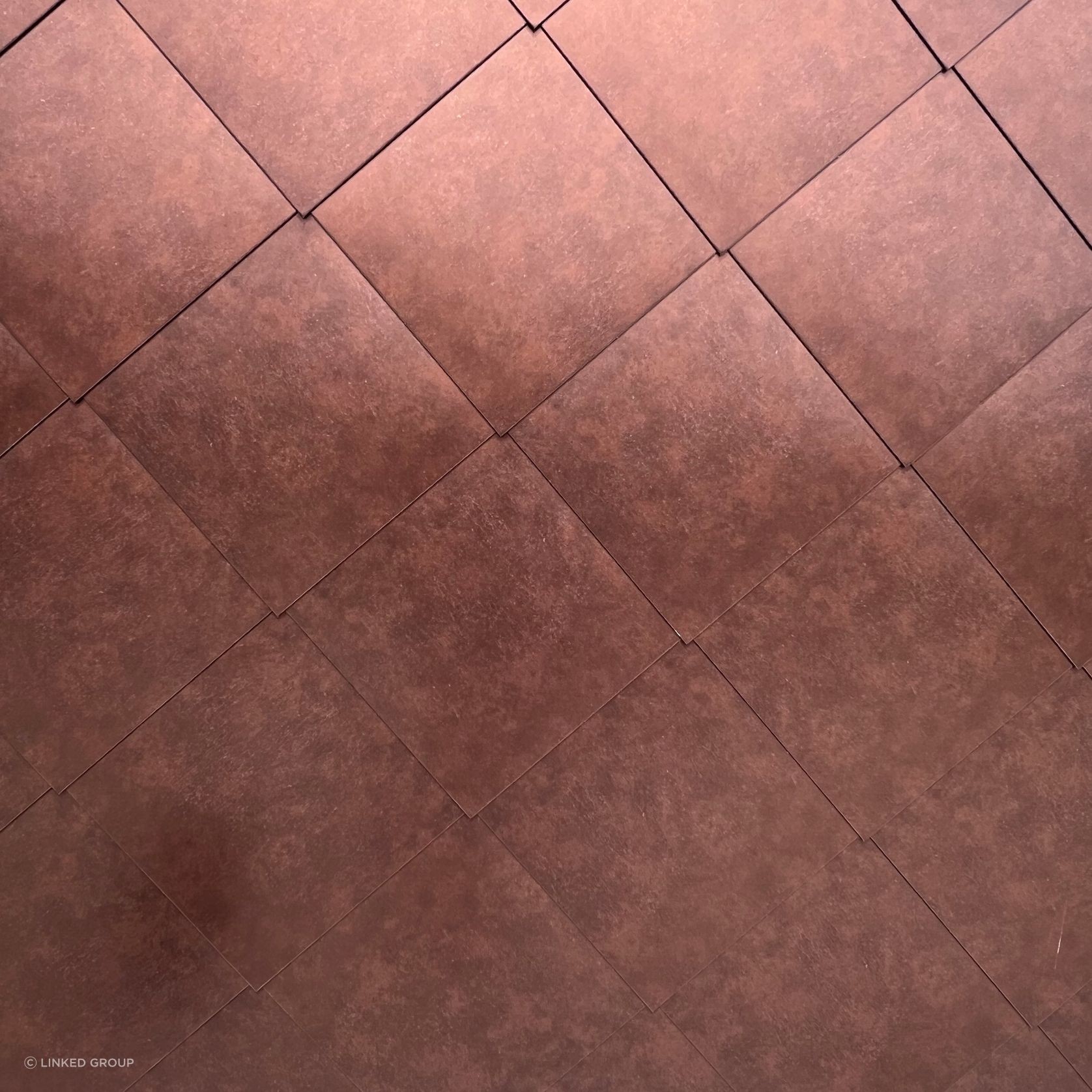

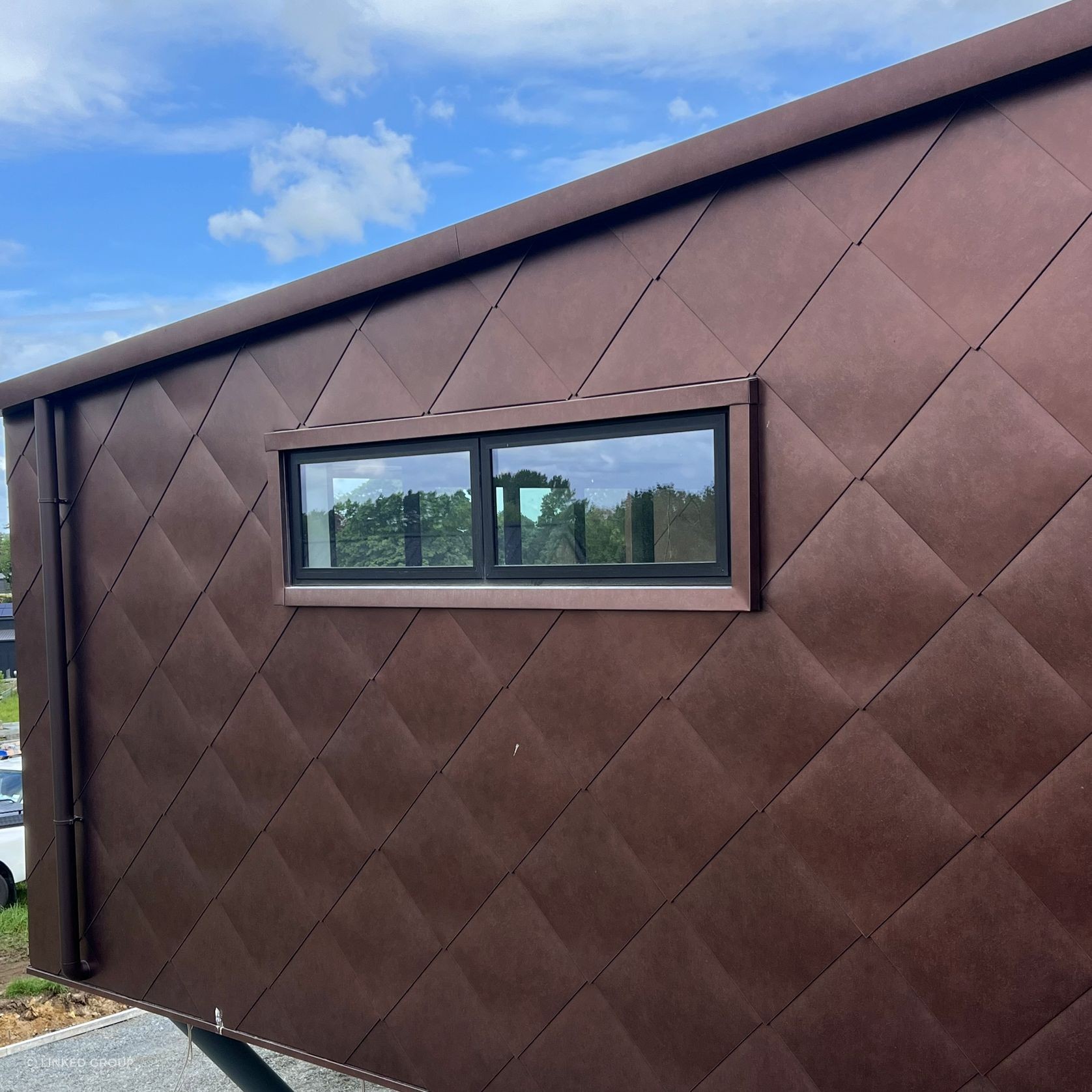

  • Can be utilized in horizontal, vertical, or diamond configurations

Applications:

  • Suitable for both facades and roofing
  • Ideal for complex out-of-plane shaped facades
  • Horizontal and vertical patterns can be used interchangeably for added design flexibility

Profile Dimensions:

  • Typical areas for profiles 570 mm & 370 mm

Installation:

  • Profiles interlock at the flat seam

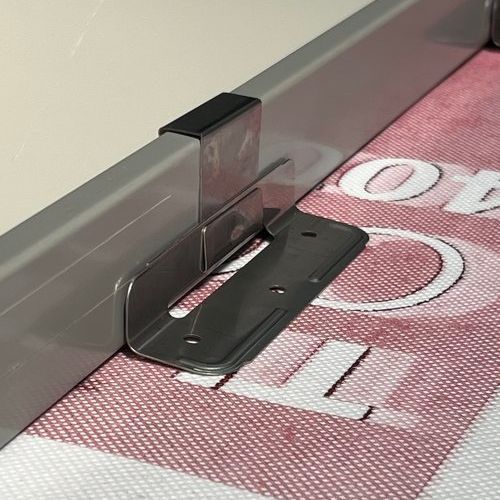

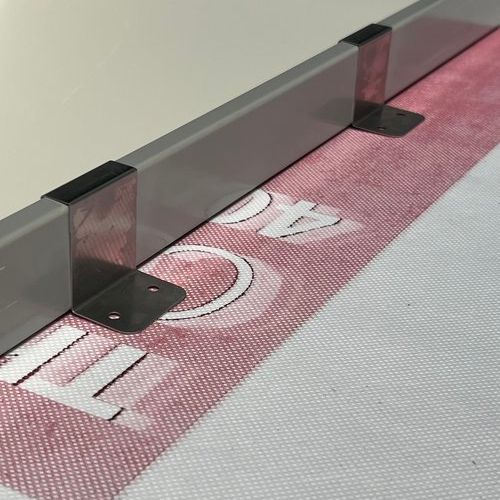

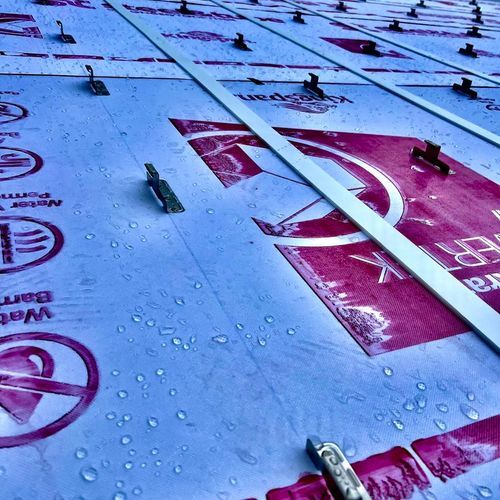

  • Fixed with stainless-steel or hot-dipped galvanized angular fixings, spaced at 200 mm, on a 15 mm plywood substrate
  • Recommended installation includes a vertical anti-canning layer between the building underlay and the cladding for improved performance

This product is beneficial for architecturally complex projects, providing aesthetic versatility and structural integrity. If you have any specific questions or need further information, feel free to ask!

Scope of use
  • Flat Lock Metal Cladding must be installed in accordance with all Linked Group requirements.
  • Timber framing must have a maximum moisture content of 18% at installation to reduce contraction and excessive canning.
Installation

For design, installation and maintenance information, refer to linkedgroup.co.nz.
