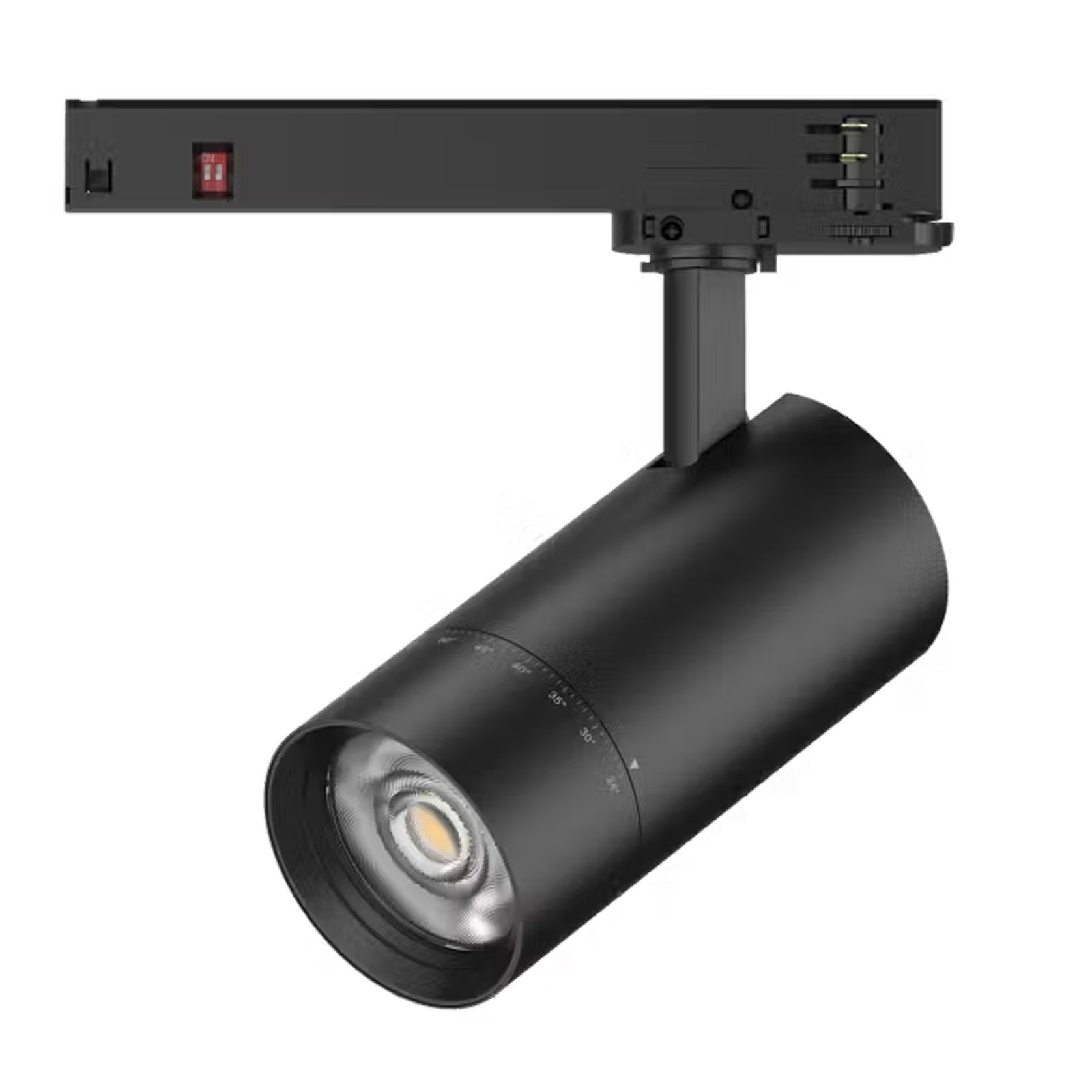

Frankton HW149BK Track and Spot Lighting

Prolux Lighting
Visit Website

A stylish and slimline lighting solution, this IP20-rated die-cast aluminium fixture comes in sleek white or black.

With a selectable wattage of 20W/25W/30W/35W COB LED, it delivers a brilliant 1700 - 3850 lumen output with selectable CCT (3K, 4K, 5K) to set the perfect ambiance. Compact yet powerful at 80mm diameter x 171mm long.

The Frankton features an adjustable beam angle from 24° to 60°, ensuring ability to focus the illumination, while its dimmable feature offers complete lighting control. Ideal for galleries and museums. Designed with an integrated lamp and driver for seamless performance. For use with Prolux HW4 Commercial Track.

Details
Attributes
  • Functional features
    Adjustable
  • Lighting type
    Direct light
  • Light bulb type
    LED
  • Fitting type
    • Suspended
    • Surface-mounted
Specifications

IP20 die-cast aluminium

240V 20W / 25W / 30W / 35W COB LED

Colour temperature: Selectable 3000K, 4000K or 5000K LED

Output: 1700–3850 lumens

Dimmable

Adjustable beam angle: 24°–60°

Adjustable tilt angle

Head size: 171L × 80mm diameter

Integrated lamp and driver

3-phase tracking

Includes track adaptor for Prolux HW4 Commercial Track

Available in black or white finishes

Scope of use

In combination with the Prolux HW4 Commercial Track system, the Frankton is ideal for a range of commercial applications including galleries, museums, retail spaces, and hospitality environments. Its high output, adjustable beam angle and selectable colour temperature provide flexible, focused illumination for accent, display, and feature lighting.
