How much does the HT Single Circuit Track cost?

Prolux Lighting does not publish a price for the HT Single Circuit Track on ArchiPro. Send them an enquiry for pricing, or visit their website.

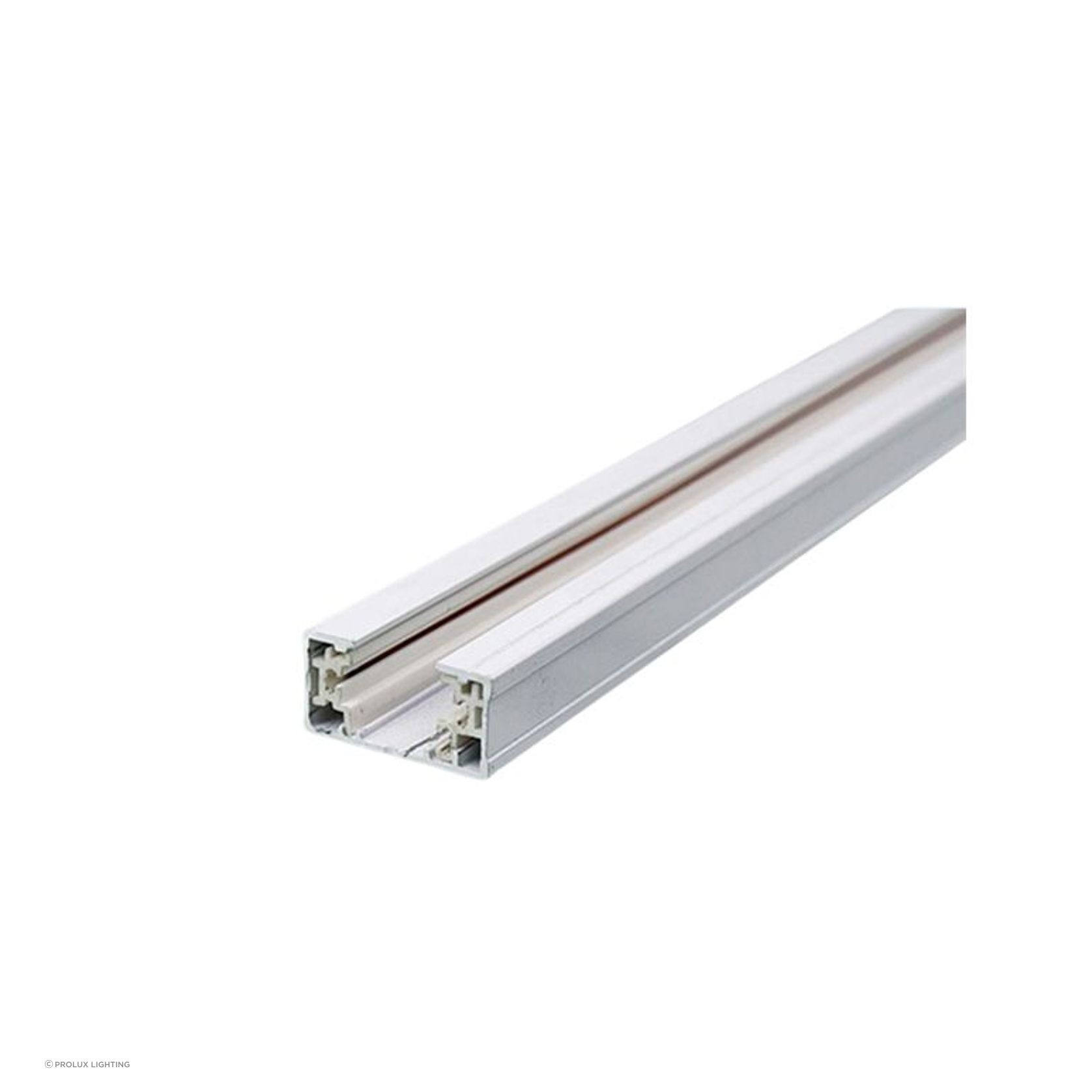

HT Single Circuit Track

Name: HT Single Circuit Track
Brand: Prolux Lighting

by Prolux Lighting

Auckland, New Zealand

589.5K profile views
93 saves

Visit Website

White, Black, Silver
IP20 Aluminium
240V 16amp
One circuit/ three wire track system - phase, neutral & earth
Length options: 1.0m, 1.5m, 2.0m, 3.0m (Silver not available in 3M)
End feed & end cap included

Compatible with:

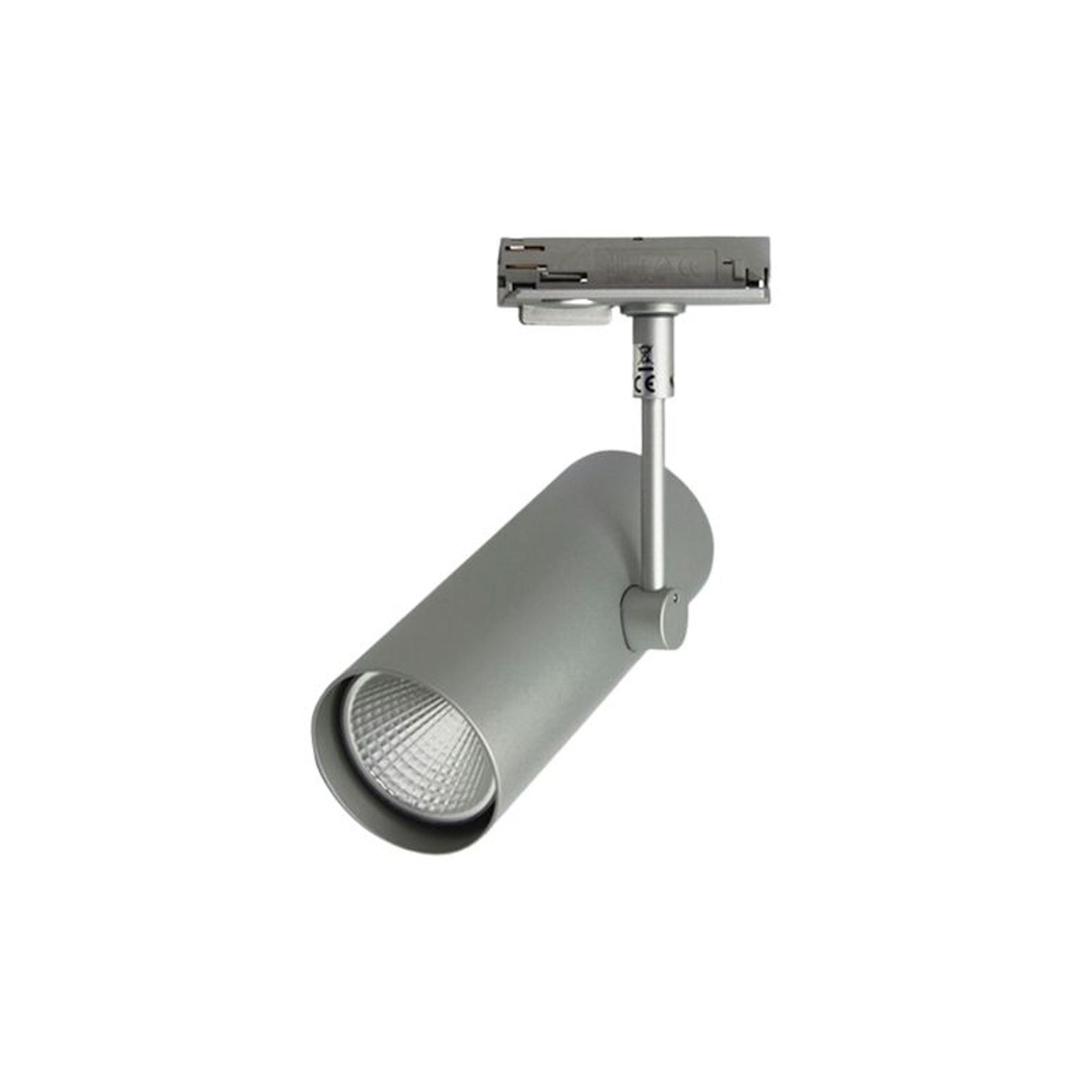

HT Spots. (Spots are listed in the Indoor section, under Track spots)

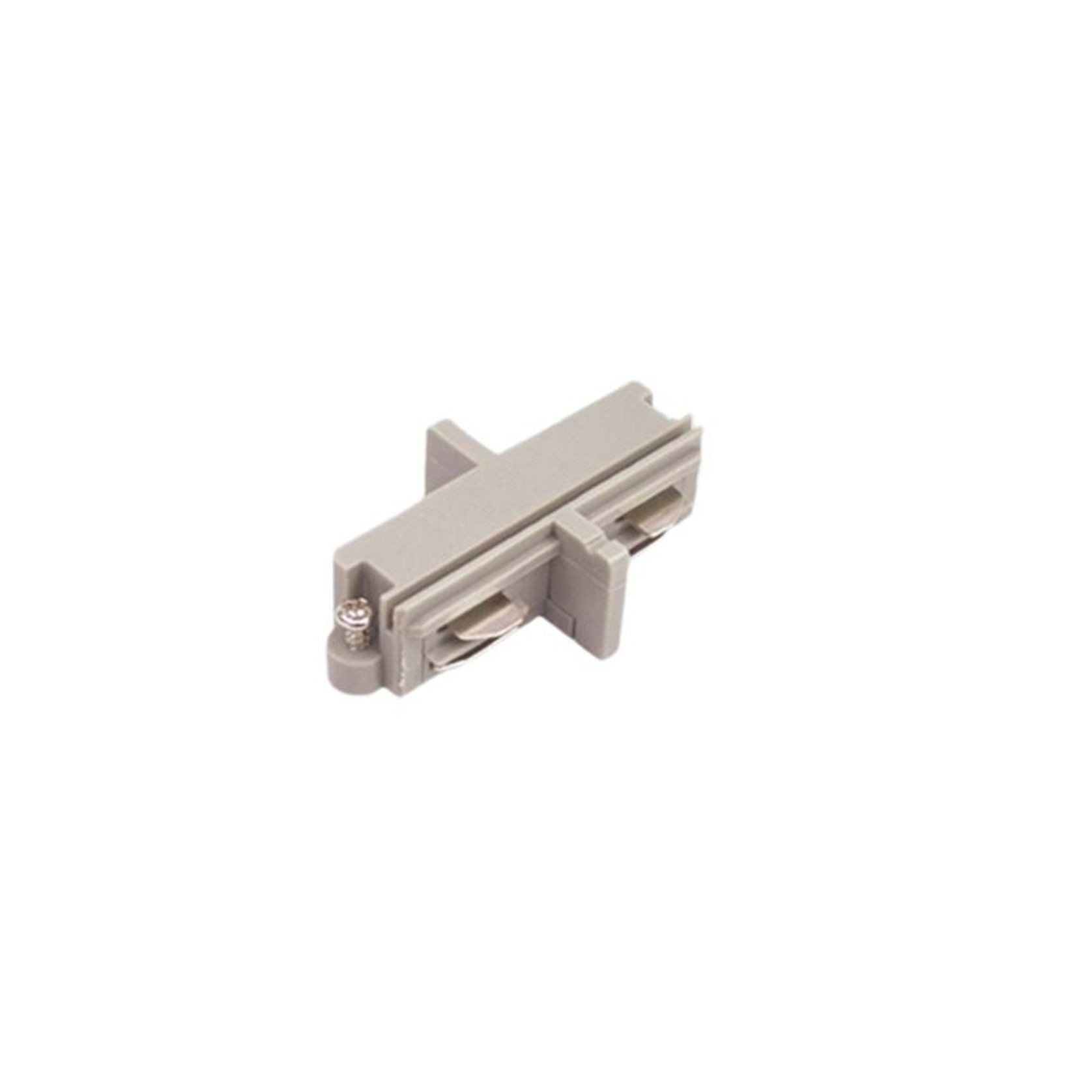

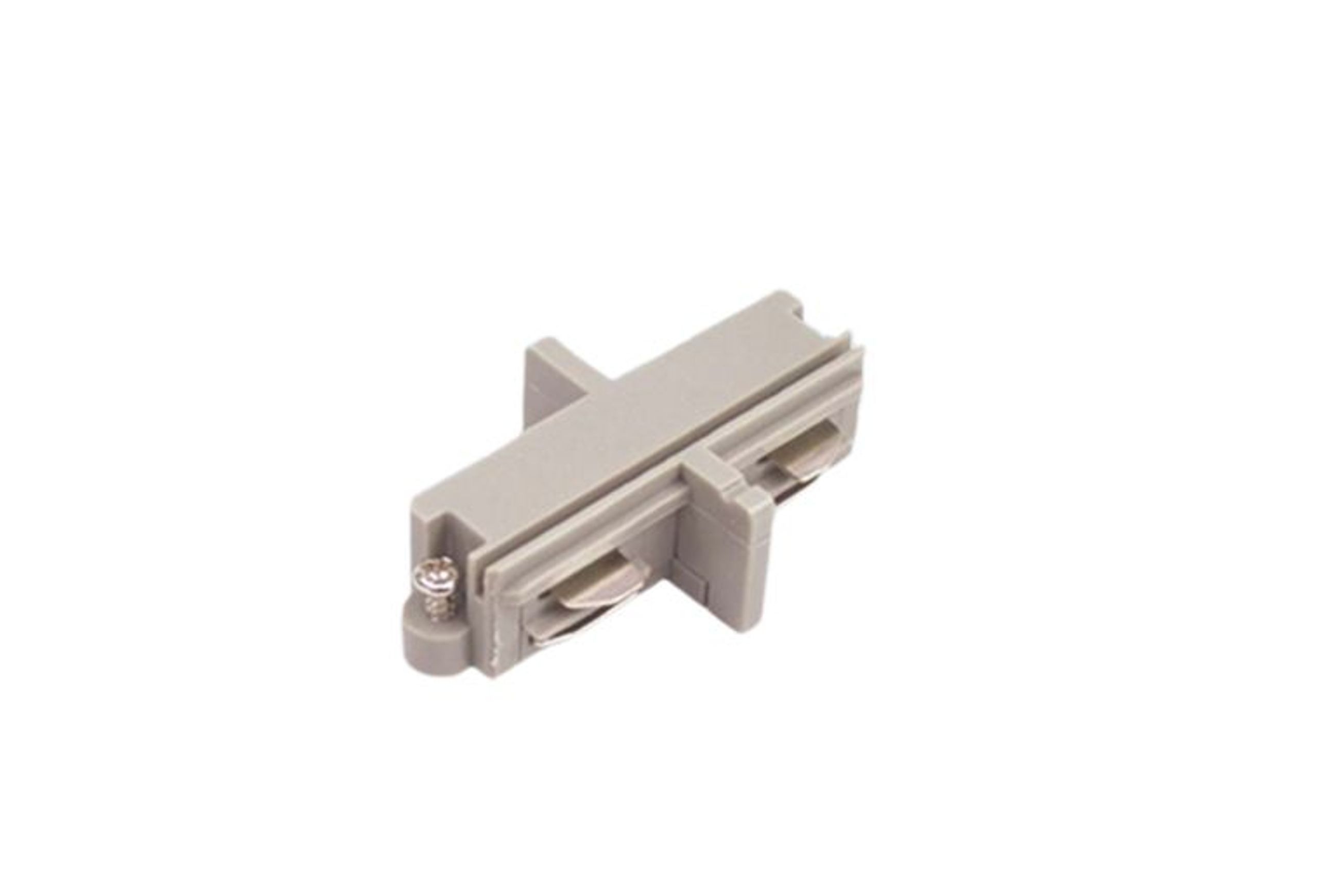

HT/J01 (White, Black, Silver). Joiner for HT track.

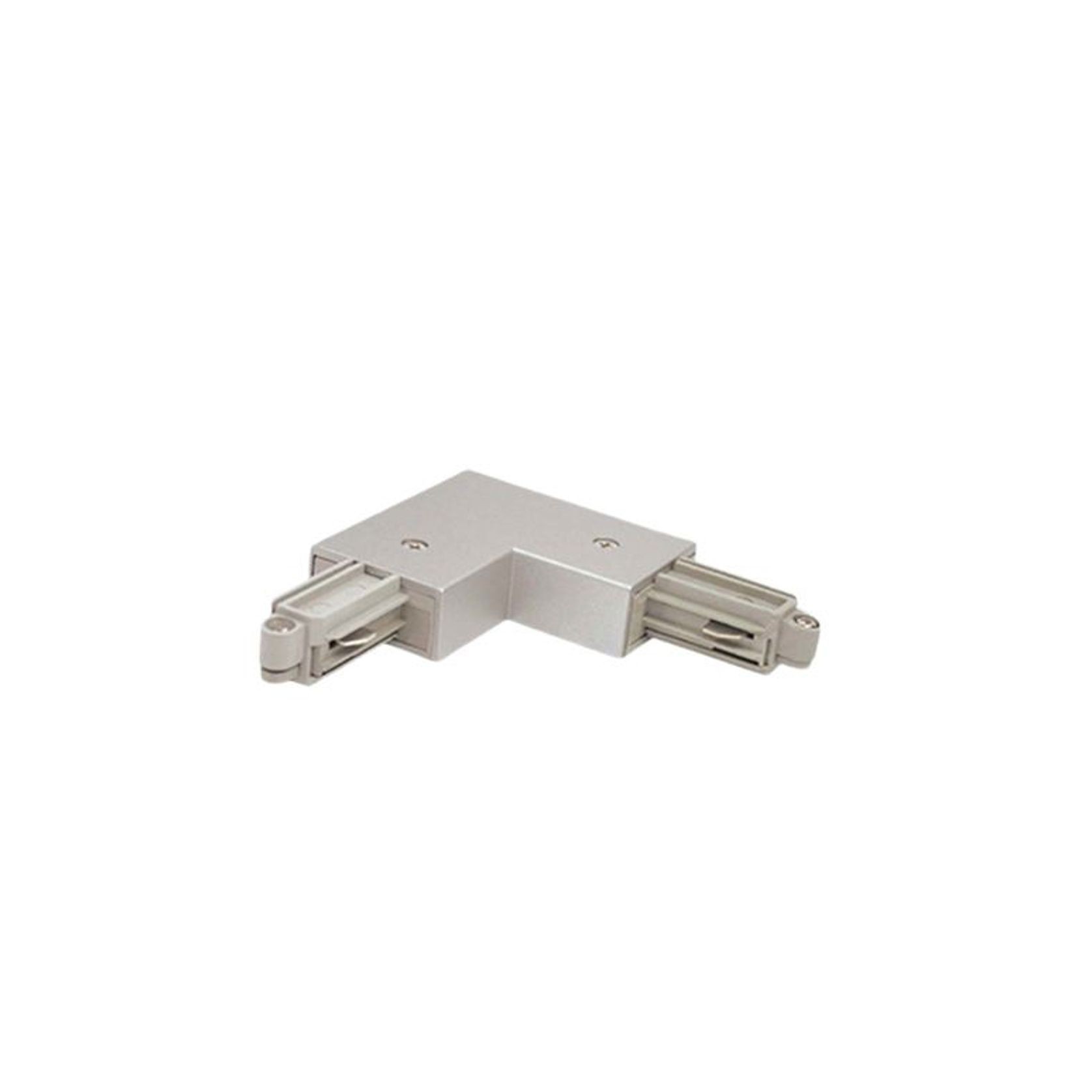

HT/J02 (White, Black, Silver). Right angle bend for HT track.

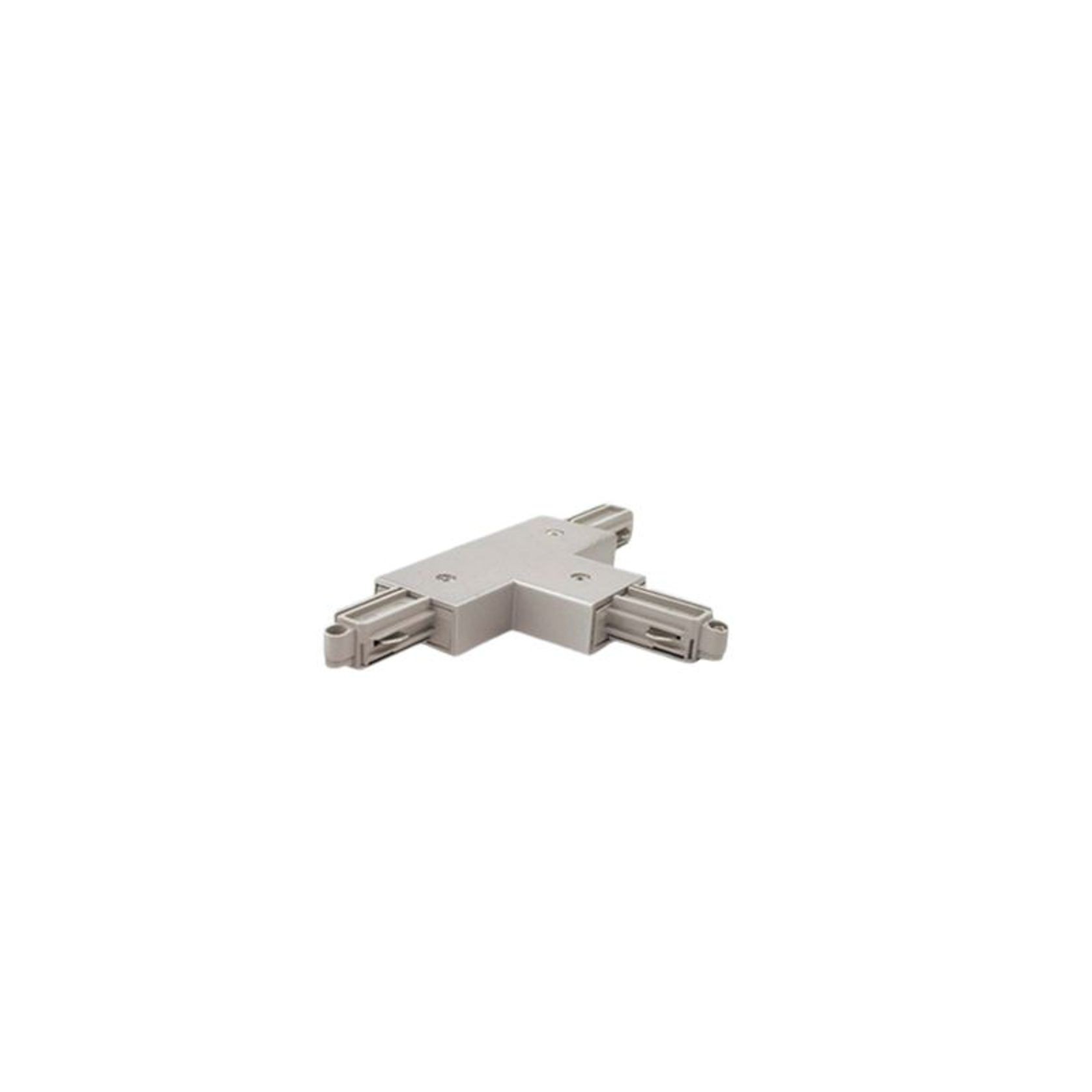

HT/J03 (White, Black, Silver). T Joiner for HT track.

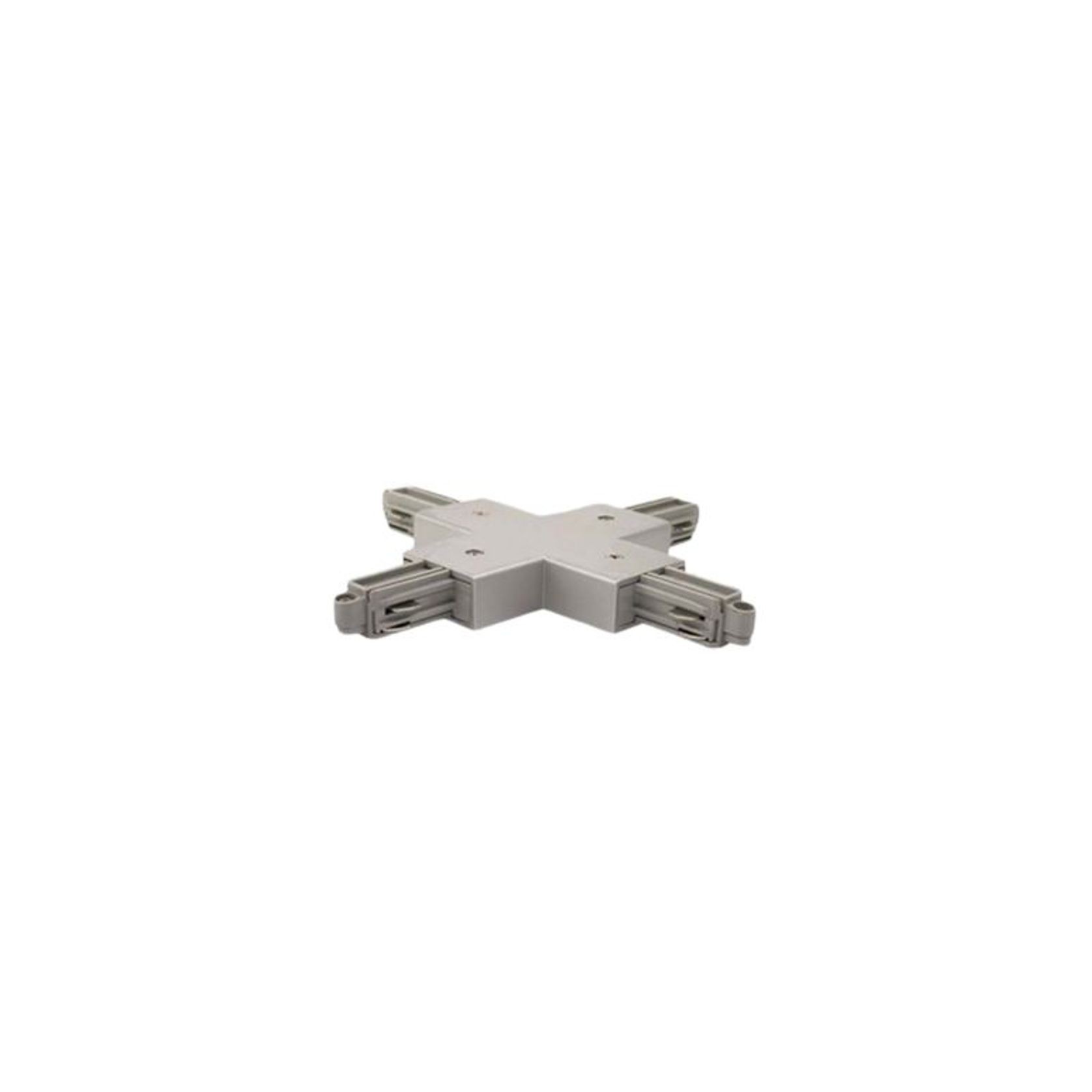

HT/J04 (White, Black, Silver) X Joiner for HT track

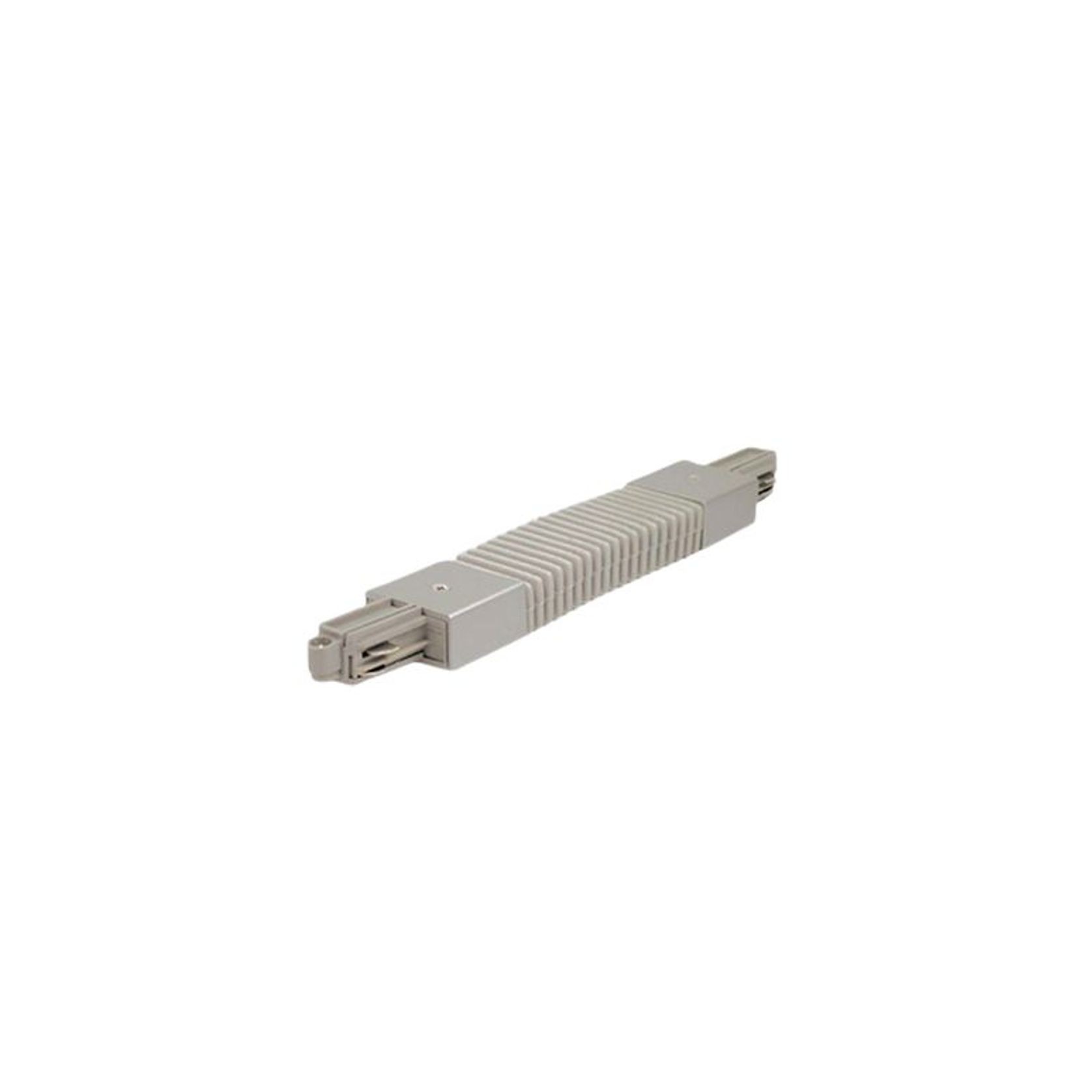

HT/J05 (White, Black, Silver). Flexible bend for HT track.

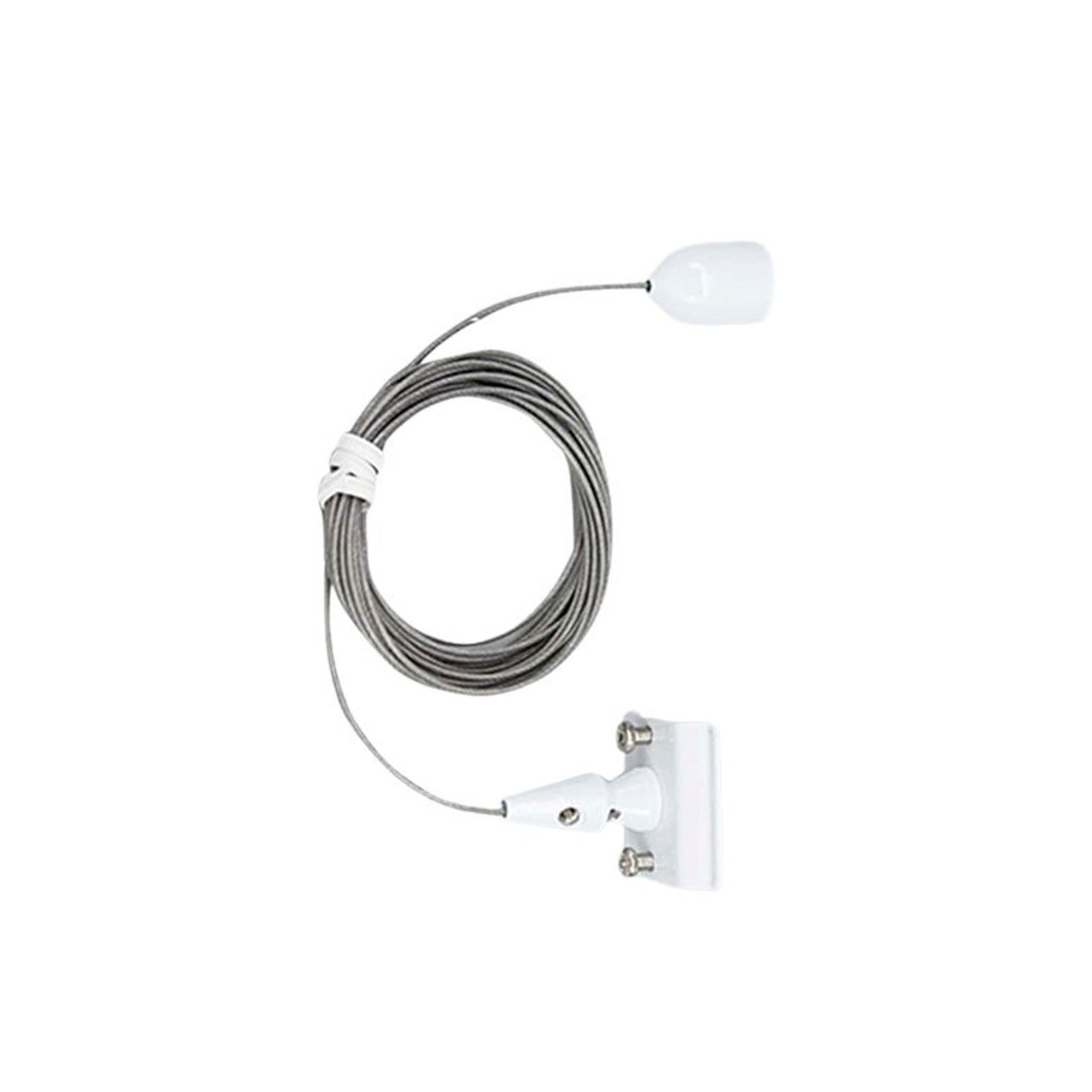

HT/J09 (White, Black, Silver) Suspension kit. Drop: 3m. Slots into top of track.

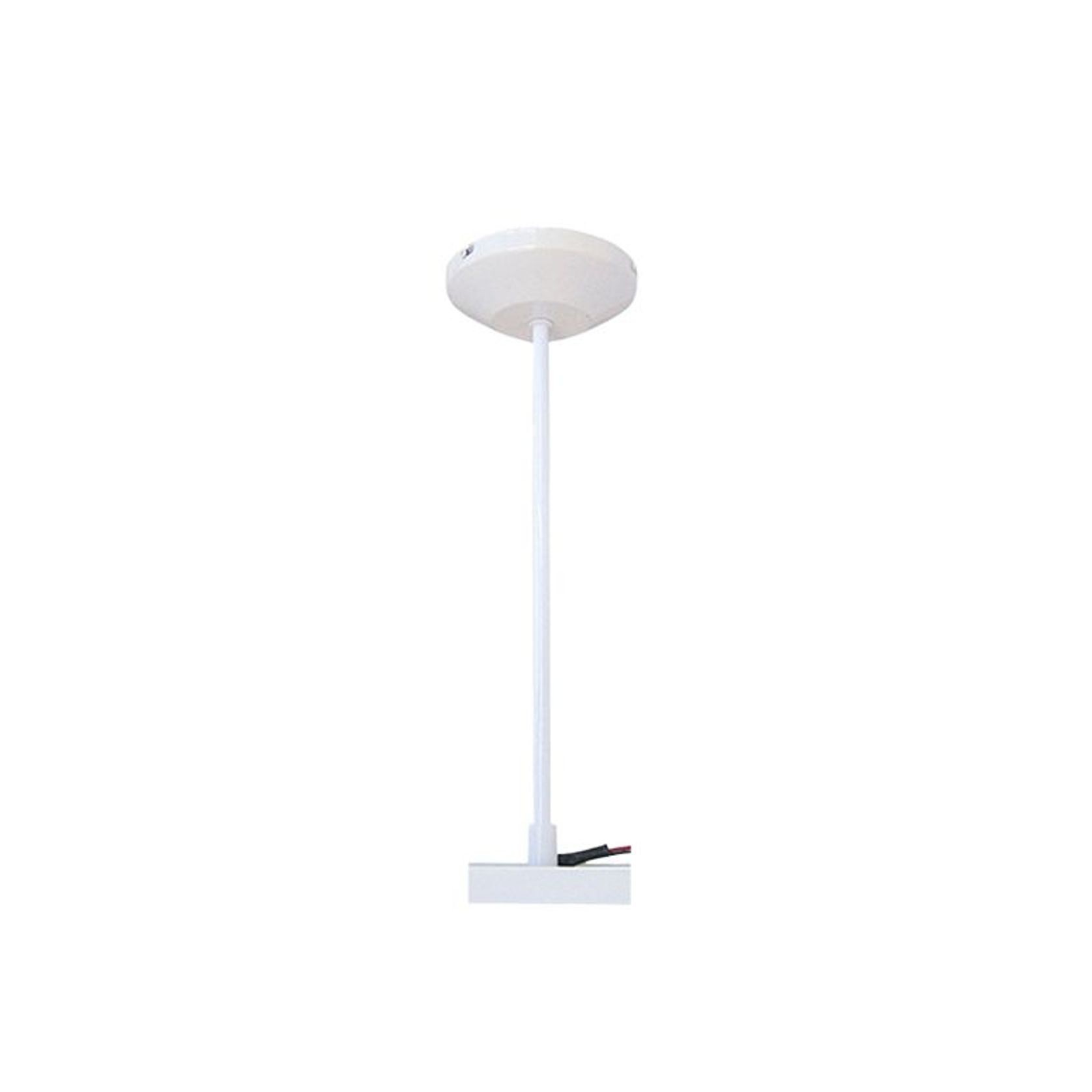

HW-BR (White, Black, Silver) Rod support. Feed can go down the rod. Rod length: up to 1m. Case plate: 120diam
HW-J06 (White, Silver, Black) Rod support for HW4 track. Power cannot feed down rod. Length: 0.2m - 1m

Tags

track lights ceiling lights lighting track interior lighting wire track system

Product Details

Product: HT Single Circuit Track
Category: Track Lights
Sold by: Prolux Lighting
Range: Track Systems
Brand: Prolux Lighting
Orientation: Vertical
Lighting type: Direct light
Light bulb type: LED
Fitting type: Surface-mounted

Prolux Lighting is specified by

(49) Professionals

Visit site

(Spots are listed in the Indoor section, under Track spots) HT/J01 (White, Black, Silver). Joiner for HT track. HT/J02 (White, Black, Silver). Right angle bend for HT track. HT/J03 (White, Black, Silver). T Joiner for HT track. HT/J04 (White, Black, Silver) X Joiner for HT track HT/J05 (White, Black, Silver). Flexible bend for HT track. HT/J09 (White, Black, Silver) Suspension kit. Drop: 3m. Slots into top of track. HW-BR (White, Black, Silver) Rod support. Feed can go down the rod. Rod length: up to 1m. Case plate: 120diam HW-J06 (White, Silver, Black) Rod support for HW4 track. Power cannot feed down rod. Length: 0.2m - 1m

White, Black, Silver IP20 Aluminium 240V 16amp One circuit/ three wire track system - phase, neutral & earth Length options: 1.0m, 1.5m, 2.0m, 3.0m (Silver not available in 3M) End feed & end cap included Compatible with: HT Spots.

(Spots are listed in the Indoor section, under Track spots)

HT/J01 (White, Black, Silver). Joiner for HT track.

HT/J02 (White, Black, Silver). Right angle bend for HT track.

HT/J03 (White, Black, Silver). T Joiner for HT track.

HT/J04 (White, Black, Silver) X Joiner for HT track

HT/J05 (White, Black, Silver). Flexible bend for HT track.

HT/J09 (White, Black, Silver) Suspension kit. Drop: 3m. Slots into top of track.

HW-BR (White, Black, Silver) Rod support. Feed can go down the rod. Rod length: up to 1m. Case plate: 120diam

HW-J06 (White, Silver, Black) Rod support for HW4 track. Power cannot feed down rod. Length: 0.2m - 1m

Specs

SUITABILITY: Indoor

MATERIAL: Aluminium

COLOURS: White, Black, Silver

OPERATING VOLTAGE: 240V AC

WATTAGE: MAX 16Amps

FITTING SIZE:1000MM LONG 35mm W x 18mm H

IP RATING: IP20
