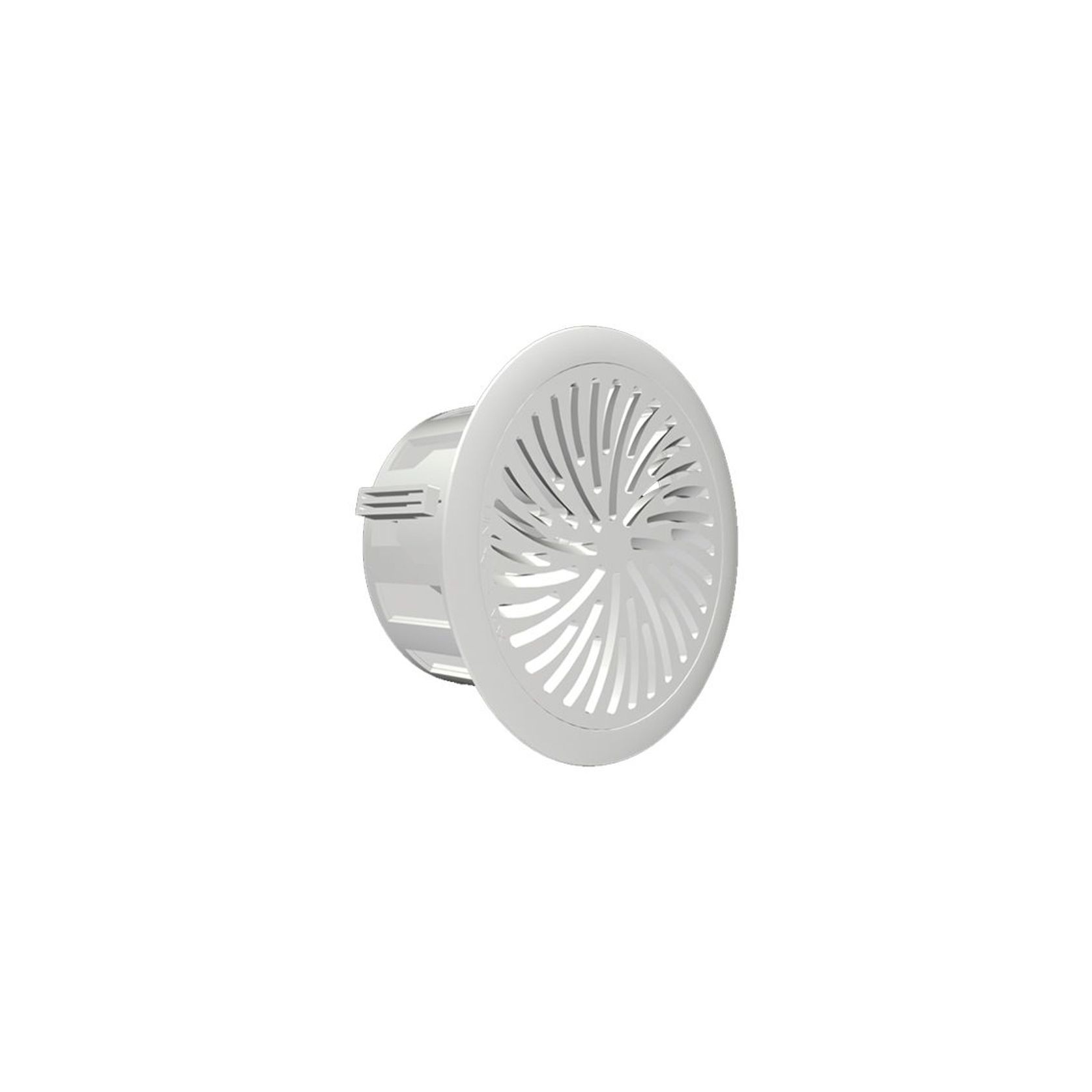

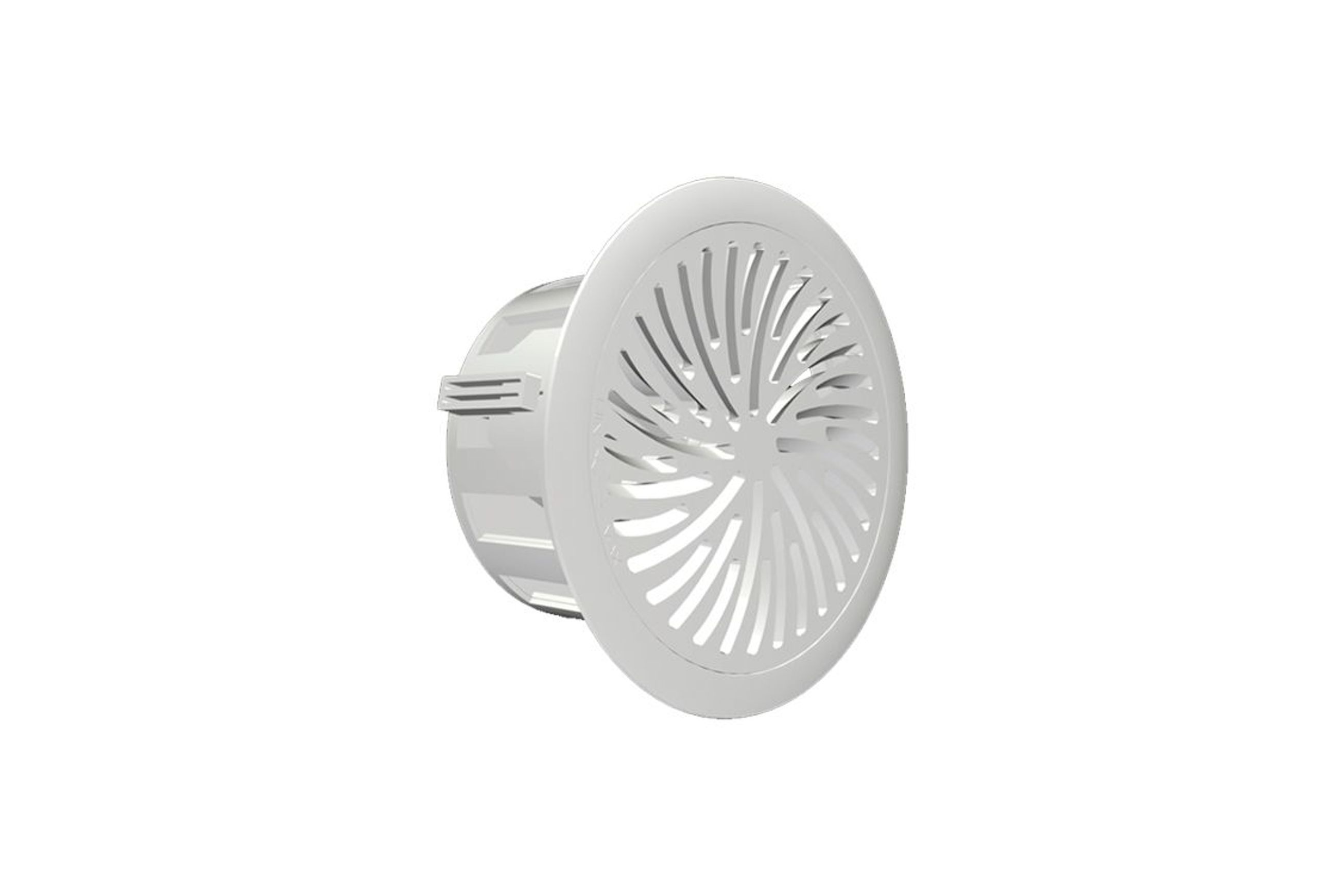

FSD Polymer Floor Swirl Diffuser
by Holyoake Air Management Solutions
Auckland
- 425.1K profile views
- 27 saves
The FSD Floor Swirl Diffuser is designed for use in raised floor air distribution systems, where the floor cavity is used as a pressurised supply air plenum.
The FSD core design produces a high velocity helical “swirl” discharge air pattern. This achieves high induction rates of room air which optimises mixing for maximum comfort conditions.
Product Details
- Product
- FSD Polymer Floor Swirl Diffuser
- Category
- Ventilation Components
- Range
- Air Diffusers
Holyoake Air Management Solutions is specified by
Wilson & Hill ArchitectsArchitects
Edwards White ArchitectsArchitects
CUSTANCEArchitects
JTB ArchitectsArchitects
Studio Pacific ArchitectureArchitects
South ArchitectsArchitects
ArchitectusArchitects
Herriot Melhuish O'Neill Architects LtdArchitects
GNR StudioArchitects
Dalman ArchitectsArchitects
SGAArchitects
Young ArchitectsArchitects
Sang ArchitectsArchitects
Ignite ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Glamuzina ArchitectsArchitects
Tennent Brown ArchitectsArchitects
Johnston ArchitectsArchitects
Stephenson&TurnerArchitects
GHD DesignArchitects
Godward DesignspaceArchitects
Pearse ConstructionConstruction
Nebulite® Windows & DoorsManufacturers and Suppliers
DuluxManufacturers and Suppliers
Studio H DesignArchitectural Designers
Apple AirHVAC Designers and Installers
eCubedEnvironmental Engineers
Woods GlassManufacturers and Suppliers
Marina Mathews PhotographyPhotographers
Henry Dunham BuildingBuilders
Jason Mann PhotographyPhotographers
HawkinsConstruction
T&R Interior SystemsManufacturers and Suppliers
FortéManufacturers and Suppliers
Tailor IncInterior Designers
Jessica Chloe PhotographyPhotographers
Amanda Aitken PhotographyPhotographers
Mitsubishi ElectricManufacturers and Suppliers
Trinity Interior DesignInterior Designers
Guild and Spence ElectricalElectricians
Rylock® Windows & DoorsManufacturers and Suppliers
CSR Potter Interior SystemsManufacturers and Suppliers
RCPProject Managers
Space StudioInterior Designers
ACSL GroupElectricians
Mark Scowen PhotographyPhotographers
Lindesay ConstructionConstruction
CDMCommercial Interior Fitouts
Intelligent DesignArchitectural Designers
Collins Plumbing, Gas and HeatingPlumbers & Gas Fitters
Natural Habitats LandscapesLandscape Architects
Parkhurst DesignInterior Designers
Lobell ConstructionBuilders
Net ZeroManufacturers and Suppliers
Ockham ResidentialProperty Developers
The Fireplace LtdManufacturers and Suppliers
Gibson O’Connor ConstructionBuilders
Keith Bennett PhotographyPhotographers
Urban Lounge InteriorsInterior Designers
Arcline ArchitectureArchitectural Designers
The FSD Floor Swirl Diffuser is designed for use in raised floor air distribution systems, where the floor cavity is used as a pressurised supply air plenum.
The FSD core design produces a high velocity helical “swirl” discharge air pattern. This achieves high induction rates of room air which optimises mixing for maximum comfort conditions.
- Specs
Circular floor diffusers shall be Holyoake FSD Series manufactured in glass-filled polycarbonate, in self-coloured grey as standard. Nominal diffuser size shall be 220 mm in diameter. The circular floor diffuser shall contain a flow regulator damper with open/closed indication.
Mounting clamp and trim ring shall be manufactured in glass-filled polycarbonate.
The circular floor diffuser shall contain a dust/dirt collection basket. All materials used are to be fire retardant and the diffusers shall resist permanent deformation when subject to point loads up to 500 kg, and all shall be as supplied by Holyoake.
