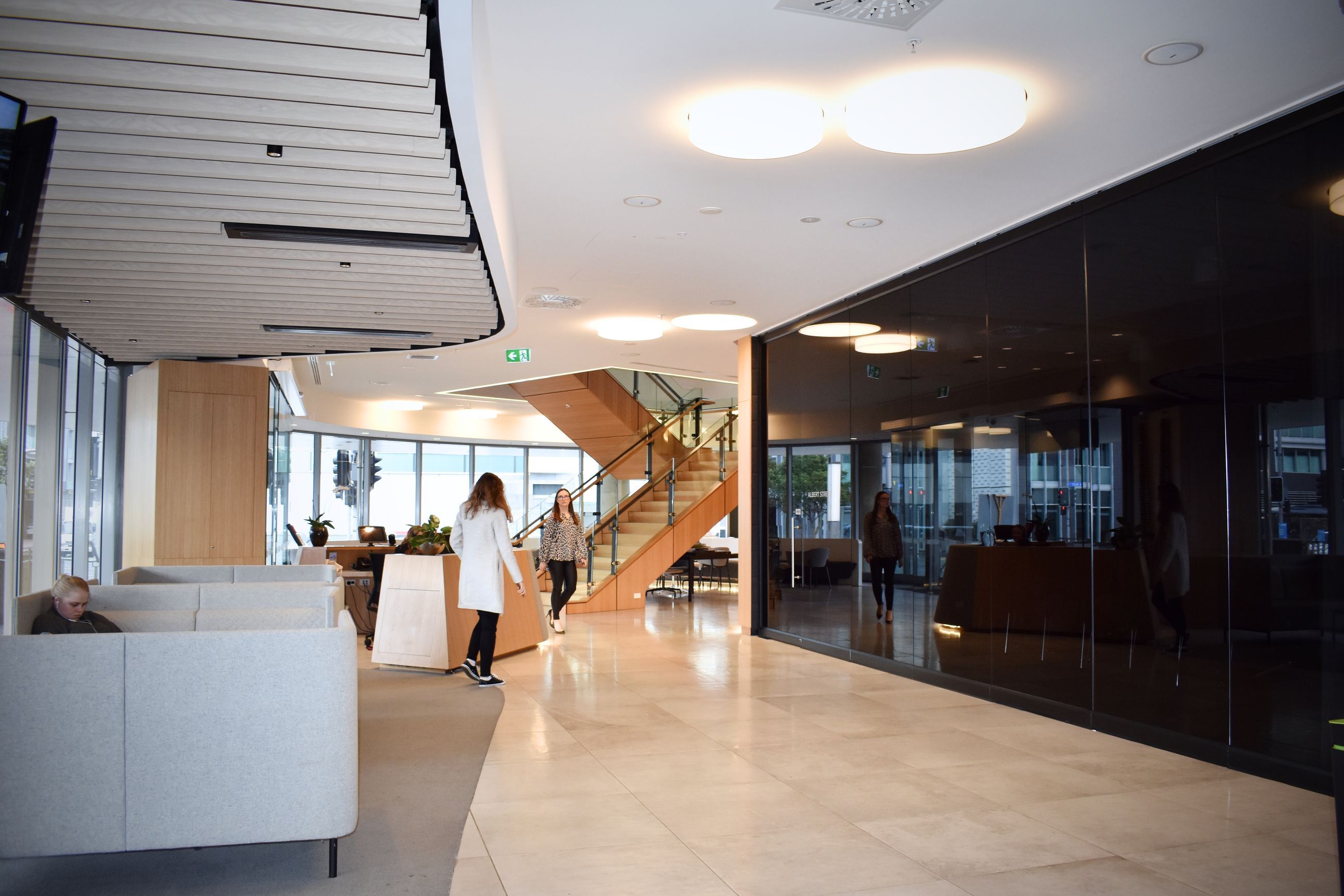

GlassSeal Series Glass Operable Walls

By Trans-Space
Visit Website

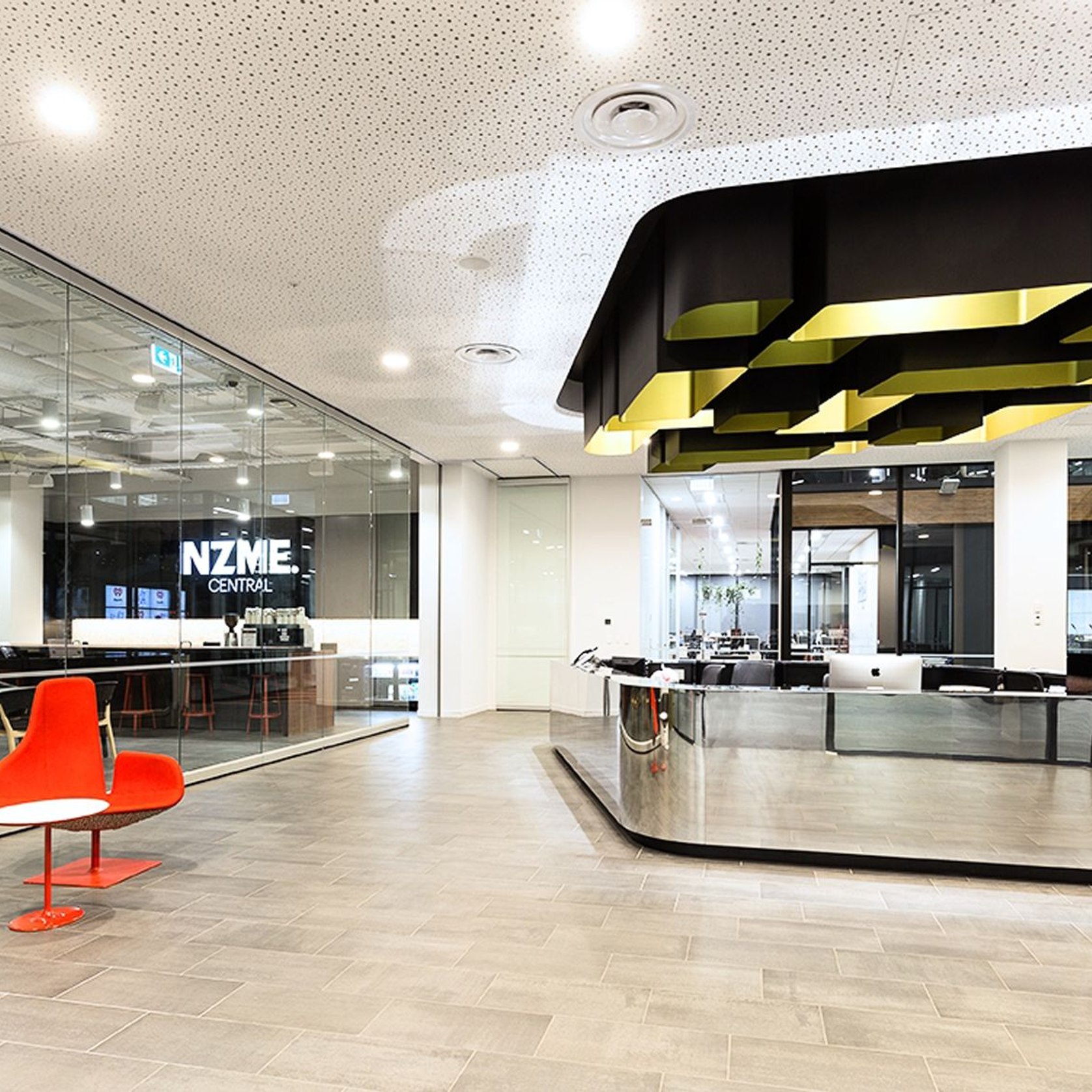

The elegant and contemporary design of the GlassSeal suits modern architecture prominent in many offices, education and commercial spaces. Designed to maximise visual transparency while maintaining acoustic separation ideal for dynamic and collaborative environments. Available in two models:

  • 100 Series - designed with elegant simplicity while offering numerous practical benefits, the GlassSeal 100 is a wonderful solution to effectively partition a space while maximising light and openness.
  • 400 Series - combining elegant transparency with reliable acoustic performance, the GlassSeal 400 is a perfect system for various spaces. Designed with the ability to combine with other finishes and configurations while maximising

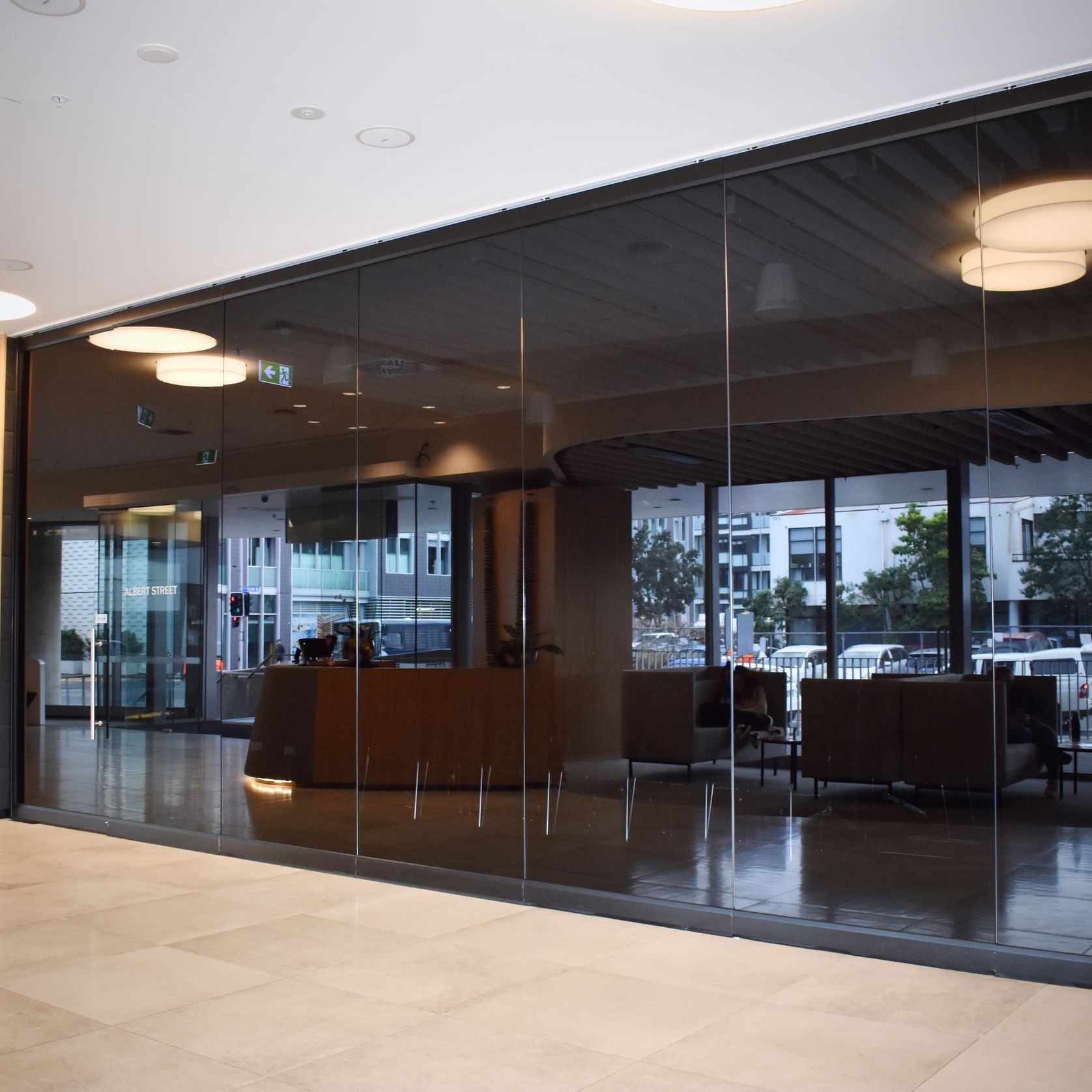

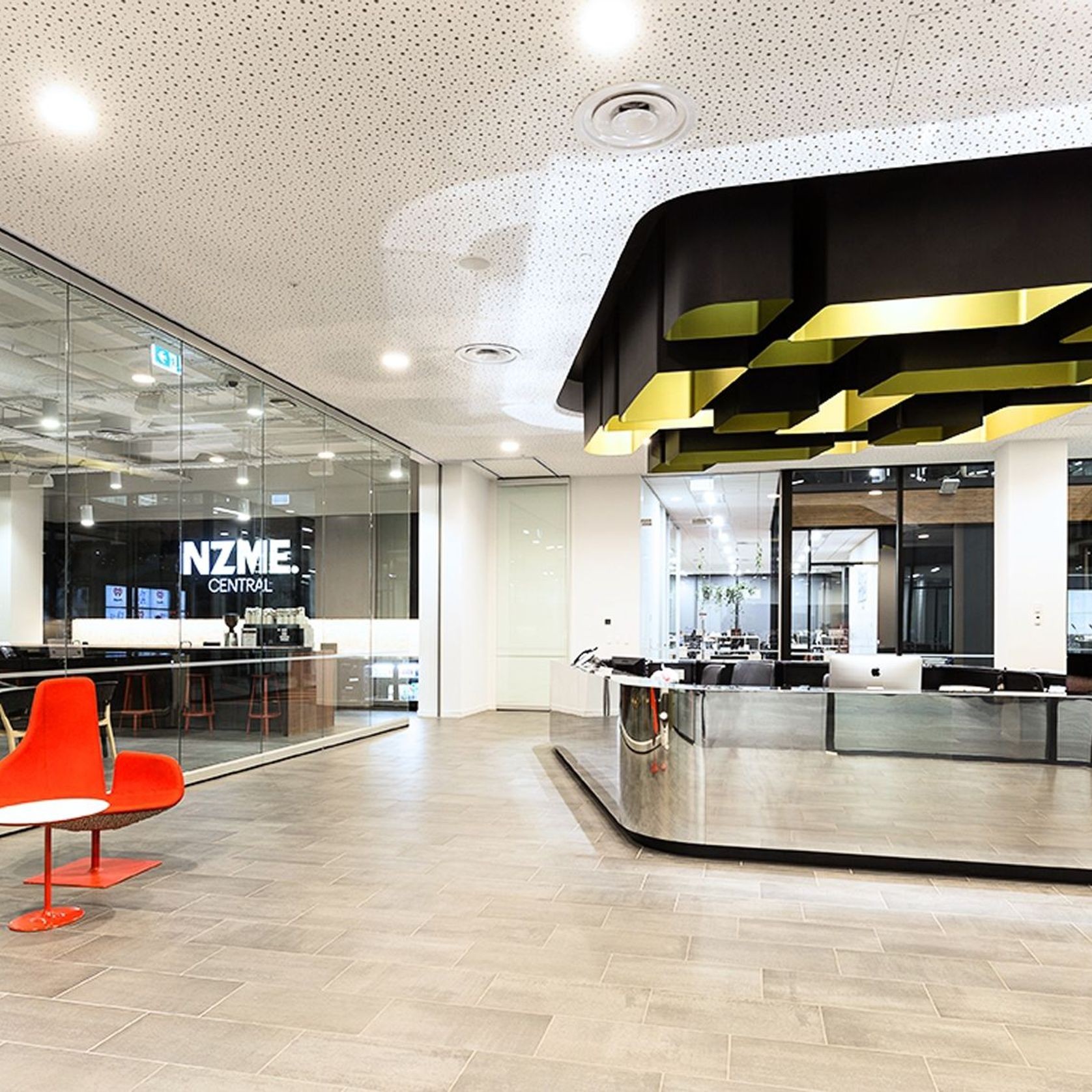

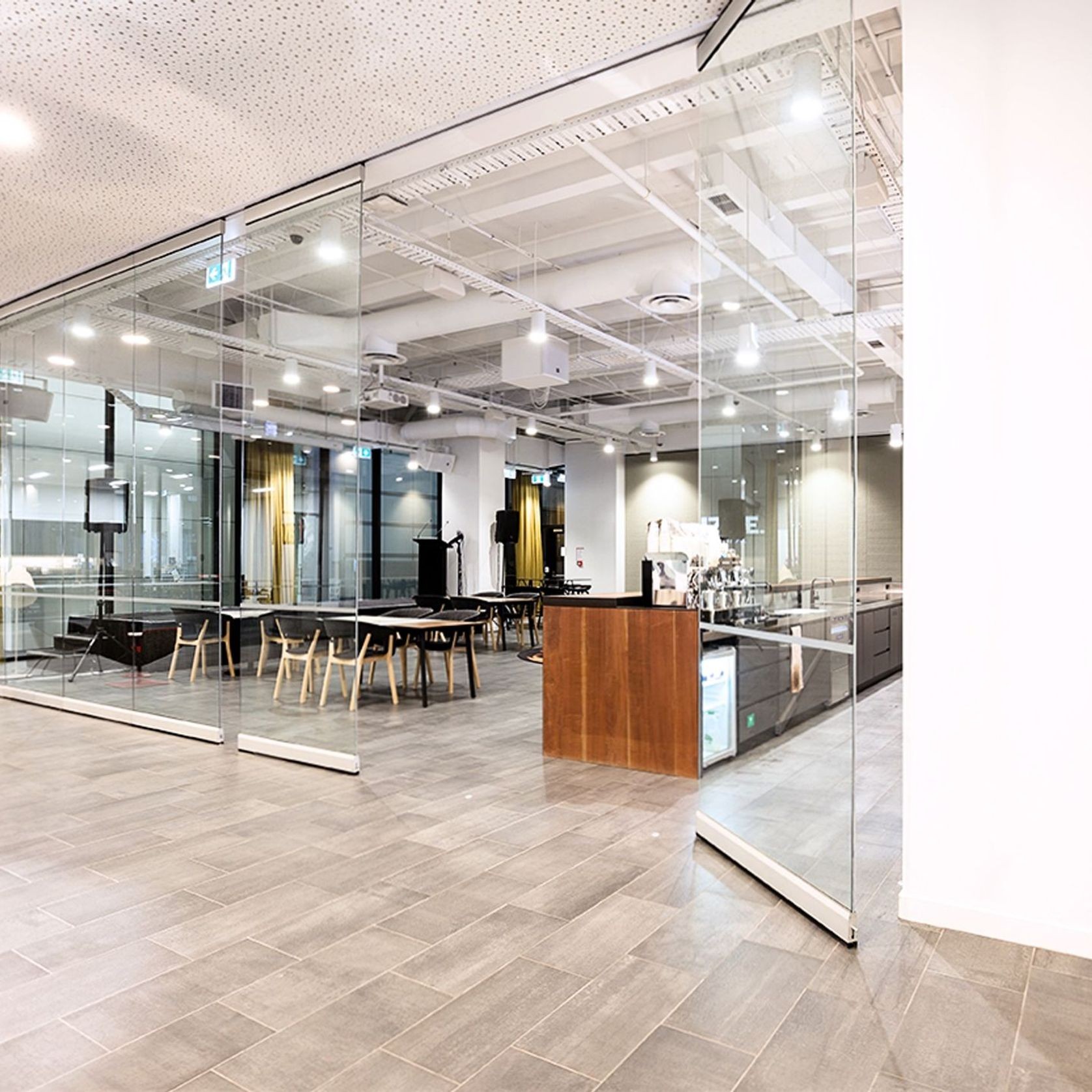

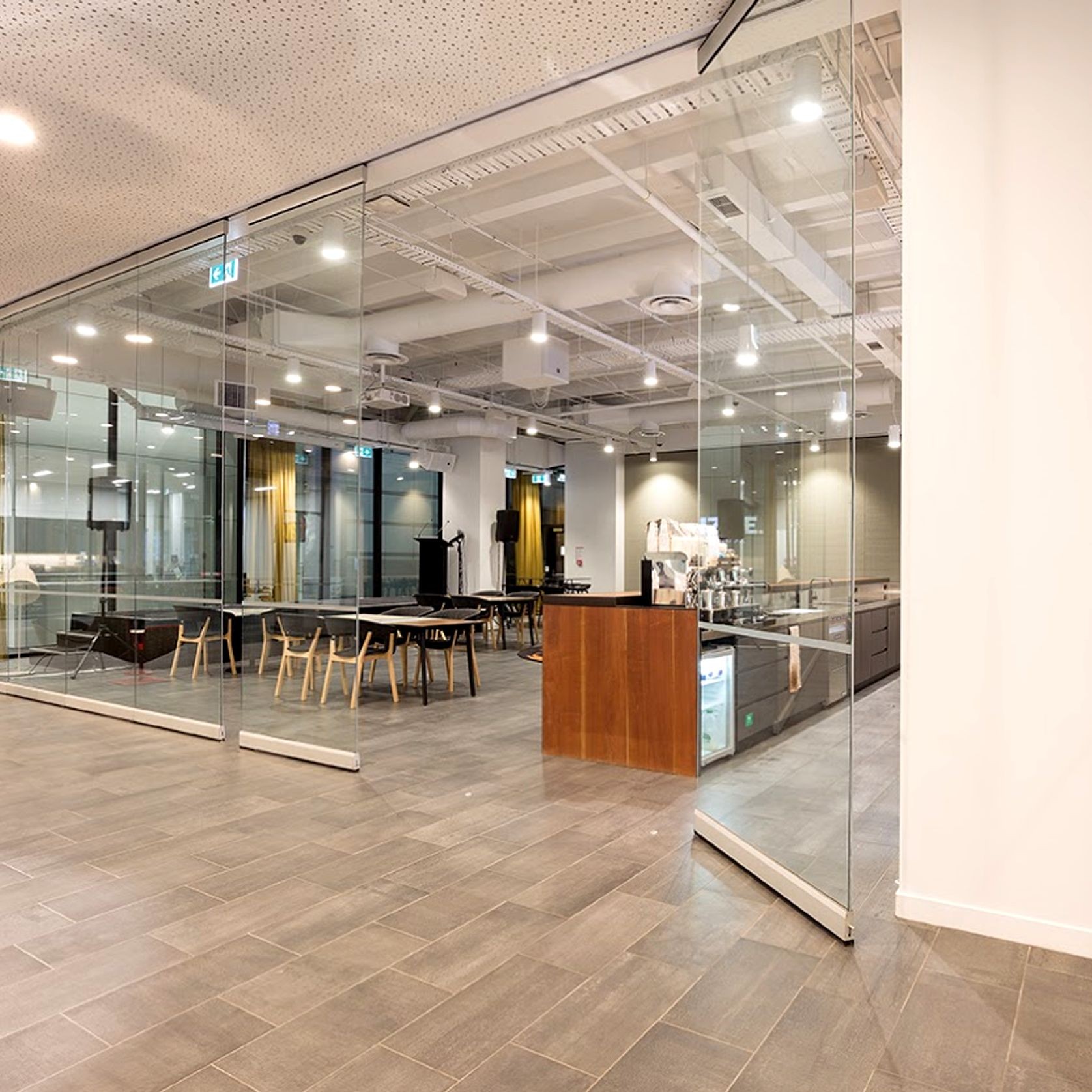

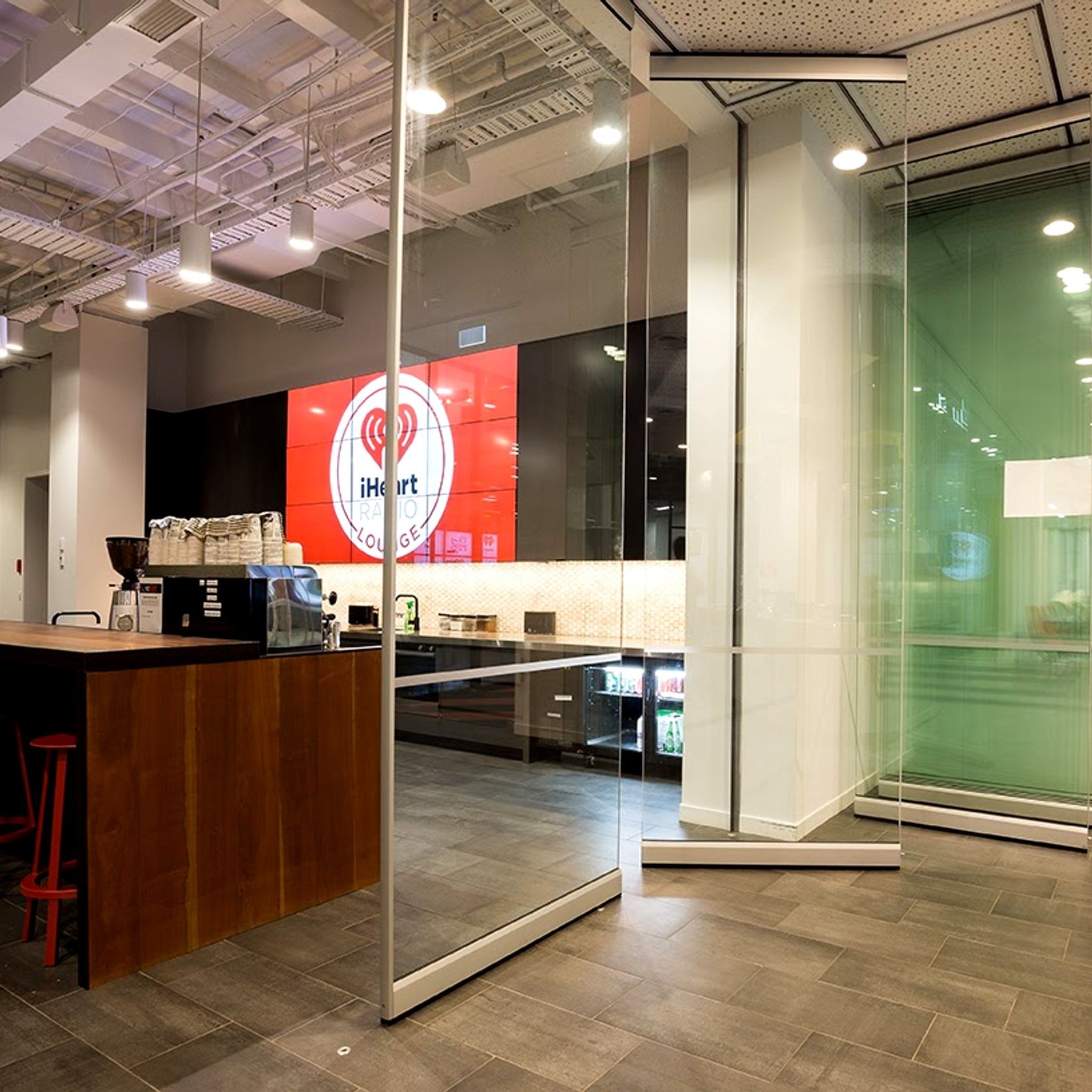

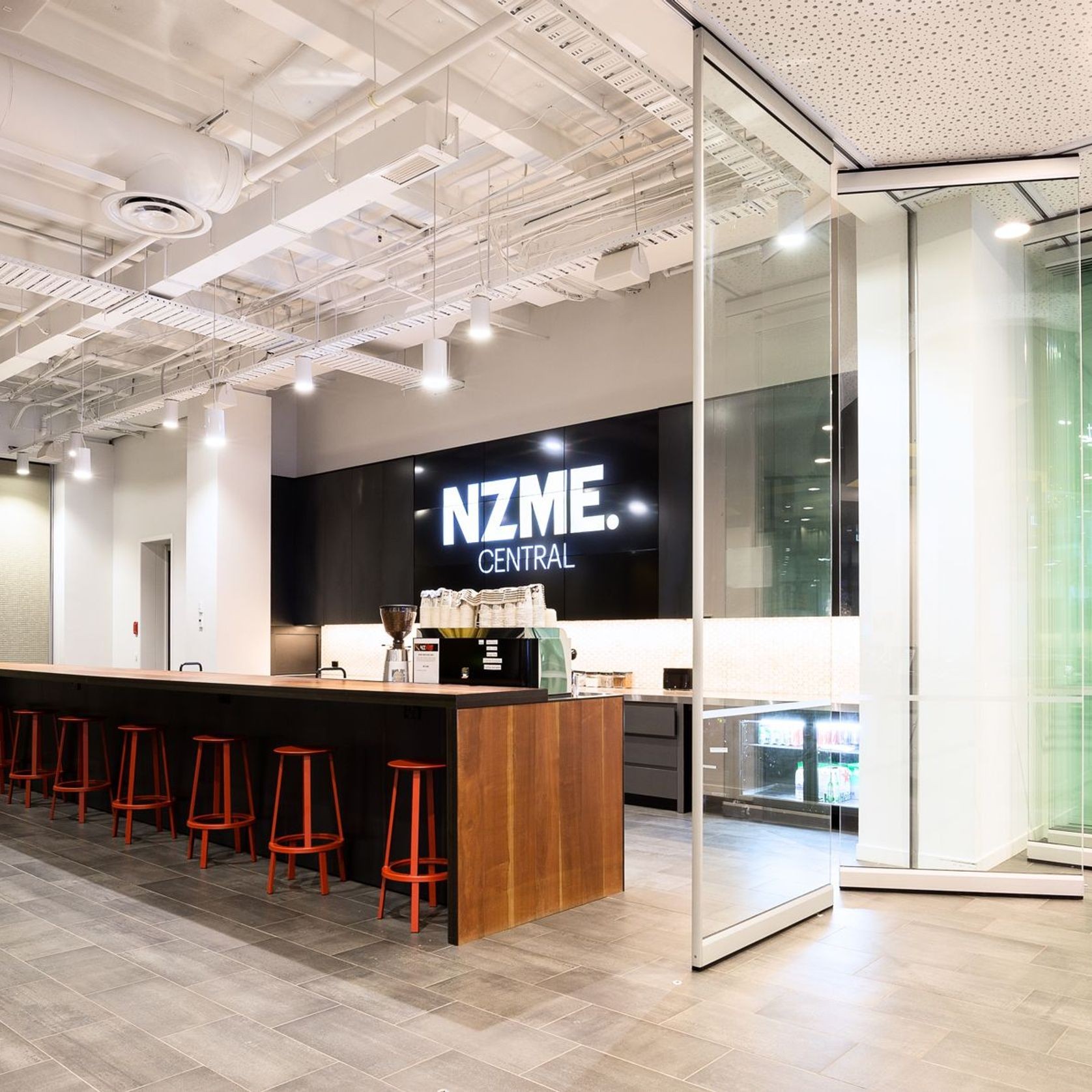

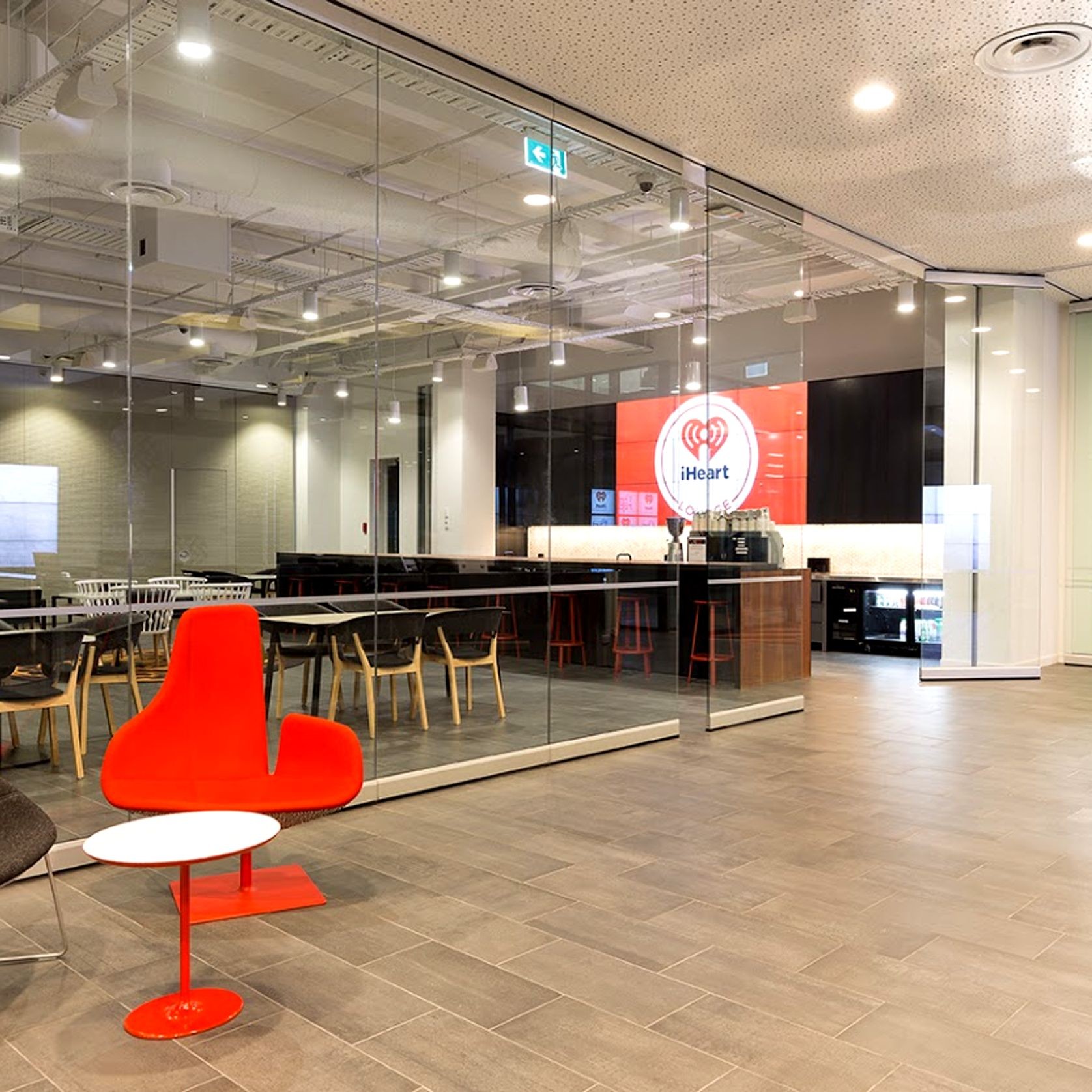

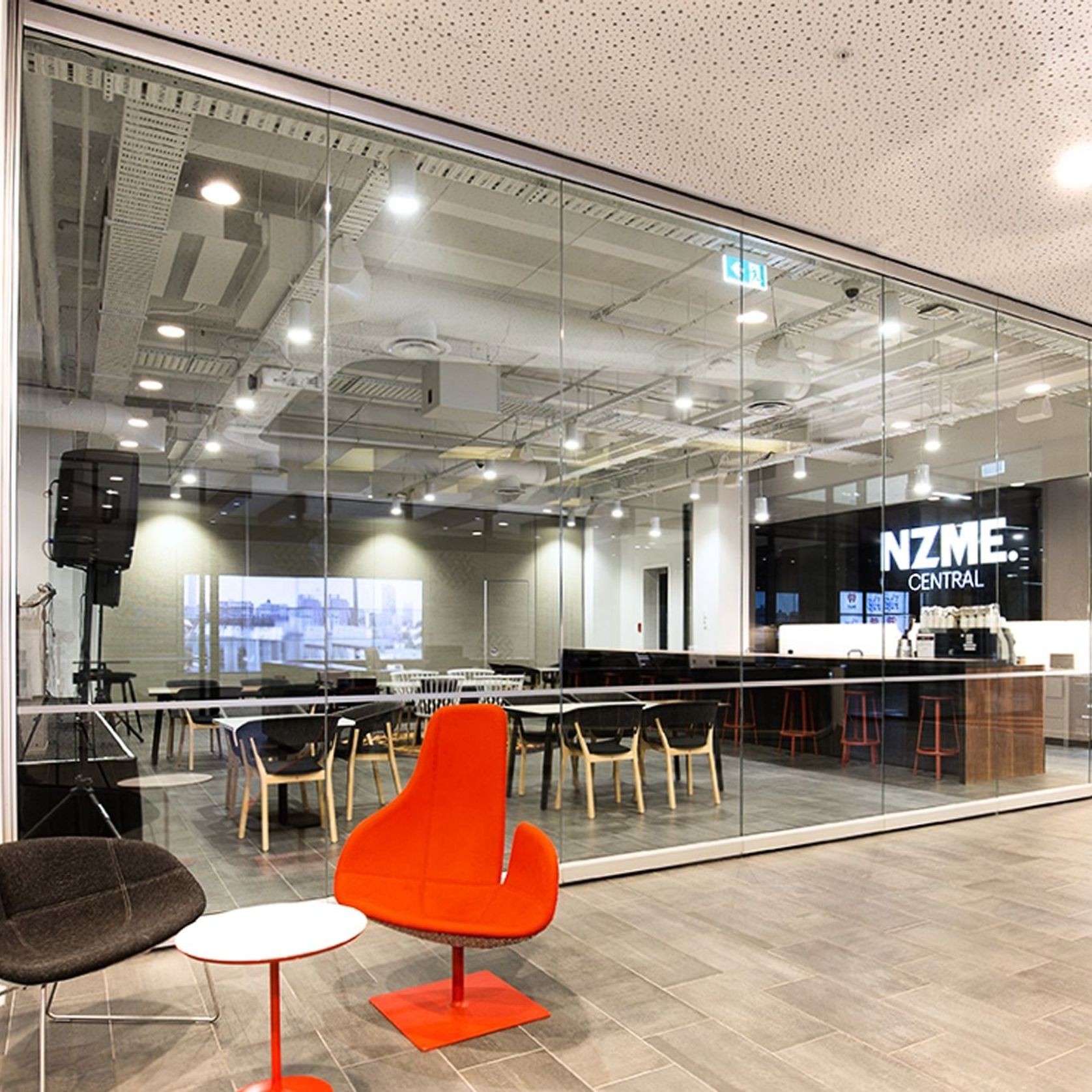

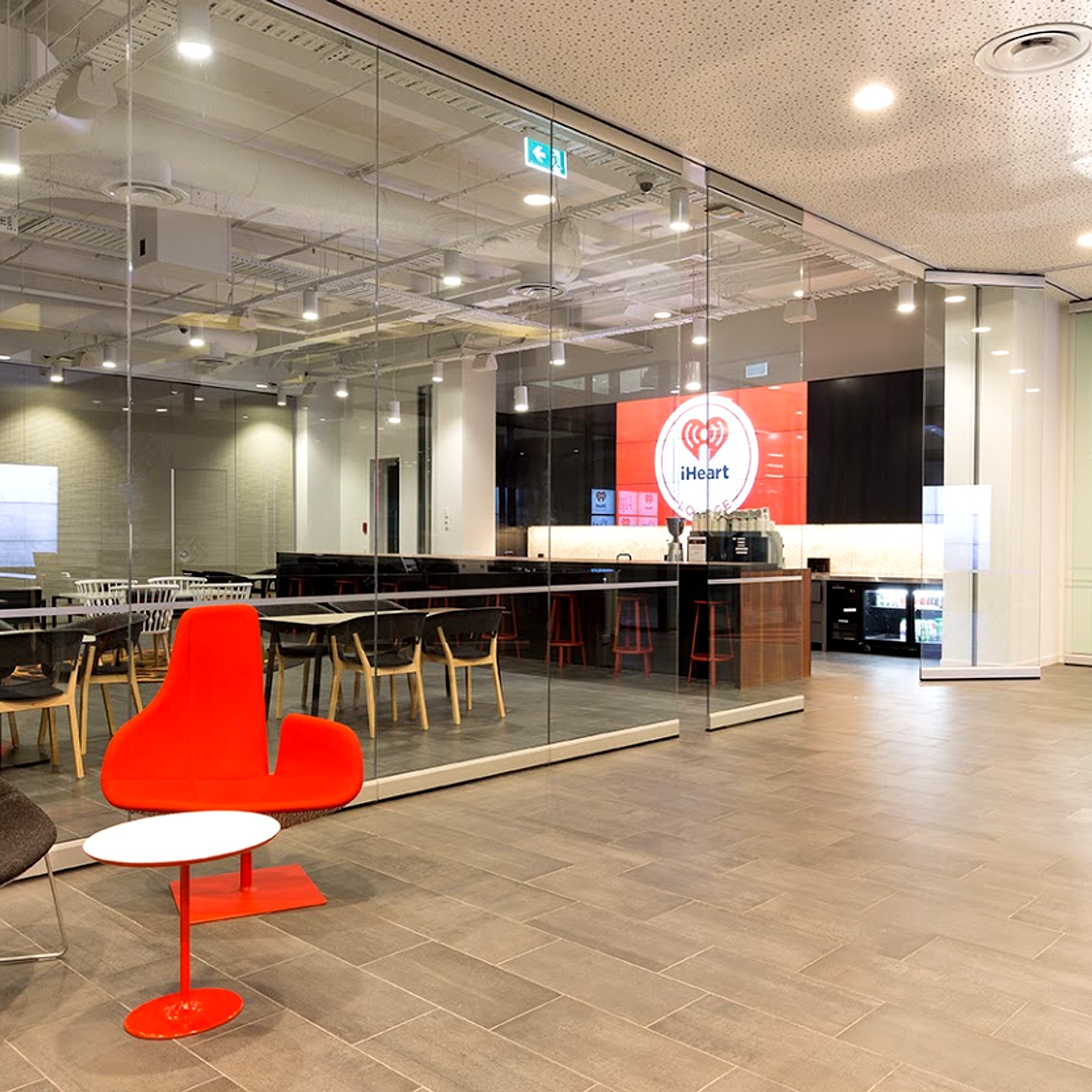

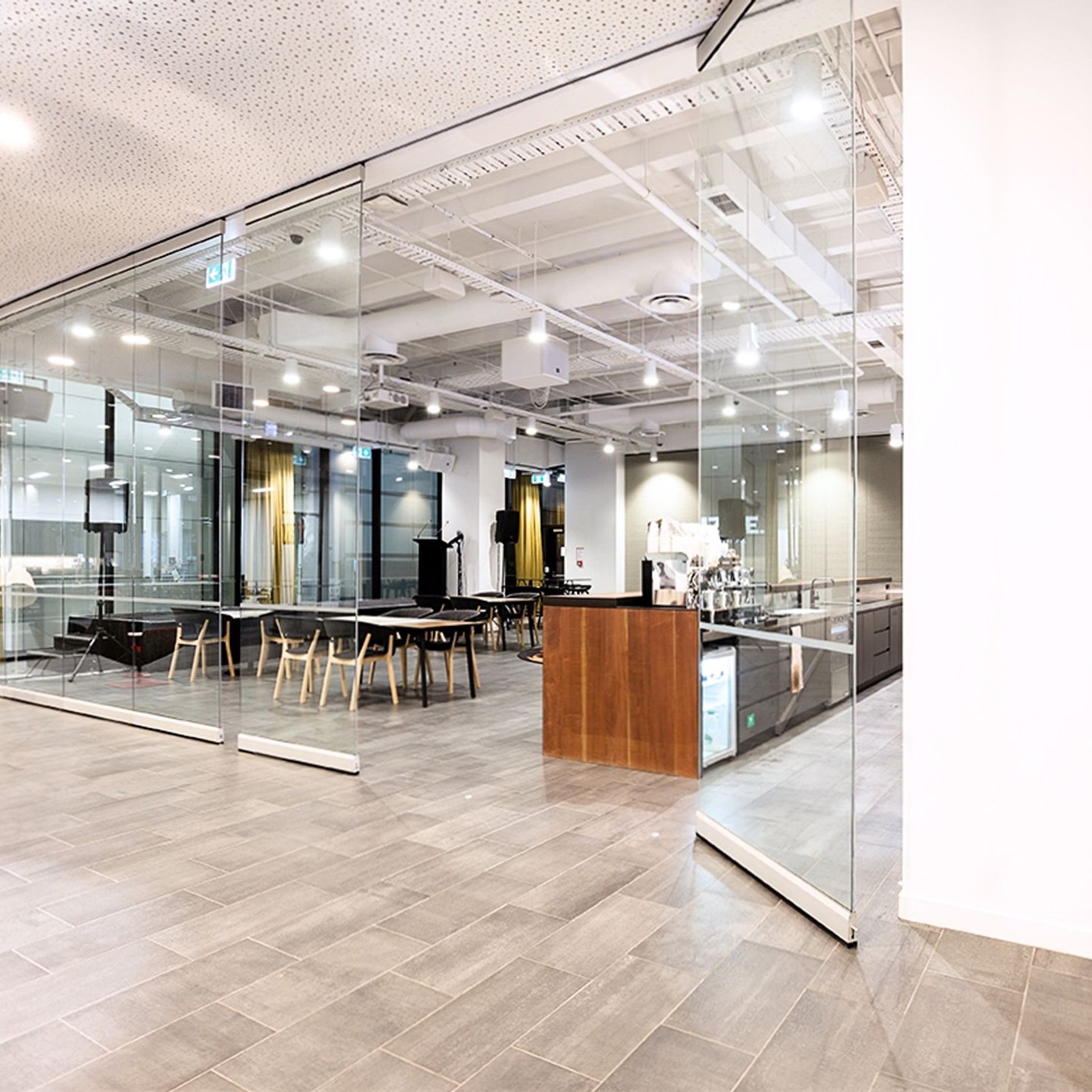

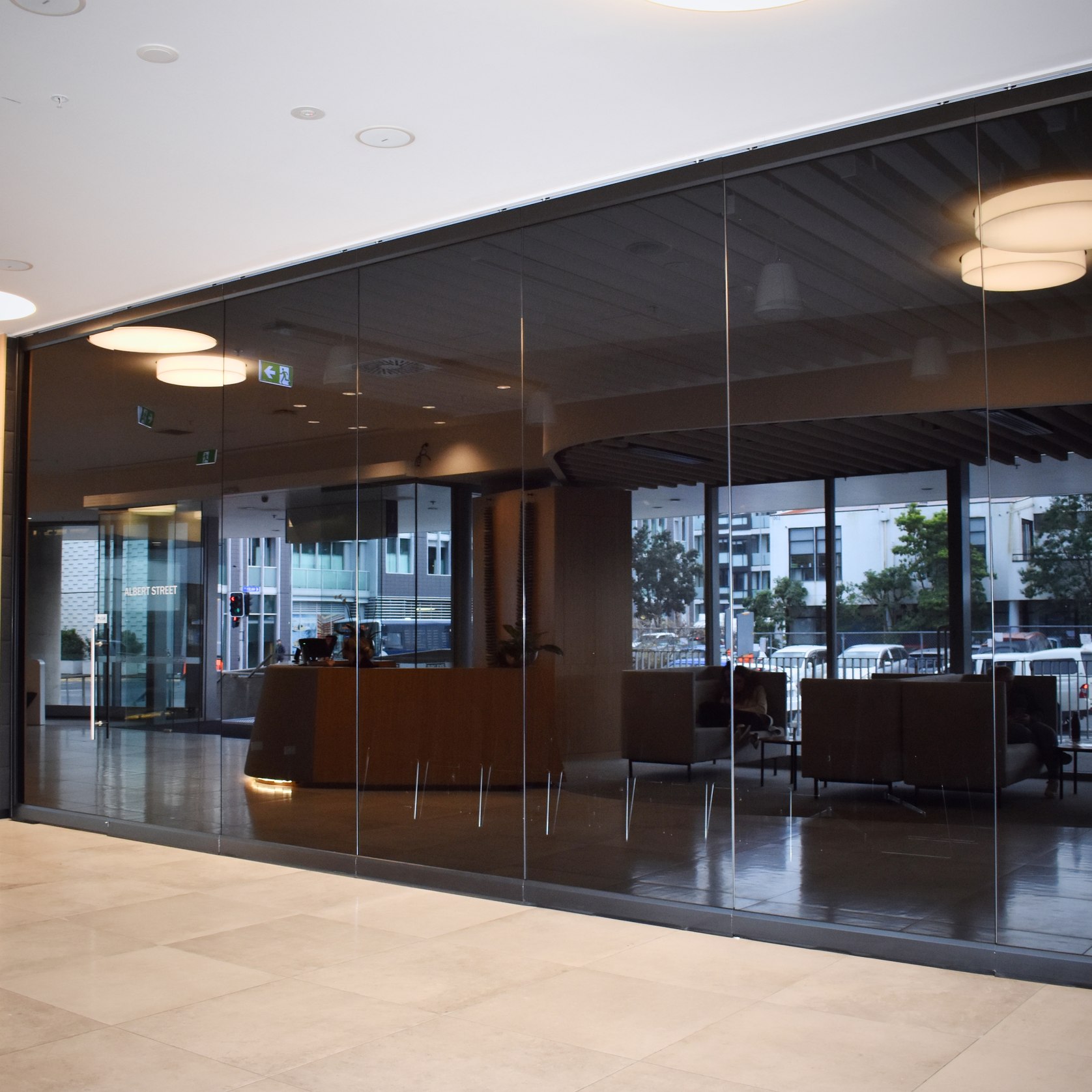

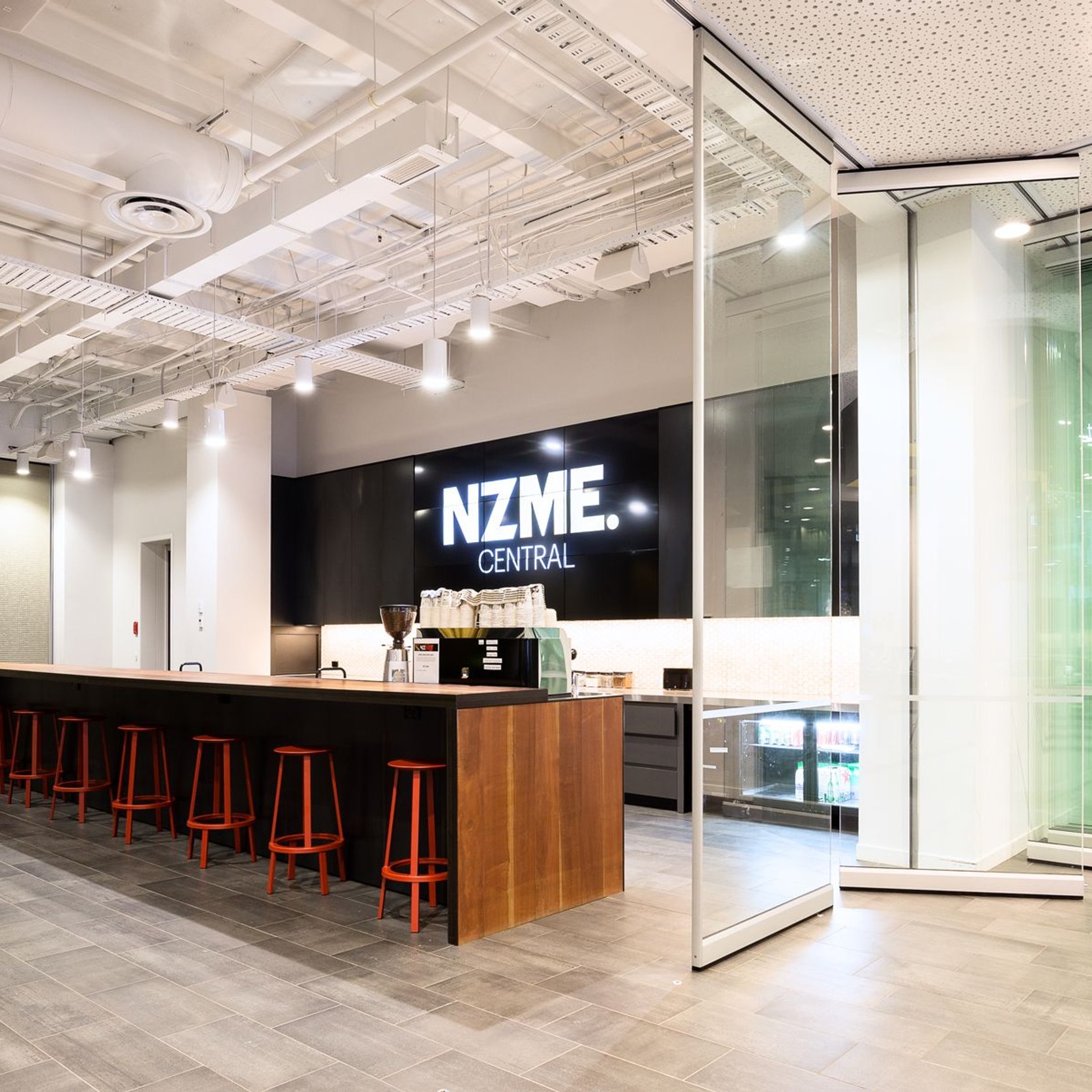

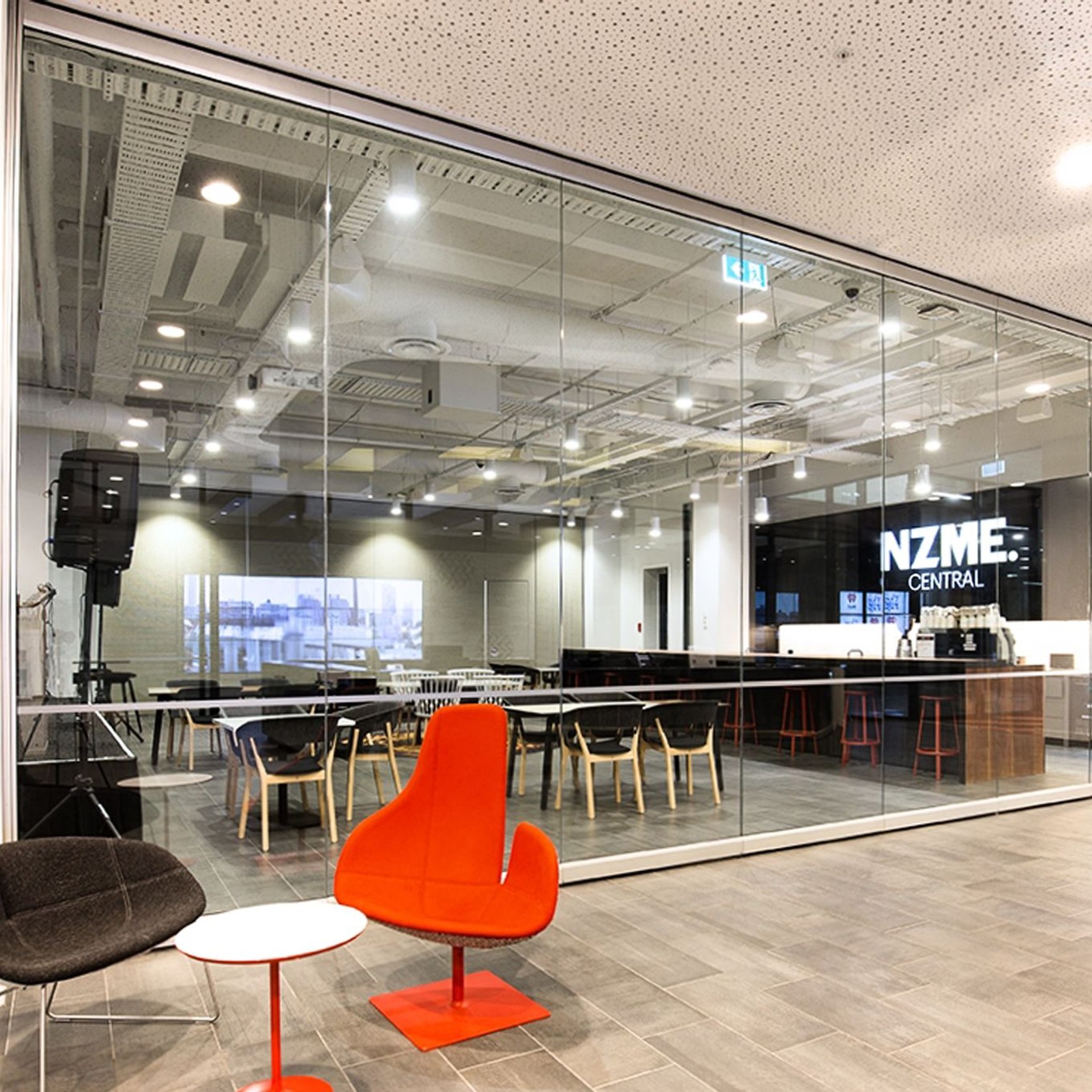

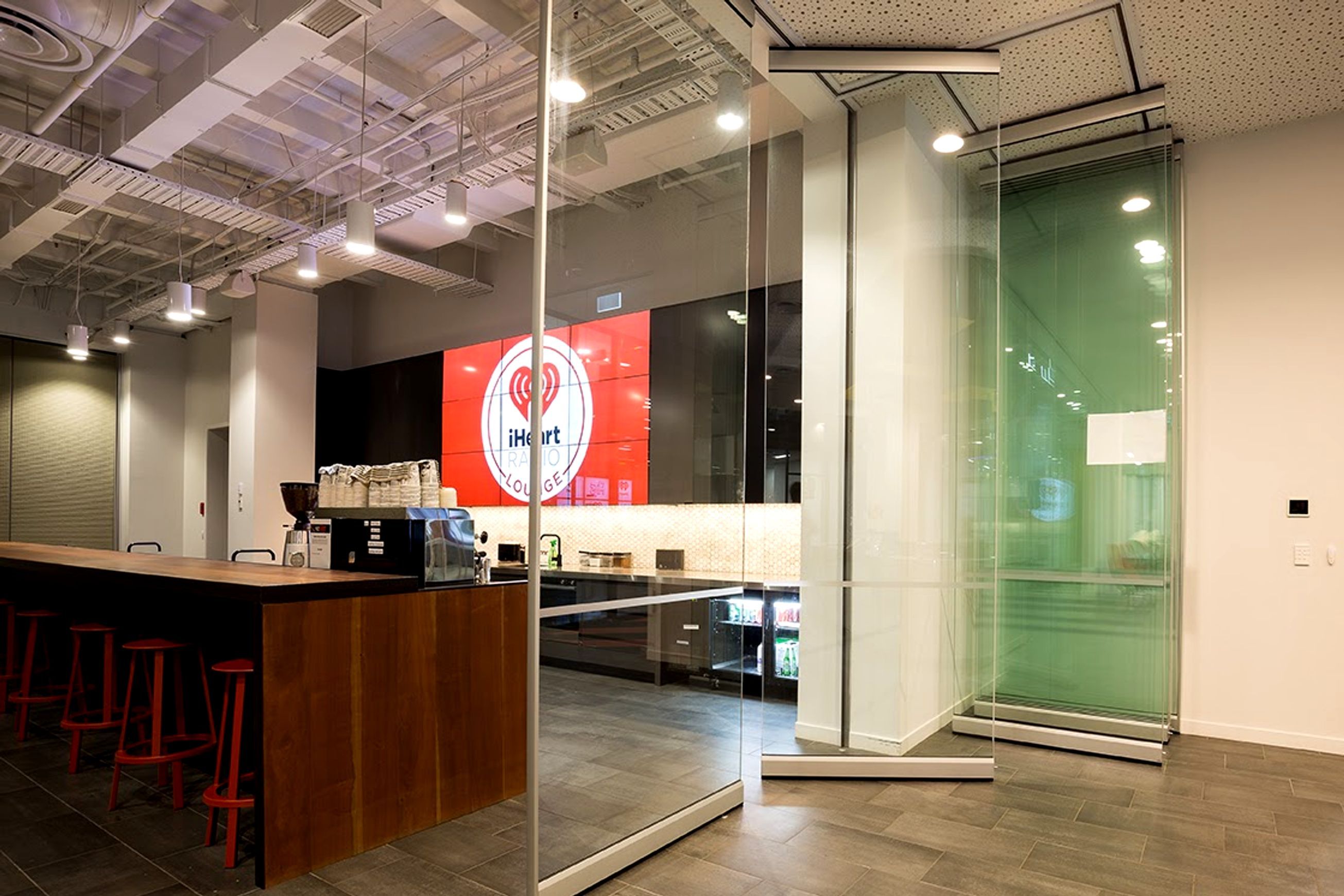

GlassSeal 100

The GlassSeal 100 is the perfect solution for visual transparency and partition, the main features for these doors are:

  • No bottom tracks
  • Natural light utilised
  • 100mm tapered rails
  • Distinctive clean lines
  • Available in 10mm, 12mm, 15 or 19mm thick glass
  • Maximum height is 3500mm*
  • Opening with limited by available structural support
  • Rails mechanically fixed to glass for strength and safety
  • Creates a multipurpose space

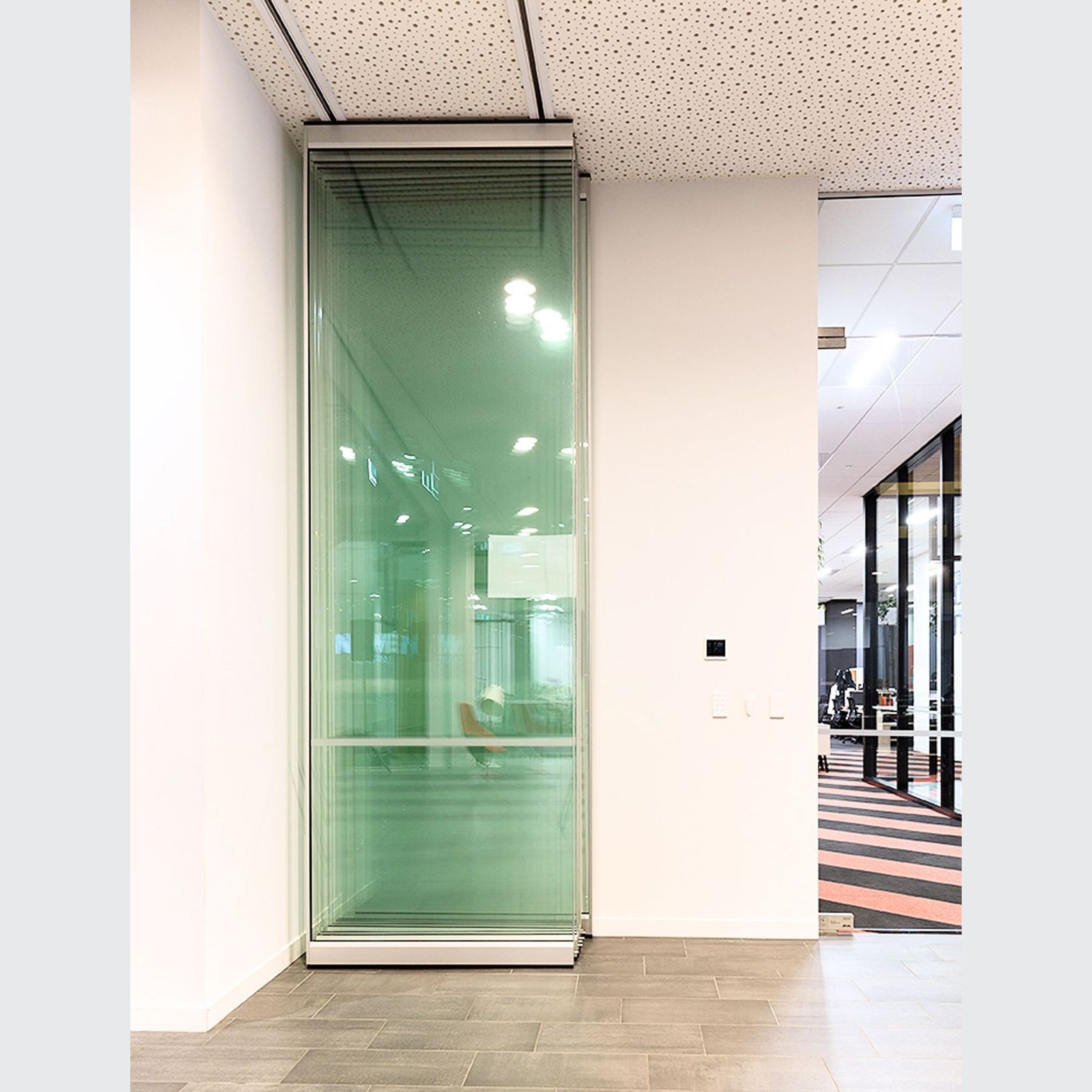

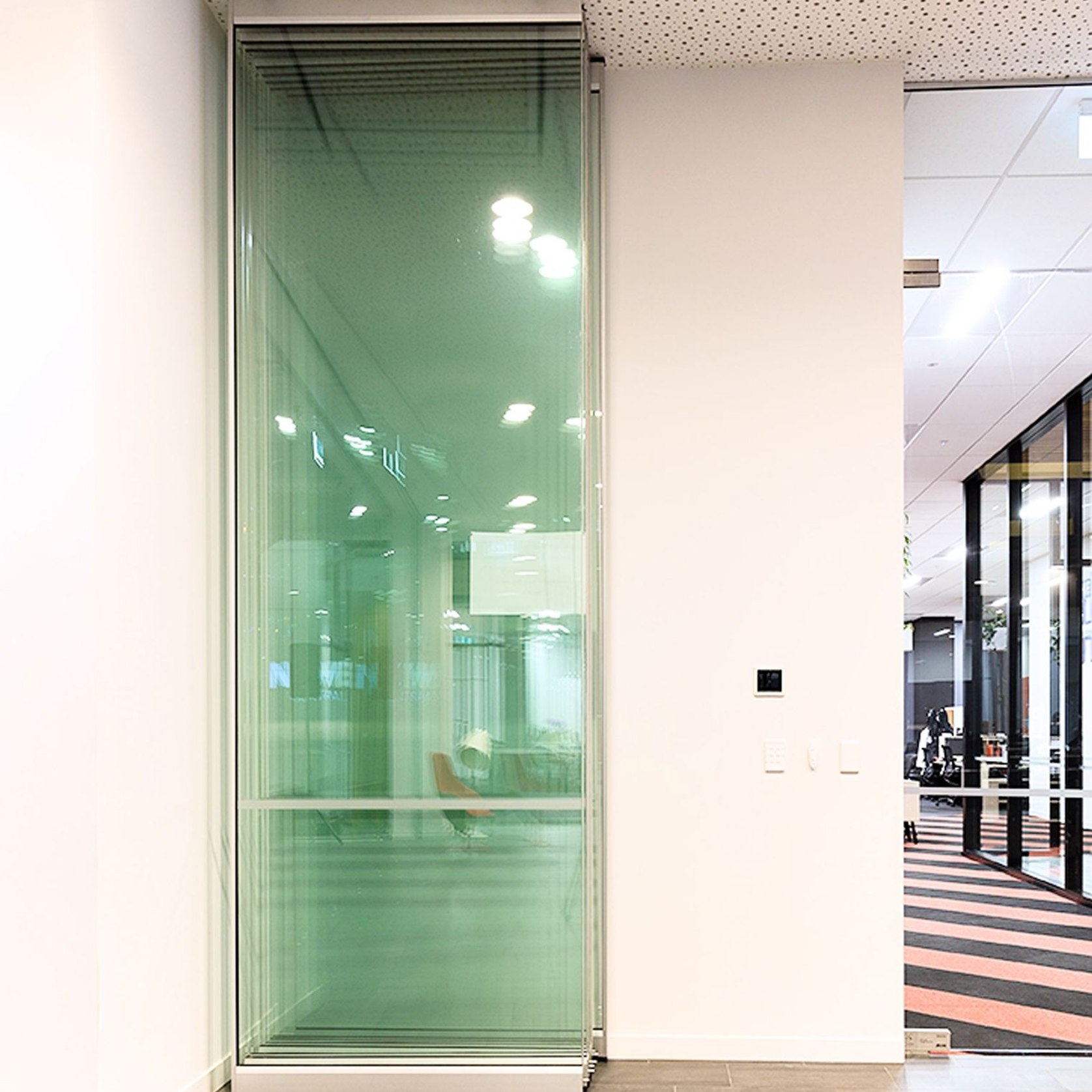

Stacking – There are many options to suit different openings, the 100 Series stacking options are: Endfold, Centre, Off-Set, Remote and Parallel

Finishes and Accessories – The GlassSeal 100 offers a variety of powdercoat colours for the top and bottom of each panel. Consult with our team for any hardware requirements.

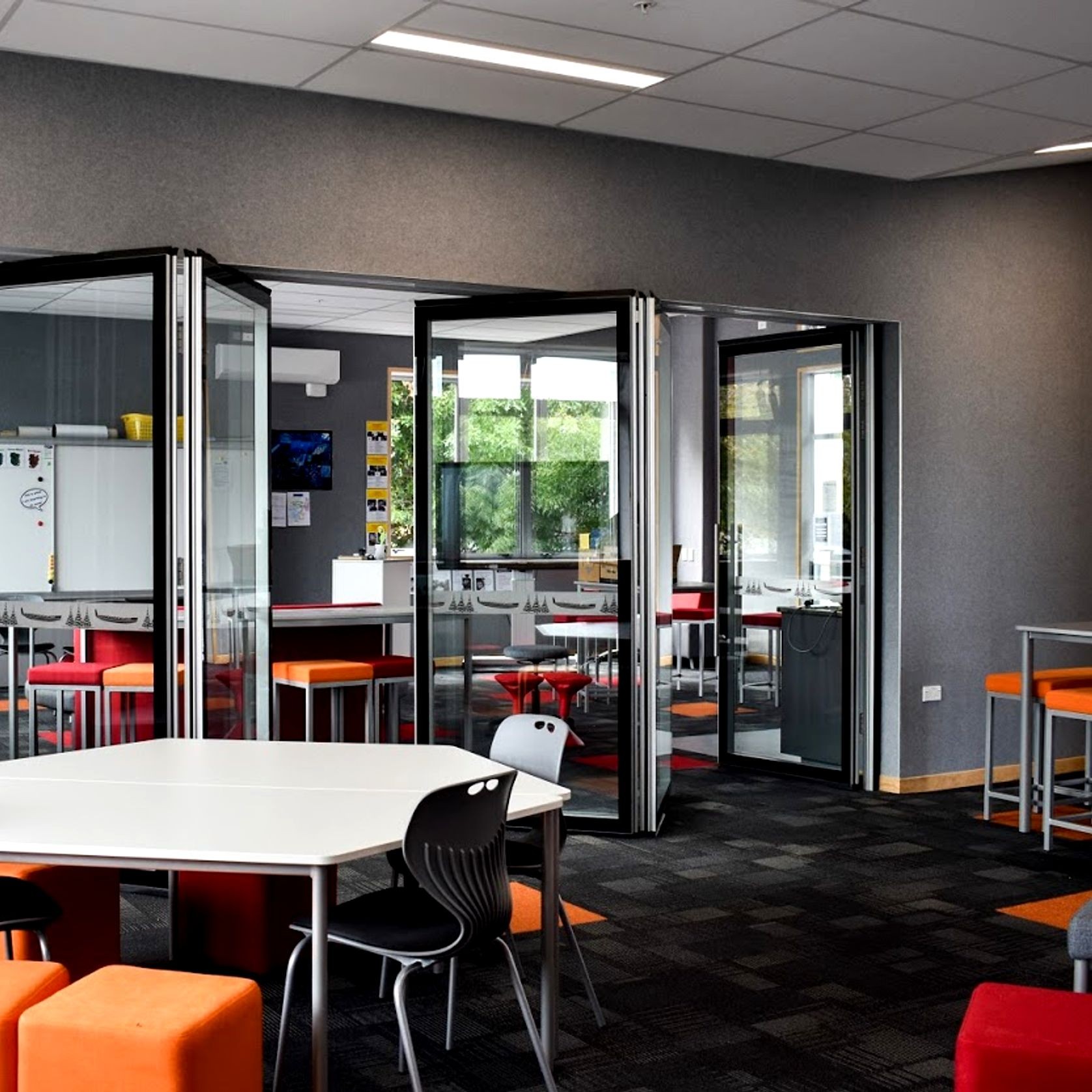

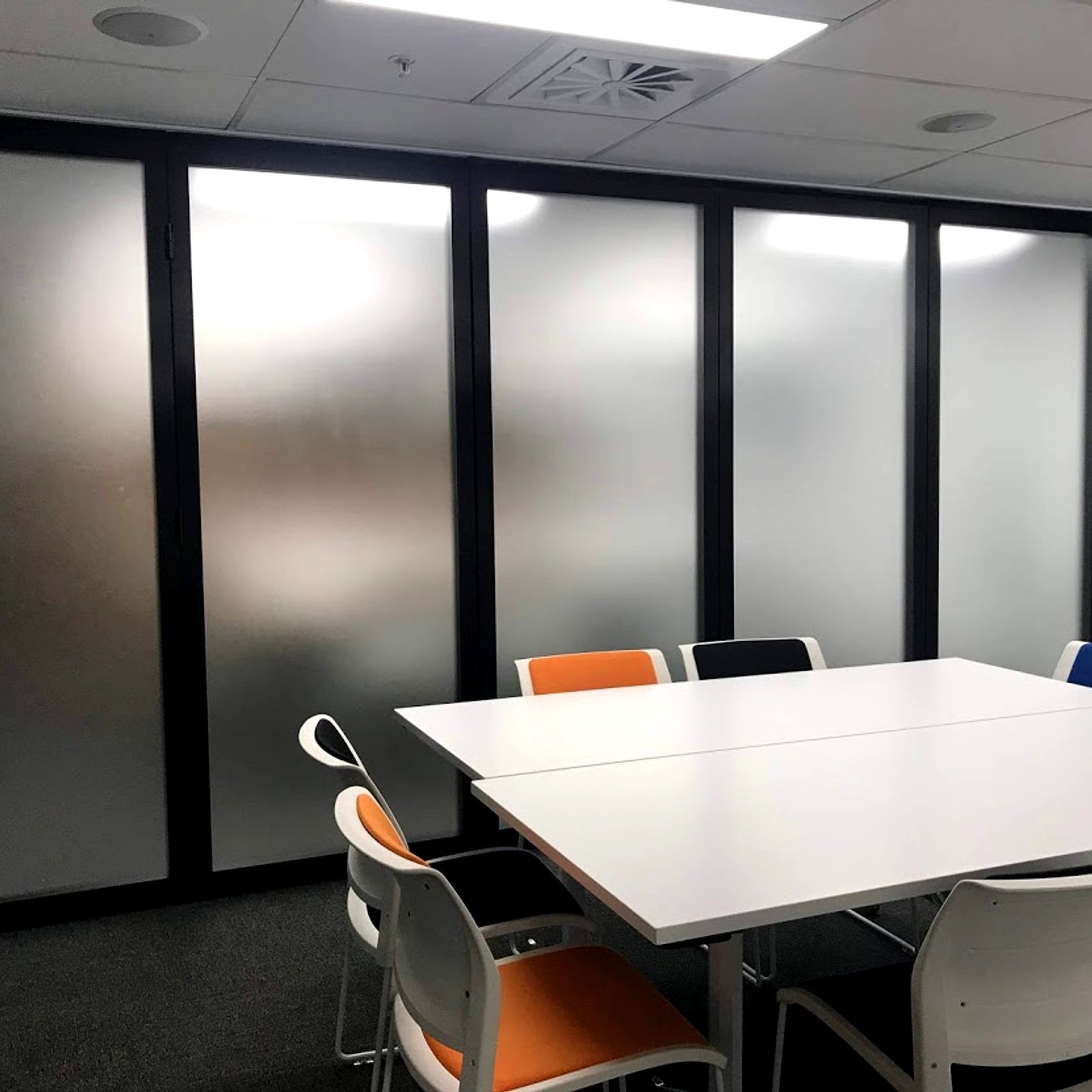

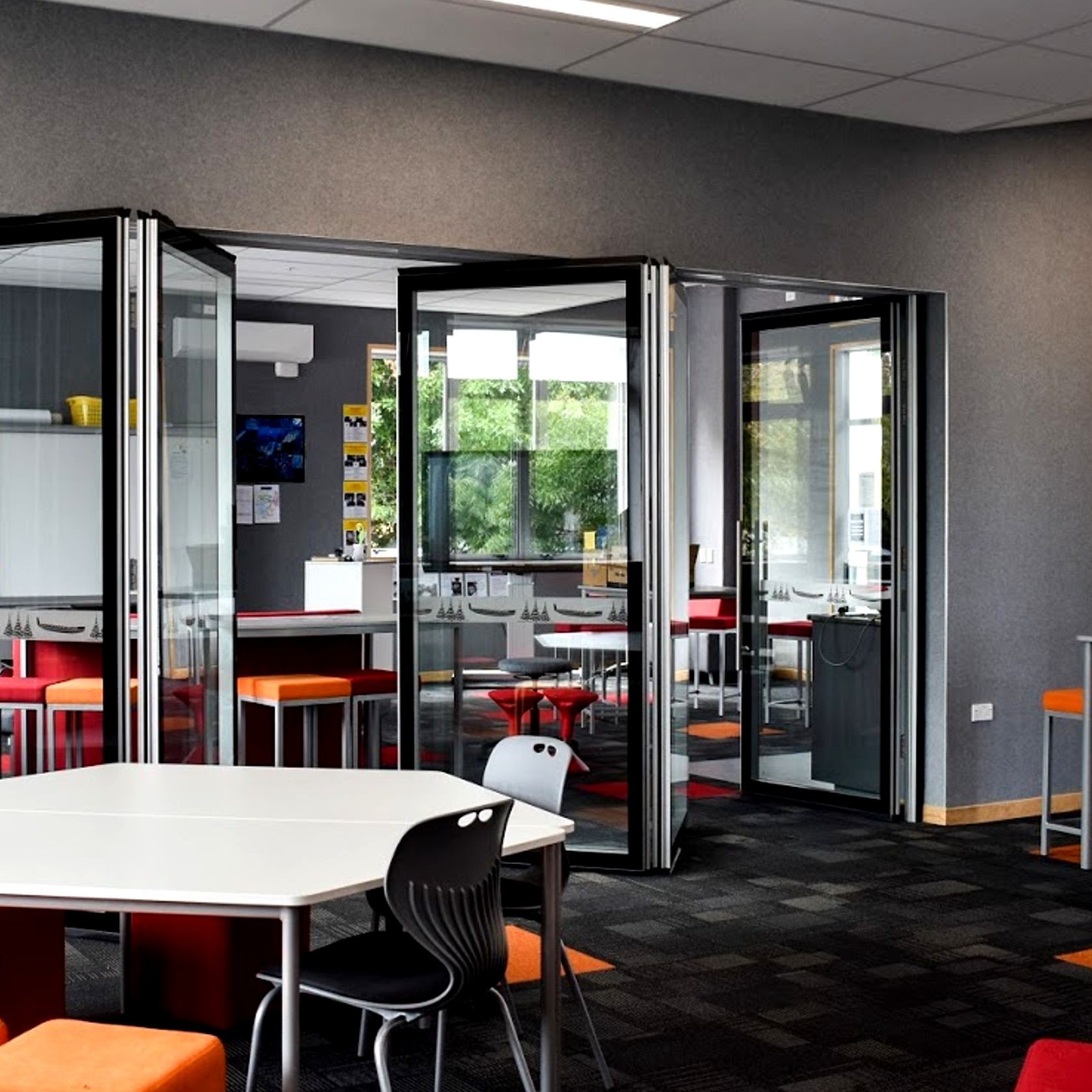

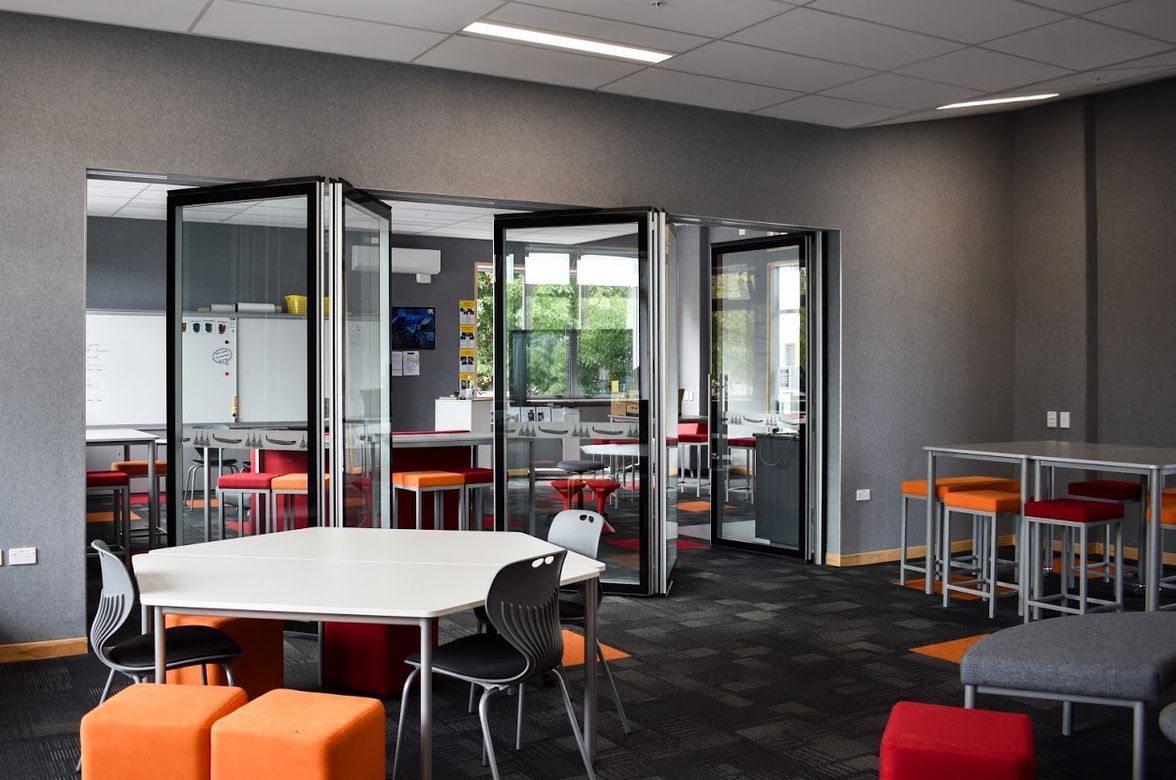

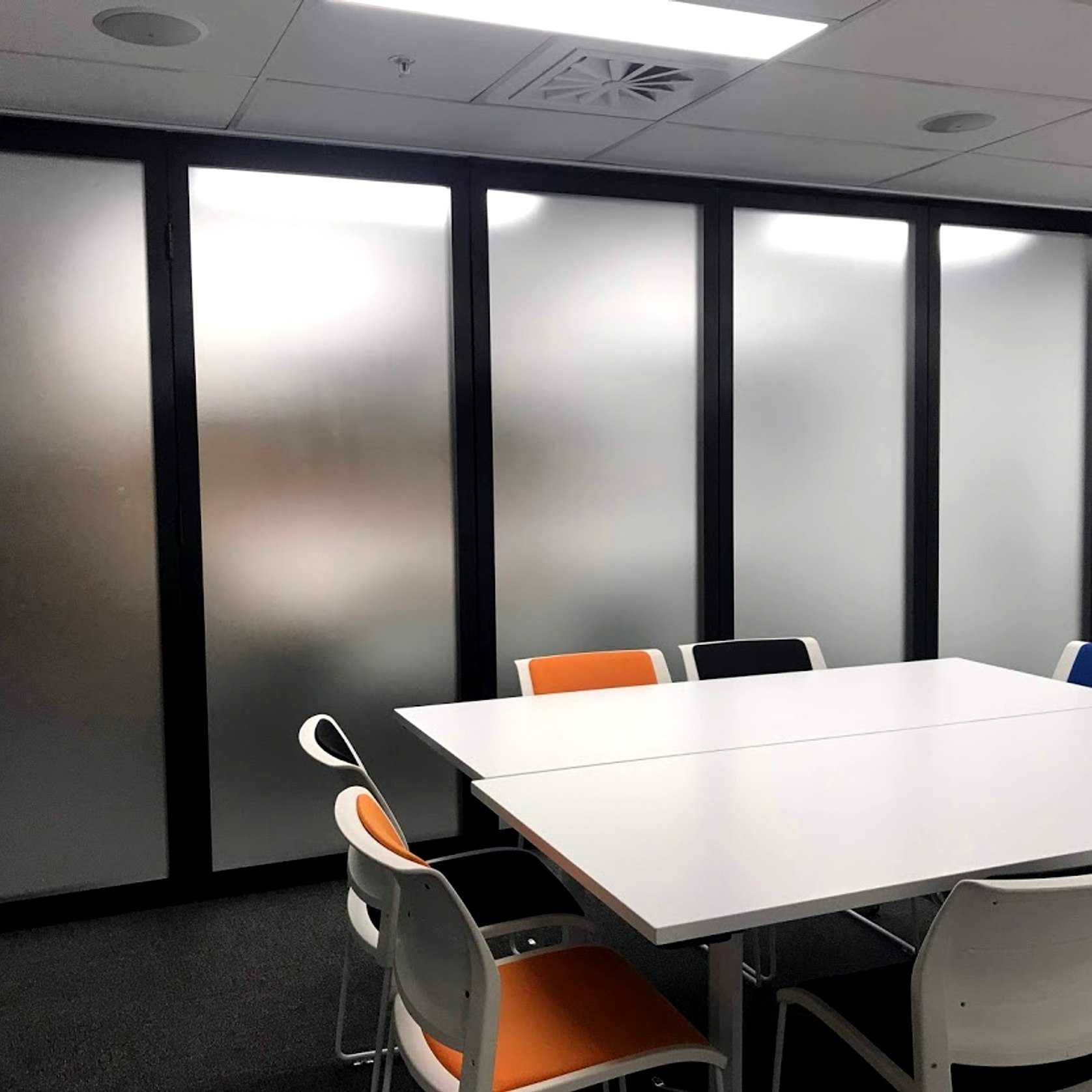

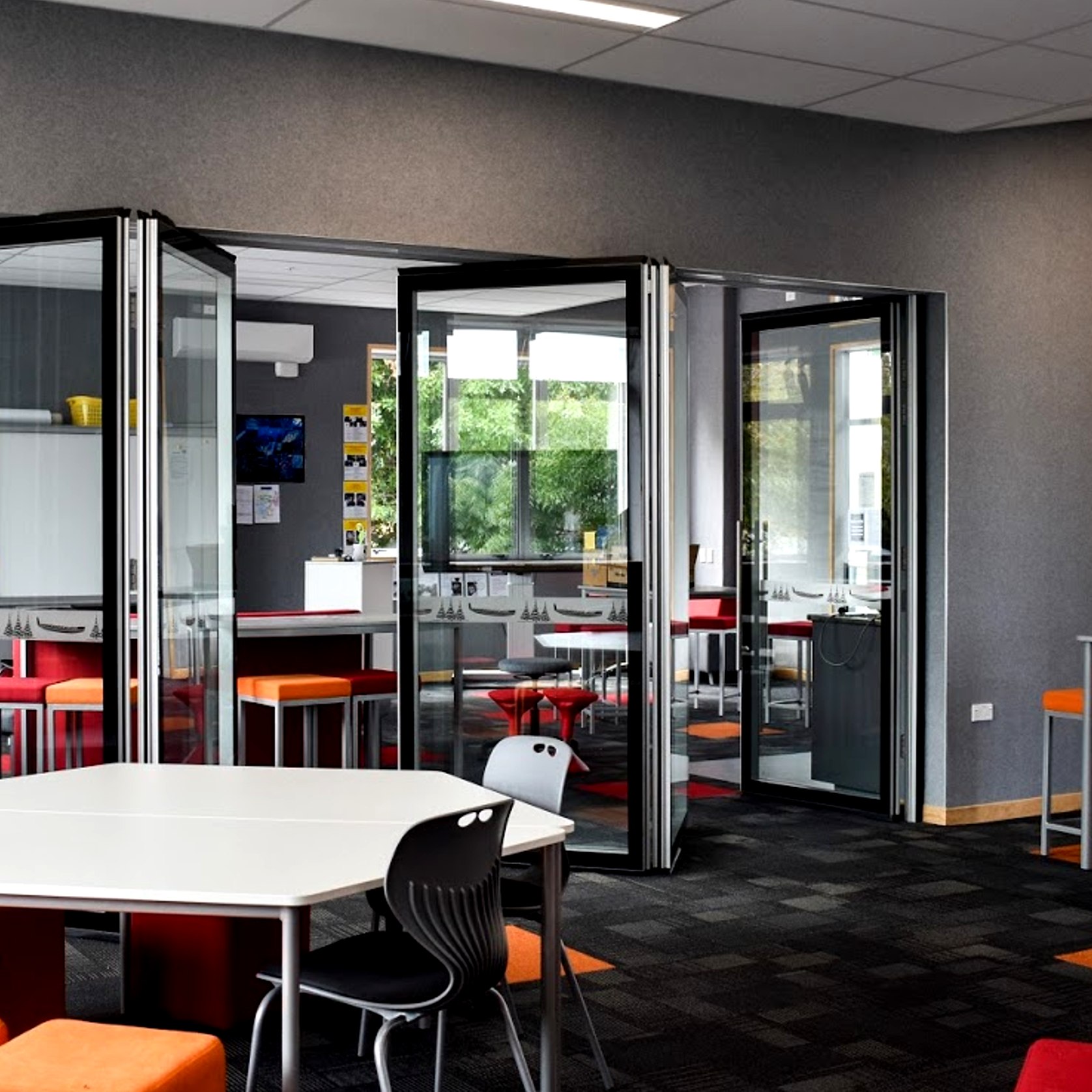

GlassSeal 400

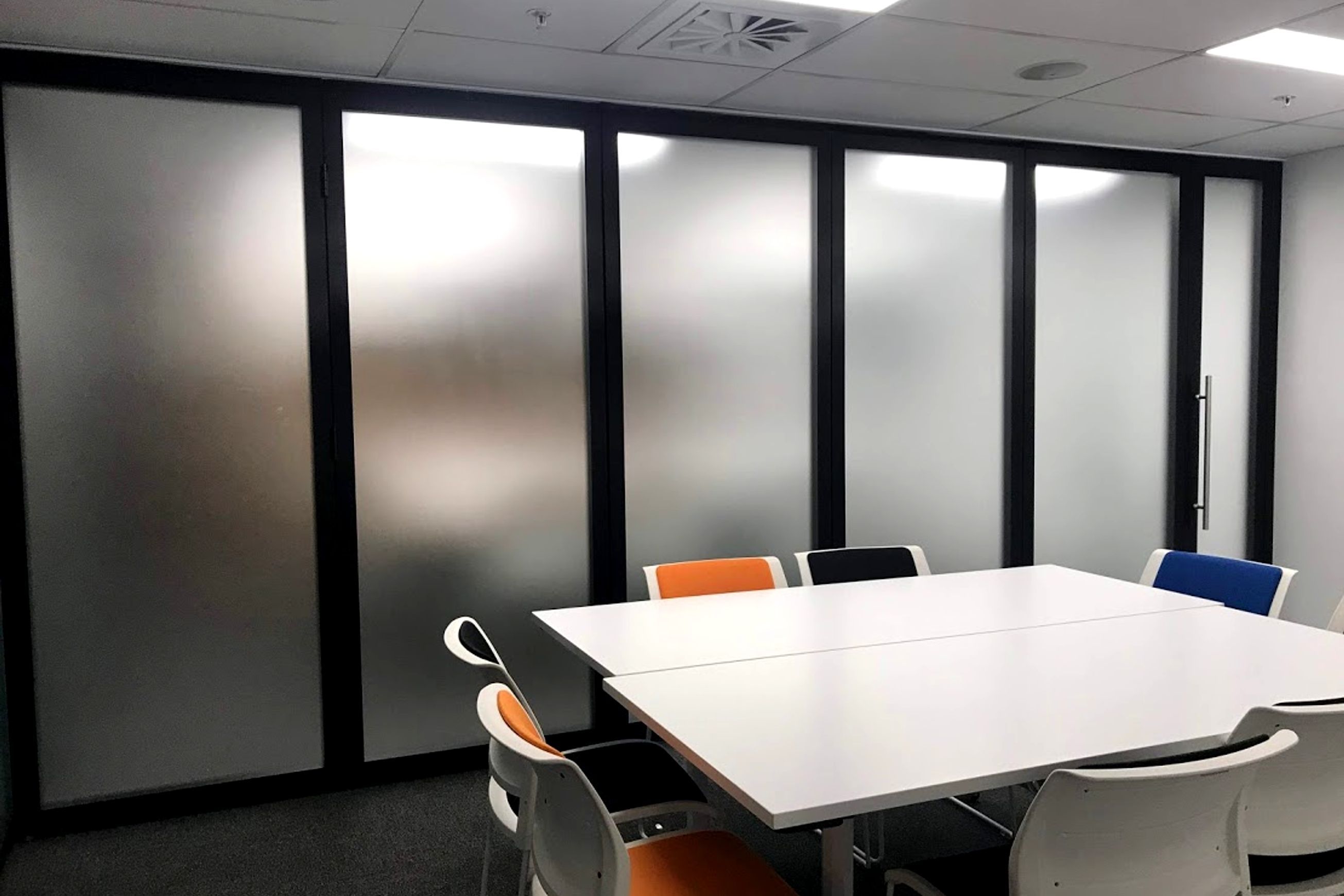

The 400 Series is designed for a flexible partition solution to be combined with the SpaceSeal 400 and Slider Series. It's a stylish and convenient solution for many schools, office fit-outs, conference or simple meeting rooms. Offering the flexibility of combining solid and glass partitions creates a dynamic space and the ability to choose the level of visual transparency desired in a particular space.

The GlassSeal 400 Series is a popular alternative for better acoustically rated glass solution, the main features of the door are:

  • Single or double glazed
  • No bottom tracks
  • Aluminium frame
Details
  • Category
    Internal Doors, Office Screens and Dividers, Wall Partitions and Shelving Systems
Specifications

GlassSeal 410s

  • Panel Thickness (mm): 68
  • Face panel finish: 6 – 10 mm Clear Toughened Glass
  • Panel edge (stile): Aluminium
  • Frame: Aluminium
  • STC: 35
  • Seals: Fixed top and bottom seals
  • Maximum height (mm): 3000
  • Maximum width: 1200

GlassSeal 420s

  • Panel Thickness (mm): 68
  • Face panel finish: 6mm Clear Toughened Glass
  • Panel edge (stile): 60mm painted edge
  • Frame: Aluminium
  • STC: 41
  • Seals: Fixed top and bottom seals
  • Maximum height (mm): 3000
  • Maximum width: 1200
