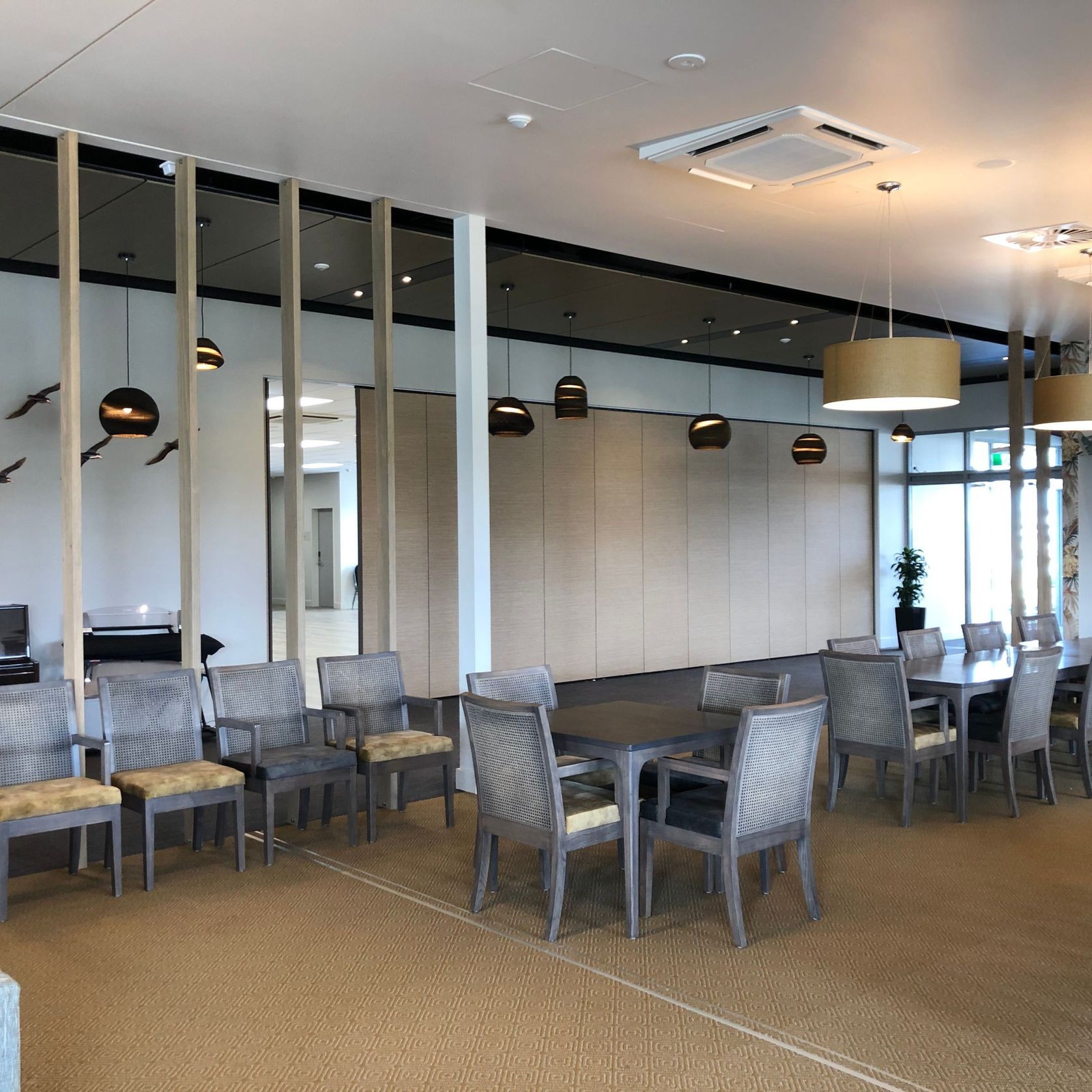

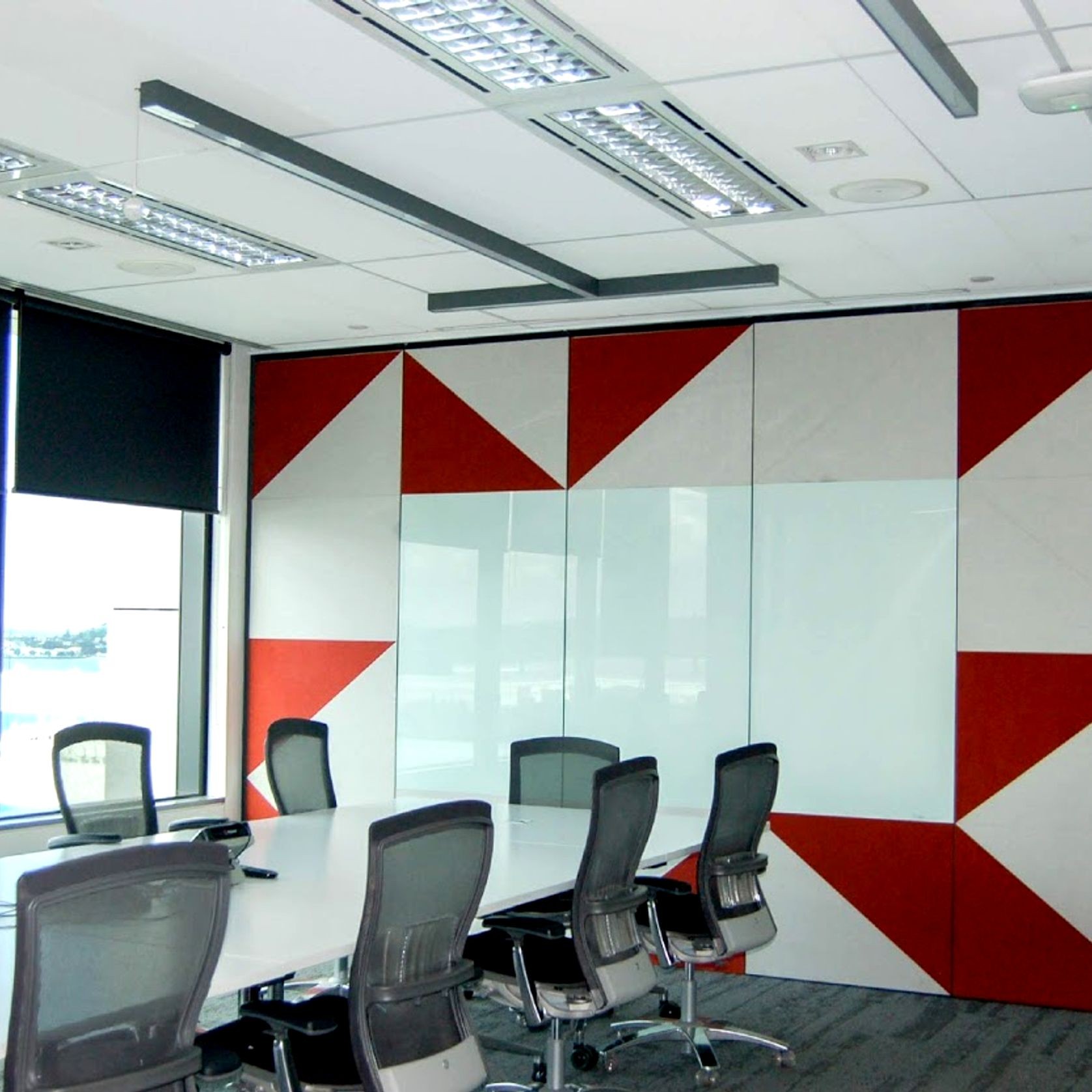

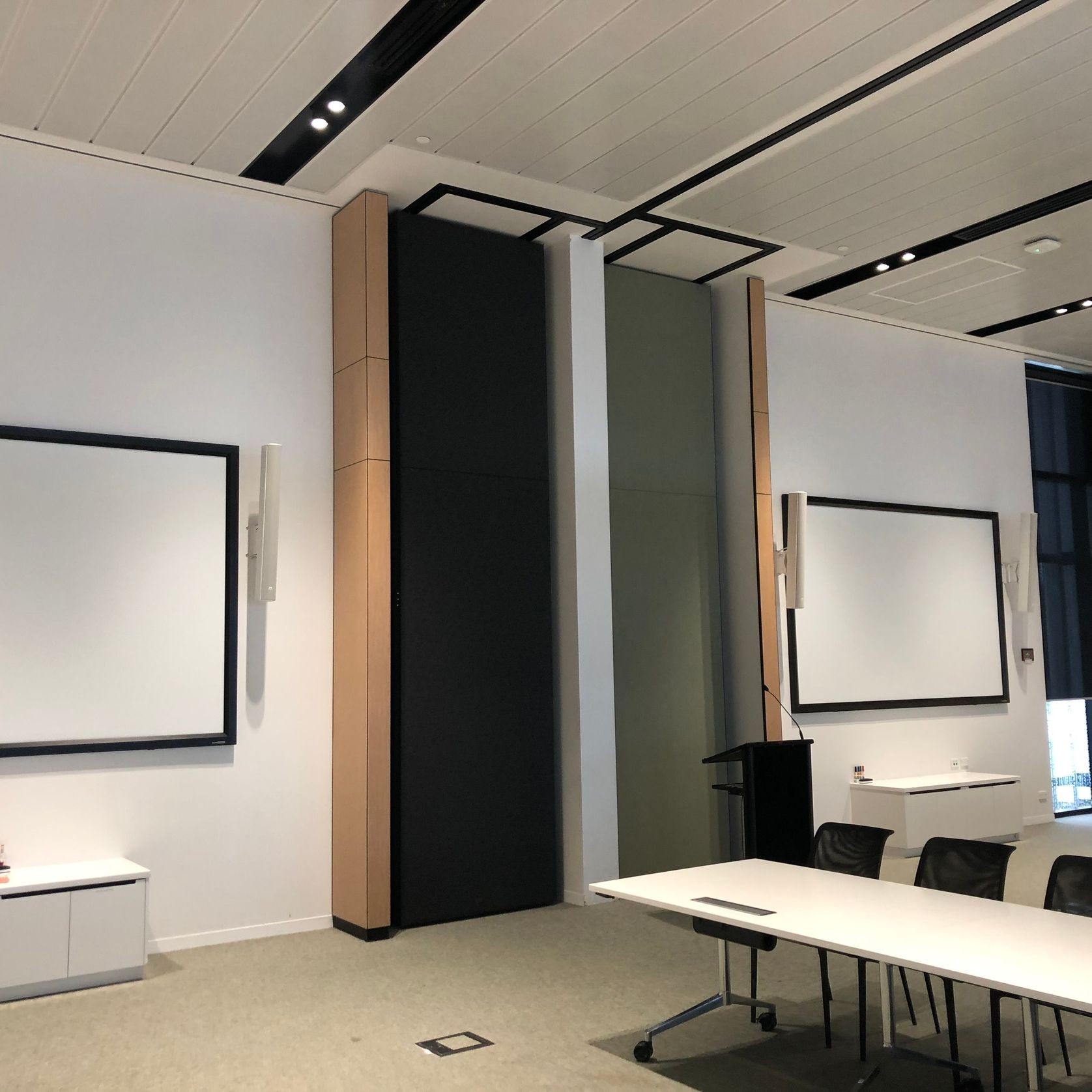

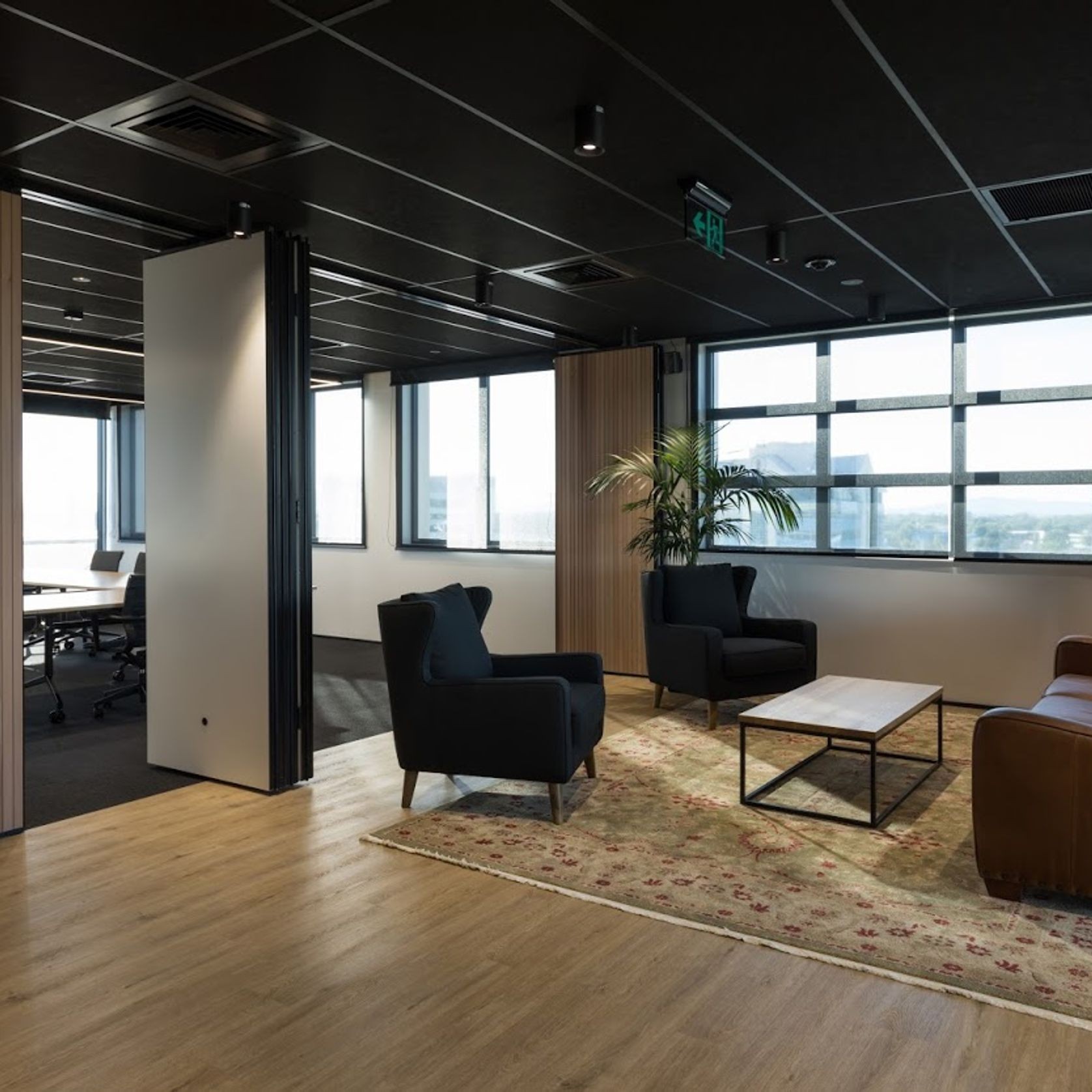

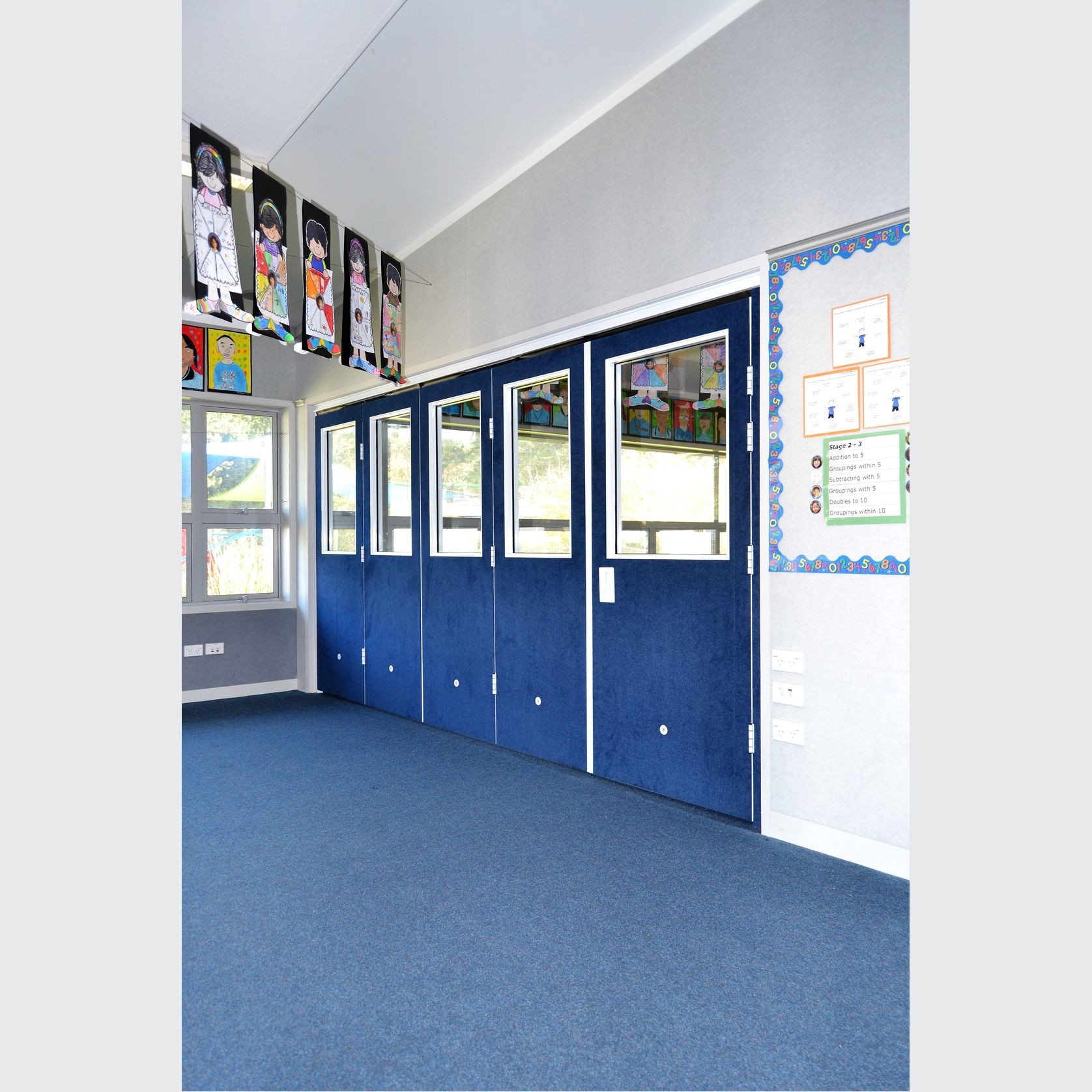

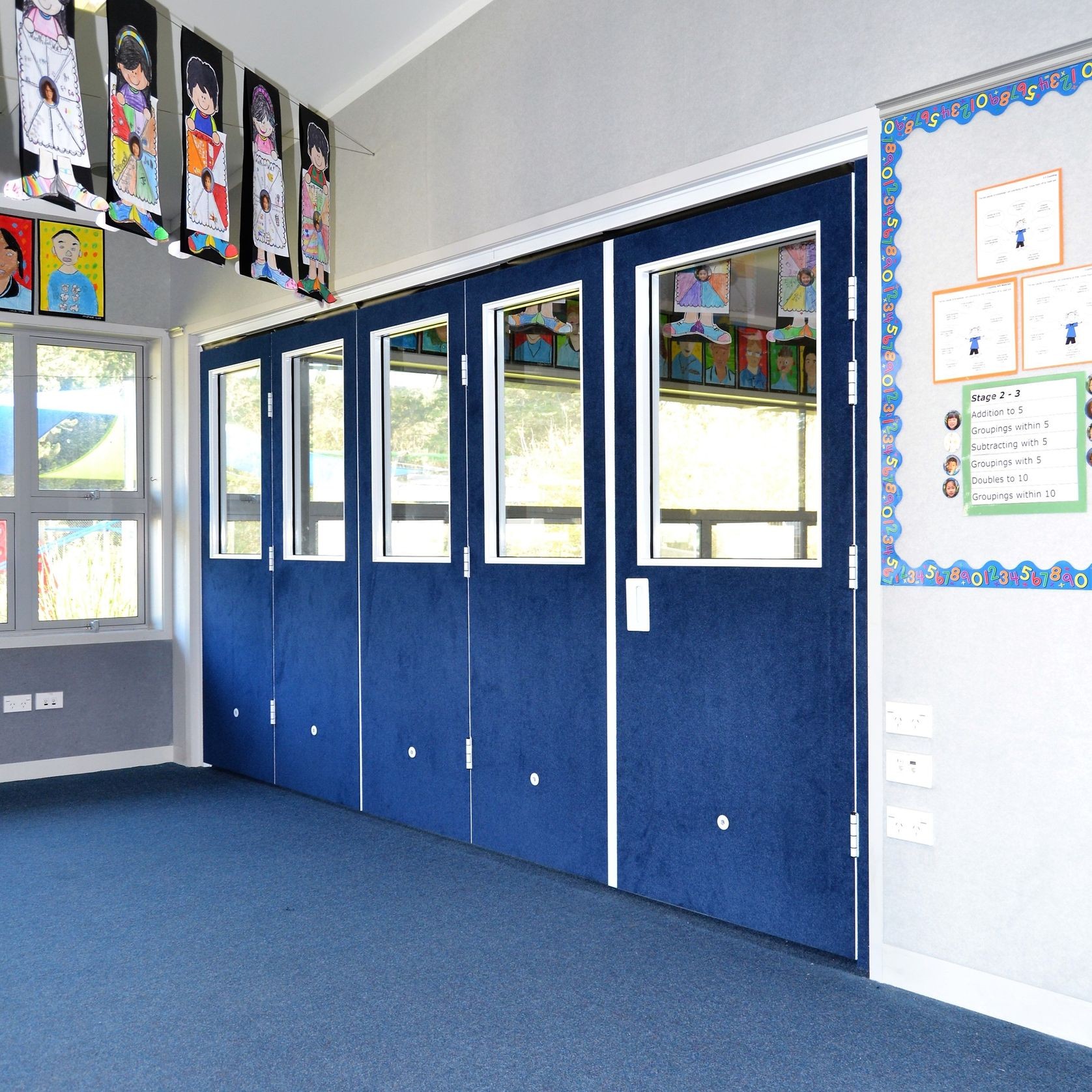

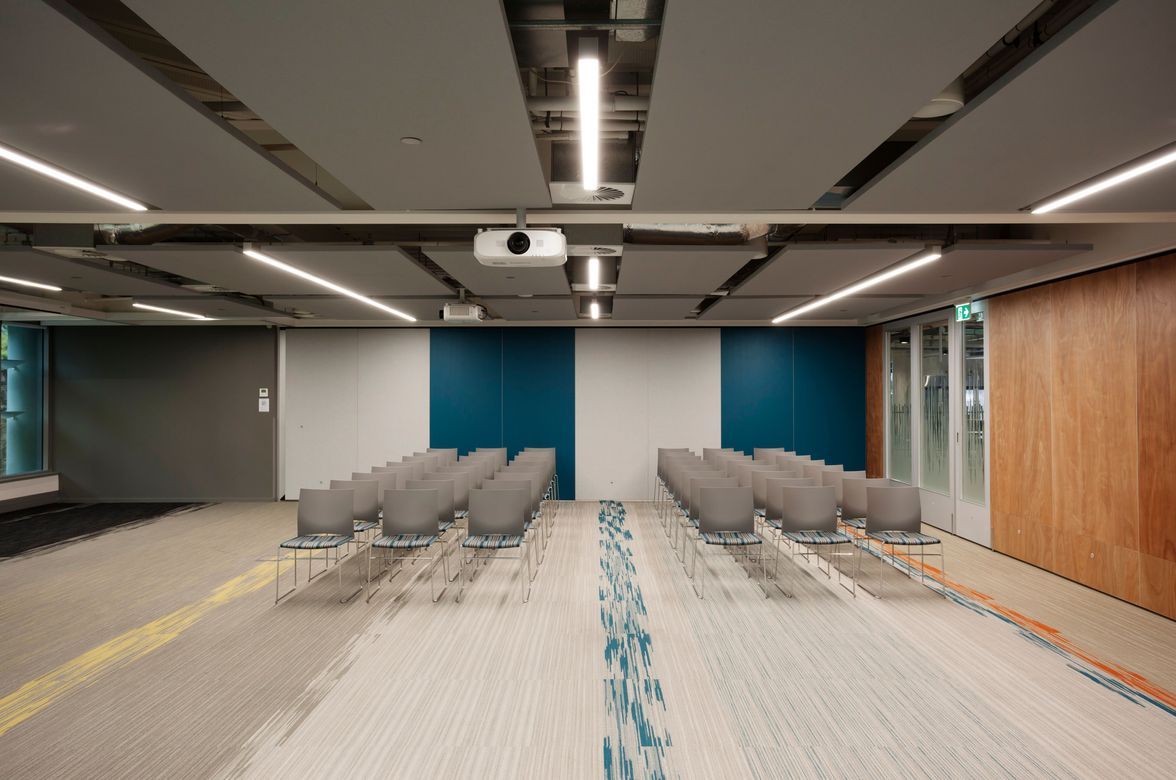

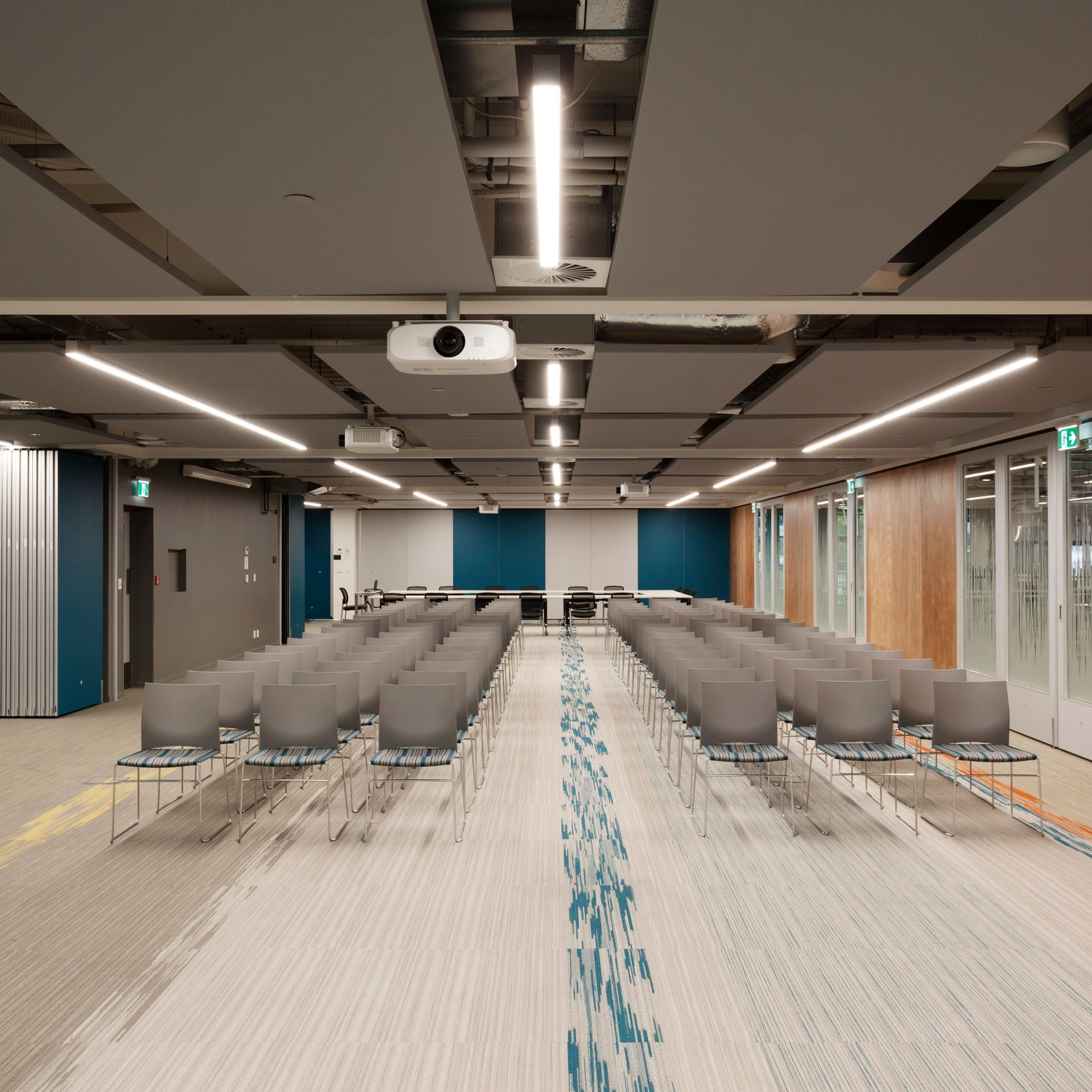

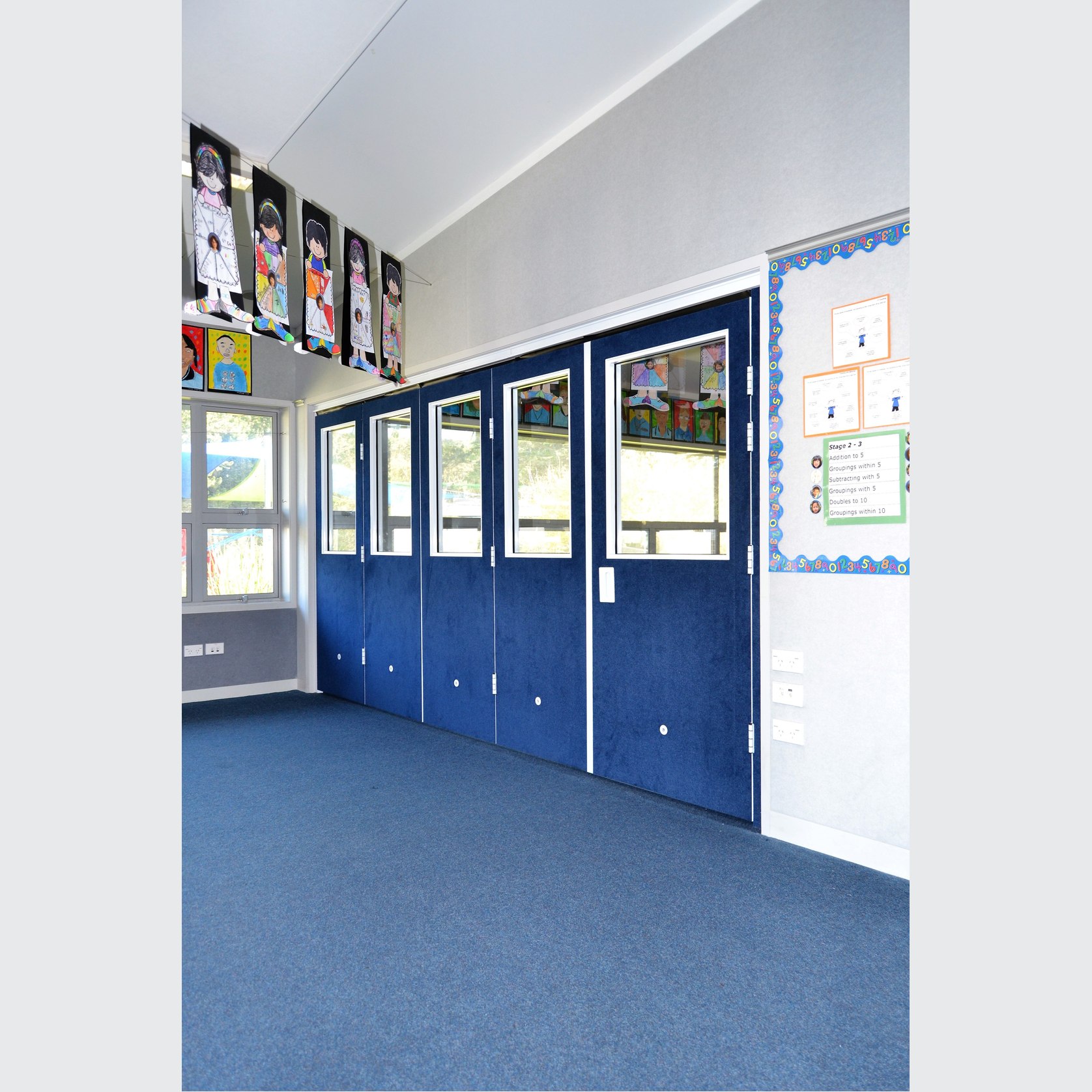

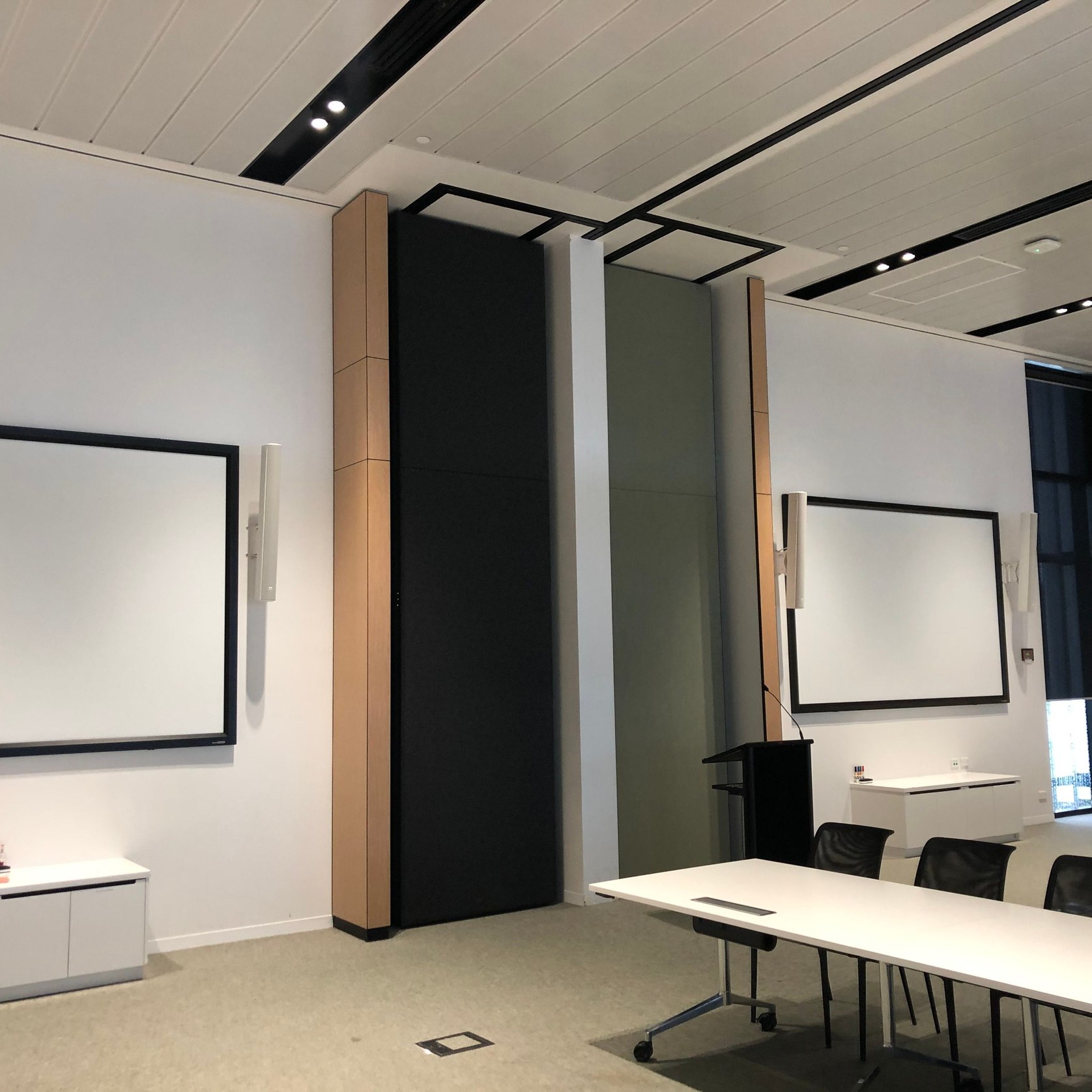

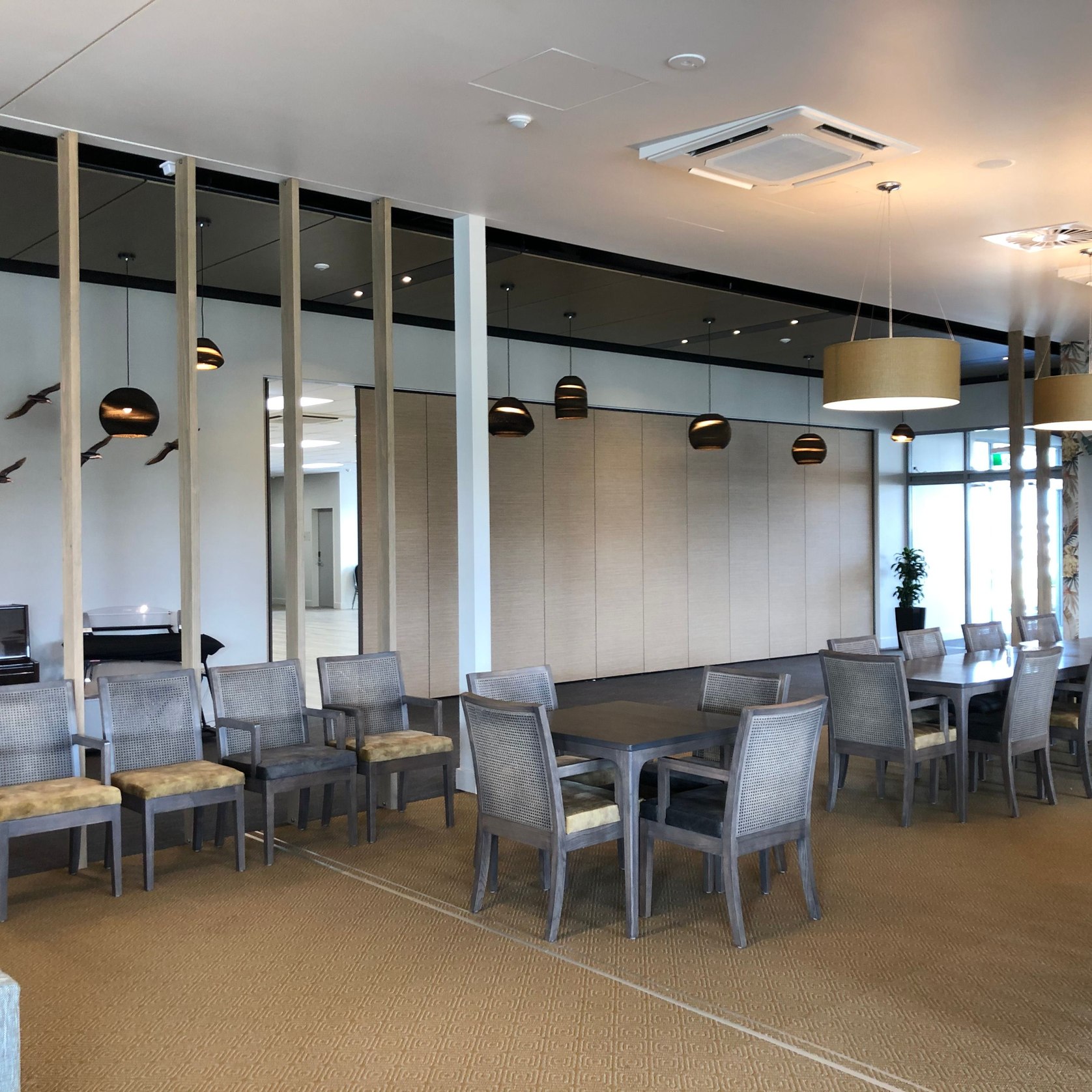

The SpaceSeal Series is designed to be a stylish, convenient and popular solution for schools, community centres, offices, conference, or meeting rooms in retail and hospitality. Offering a varied range of acoustic and configuration options that is suitable in a wide range of environments where maximising space is constantly required while maintaining privacy and sound isolation.

200 Series

The easiest solution to apply in basic room applications while offering reliable acoustic isolation. Specifically designed to be an economical and practical solution to fit most spaces.

400 Series

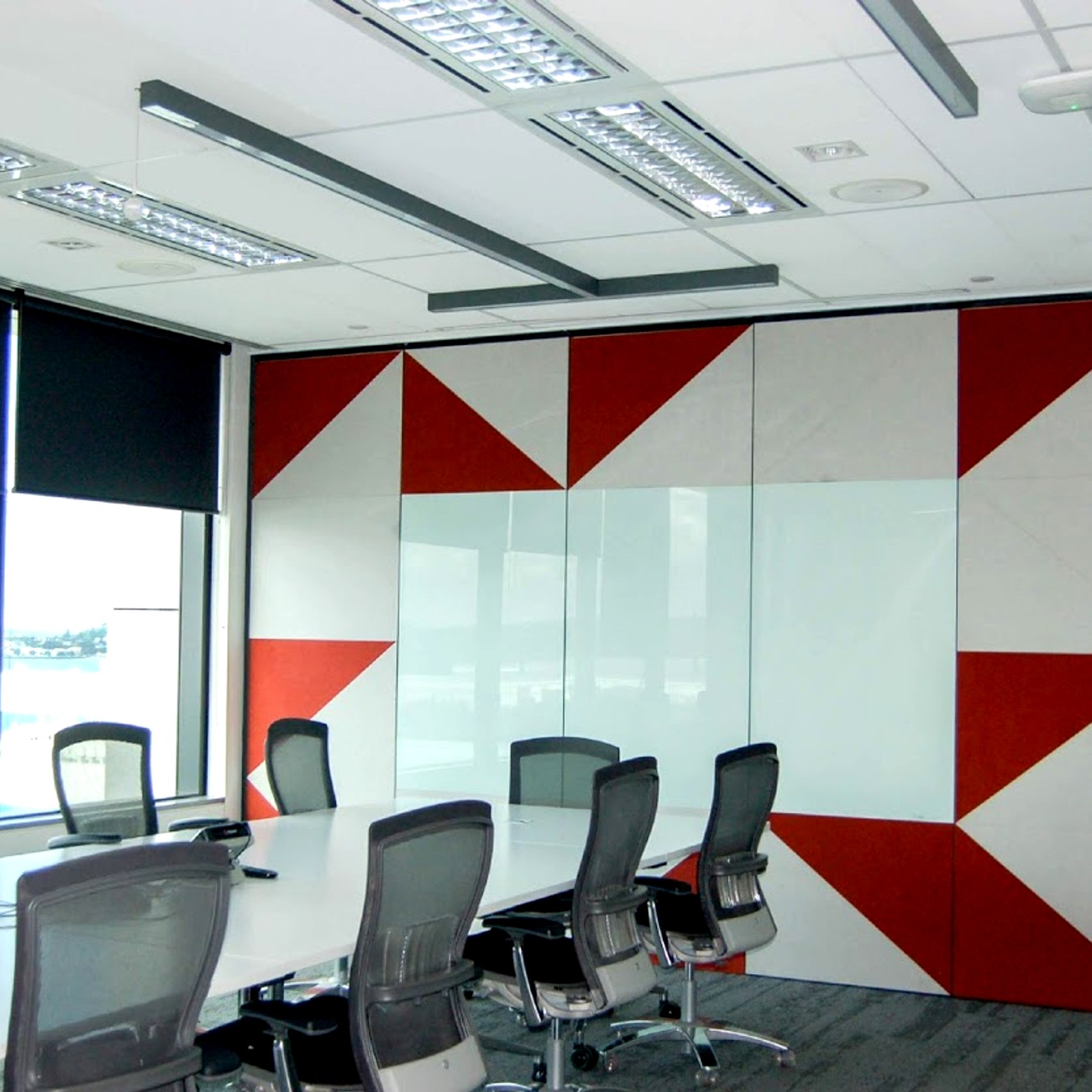

The best solution for a dynamic and versatile space with the flexibility to combine solid or glass finishes and other configurations. Ideal for space looking to create a flexible environment while maintaining acoustic rating.

500 Series

Offering a combination of high-level acoustic integrity and simplicity of movement. Designed with retractable bottom seals allowing users to manoeuvre the doors with ease.

Details
  • Category
    Office Screens and Dividers, Wall Partitions and Shelving Systems, Internal Doors
Specifications

200 Series

  • STC Rating: 35
  • Panel Thickness (mm): 75
  • Hanging Weight: 17 kgs/m2
  • Minimum Panel Width (mm): 600
  • Maximum Panel Width (mm): 1200
  • Seals: Fixed
  • Finish Thickness (mm): 9
  • Finish*: Solid

400 Series

  • STC Rating: 41
  • Panel Thickness (mm): 80
  • Hanging Weight: 27kgs/m2
  • Minimum Panel Width (mm): 600
  • Maximum Panel Width (mm): 1200
  • Seals: Fixed
  • Finish Thickness (mm): 9
  • Finish*: Solid & Glass

500 Series

  • STC Rating: 43, 45, 47
  • Panel Thickness (mm): 85
  • Hanging Weight: 32 – 43 kgs/m2
  • Minimum Panel Width (mm): 600
  • Maximum Panel Width (mm): 1200
  • Seals: Retractable
  • Finish Thickness (mm): 12
  • Finish*: Solid
Options

Panels

Appearance similar to a permanent wall

Aluminium framing

MDF skins insulated with fibreglass

  • 200 Series – 10mm aluminium protective strip around each edge
  • 400 & 500 Series – aluminium trim on the vertical trim only – no visible aluminium on the panel face, leaving a clean look.

Seals

Vertical seals to each jamb are adjustable astragal extrusions

  • 400 & 500 Series – Vertical seals between panels are tongue and groove aluminium extrusion astragals with quadruplefinger seals
  • 500 Series – Top sweep seals and bottom mechanical seals with a maximum 50mm travel

Configurations

  • Single – Individual Panels available in offset or remote stacking.
  • Pairs
  • Continuously Hinged

Closure

The Trans-Space team will suggest the recommended closing option for your door. This can be achieved with the options below:

  • Expanding edge

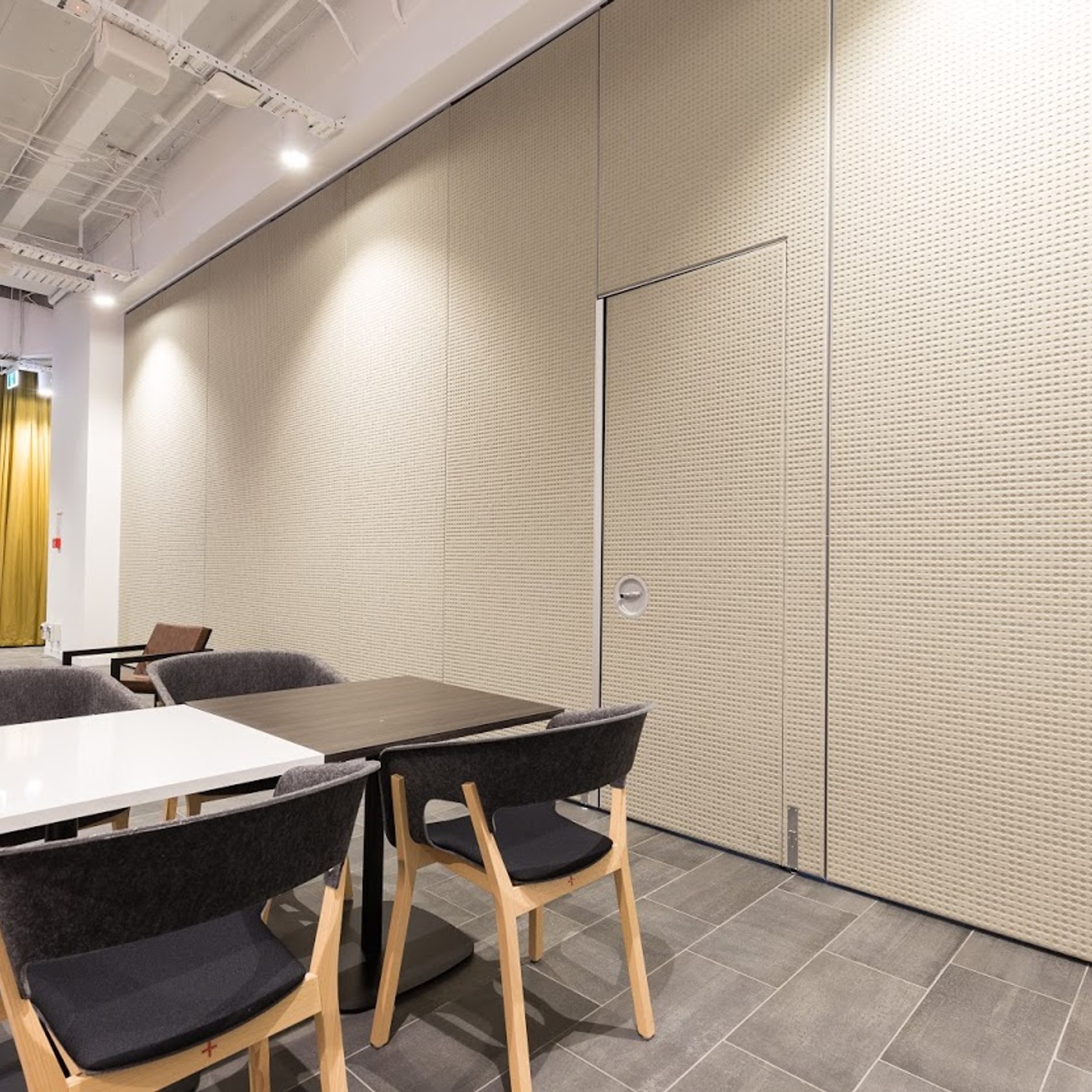

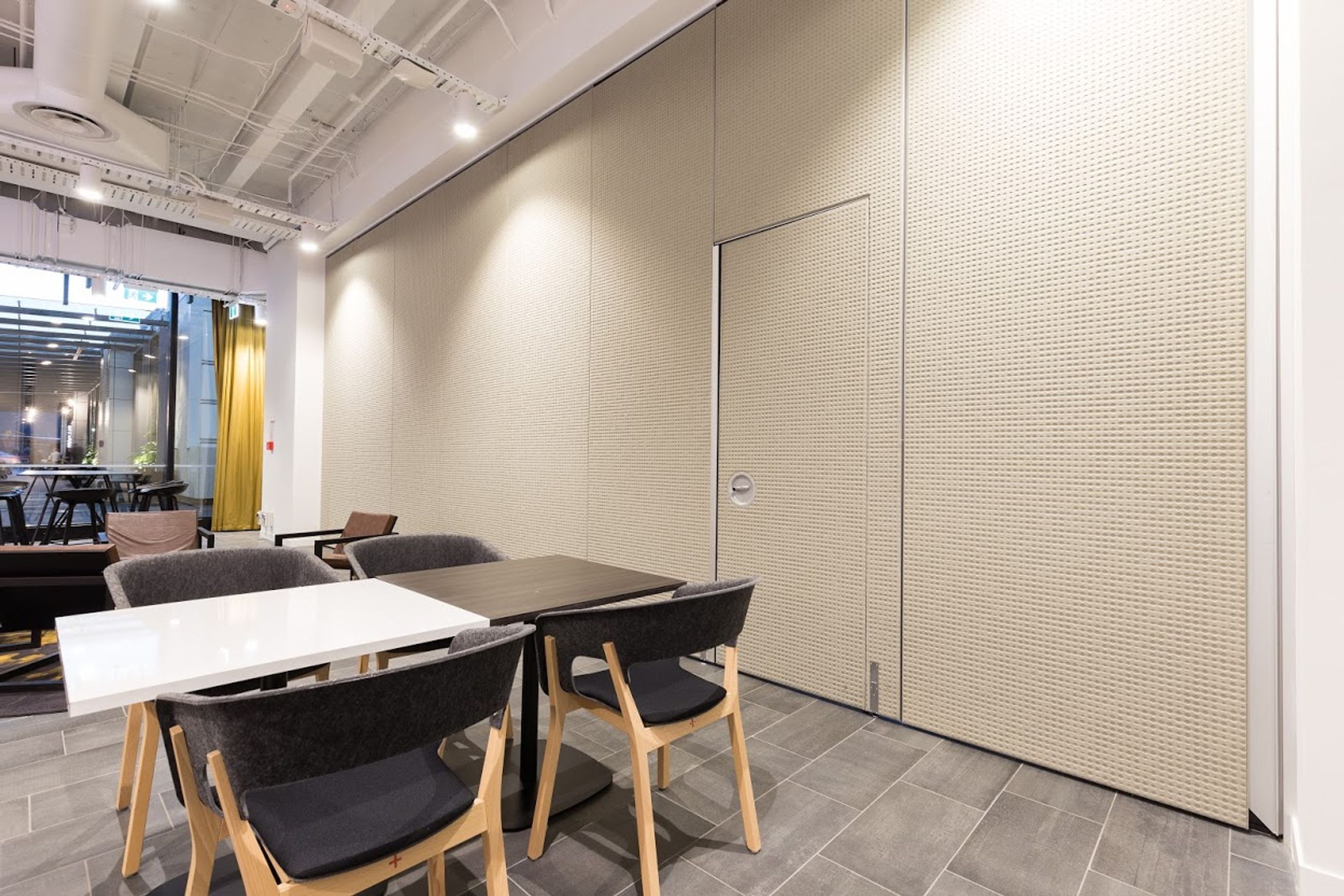

  • Jamb Hinged Pass Door

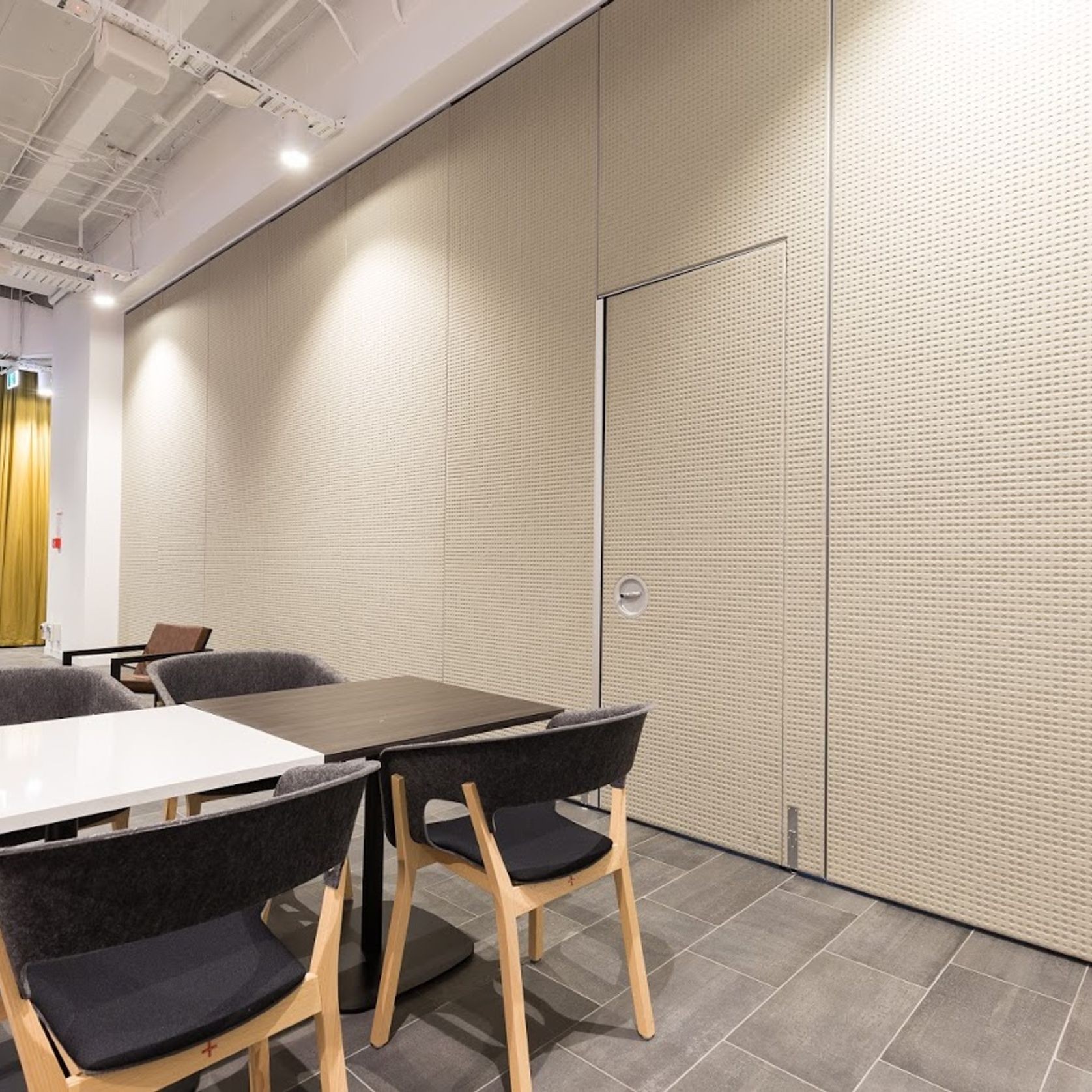

  • Lead Panel Pass door

Finishes

Available in various finishes including fabric, sheet, timber laminates, vinyls, paint, whiteboards, autex material or a combination.

Work by Others

  • All headworks required to support track. Deflection of head under load to be less than 5mm
  • Jambs to be installed straight and plumb. Tolerance 5mm from plumb
  • Baffle over the opening to ensure no flanking paths for sound transmission
  • Smooth, straight level floor
