Skyfold Acoustic Vertical Retractable Walls

By Trans-Space
Visit Website

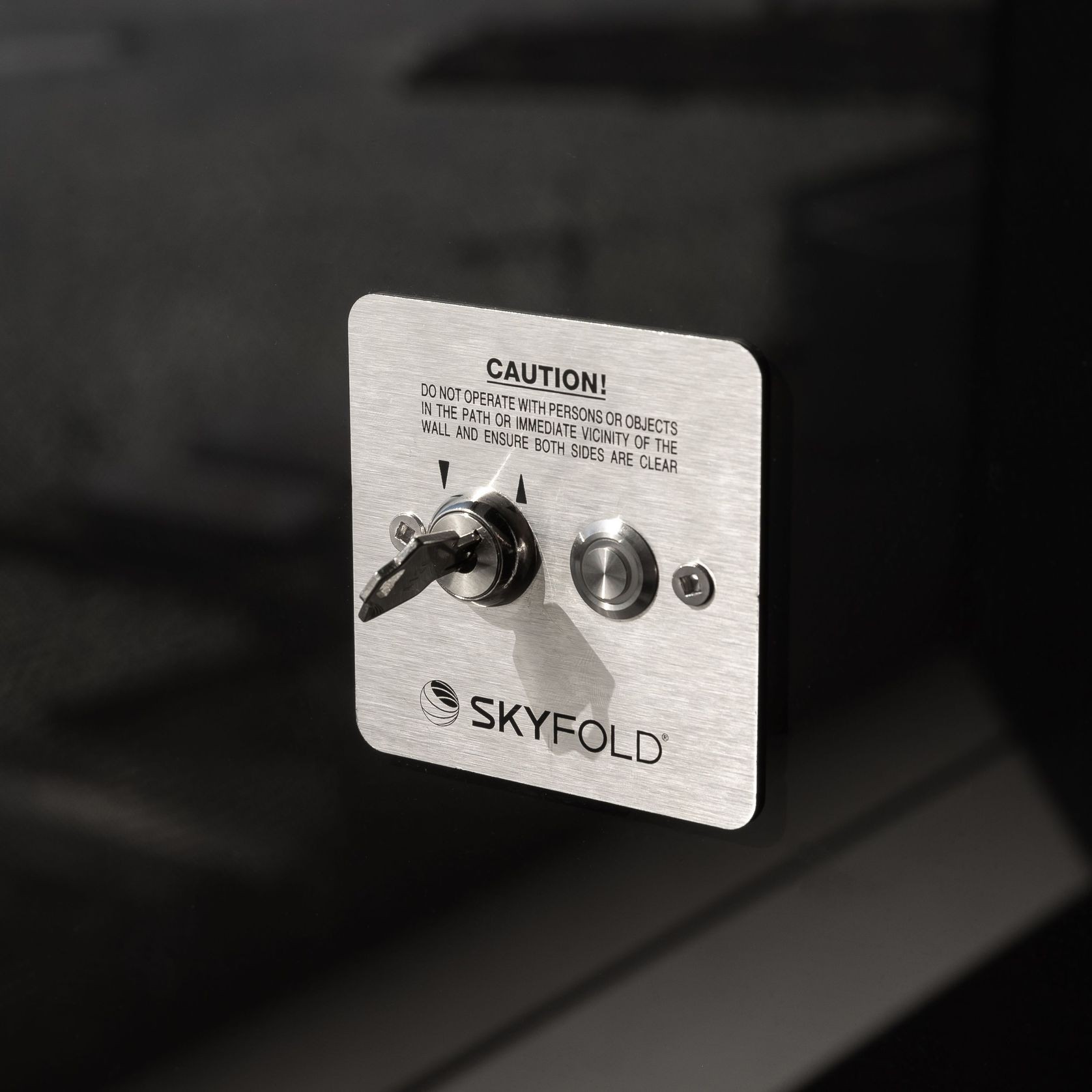

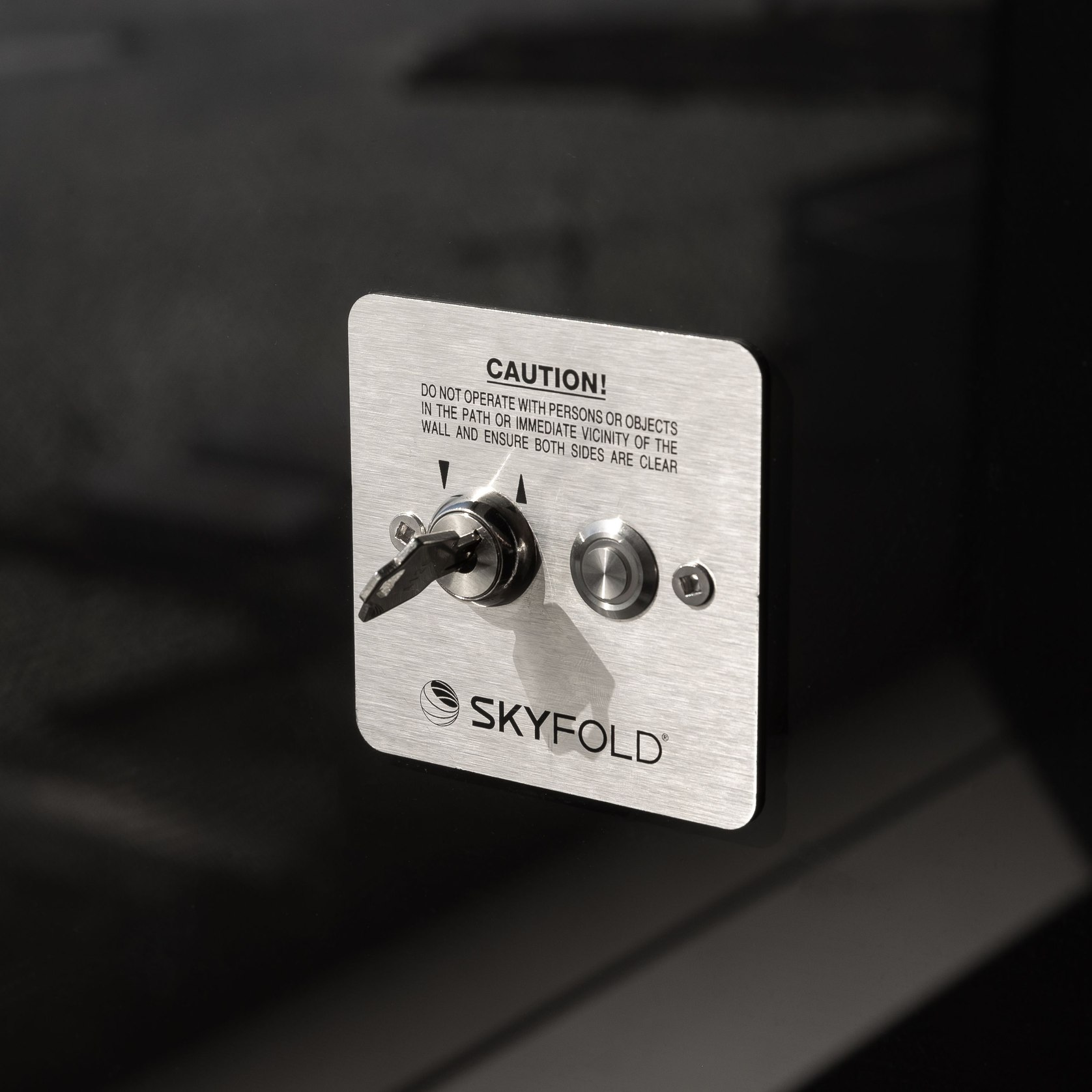

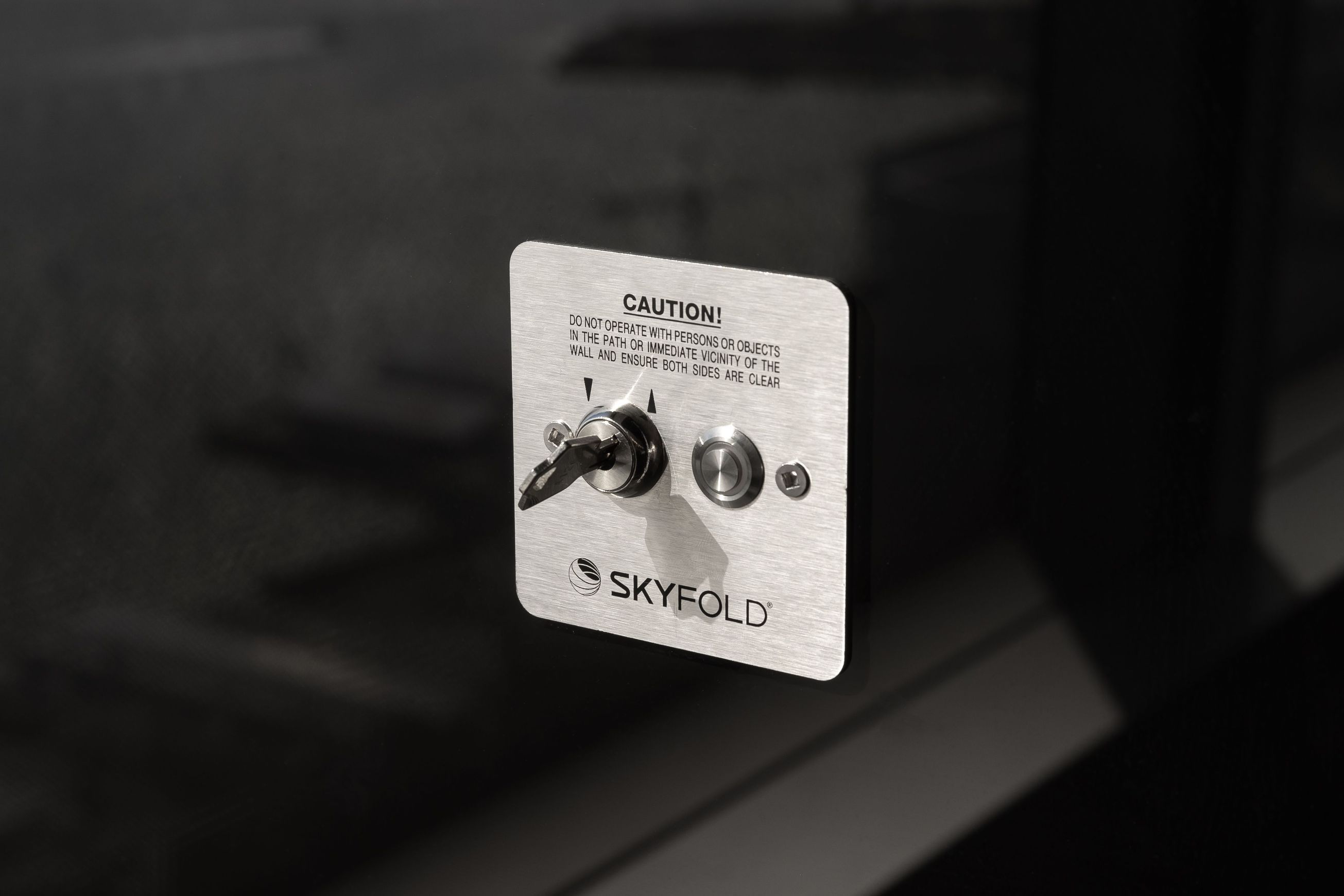

Skyfold® is the world leader in acoustic vertical retractable walls. Our wall systems are completely electric and provide superior acoustics. With a simple keypad operation, a room can be quickly and quietly reconfigured to provide the user with tremendous space flexibility. There is no longer any need for manual intervention to position the wall in order to change a room’s configuration! Over the year’s architects have been relying on Skyfold’s quick and easy space management solutions to reconfigure multifunctional rooms. Skyfold® has been used in corporate boardrooms, training facilities and convention centers. Specialty applications include school gymnasiums, and auditoriums with stepped or sloped floors.

  • Skyfold® walls unite acoustics, design, performance and flexibility
  • Industry-leading STC 60 (RW 59) rating

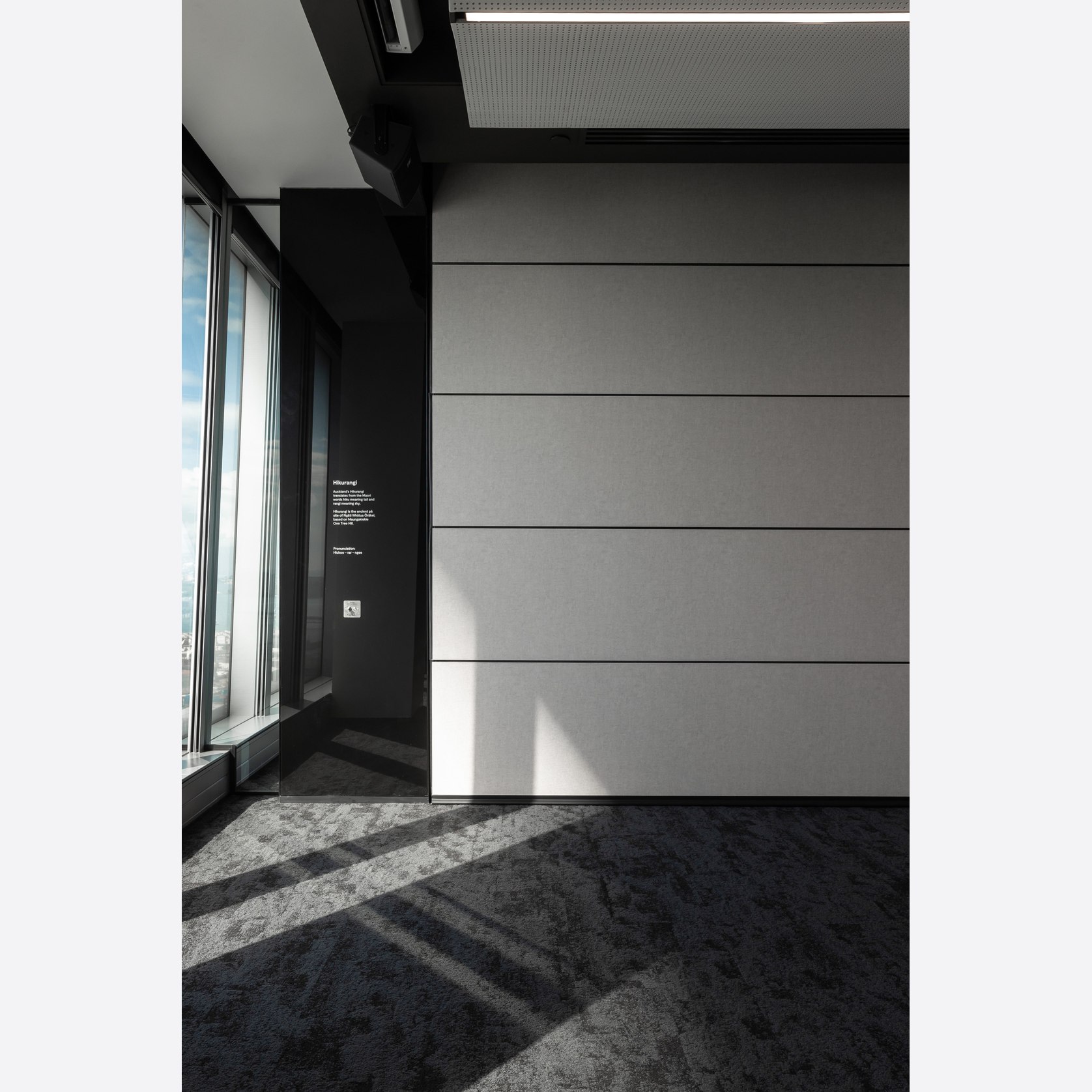

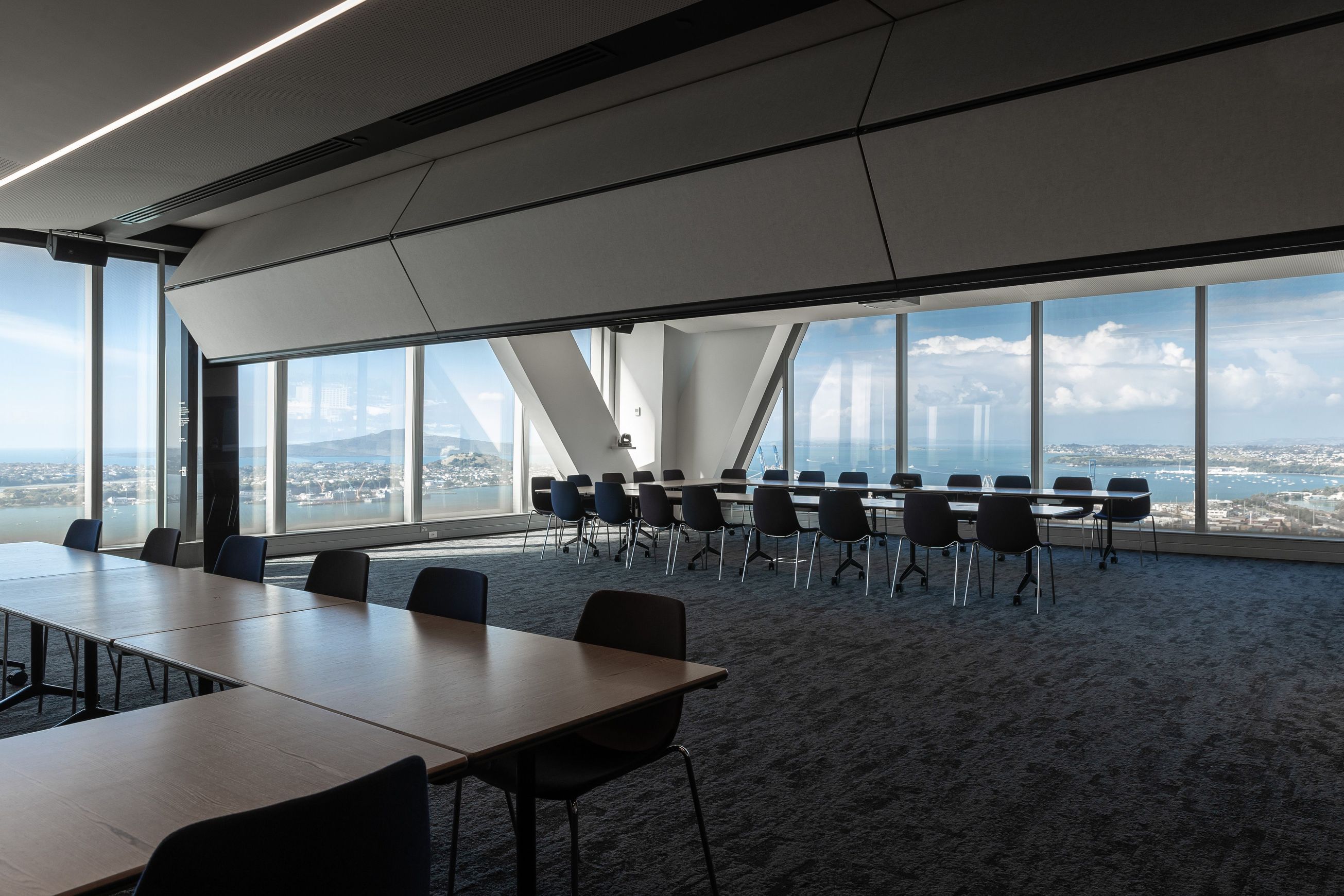

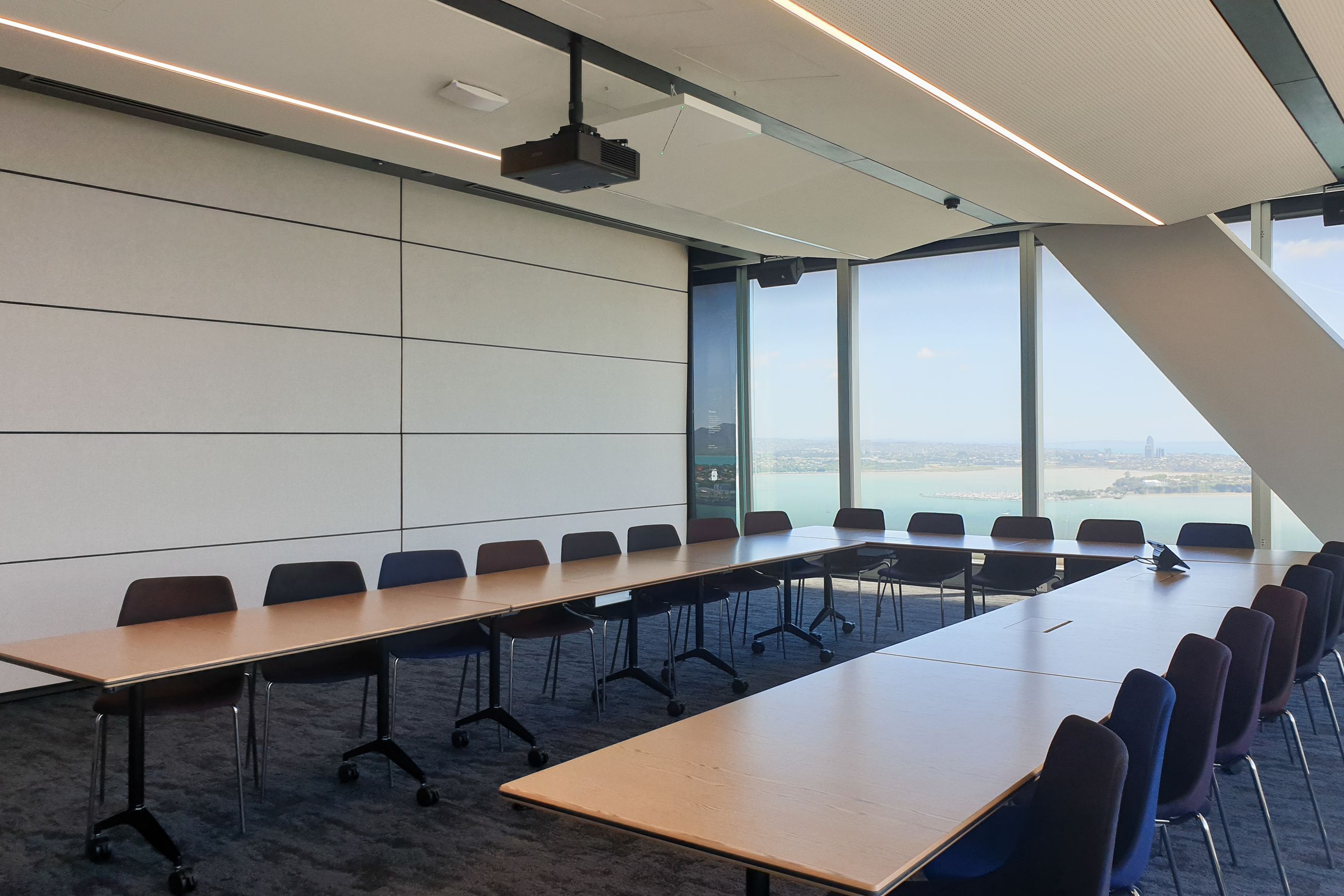

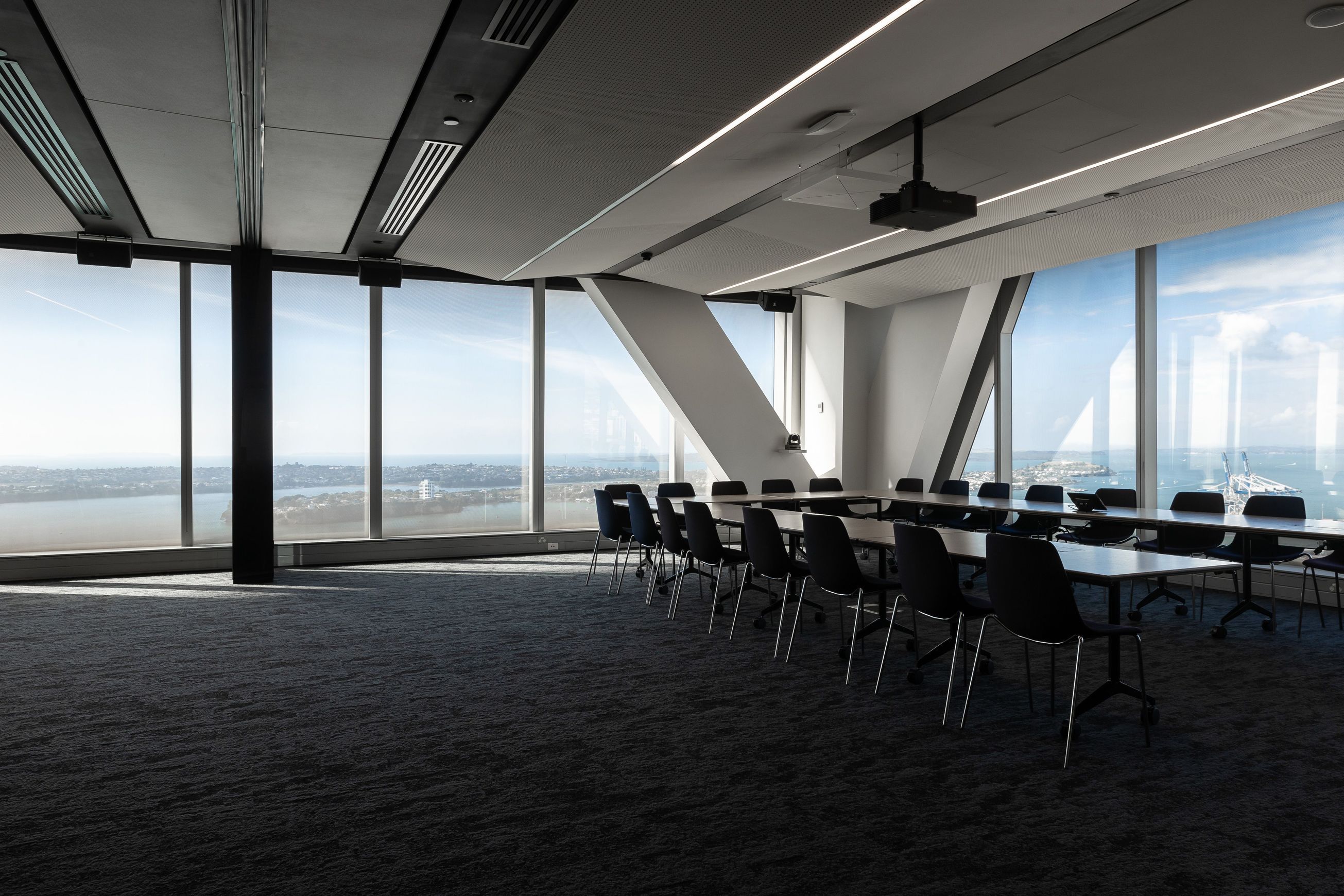

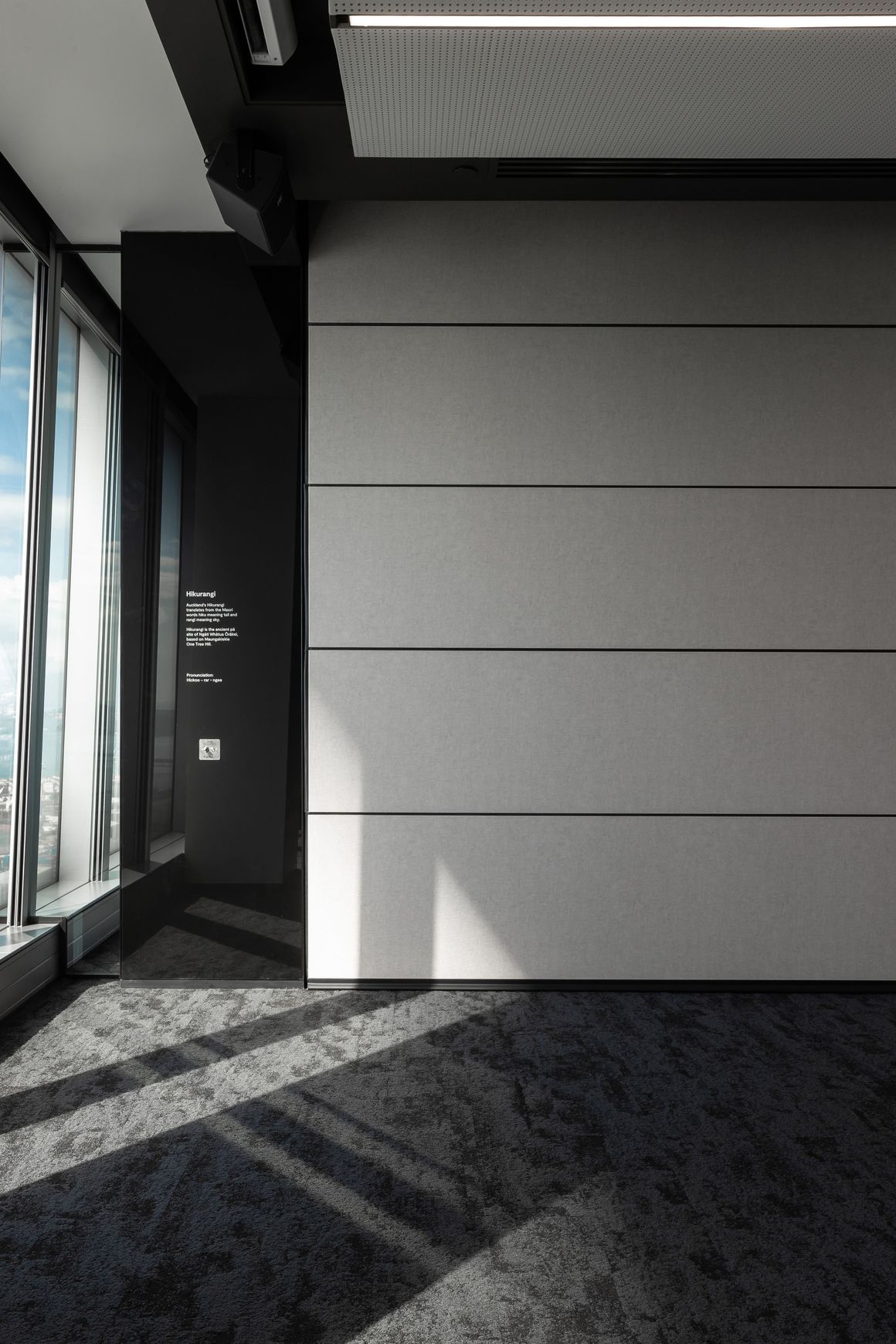

  • Skyfold® walls store neatly in the ceiling when not required
  • Our wall systems are also aesthetically pleasing as there are no visible hinges or hardware
  • Skyfold® is available in a variety of standard or custom finishes including vinyl, fabric, various metals, wood veneers and paint finishes
Details
  • Category
    Office Screens and Dividers, Wall Partitions and Shelving Systems, Internal Doors
Specifications

Skyfold Classic 51

  • RW (System): 51
  • RW (Panel): 60
  • Max Height (mm): 11,000
  • Max Length (mm): Unlimited
  • Weight (kg/m2): 34.2
  • Available Finishes: Various*
  • Ceiling space requirements for storage (mm): 550 to 1,960
  • Pocket width (mm): 1385 to 1750

Skyfold Classic 55

  • RW (System): 54
  • RW (Panel): 60
  • Max Height (mm): 11,000
  • Max Length (mm): Unlimited
  • Weight (kg/m2): 37.1
  • Available Finishes: Various*
  • Ceiling space requirements for storage (mm): 550 to 1,960
  • Pocket width (mm): 1385 to 1750

Skyfold Classic 60

  • RW (System): 59
  • RW (Panel): 64
  • Max Height (mm): 8,535
  • Max Length (mm): Unlimited
  • Weight (kg/m2): 46
  • Available Finishes: Various*
  • Ceiling space requirements for storage (mm): 550 to 1,530
  • Pocket width (mm): 1385 to 1750

Skyfold Classic NR

  • RW (System): 49
  • RW (Panel): 58
  • SAC (Panel): Up to 0.65
  • Max Height (mm):11,000
  • Max Length (mm): Unlimited
  • Weight (kg/m2): 36.6
  • Available Finishes: Fabric Only
  • Ceiling space requirements for storage (mm): 550 to 1,960
  • Pocket width (mm): 1385 to 1750

Skyfold Zenith 48

  • RW (System): 47
  • RW (Panel): 55
  • Max Height (mm): 3,660
  • Max Length (mm): 14,600
  • Weight (kg/m2): 29.3
  • Available Finishes: STD Fabric/Vinyl
  • Ceiling space requirements for storage (mm): 615 to 865
  • Pocket width (mm): 1,270 to 1,595

Zenith/Zenith Premium

  • RW (System): 51
  • RW (Panel): 60
  • Max Height (mm): 3,660
  • Max Length (mm): 14,600
  • Weight (kg/m2): 30.4
  • Available Finishes: Various*
  • Ceiling space requirements for storage (mm): 615 to 856
  • Pocket width (mm): 1,400 to 1,780

Zenith/Zenith Premium

  • RW (System): 54
  • RW (Panel): 60
  • Max Height (mm): 3,660
  • Max Length (mm): 14,600
  • Weight (kg/m2): 33.3
  • Available Finishes: Various*
  • Ceiling space requirements for storage (mm): 615 to 856
  • Pocket width (mm): 1,400 to 1,780

Zenith/Zenith Premium

  • RW (System): 59
  • RW (Panel): 64
  • Max Height (mm): 3,660
  • Max Length (mm): 14,600
  • Weight (kg/m2): 42
  • Available Finishes: Various*
  • Ceiling space requirements for storage (mm): 615 to 865
  • Pocket width (mm): 1,400 to 1,780

Zenith/Zenith Premium

  • RW (System): 49
  • RW (Panel): 58
  • SAC (Panel): Up to 0.65
  • Max Height (mm): 3,660
  • Max Length (mm): 14,600
  • Weight (kg/m2): 32.5
  • Available Finishes: Fabric Only
  • Ceiling space requirements for storage (mm): 615 to 865
  • Pocket width (mm): 1,400 to 1,780

Skyfold Mirage

  • Max Height (mm): 7,315
  • Max Length (mm): unlimited
  • Weight (kg/m2): 39.1
  • Available Finishes: Various
  • Ceiling space requirements for storage (mm): 965 to 1,450
  • Pocket width (mm): 1,105 to 1,550

*Contact Trans-Space Industries for further enquiries.

Skyfold Series

CLASSIC - for maximum versatility

Skyfold® Classic™ is a vertical moveable wall system that retracts to the ceiling. It is space-saving and requires no guides or track rails and offers acoustic insulation up to Rw 59 dB. This elegant robust wall system enables rapid and fully automatic operation at the press of a button.

ZENITH - the slimline model

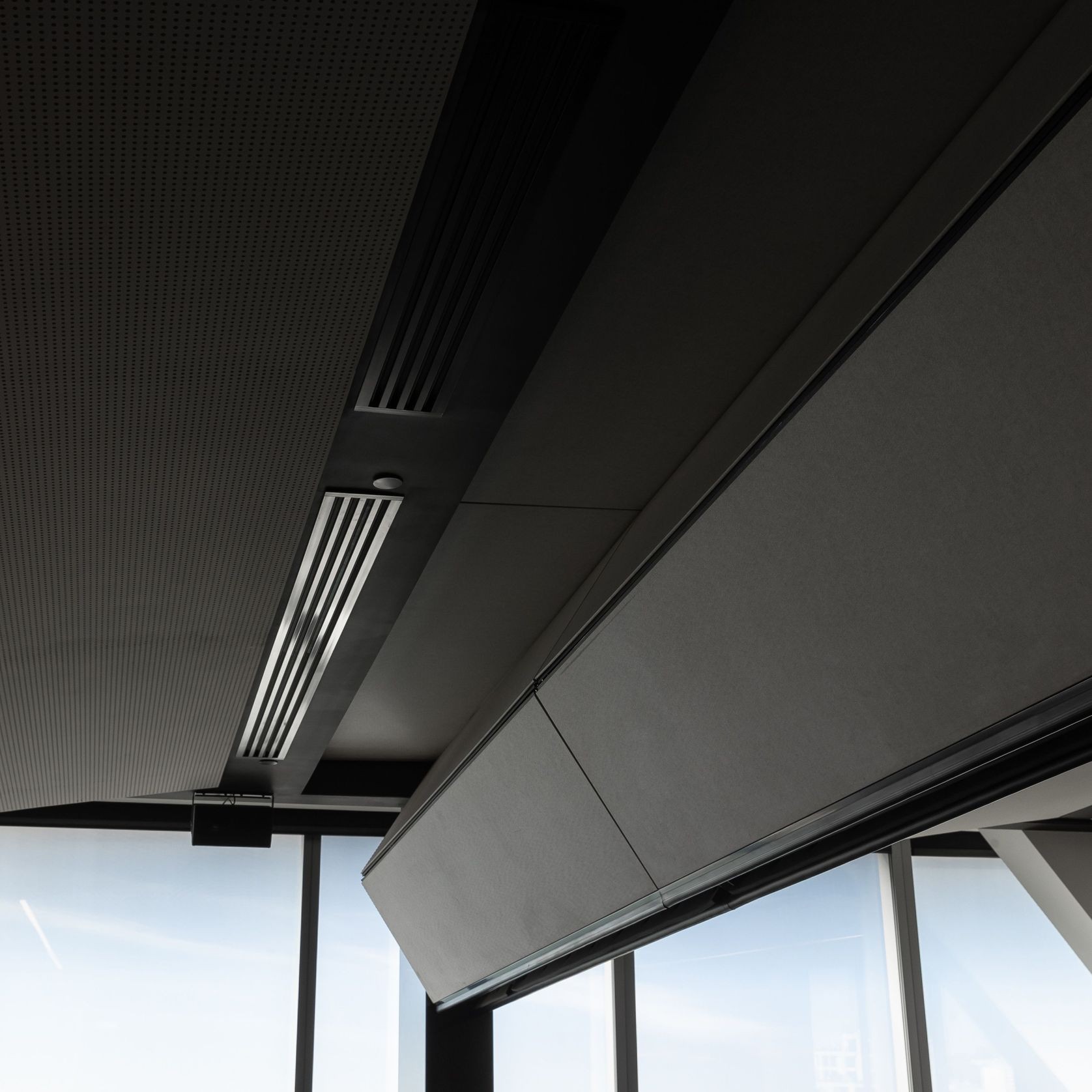

Skyfold® Zenith™ combines the accordion folding elements found in the Classic series at the top portion reducing to a flat thin panel as it descends. Folds only in its upper section, which means the furniture can be placed nearer to the movable wall; and the Zenith Premium model comes with an integrated ceiling trim to seal off the gap when the wall is lowered.

ZENITH PREMIUM

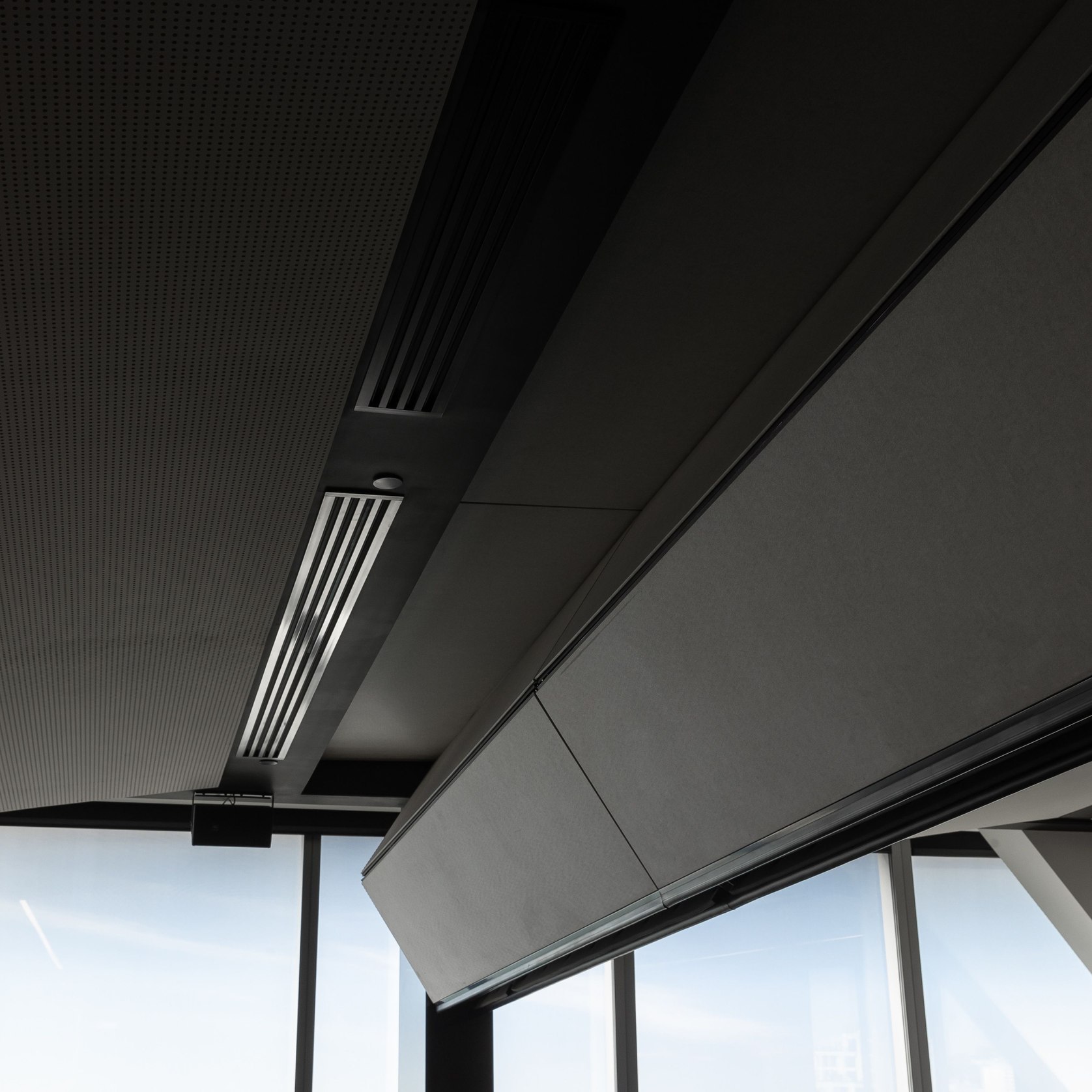

Skyfold’s Zenith Premium is the newest addition to the Skyfold line and offers the same benefits as the Zenith product, but with an additional advantage. The ceiling pocket that stores the Skyfold wall is traditionally visible when looking up from the base in its down position. The Zenith Premium, however, features closure panels to hide the pocket from view, thereby maintaining the ceiling’s flushed and unobtrusive appearance. With this added feature, the Zenith Premium in its down position not only divides your space like a fixed wall but also looks like a permanent fixture.

MIRAGE - the transparent solution

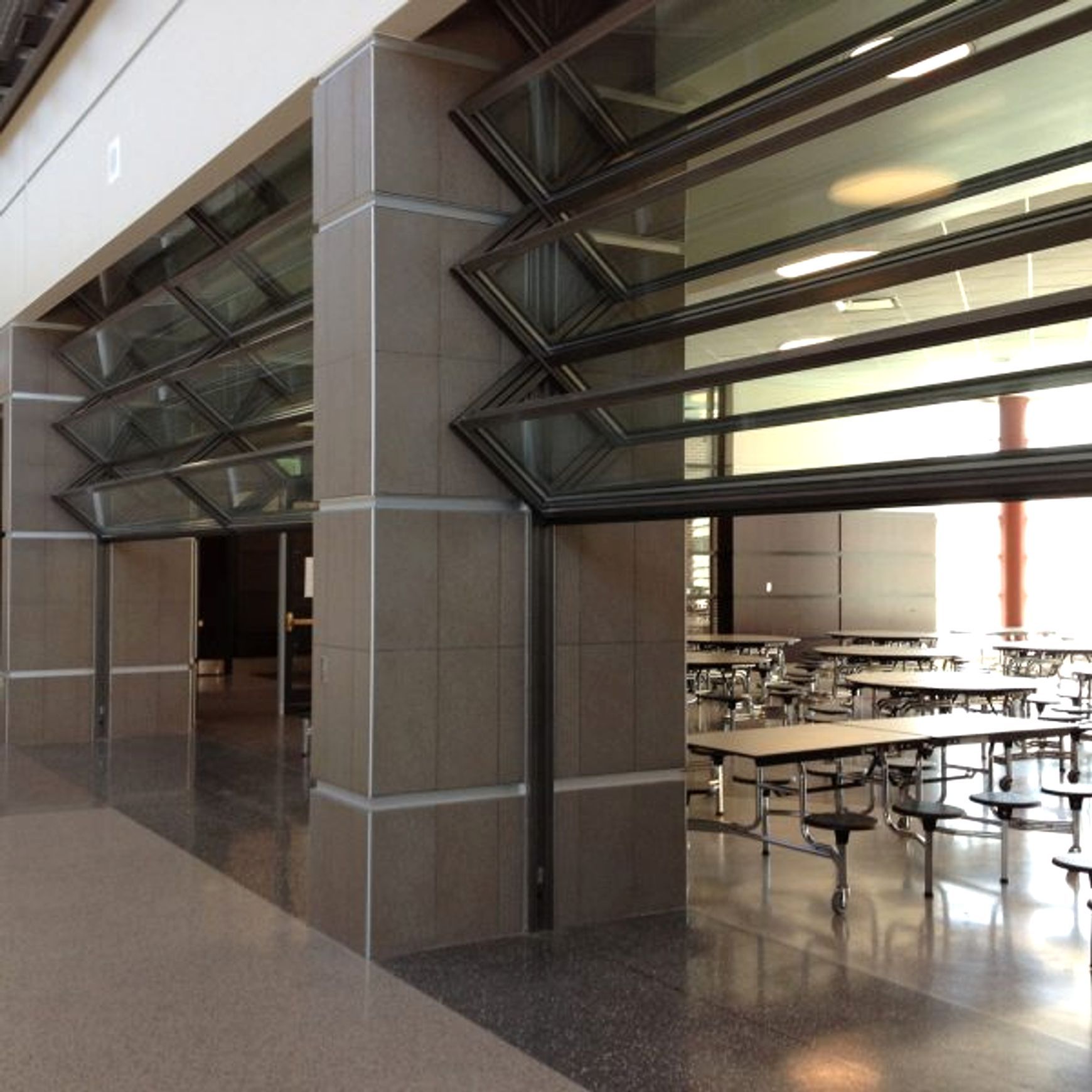

Skyfold Mirage® combines vertical Skyfold technology with elegant transparency. Offering a wide range of glass and plexiglass panels, Skyfold Mirage is the ideal solution for creating bright and welcoming spaces. This elegant and robust folding wall system enables rapid and fully automatic operation at the press of a button.

Visit Website

Projects featuring
Skyfold Acoustic Vertical Retractable Walls

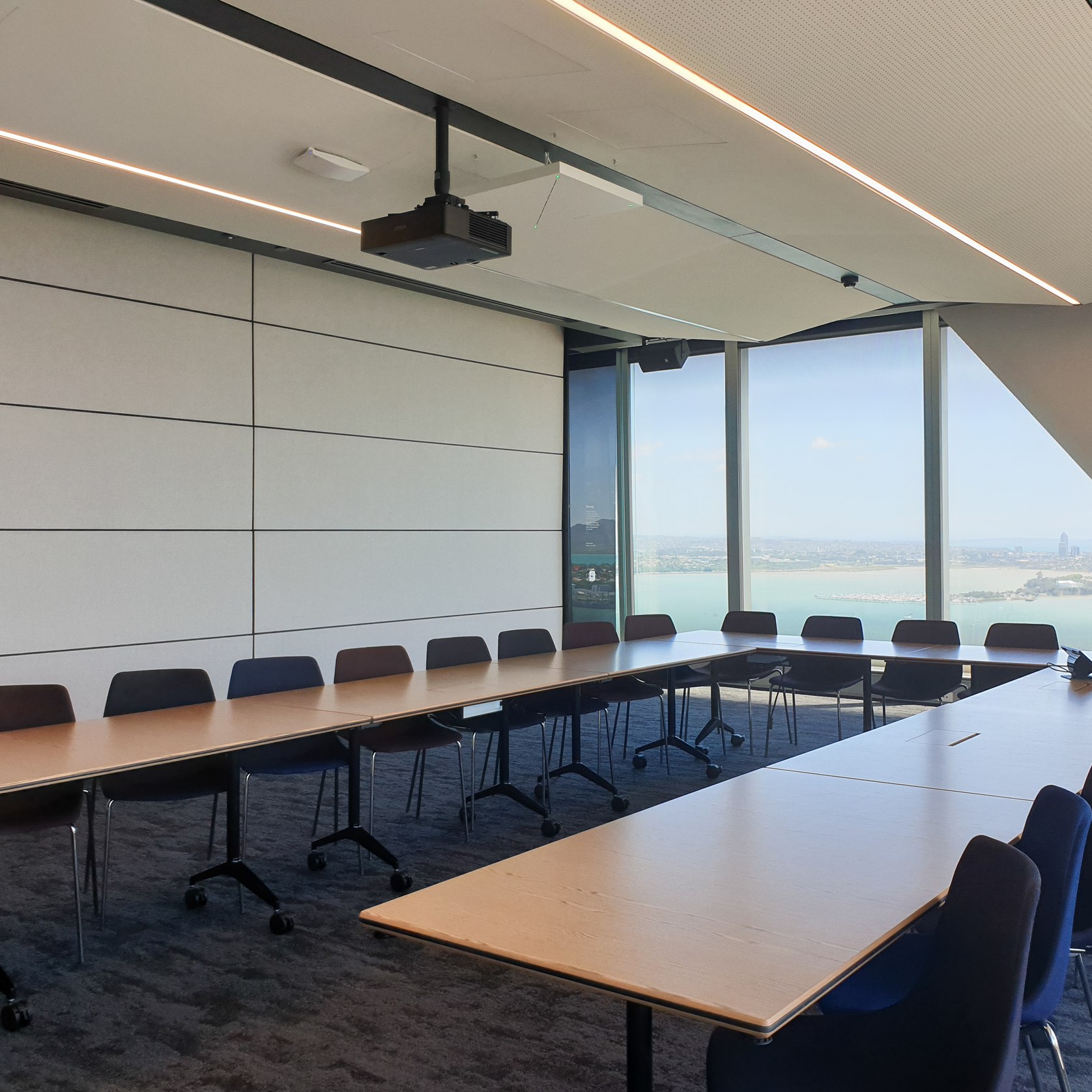

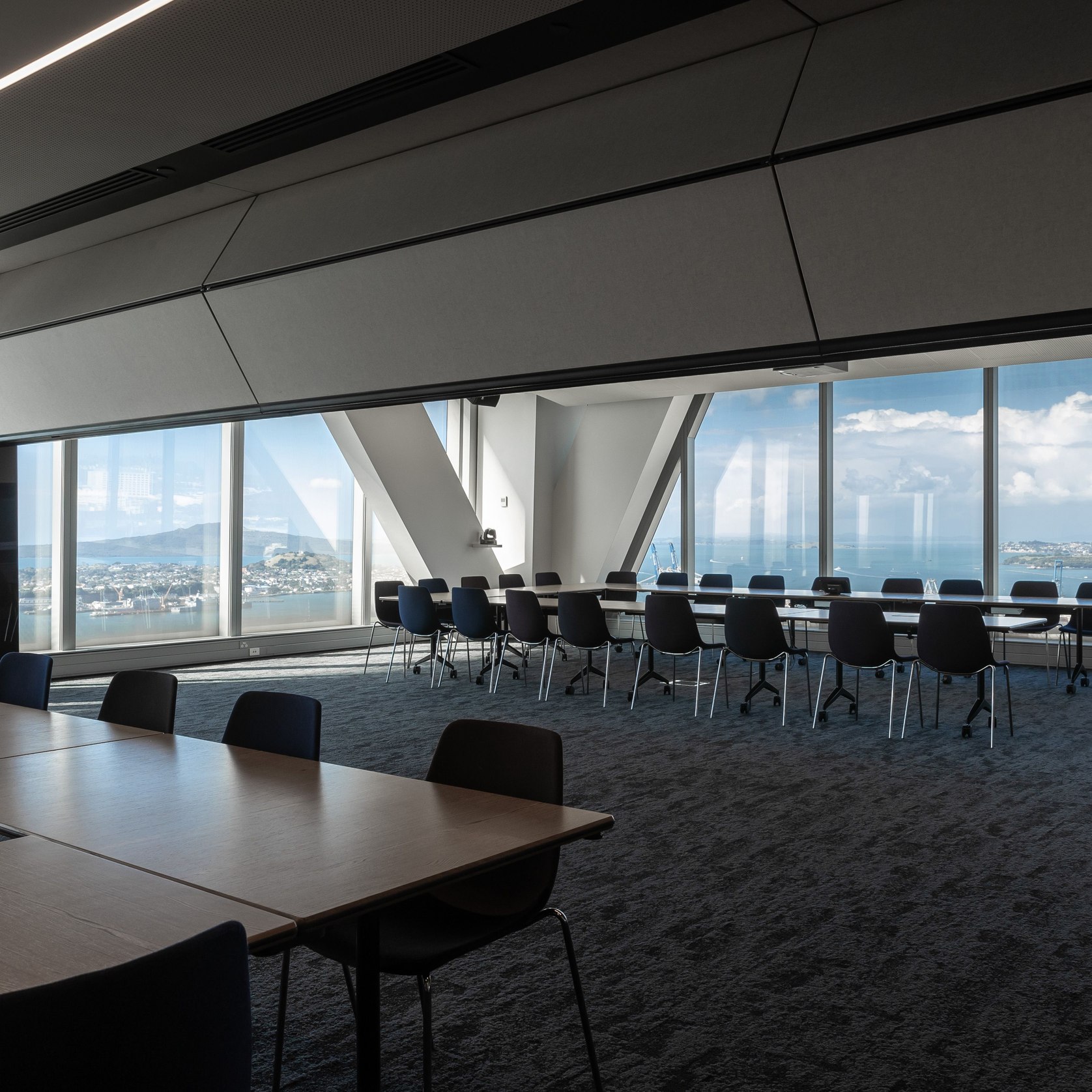

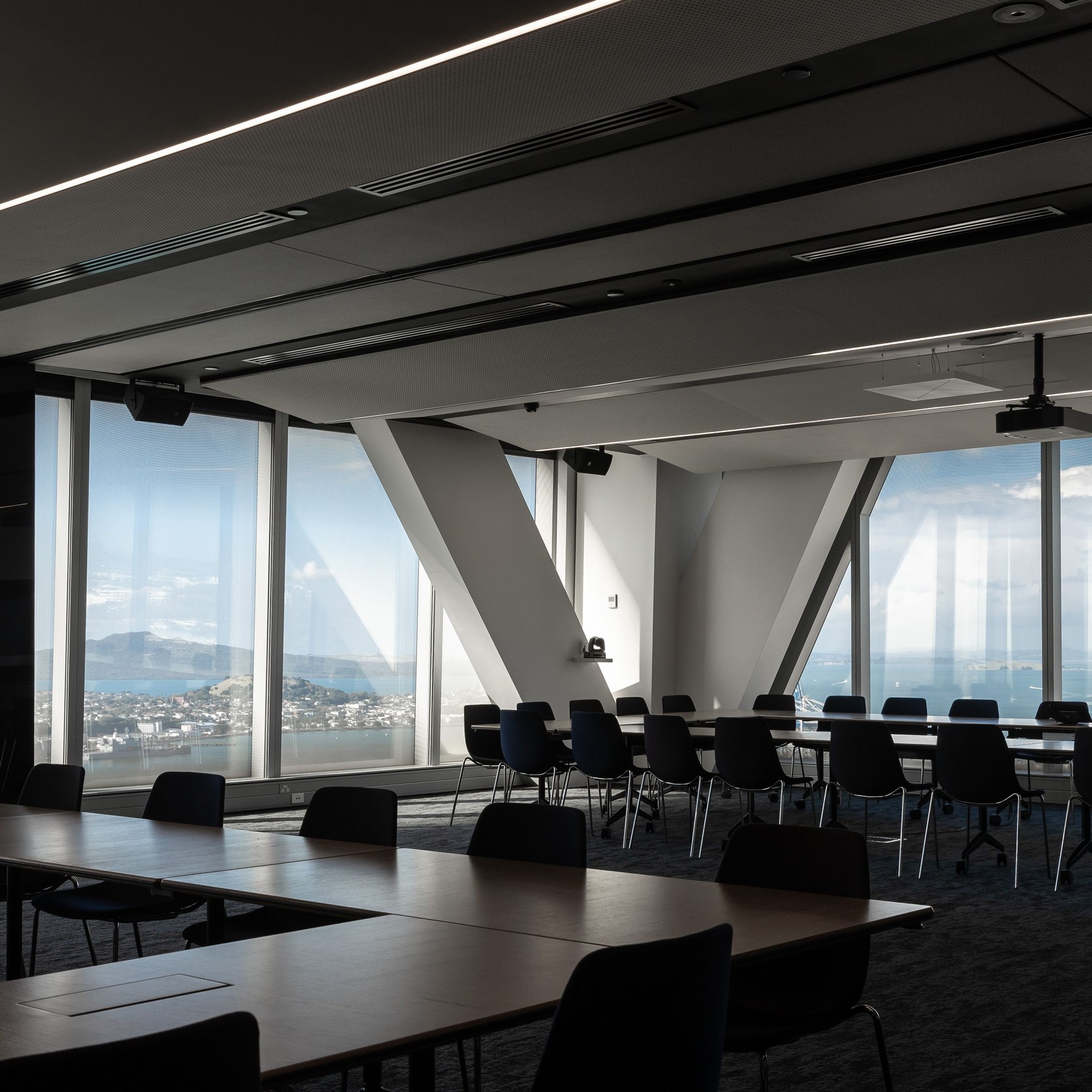

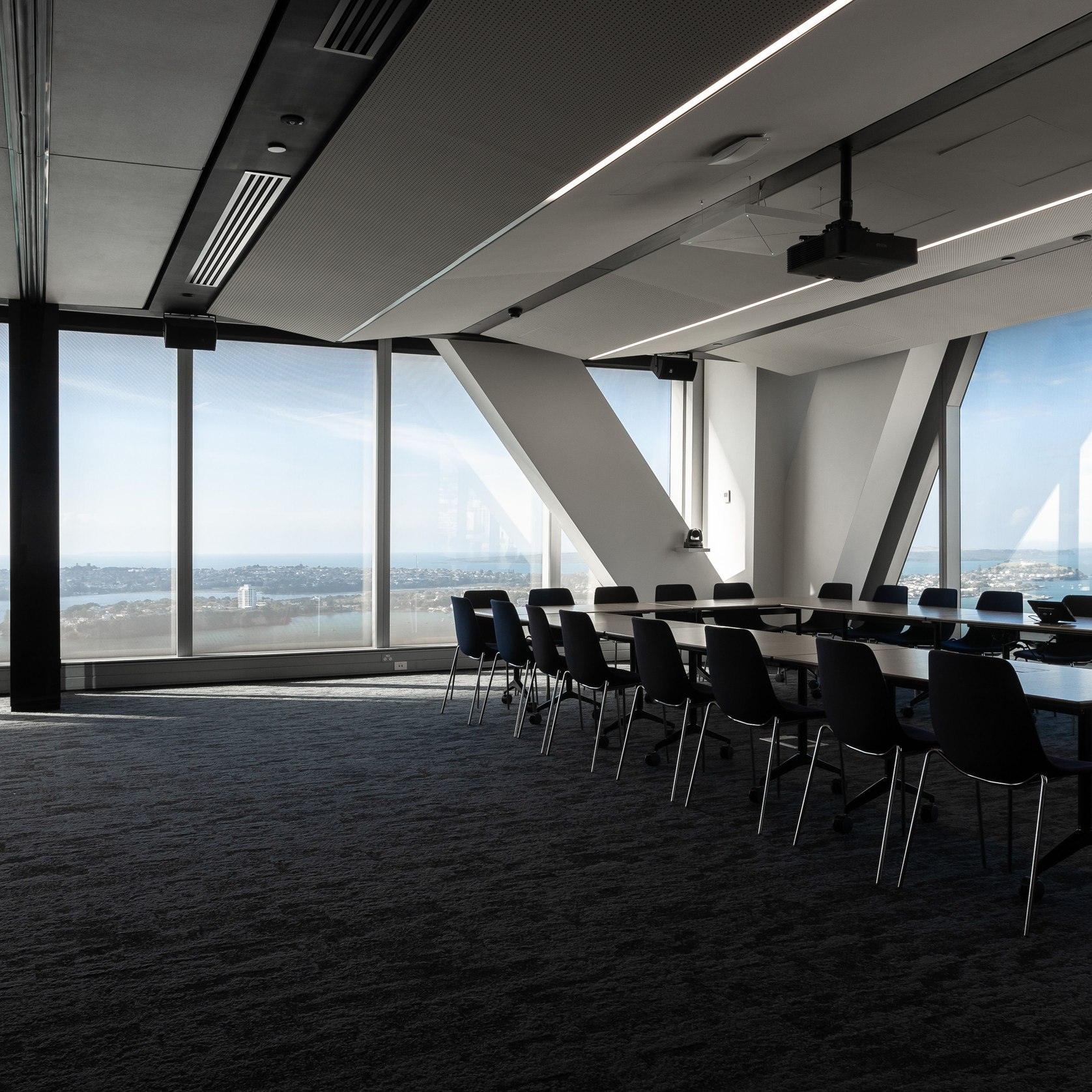

Chapman Tripp
