HB640 Lock Series Narrow Backset for Sliding/Cavity Slider Doors

Halliday + Baillie
Visit Website
HB640 Lock Series Narrow Backset for Sliding/Cavity Slider Doors gallery detail image
HB640 Lock Series Narrow Backset for Sliding/Cavity Slider Doors gallery detail image
HB640 Lock Series Narrow Backset for Sliding/Cavity Slider Doors gallery detail image
HB640 Lock Series Narrow Backset for Sliding/Cavity Slider Doors gallery detail image

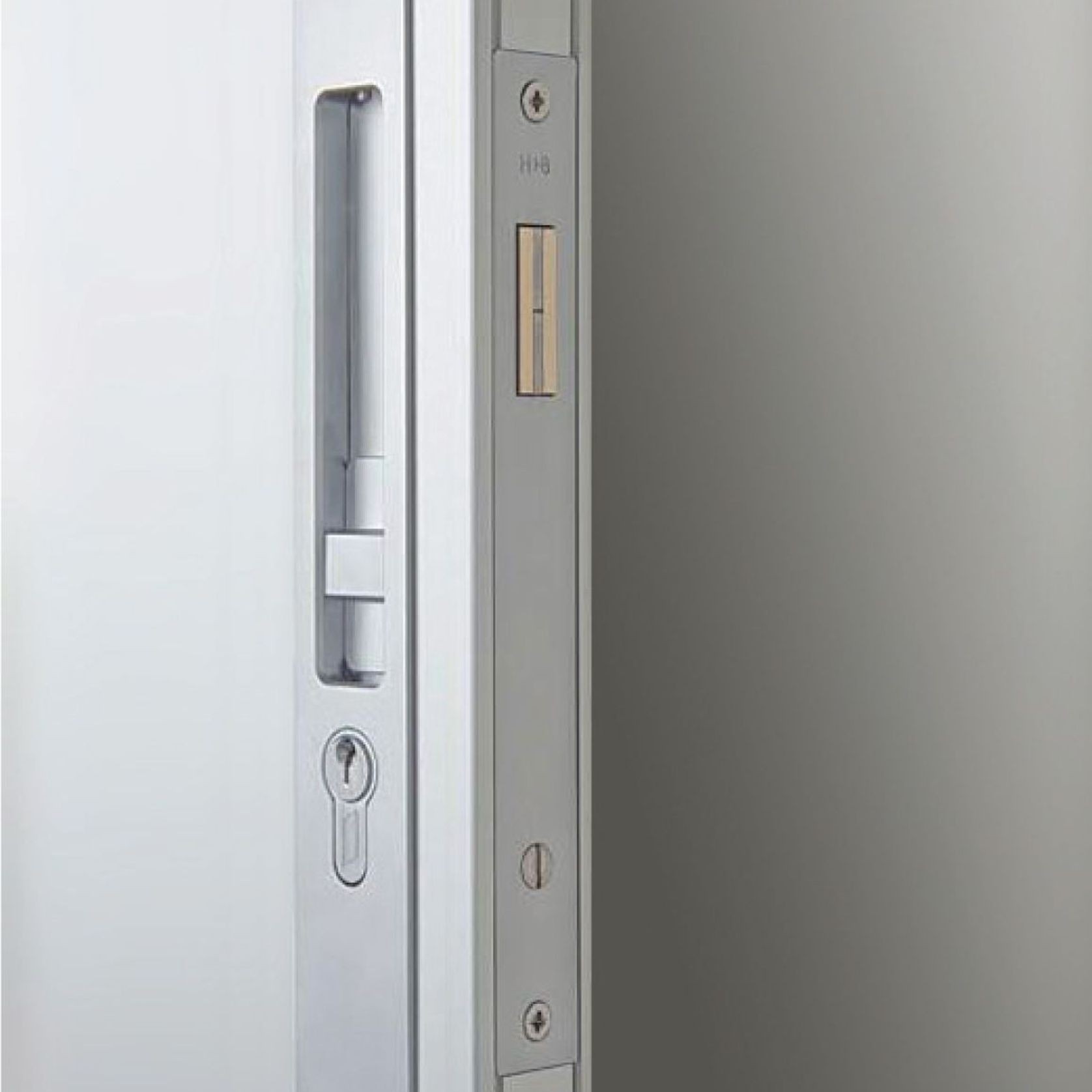

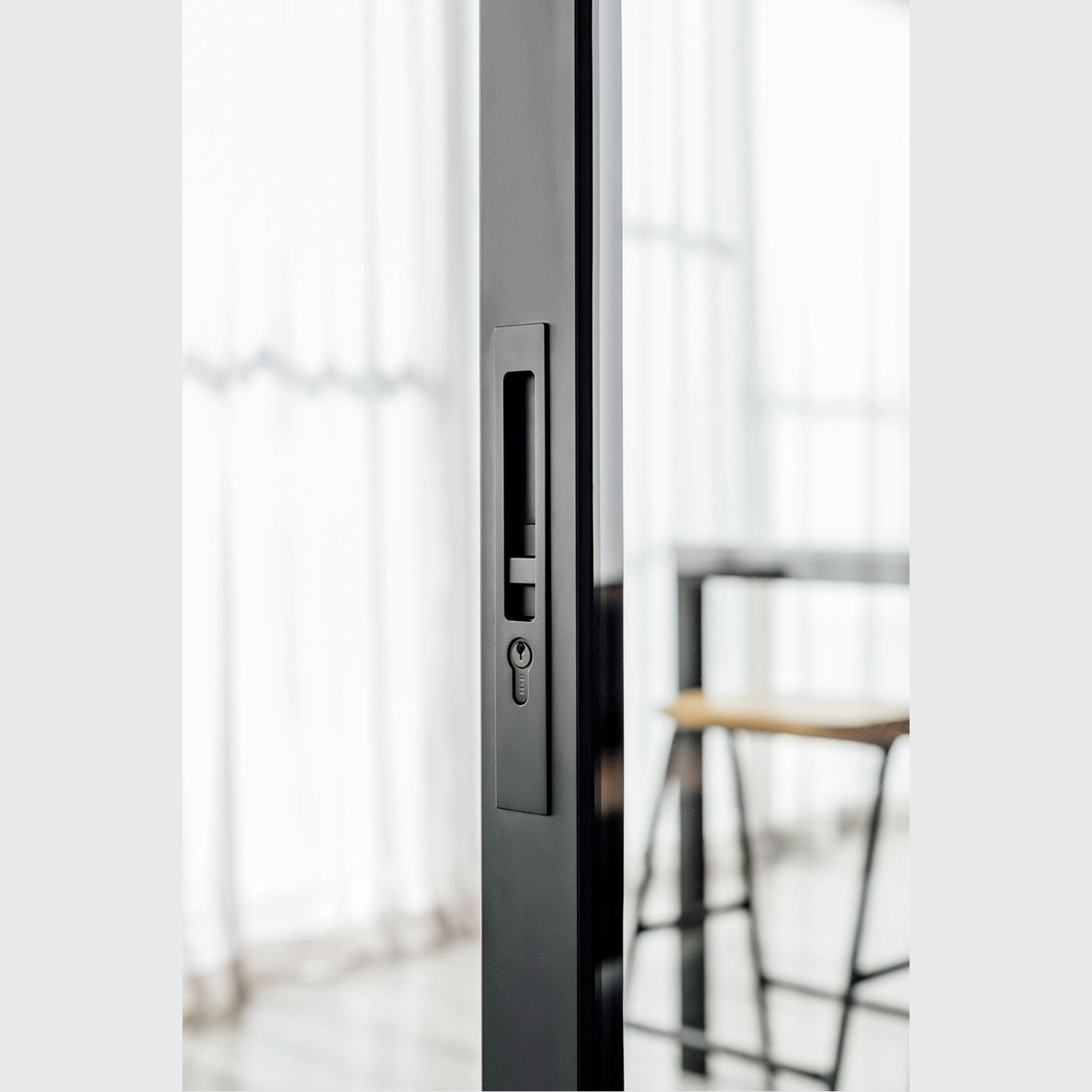

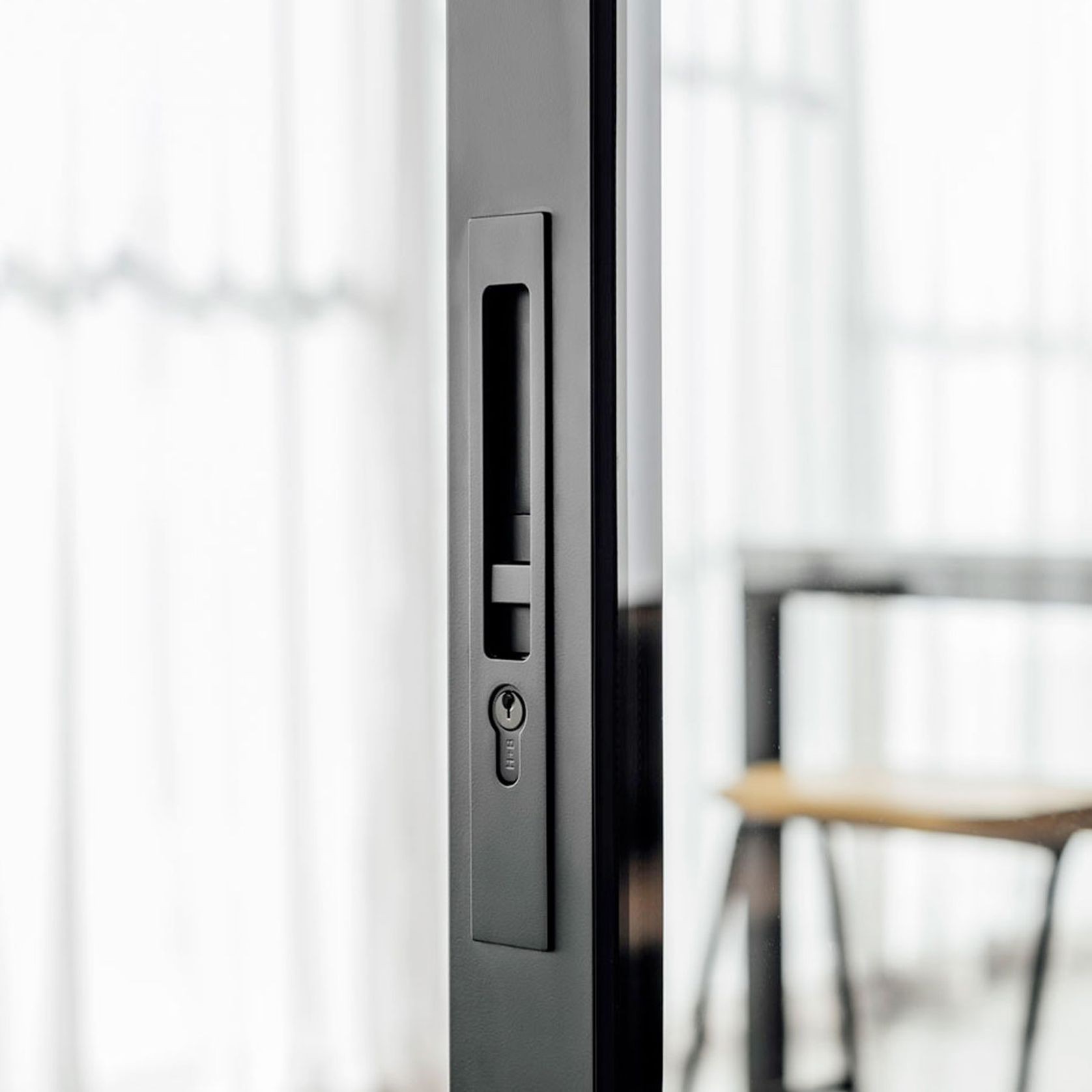

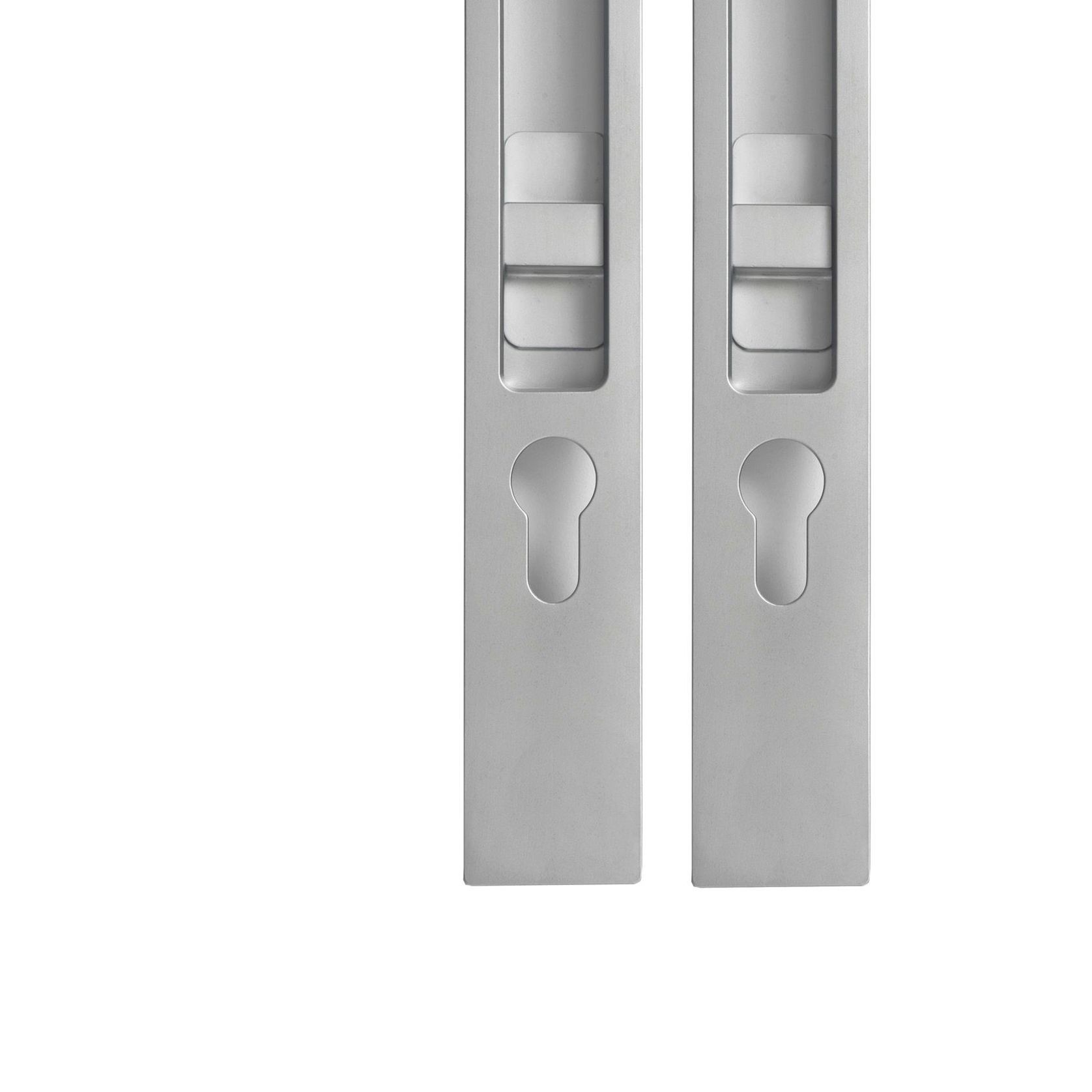

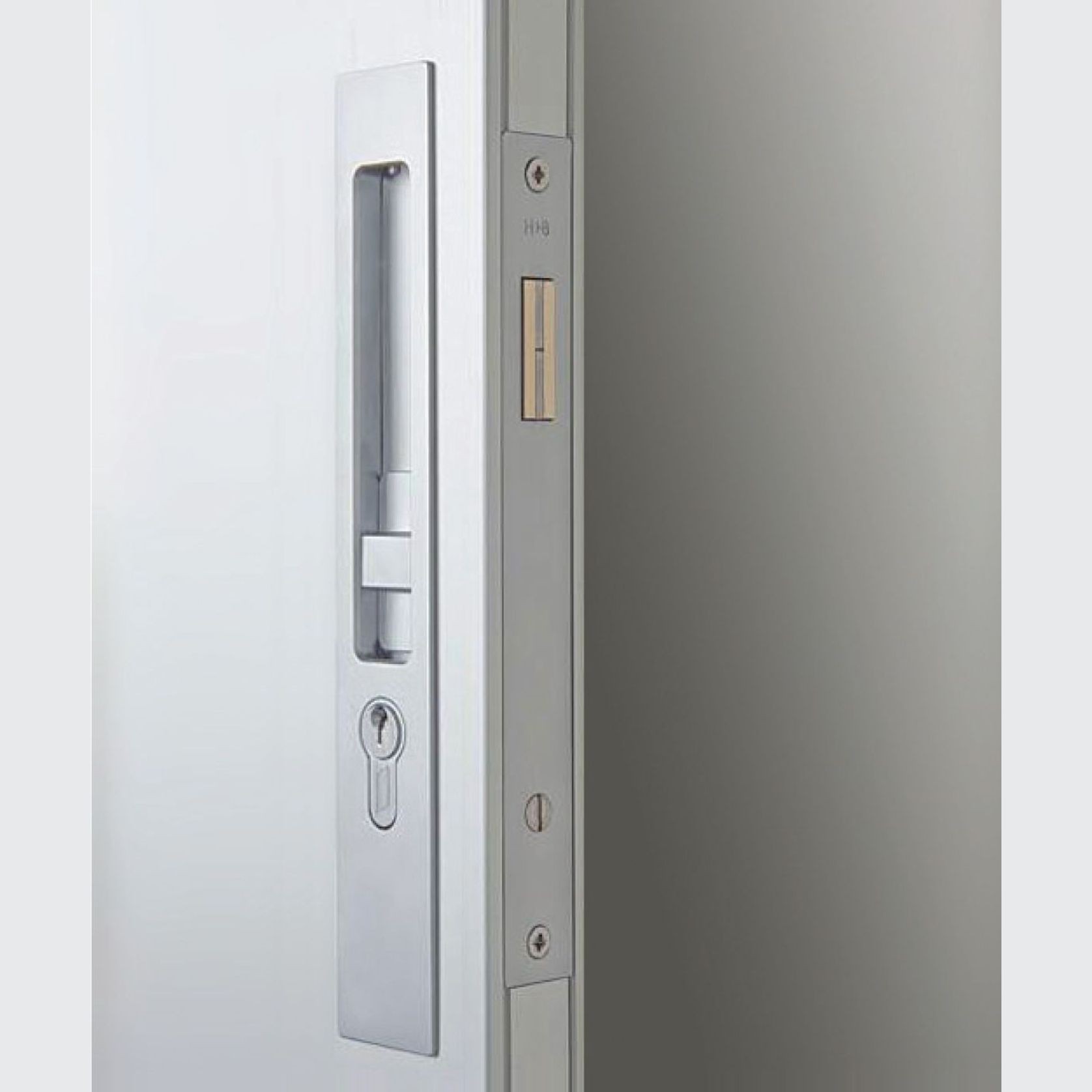

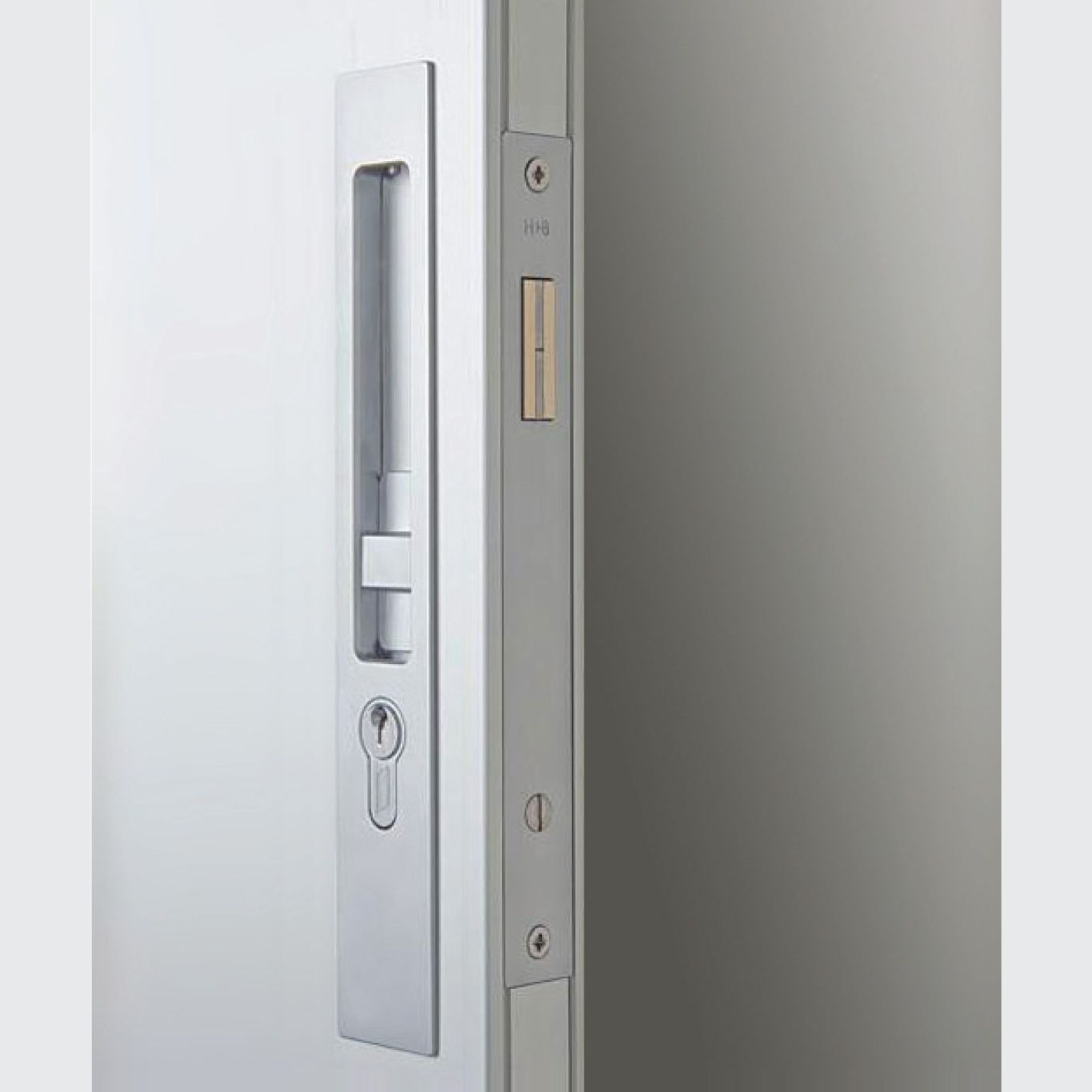

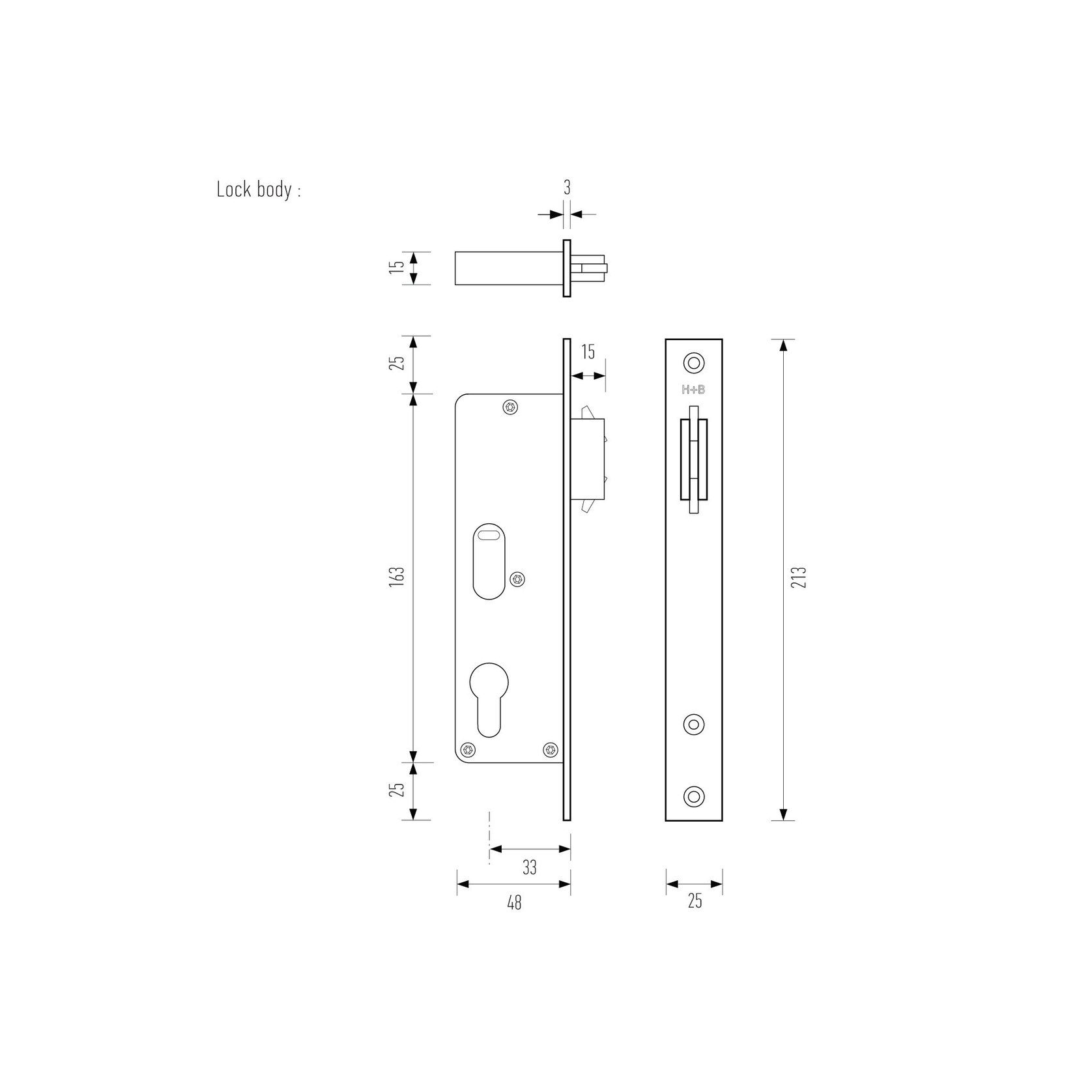

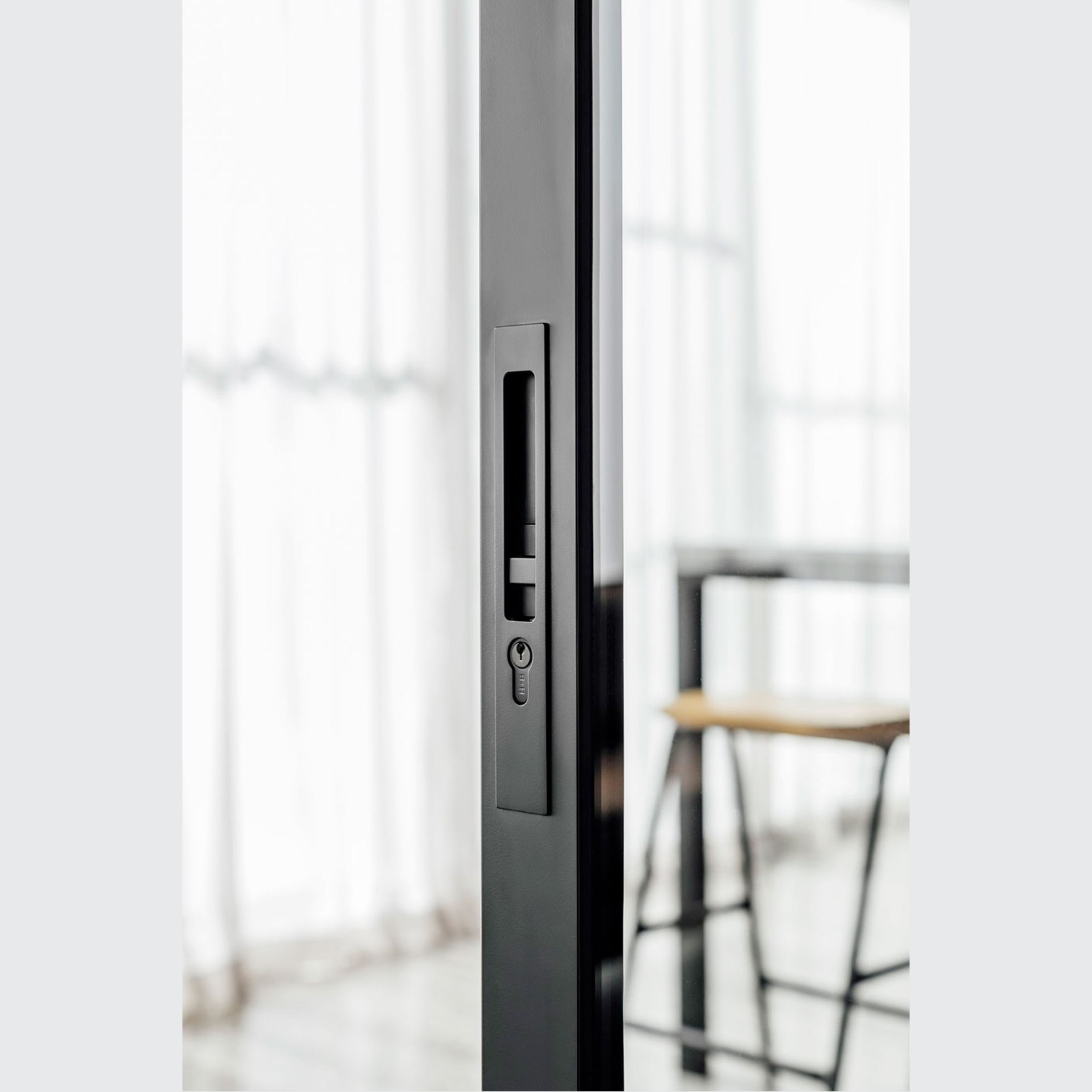

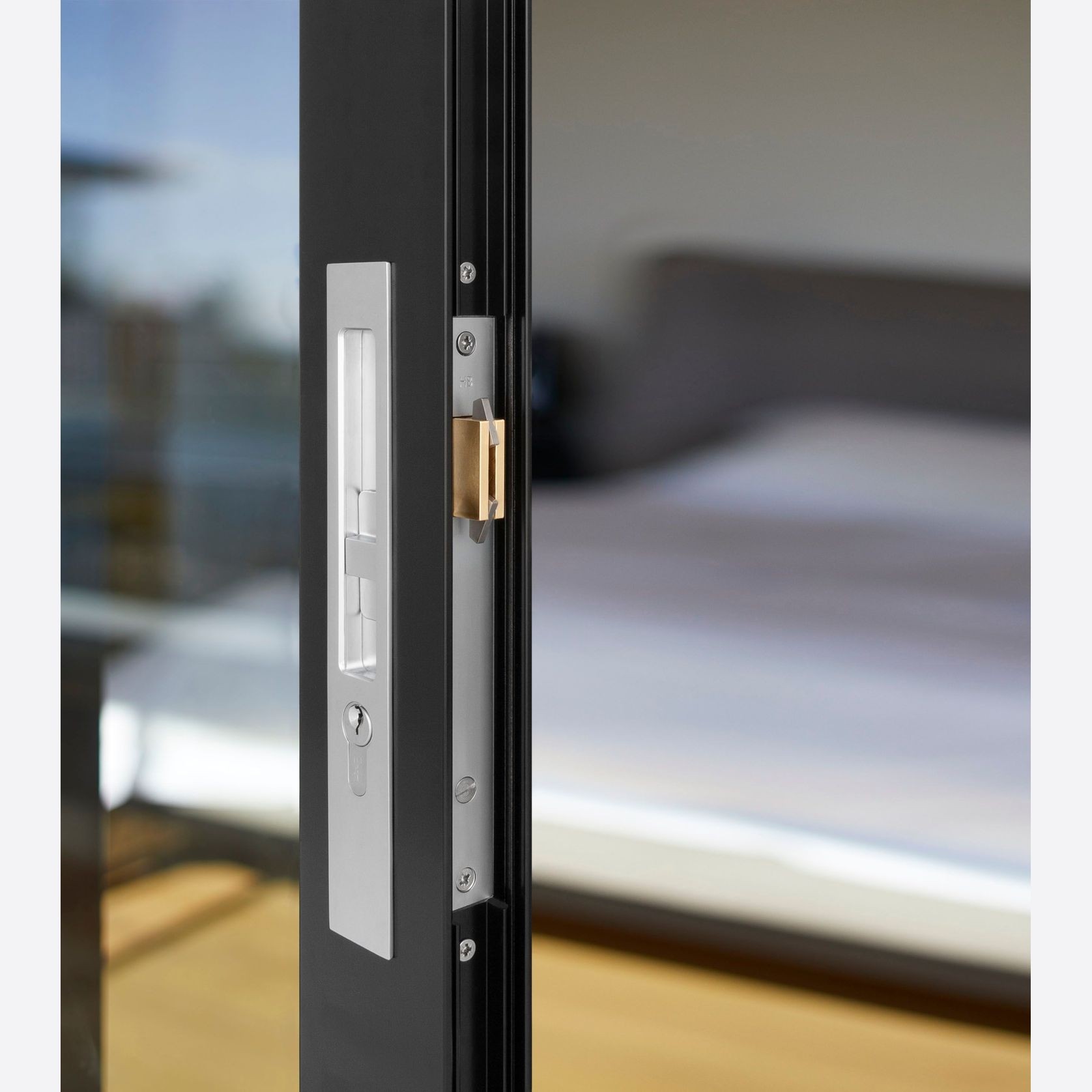

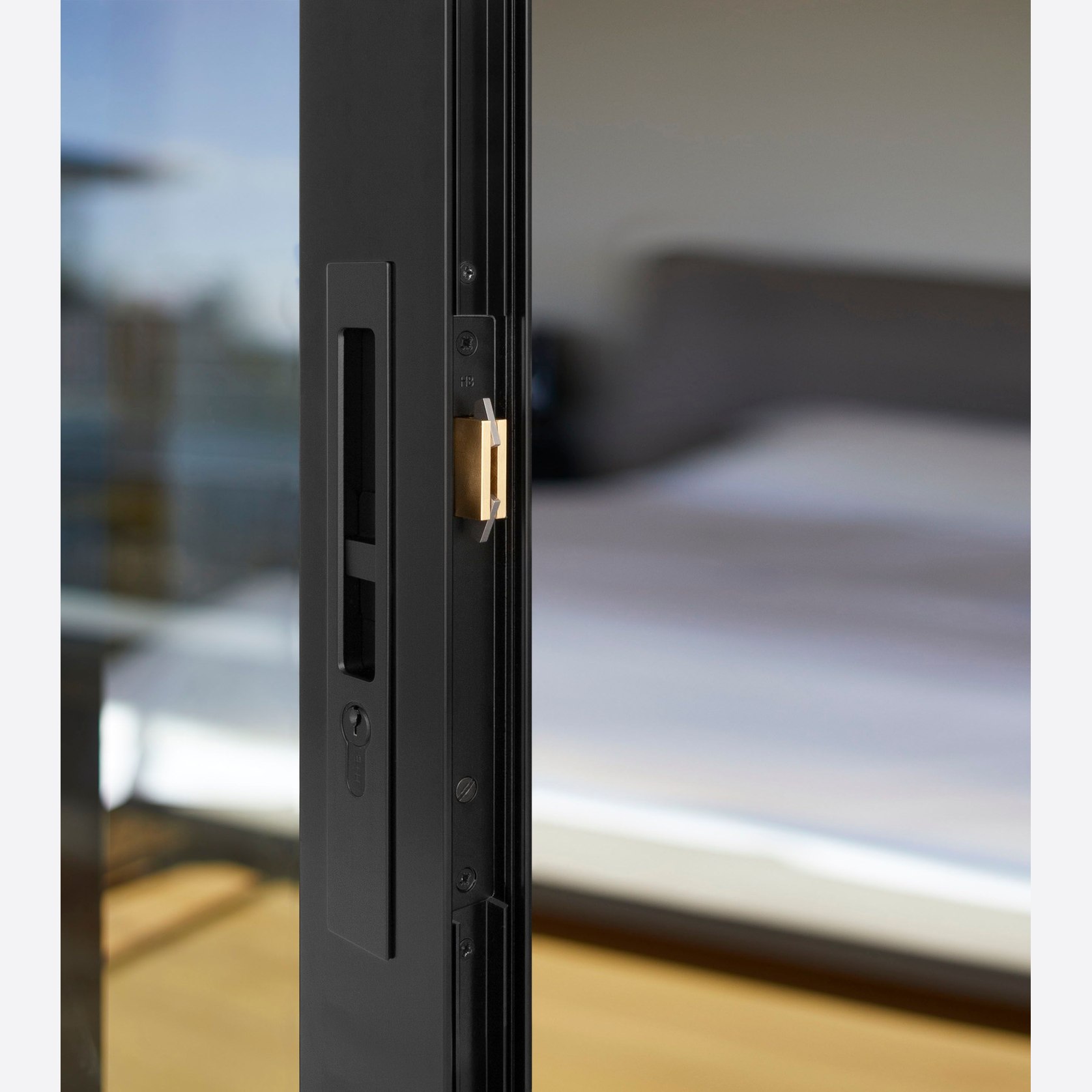

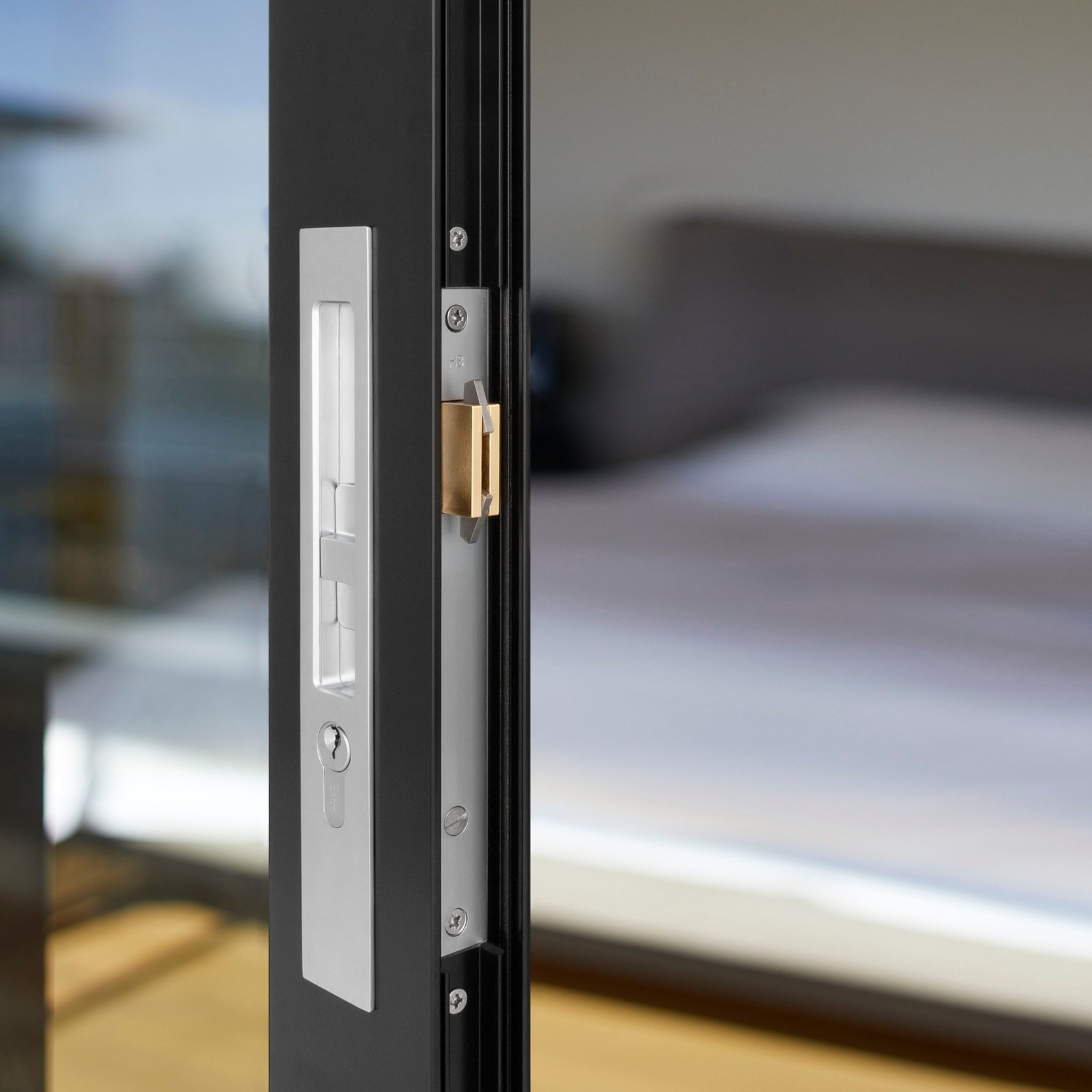

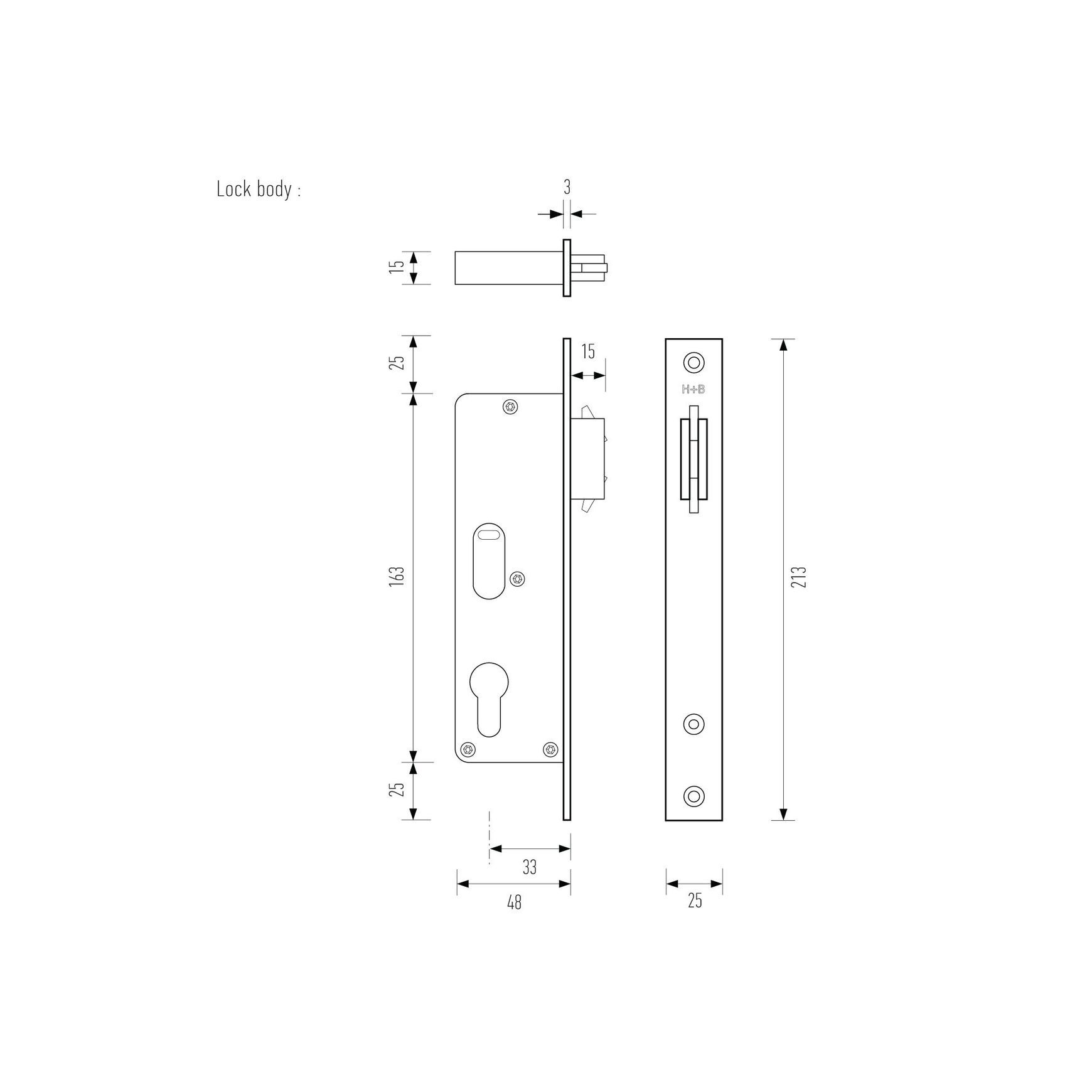

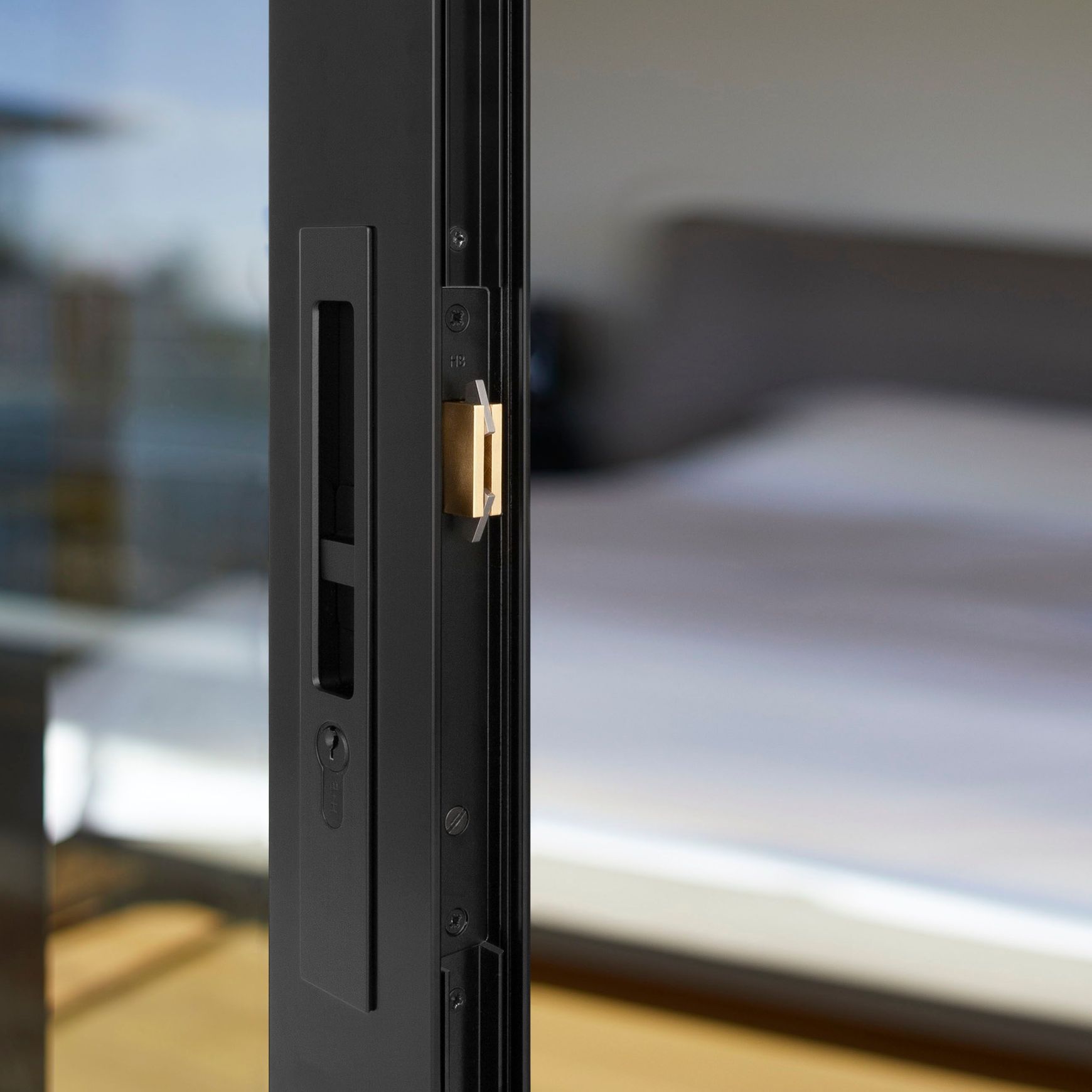

The HB640 narrow backset sliding door lock has a 33mm backset and a case depth of 48mm. Its slim proportions make it ideal for narrow style timber and aluminium joinery, particularly useful on sliding windows that require locking.

Available in a variety of options, The HB640 can have a key both sides with a flush pull & snib both sides. For variations to this please see images for configurations or contact your local supplier. (Cylinders to be ordered separately)

Please note the minimum the sliding door thickness can be is 38mm.

Material: Diecast zinc with brass and 316 stainless steel

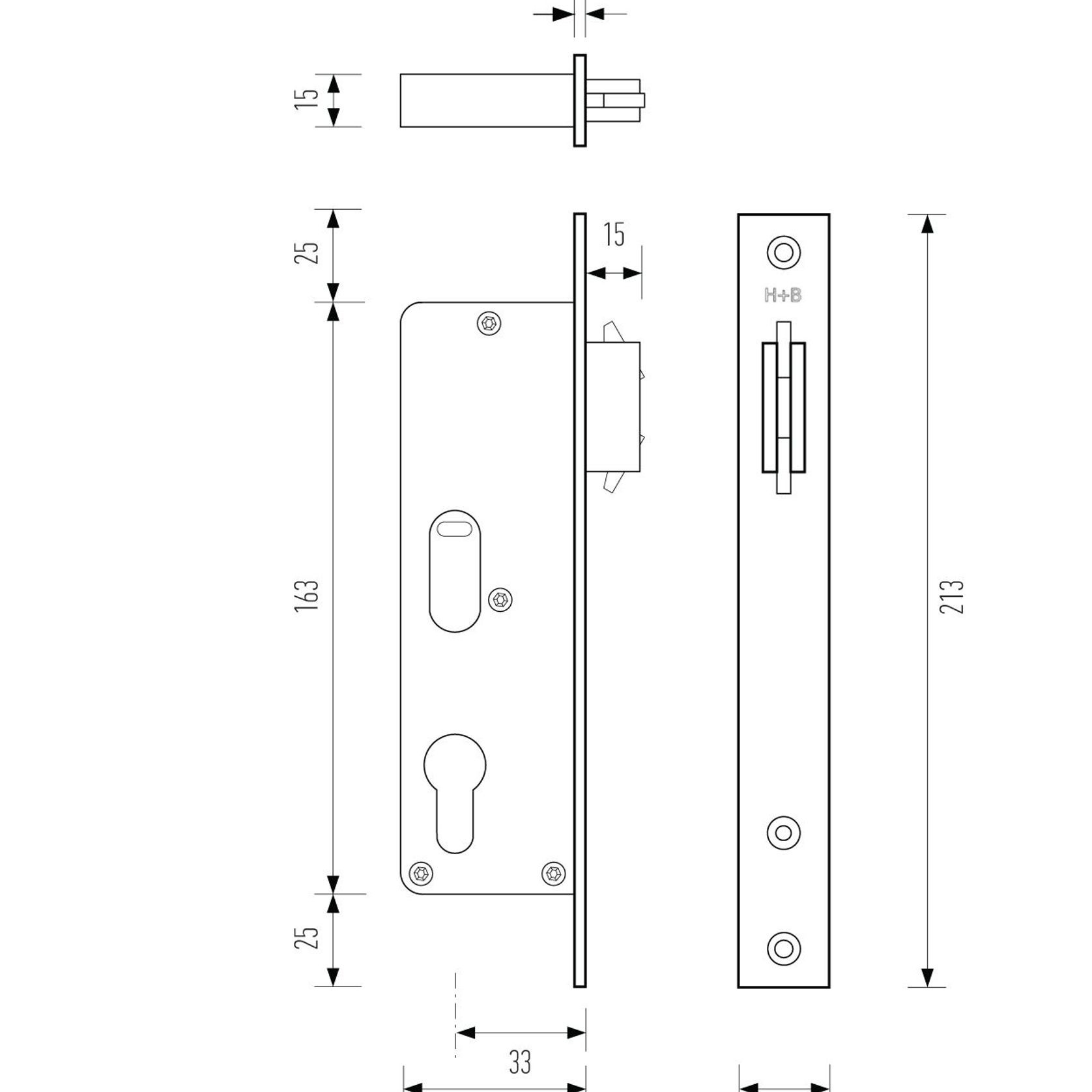

Backset : 33mm

Minimum door thickness : 38mm

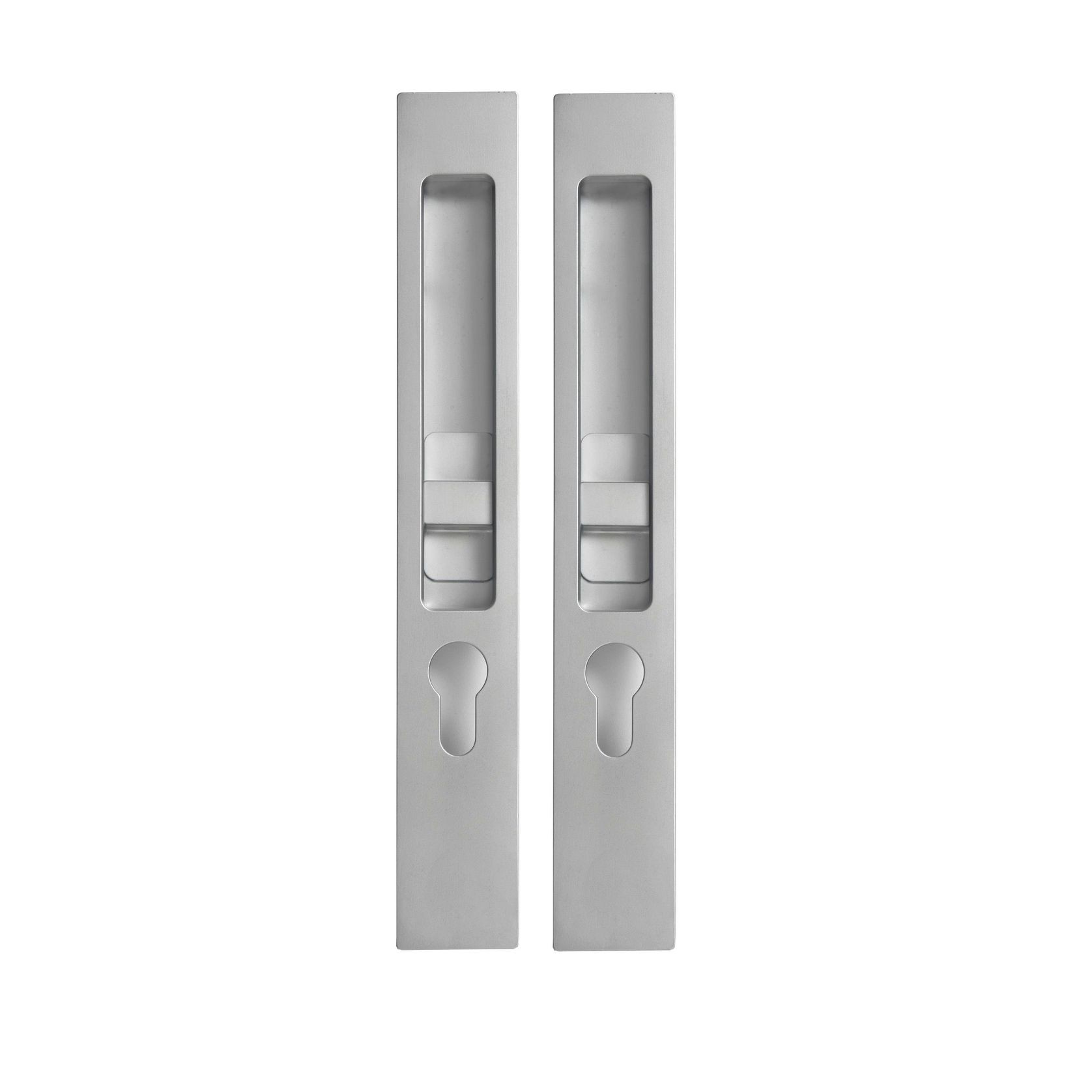

Flush pulls : 250mm x 36mm x 13mm

Suitable for timber or aluminium doors with narrow stiles

PLEASE NOTE: In the HB648 and HB649 configurations the lock and flush pulls will be offset slightly along the height of the door and not line up with the top and bottom of the flush pulls.

Material: Diecast zinc with brass and 316 stainless steel

FinishesSC : Satin Chrome, EBA Electro black ace , EDB Electro dark bronze, EMB Electro medium bronze , EFW Electro flat white, WHT Dulux appliance white (10% gloss), ELECTROPLATE - ORB live : Dark Bronze - Indent only , KC : Black Chrome - indent only ) , BN brushed nickel ( Indent only), PC polished chrome ( Indent only ))(please check with your local Halliday + Baillie representative as not all finishes available in all regions)

Details
  • Category
    Cavity Slider Doors, Sliding Door Gear
  • Range
    Sliding Keyed Lock Sets
  • Brand
    Halliday + Baillie
Scope of use

Configurations:

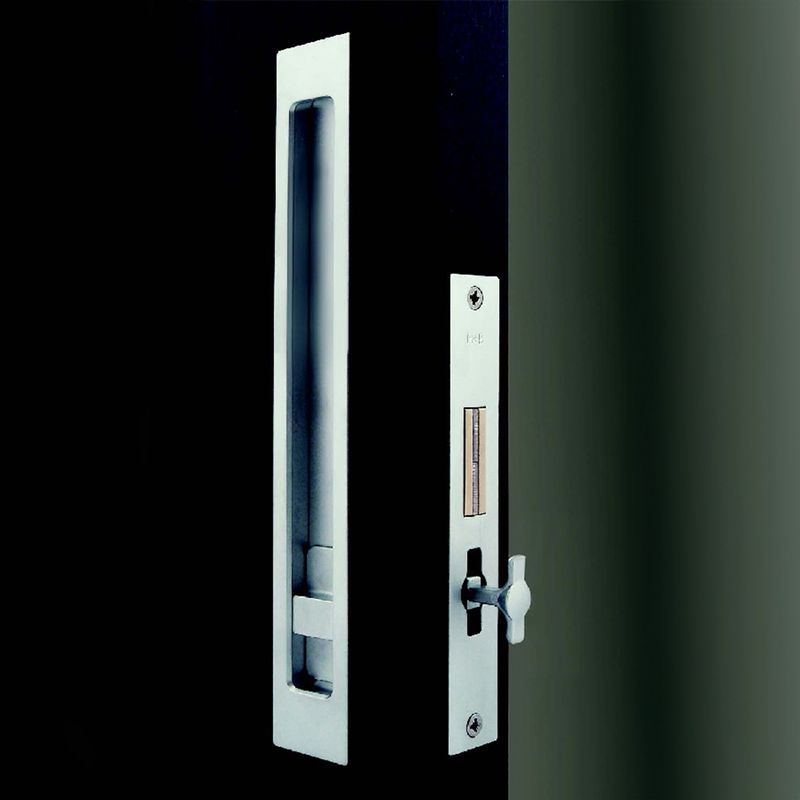

HB 640 – Key and Snib Both Sides
HB 642 – Key Snib In, Blank Out
HB 643 – Key Snib In, No Pull Out
HB 648 – HB665 Snib, One Side, No Pull Outside
HB 649 – HB660 Snib One Side, No Pull Outside
HB 649/2 – HB660 Snib Inside, Blank HB660 Pull Outside
