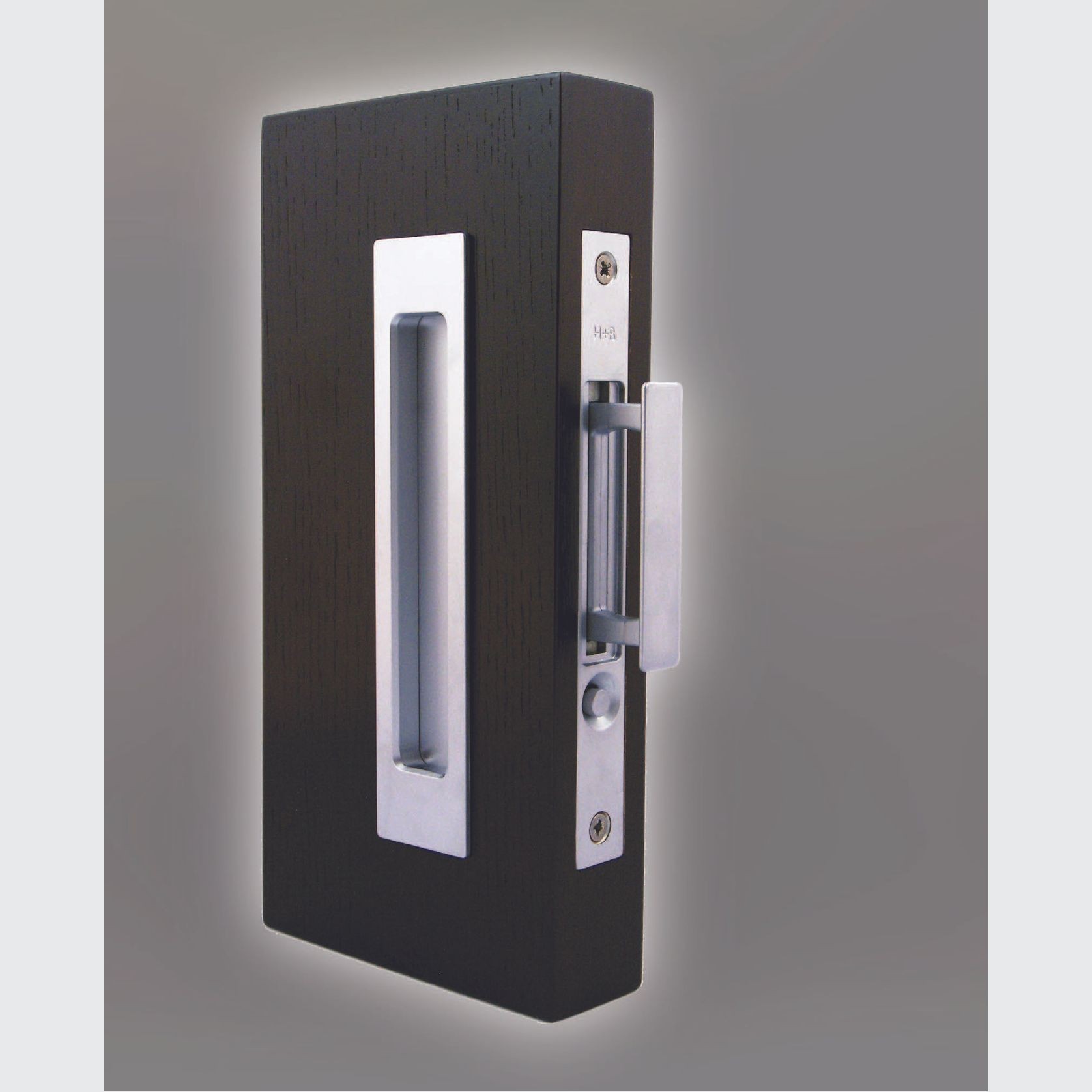

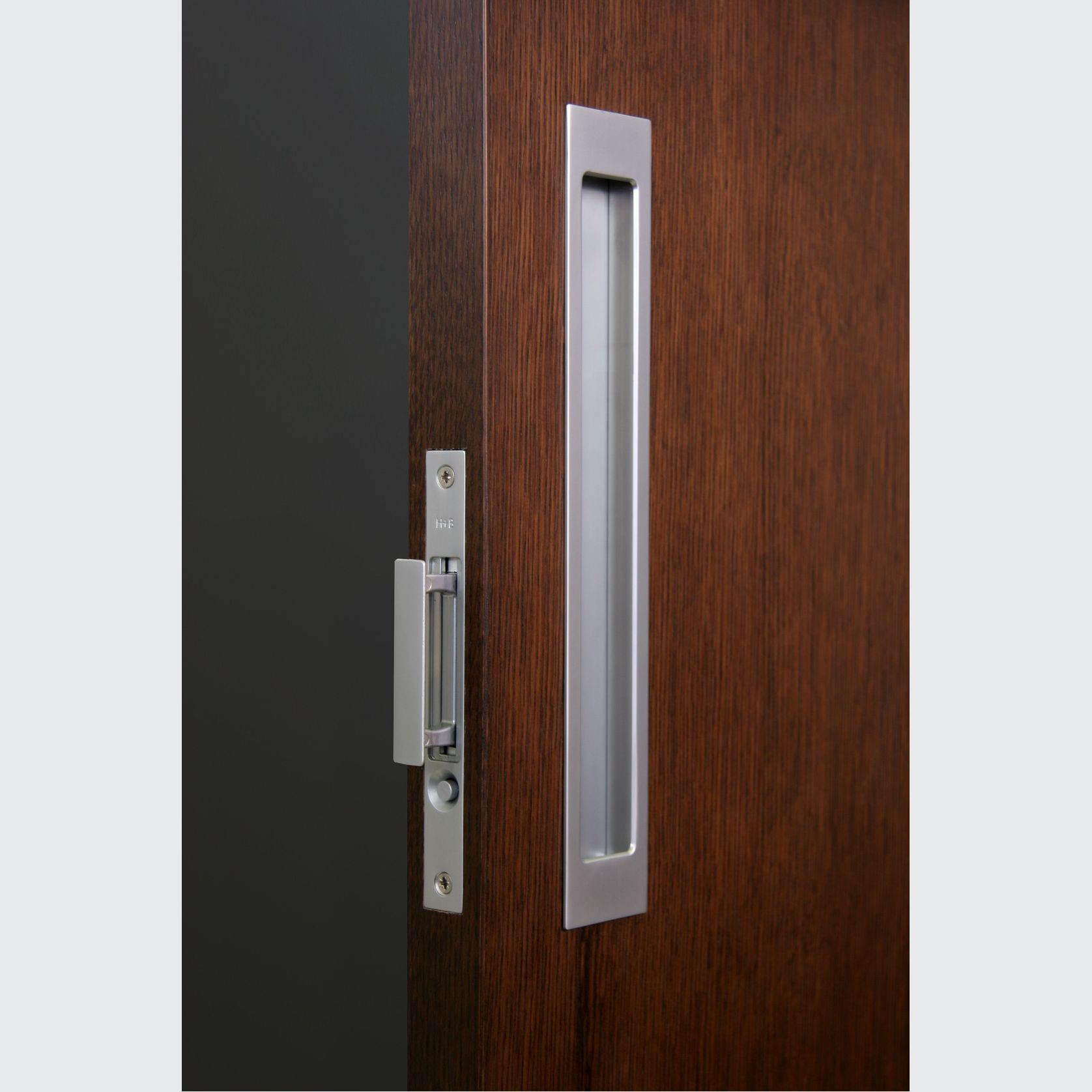

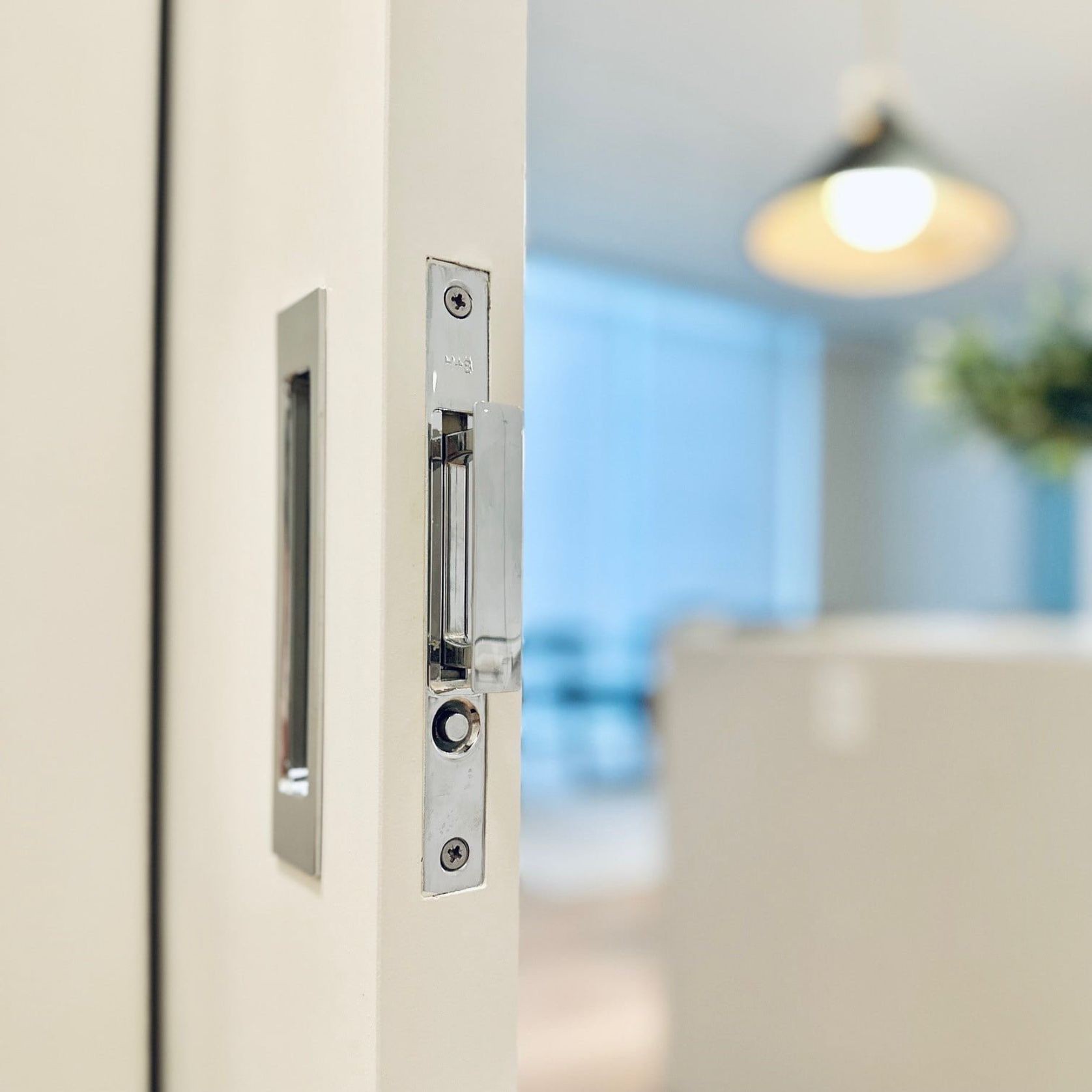

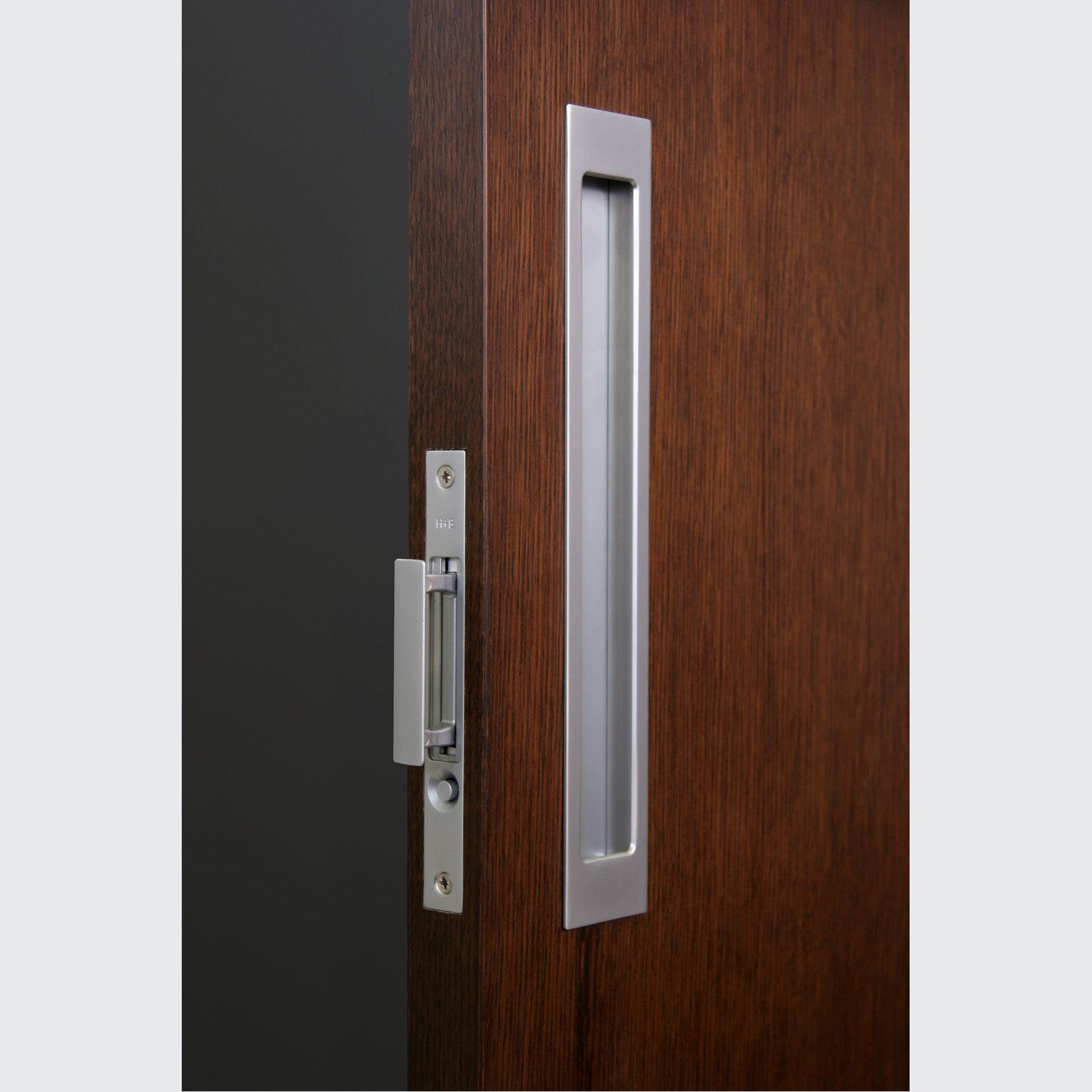

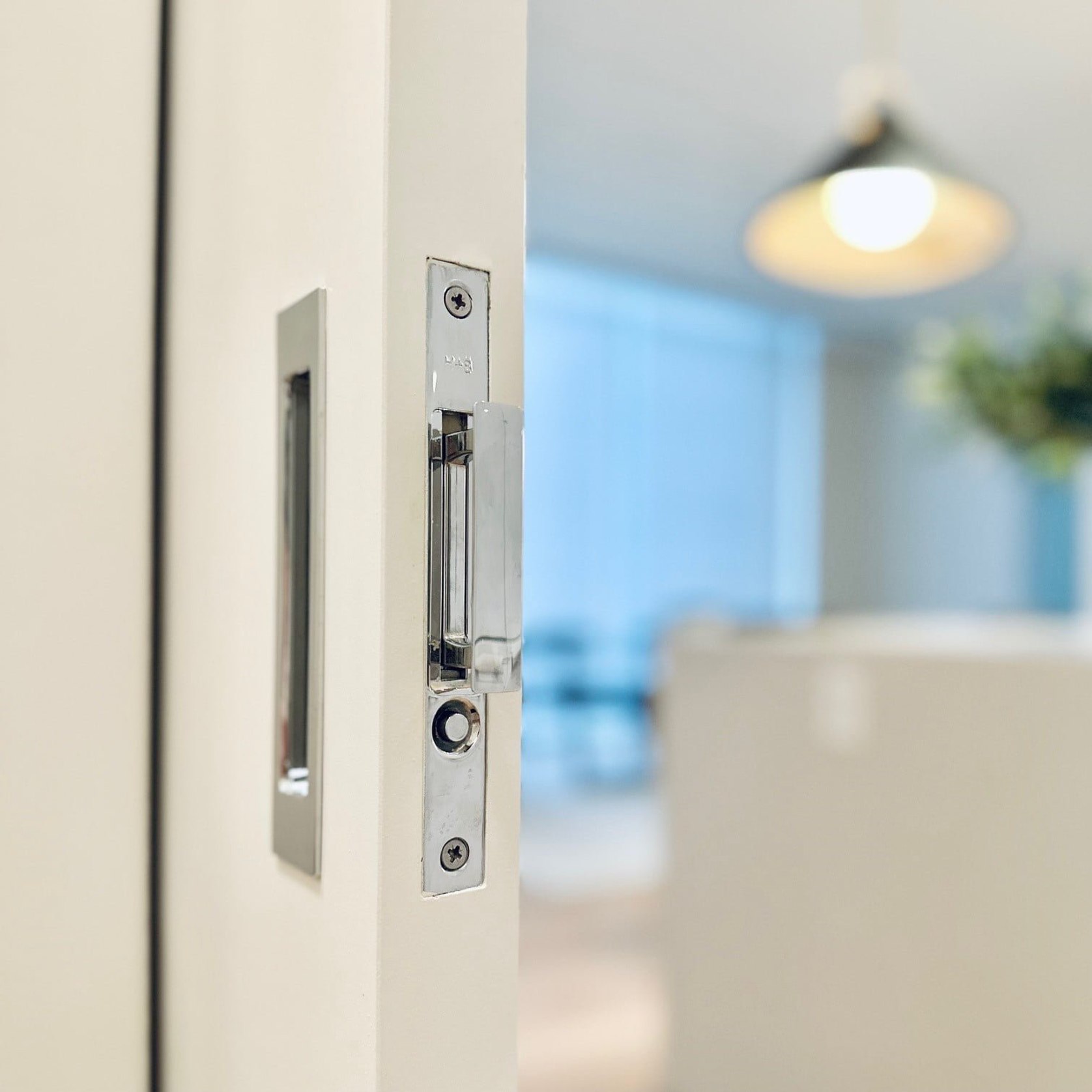

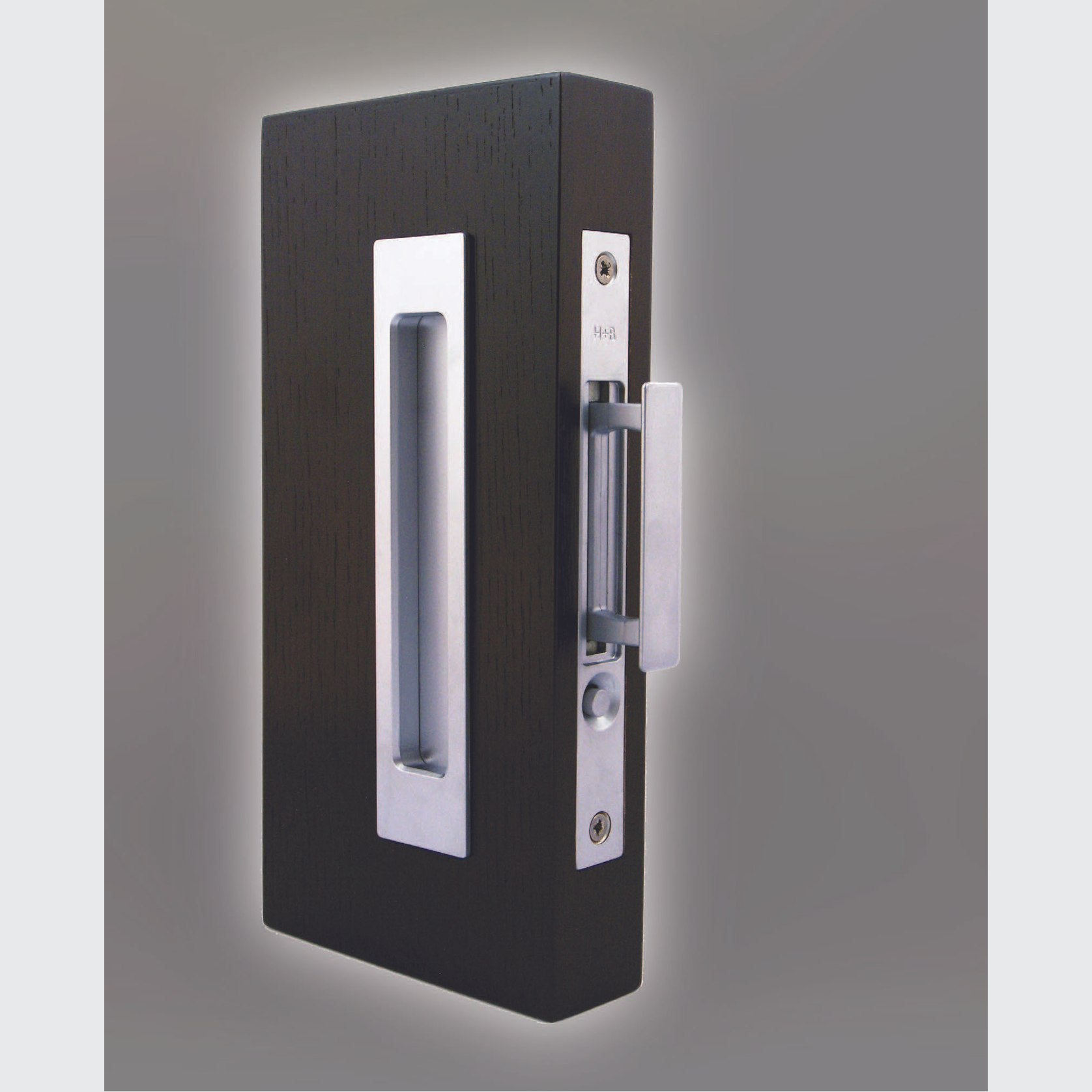

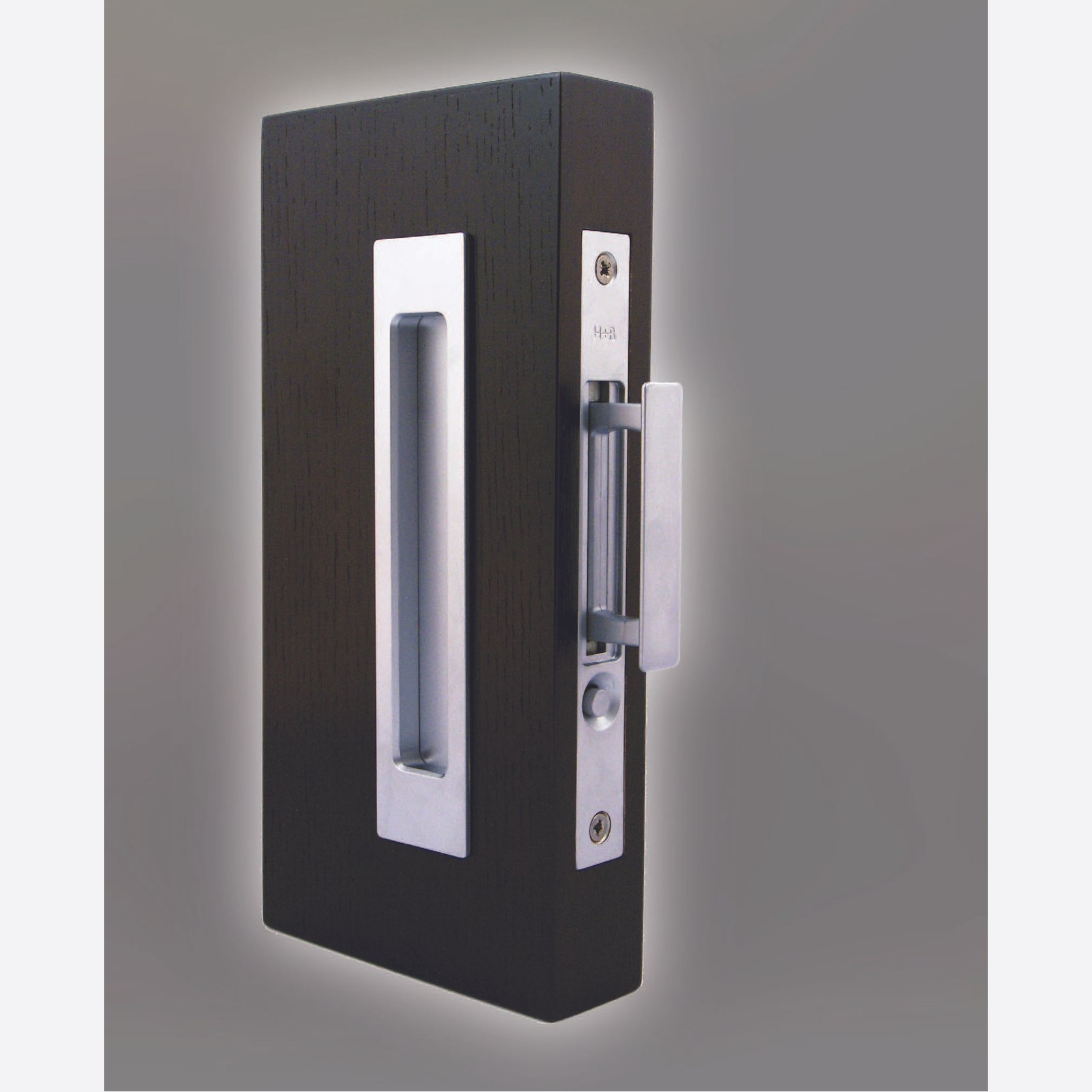

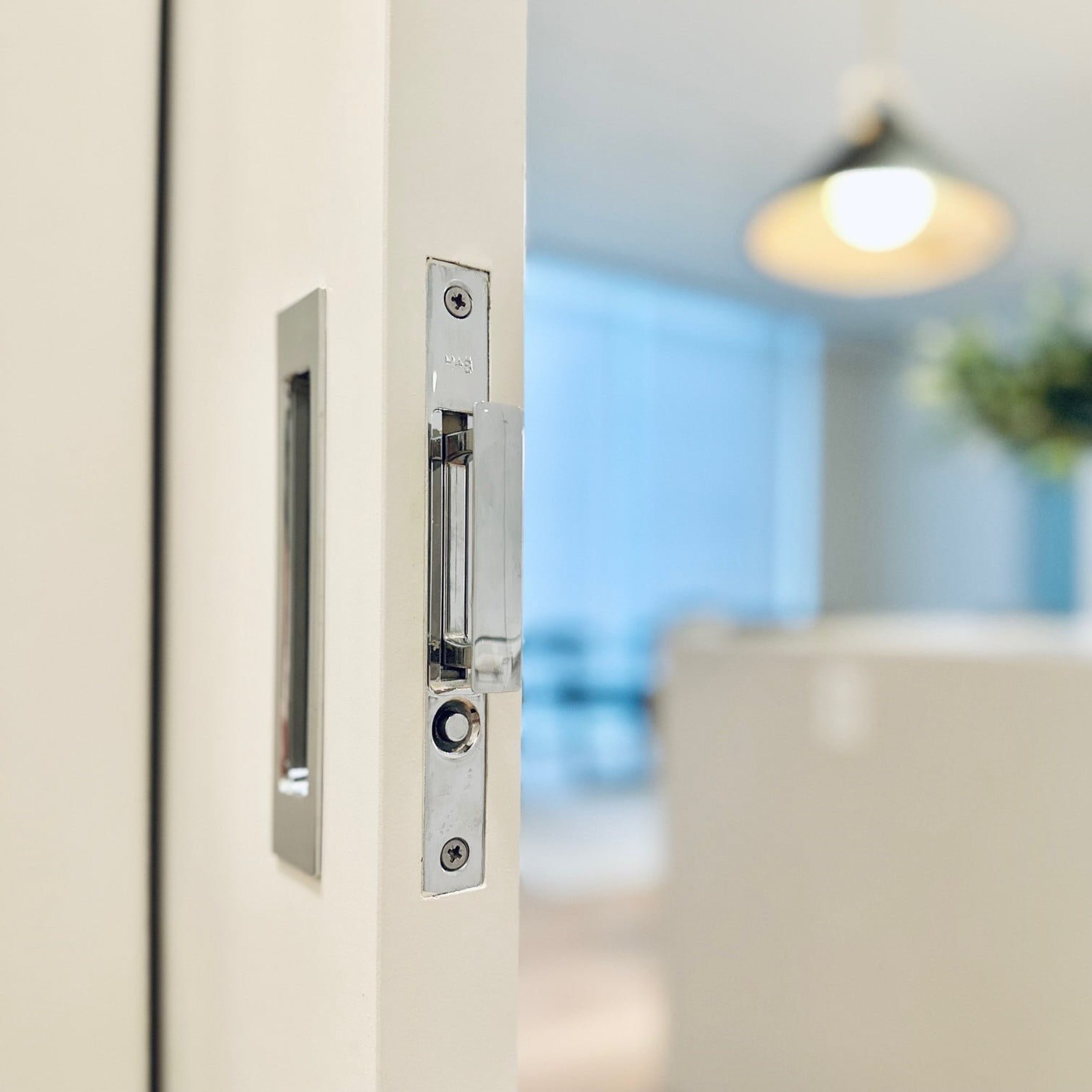

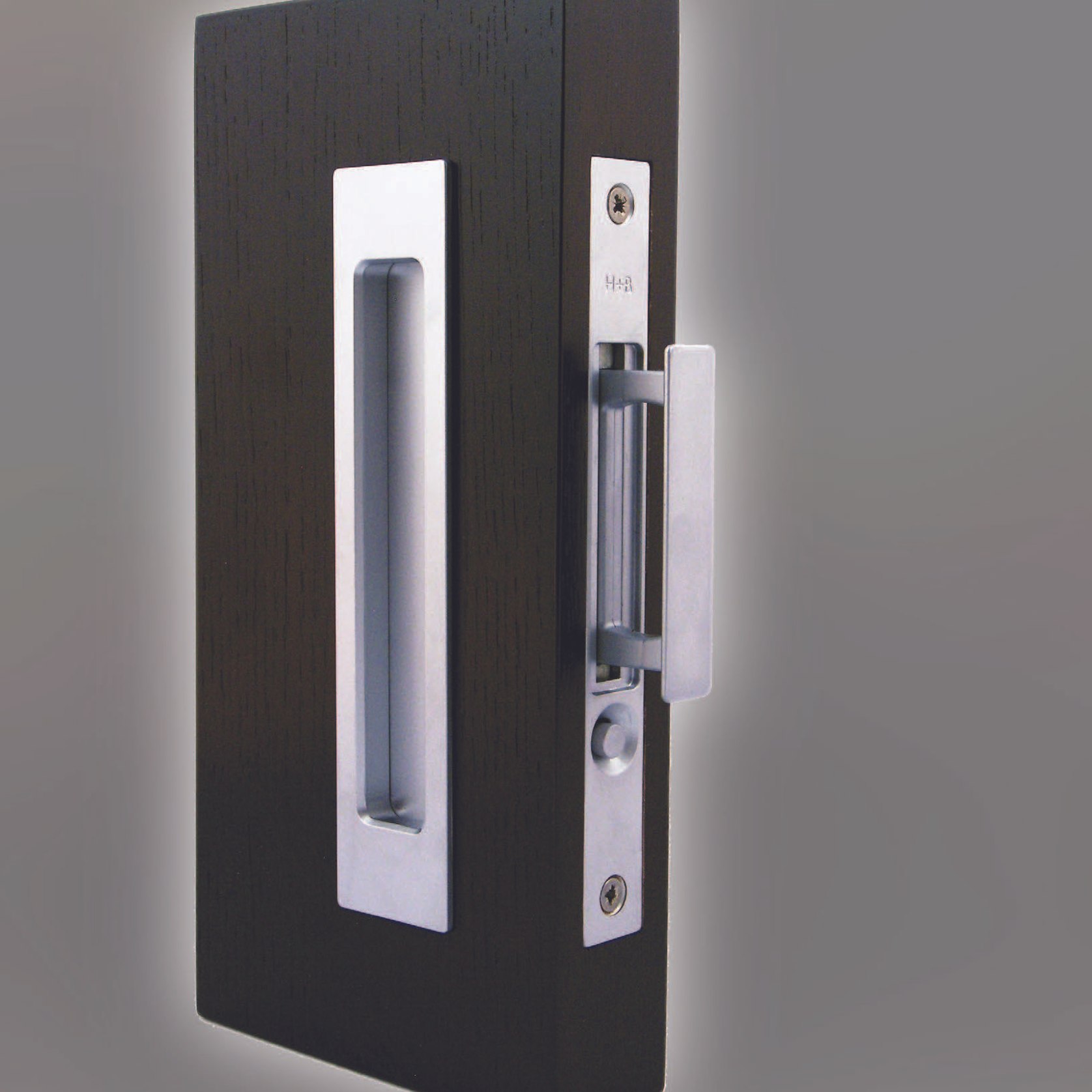

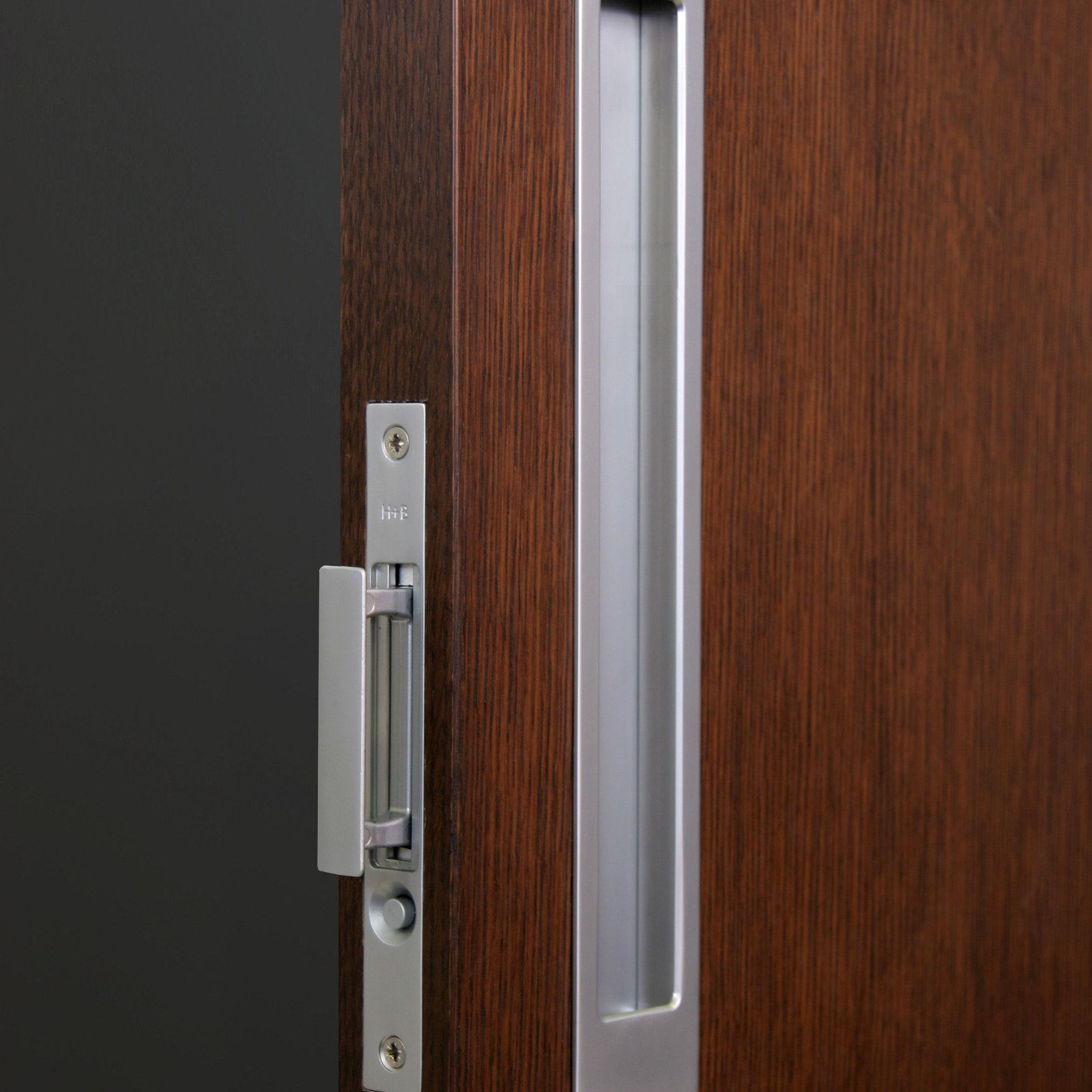

The Halliday + Baillie HB 680 Push Button- Activated Edge Pull for pocket doors has been designed to match the 170mm height of the HB 660 Flush Pull

The slim faceplate, smooth push-button release, and narrow 48mm body depth make the HB680 suitable for all sliding wood passage doors, including narrow stile timber and aluminium pocket doors.

Details
  • Category
    Cavity Slider Doors, Sliding Door Gear
  • Range
    End Pulls
  • Brand
    Halliday + Baillie
  • Designer
    Halliday + Baillie
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
  • Assembly
    Professional assembly recommended
Scope of use
  • Ideal for cavity sliding doors where an edge-pull is preferred (for example when the door slides completely into a pocket and you need access from the door edge).
    • Works well in both residential and commercial contexts, especially when the stile is narrow and you want minimal faceplate width.
    • Suitable for timber or aluminium sliding doors with sufficient thickness and appropriate mortice preparation.
    • Matches the height of other components (e.g., HB660 flush pull) — useful in projects seeking coordinated hardware across sliding door systems.
Features

For finish options please see our current finishes sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Glue, epoxy, silicone products etc are not required or recommended for installation, and may void warrantee.

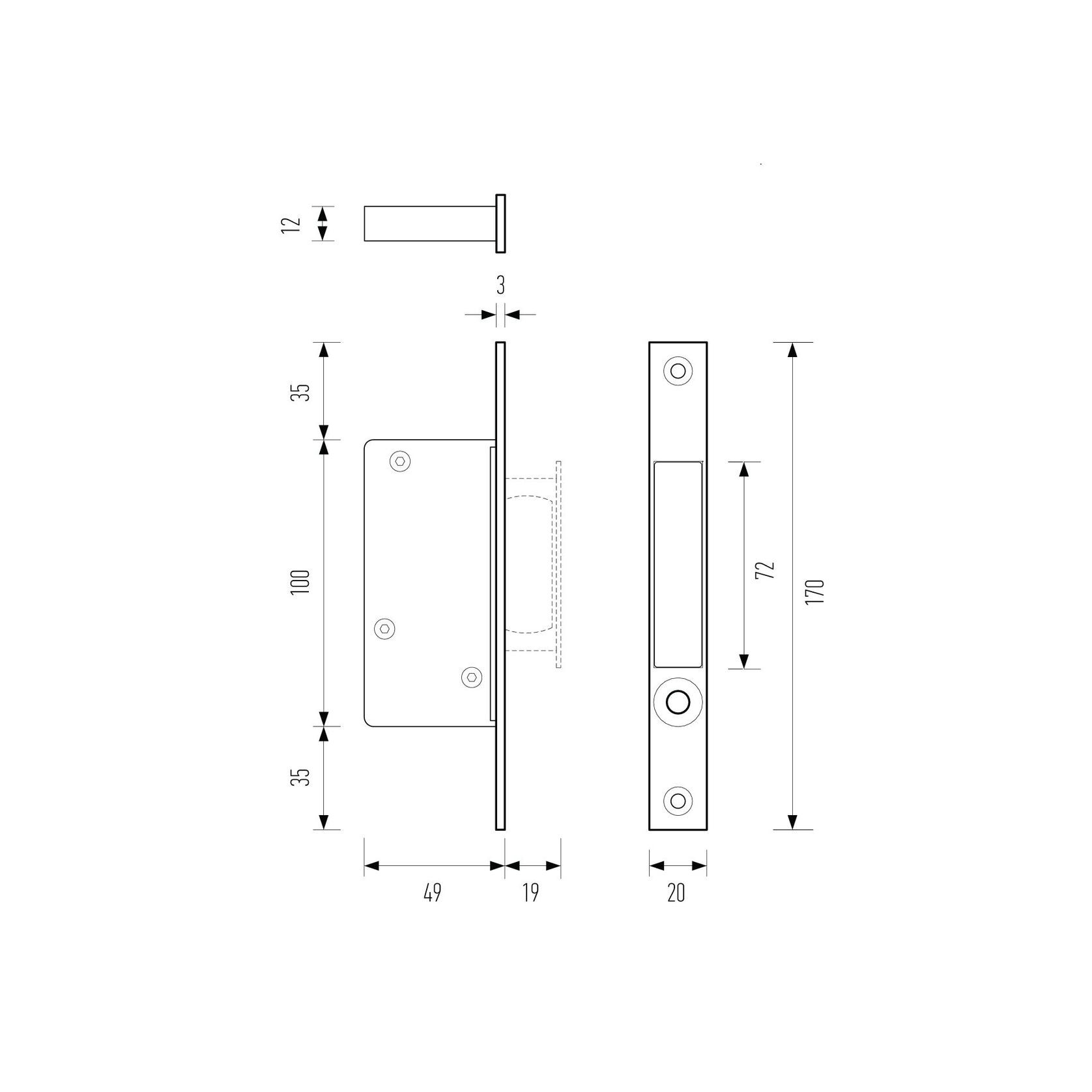

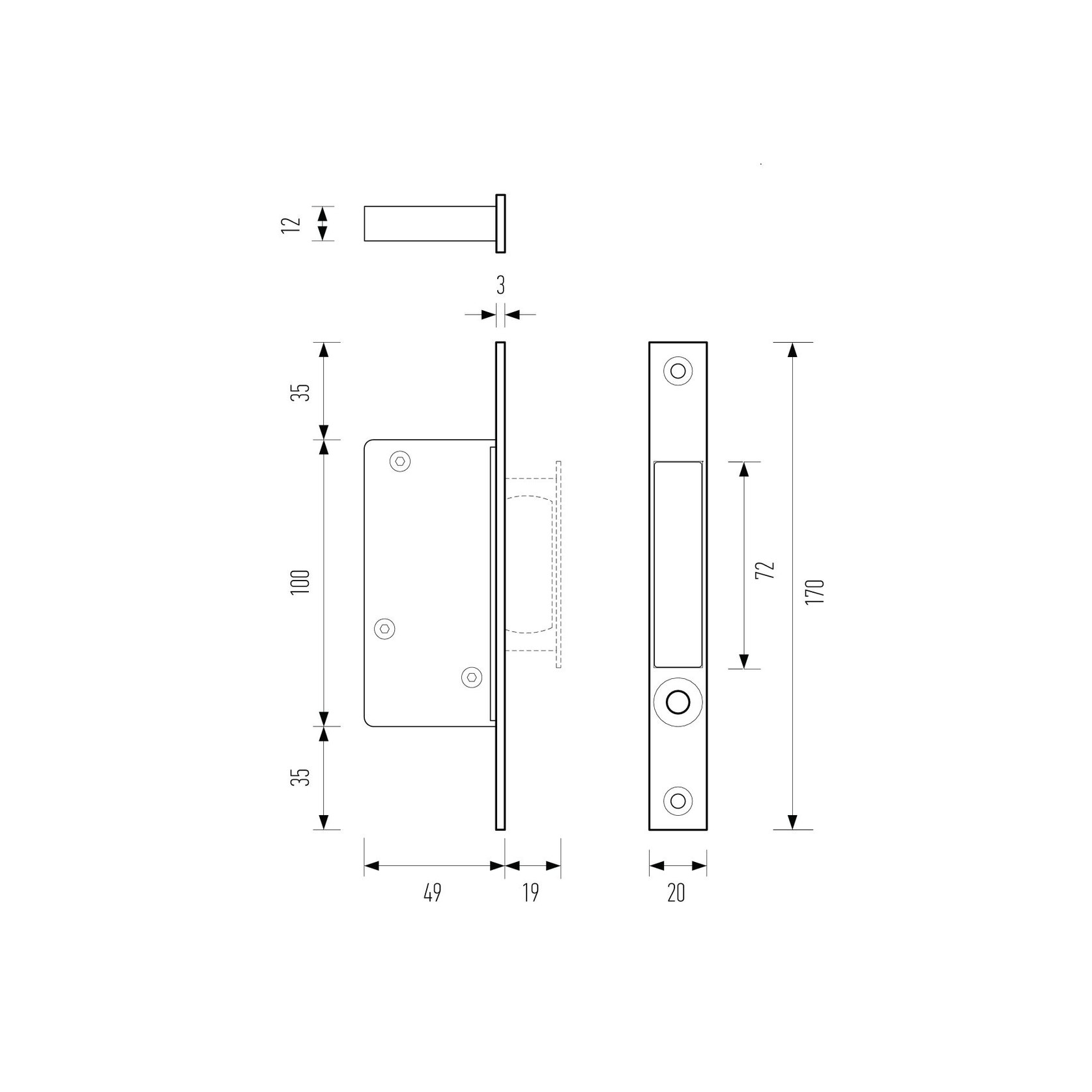

Specs / Details
  • Height: 170 mm (matches other door hardware in the same series)
  • Faceplate width: approx 20 mm
  • Case (to be morticed) dimensions: 100 mm × 49 mm × 12 mm
  • Body depth / overall width: approx 49 mm (some references use 48 mm)
  • Handle projection above door face: approx 19 mm
  • Material : diecast zinc and brass
