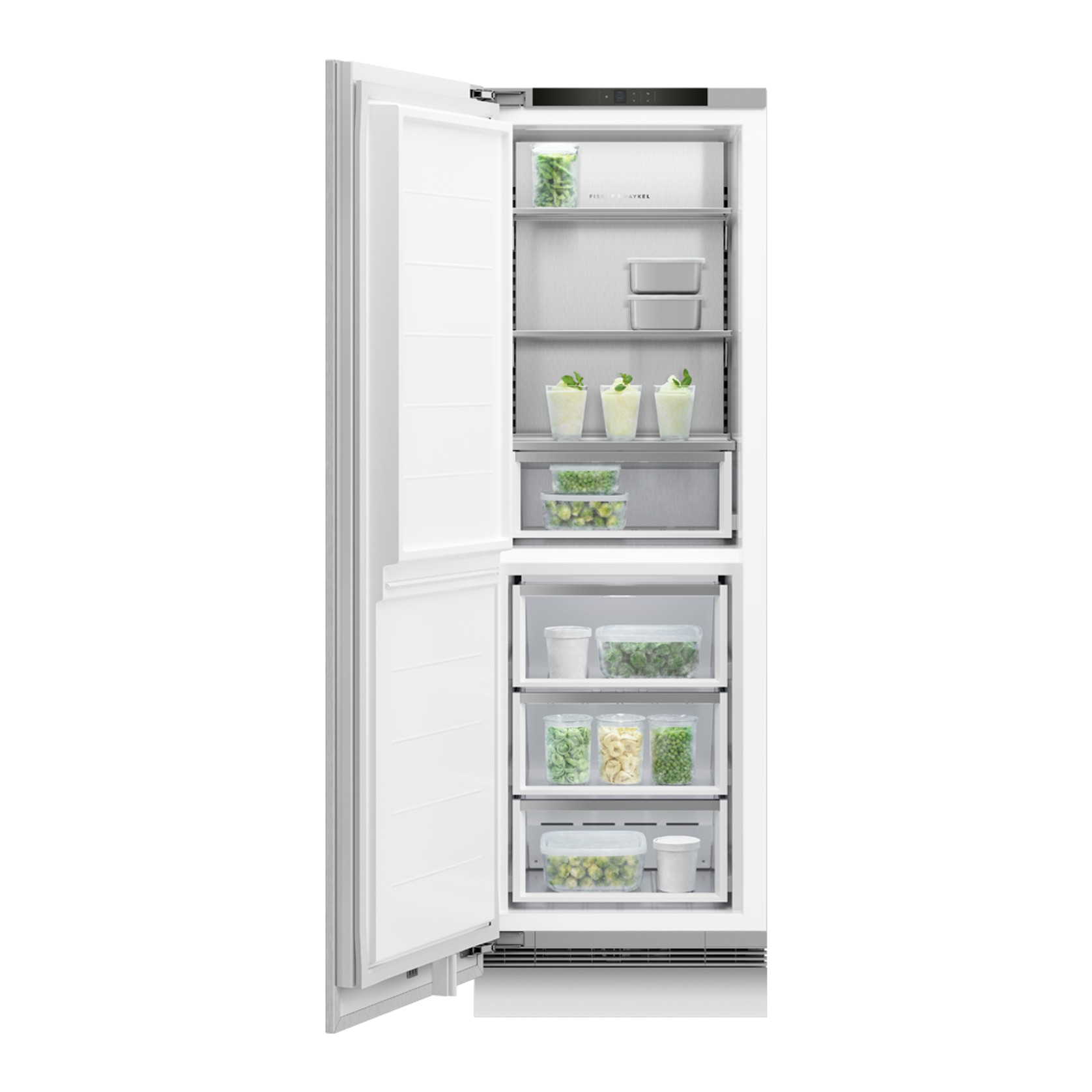

Integrated - Series 9: Left Hinge.

Pair with the Integrated Dual Zone Refrigerator for the ultimate kitchen solution - this model features two independent food zones taking cooling flexibility to a new level.*Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory

Perfect Fit
These models fit flush, with only 4mm gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.

Flush fit design with 4mm gaps and custom height installation

Independent Food Zones
When it comes to optimal food preservation, one temperature does not fit all. With two independent food zones, you can create the perfect climate for storing different foods. Each zone has adjustable temperature from -21°C to -14°C, ideal for items such as meat, seafood, frozen desserts and ice.
Two independent food zones with adjustable temperature from -21 to -14°C

Mix & Match
These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customise with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
Easy-to-use touch-control panel and Wi-Fi capability

Clever Energy
ActiveSmart Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.

Flexible Storage
Designed to make it simple for you to store, access and remove food, this freezer includes LED-lit adjustable cantilevered shelving and full extension bins.

Simple Installation
Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customised to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.

Ease Of Use
Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.

Details
  • Category
    Fridges & Freezers
  • Brand
    Fisher & Paykel
  • Warranty
    2 years
Specifications

CAPACITY

  • Volume: 304L
  • Volume freezer: 304L

CONSUMPTION

  • Energy rating: 4 star
  • Energy usage: 256kWh/year

INSTALLATION DIMENSIONS

  • Minimum inside width of cabinetry frame: 600mm
  • Minimum internal depth of cabinetry: 600mm
  • Minimum internal height of cabinetry: 1880mm

POWER REQUIREMENTS

  • Rated current: 10A
  • Supply frequency: 50Hz
  • Supply voltage: 230V

PRODUCT DIMENSIONS

  • Depth: 576mm
  • Height: 1870mm
  • Width: 592mm

WARRANTY

  • Parts and labour: 2 years
  • Sealed system parts only: 5 years
Features

FEATURES

  • Adjustable glass cantilevered shelves
  • Adjustable glass shelves: 2
  • SmartTouch control panel
  • Wi-Fi connectivity

FREEZER FEATURES

  • Bottle chill
  • Door alarm
  • Fast freeze
  • Freezer bins: 2
  • LED ceiling lighting

PERFORMANCE

  • ActiveSmart™ Foodcare
  • Adaptive defrost
  • Dual evaporator
  • Frost free
  • Inverter controlled compressor
  • Sabbath mode
Accessories

ACCESSORIES

  • Hinge change (from left hinge to right hinge)

ACCESSORIES (SOLD SEPARATELY)

  • Door panel stainless steel: RD6019 (right & left hinge)
  • Handle kit Contemporary round, aluminium: AHSRDSF
  • Handle kit Contemporary square fine, aluminium: AHD5RDSF
  • Handle kit Contemporary square fine, black: AHD5RDSFB
  • Handle kit Professional round flush: AHP3RDSF
  • Joiner kit: AJRS19LR
  • Toe kick stainless steel 1200mm: AKRS12010
  • Toe kick stainless steel 1800mm: AKRS18010
  • Toe kick stainless steel 600mm: AKRS06010
SKU: 26198
