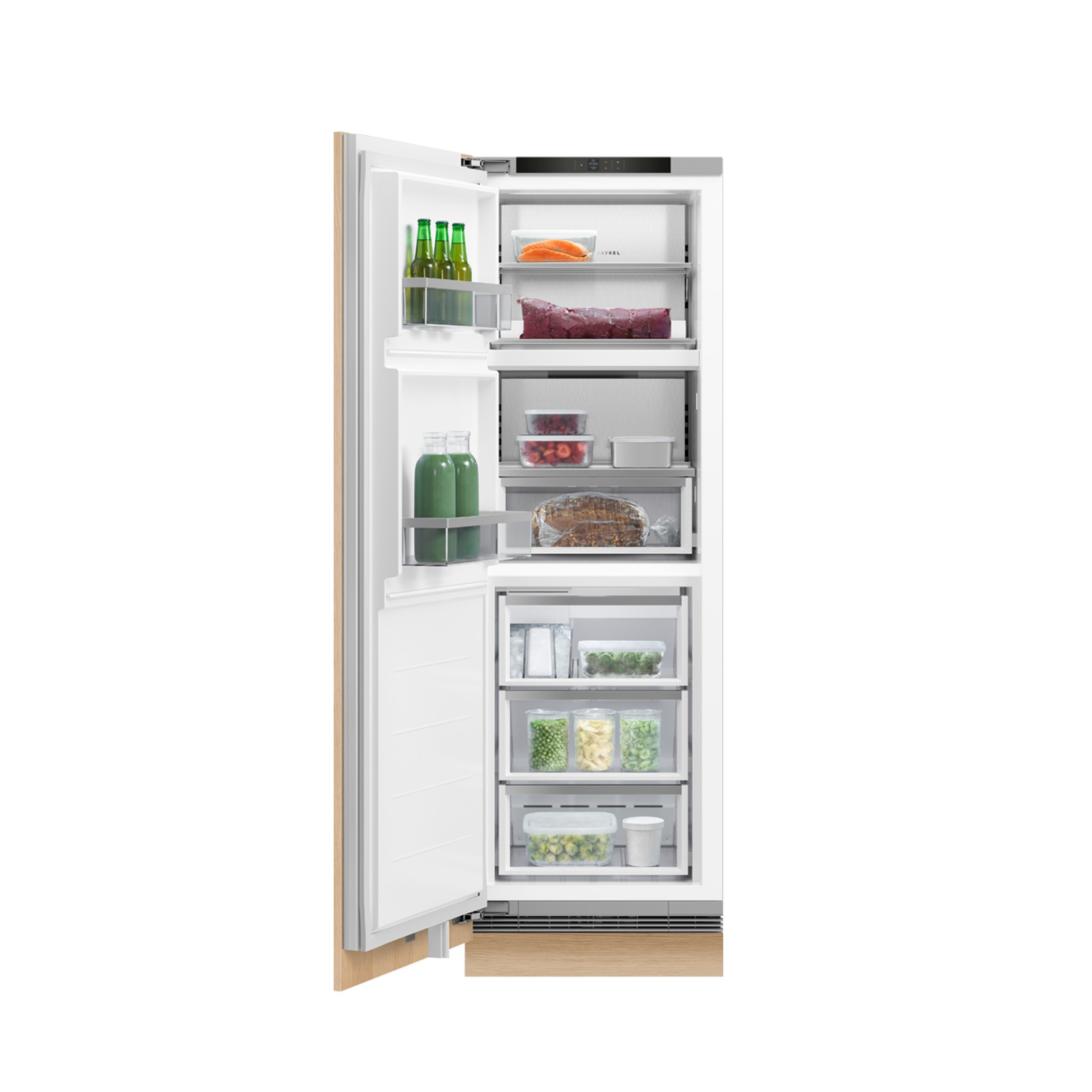

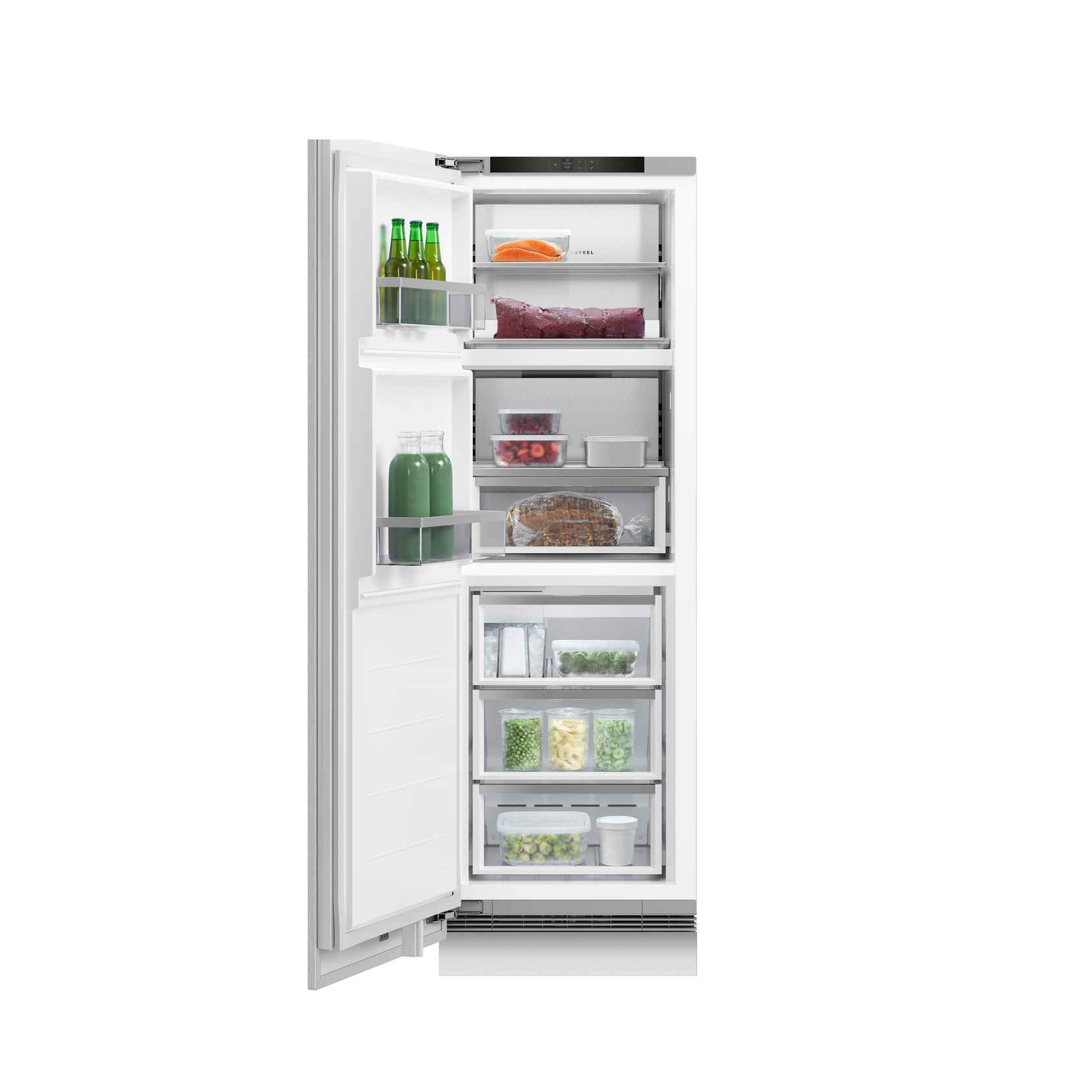

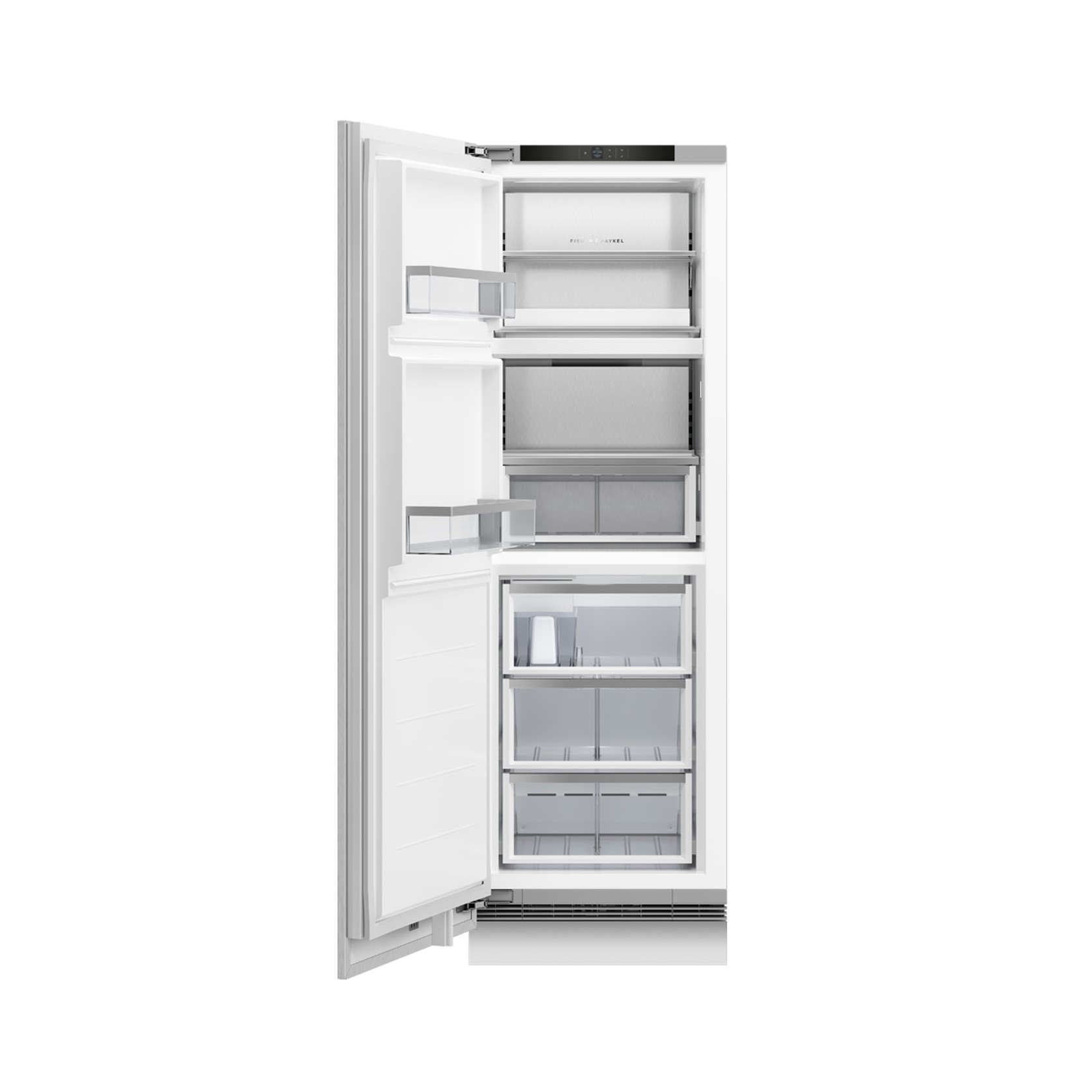

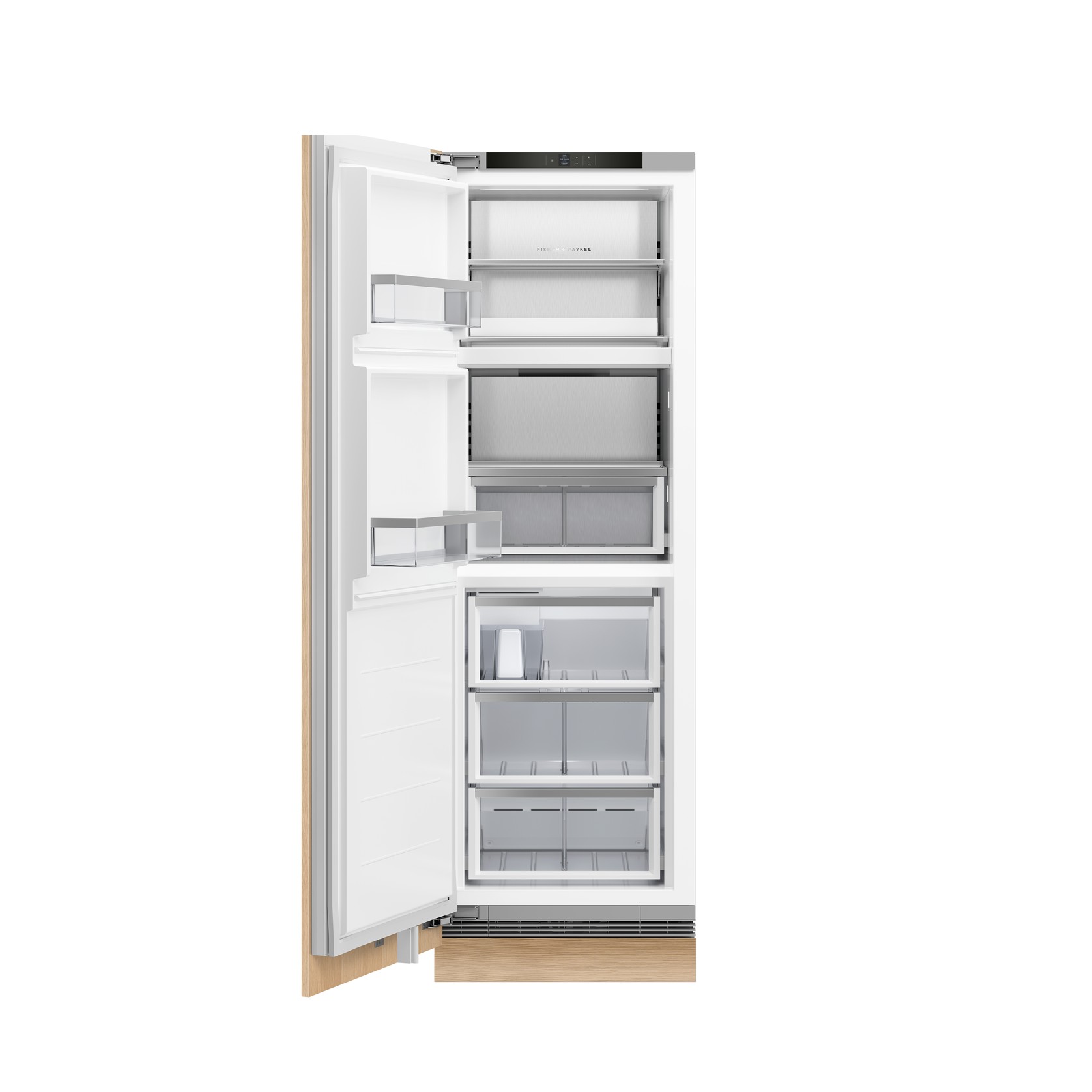

Integrated Triple Zone Freezer, 60cm, Ice

Not Applicable
Not Applicable
Not Applicable

Integrated - Series 9
Left Hinge. Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution - this model features three independent food zones taking cooling flexibility to a new level. *Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory.

Three Levels Of Freshness
When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -21C to -14C, while the top two compartments can be converted into a Chill (-1.5C to 0C), Soft-Freeze (-10C to -8C) or Freezer zone (-21C to -14C), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
Three independent food zones, each with adjustable temperature to store different foods.

Perfect Fit

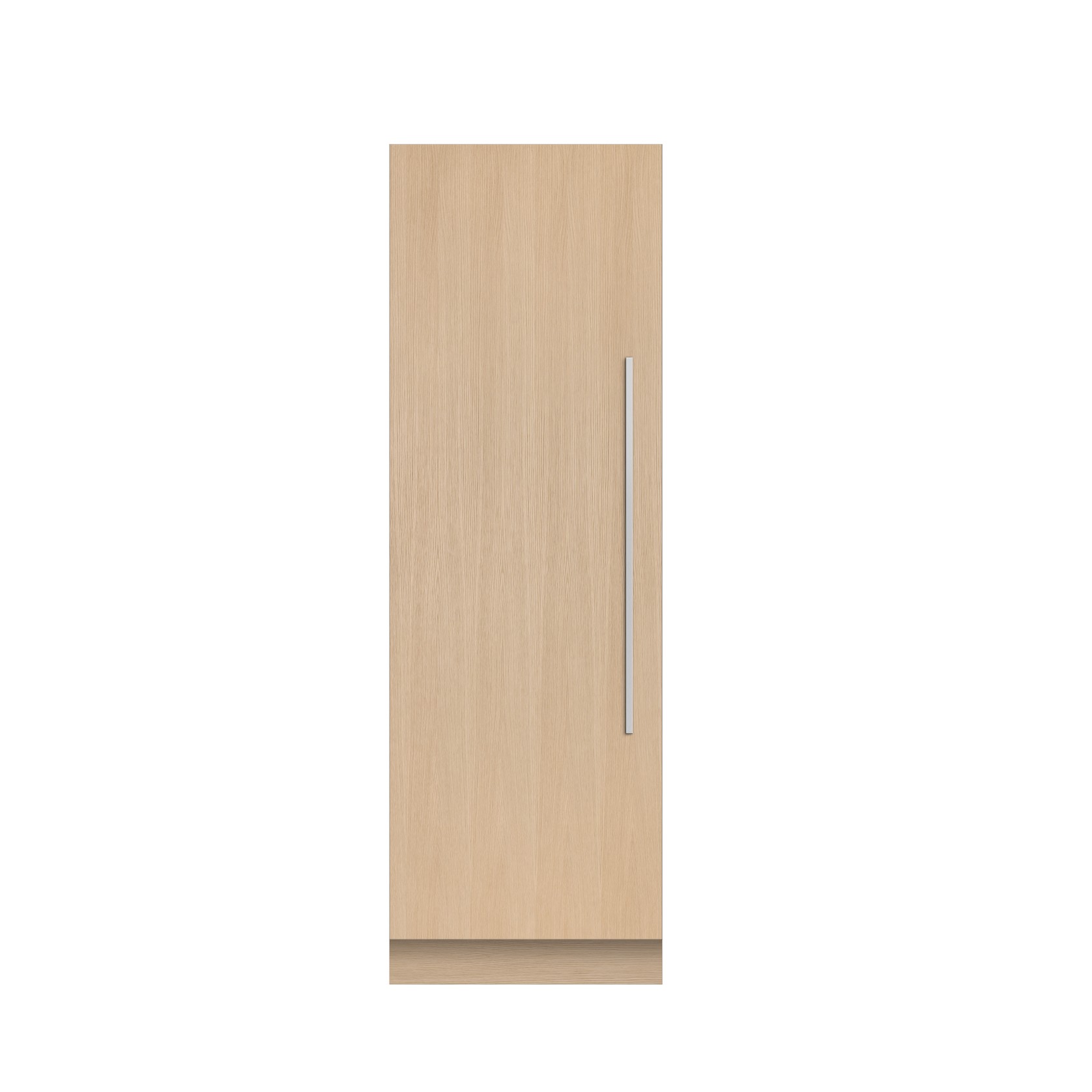

These models fit flush, with only 4mm gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
Panel ready, flush fit design with 4mm gaps and custom height installation.

Mix & Match
These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customise with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
Internal ice maker with boost feature for busy times.

Chill Mode
Keep ready-to-eat food fresher for longer with Chill mode (-1.5 to 0C). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It's also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature. Easy-to-use touch-control panel and Wi-Fi capability.

Clever Energy
ActiveSmart Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.

Simple Installation
Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customised to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.

Ease Of Use
Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.

Details
  • Category
    Fridges & Freezers
  • Brand
    Fisher & Paykel
  • Warranty
    2 years
Specifications

CAPACITY:

  • Volume: 303L
  • Volume freezer: 303L

CONSUMPTION:

  • Energy rating: 3.5 star
  • Energy usage: 272 kwh/yr

INSTALLATION DIMENSIONS:

  • Minimum inside width of cabinetry frame: 600mm
  • Minimum internal depth of cabinetry: 600mm
  • Minimum internal height of cabinetry: 1880mm

POWER REQUIREMENTS:

  • Amperage: 10A
  • Supply frequency: 50Hz
  • Supply voltage: 230V

PRODUCT DIMENSIONS:

  • Depth: 576mm
  • Height: 1870mm
  • Width: 592mm

WARRANTY:

  • Parts and labour: 2 years
  • Sealed system parts only: 5 years
Features

FEATURES:

  • Adjustable door shelves: 2
  • SmartTouch control panel
  • Wi-Fi connectivity

FREEZER FEATURES:

  • Automatic ice maker
  • Bottle chill
  • Door alarm
  • Fast freeze
  • Freezer bins: 4
  • Ice Boost
  • Ice making rate per day: 1kg
  • LED bin lighting
  • LED ceiling lighting
  • LED side lighting

PERFORMANCE:

  • ActiveSmart Foodcare
  • Adaptive defrost
  • Frost free
  • Inverter controlled compressor
  • Sabbath mode
  • Triple evaporator
  • Variable food modes: Chill, Soft freeze, Freezer
  • Variable temperature zones: 3
Accessories

ACCESSORIES:

  • Hinge change (from left hinge to right hinge)

ACCESSORIES (SOLD SEPARATELY):

  • Door panel stainless steel: RD6019 (right & left hinge)
  • Handle kit Contemporary round, aluminium: AHSRDSF
  • Handle kit Contemporary square fine, aluminium: AHD5RDSF
  • Handle kit Contemporary square fine, black: AHD5RDSFB
  • Handle kit Professional round flush: AHP3RDSF
  • Joiner kit: AJRS19LR
  • Toe kick stainless steel 1200mm: AKRS12010
  • Toe kick stainless steel 1800mm: AKRS18010
  • Toe kick stainless steel 600mm: AKRS06010
  • Water filter replacement: 847200
