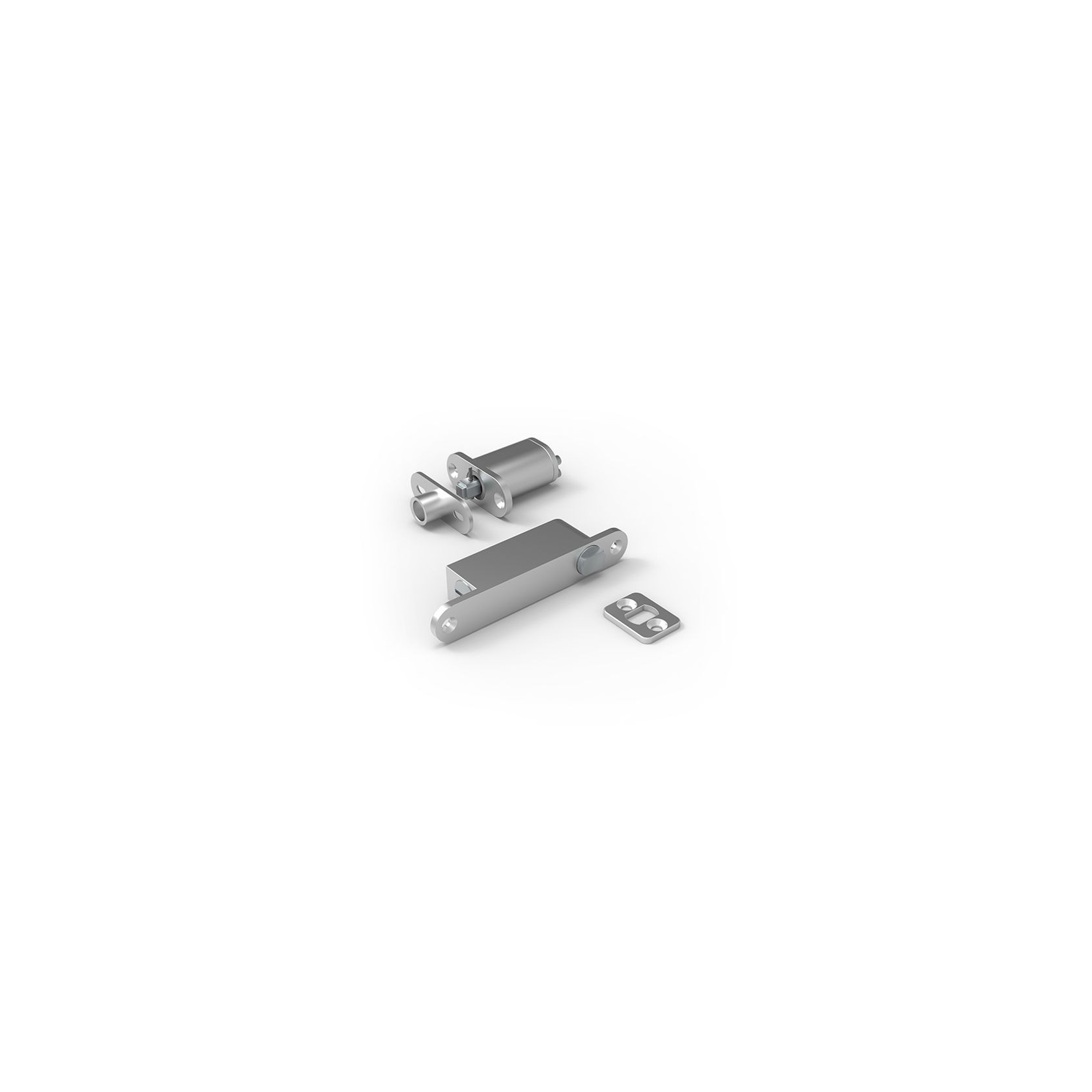

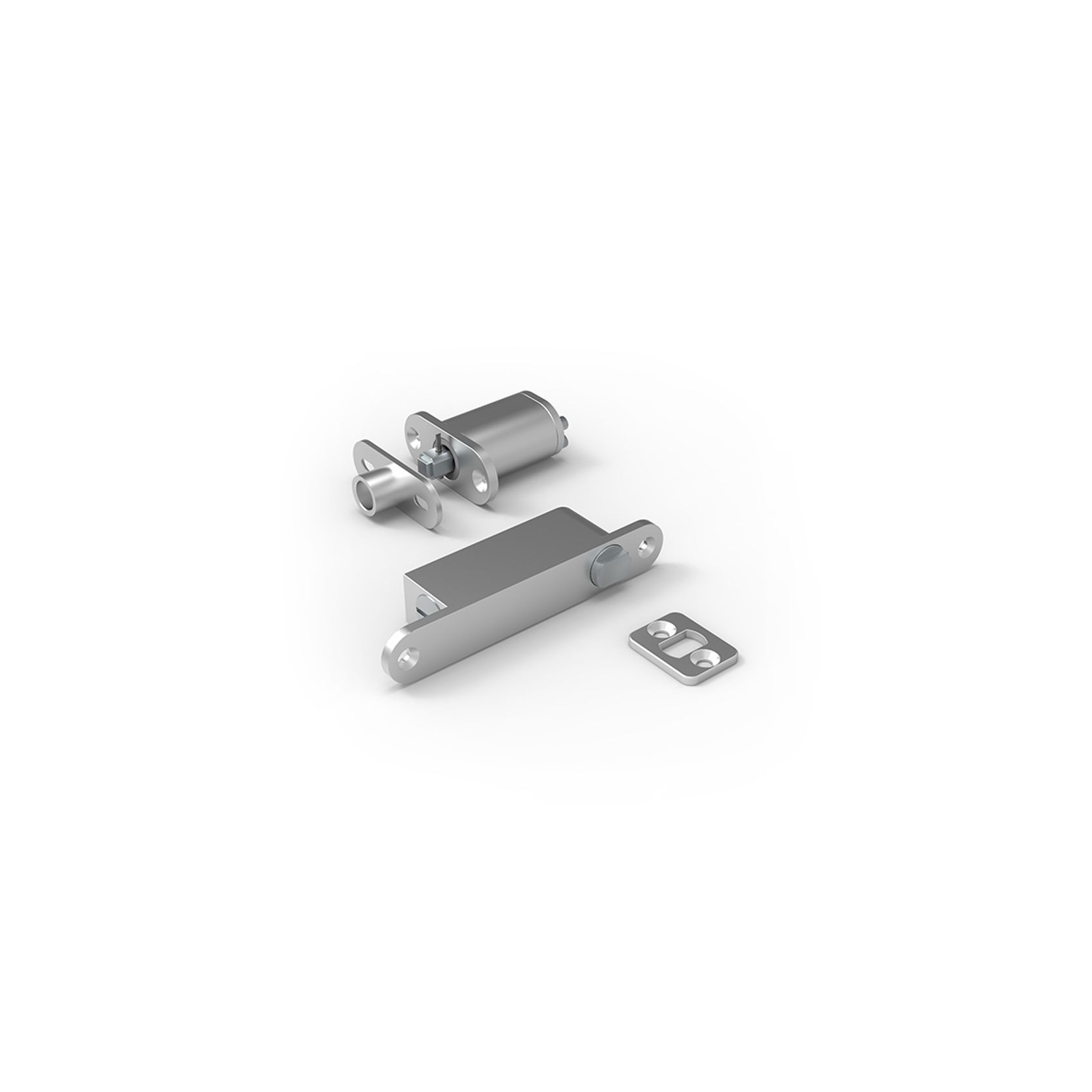

Internal Pivotica Hinge Swing Door

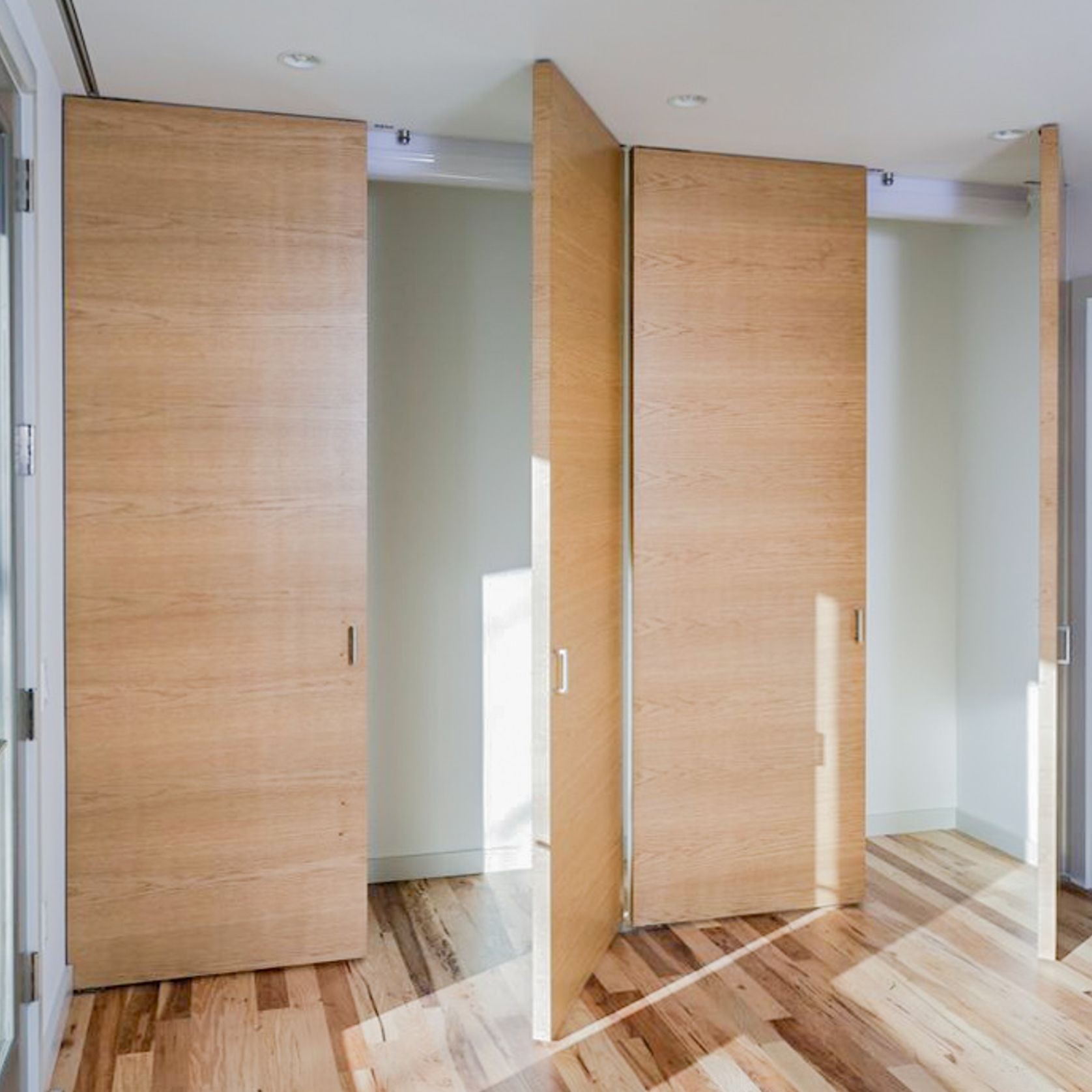

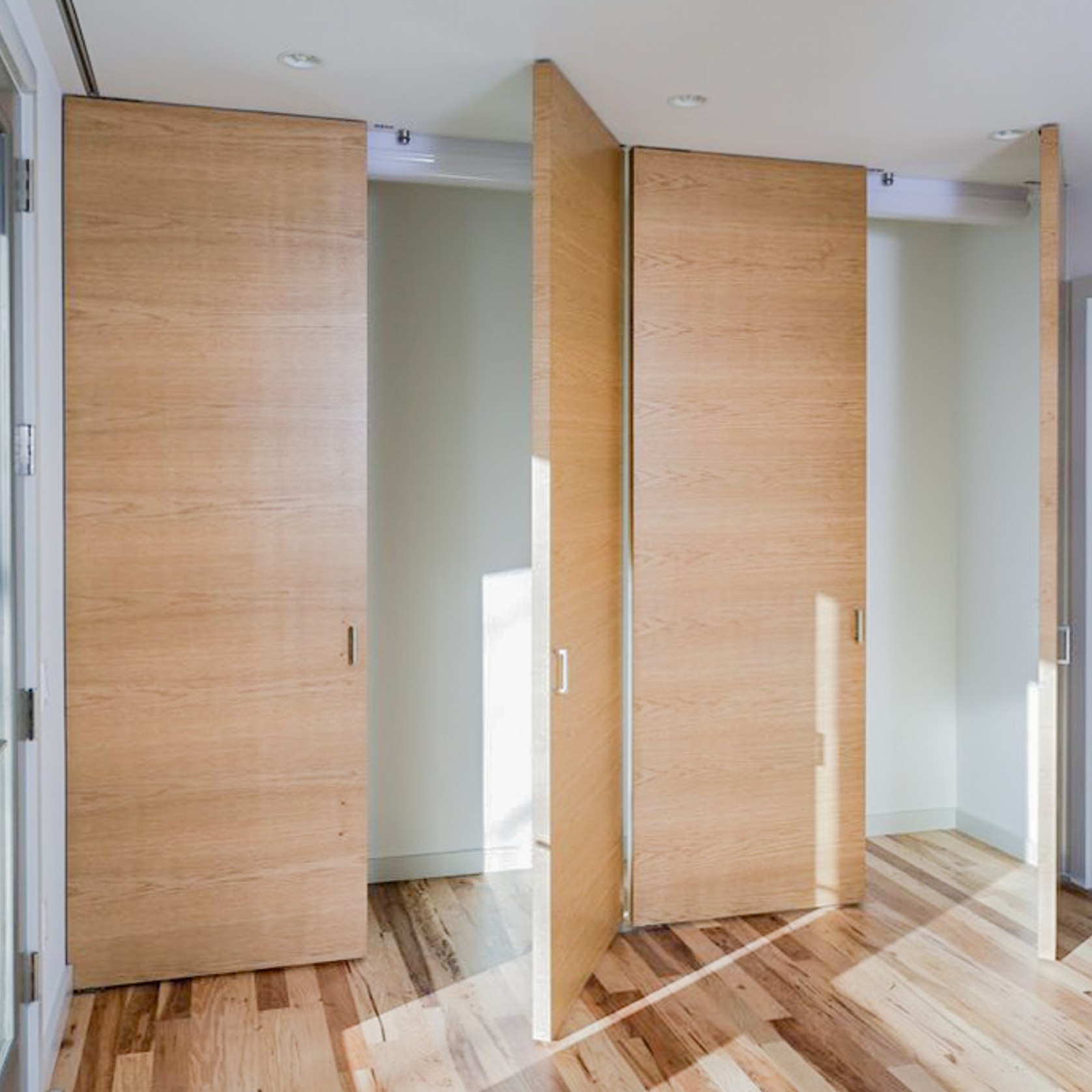

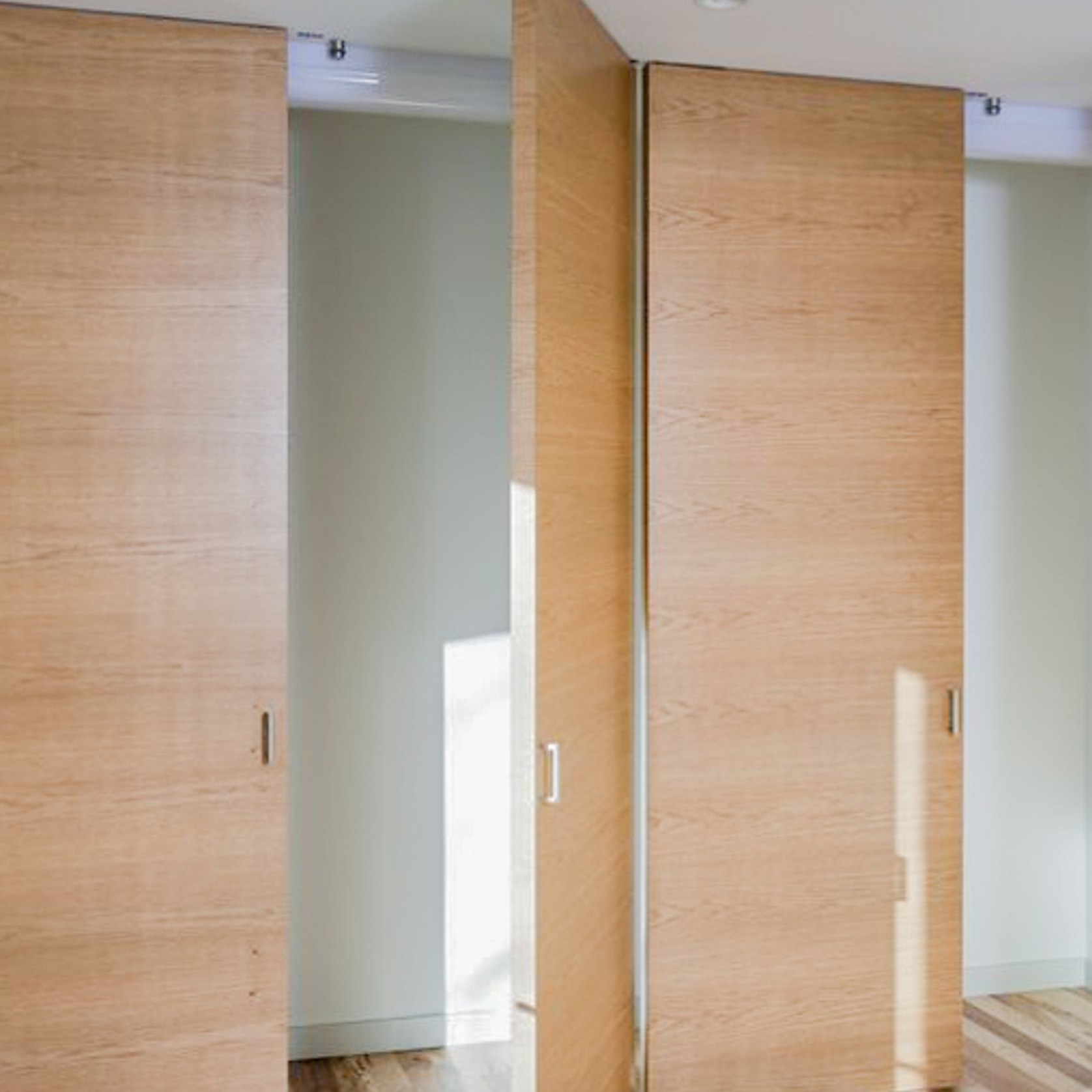

The Triline Pivotica minimalistic and invisible pivot hinge has several unique characteristics. Thanks to its compact size the Pivotica is not only easy to mount in the door, but the pivot hinge can also be installed in pivoting floor-to-ceiling-height doors.
Triline’s internal pivot hinge is made of top-quality Belgium components.
The innovative pivot hinge even allows for the pivot point on the door to be chosen freely (at a minimum of 40mm from the side of the door); this way, wide doors can for instance rotate from the middle. The pivotica is suitable for both left and right doors.
Thanks to the Argenta pivotica architects can use spaces and walls creatively, seeing how the pivot hinge does not require a door frame and the door can be aligned perfectly with the wall.
All parts of this pivot hinge are rust-resistant. The pivotica is suitable for indoor use of both modern residential buildings as well as public buildings and offices.
- CategoryInternal Doors
- RangeSwing Doors
- BrandTriline
- DesignerTriline
- Max. Door Weight: 45kg
- Max. Door Height: 3000mm
- Max. Door Width: 1500mm
- Min. Door Thickness: 40mm
- Max. Opening Angle: 180˚
- Fix Position: +90˚ / -90˚
- Suitable for Full Height Doors: Yes
