Jesani Appliance Drainage Channels

By Jesani Wetroom Solutions
Website

Appliance Drainage Channel

The Appliance drainage channel is custom designed to suit any appliance that receives serviced water, e.g. dishwasher, washing machine or plumbed fridge. Free water overflow containment is the objective here.

An insurance claim, stress and time will cost more than installing this channel to prevent any clean ups from faulty appliances. This channel has the same emergency overflow classification as the Door Channel products.

A custom designed channel will enable any emergency overflow requirement from a serviced water appliance. Anything can happen with these appliances that is out of your control. One thing you can control is being prepared for the unknown.

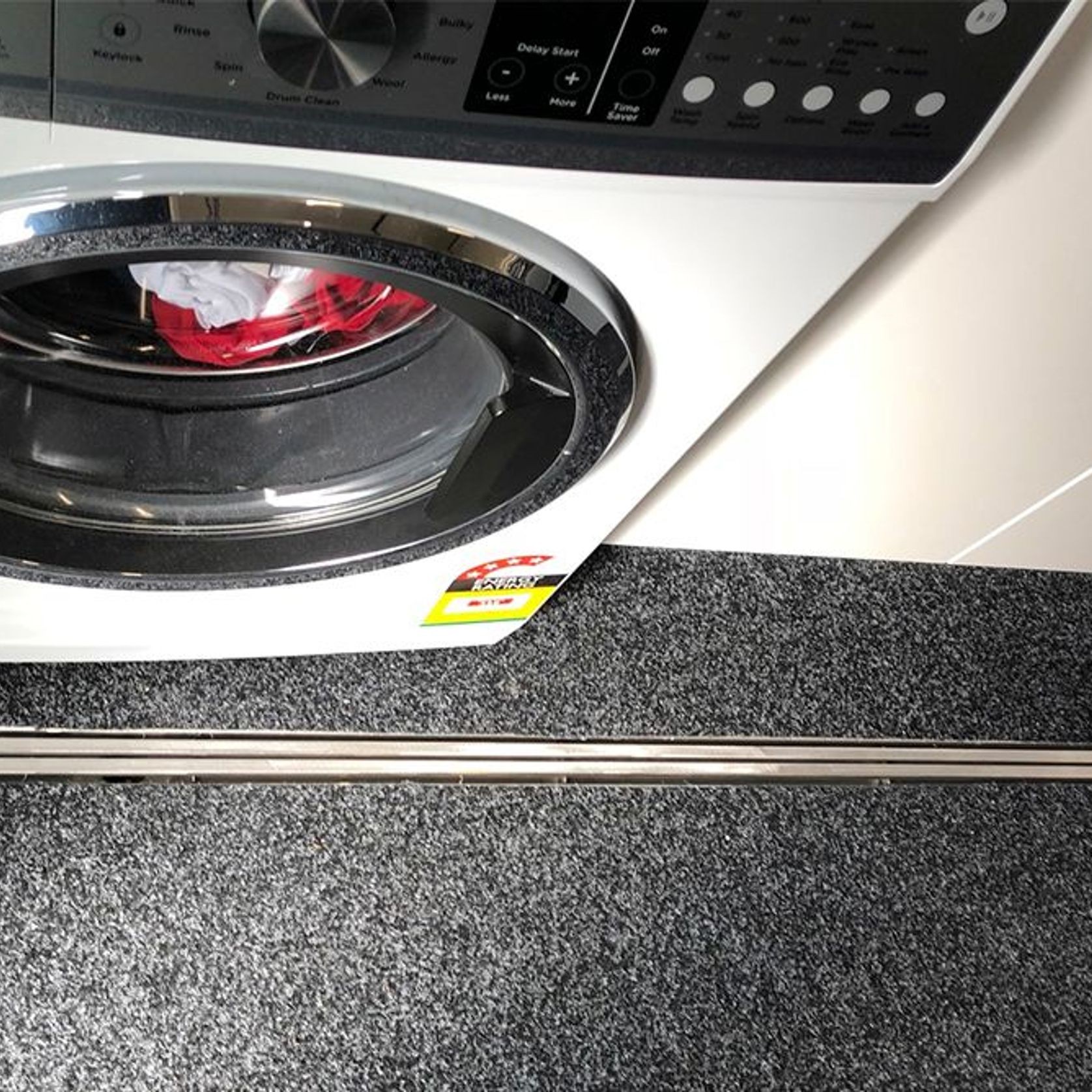

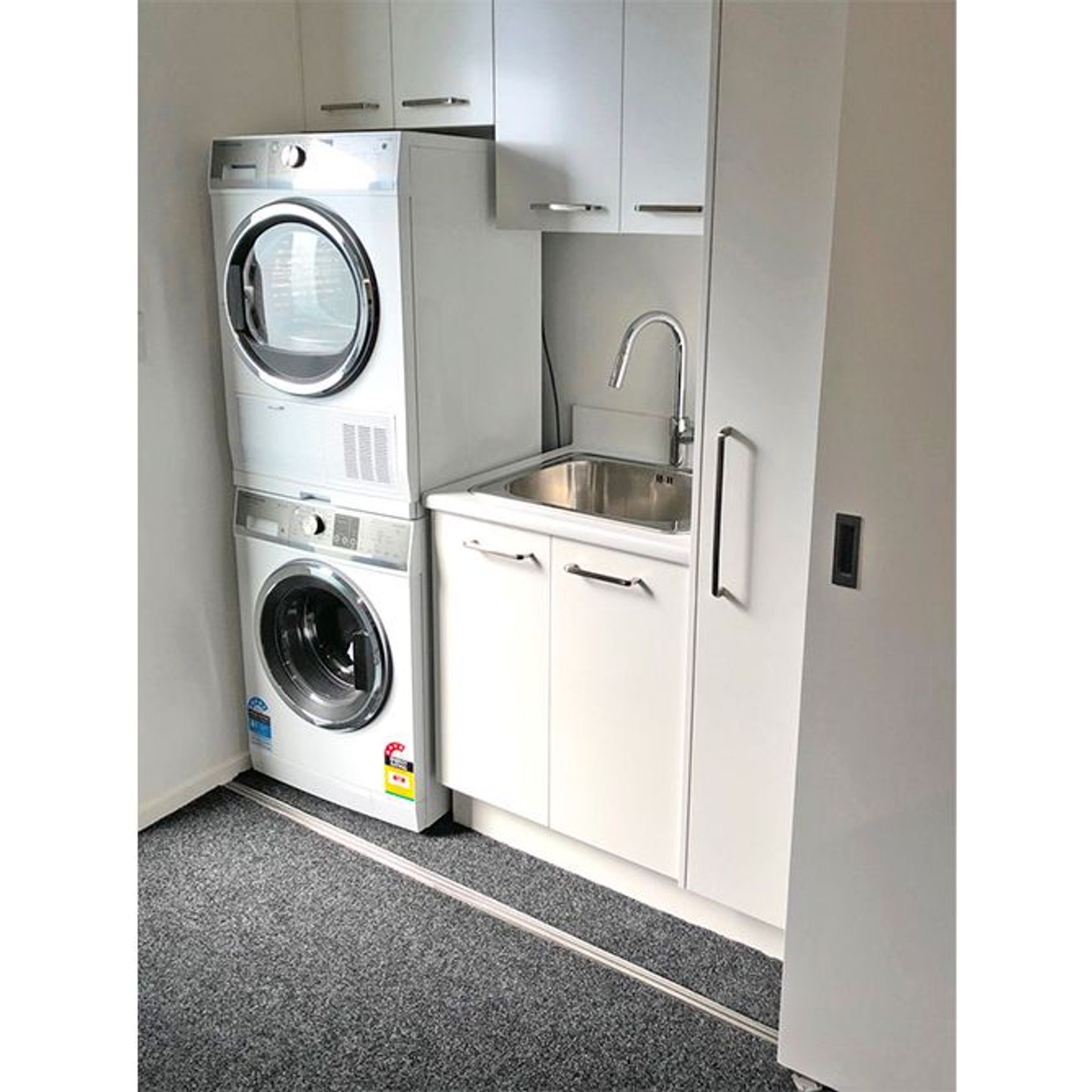

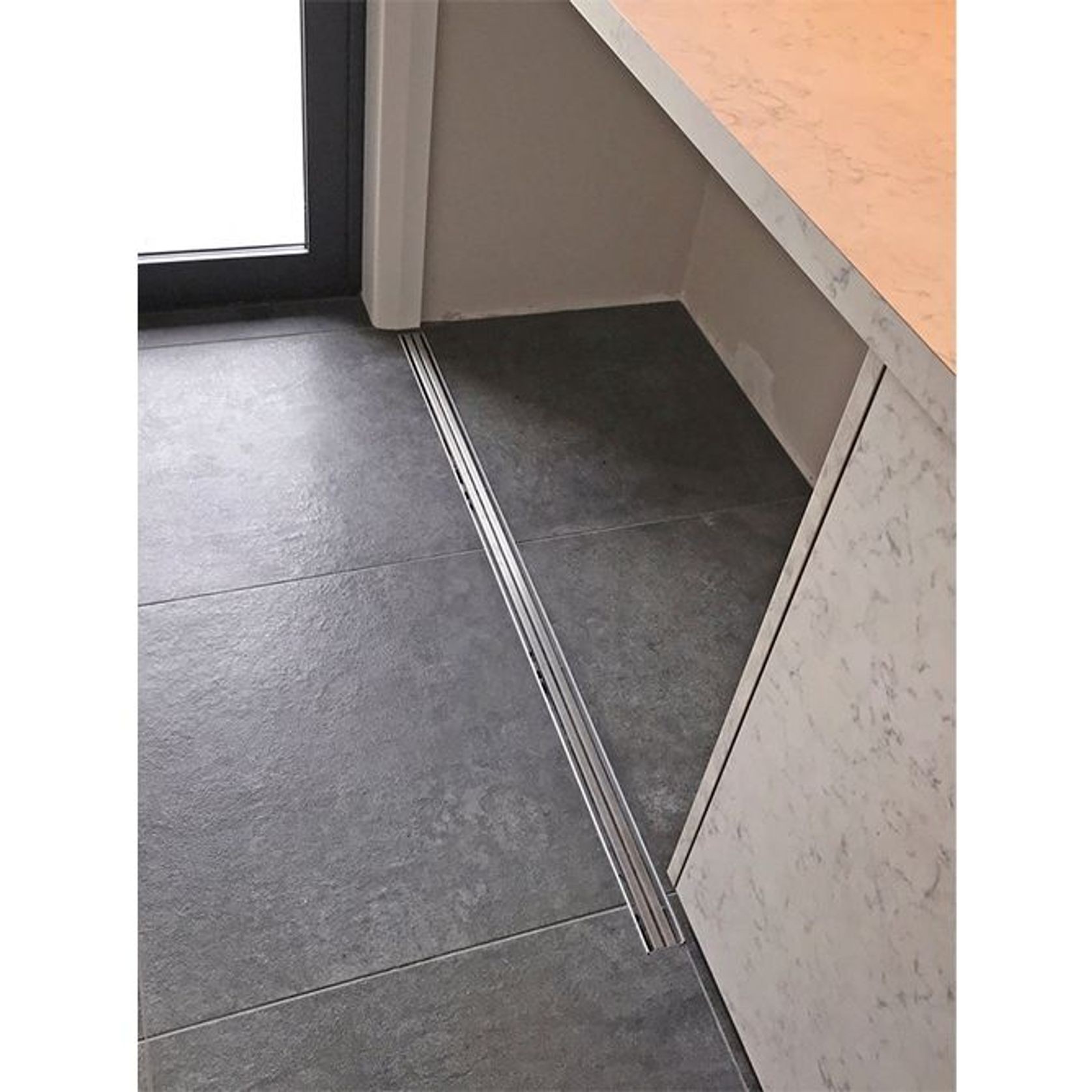

See photos for some finished projects.

Material:

  • Grade 304 Stainless Steel (316 upon request), 1.5mm thickness,
    TIG Welded and water tested

Outlet options:

  • 38mm spigot with o’ring, 38mm threaded

Outlet Position:

  • Optional to suit project

Contact us today to discuss your wetroom solutions.

Details
  • Category
    Shower Trays & Drains
  • Range
    Drainage Channels
  • Brand
    Jesani
Specifications

Jesani Wetroom Solutions – Appliance Channel

Product: AC - SS304/316

SKU: APP171

Suitable: tile or vinyl flooring

Length: Custom made to suit the project

Stainless steel: 1.5mm, grade 304 SS. 316 on request.


Standard finish: polished stainless steel with grill or tile insert
Optional finish: powder coated or electroplated with grill or tile insert

Outlet options: 38mm spigot with o’ring or 38mm threaded

Outlet position: custom to suit the project.

Patented design

Jesani Wetroom Solutions
Auckland
Get in touch
Visit Website

About the
Seller

Jesani Wetroom Solutions – delivering world class, custom made linear channels for New Zealand’s homes.

JESANI® was established in 2010 when Grant Hohaia, an award-winning builder with over 40 years’ experience needed a solution to overcome existing product limitations and support his growing client demand for linear shower channels.

Designed to functionally support and protect the most critical areas of drainage to a level not previously seen in linear channels, the JESANI® channel system offers a stylish drainage solution which significantly minimises the risk of water ingress at a structural level.

The JESANI® channel system can be easily installed into new or existing homes by a qualified builder, tiler, plumber or waterproofer.

Durable, stylish, sustainable and an efficient drainage solution, JESANI® channels complement the rooms aesthetic, ensuring a previously unattractive or overlooked detail is now an elegant channel that enhances or blends in.

JESANI® channels are:

  • Custom manufactured for each project
  • Available as shower, appliance, and door channels
  • Competitively priced
  • Completed within 7 – 10 days
  • New Zealand made using grades 304 and 316 stainless steel
  • Available in various finishes including stainless steel, tile insert, powder coated and electroplated.
  • Designed by an Architectural builder with over 40 years’ experience
  • BRANZ appraised – JESANI® is currently the only linear channel range to carry this endorsement.
  • Patented – the JESANI® shower, door and appliance channel system is patented.
  • Supplied to residential and commercial new builds/renovations, including apartments, gyms, hotels, and retirement villages

The team at Jesani Wetroom Solutions is committed to providing top quality products, great service and a BRANZ supported warranty of 15 years.
