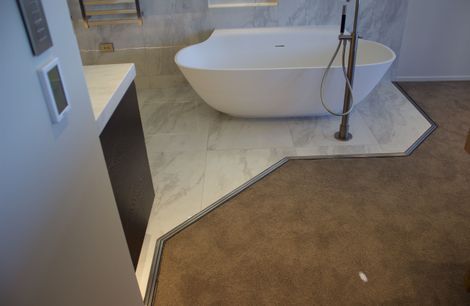

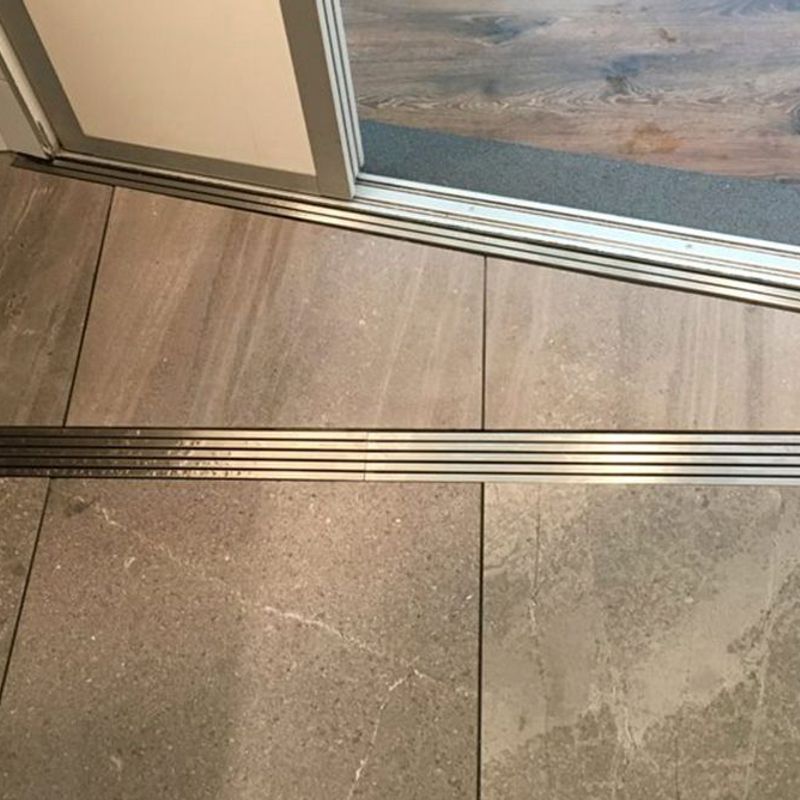

Made in New Zealand, the Jesani Door Channel ensures forgotten running baths and accidental overflows are effectively drained before they reach adjoining rooms.

The slimline channels are made from 1.5mm, 304 stainless steel and are available in a range of finishes to match the aesthetic of the bathroom or laundry; stainless steel, electroplated (brass, gold, silver), powder coated or with a tile insert to match the surrounding tiles.
*316 stainless is available on request

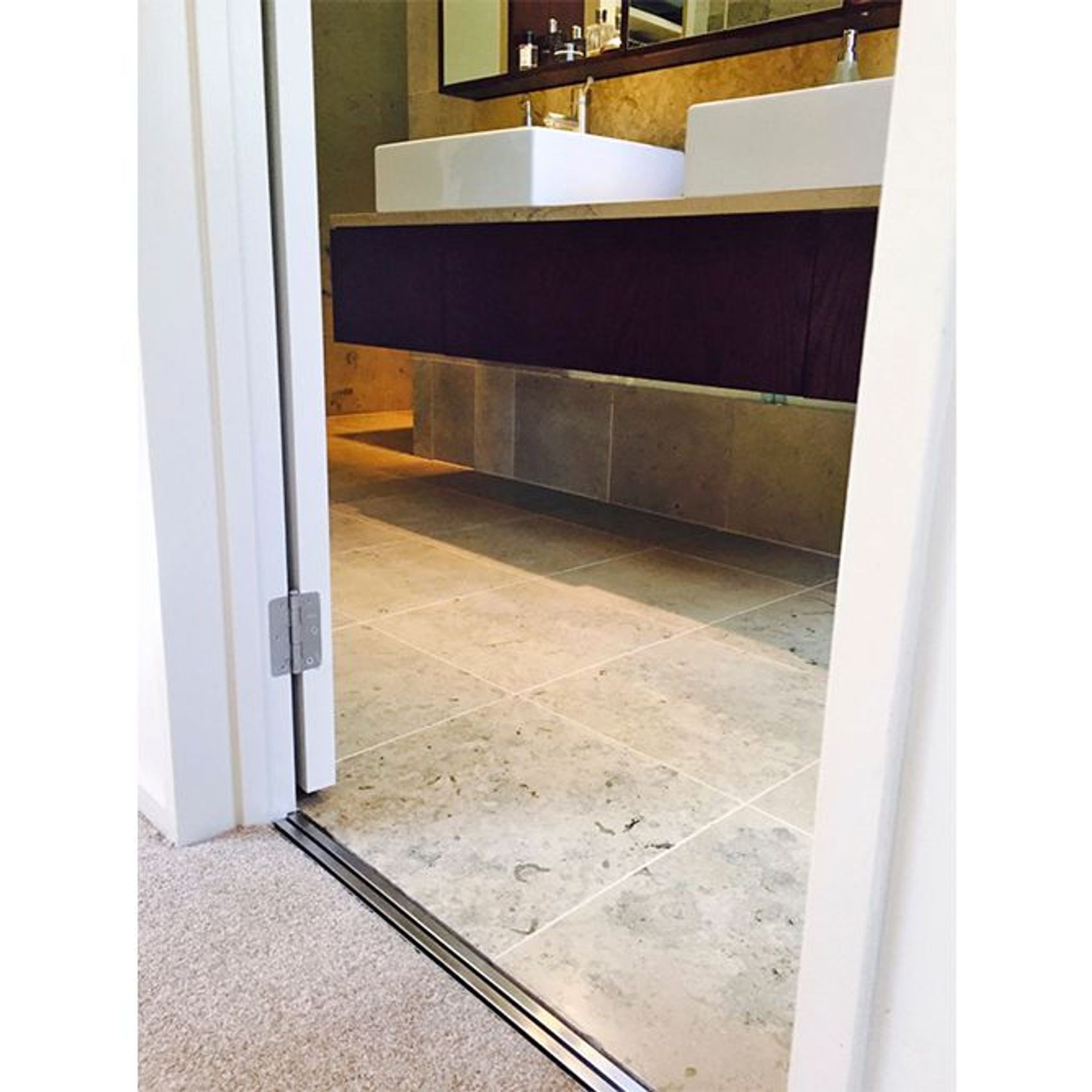

Available to fit either a Standard or Cavity door, the Jesani door channels are the only drains available to ensure full containment of accidental overflows in wet to dry areas.

Every Jesani Door Channel is custom made to ensure a perfect fit. We work with architects, builders, plumbers, tilers, waterproofers and home owners on a daily basis and courier New Zealand wide.

Accessible bathroom channels are a speciality. Given the more spacious and open areas in an accessible shower, door channels are commonly used in addition to the Jesani Shower Channel to ensure excess water stays within the bathroom.

Suitable for New Builds and Renovations

The Door Channel replaces the position of the Floor Waster Gully in the middle of the bathroom/wetroom, offering a more stylish and discrete emergency overflow drainage option.

Jesani holds patents on Door Channels meaning they cannot be manufactured by any other company.

NZ Building Code E3 – Internal Moisture and ASNZS 3500.2:2018 both refer to floor wastes and the prevention of free water overflow from one household unit to another.

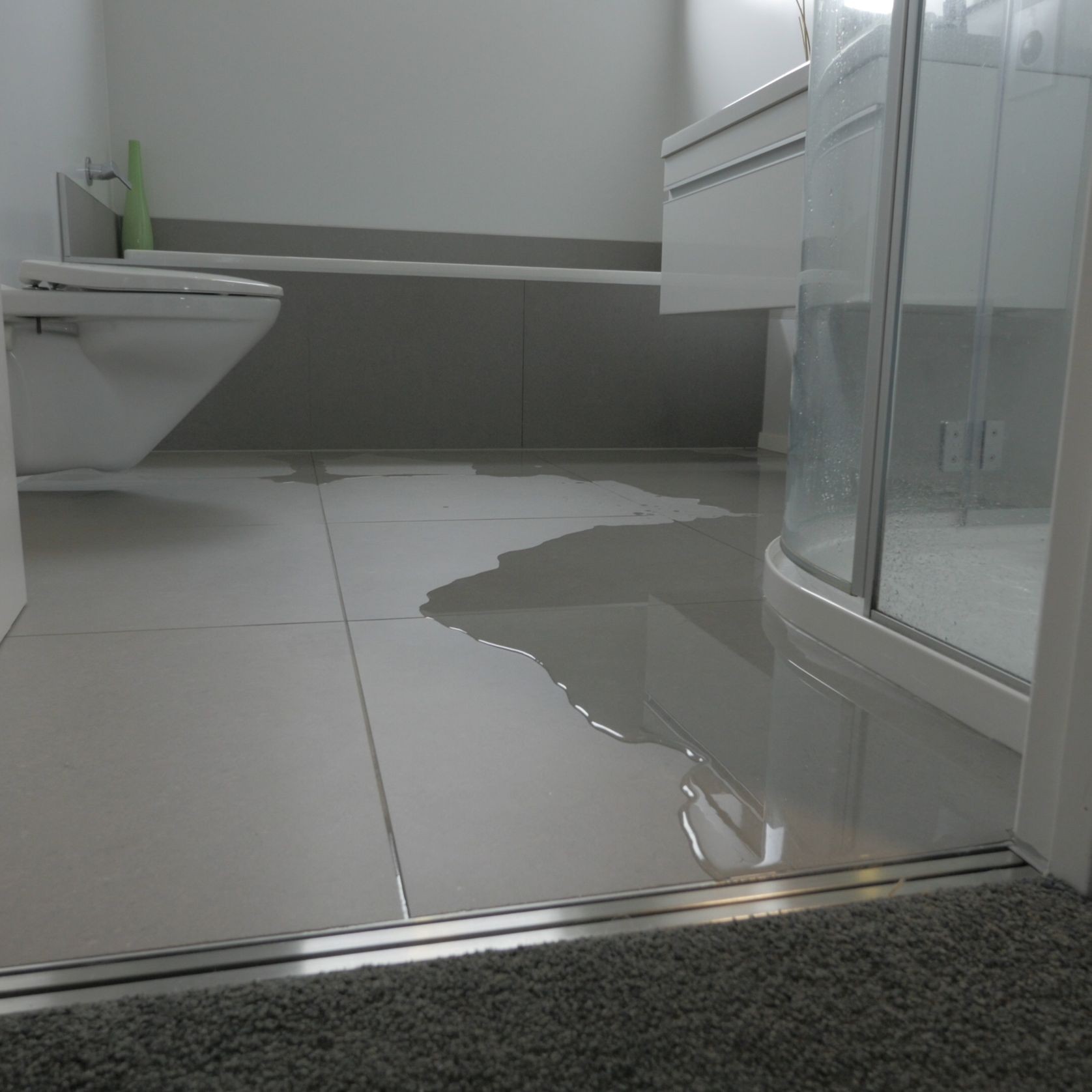

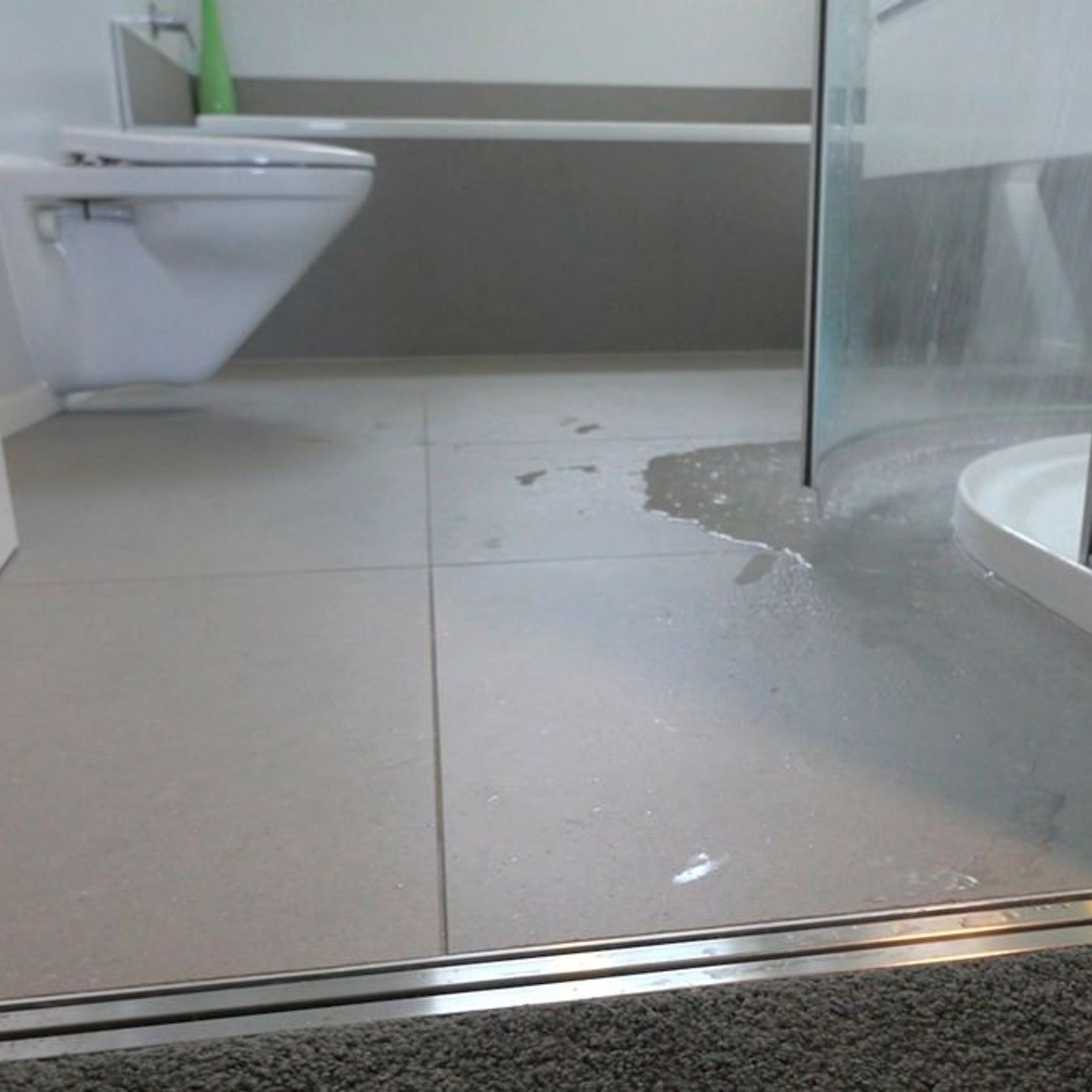

See photos of completed projects and a video showing the Door Channel in action.

Material:
Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Outlet options: 38mm spigot with o’ring / 38mm threaded / 38mm 90 degree bend

Outlet position:
Optional to suit project

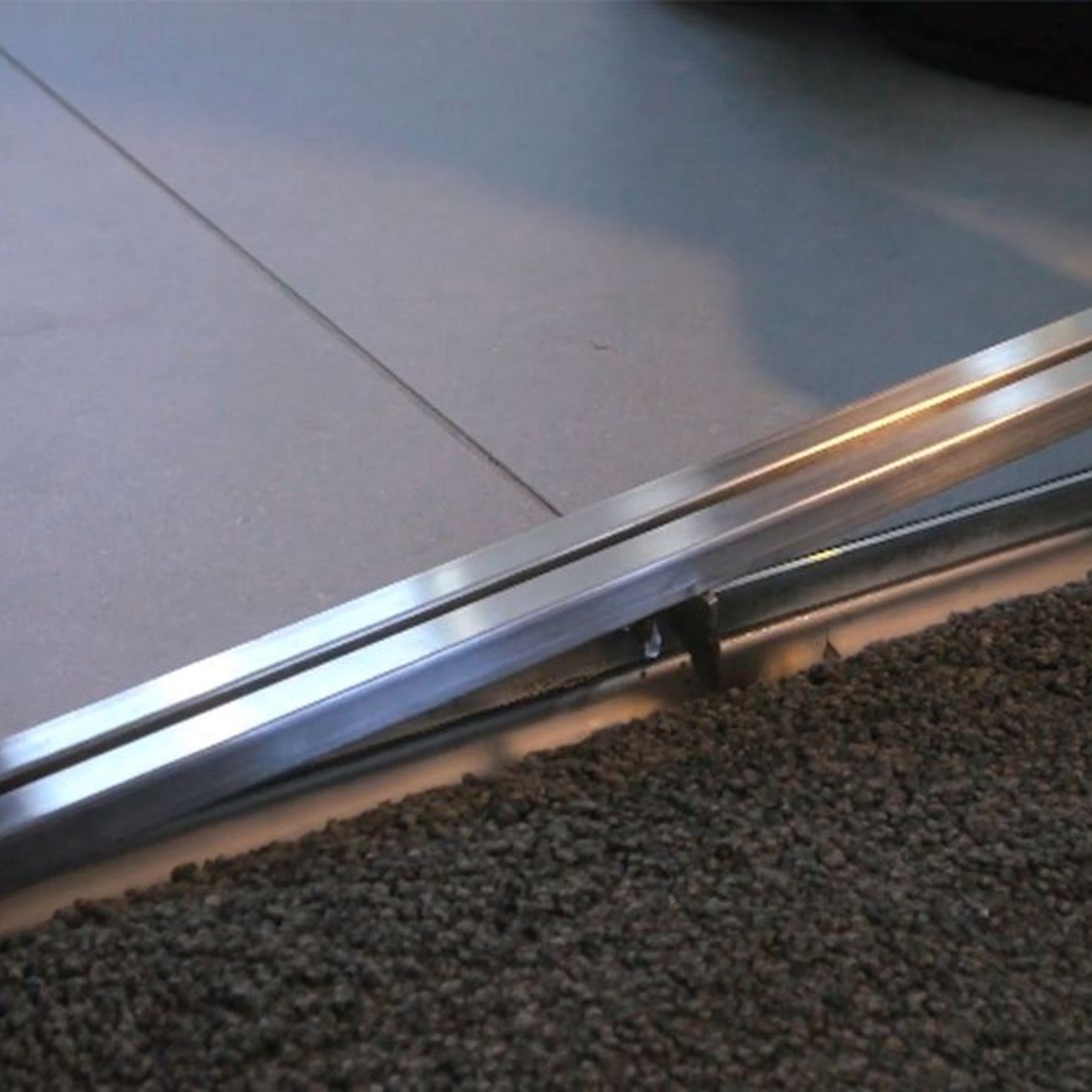

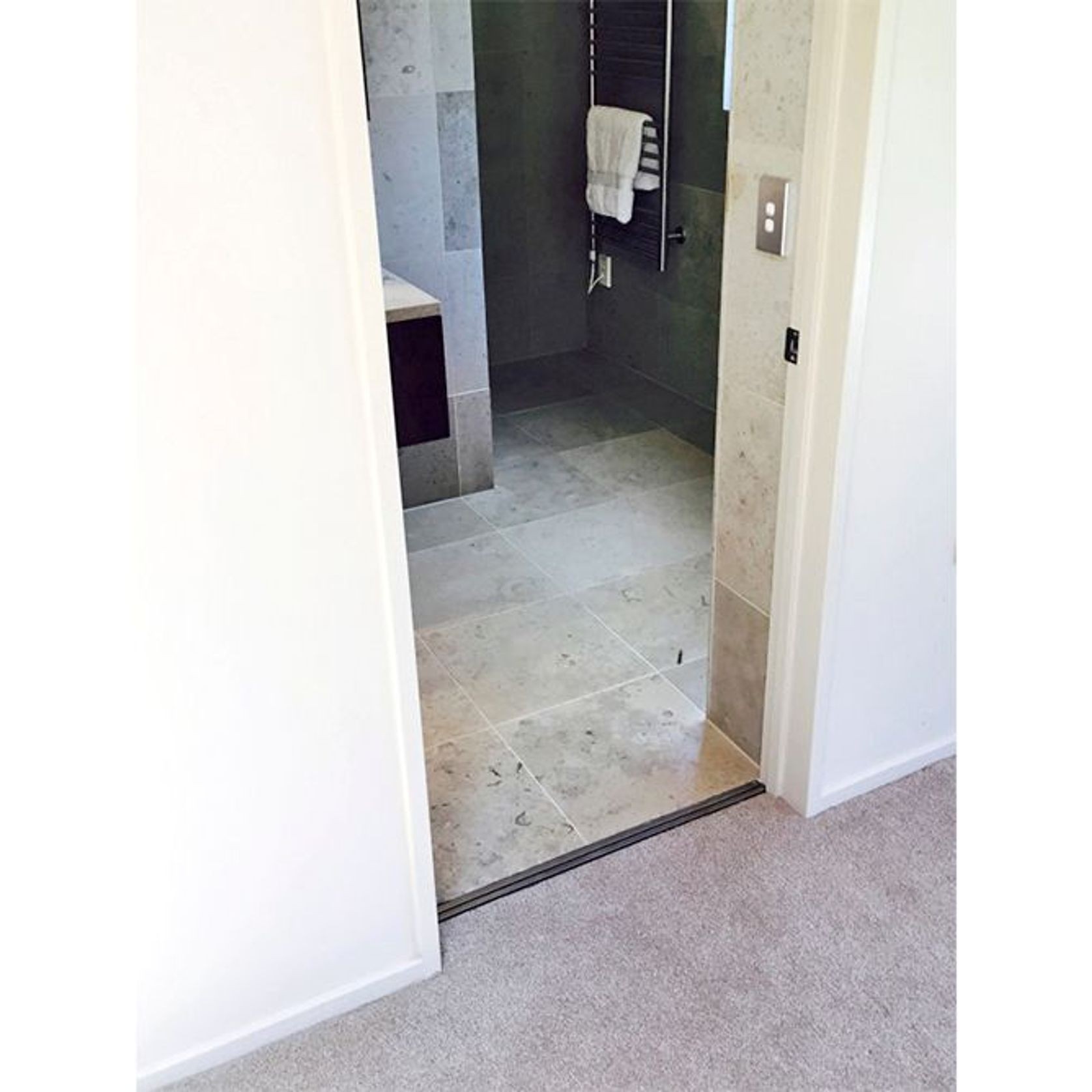

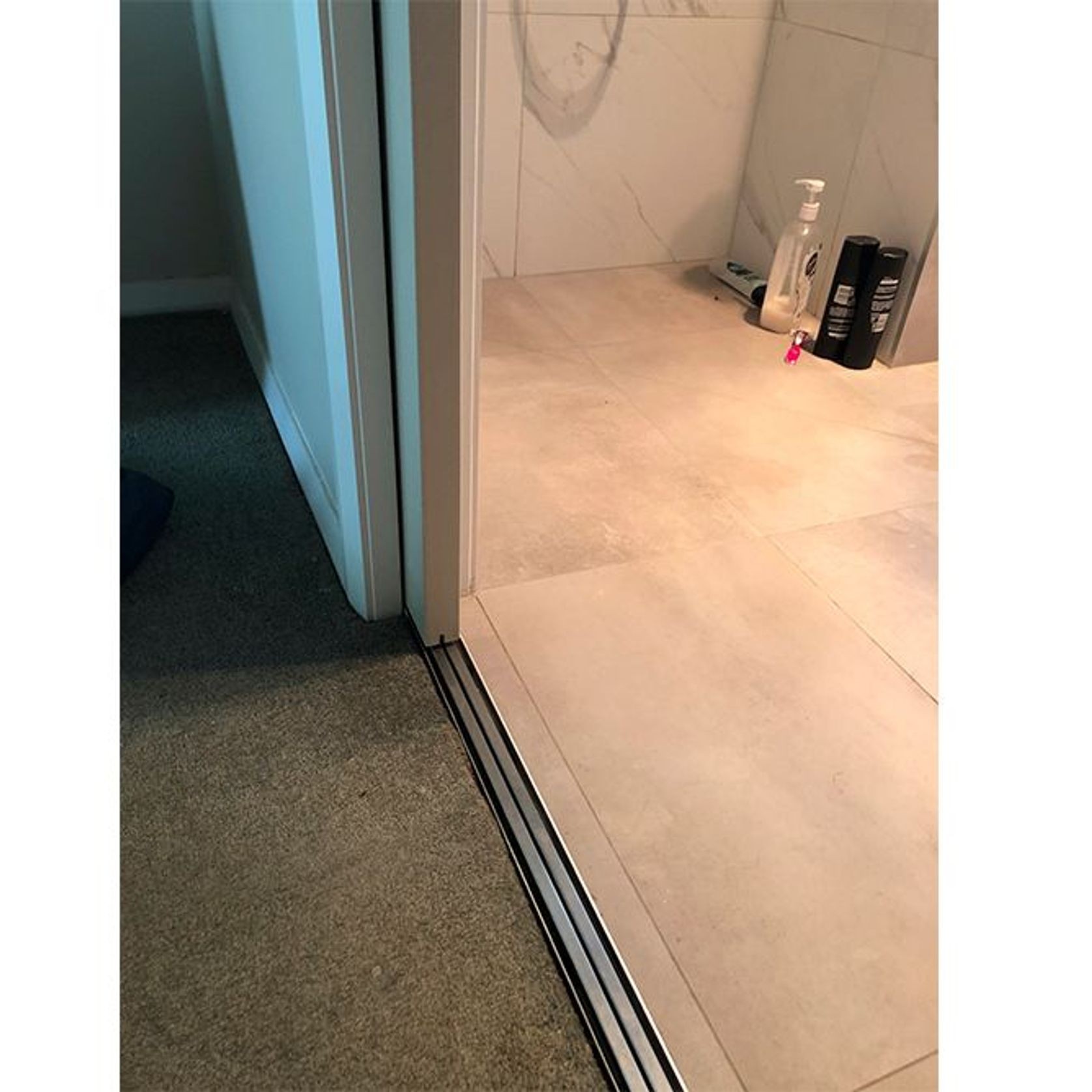

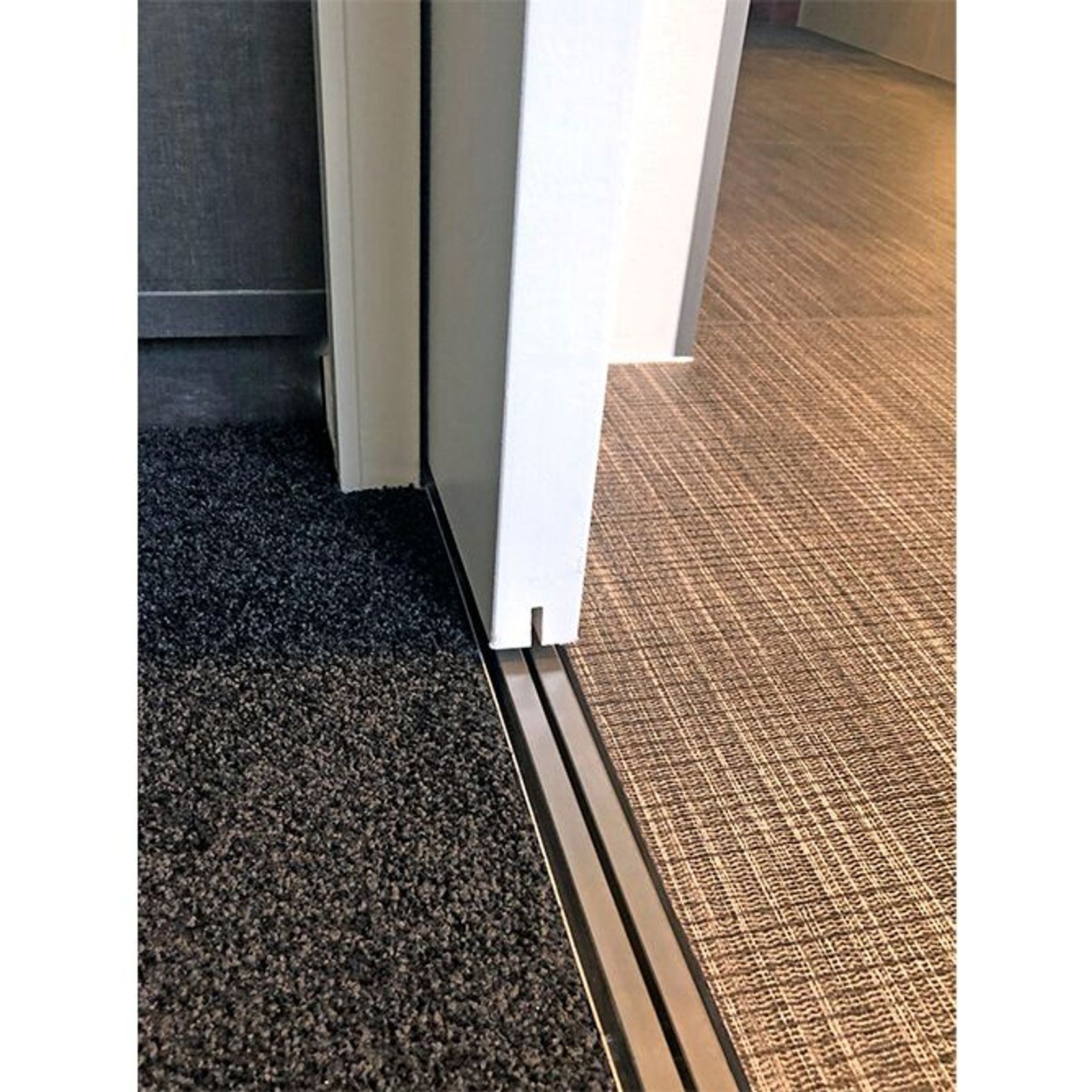

Door Channel – Cavity Sliding Door
NZ Building Code E3 – Internal Moisture and ASNZS 3500.2:2018 both refer to floor wastes and the prevention of free water overflow from one household unit to another. This is especially important given the popularity of apartment living and the rapid increase in medium to high density homes being built.

The Standard Door and Cavity Door Channels are the only drains to ensure the full containment of such overflow. The location is at the threshold doorway into the bathroom/wetroom area where sanitary fixtures are situated.

The Cavity Door Channel replaces the position of the FWG in the middle of the bathroom/wetroom and ensures zero tolerance of water escaping to the dry areas of the home.

See photos of completed projects and a video showing the Door Channel in action.

Material:
Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Outlet options: 38mm spigot with o’ring / 38mm threaded / 38mm 90 degree bend

Outlet position: Optional to suit project

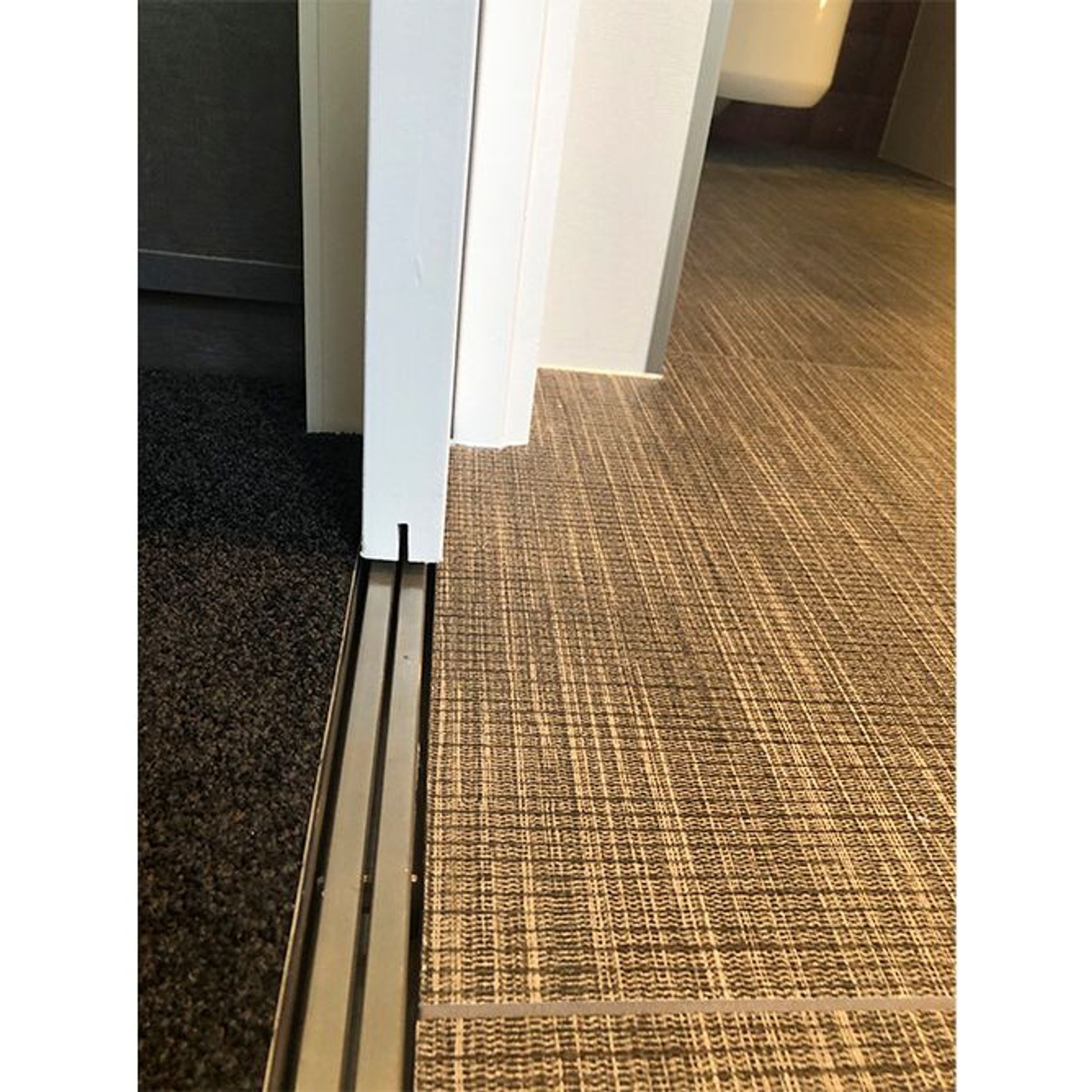

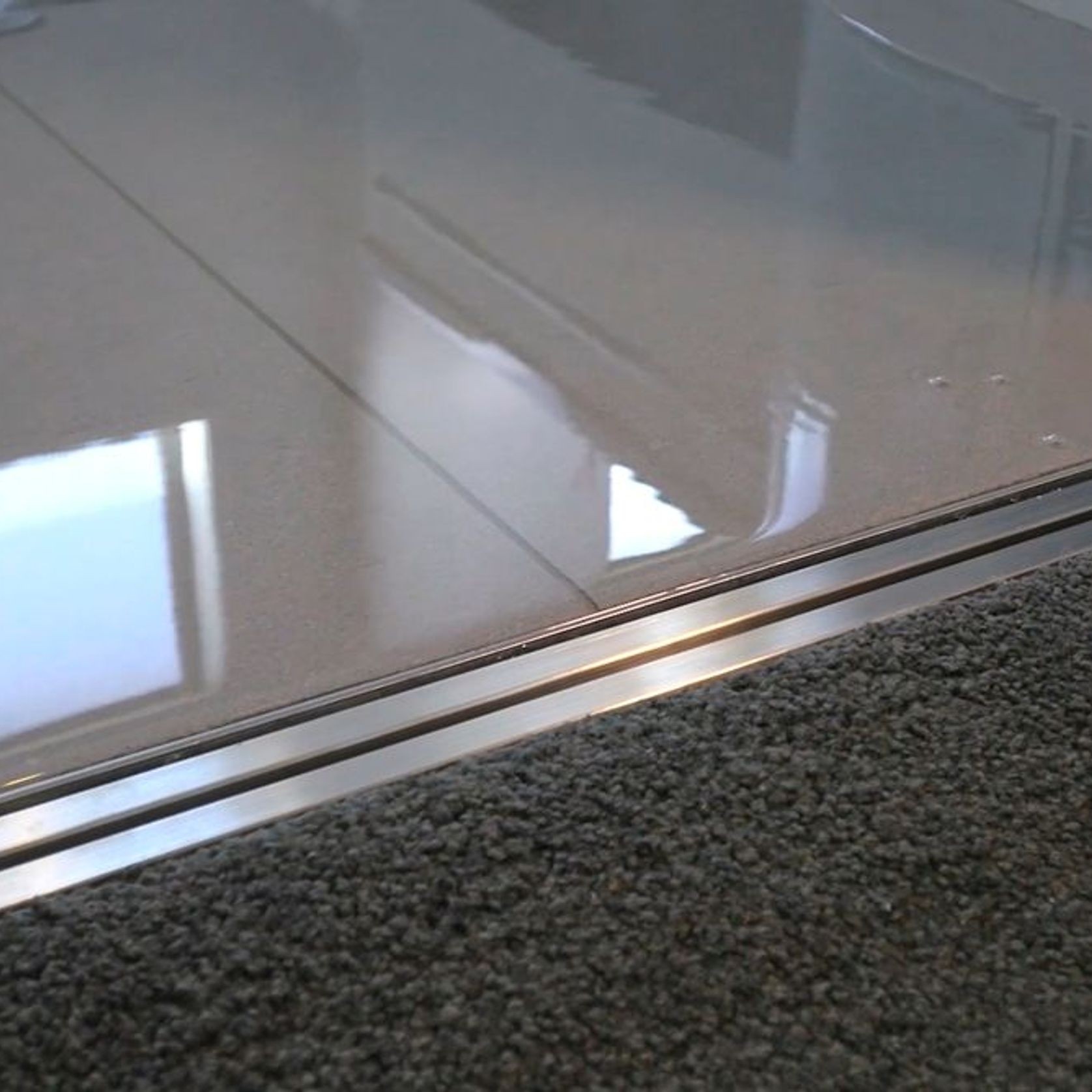

Cavity/Standard Door Channel with Vinyl Flooring
The specific difference for these threshold vinyl flooring channels ensure the vinyl has a stainless steel termination point at the trough edge. A stainless up-stand protects the terminated vinyl end and also ensures the grill can be removed and replaced without damaging the edge of the vinyl product.

The Door Channel replaces the position of the Floor Waster Gully in the middle of the bathroom/wetroom, offering a more stylish and discrete emergency overflow drainage option.

Material: Grade 304 Stainless Steel (316 upon request), 1.5mm thickness TIG Welded and water tested

Outlet options: 38mm spigot with o’ring / 38mm threaded / 38mm 90 degree bend

Outlet position: Optional to suit project

Contact us to discuss how the Jesani Door Channel can benefit your new build or renovation.

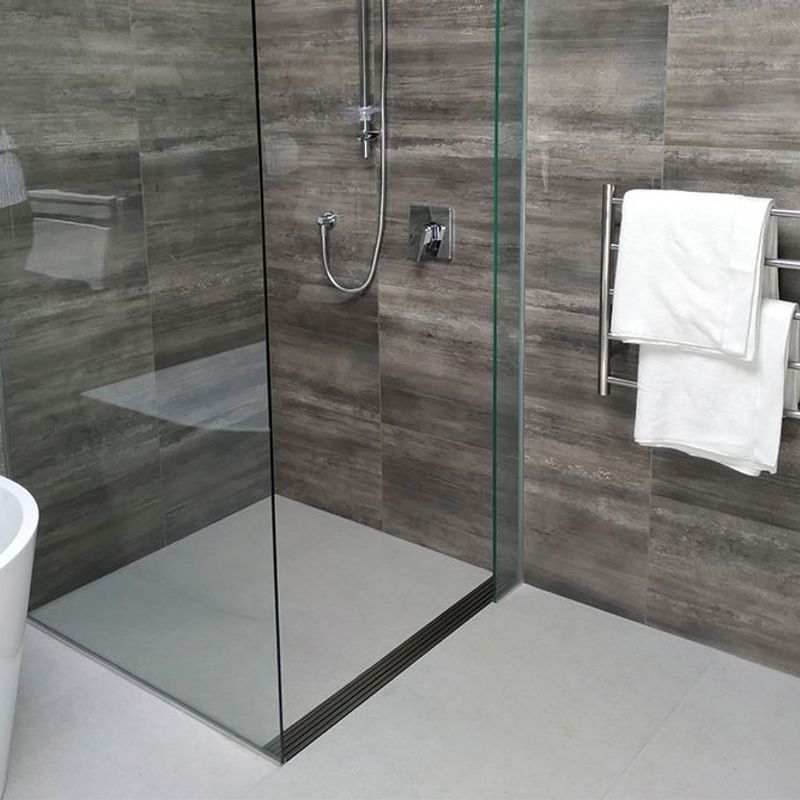

Door Channel – Shower
This slimline channel sitting at the threshold to the Shower zone, is to contain water overflow from the shower zone and is ideal if using an overhead dumper or double shower.

See photos of completed projects.

Material: Grade 304 Stainless Steel (316 upon request), 1.5mm thickness TIG Welded and water tested

Outlet options: 38mm spigot with o’ring / 38mm threaded / 38mm 90 degree bend

Outlet position: Optional to suit project

Details
  • Category
    Shower Trays & Drains
  • Range
    Drainage Channels
  • Brand
    Jesani
  • Warranty
    15 years
Specifications

Jesani Wetroom Solutions – Door channel

Product: DC - SS304/316 with grill or tile insert

SKU: DOR151

Suitable: tile or vinyl flooring

Suitable: Standard or cavity sliding door

Length: Custom made to suit the project

Stainless steel: 1.5mm, grade 304 SS. 316 on request.

Standard finish: polished stainless steel with grill or tile insert
Optional finish: powder coated or electroplated with grill or tile insert

Outlet options: 38mm spigot with o’ring, 38mm threaded, 38mm 90degree bend

Outlet position: custom to suit the project.

Patented design

Jesani Wetroom Solutions
Auckland
Visit Website

About the
Seller

Jesani Wetroom Solutions – delivering world class, custom made linear channels for New Zealand’s homes.

JESANI® was established in 2010 when Grant Hohaia, an award-winning builder with over 40 years’ experience needed a solution to overcome existing product limitations and support his growing client demand for linear shower channels.

Designed to functionally support and protect the most critical areas of drainage to a level not previously seen in linear channels, the JESANI® channel system offers a stylish drainage solution which significantly minimises the risk of water ingress at a structural level.

The JESANI® channel system can be easily installed into new or existing homes by a qualified builder, tiler, plumber or waterproofer.

Durable, stylish, sustainable and an efficient drainage solution, JESANI® channels complement the rooms aesthetic, ensuring a previously unattractive or overlooked detail is now an elegant channel that enhances or blends in.

JESANI® channels are:

  • Custom manufactured for each project

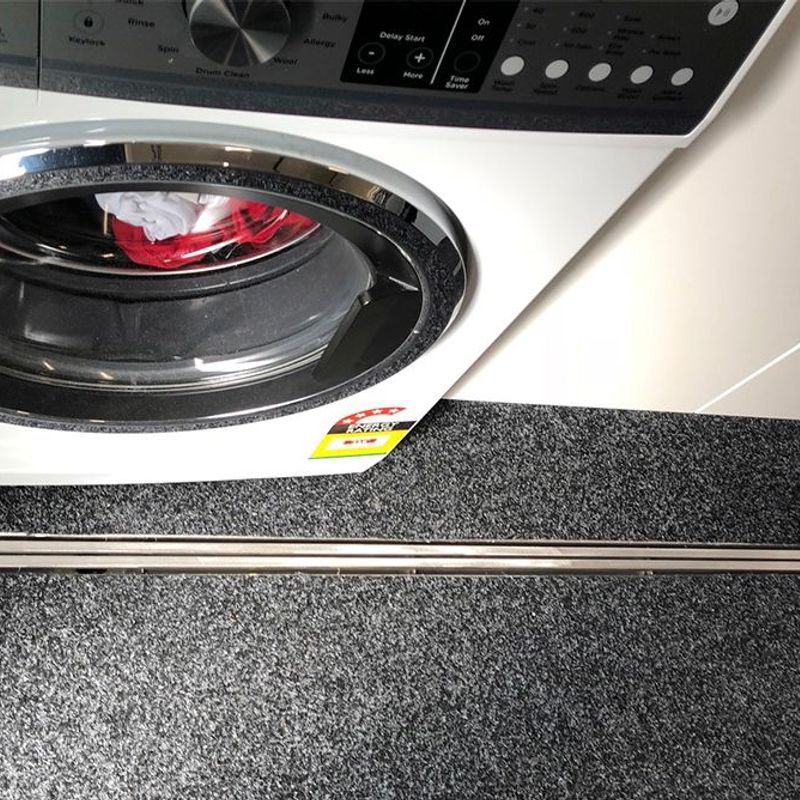

  • Available as shower, appliance, and door channels
  • Competitively priced
  • Completed within 7 – 10 days
  • New Zealand made using grades 304 and 316 stainless steel
  • Available in various finishes including stainless steel, tile insert, powder coated and electroplated.
  • Designed by an Architectural builder with over 40 years’ experience
  • BRANZ appraised – JESANI® is currently the only linear channel range to carry this endorsement.
  • Patented – the JESANI® shower, door and appliance channel system is patented.
  • Supplied to residential and commercial new builds/renovations, including apartments, gyms, hotels, and retirement villages

The team at Jesani Wetroom Solutions is committed to providing top quality products, great service and a BRANZ supported warranty of 15 years.
