Jesani Shower Channels

By Jesani Wetroom Solutions
Website

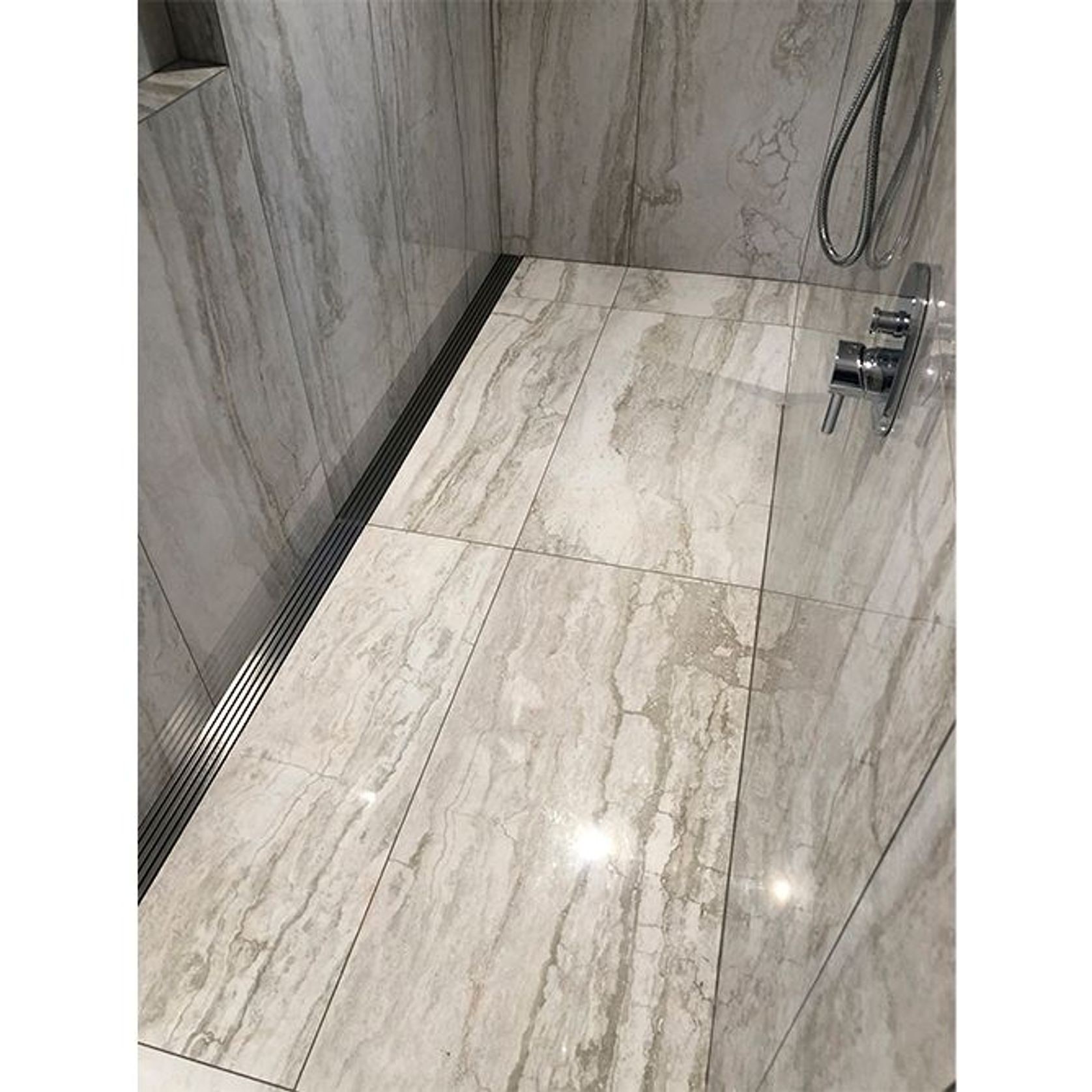

Shower Channel – Wall Mounted

All bathrooms are designed differently, and the Wall Mounted Shower Channel can be custom designed to suit the project at hand.

This channel is designed for either a three tiled wall design, two tiled wall/one glass wall, or one tiled wall and two glass walls. The integral flanges will always ensure the critical area of drainage is covered with the most trusted waterproofing material around – Stainless Steel.

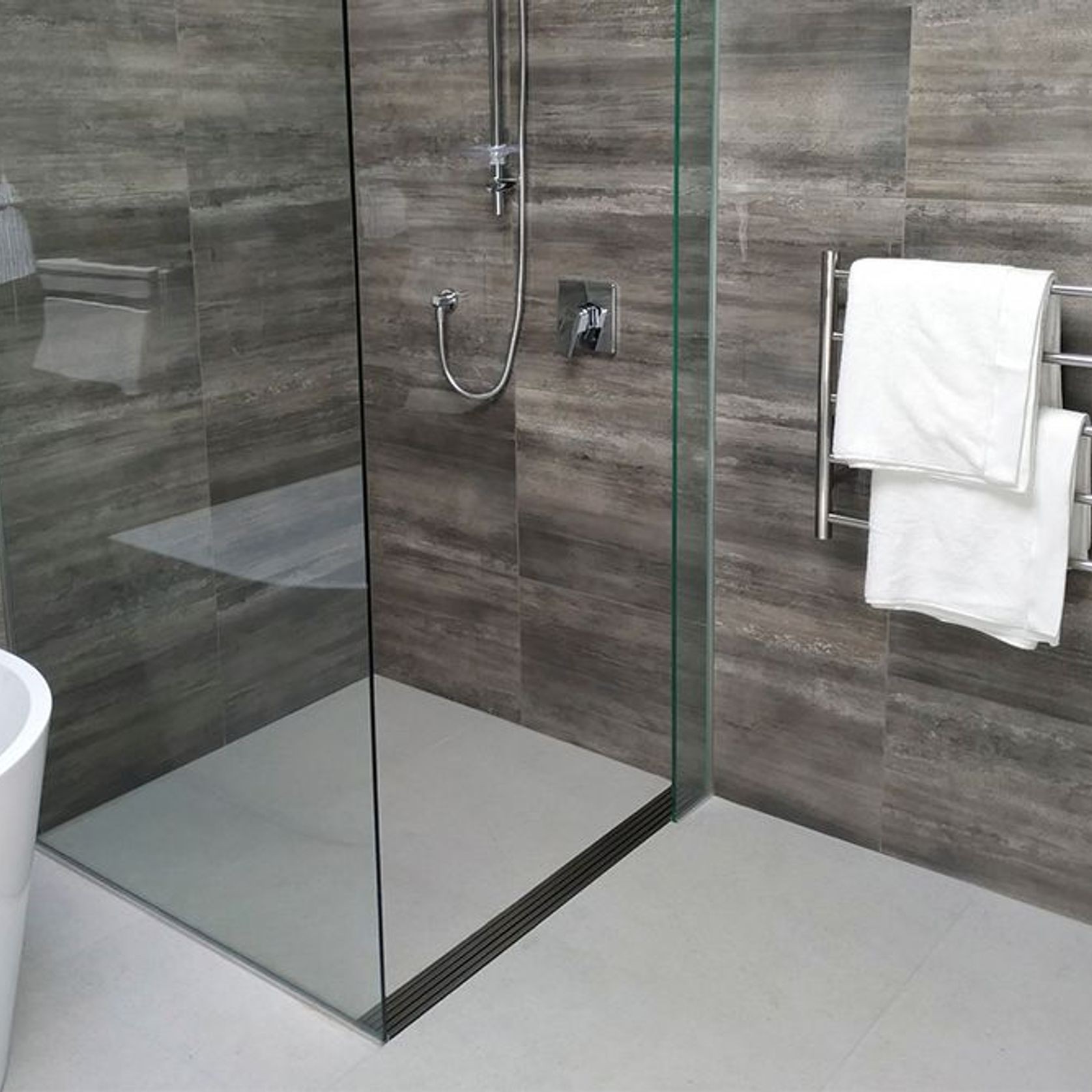

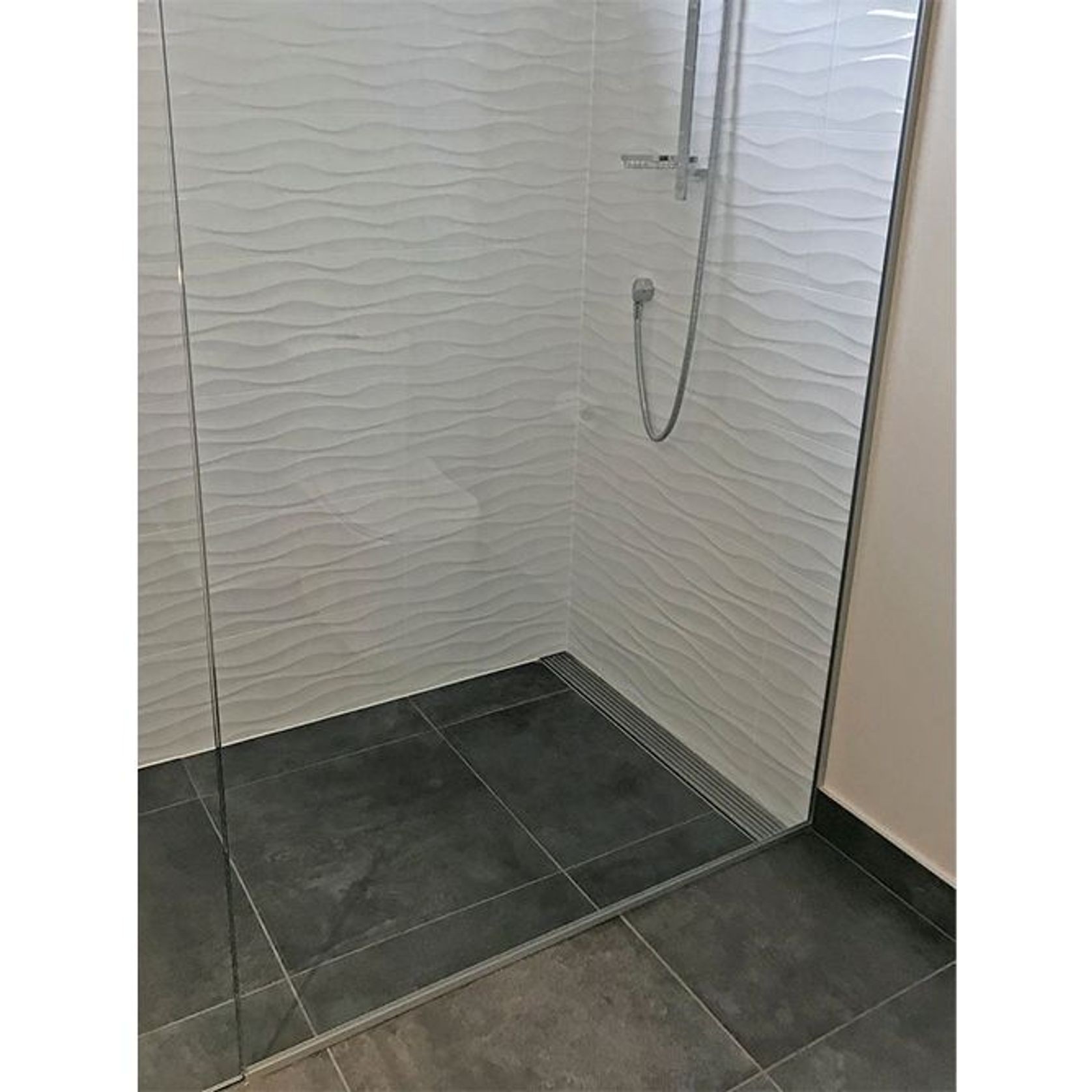

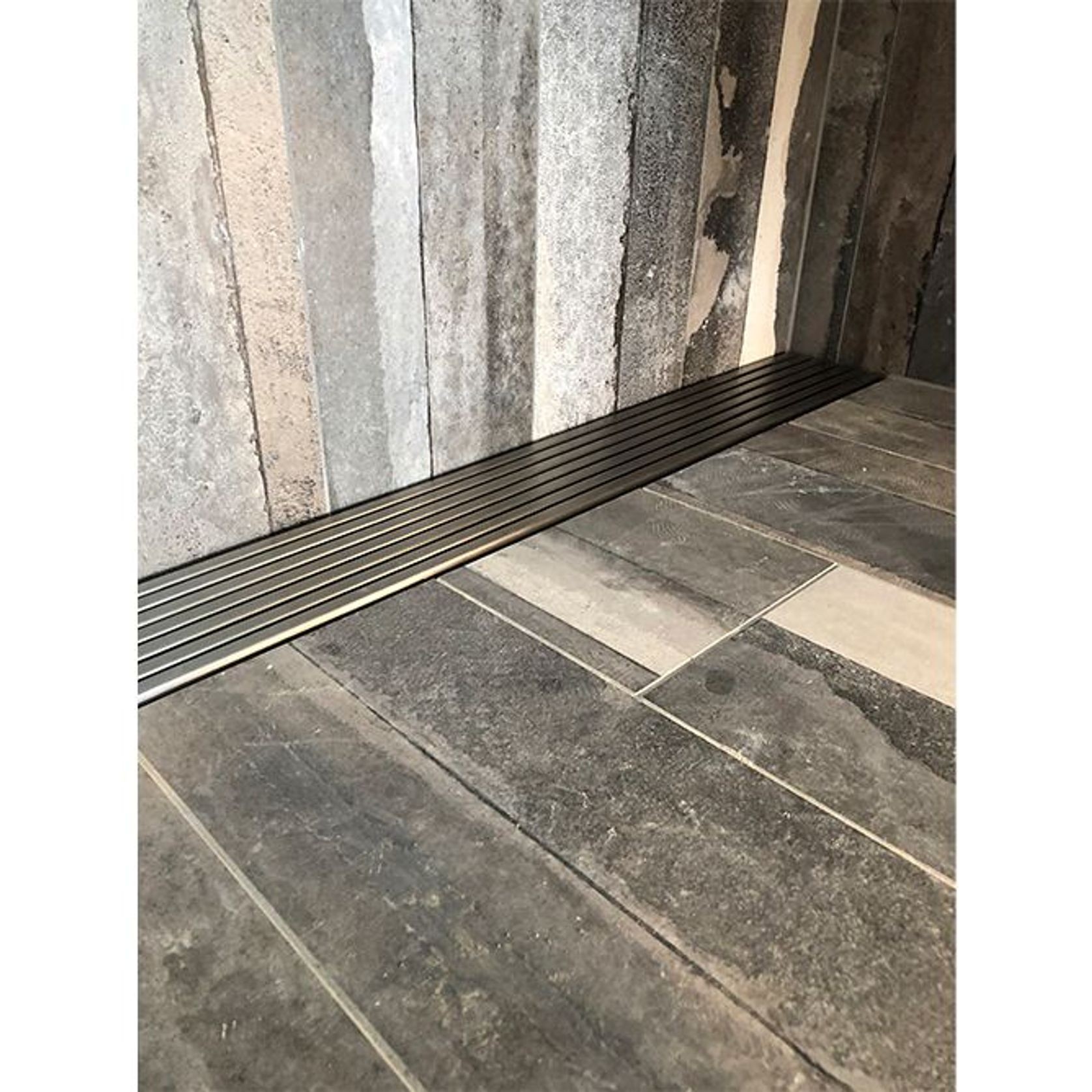

See photos for some finished projects.

Material:

  • Grade 304 Stainless Steel (316 upon request), 1.5mm thickness,
    TIG Welded and water tested

Outlet options:

  • 50mm, 65mm, 80mm, 100mm spigot with o’ring
    50mm threaded

Outlet position:

  • Optional to suit project

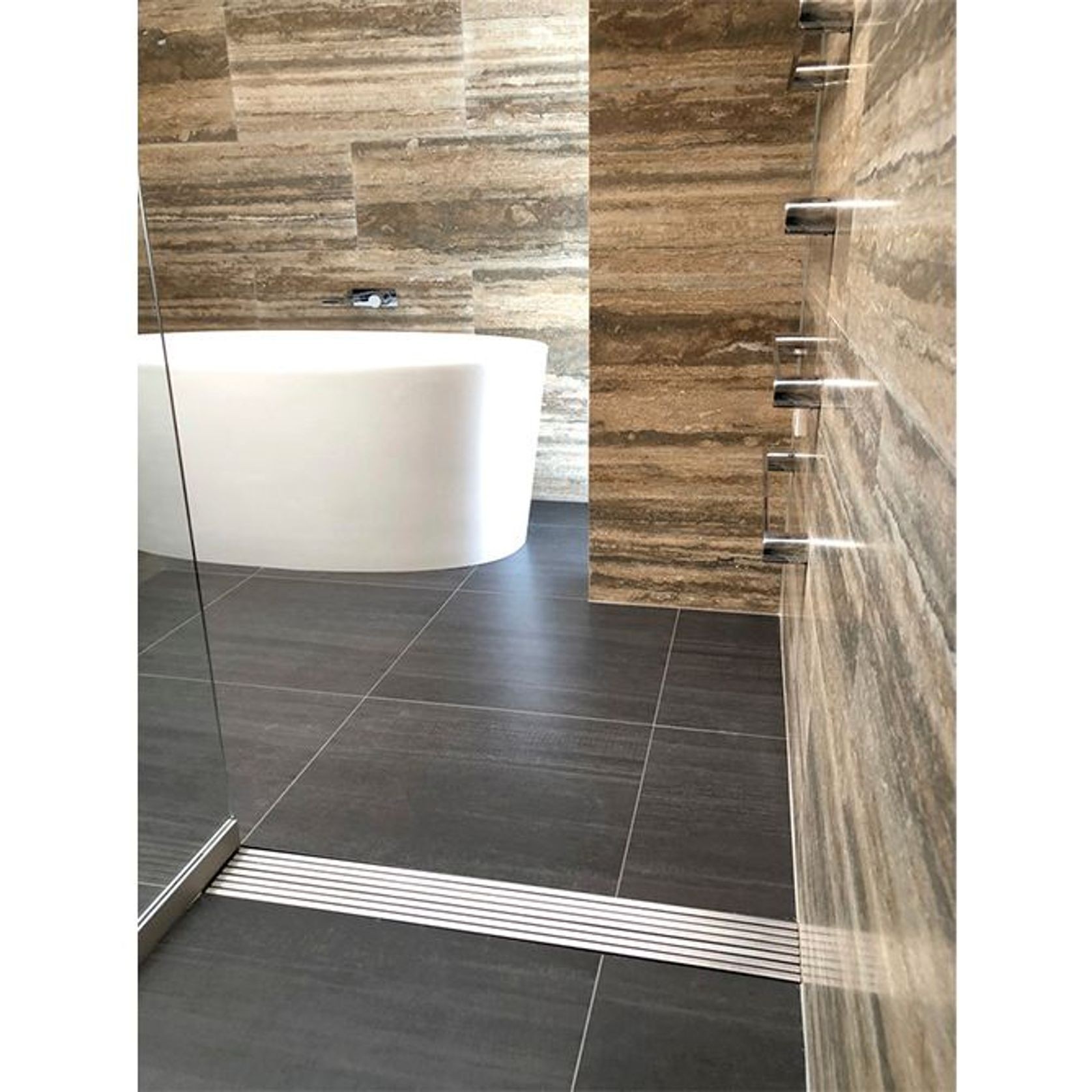

Shower Channel – Level Threshold

With the channel’s position at the threshold to the shower, the required 1:50 fall of the floor within the shower will commence from the opposite wall and fall back towards the channel. The benefits of utilising this design is the fall will commence above the substrate floor level.  This can prove to be an easier option during installation as no floor joists will be compromised.

For any design queries for level threshold entry channels, please call to discuss your specific project and requirements.  All JESANI® channels are designed on a per project basis, so we are confident we can find a solution for you.

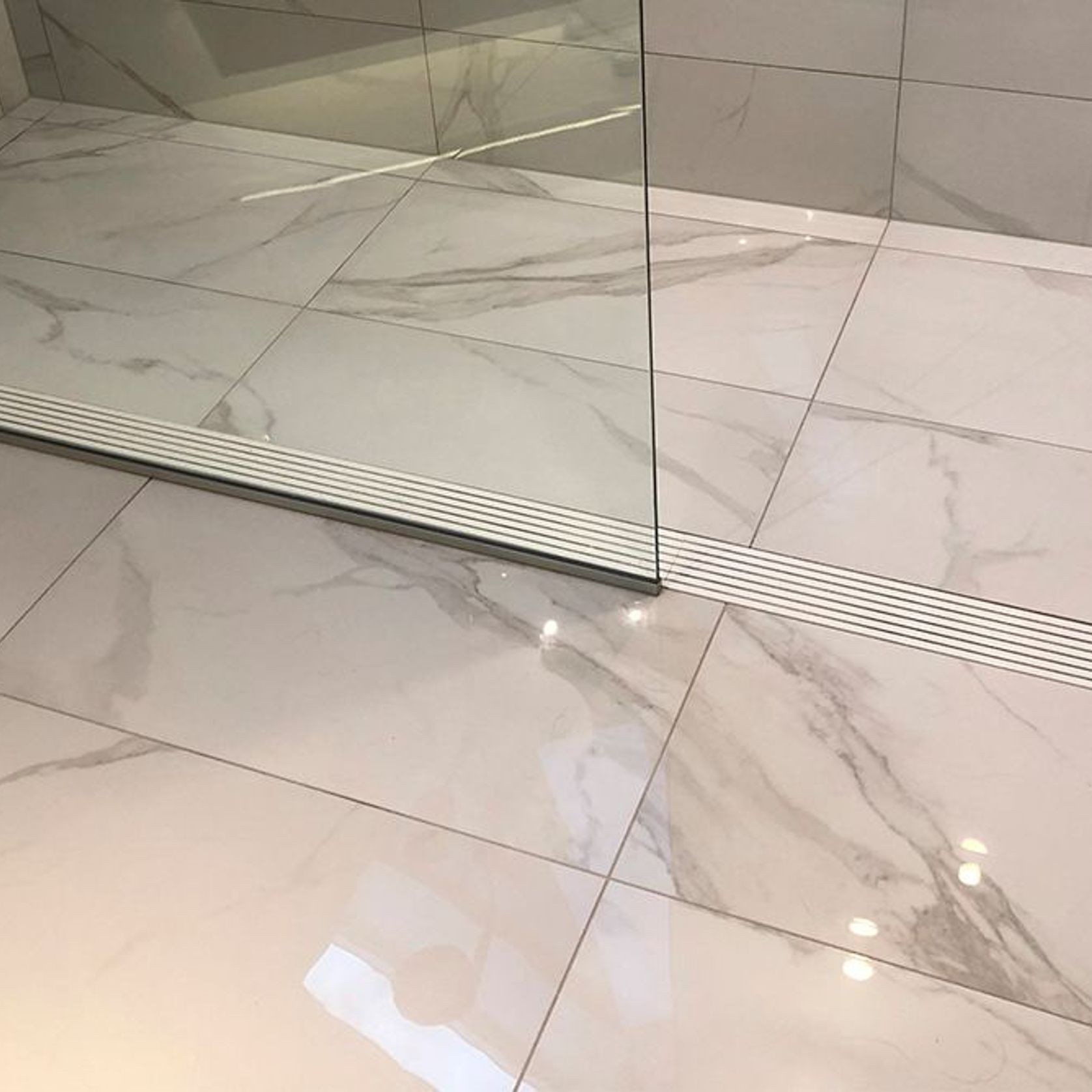

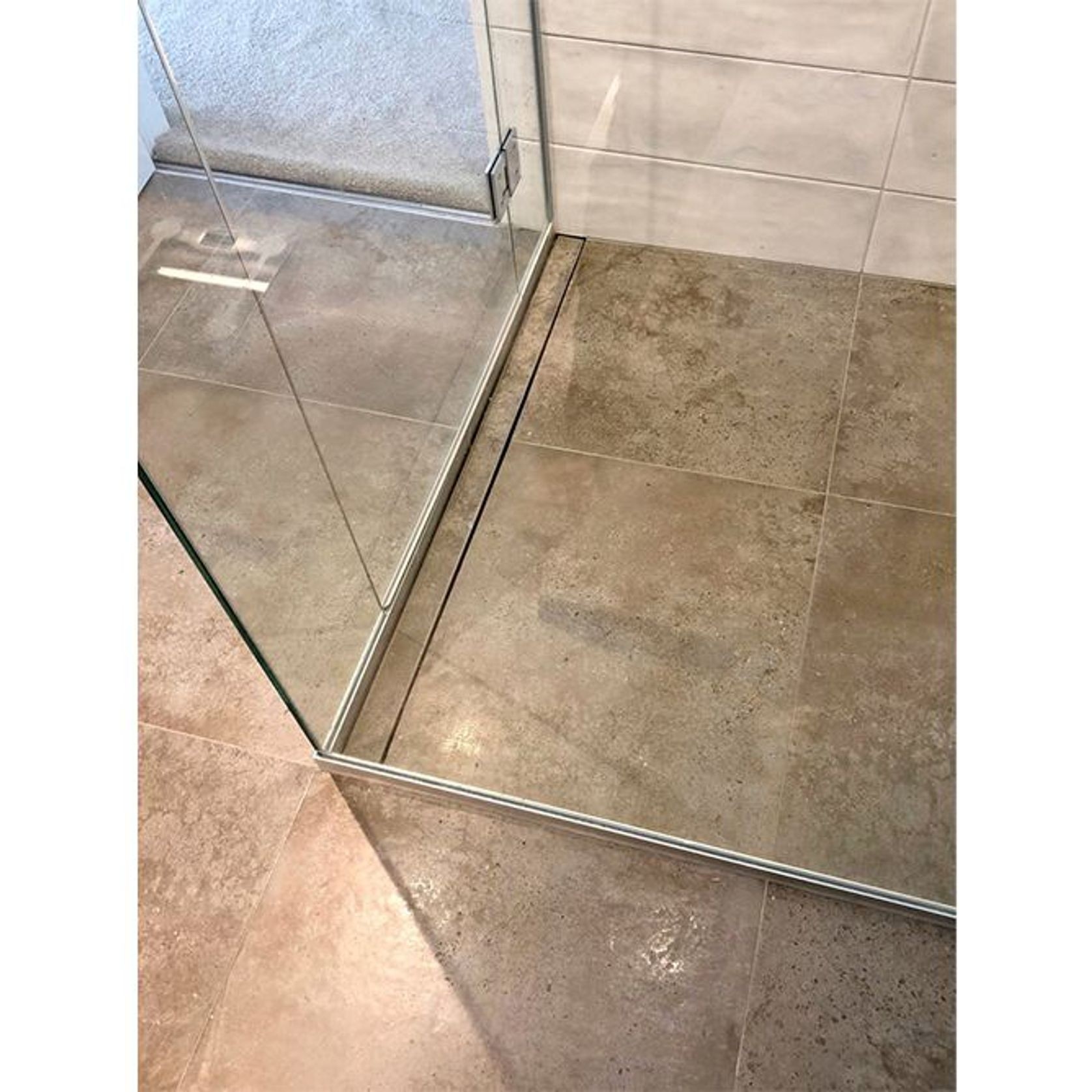

See photos for some finished projects.

Material:

  • Grade 304 Stainless Steel (316 upon request), 1.5mm thickness,
    TIG Welded and water tested

Outlet options:

  • 50mm, 65mm, 80mm, 100mm spigot with o’ring
    50mm threaded

Outlet position:

  • Optional to suit project

Shower Channel – Centre

The Centre Shower Channel is an easy solution with minimal work required. The channel easily slots in with integral flanges surrounding the trough, thus full protection around the outlet is guaranteed. A simple solution to open up a shower area.

Material:

  • Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
    TIG Welded and water tested

Outlet options:

  • 50mm, 65mm, 80mm, 100mm spigot with o’ring
    50mm threaded

Outlet position:

  • Optional to suit project

Shower Channel – Vinyl Clamping System

The vinyl clamping system for this Shower Channel is imperative due to its finished location in an open wetroom design. The channel is sitting in an open shower set up, whereby the vinyl termination around the trough edge is vital to ensure zero water ingress and to ensure the stability of the vinyl flooring composition.

These open shower wetrooms are generally designed with wheelchair access in mind. With the increased mobility traffic, the clamping system ensures the vinyl will not be compromised from continuous movement friction and the shower channel ensures no trip hazards.

Material:

  • Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
    TIG Welded and water tested

Outlet options:

  • 50mm, 65mm, 80mm, 100mm spigot with o’ring
    50mm threaded

Outlet position:

Optional to suit project

Contact us today to discuss your wetroom solutions.

Details
  • Category
    Shower Trays & Drains
  • Range
    Drainage Channels
  • Brand
    Jesani
Specifications

Jesani Wetroom Solutions - Shower Channel

Product: SC - SS304/316 with grill or tile insert

SKU: SHO161

Suitable: tile or vinyl flooring

Length: Custom made to suit the project

Stainless steel: 1.5mm, grade 304 SS. 316 on request.

Standard finish: polished stainless steel with grill or tile insert
Optional finish: powder coated or electroplated with grill or tile insert

Outlet options: 50mm, 65mm, 80mm, 100mm spigot with o’ring
50mm threaded

Outlet position: custom to suit the project.

Patented design

Jesani Wetroom Solutions
Auckland
Get in touch
Visit Website

About the
Seller

Jesani Wetroom Solutions – delivering world class, custom made linear channels for New Zealand’s homes.

JESANI® was established in 2010 when Grant Hohaia, an award-winning builder with over 40 years’ experience needed a solution to overcome existing product limitations and support his growing client demand for linear shower channels.

Designed to functionally support and protect the most critical areas of drainage to a level not previously seen in linear channels, the JESANI® channel system offers a stylish drainage solution which significantly minimises the risk of water ingress at a structural level.

The JESANI® channel system can be easily installed into new or existing homes by a qualified builder, tiler, plumber or waterproofer.

Durable, stylish, sustainable and an efficient drainage solution, JESANI® channels complement the rooms aesthetic, ensuring a previously unattractive or overlooked detail is now an elegant channel that enhances or blends in.

JESANI® channels are:

  • Custom manufactured for each project
  • Available as shower, appliance, and door channels
  • Competitively priced
  • Completed within 7 – 10 days
  • New Zealand made using grades 304 and 316 stainless steel
  • Available in various finishes including stainless steel, tile insert, powder coated and electroplated.
  • Designed by an Architectural builder with over 40 years’ experience
  • BRANZ appraised – JESANI® is currently the only linear channel range to carry this endorsement.
  • Patented – the JESANI® shower, door and appliance channel system is patented.
  • Supplied to residential and commercial new builds/renovations, including apartments, gyms, hotels, and retirement villages

The team at Jesani Wetroom Solutions is committed to providing top quality products, great service and a BRANZ supported warranty of 15 years.
