ST963 Roofing | Cladding

By Steel & Tube Holdings
Website
Ebony

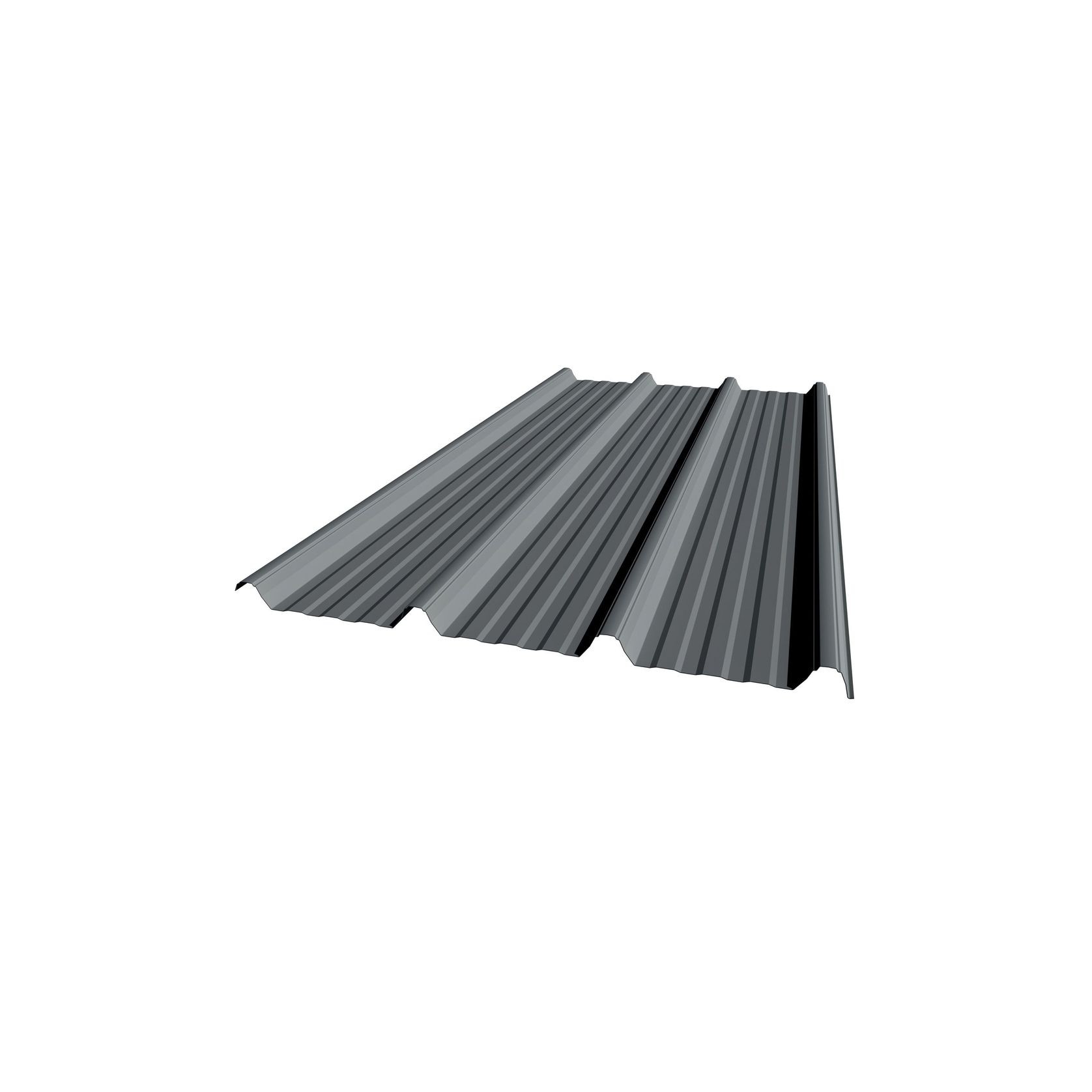

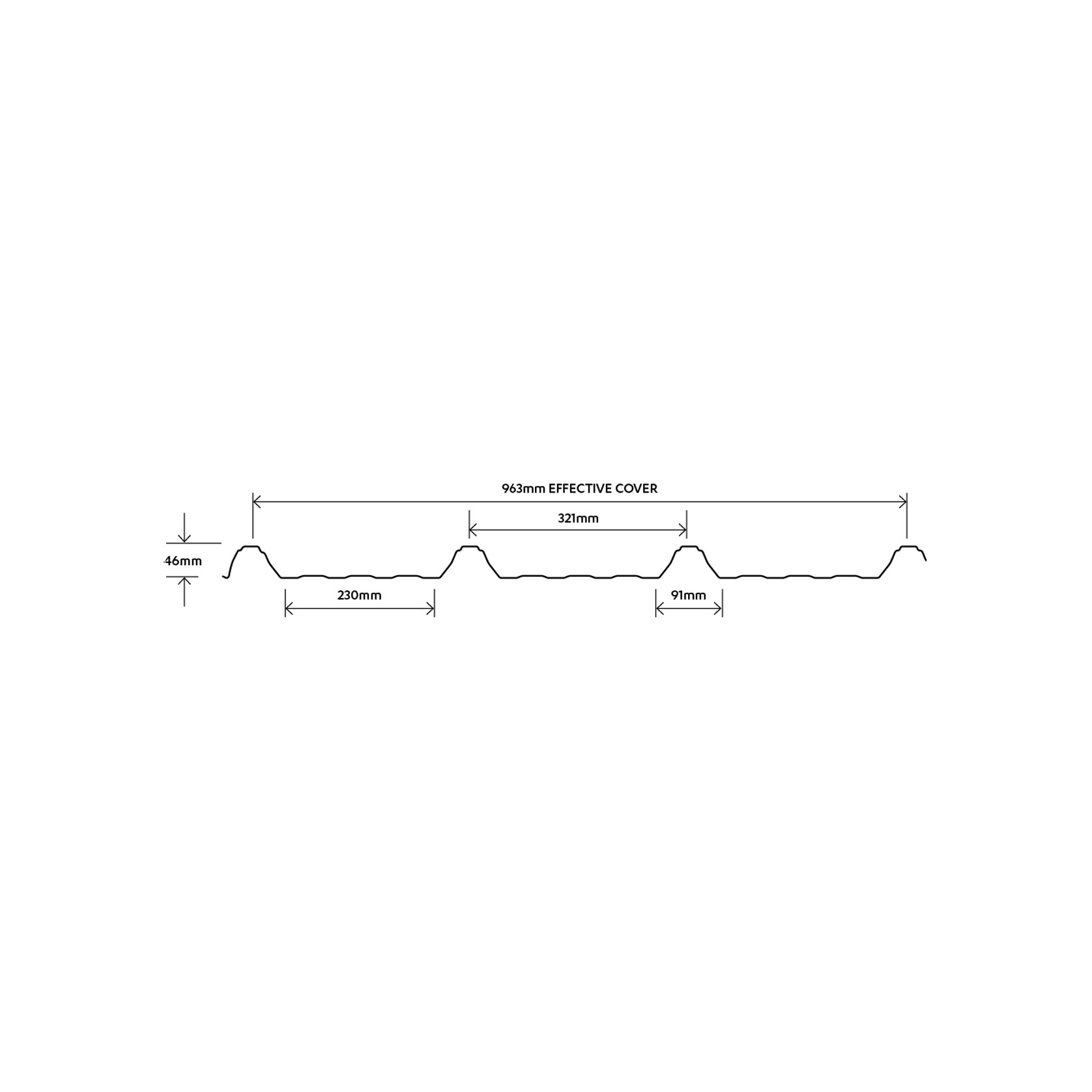

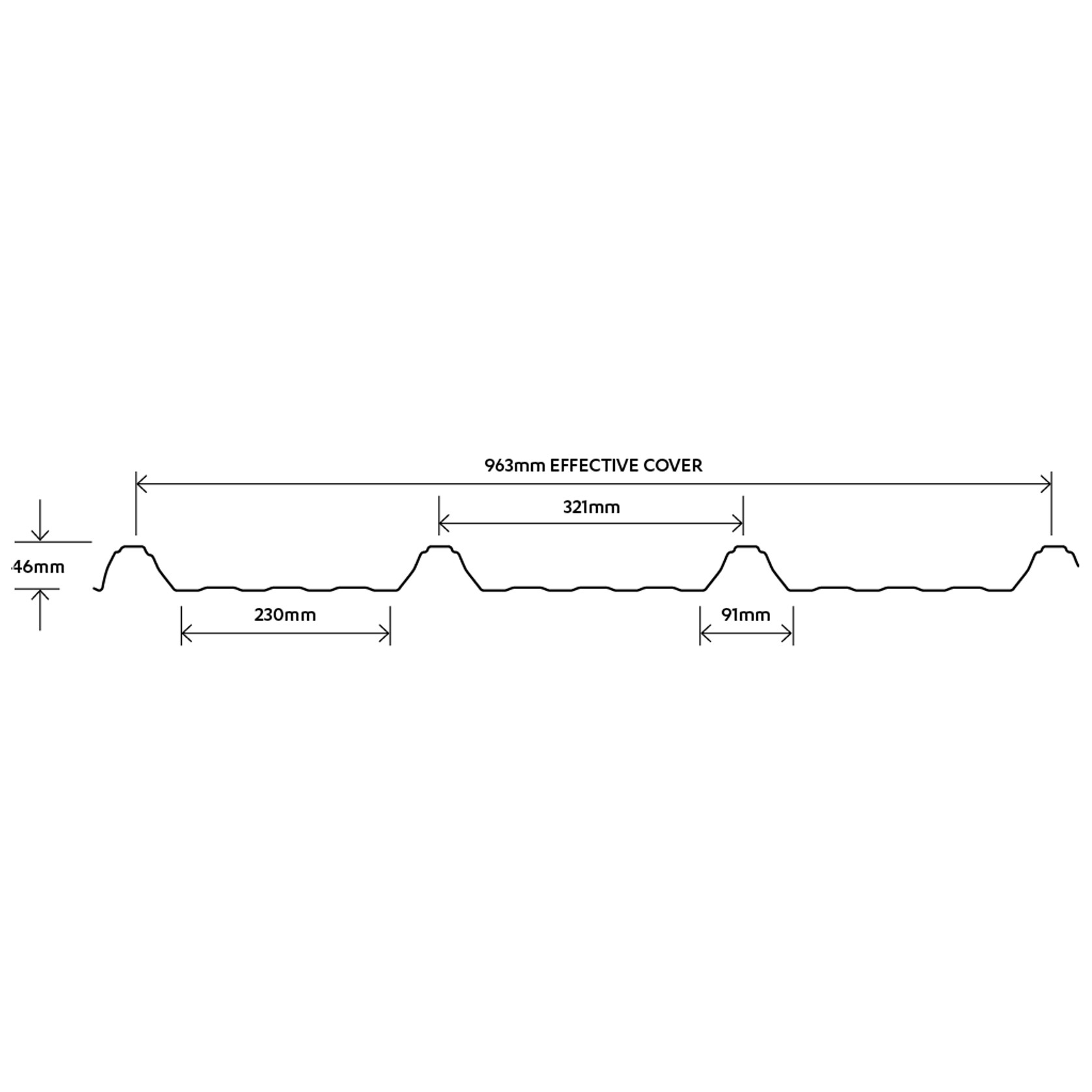

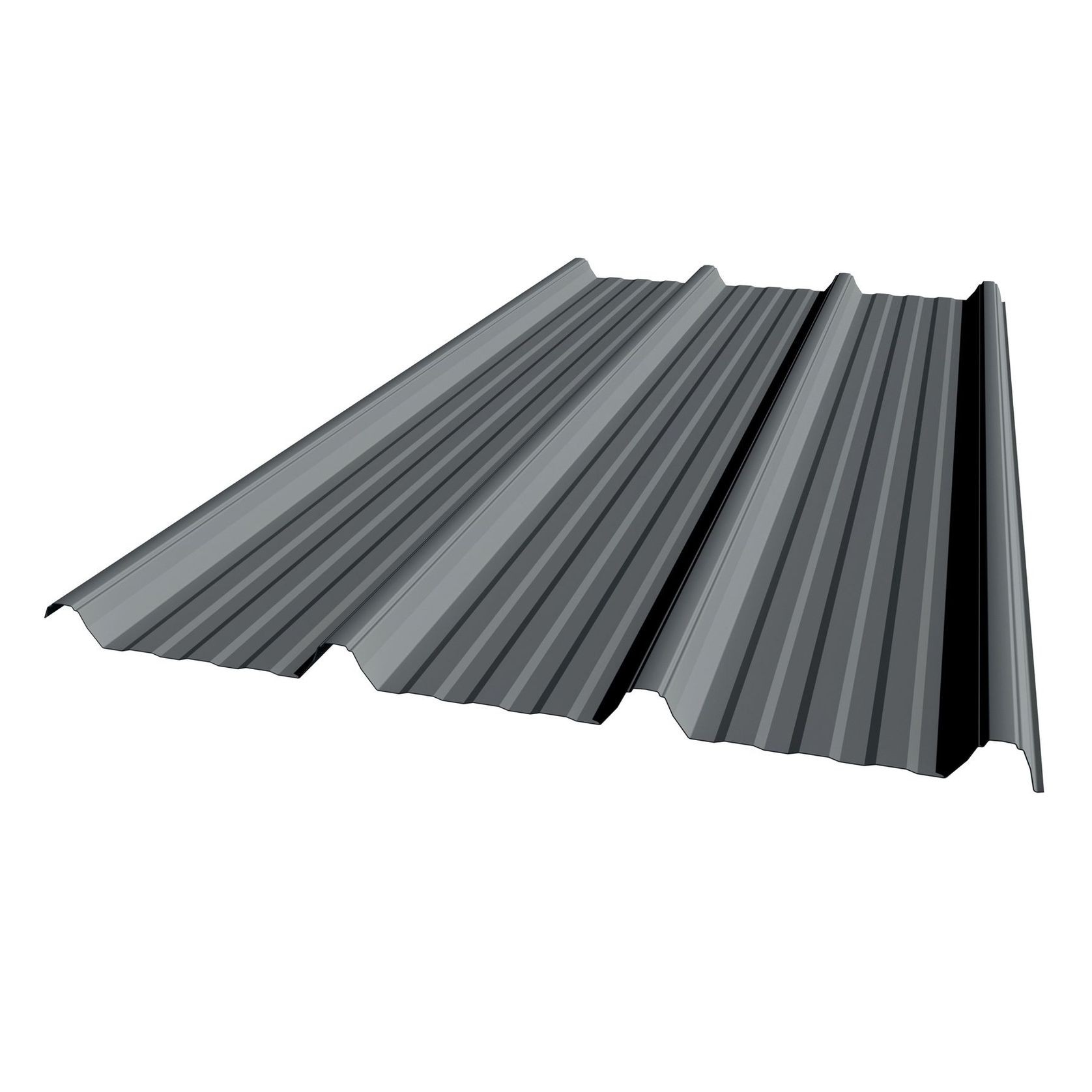

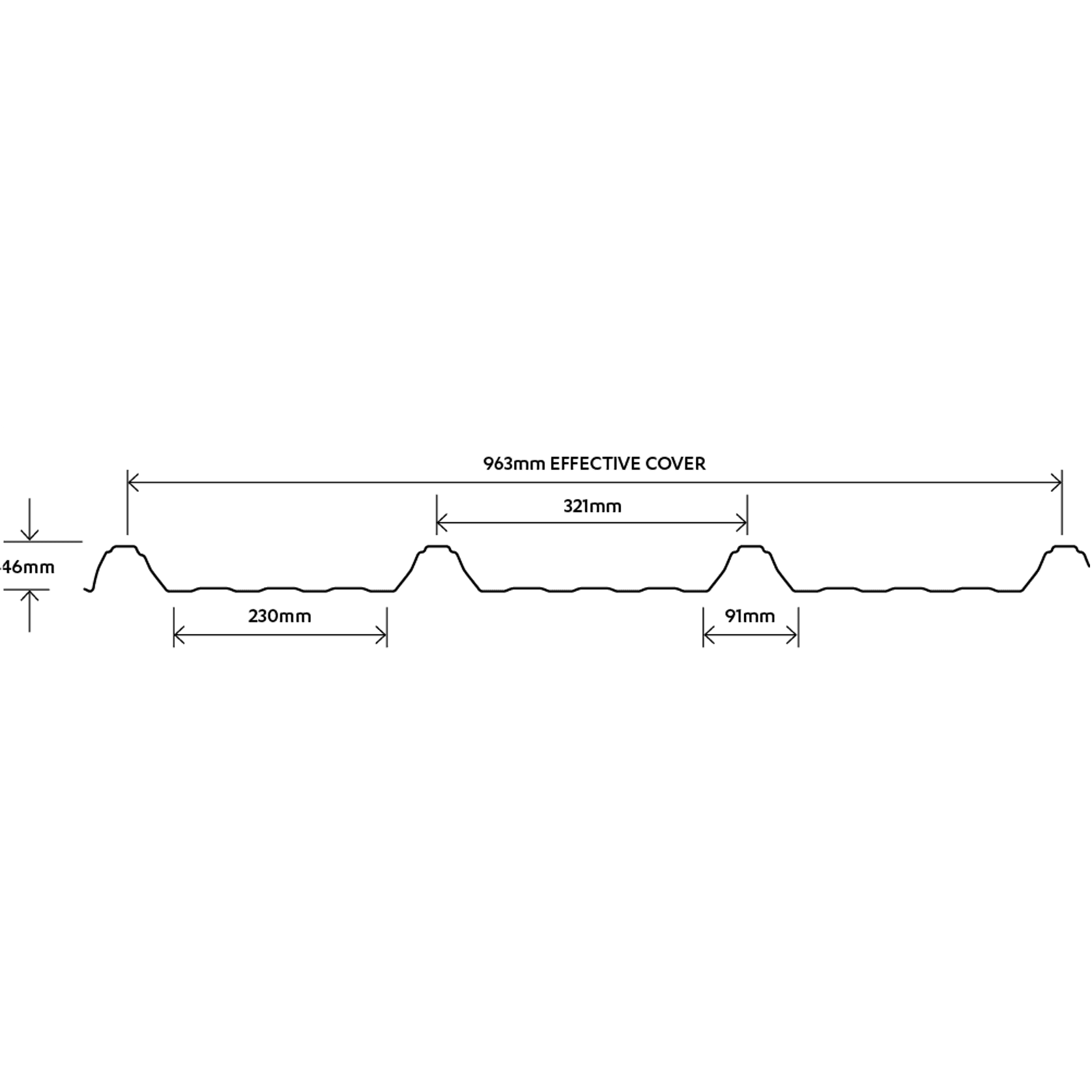

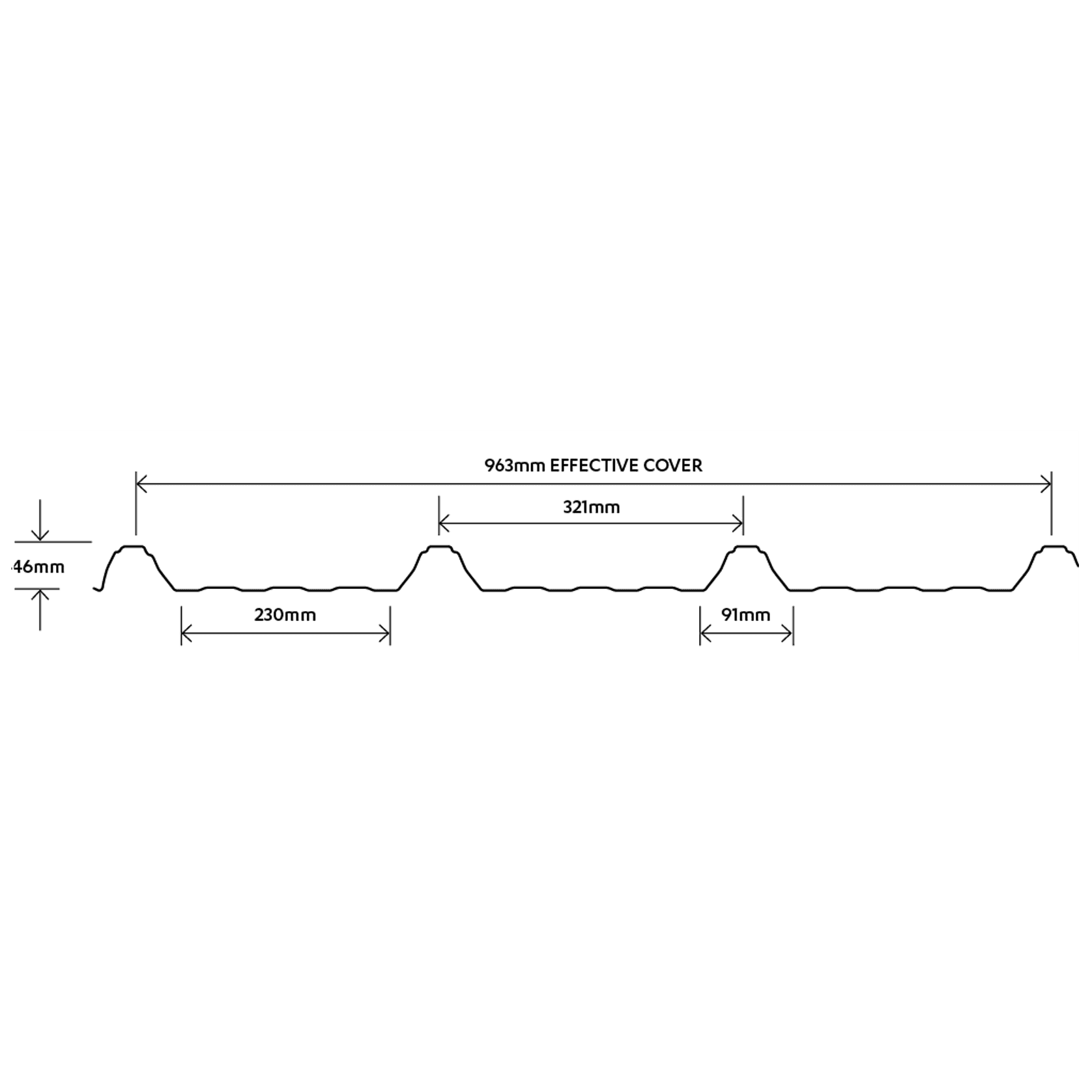

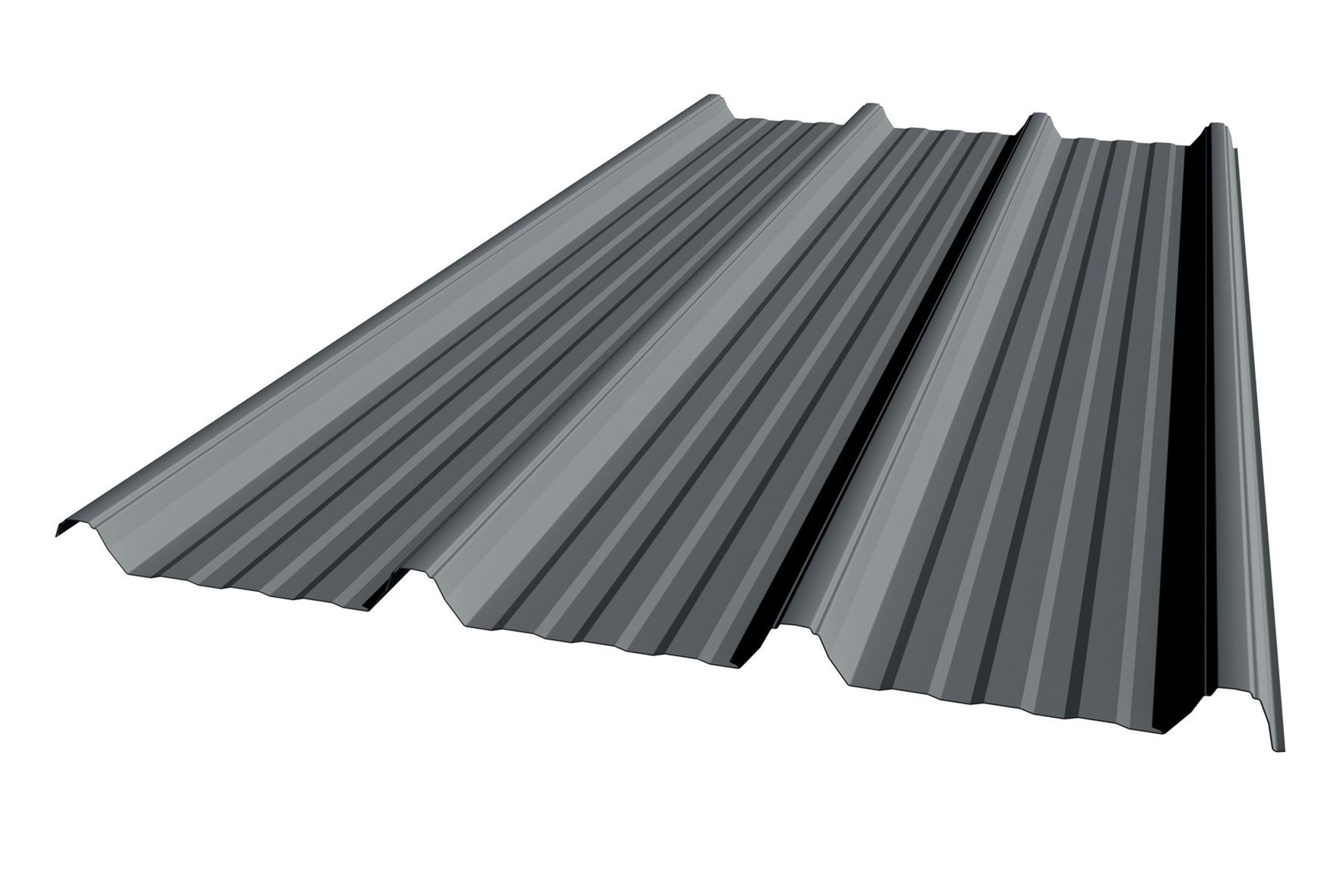

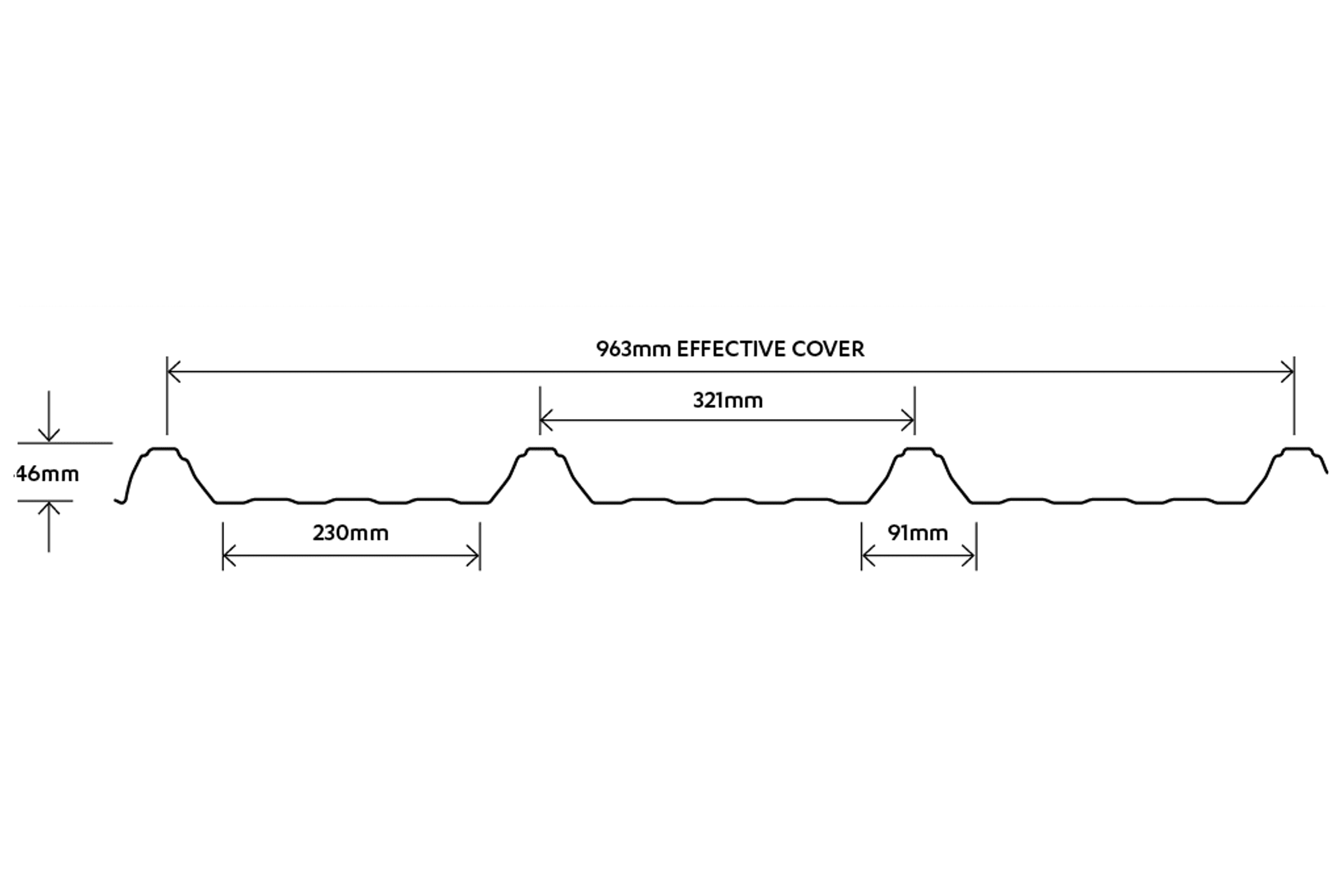

ST963 Roofing | Cladding is a profiled metal roofing and cladding profile manufactured by Steel & Tube, having 4 trapezoidal ribs of 46mm in height. Unique design enhancements stiffen the rib shape to provide industry-leading resistance to both wind uplift and point load distortion.

KEY FEATURES

  • ST963 is manufactured in Auckland and Christchurch
  • Minimum pitch 3°
  • Superior rib strength resulting in less damage to roof during both construction and serviceable life.
  • Groove at rib apex adds strength.
  • 46mm rib height — reduced fixing costs due to shorter screws.
  • 4 rib profile – potentially reducing fixings required.
  • Extended leg on under lap rib prevents distortion of the male rib when fastened.
  • Notching/rake cutting — less time cutting around ribs.
  • 3 pans leads to a time saving in turn up/turn down.
  • 230mm wide pan means it is easy to walk over the roof.
  • Strong pan swages means reduced damage from foot traffic.
  • Distinct capillary groove creates positive water tight lap.
  • Lapping innovation eliminates creep during installation.
  • Profile washer — unique design very strong for high wind loads.
  • Purlin spacing is up to 4.5m in .55 and 3m .40 (subject to design loading).

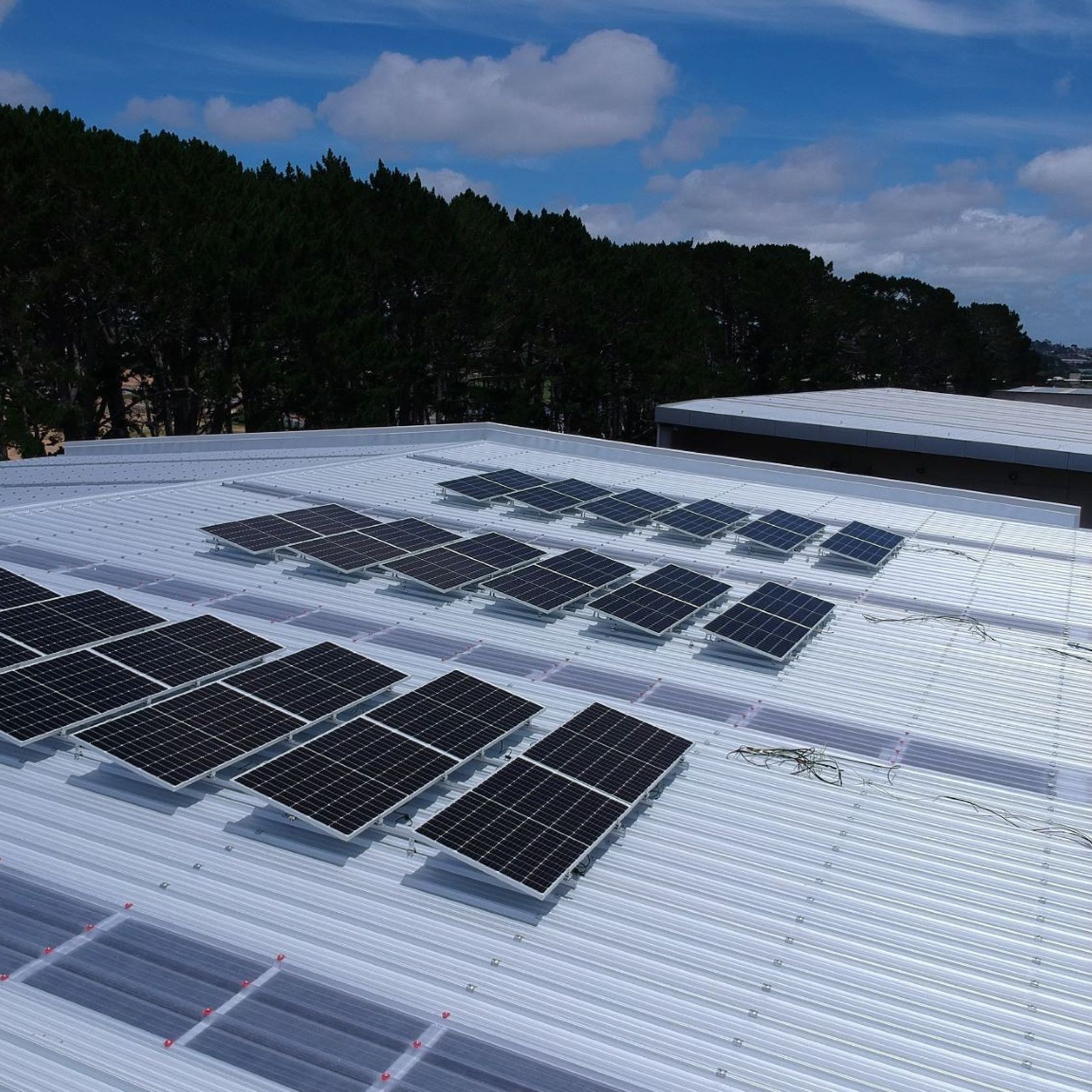

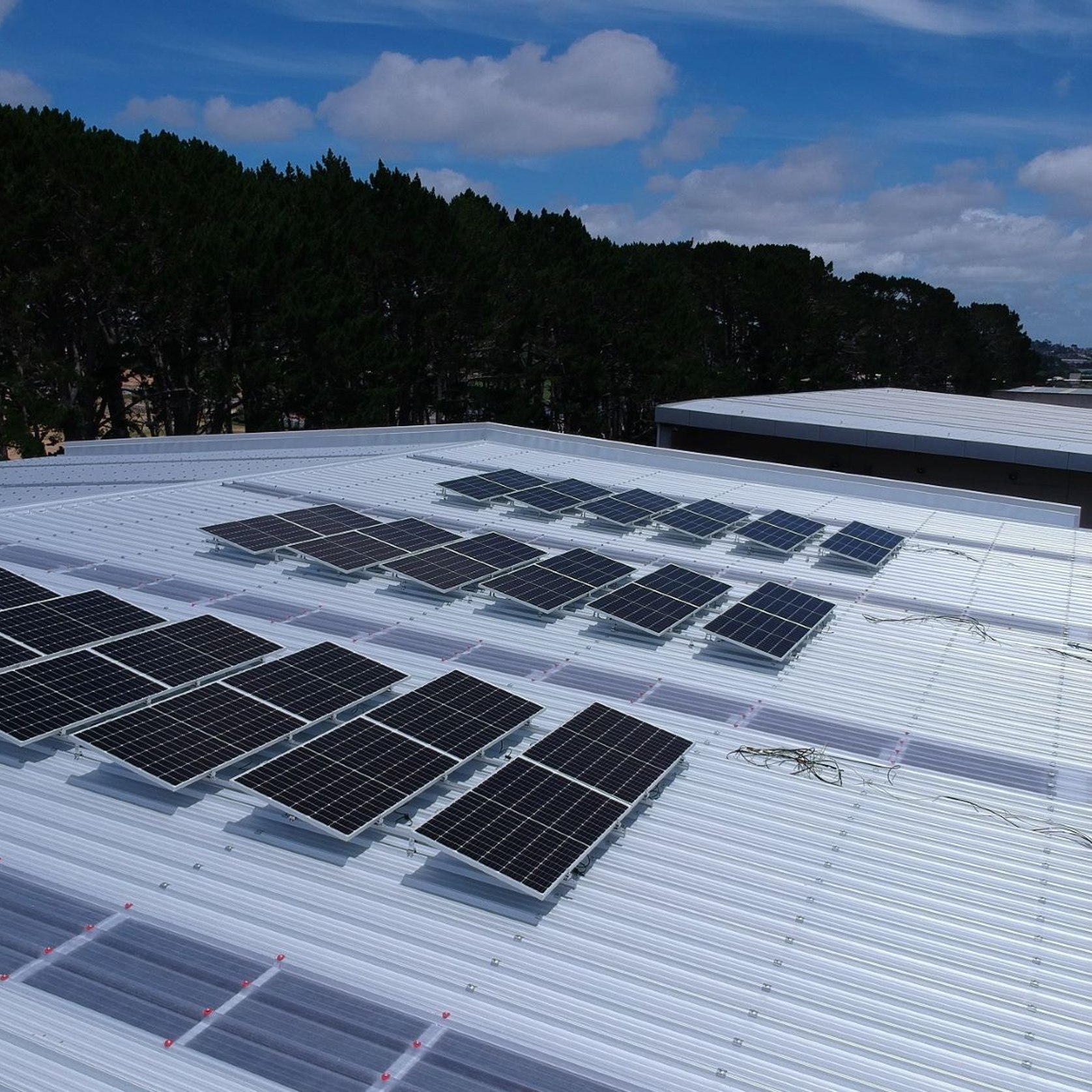

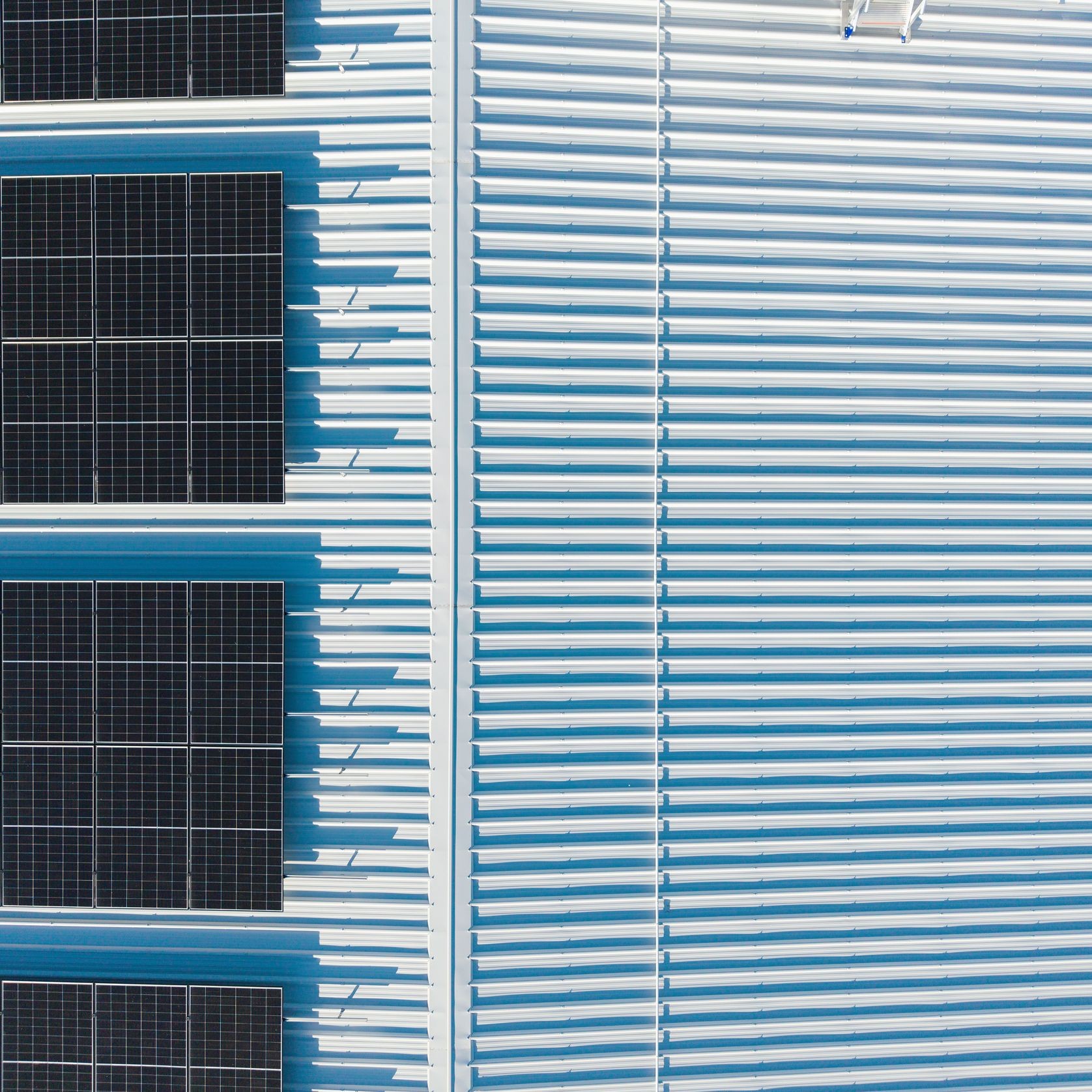

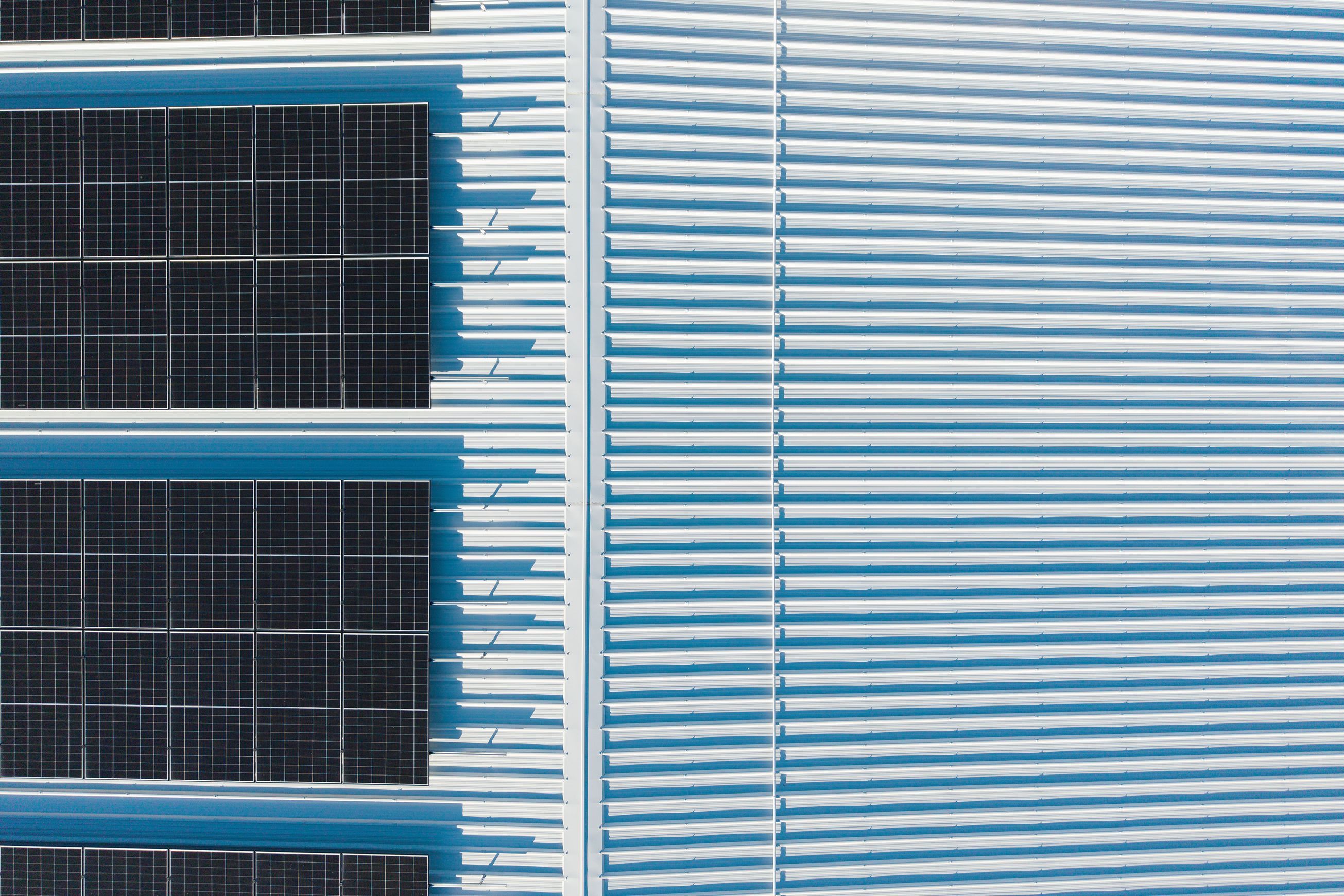

  • Easy to attach solar installations for commercial and residential.
Details
  • Category
    Aluminium Roofing, Metal Cladding, Steel Roofing
Specifications

Scope of use

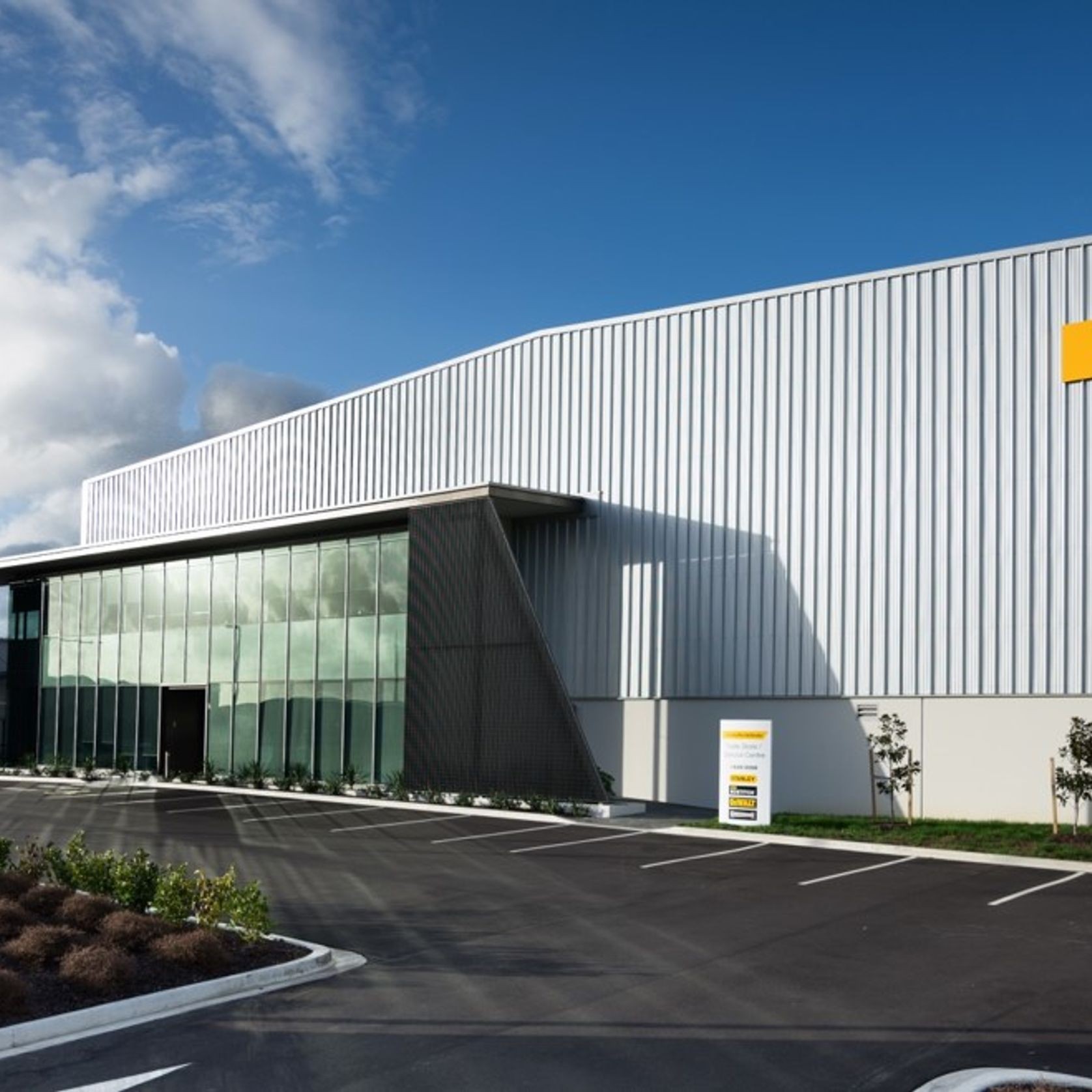

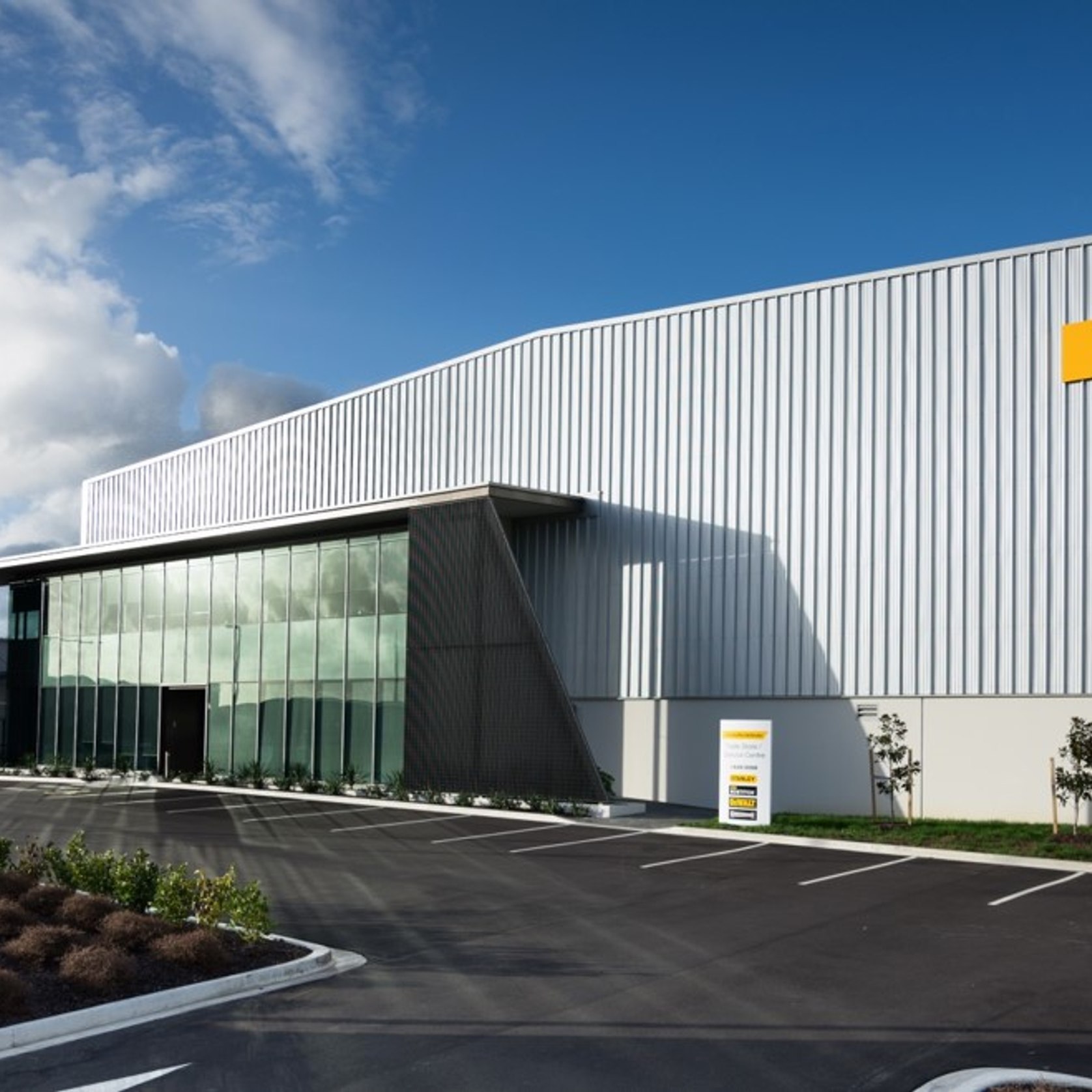

  • ST963 is suitable for a wide range of end uses including roof and wall cladding, ceilings and linings.
  • For structures requiring compliance with NZBC Clause E2, the minimum pitch is 3°.

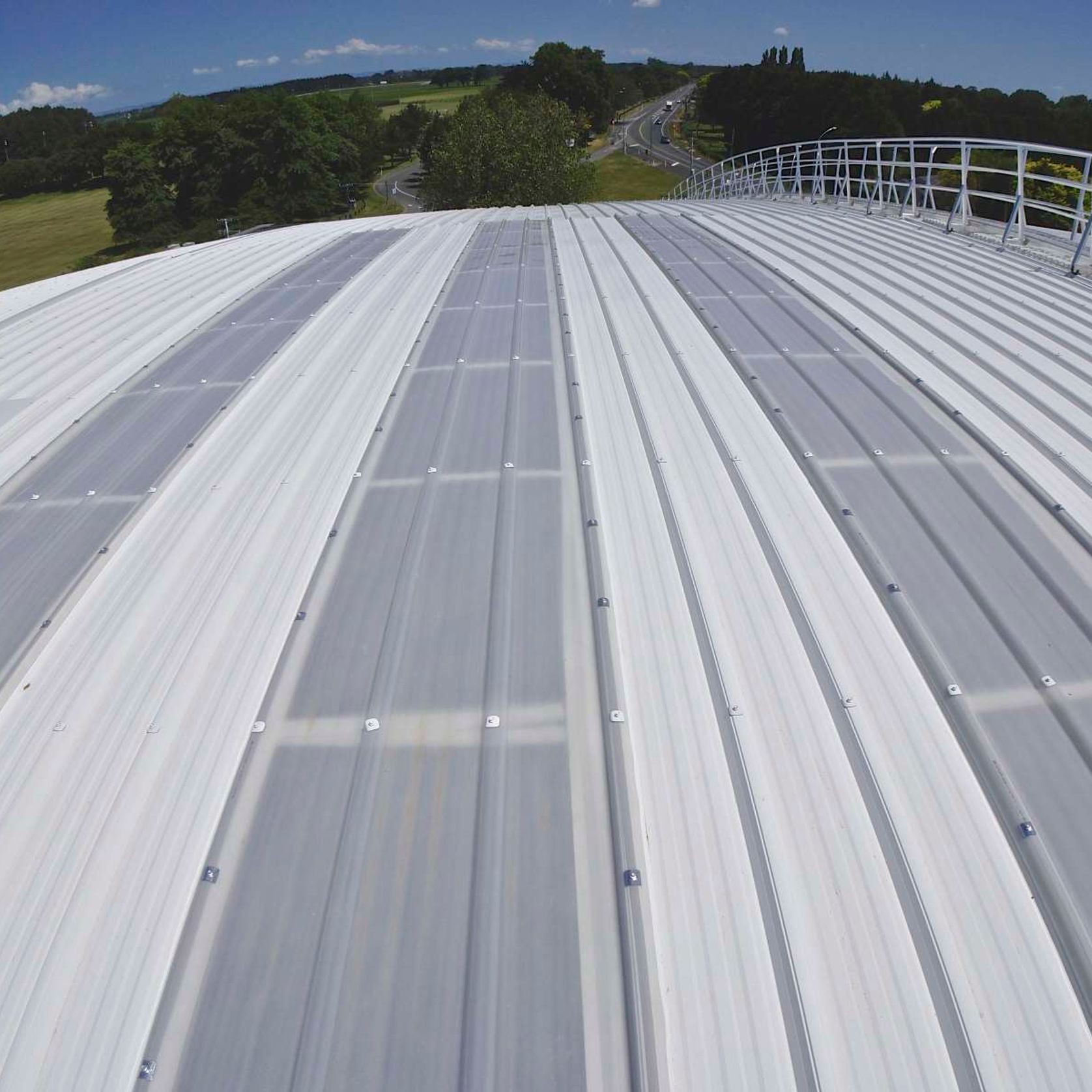

  • ST963 can be spring curved in 0.55 mm BMT thickness G550 steel to a minimum radius of 60 metres.
  • Roof runs in excess of 80 metres should be checked for water run-off capacity. Provision for thermal expansion should be considered for lengths in excess of 18 metres in steel and 12 metres for other materials.

Maintenance

  • Maintenance of steel substrates must be carried out in accordance with New Zealand Steel Specifiers and Builders Guide.
  • Generally, required maintenance of exposed well washed roof areas is rainfall only, with an annual inspection to check on the build-up of any contaminants. Sheltered roof areas, walls, and areas subject to the build up of contaminants will require programmed maintenance to provide design life expectations.
  • Maintenance of other substrates should be in accordance with the manufacturer’s requirements for the specific environment and application.

Installers

  • A list of local installers for your area and contract type is available from your local Steel & Tube branch or our website www.steelandtube.co.nz
