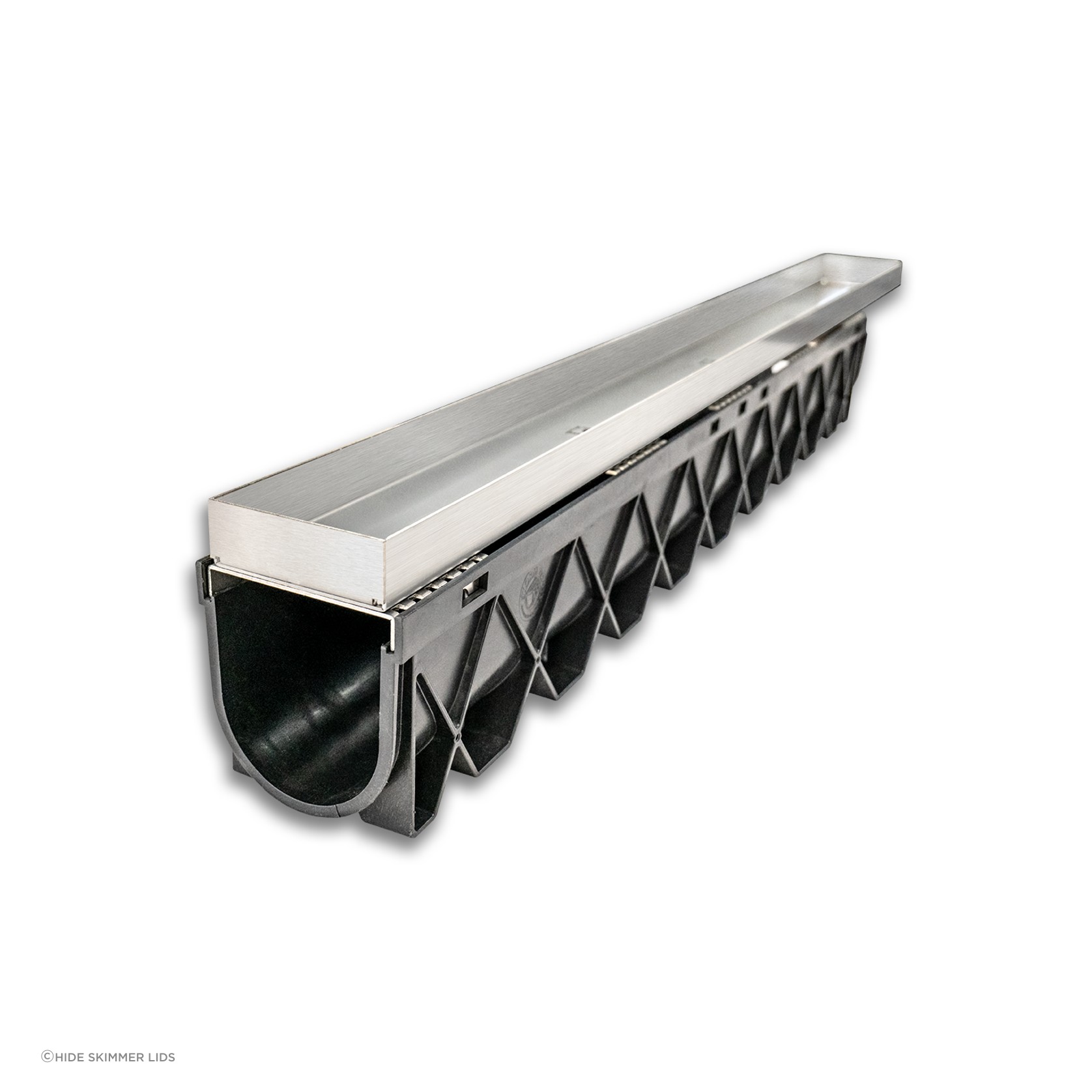

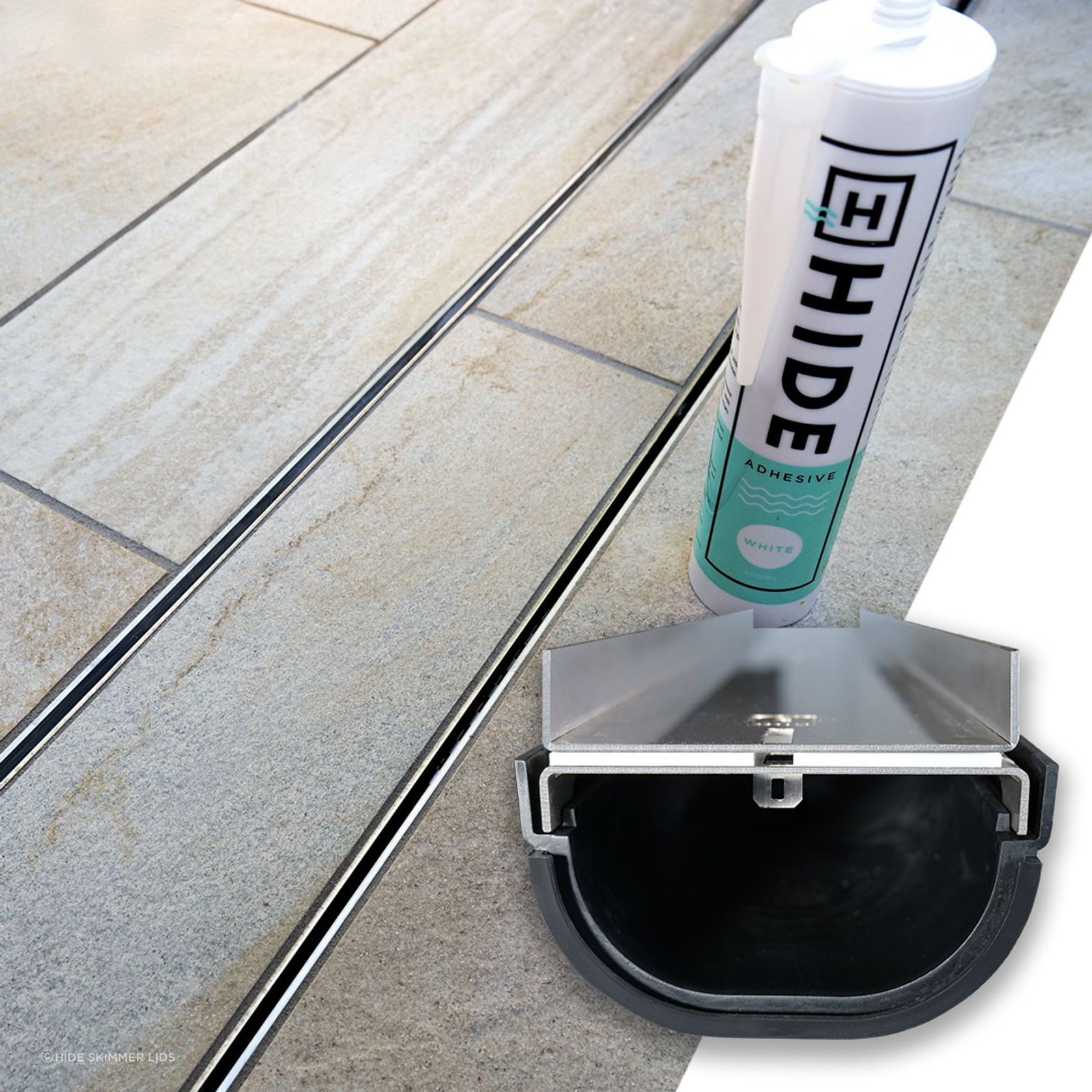

HIDE Tile Linear Drain Covers

By Hide Skimmer Lids
From
$345*
*Price indication
Visit Website
Brushed-Stainless-Steel-swatch
316L Stainless Steel

A modern solution to creating the perfect outdoor living space without drain grates in sight.

Modular Tile insert covers at 1210mm length.
4 popular exterior stone/tile depths in two widths.

HIDE Tile Inlay Covers suit exterior stone thicknesses of up to 42mm; the Linear Drain Covers are compatible with two popular & readily available external drain channel systems.

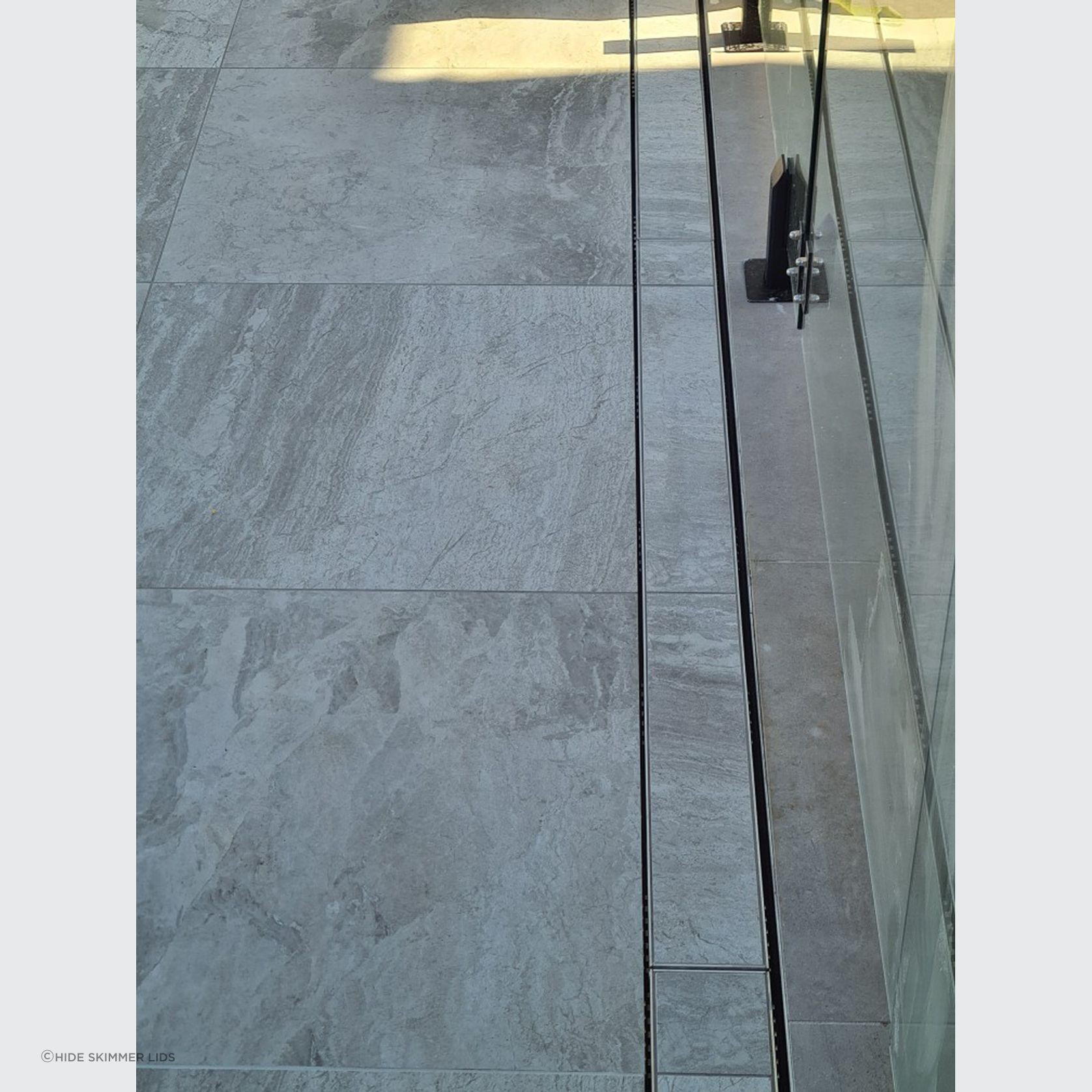

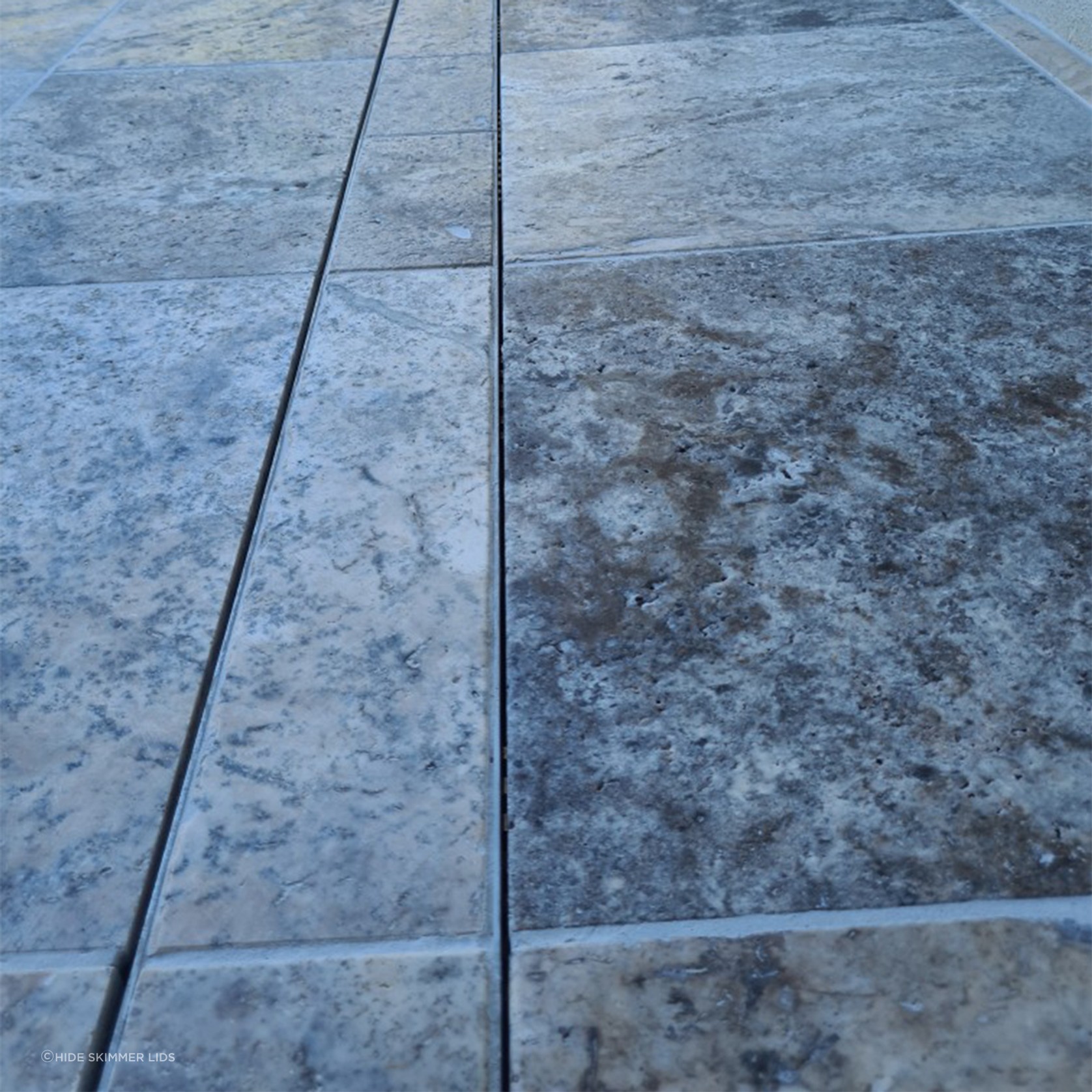

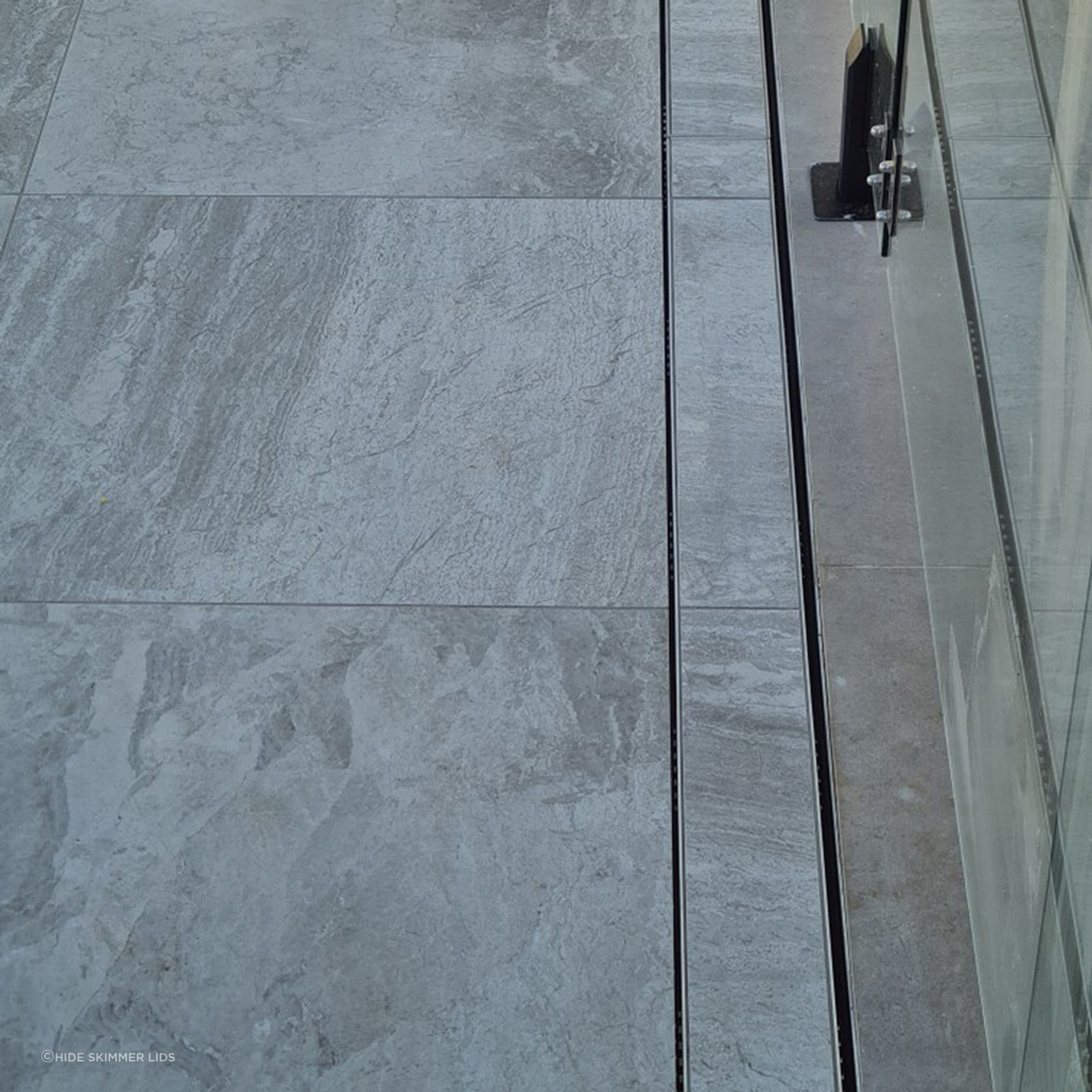

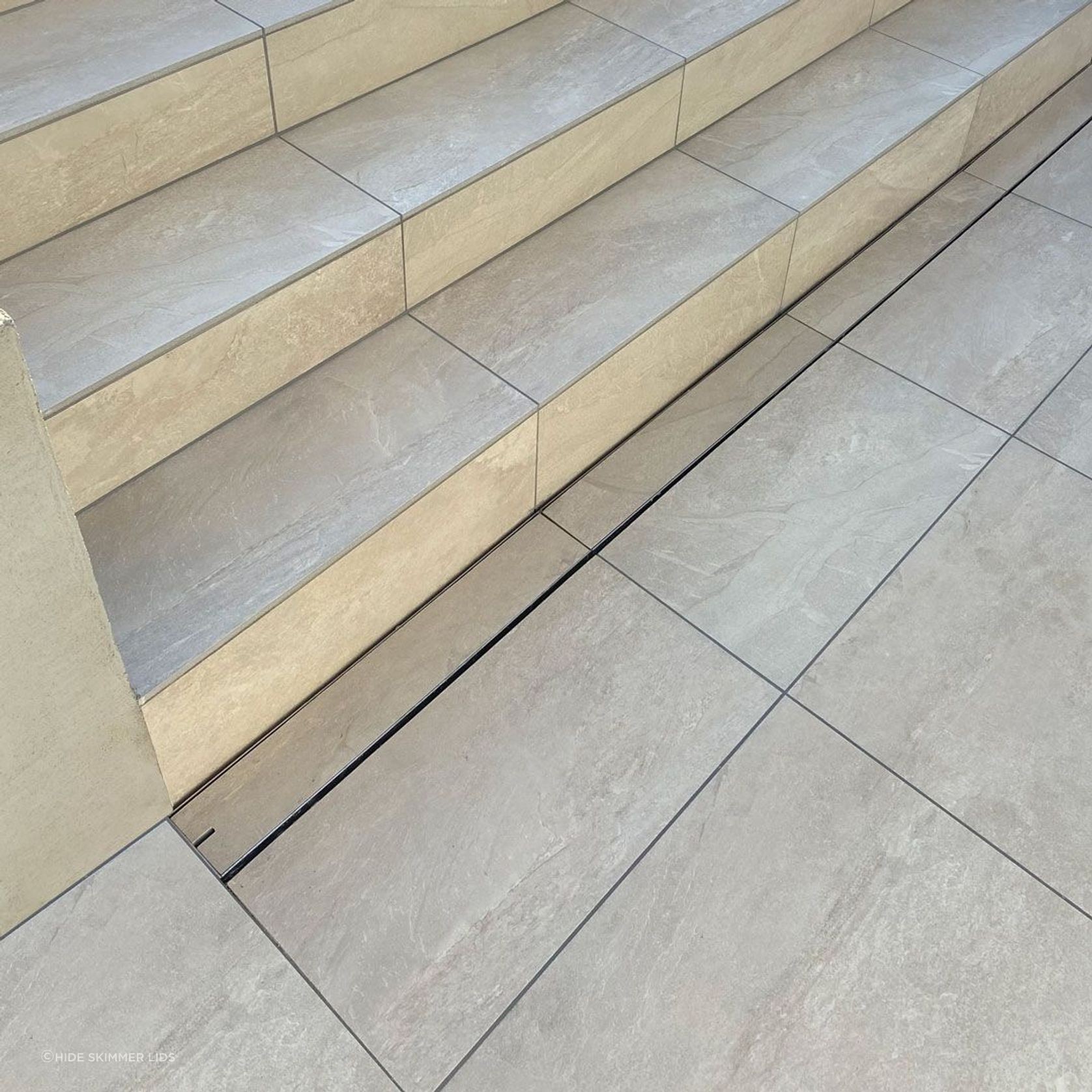

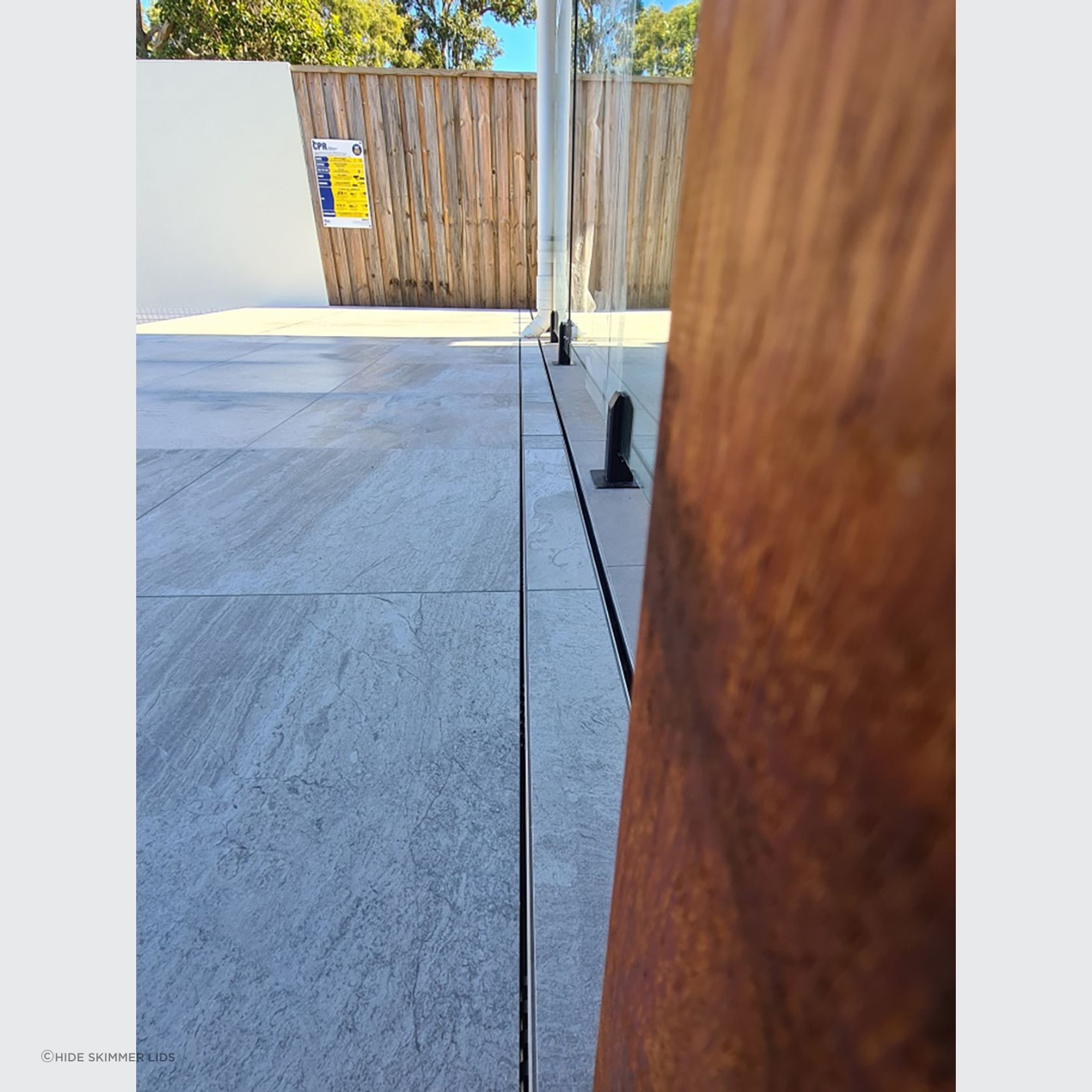

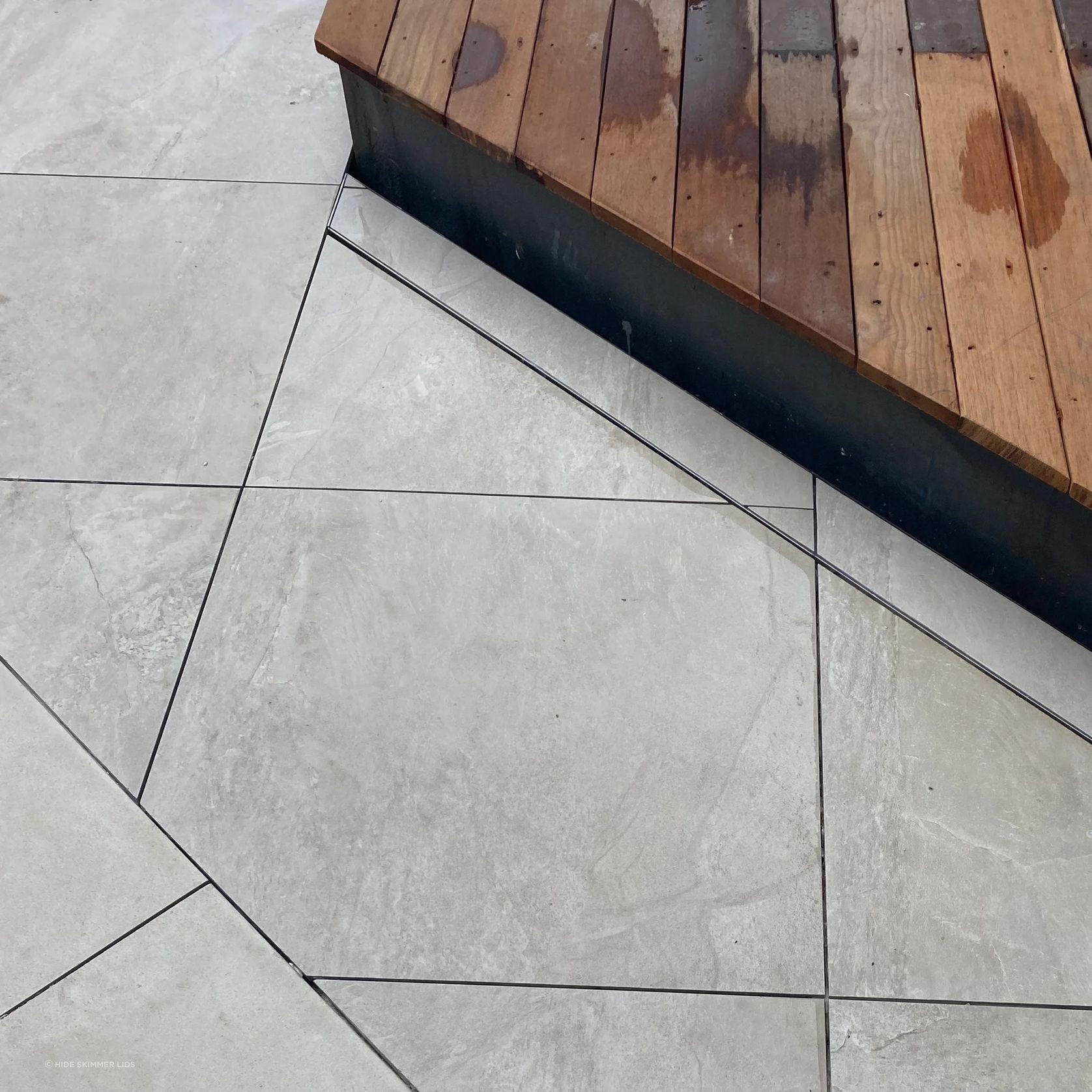

HIDE offers the flexibility to customise your drain cover to enhance most landscape surfaces—the most inconspicuous and functional system for exterior surface water clearance. Installed to conceal your drainage system within the surface tiles or stone, match grout lines and tile patterns for a discreet quality finish.

Details
  • Category
    Pool Care and Cleaning, Surface Drainage
  • Range
    Linear Drain Cover
  • Brand
    HIDE Skimmer Lids
  • Warranty
    20 years
General
  • Country of origin
    Australia
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
  • Assembly
    Professional assembly recommended
Specifications

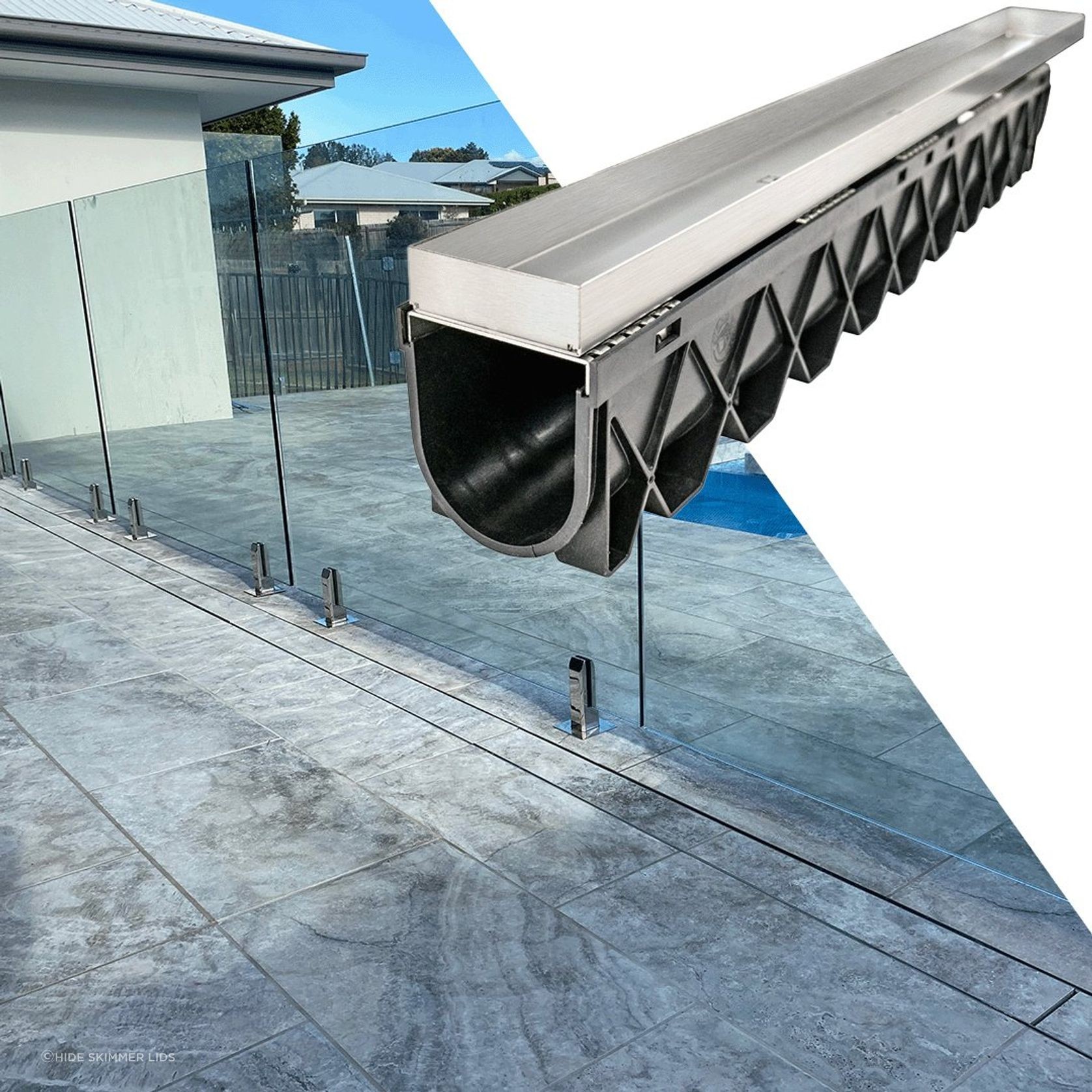

The Tile Inlay cover is compatible with both Everhard and Reln drain channels, which are available in different lengths and depths.

  • Each modular length is 1210mm
  • Select depth to suit your chosen stone/tile
  • Suits 12mm, 20mm, 30mm and 40mm inlay thickness
Features
  • 316 Stainless steel quality and long-term durability.
  • The cover is compatible with popular exterior drain channels, all available in different depths and lengths.
  • Flexibility in installation; adjustable in height and gradient.
  • HIDE Tile Inlay Covers suit exterior stone thicknesses of up to 42mm.
  • 40mm Tile Linear Drain Covers only compatible with Everhard Channel.
  • Discreet with minimum hardware exposure, only 2mm Stainless Steel at surface level.
  • Factory cut & prefabricated 2.4m corner kits.
  • Butting 1210mm modular lids to cover any length of the drainage channel.
  • No grate to collect surface sediment, and it is easy to clean and remove.
  • Deep channel options allow limited fall requirements
  • Most external stone thicknesses are compatible with the HIDE cover system.
  • Tile edge trim and end caps are available for an enclosed finish.
  • Retrofit options.
  • Earthing-free insulation.
Pricing

Retail pricing is shown. Trade pricing is available for trades, please contact your local HIDE distributor for more details.

SKU: Reln Compatible 1210mm Tile Linear Drain Cover
Visit Website

Projects featuring
HIDE Tile Linear Drain Covers

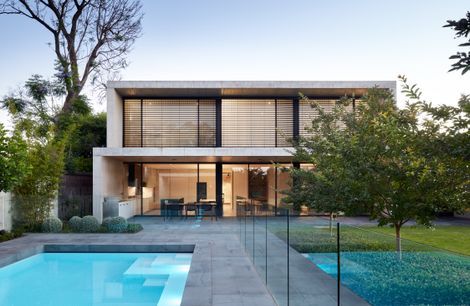

Medindie House
Medindie House
Architects Ink

More from
Hide Skimmer Lids

HIDE Drain Covers
HIDE Drain Covers
By Hide Skimmer Lids
From
$375.00
HIDE Concrete Linear Drain Covers
HIDE Concrete Linear Drain Covers
By Hide Skimmer Lids
From
$345.00
HIDE Large Drain Cover
HIDE Large Drain Cover
By Hide Skimmer Lids
From
$845.00
HIDE Skimmer Lids
HIDE Skimmer Lids
By Hide Skimmer Lids
From
$375.00
HIDE Non-Conductive Full Polymer Skimmer Lid
HIDE Non-Conductive Full Polymer Skimmer Lid
By Hide Skimmer Lids
From
$345.00

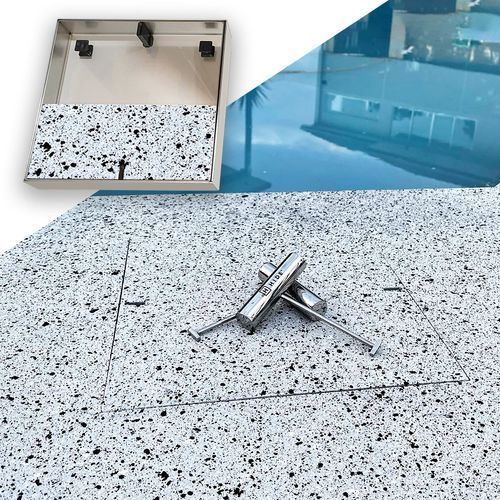

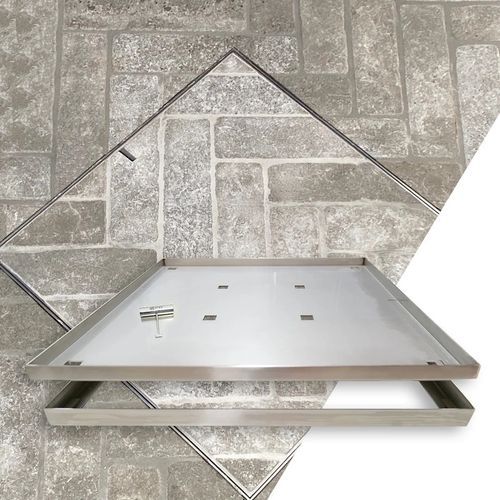

HIDE Access Covers
HIDE Access Covers
By Hide Skimmer Lids
From
$300.00

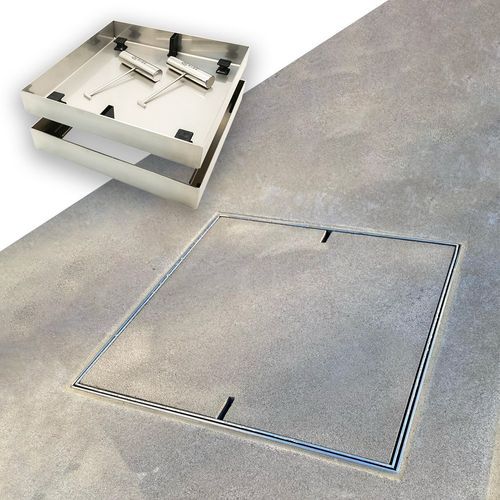

HIDE Concrete Access Covers
