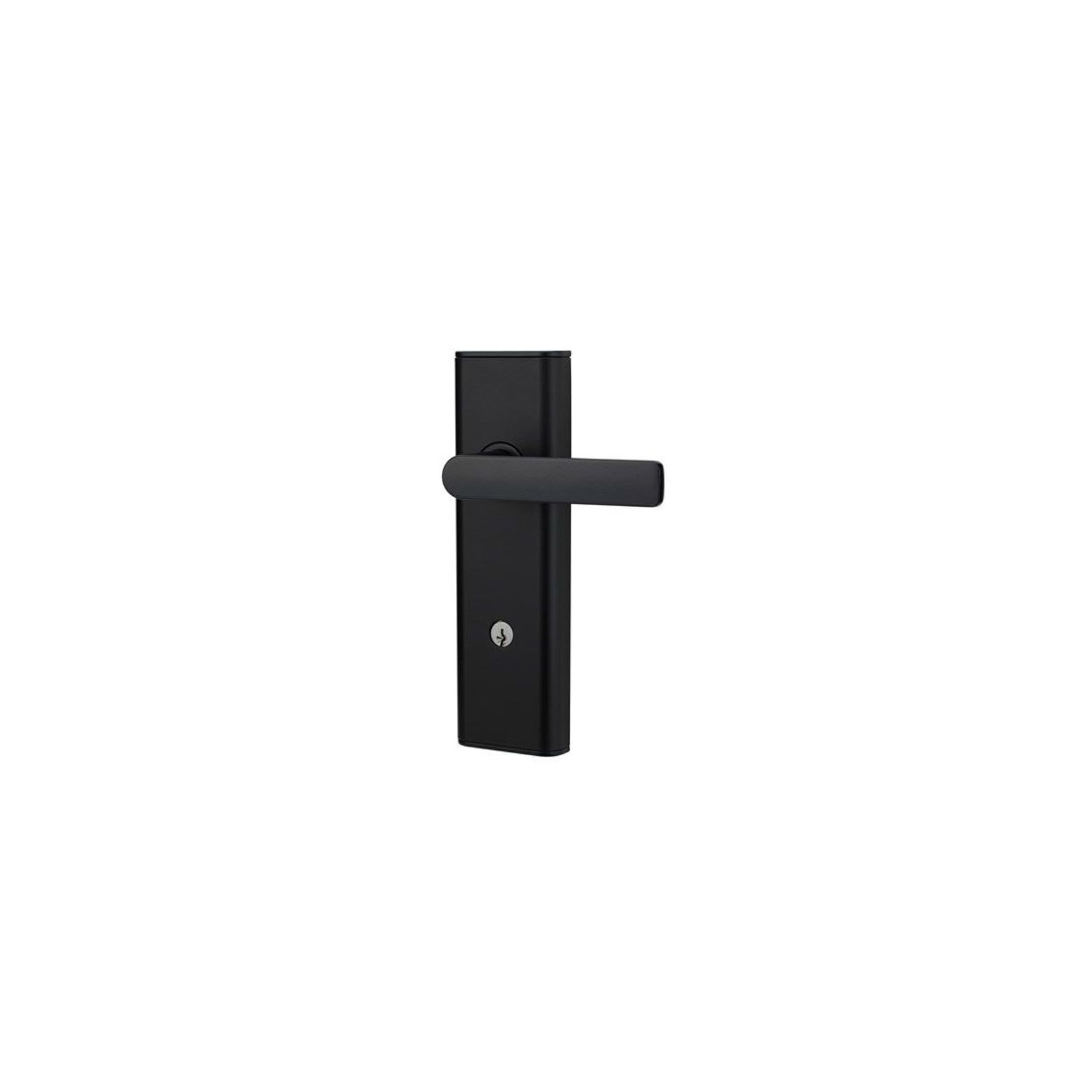

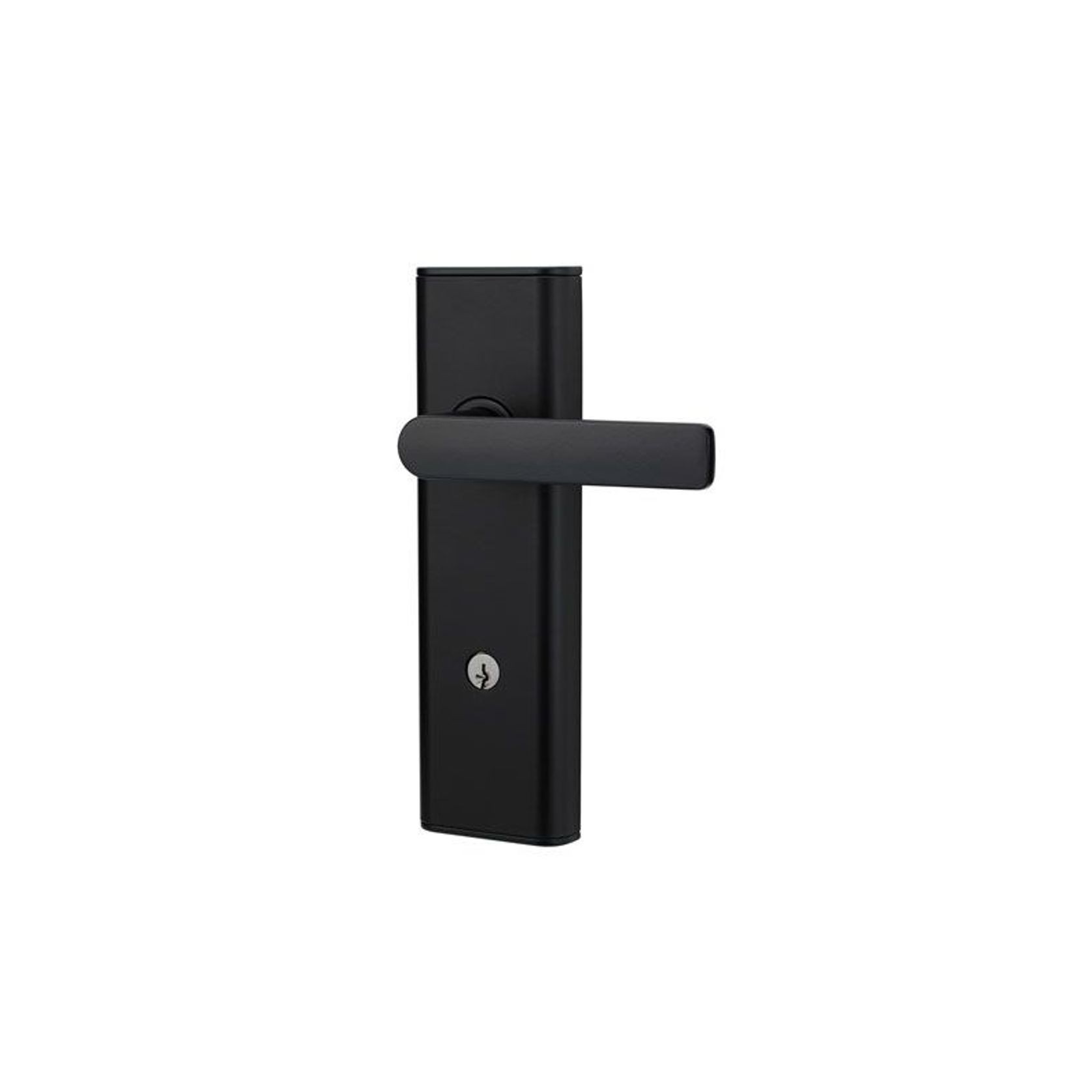

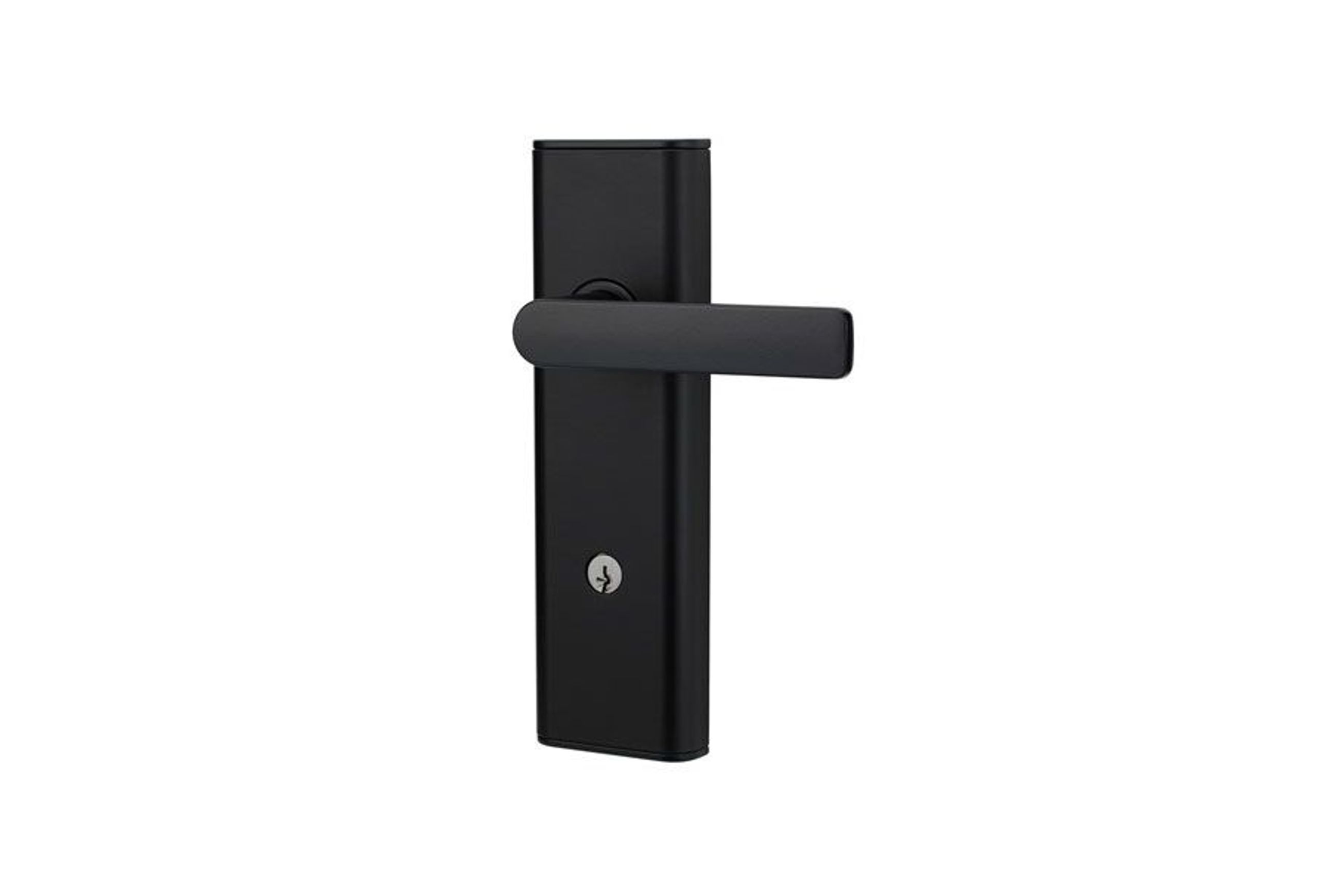

Lockwood Nexion Mechanical Entrance Lockset
The Lockwood Nexion Mechanical Entrance Locksets represent the next generation in home security.
Designed and manufactured to the highest standards of quality, the Lockwood Nexion range has set the benchmark for safety, security and style. The Nexion offers the ultimate protection for your home and family.
Features of the Nexion Mechanical Entrance Lockset
- Three modes of security: Secure, Safety and Passage mode provides excellent security without comprosing convenience
- LockAlert® indicator shows lock status at a glance
- SafetyRelease™ automatically unlocks the inside handle upon entry to minimise the risk of being locked in
- Lockout Release automatically unlocks the outside handle when the inside handle or snib is operated
- Can be keyed alike with other Lockwood door locks
- Conforms to Australian Standard AS4145.2-2008 SL7D8C5K6

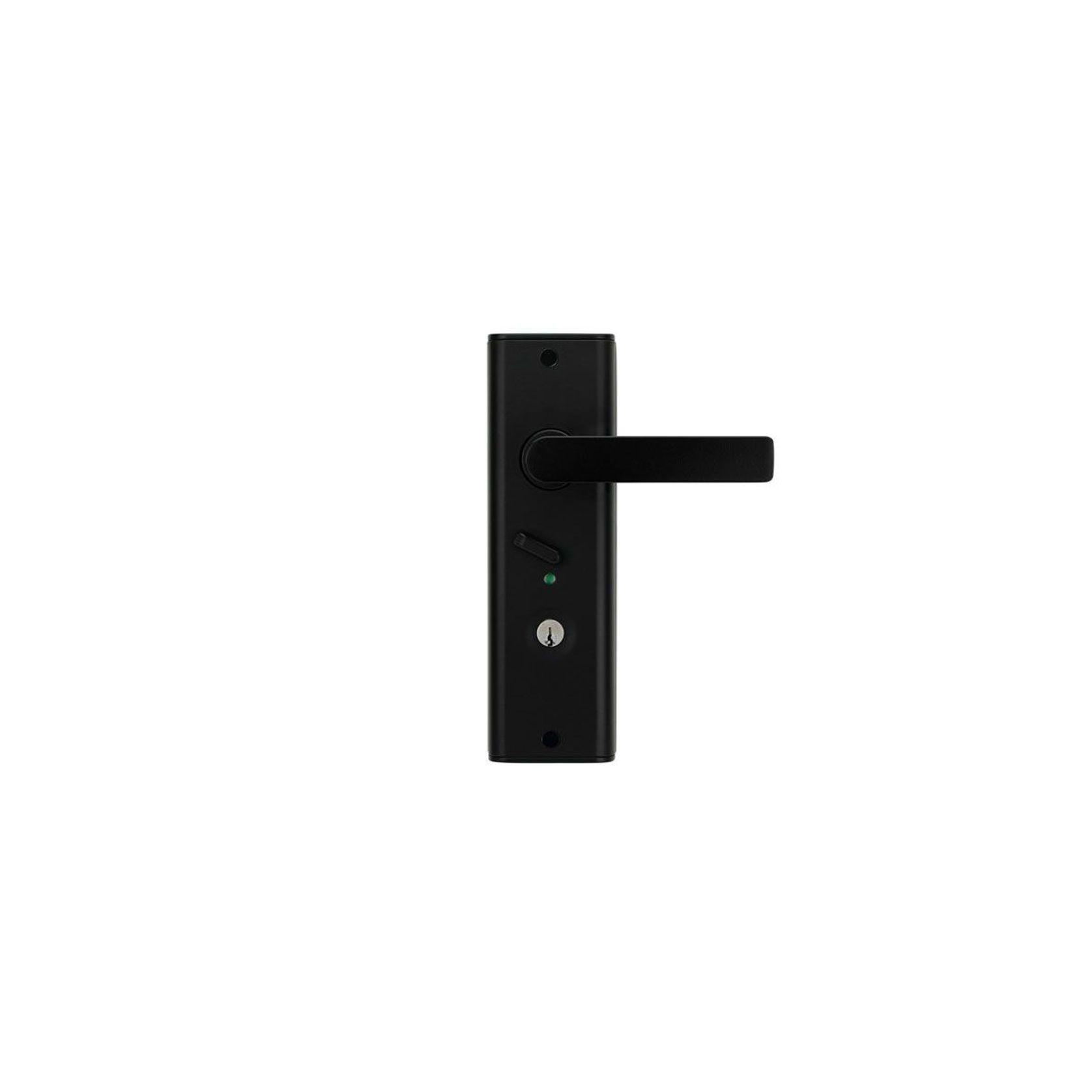

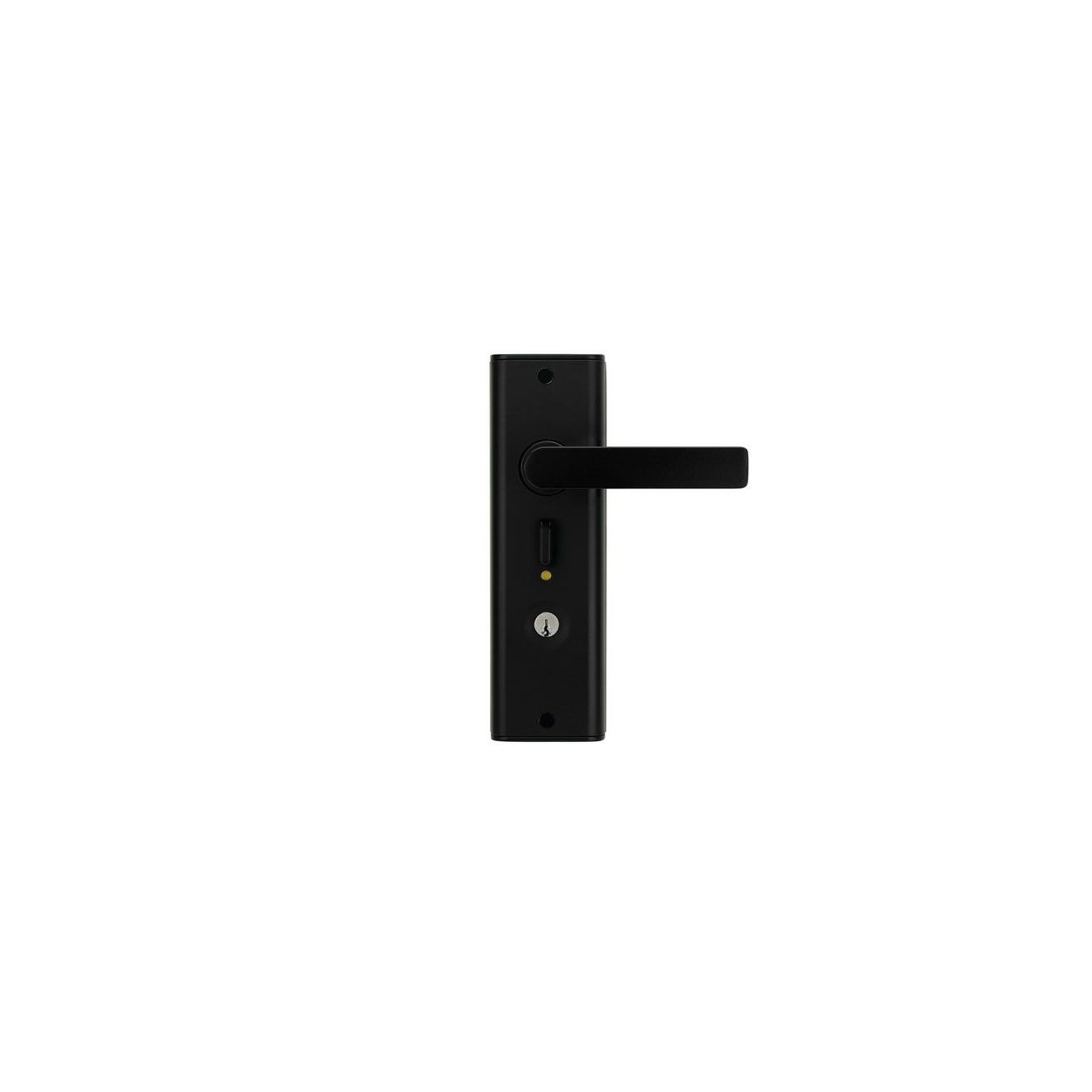

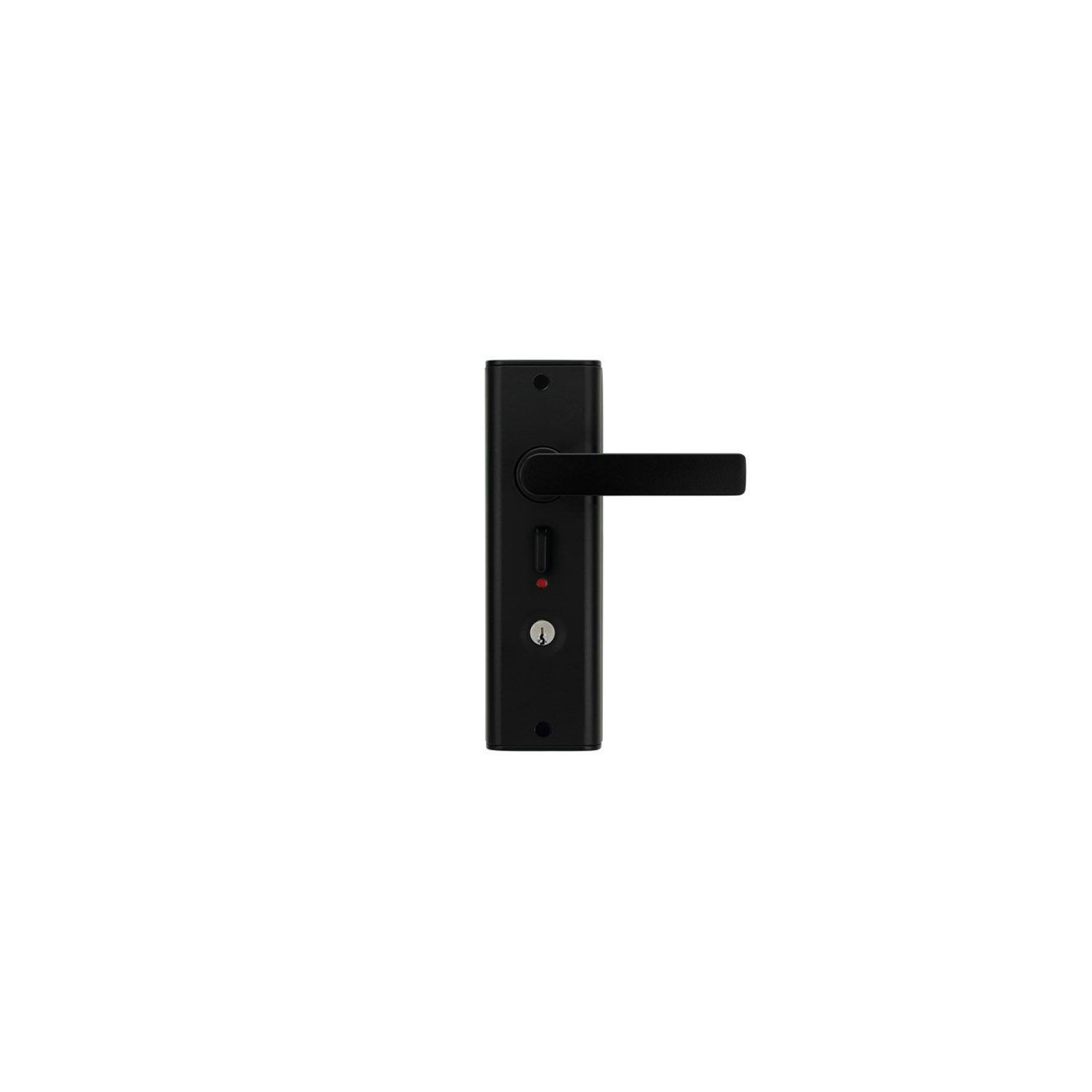

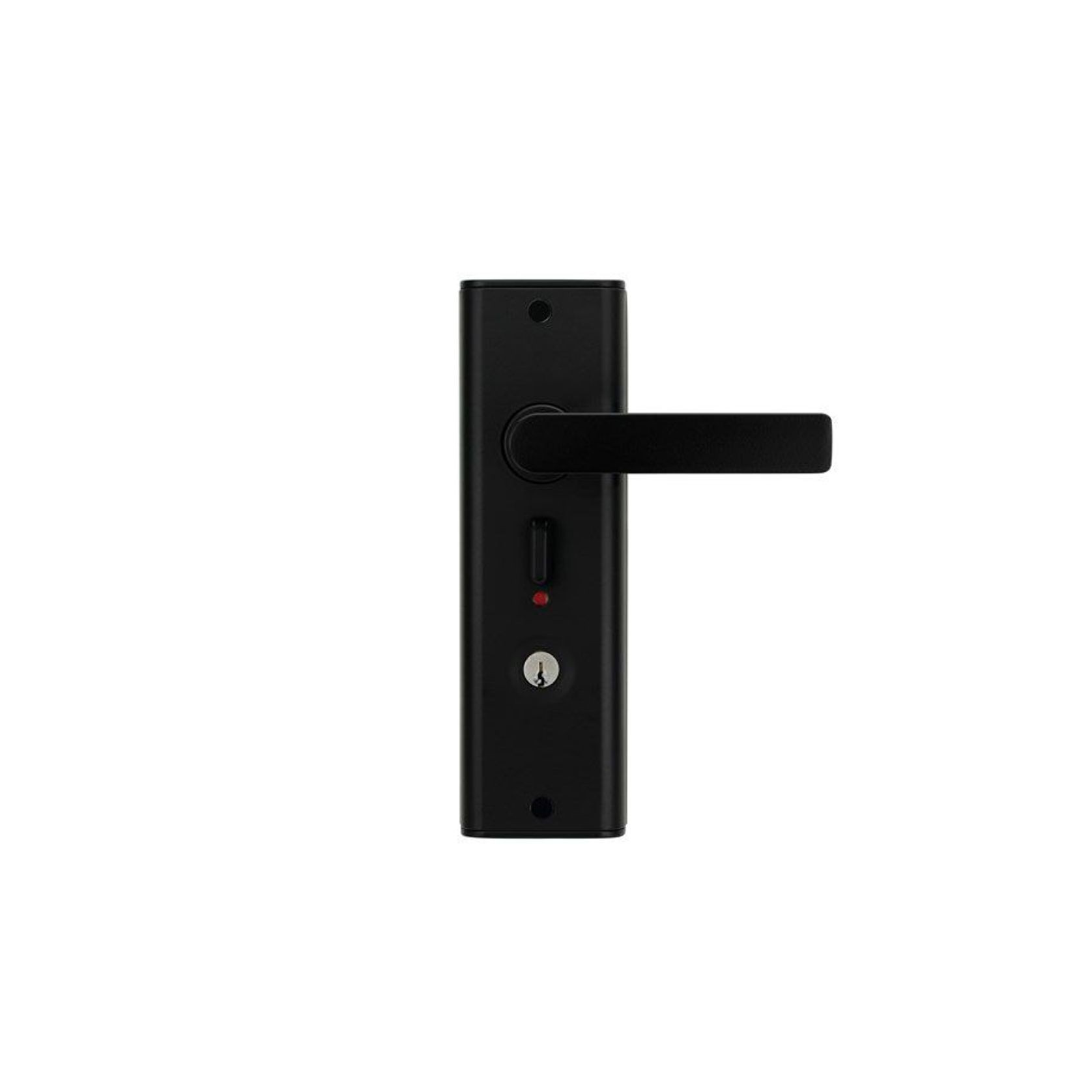

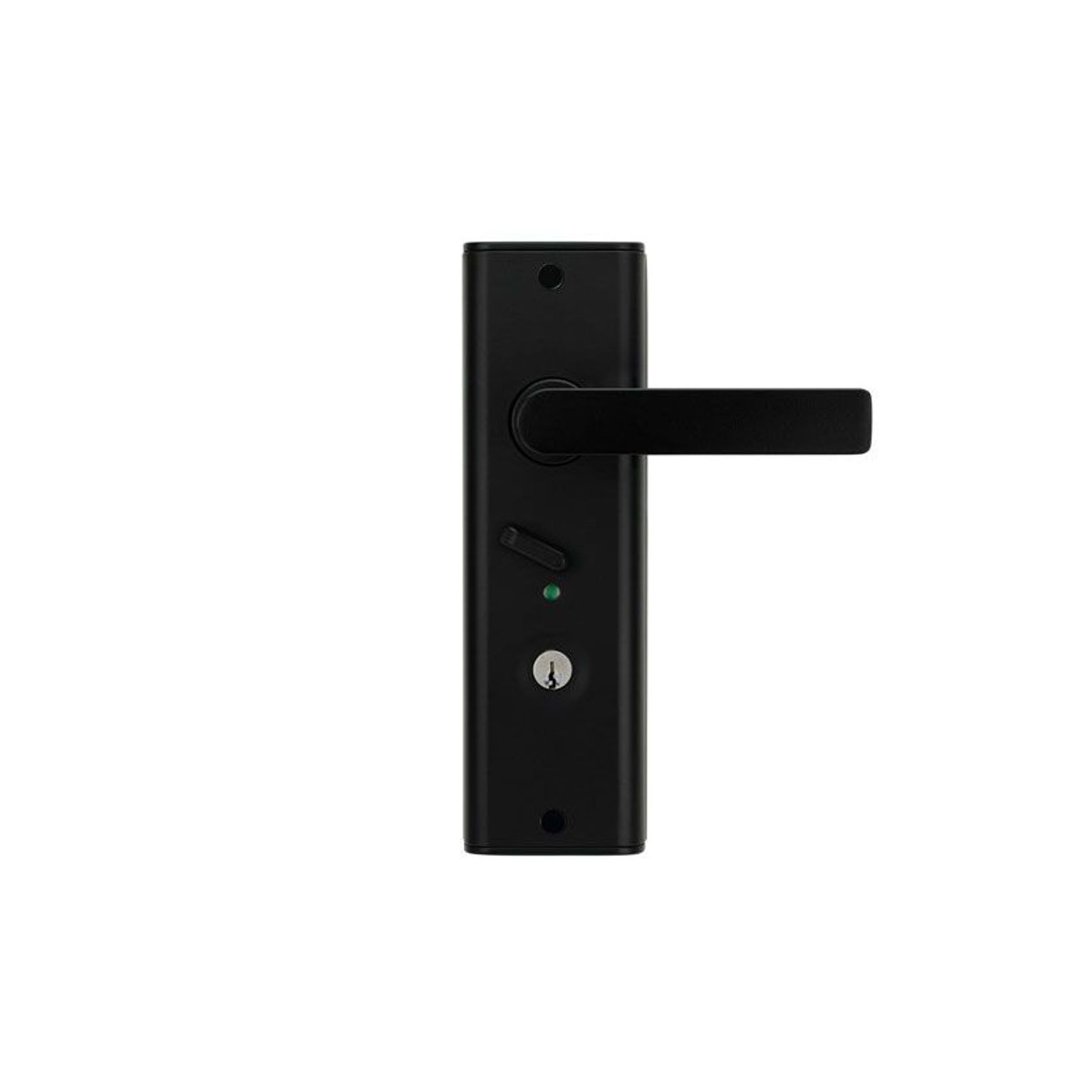

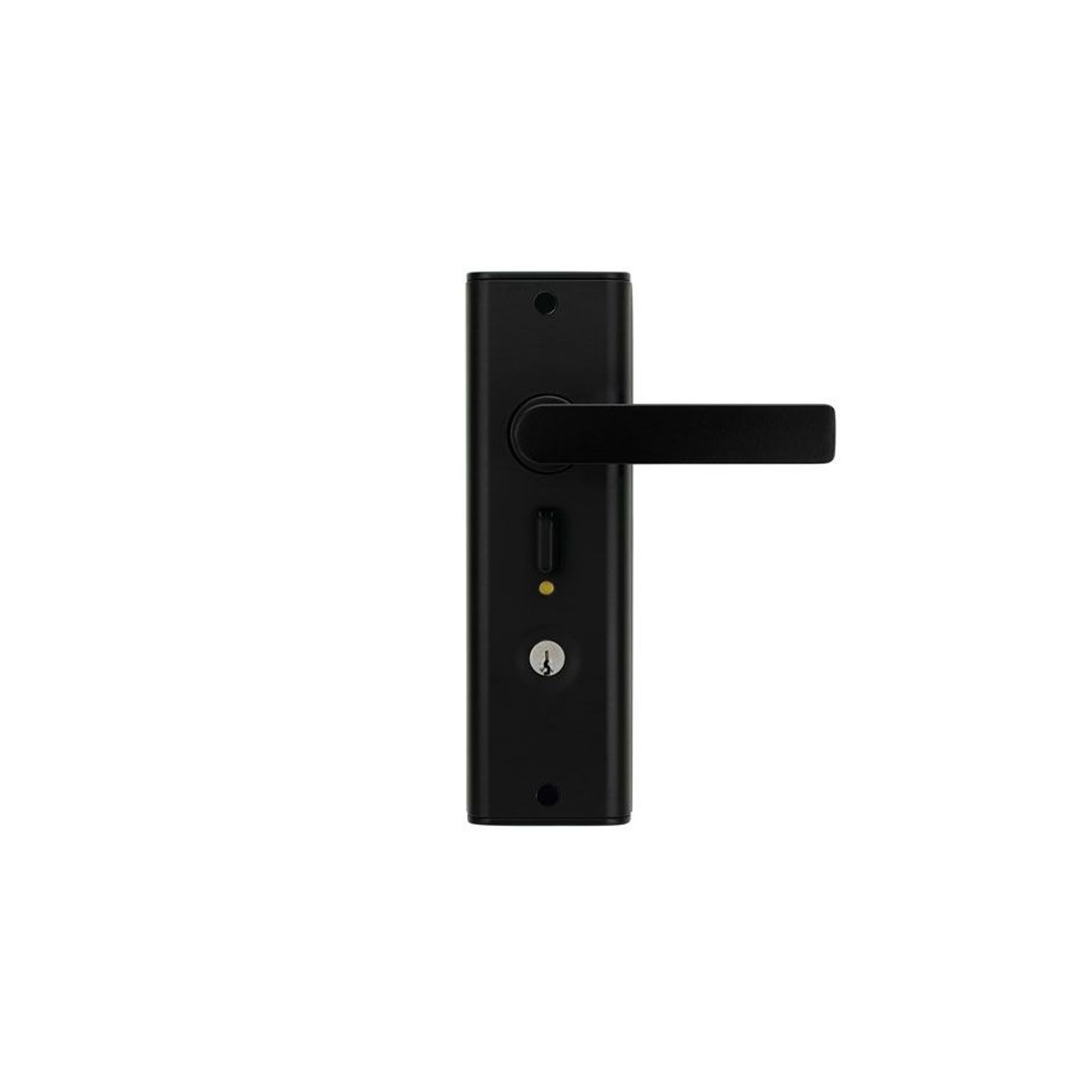

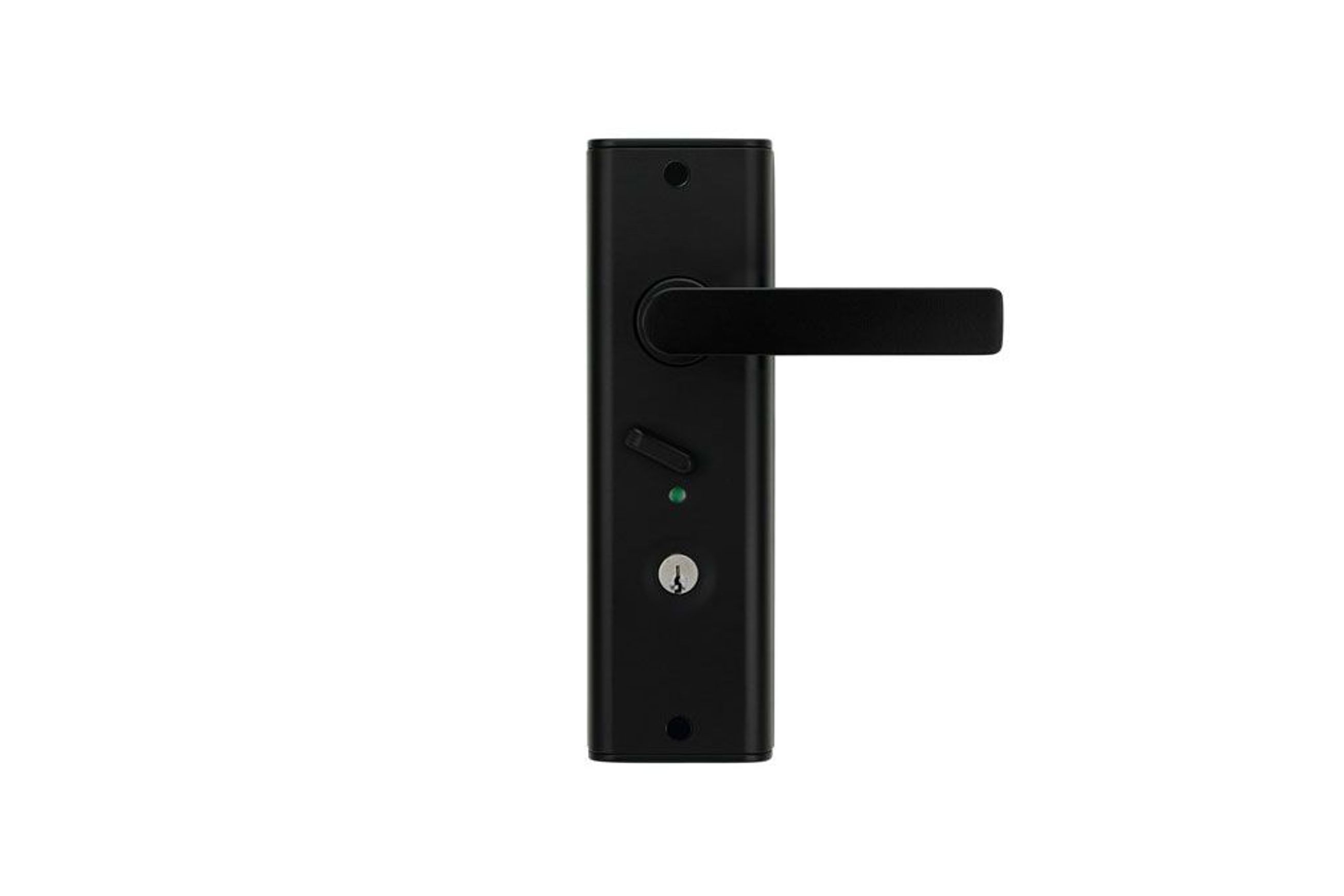

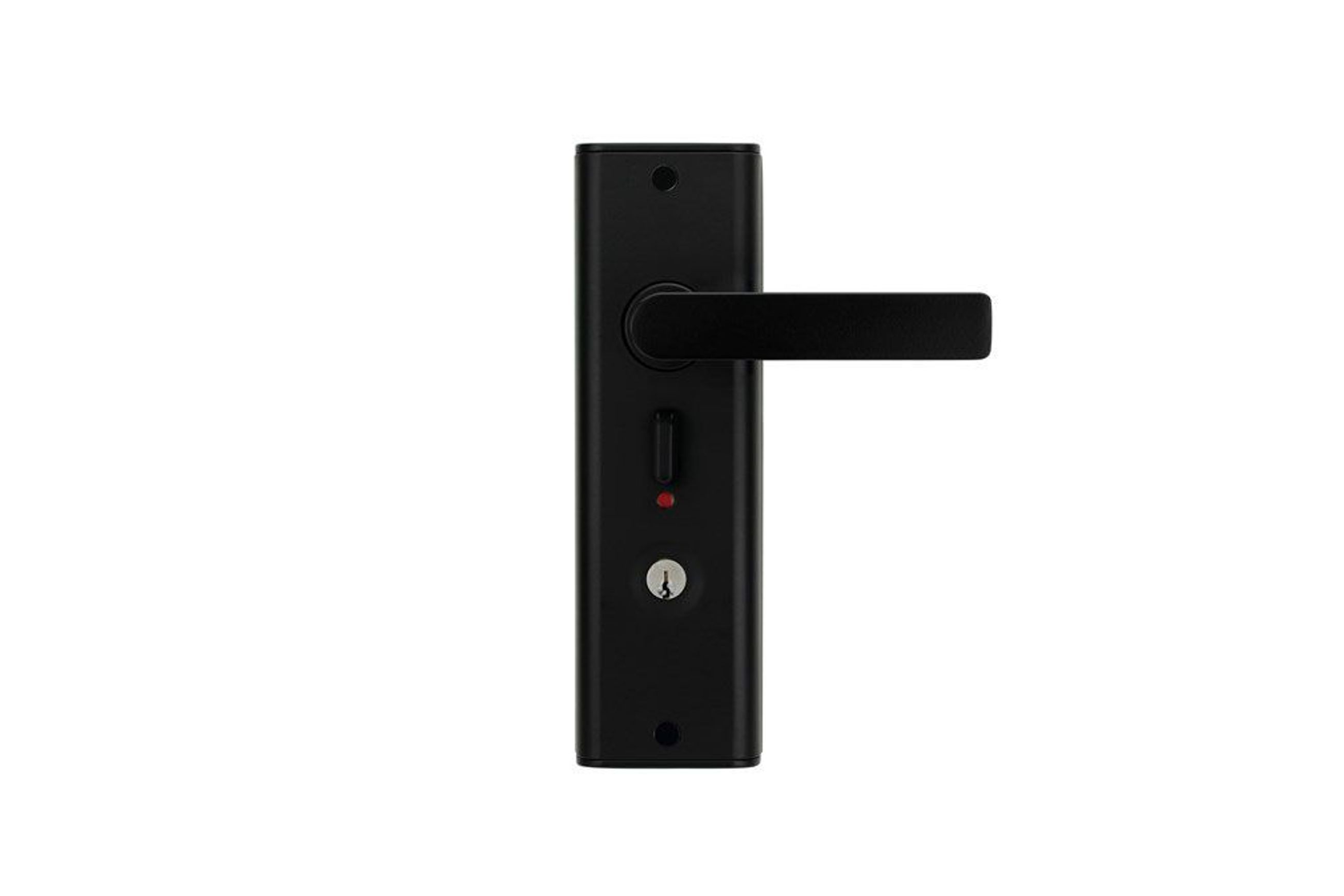

LockAlert®
The Nexion Mechanical Entry Lockset Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes:
Secure Mode
Locked from the inside and outside.
Safety Mode
Locked from the outside and free to exit from inside.
Passage Mode
Free to enter from outside and free to exit from inside.
SafetyRelease™
Automatically unlocks the internal knob upon entry minimising the risk of being locked in.
Kinetic Defence®
Bump and pick resistant.
2 Keys Included
Can be keyed alike to other Lockwood door locks.
Quick Installation
Suitable for inward and outward opening doors of a thickness between 35-45mm.
- CategoryLatches and Locks
- RangeNero® Collection
Product Details
Backset 60mm as supplied
70mm optional (order part L530-222SC)
Case High purity zinc alloy
Door Thickness 35 to 45mm
Finishes Matt Black
Latch 13mm projection brass bolt
Strike Box strike with concealed crossgrain door frame strengthening screw
Handing Adjustable handing by set screw
Factory set for left hand opening doors
Cylinders Internal and external
5 pin tumbler mechanism with 6 pin capability
Brass cylinders and barrels
Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of
