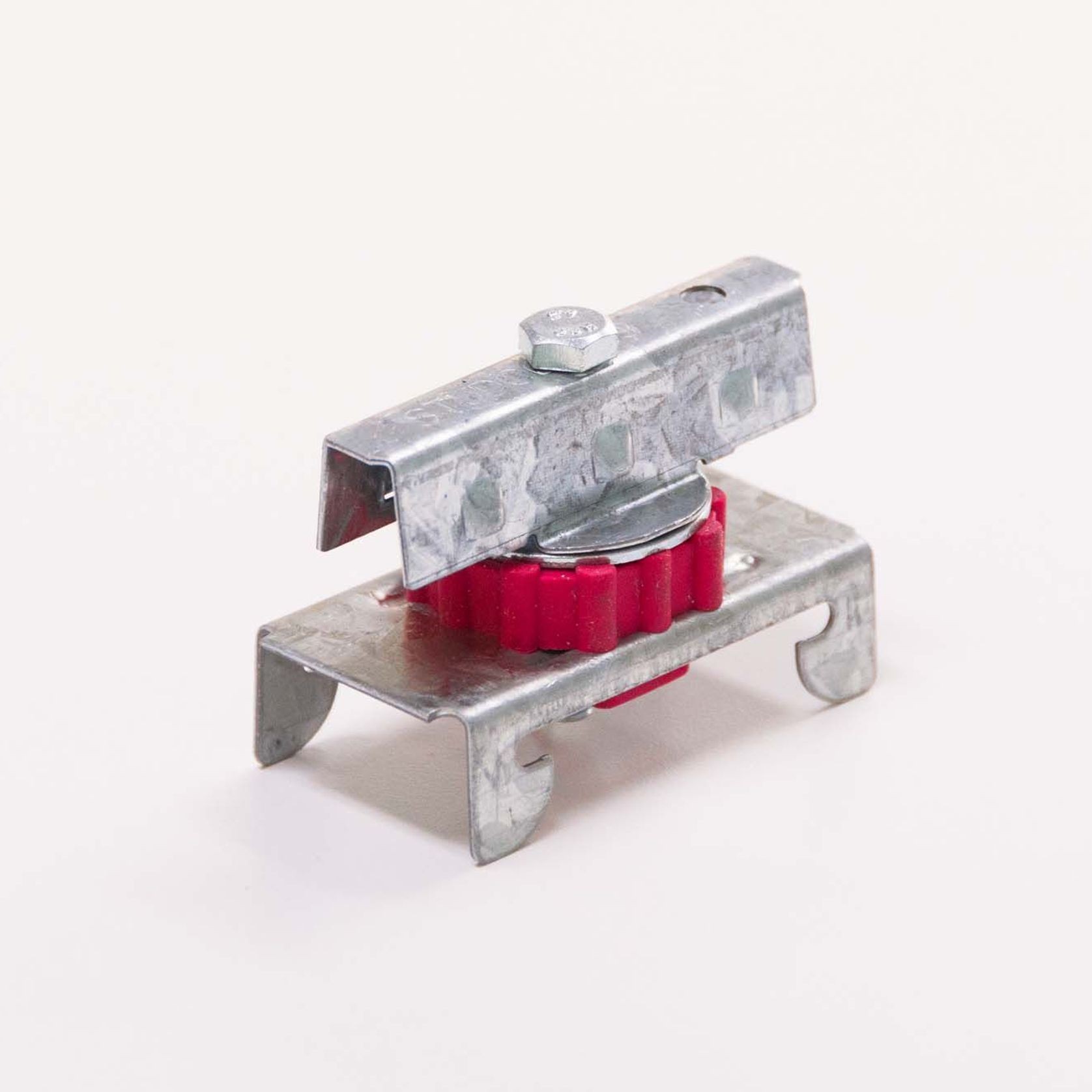

M237TR Furring Channel Clips Top Cross Resilient Mount

By EZ Concept
Visit Website

Enhance your Studco Concealed Ceiling System with the M237TR Furring Channel Clips Top Cross Resilient Mount. This innovative clip effortlessly converts your standard locking key coupling into a fully isolated suspended ceiling. By replacing the coupling between the primary channel, M27 Top Cross Rail, and the secondary channel, M29 28mm Furring Channel, the M237TR clip provides superior isolation and support.

Crafted for perfection, the M237TR is designed to seamlessly integrate into your existing ceiling system, ensuring a secure and durable fit. With a focus on quality and performance, this clip is a must-have for those seeking to elevate their acoustic experience. Discover the power of the M237TR in transforming your space into a soundproof sanctuary. Upgrade to the M237TR Furring Channel Clips Top Cross Resilient Mount today.

Details
  • Category
    Acoustic
  • Range
    Acoustic Mounts
  • Brand
    Studco Building Systems
  • Designer
    Studco Building Systems
Features
  • Engineered thermoplastic rubber outperforms standard rubber because of its sound absorbing characteristics
  • Simple design makes it adaptable to hundreds of applications.
  • Consistent and reliable quality – manufactured under ISO9001 quality control system.
  • Resilmount® is the most cost effective way to isolate airborne noise.
  • Does not use metal washer or metal insert in rubber.
  • M237TR clips can be used to suit 16mm and 28mm furring channels.
  • M237TR are a replacement of the standard locking key, no extra parts needed.
  • M237TR can help achieve a sound rating of RW60.
  • Max. loading per mount is 25kg.
Specs / Details
  • Approx Kg/pce: 0.07
  • Sub Pack
  • Stock Pack
EZ Concept
Visit Website

More from
EZ Concept

Acoustic Ceiling Systems
Acoustic Ceiling Systems
By EZ Concept
Resilmount M24R Resilient Joiner Bracket
Resilmount M24R Resilient Joiner Bracket
By EZ Concept
M48R Resilmount Right Angle Resilient Mount Bracket
M48R Resilmount Right Angle Resilient Mount Bracket
By EZ Concept
M237R Furring Channel Resilient Mount Direct Fixing
M237R Furring Channel Resilient Mount Direct Fixing
By EZ Concept

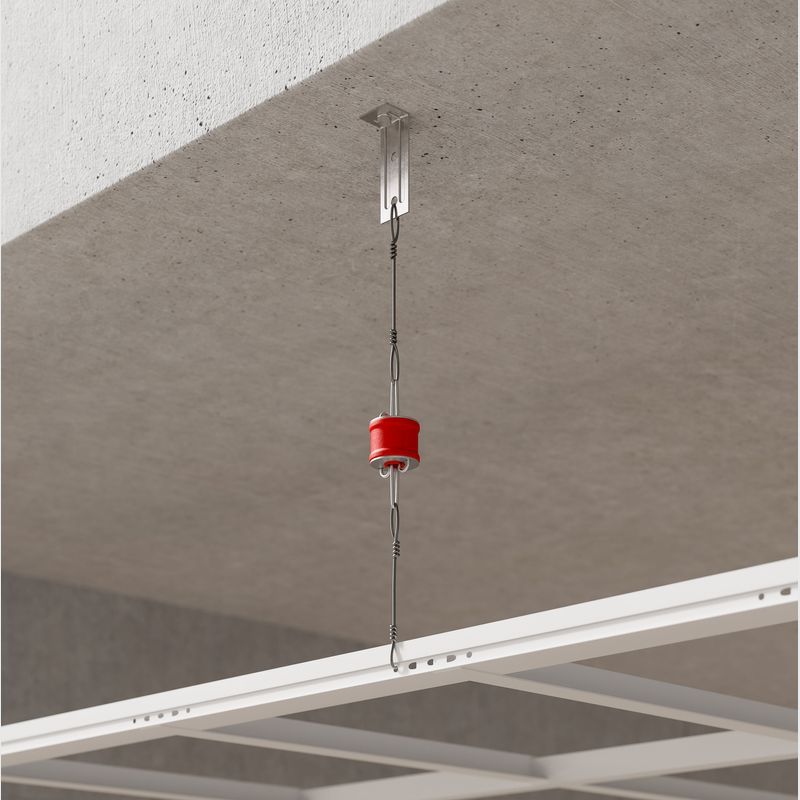

M50R Resilmount Isolation Hangers
