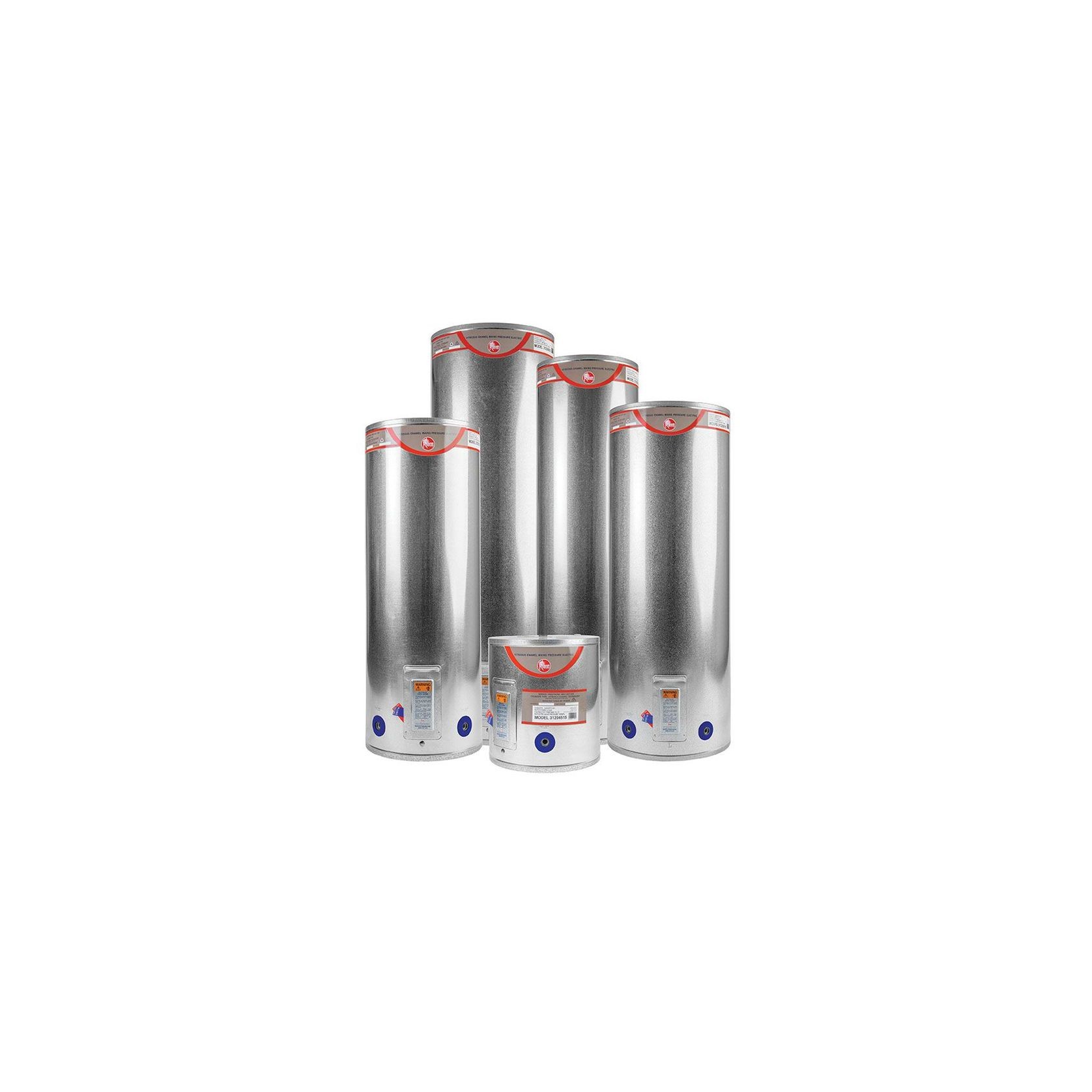

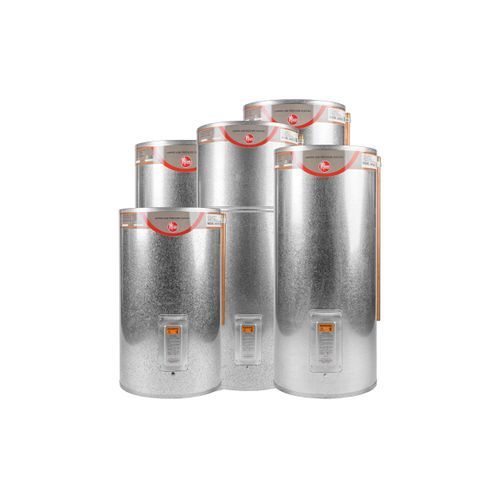

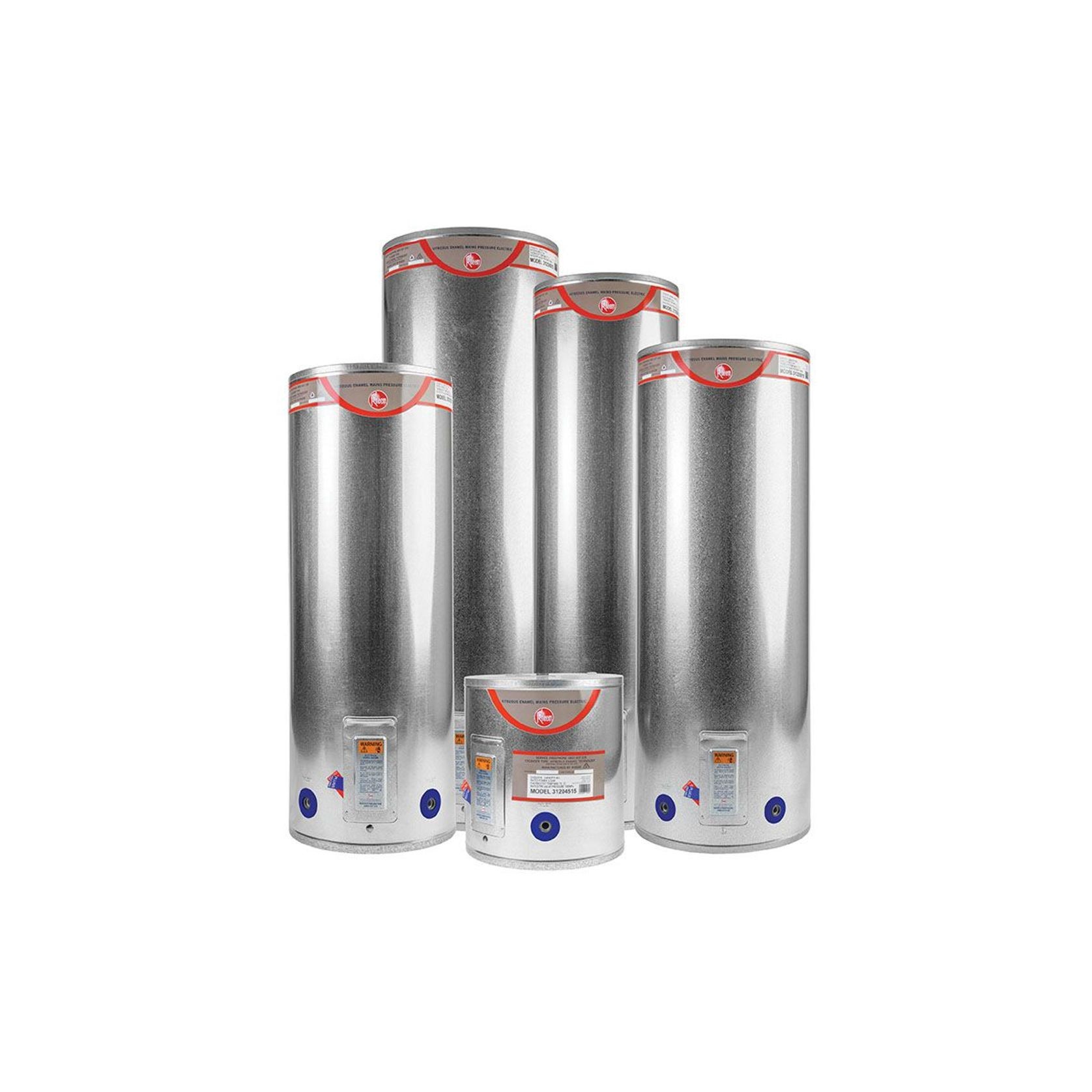

Mains Pressure VE Electric Hot Water Cylinder
by Rheem
Auckland, New Zealand
- 199.5K profile views
- 35 saves
Vitreous Enamel lined hot water cylinders provide the best corrosion resistance to a wide range of water conditions including varying pH levels, high chlorides, hard water and MIC (Microbiological Induced Corrosion) as found in parts of the country and areas with untreated bore water. This range continues to be popular in the hot water storage market and superior durability in all water conditions.
Features
- All Vitreous Enamel (VE) water heaters are fitted with a sacrificial zinc/magnesium anode to provide additional corrosion protection to the cylinder in adverse water conditions
- Twin and dual element models available
- Also suitable for unequal pressure and low pressure uses
- 10 year cylinder warranty*
Sustainability Facts
- All VE water heaters meet or exceed the NZ MEPS (Minimum Energy Performance Standards).
- The water heaters have recyclable galvanised steel jackets (outer casing) and steel (inner) tanks, as well as recyclable valves. Recyclable cardboard packaging is used only on the top rim of the water heater, meaning there is no unnecessary waste.
- High quality Solstice ZD insulation allows the optimum water temperature to be maintained longer, which results in reduced energy usage and lower costs. Solstice ZD also has very low GWP (Global Warming Potential) and zero ozone-depleting properties.
* The specified cylinder residential warranty period and the commercial warranty period are for VE products manufactured after 1 June 2018.
Product Details
- Product
- Mains Pressure VE Electric Hot Water Cylinder
- Category
- Hot Water Cylinders
- Sold by
- Rheem
Rheem is specified by
RB StudioArchitects
Studio Brick ArchitectsArchitects
Jack McKinney ArchitectsArchitects
Origin HeritageArchitects
BOONArchitects
Hurley ArchitectsArchitects
106 ArchitectsArchitects
Johnston ArchitectsArchitects
Dalman ArchitectsArchitects
Condon Scott ArchitectsArchitects
Landmark Homes Auckland - North Shore & RodneyBuilders
RCPProject Managers
AD ArchitectureArchitectural Designers
VitruvionConstruction
Hallmark HomesDesign & Build
Cogan Custom HomesBuilders
Emandee HomesBuilders
Vitreous Enamel lined hot water cylinders provide the best corrosion resistance to a wide range of water conditions including varying pH levels, high chlorides, hard water and MIC (Microbiological Induced Corrosion) as found in parts of the country and areas with untreated bore water. This range continues to be popular in the hot water storage market and superior durability in all water conditions.
Features
- All Vitreous Enamel (VE) water heaters are fitted with a sacrificial zinc/magnesium anode to provide additional corrosion protection to the cylinder in adverse water conditions
- Twin and dual element models available
- Also suitable for unequal pressure and low pressure uses
- 10 year cylinder warranty*
Sustainability Facts
- All VE water heaters meet or exceed the NZ MEPS (Minimum Energy Performance Standards).
- The water heaters have recyclable galvanised steel jackets (outer casing) and steel (inner) tanks, as well as recyclable valves. Recyclable cardboard packaging is used only on the top rim of the water heater, meaning there is no unnecessary waste.
- High quality Solstice ZD insulation allows the optimum water temperature to be maintained longer, which results in reduced energy usage and lower costs. Solstice ZD also has very low GWP (Global Warming Potential) and zero ozone-depleting properties.
* The specified cylinder residential warranty period and the commercial warranty period are for VE products manufactured after 1 June 2018.
- Specs / Details
Available in the following model configurations:
- MPVE 31202519V | 25L | 400 x 398H | 2.0kW
- MPVE 31204503 | 43L | 488 x 525H | 2.0kW
- MPVE 31204505 | 43L | 488 x 525H | 3.0kW
- MPVE 31209013 | 88L | 488 x 930H | 2.0kW
- MPVE 31209015 | 88L | 488 x 930H | 3.0kW
- MPVE 31213513 | 133L | 488 x 1330H | 2.0kW
- MPVE 31213515 | 133L | 488 x 1330H | 3.0kW
- MPVE 32213513 | 135L | 580 x 935H | 2.0kW
- MPVE 32213515 | 135L | 580 x 935H | 3.0kW
- MPVE 31218013 | 177L | 488 x 1715H | 2.0kW
- MPVE 31218015 | 177L | 488 x 1715H | 3.0kW
- MPVE 31218025 | 177L | 488 x 1715H | 2 x 3.0kW non-simultaneous
- MPVE 32218013 | 177L | 580 x 1165H | 2.0kW
- MPVE 32218015 | 177L | 580 x 1165H | 3.0kW
- MPVE 31225015 | 247L | 580 x 1555H | 3.0kW
- MPVE 31225025 | 247L | 580 x 1555H | 2 x 3.0kW non-simultaneous
- MPVE 31230015 | 294L | 580 x 1820H | 3.0kW
- MPVE 31230033 | 294L | 580 x 1820H | 2 x 3.0kW simultaneous
- MPVE 31230055 | 294L | 580 x 1820H | 2 x 5.0kW simultaneous
