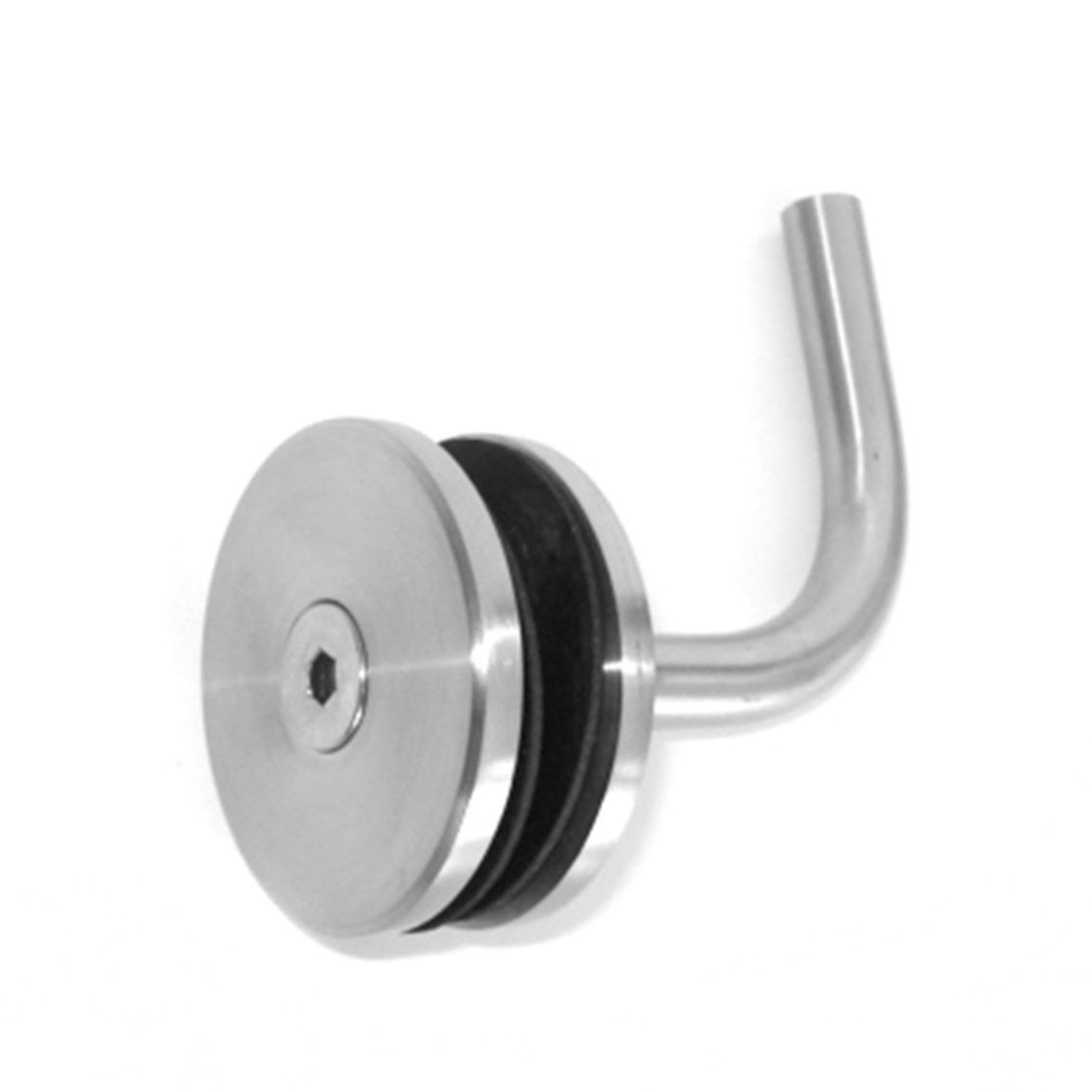

Milano Glaze Handrail Bracket
- 110.8K profile views
- 4 saves

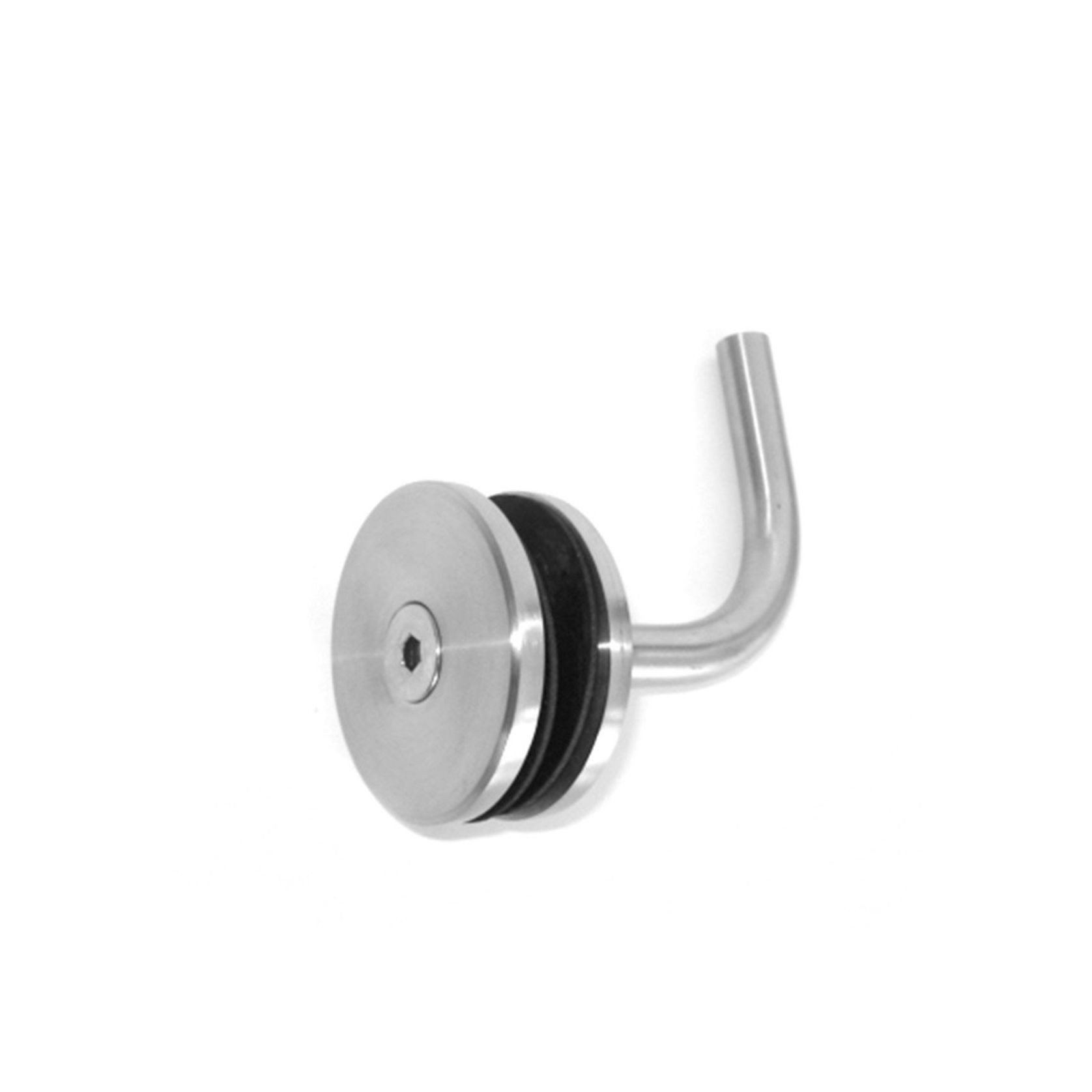

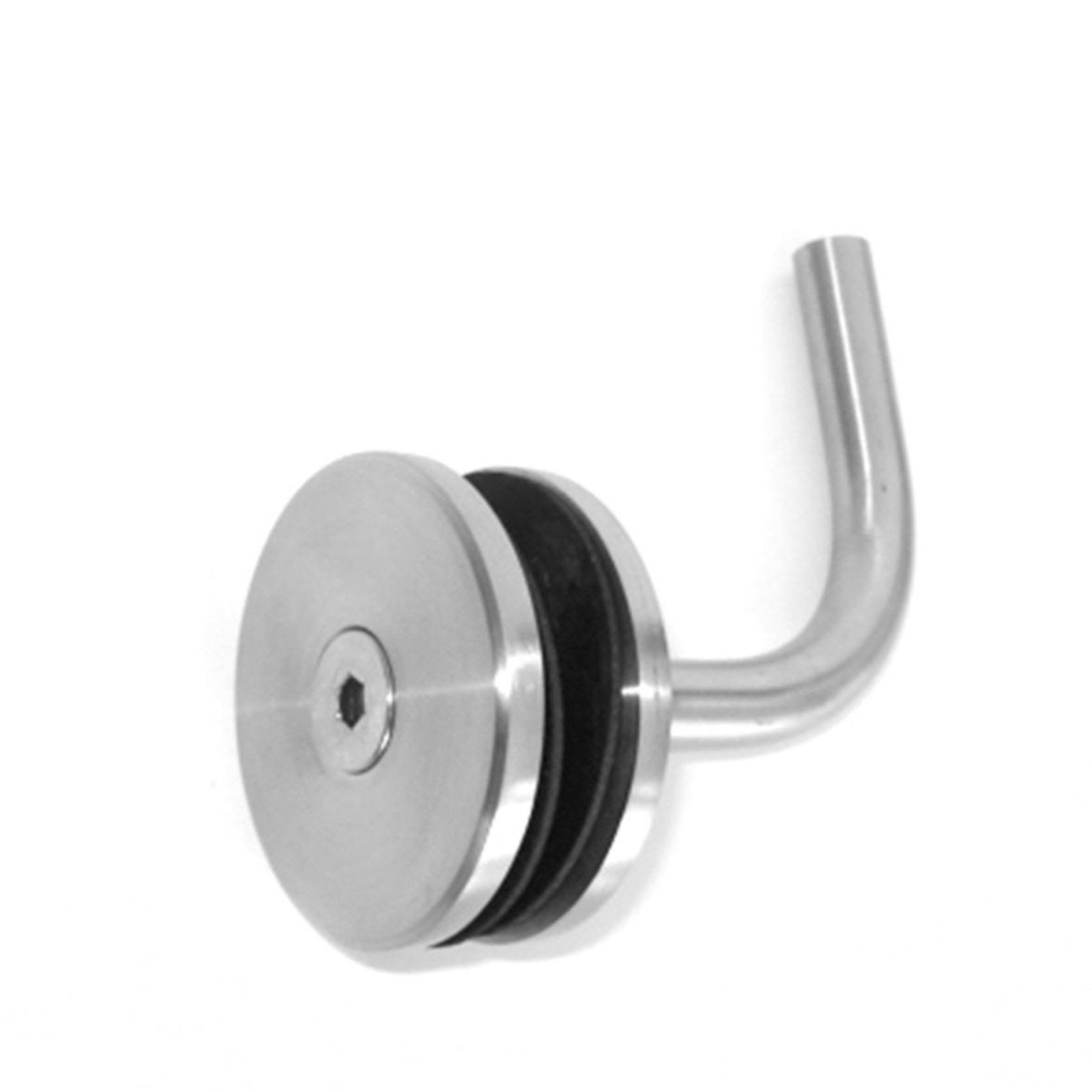

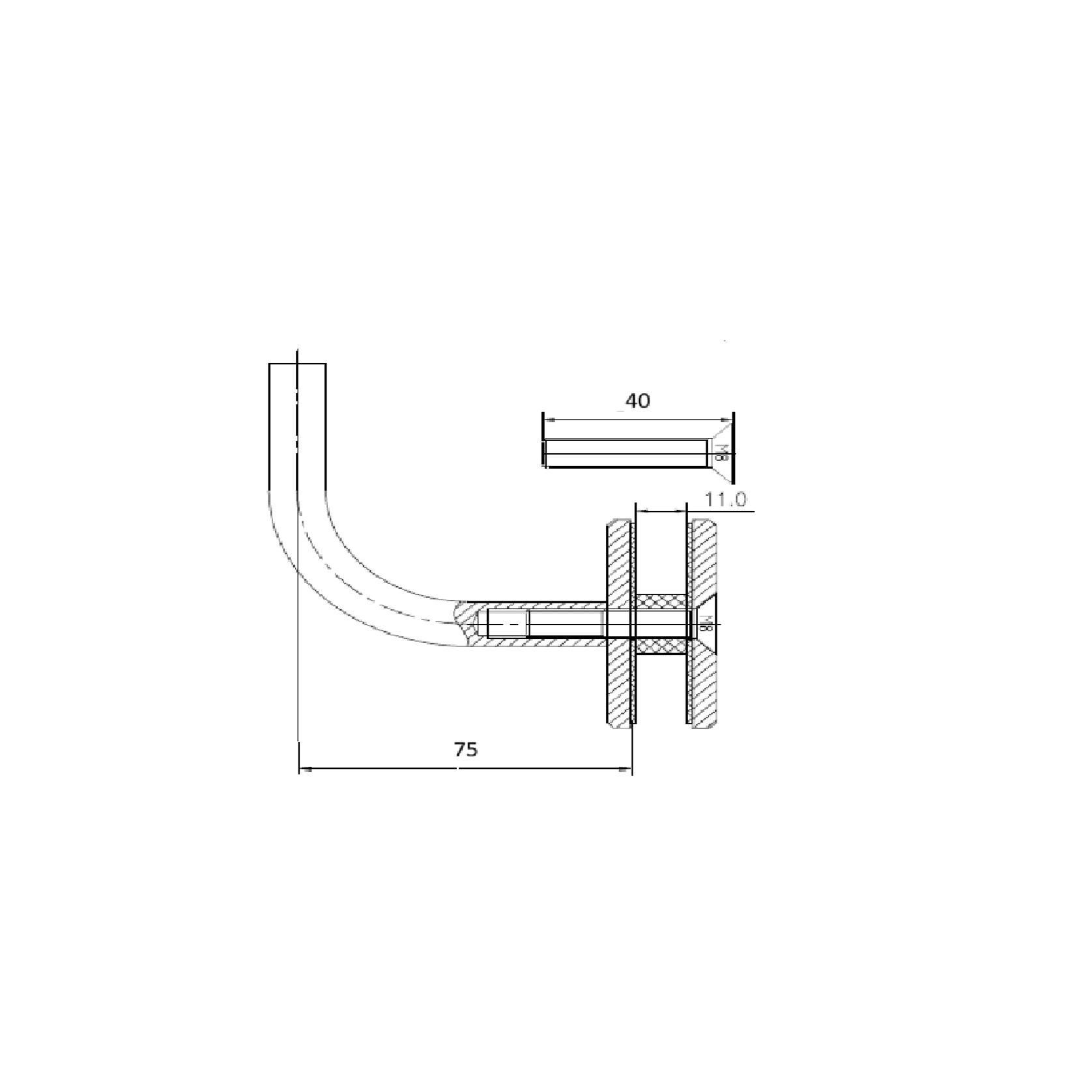

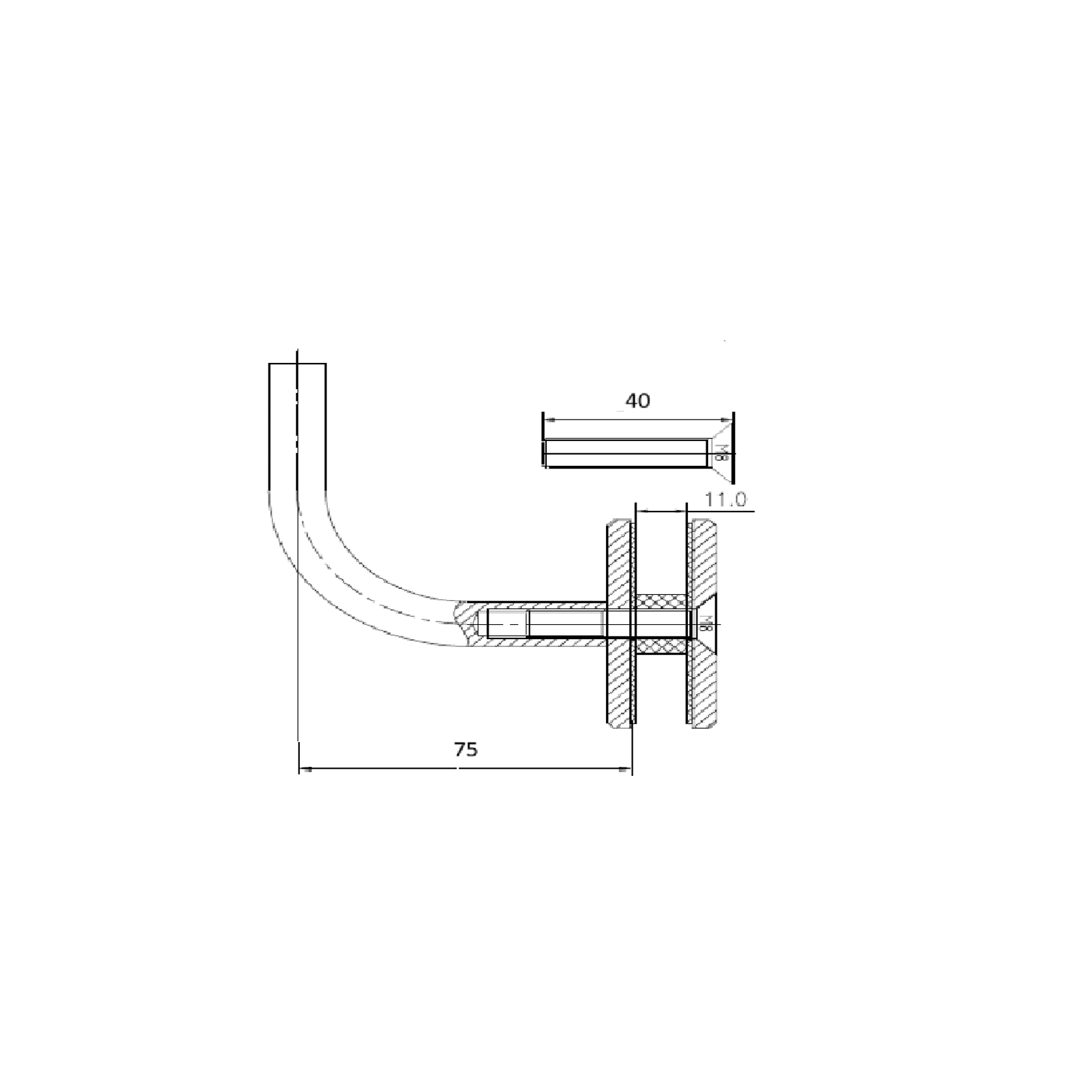

Handrail Bracket for Fixing Handrail to Glass Balustrade - 56mm Diameter Machined Buttons
Fits glass 6 - 15mm thick.
Suitable for both commercial and residential use with both interior or exterior applications.
- Solid 56mm x 5mm buttons (matches Milano wall bracket (HBFCP)
- All bushes and washers supplied

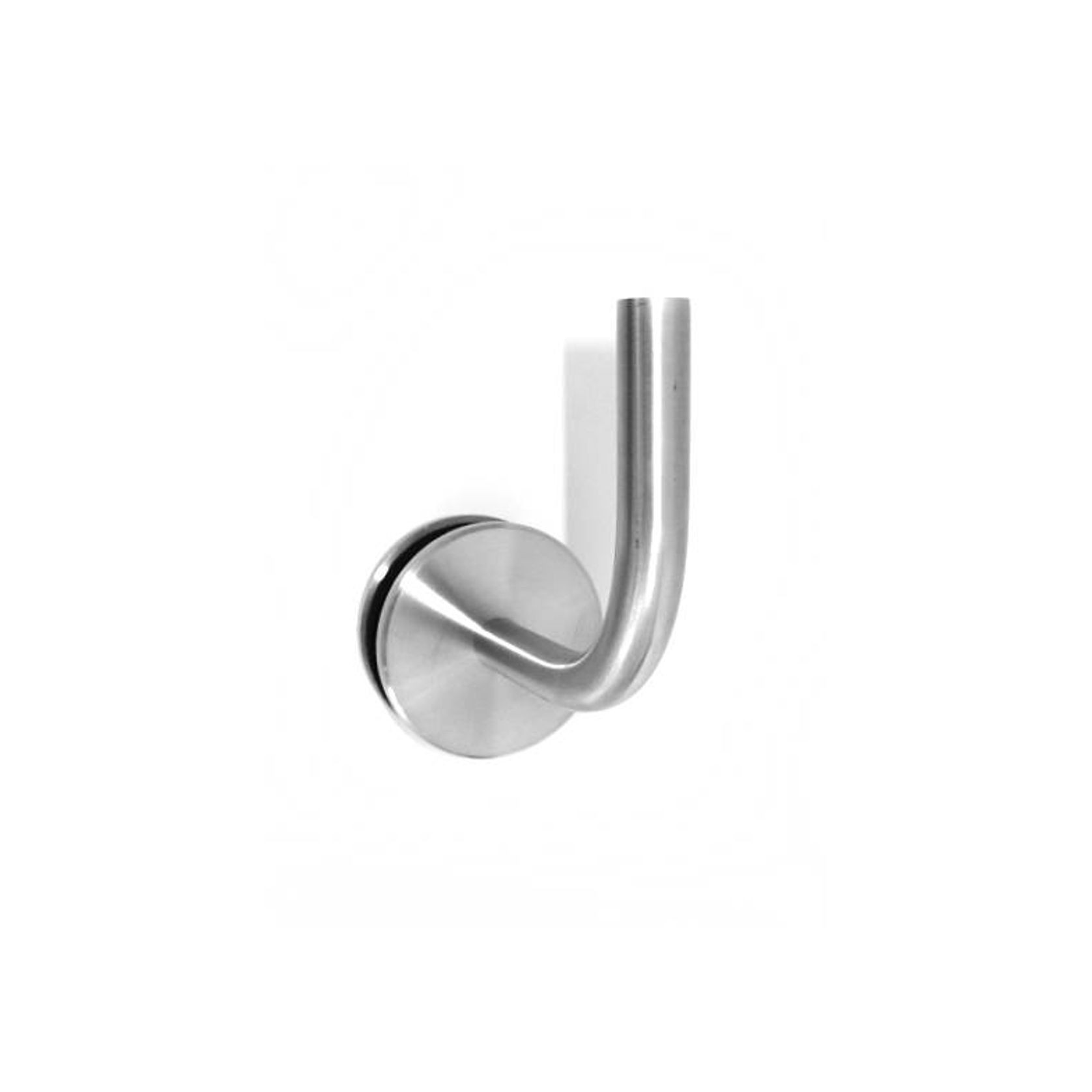

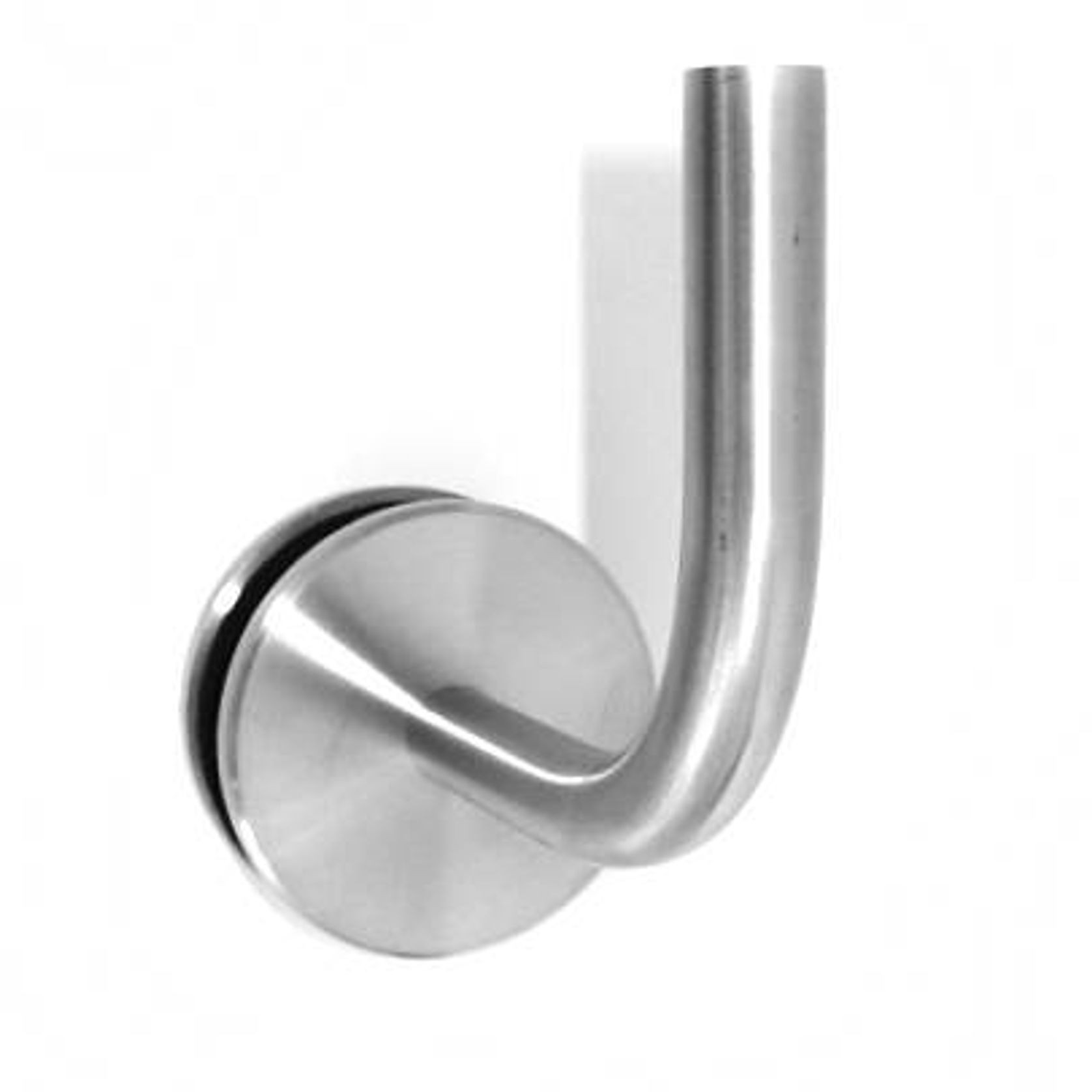

- Weld on and saddle options available:curved saddle to fit handrail profiles from 38mm diameter

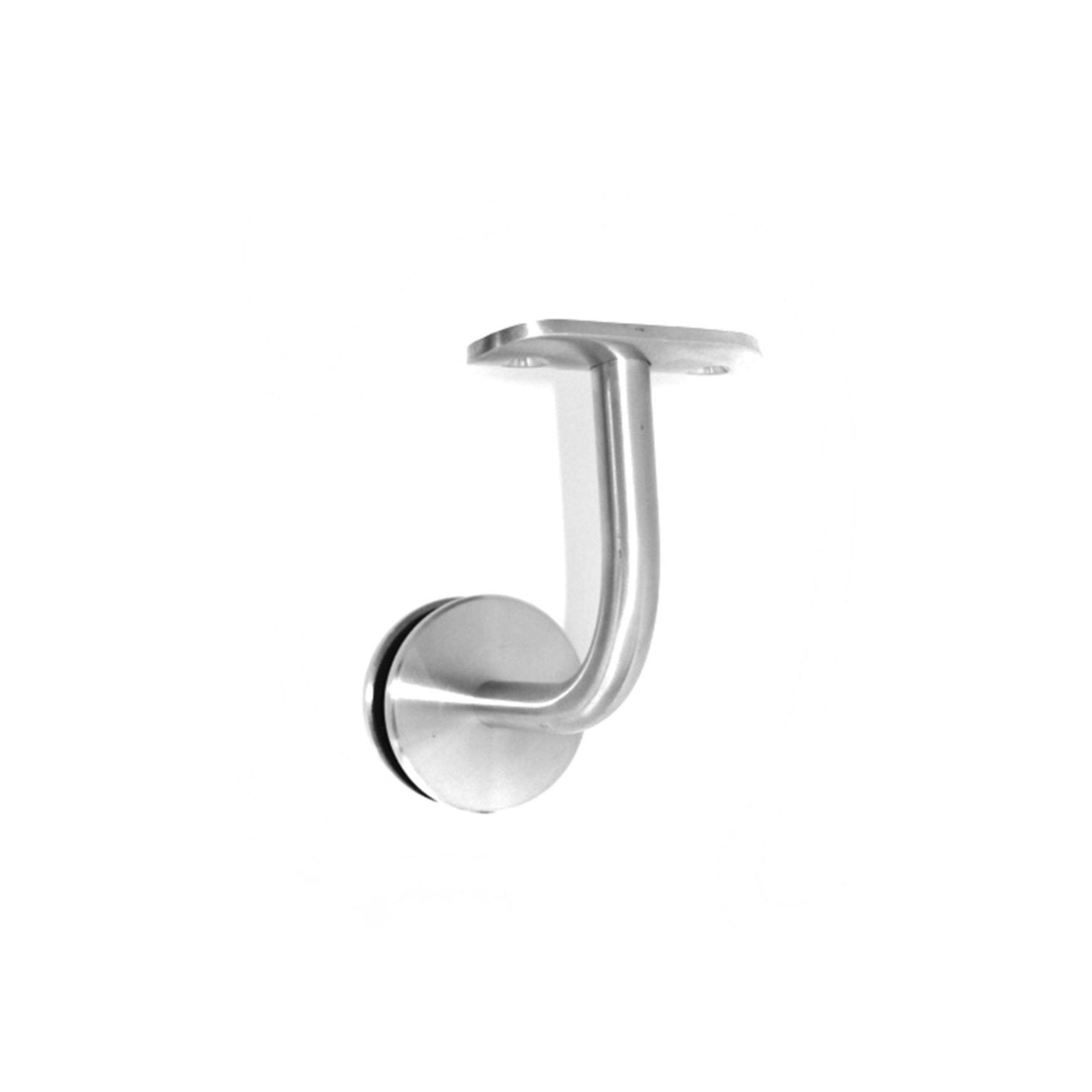

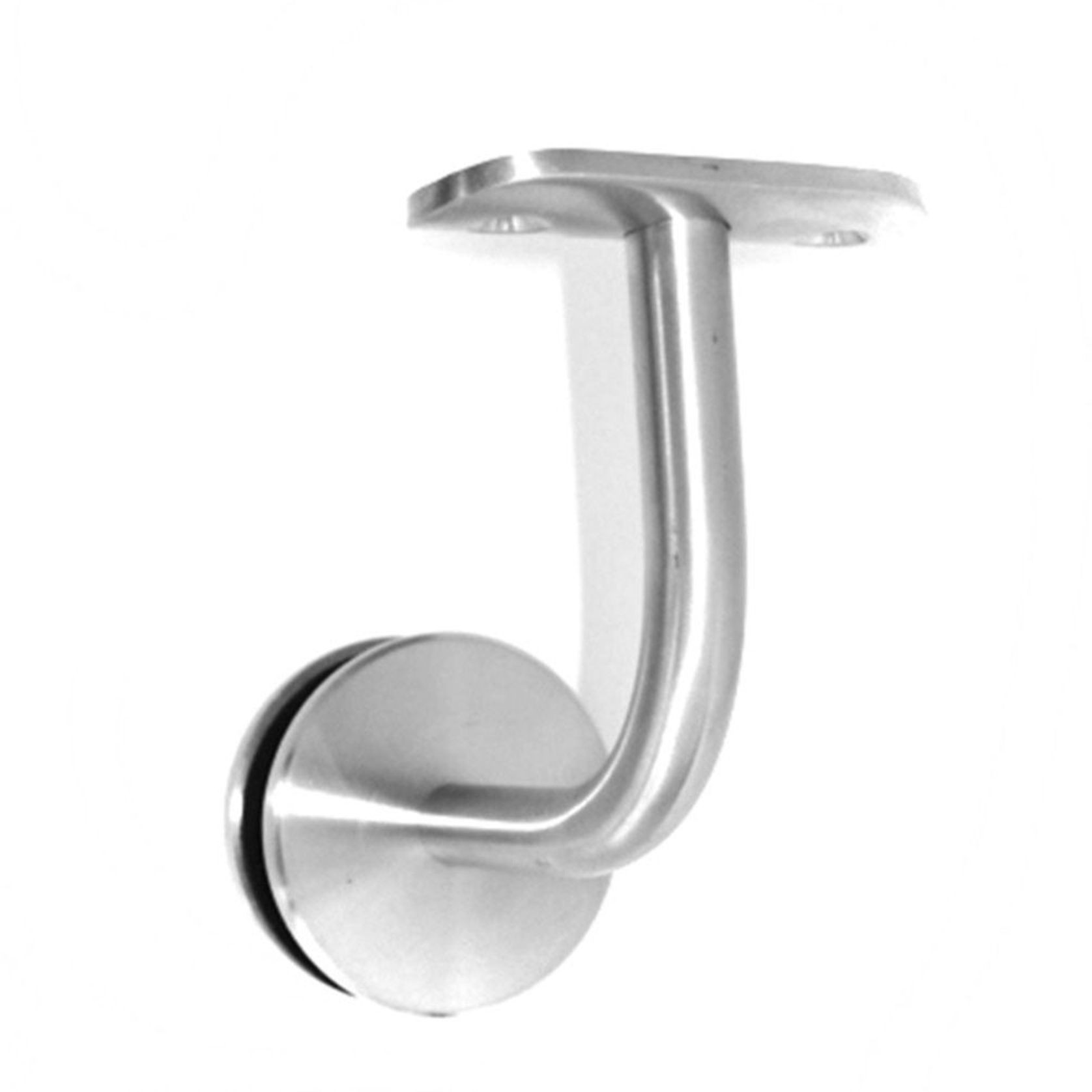

flat saddle to fit flat handrail profiles - Hole size required 18mm
Materials Available:
- AISI 304 Satin Finish
- AISI 316 Satin & Mirror Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
Product Details
- Product
- Milano Glaze Handrail Bracket
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
- Warranty
- Lifetime
Material
Handrail Bracket for Fixing Handrail to Glass Balustrade - 56mm Diameter Machined Buttons Fits glass 6 - 15mm thick.
Suitable for both commercial and residential use with both interior or exterior applications.
- Solid 56mm x 5mm buttons (matches Milano wall bracket (HBFCP)
- All bushes and washers supplied
- Weld on and saddle options available:curved saddle to fit handrail profiles from 38mm diameter
flat saddle to fit flat handrail profiles - Hole size required 18mm
Materials Available:
- AISI 304 Satin Finish
- AISI 316 Satin & Mirror Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
- Scope of use
Residential
Commercial
Interior
Exterior
Marine
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
