Quadro Pico Handrail Bracket
- 110.9K profile views
- 4 saves

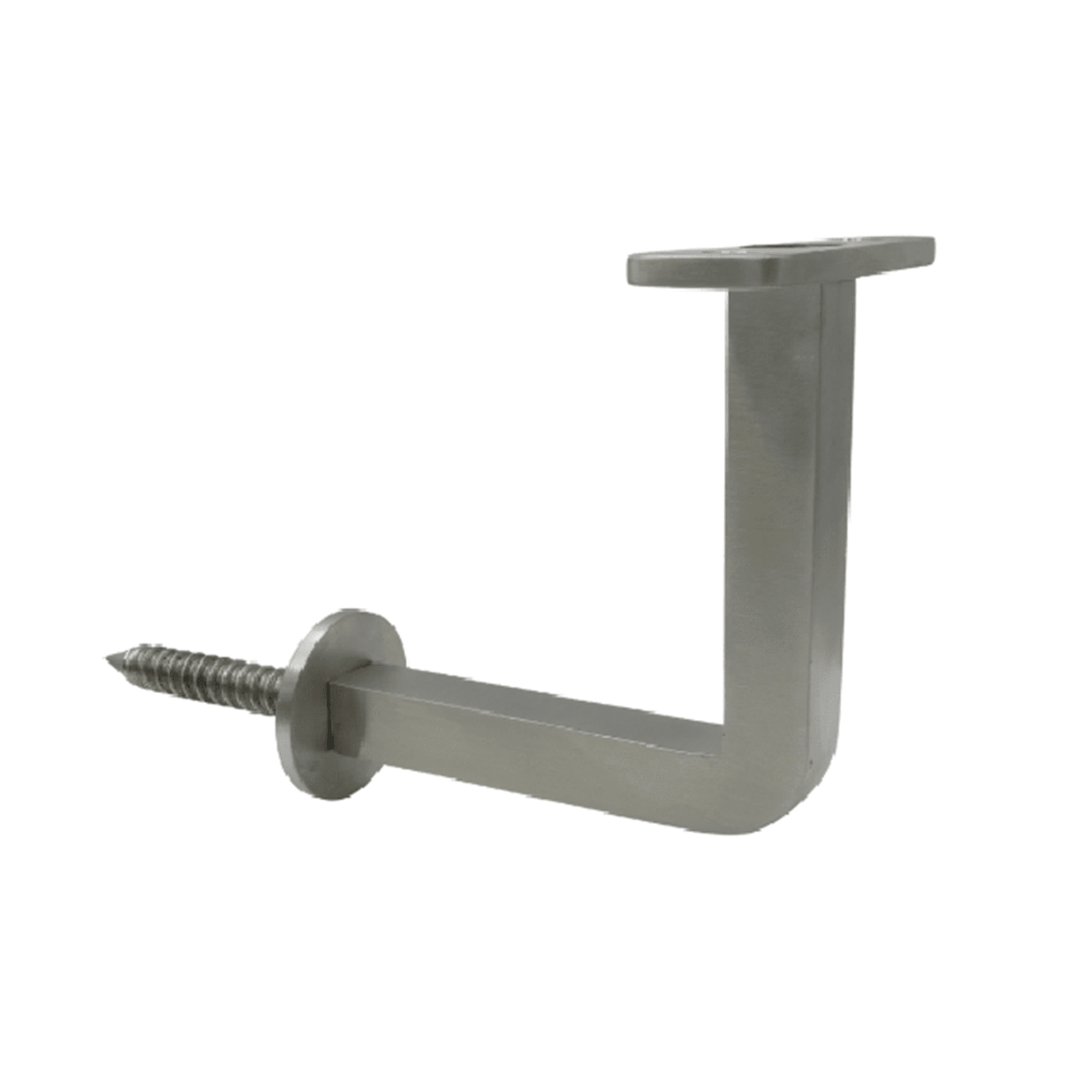

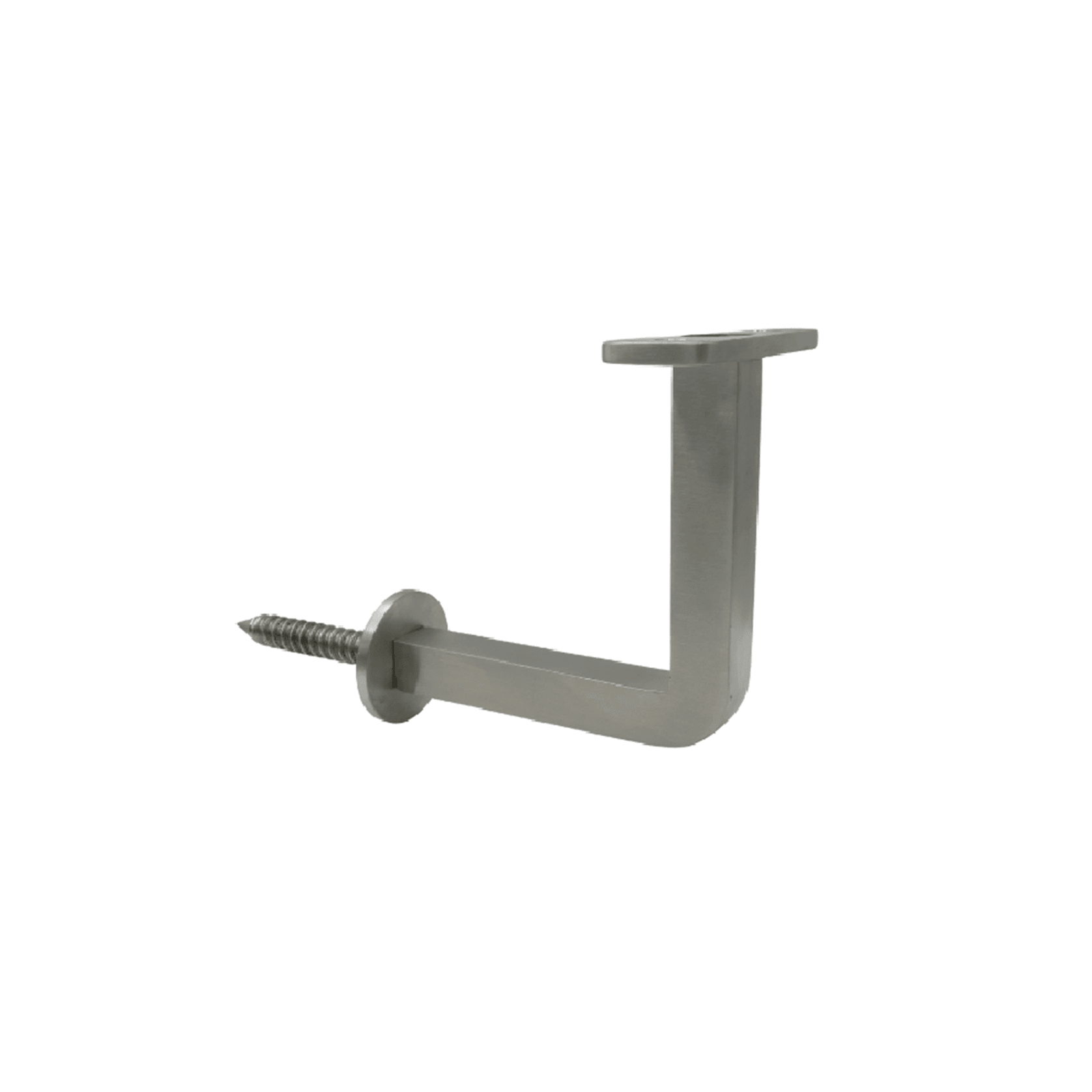

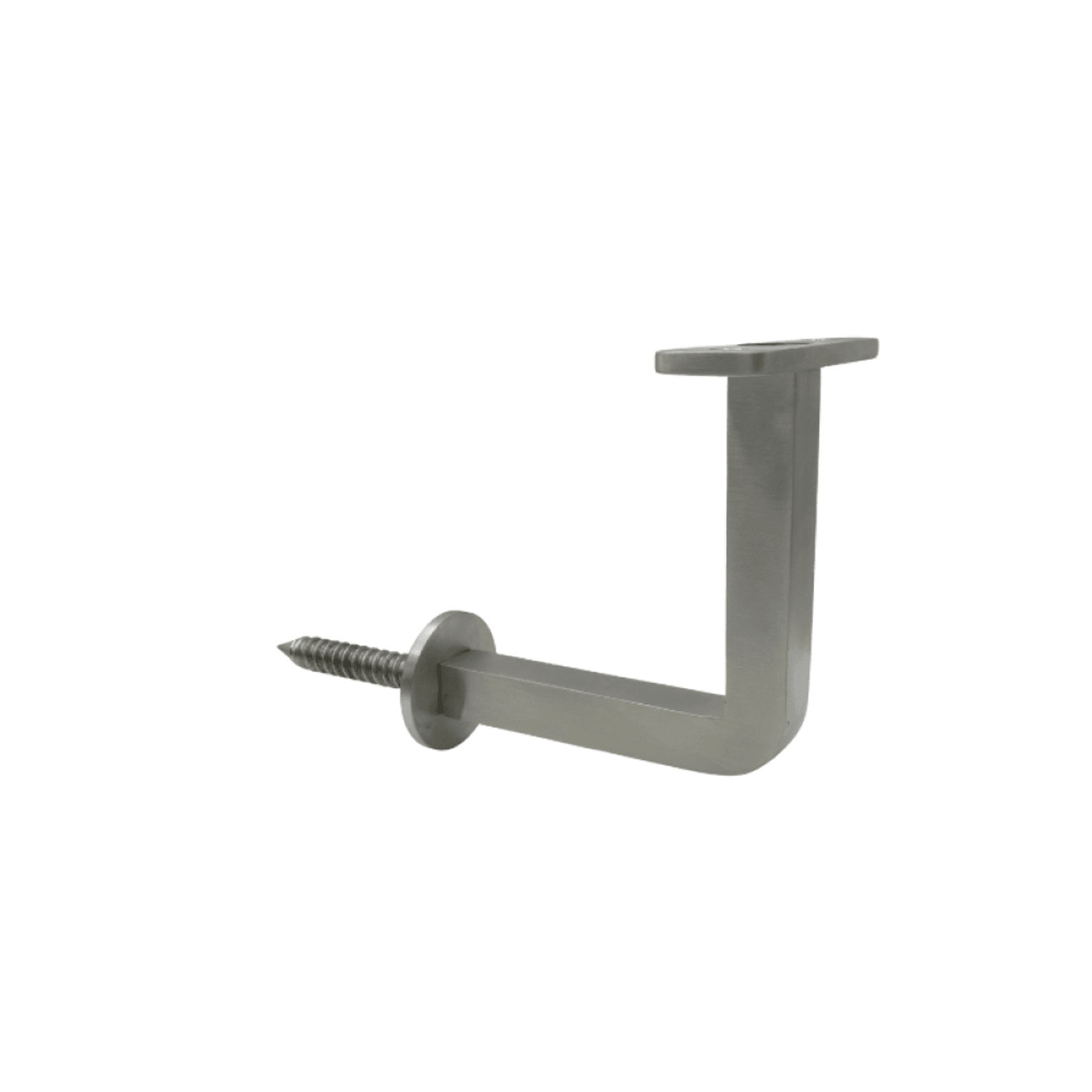

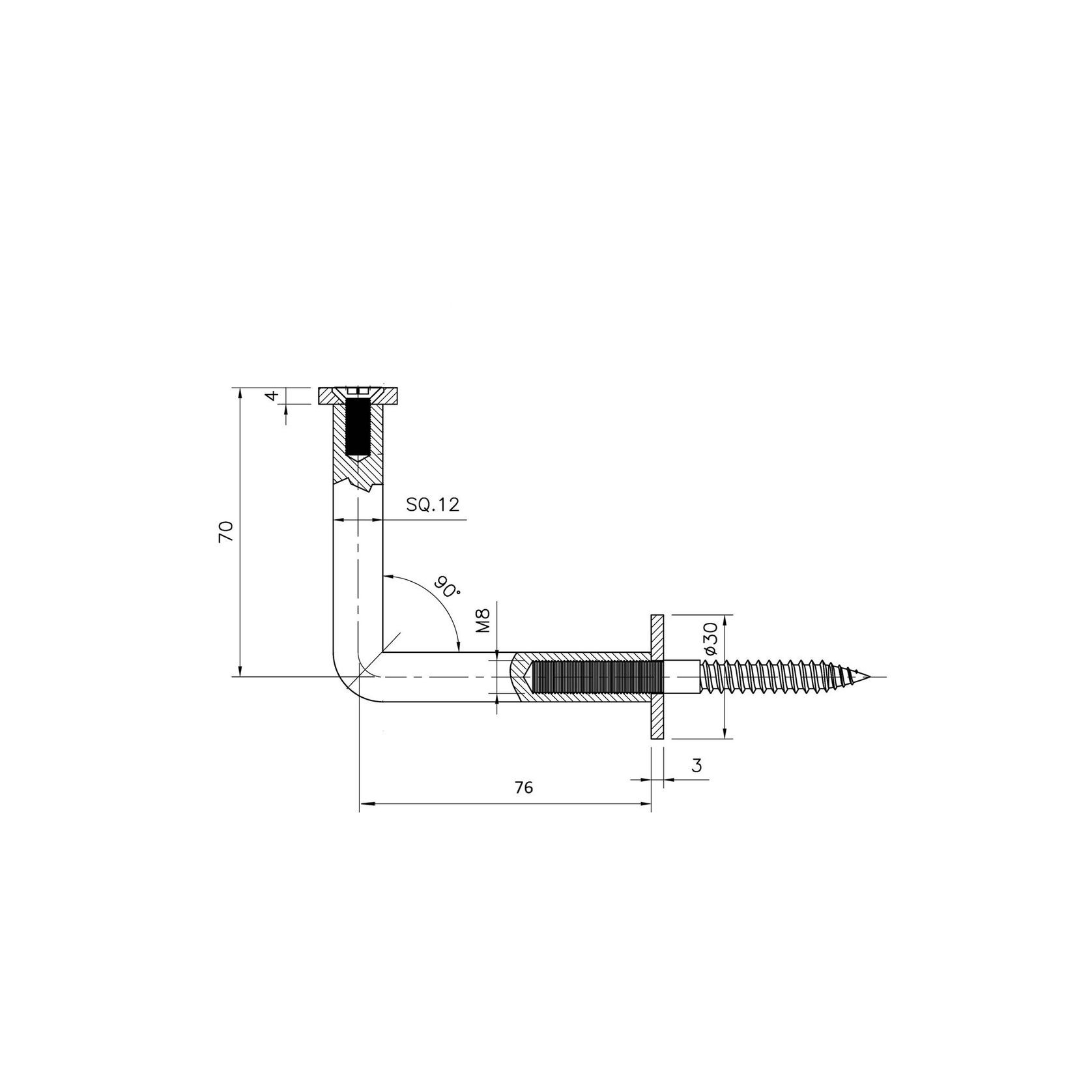

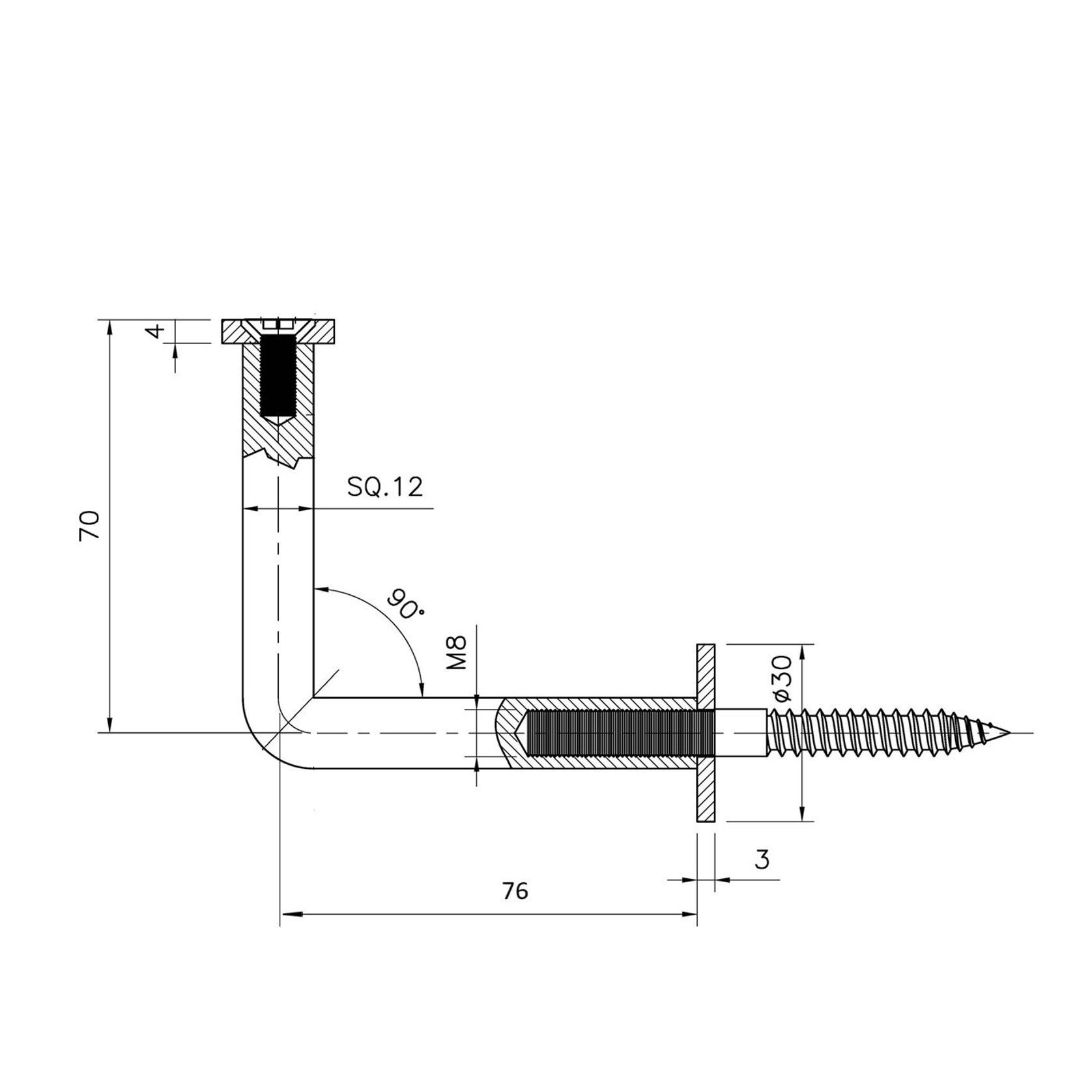

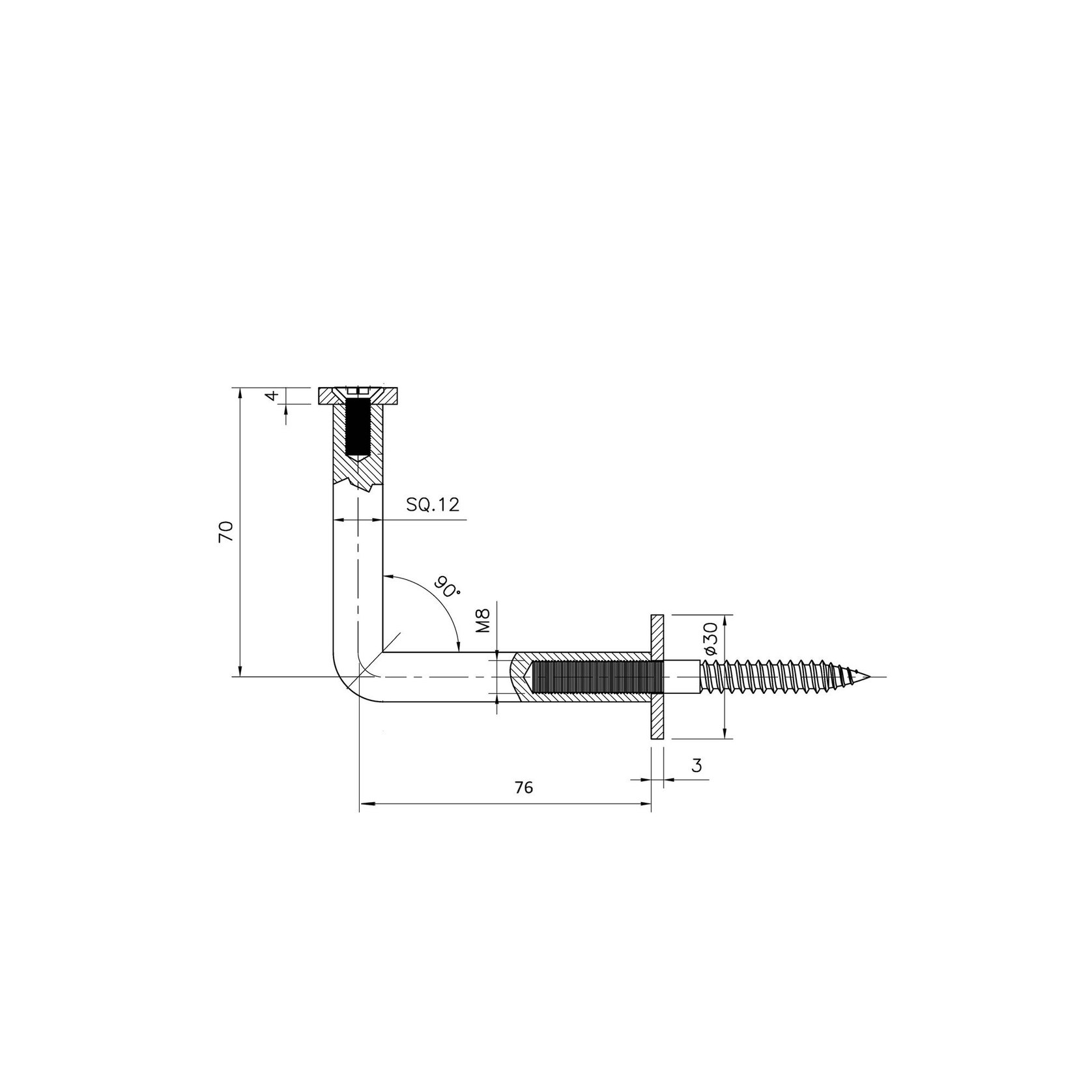

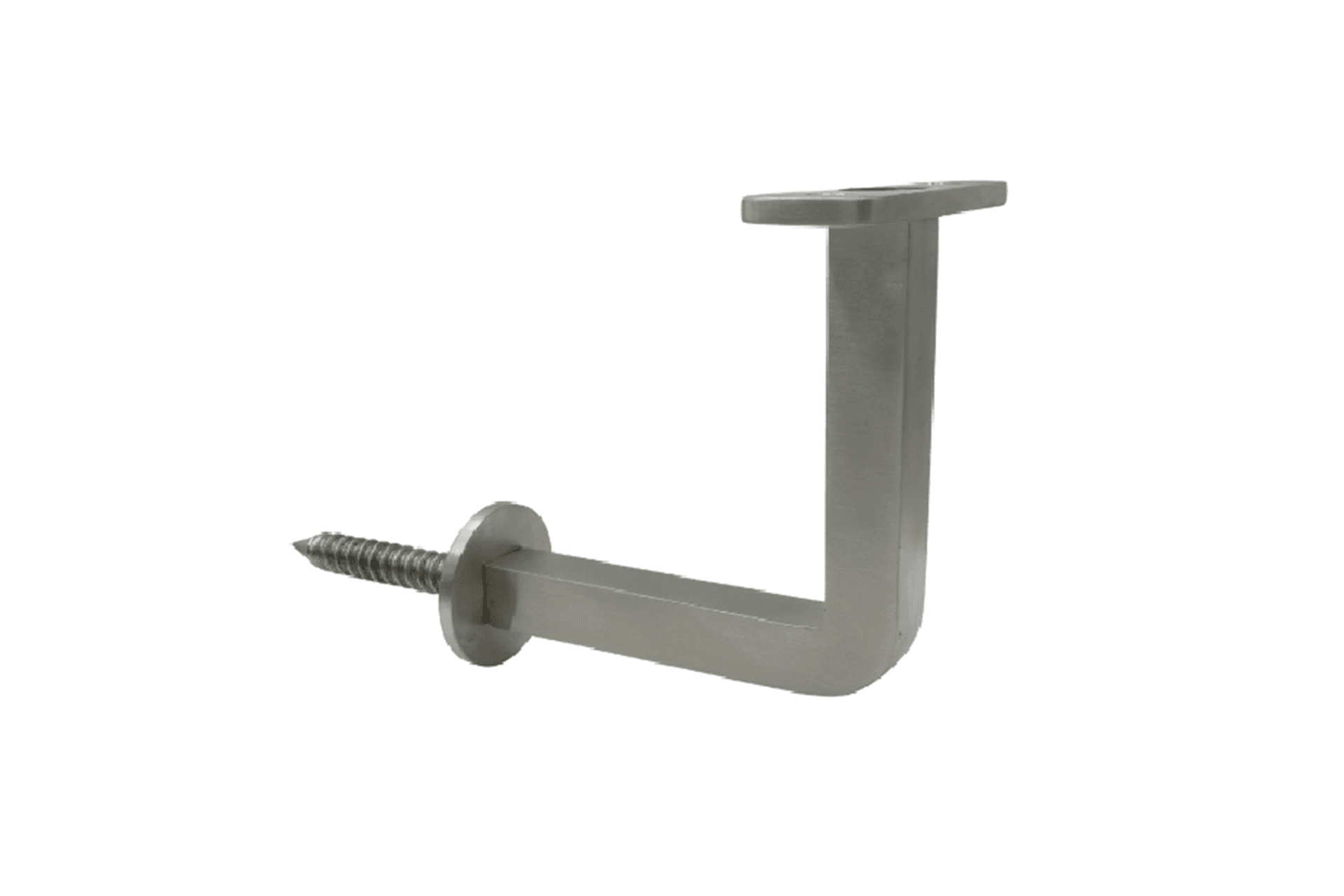

Quadro Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied). 30mm round base against the wall, with a square 90-degree elbow.
Product Details
- Product
- Quadro Pico Handrail Bracket
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
- Warranty
- Lifetime
Types
Bracket Type
Quadro Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied).
30mm round base against the wall, with a square 90-degree elbow.
- Specs
Suitable for internal & external applications.
Weld on and saddle options available:
- Flat saddle to fit flat handrail profiles
Materials Available:
- AISI 316 Satin Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
It is recommended to only use hand tools or the bracket itself to wind the lag screws into the fixing point. Power tools could damage the lag screws.
- Scope of use
Commercial
Residential
Internal
External
Marine
- Available Options
Bracket Type:

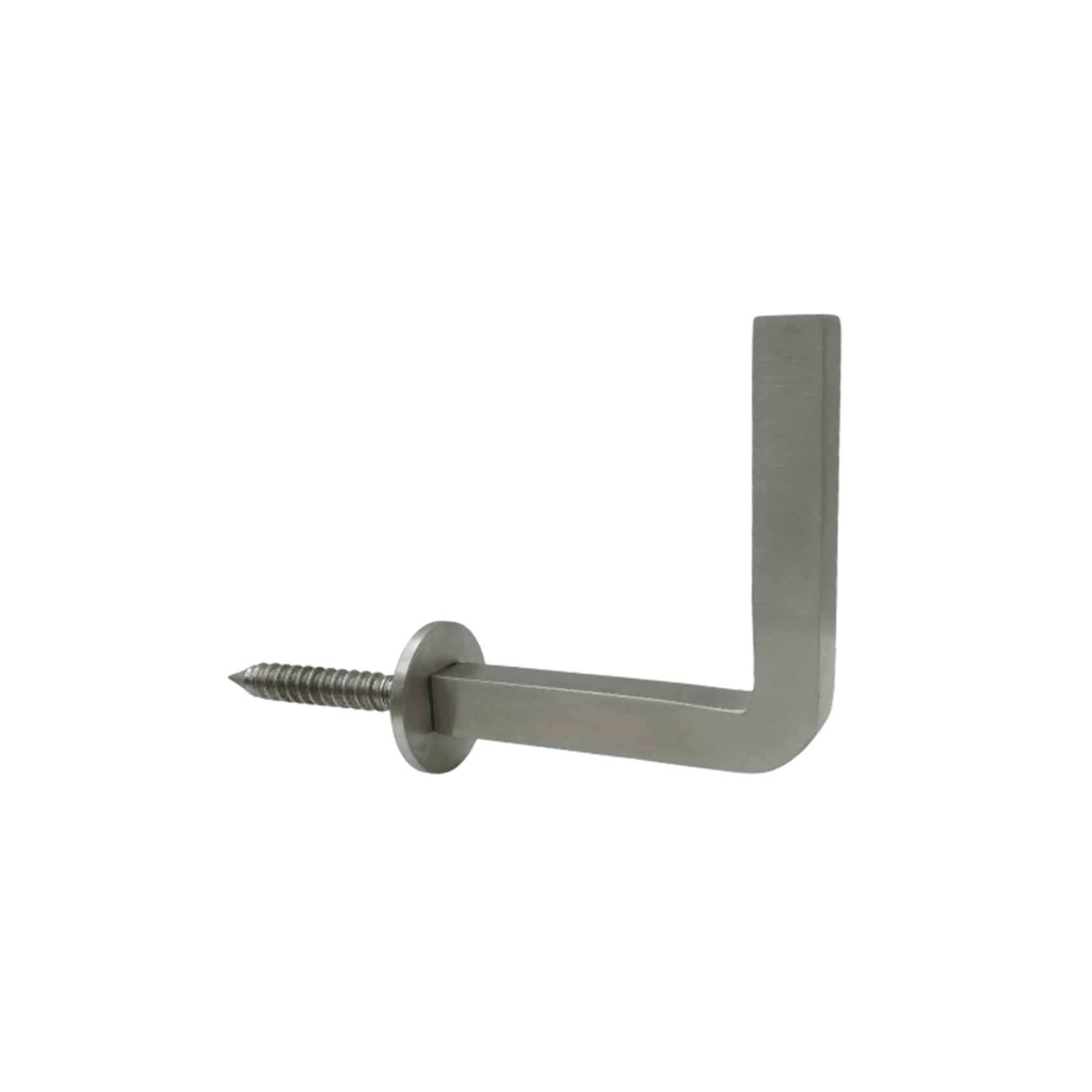

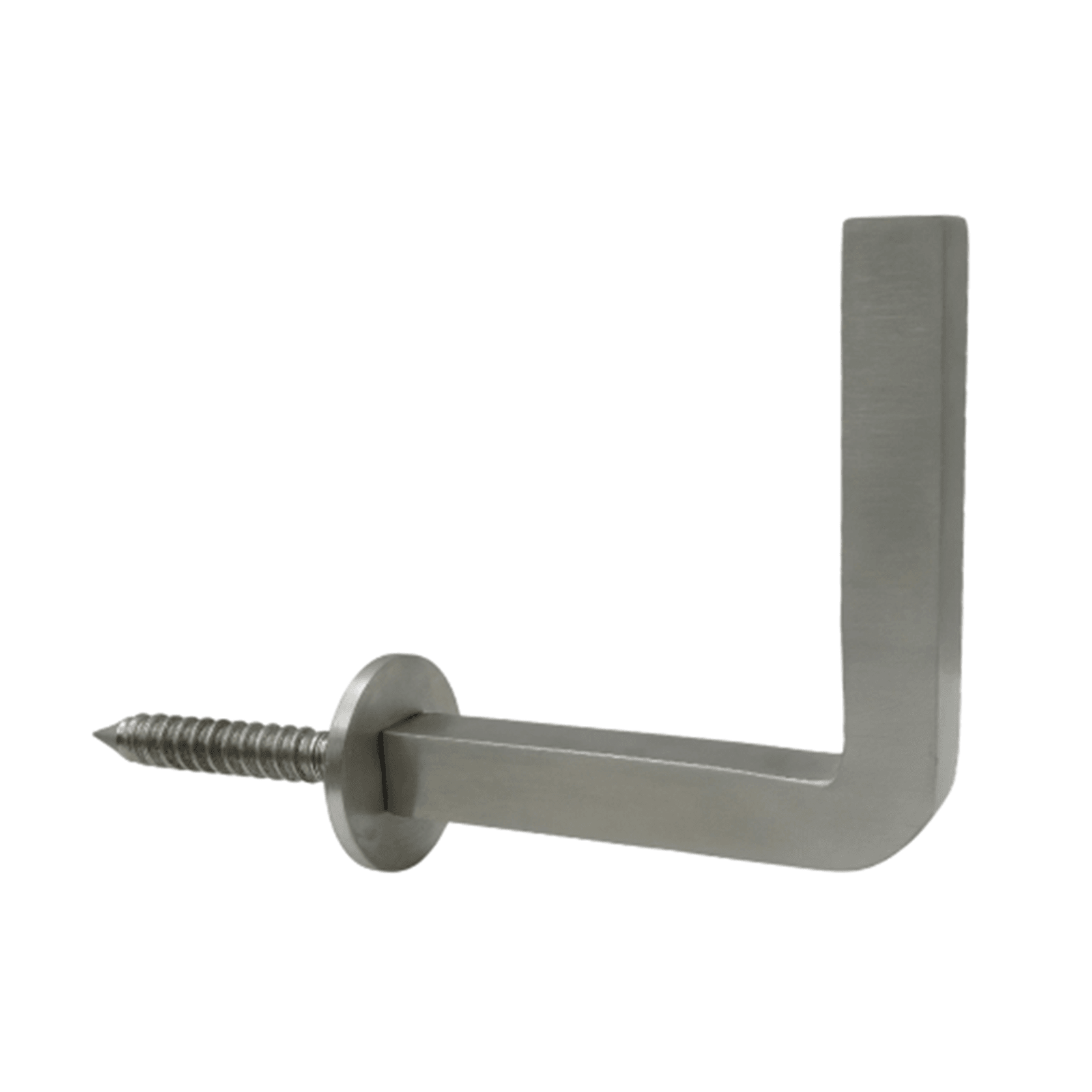

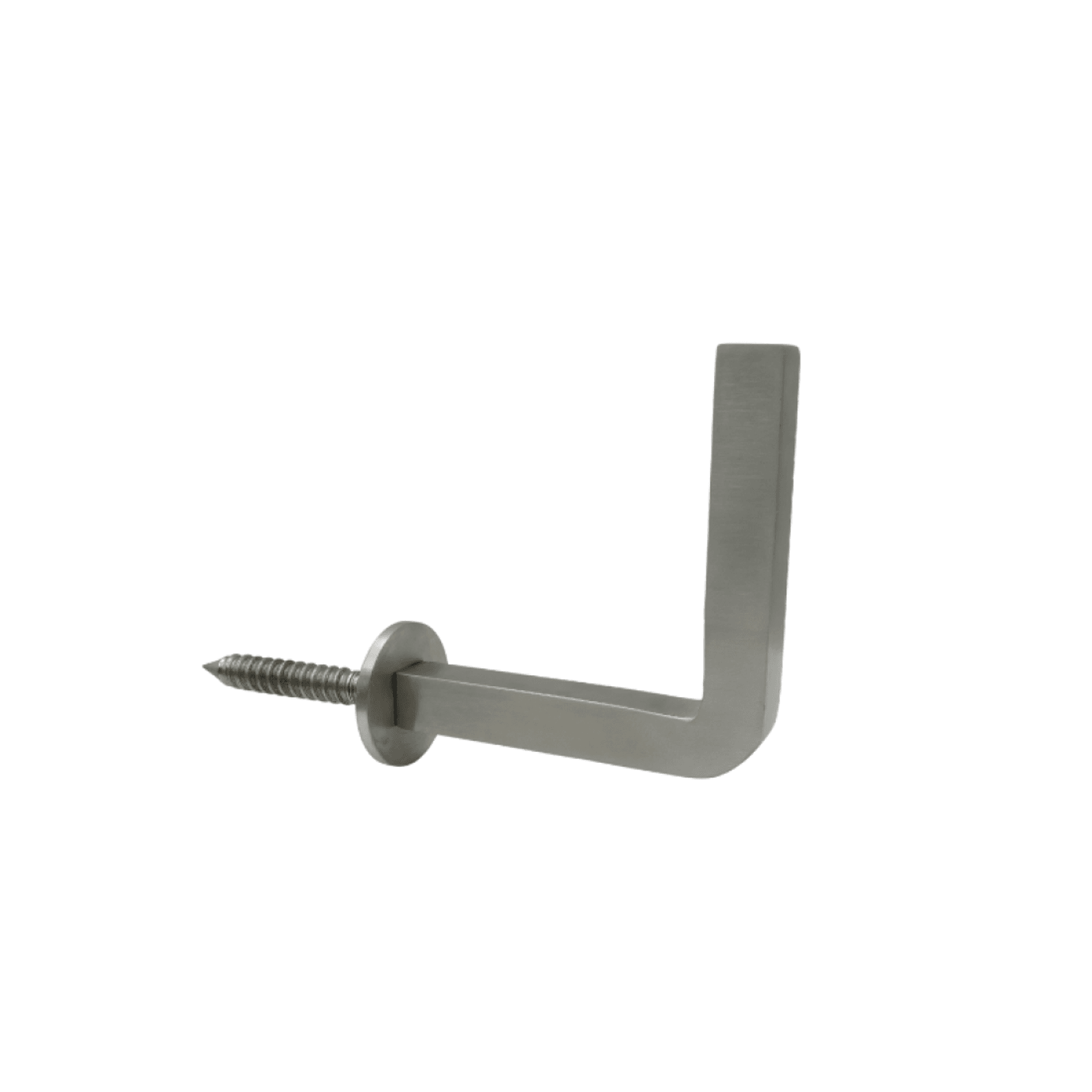

Weld On
Code: HBCFSQW316S (316 Satin)With Saddle
Code: HBCFSQWS316S (S316 Satin)
