Modena Glaze Handrail Bracket
- 112.7K profile views
- 4 saves

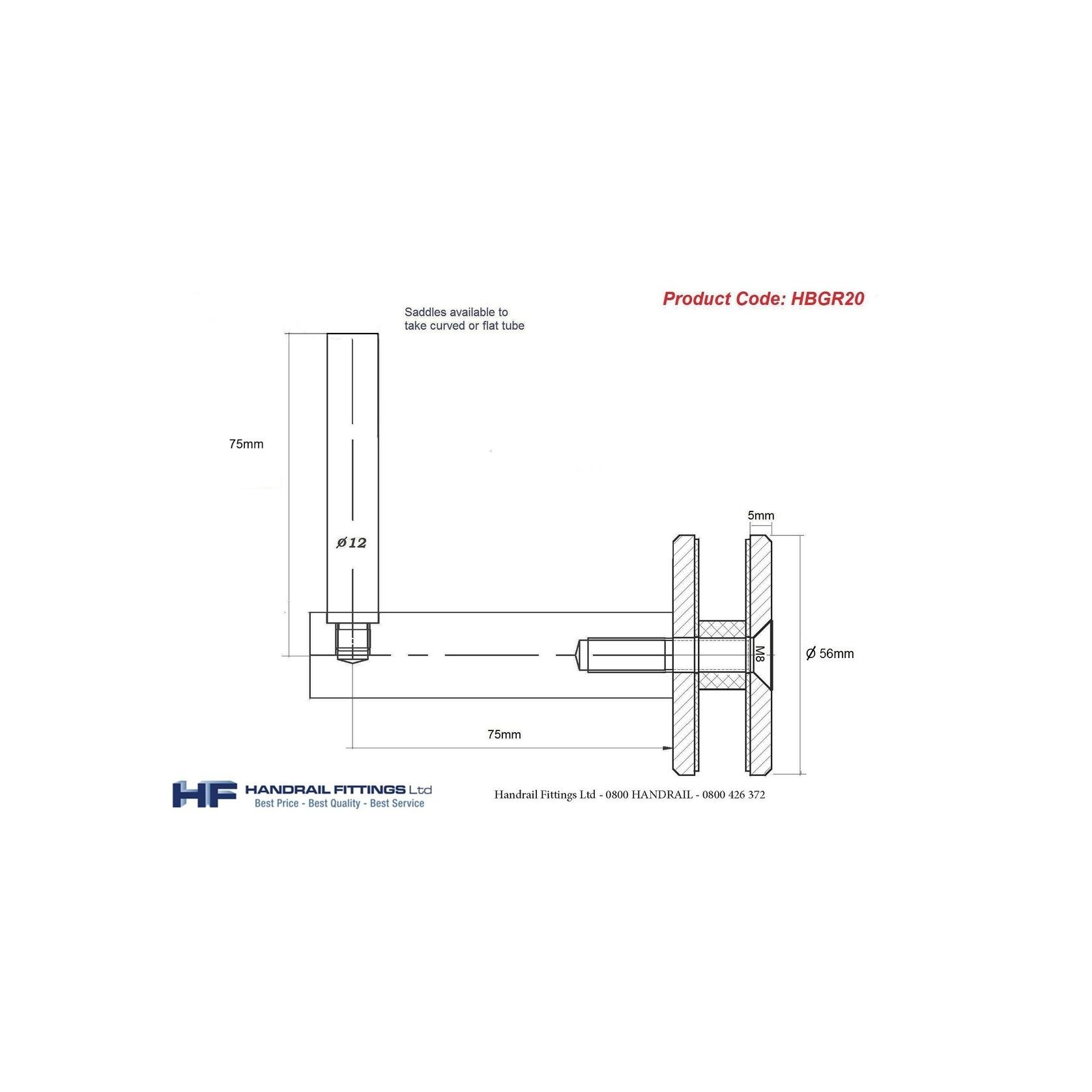

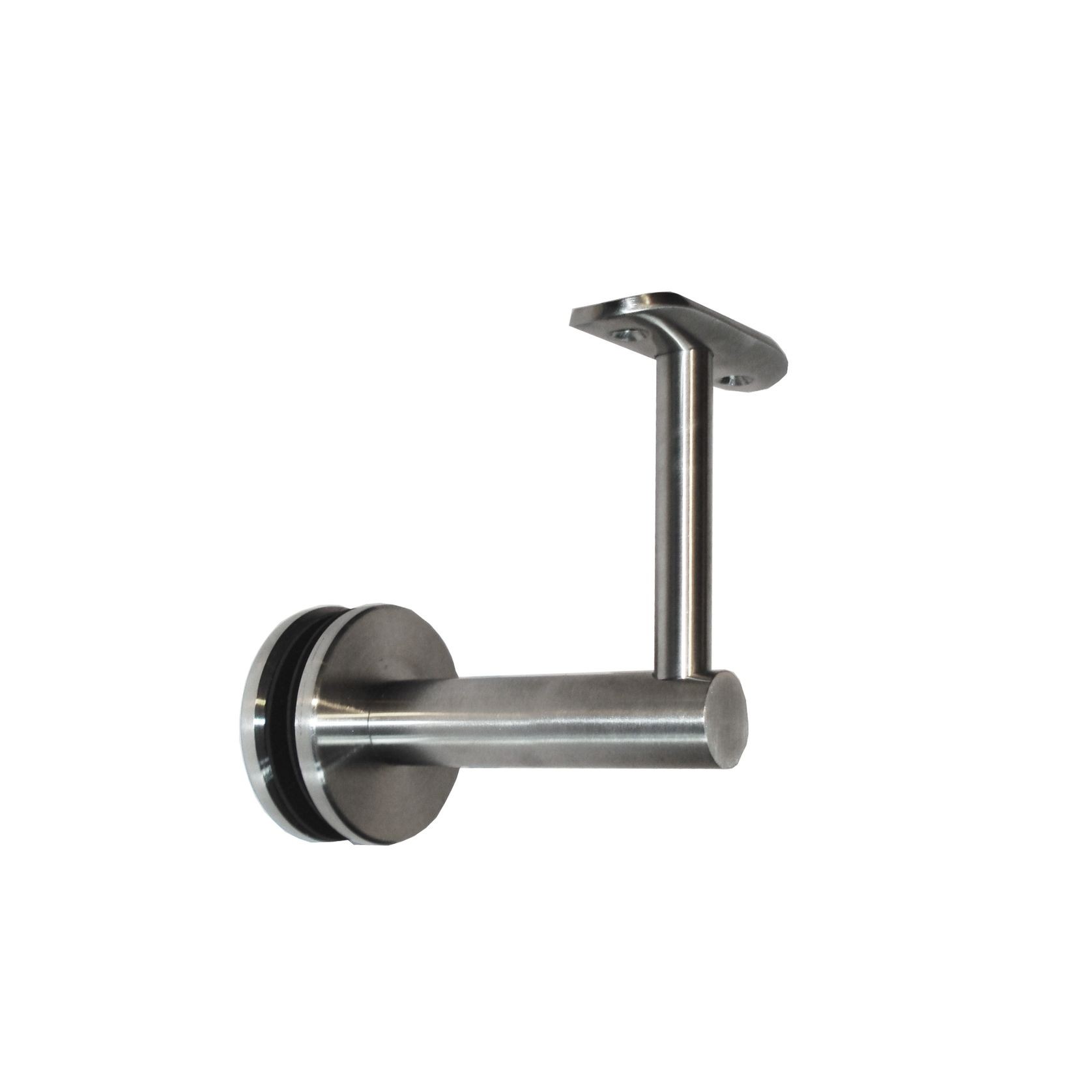

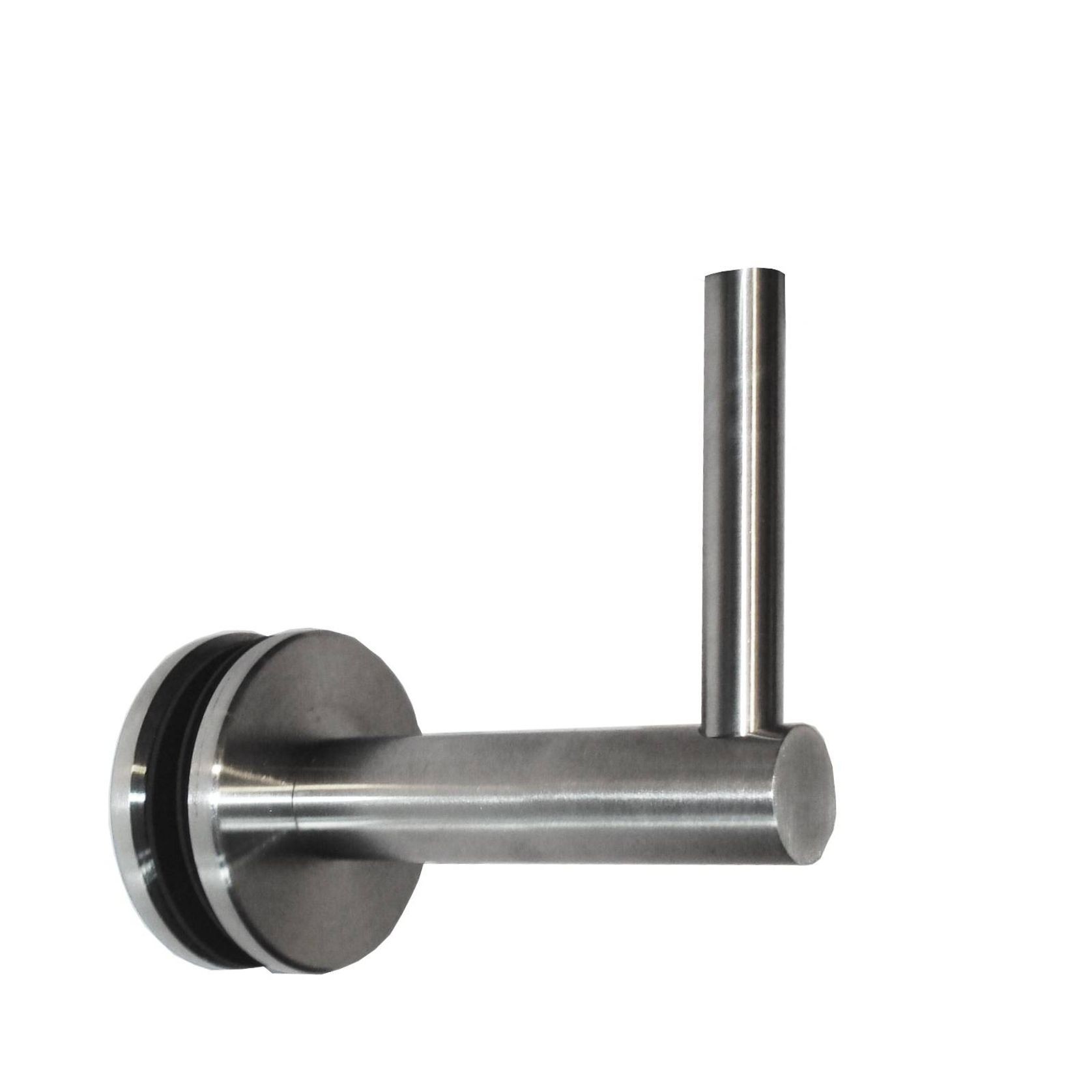

Handrail Bracket for Fixing Handrail to Glass Balustrade - Solid 20mm Rod
Fits glass 6 - 15mm thick.
Suitable for both commercial and residential use with both interior or exterior applications.

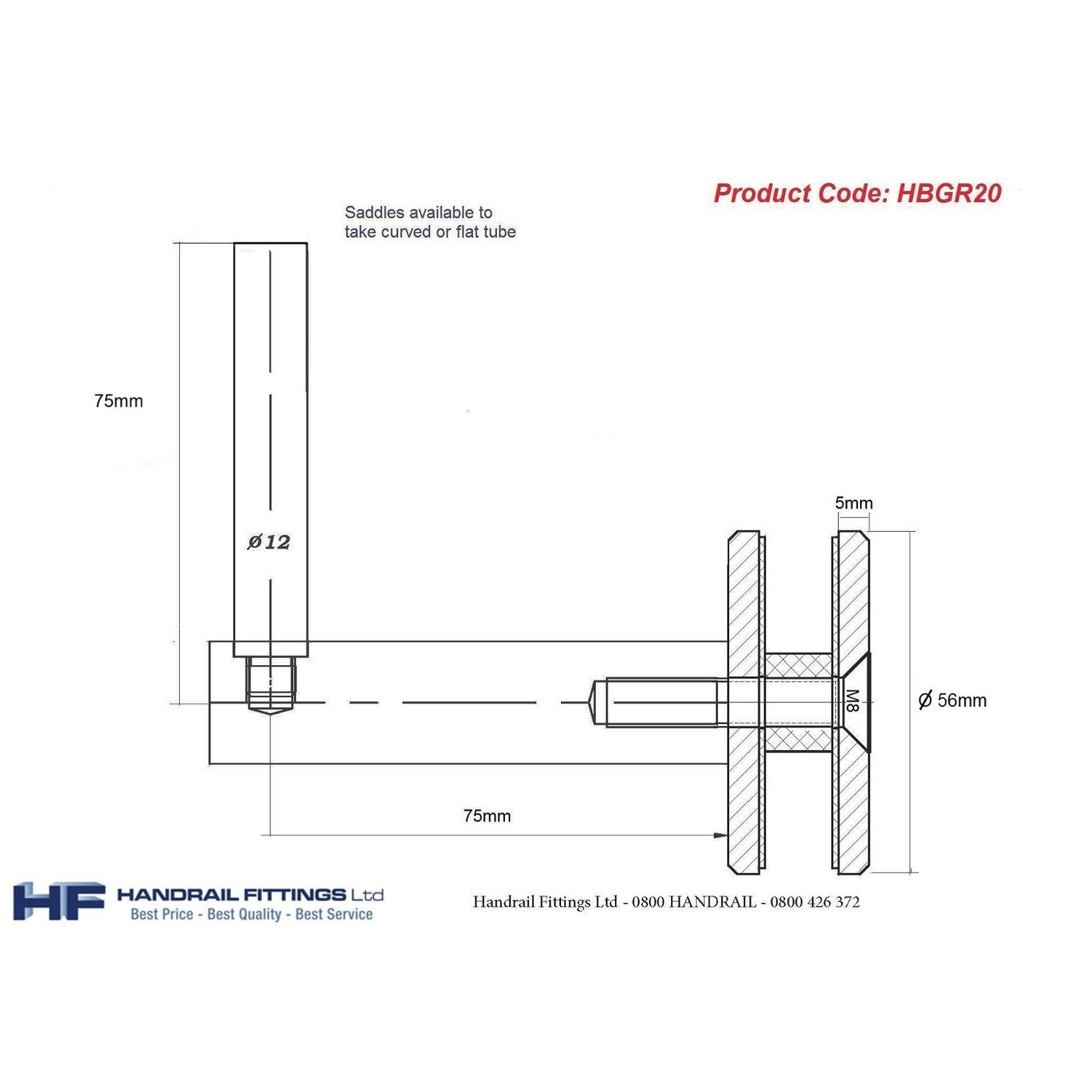

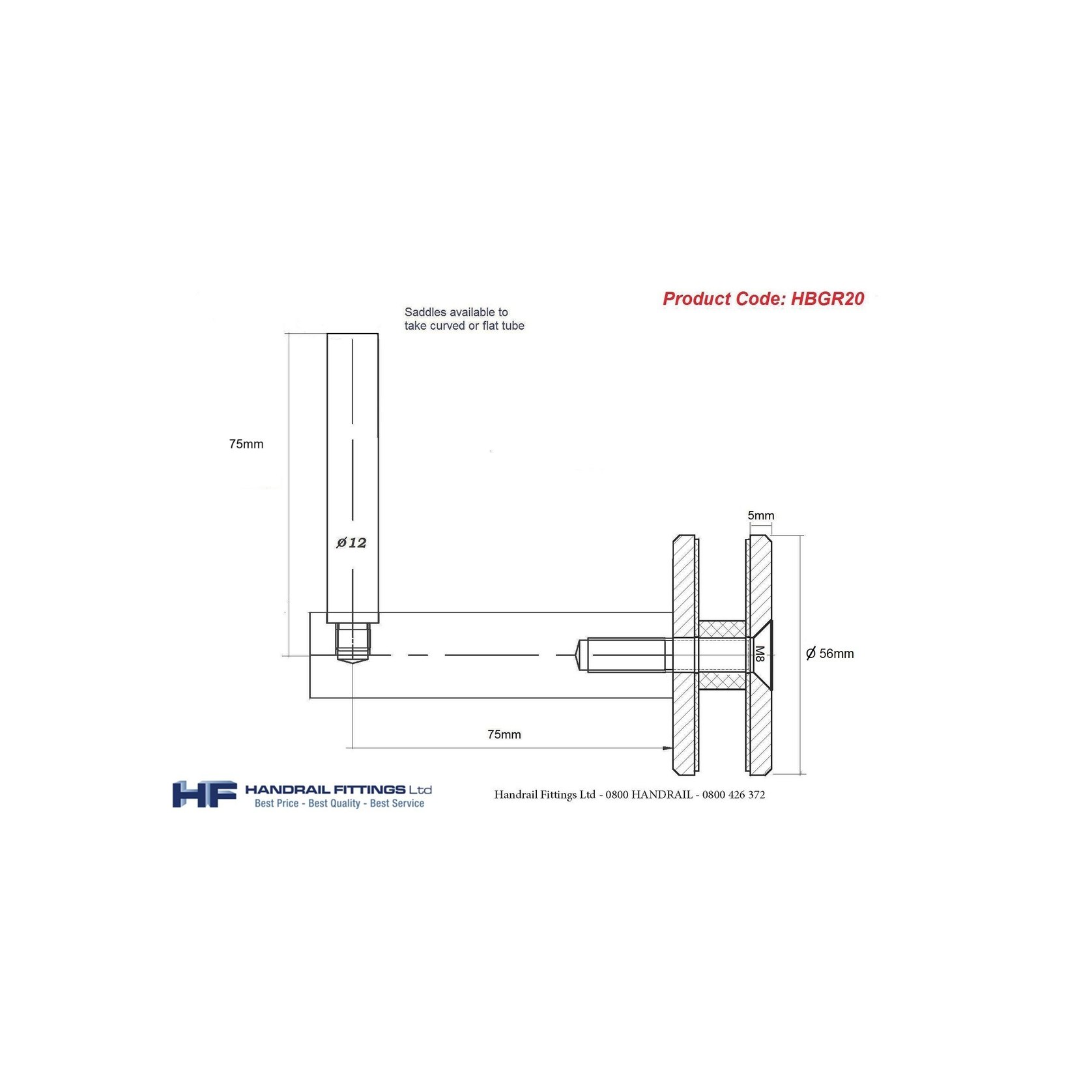

- Solid 20mm Rod with 2 56mm diameter bases (matches to HBR20B wall bracket)
- All bushes and washers supplied

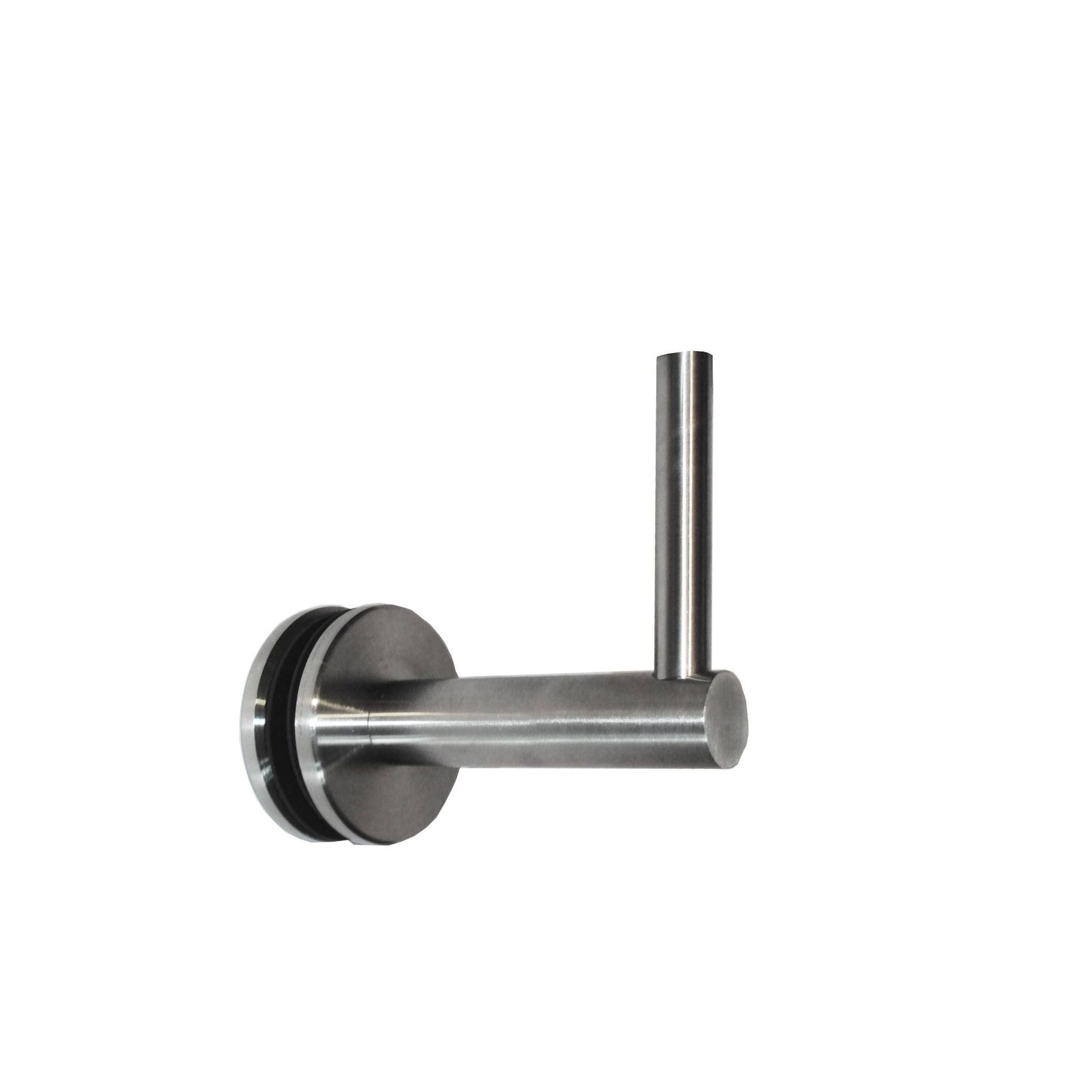

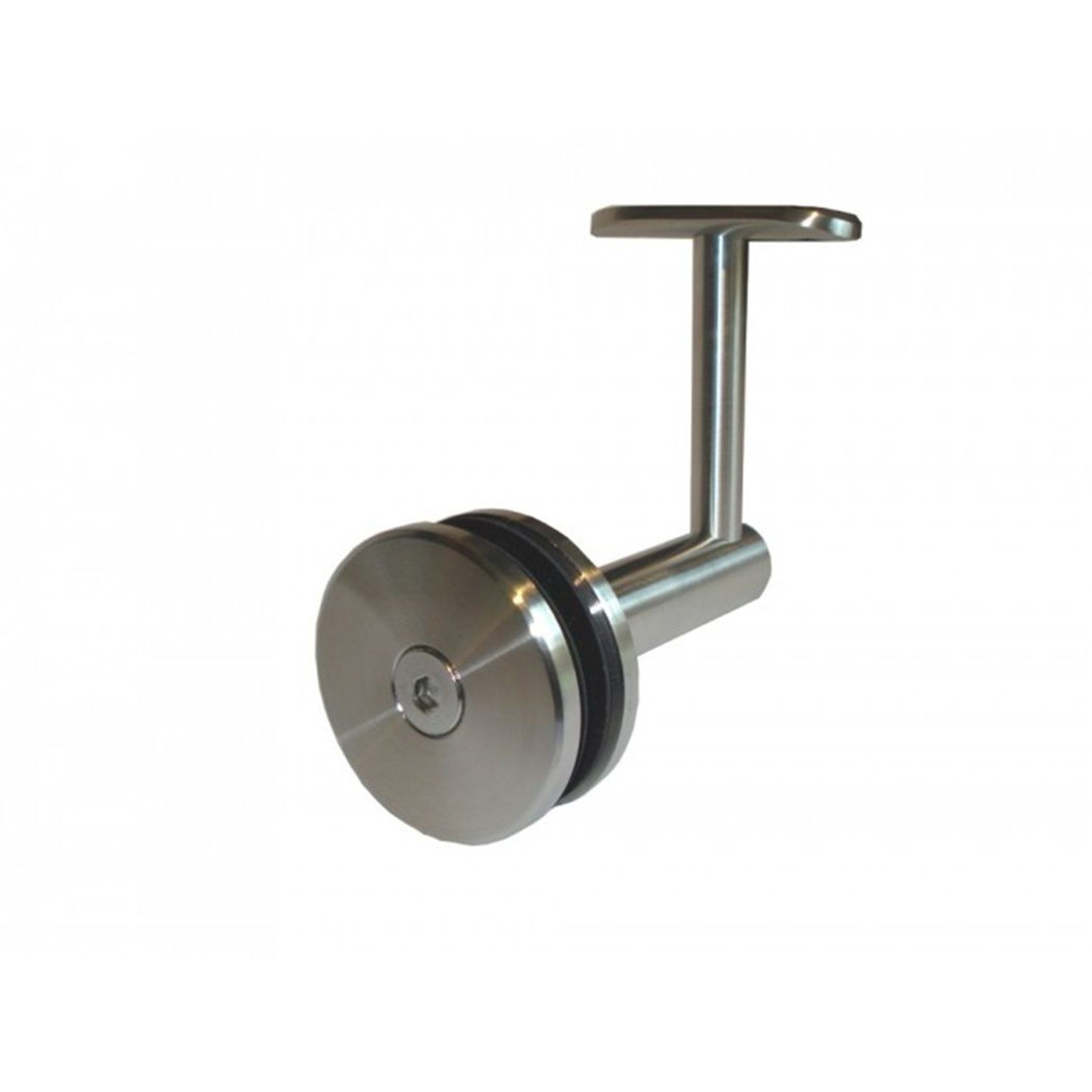

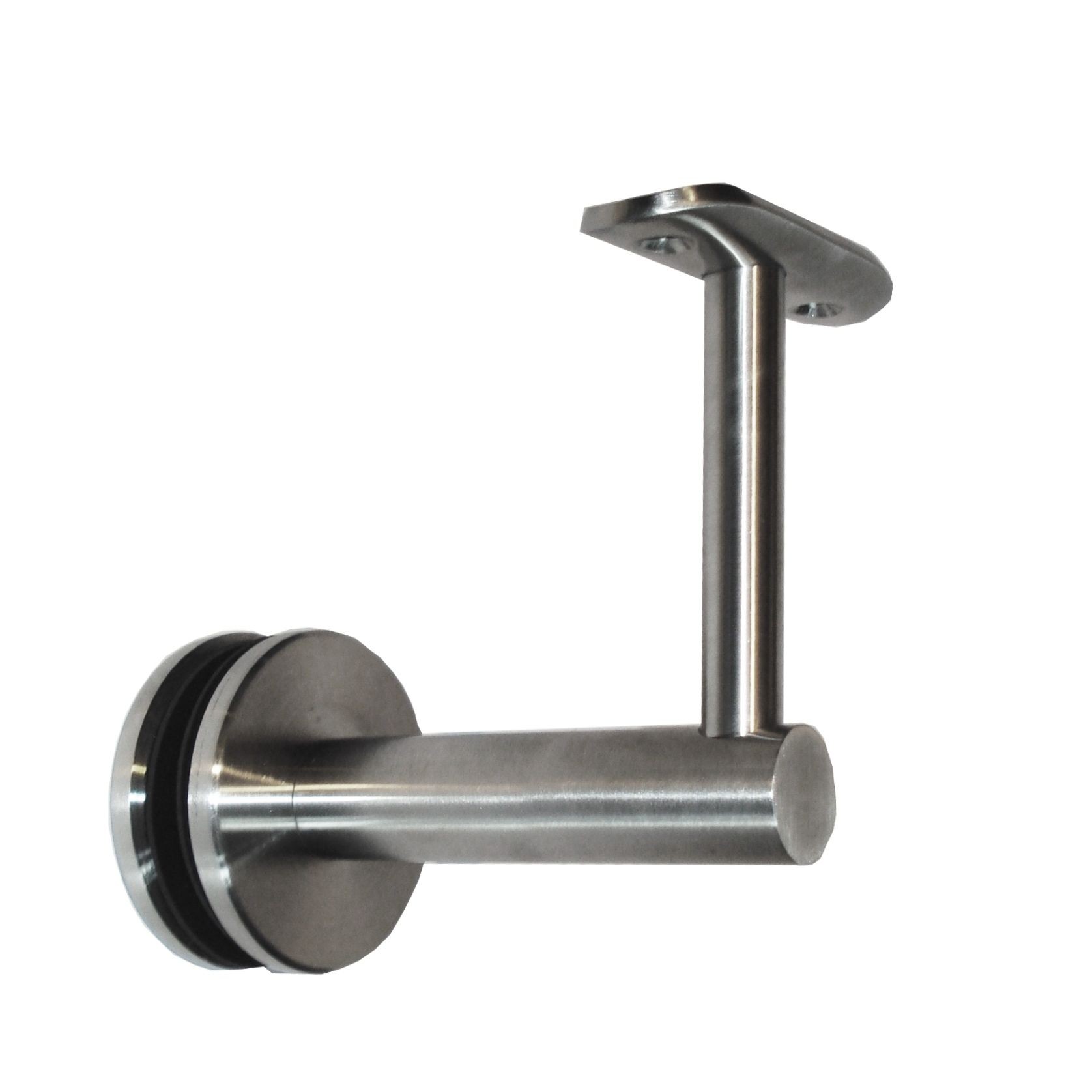

- Weld on and saddle options available:
- curved saddle to fit handrail profiles from 38mm diameter
flat saddle to fit flat handrail profiles - Hole size required 18mm
Materials available:
- AISI 304 Satin & Mirror Finish
- AISI 316 Satin & Mirror Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
Product Details
- Product
- Modena Glaze Handrail Bracket
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
- Warranty
- Lifetime
Material
Handrail Bracket for Fixing Handrail to Glass Balustrade - Solid 20mm Rod Fits glass 6 - 15mm thick.
Suitable for both commercial and residential use with both interior or exterior applications.
- Solid 20mm Rod with 2 56mm diameter bases (matches to HBR20B wall bracket)
- All bushes and washers supplied
- Weld on and saddle options available:
- curved saddle to fit handrail profiles from 38mm diameter
flat saddle to fit flat handrail profiles - Hole size required 18mm
Materials available:
- AISI 304 Satin & Mirror Finish
- AISI 316 Satin & Mirror Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
- Scope of use
Commercial
Residential
Interior
Exterior
Marine
