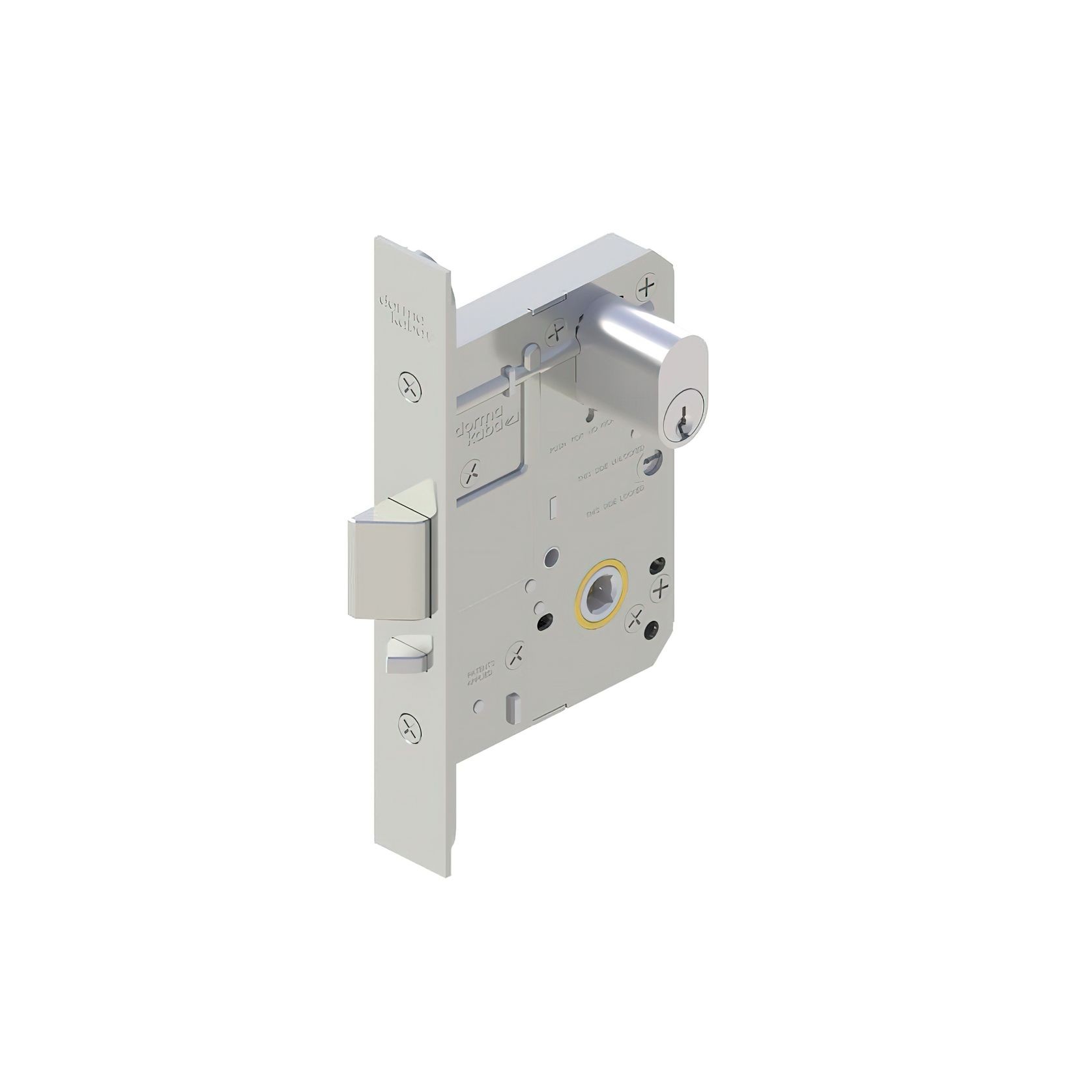

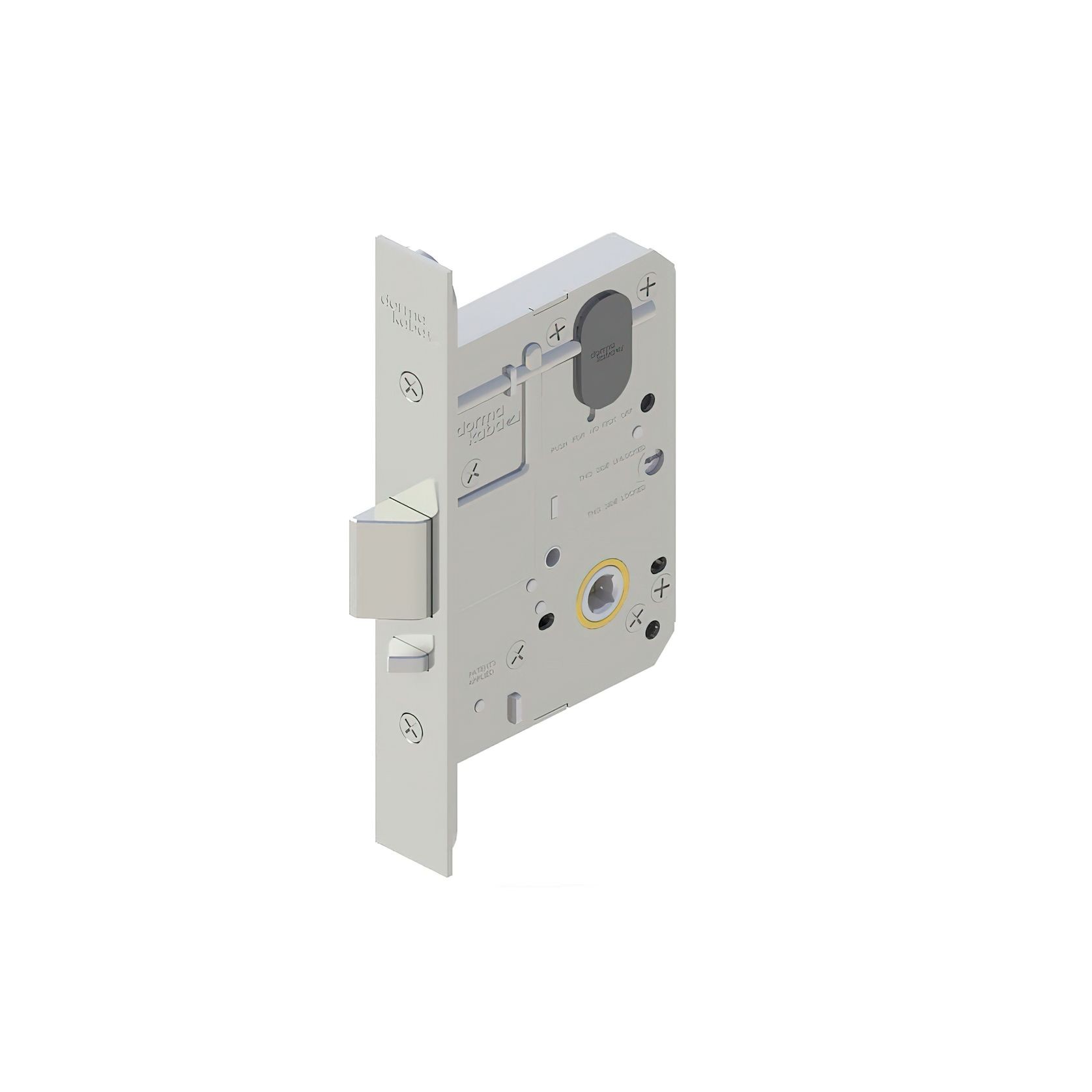

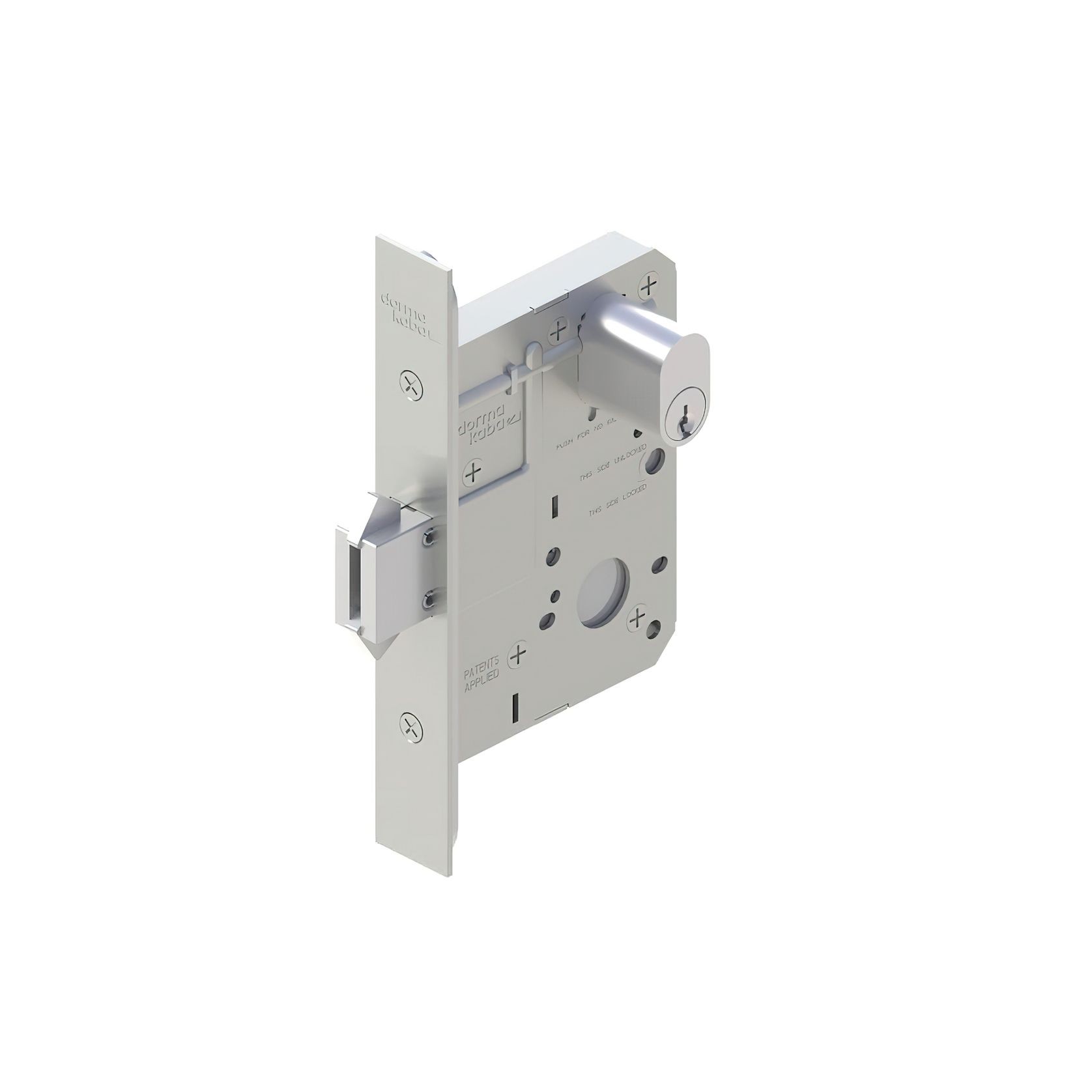

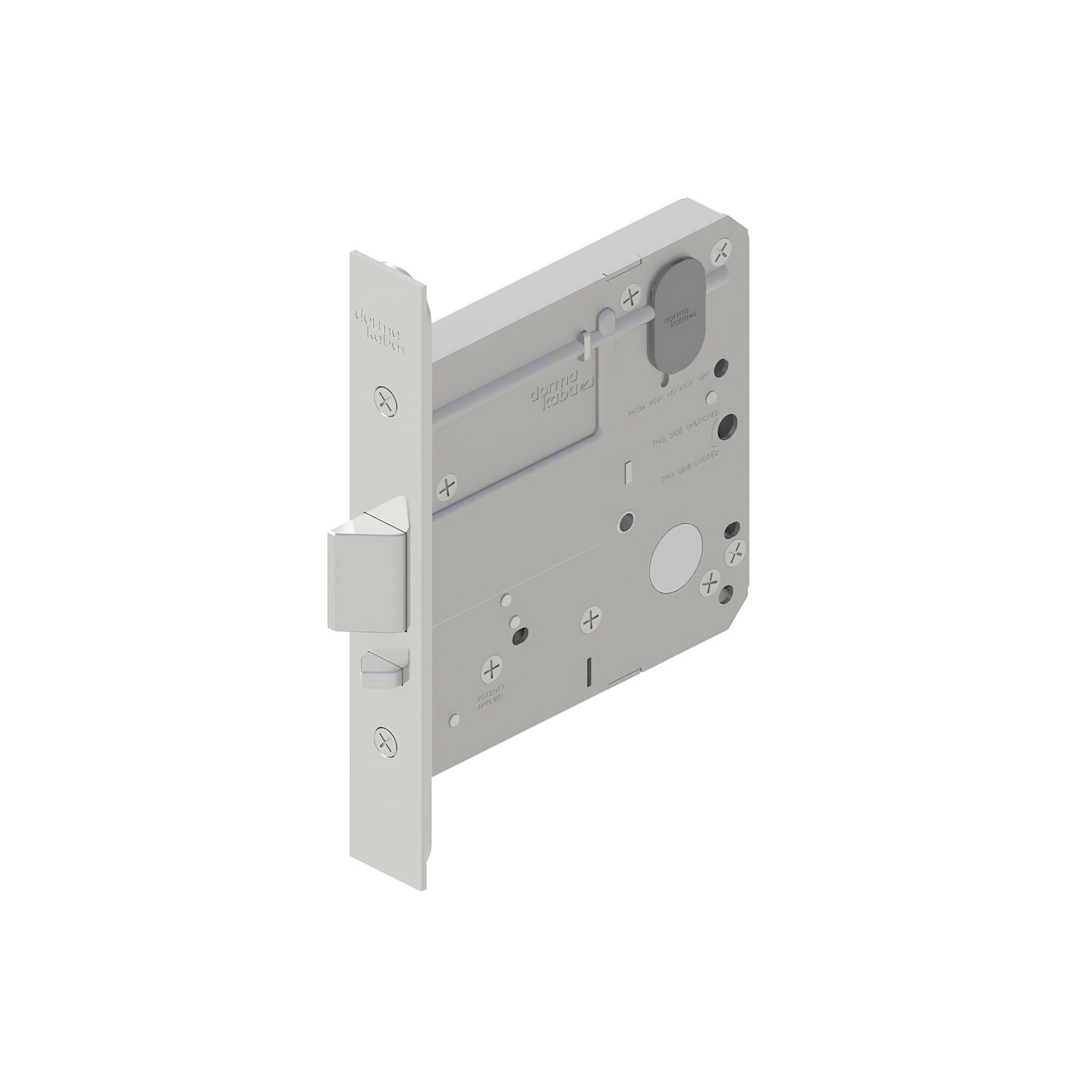

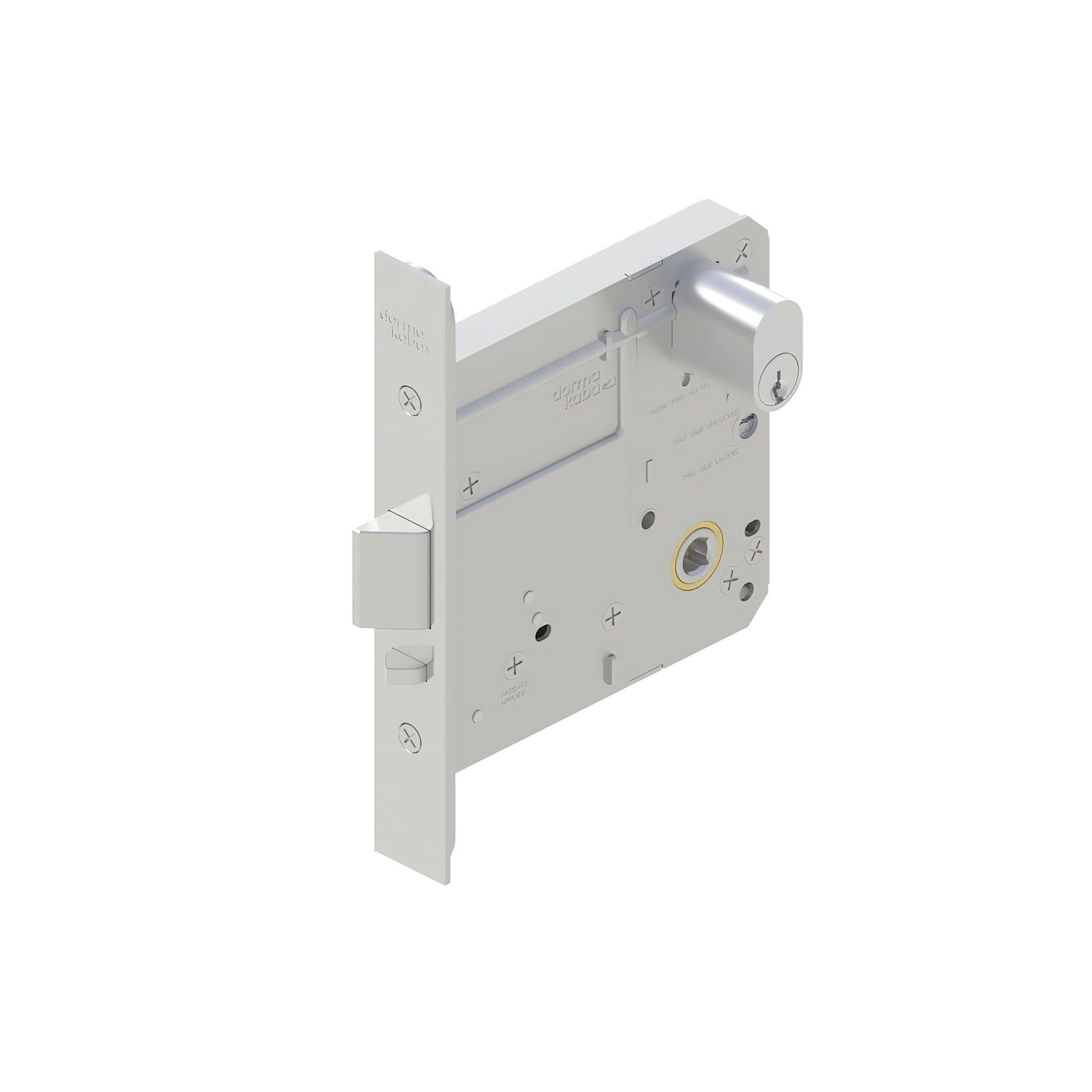

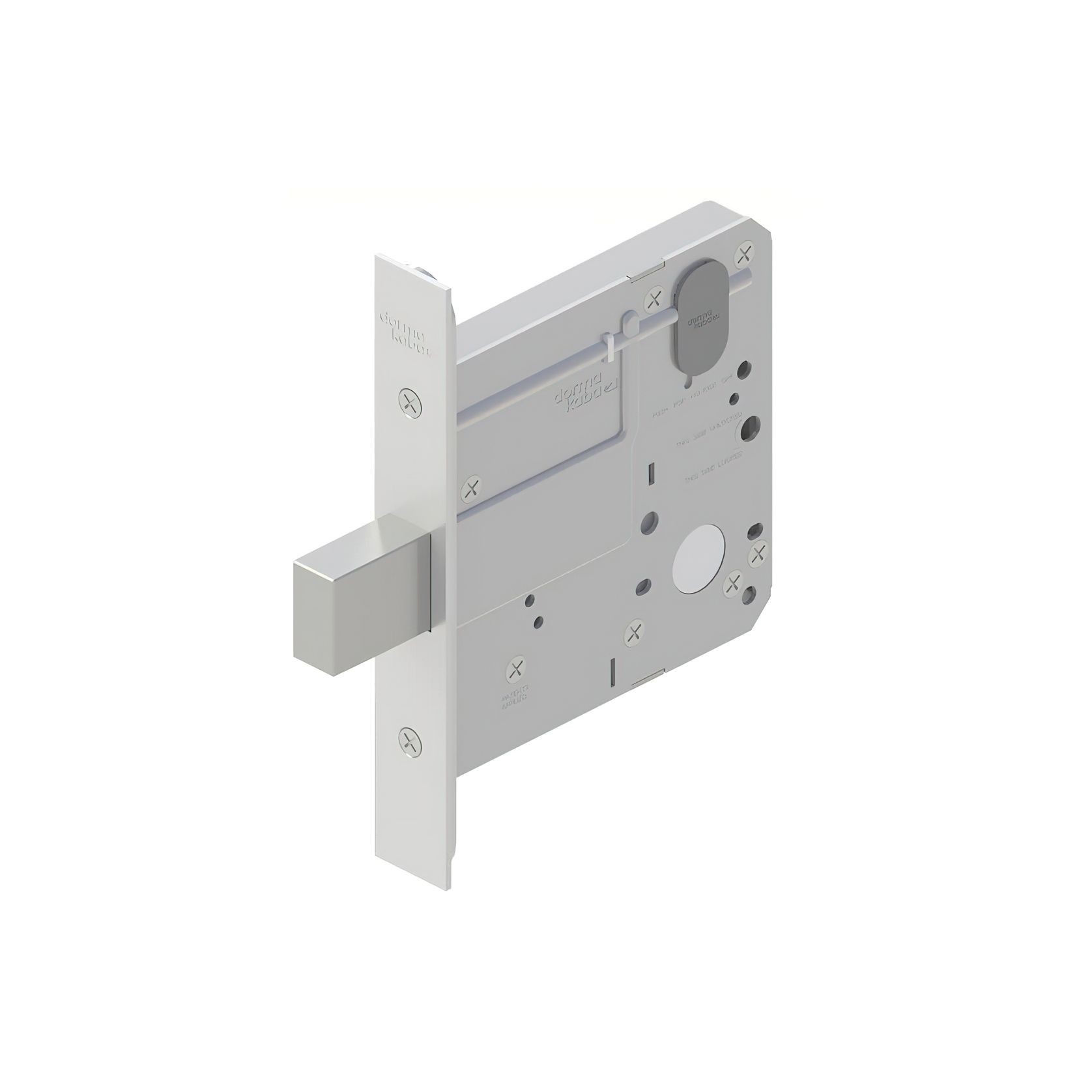

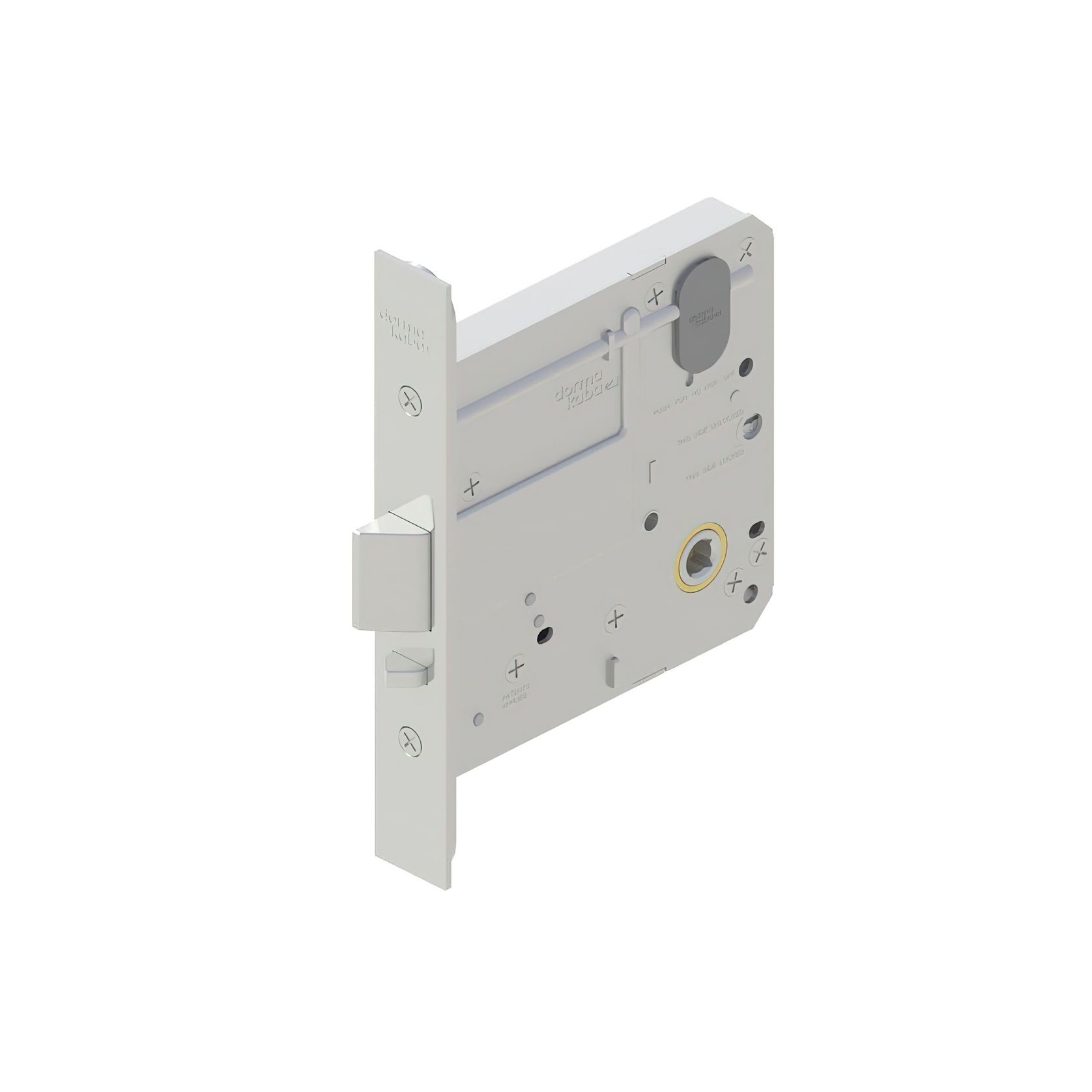

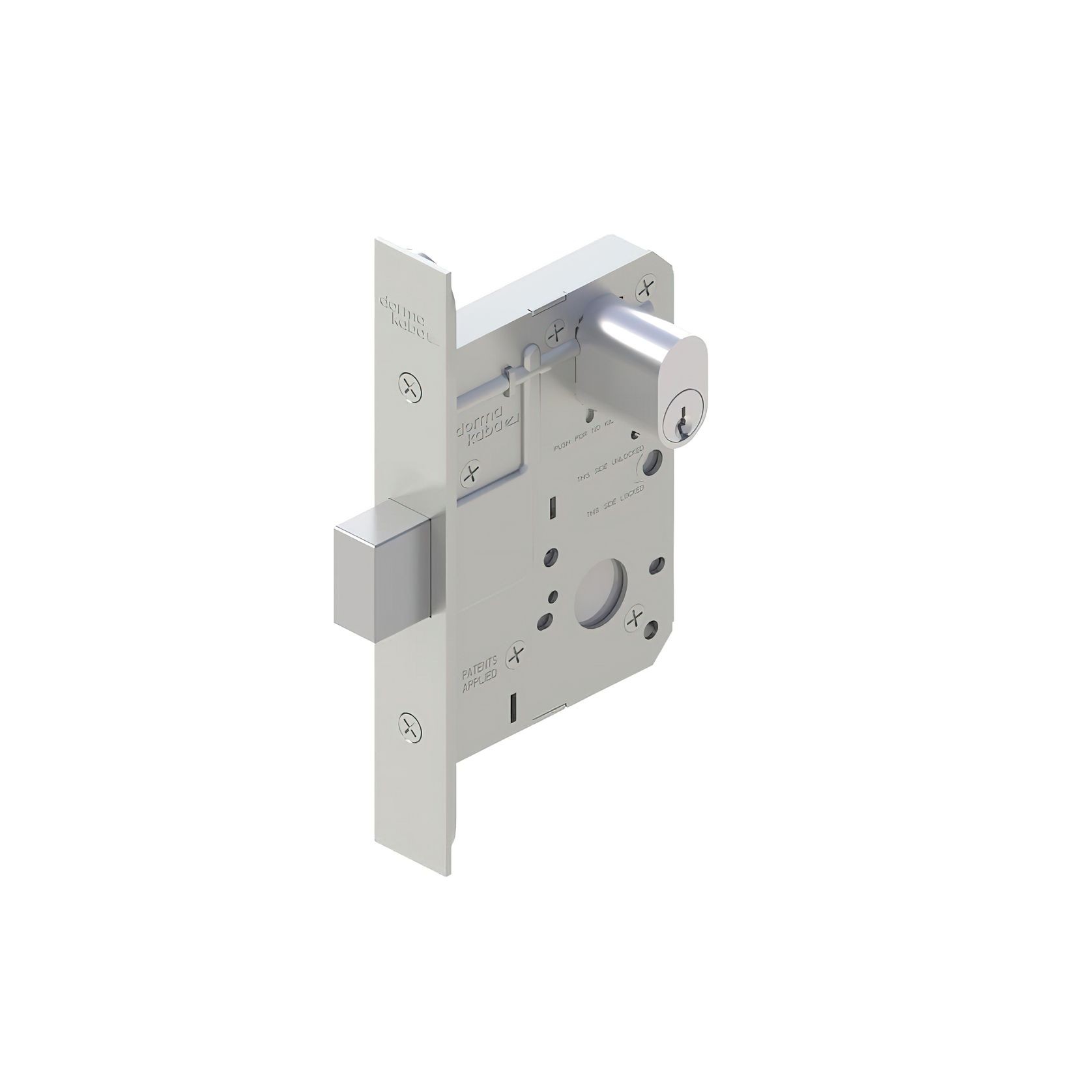

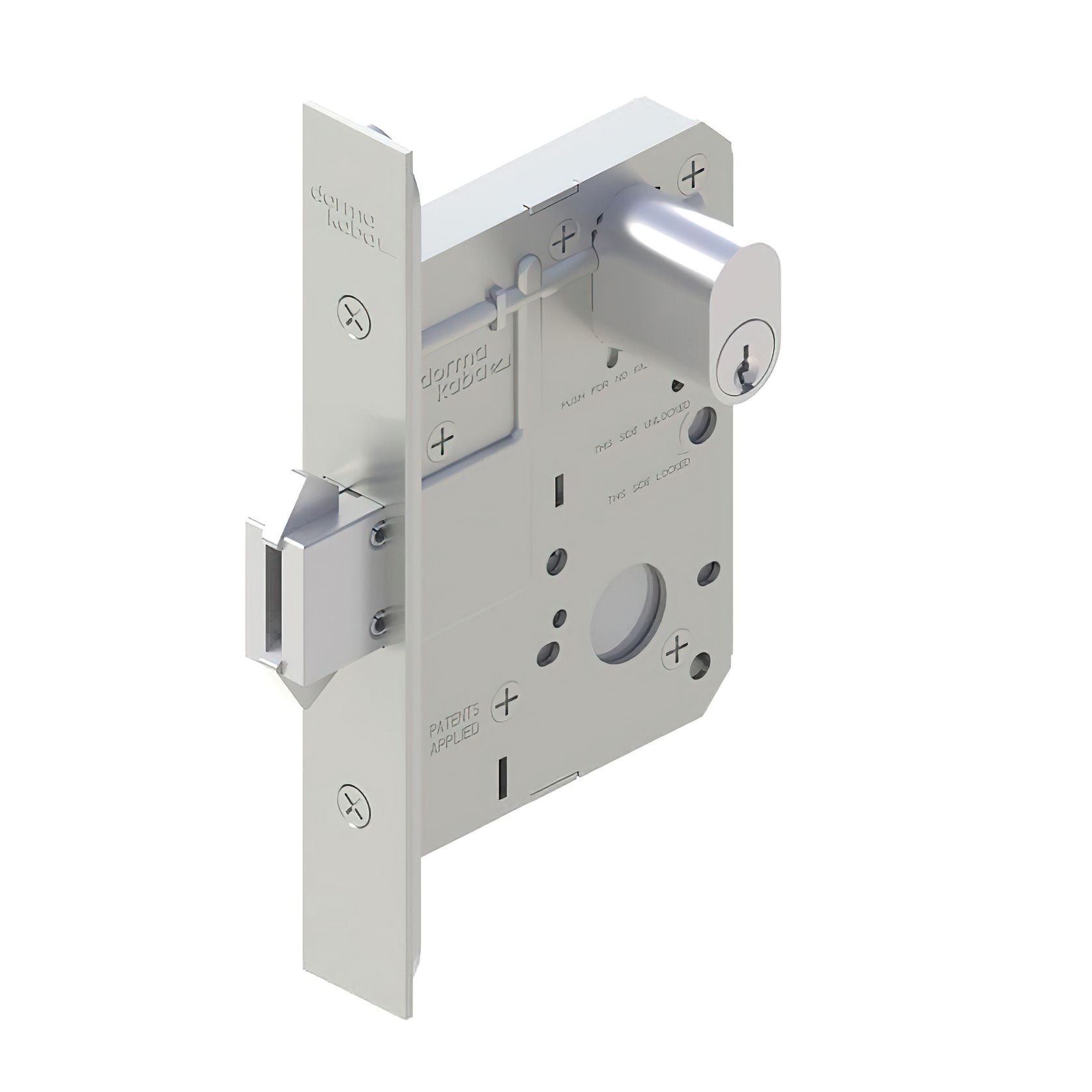

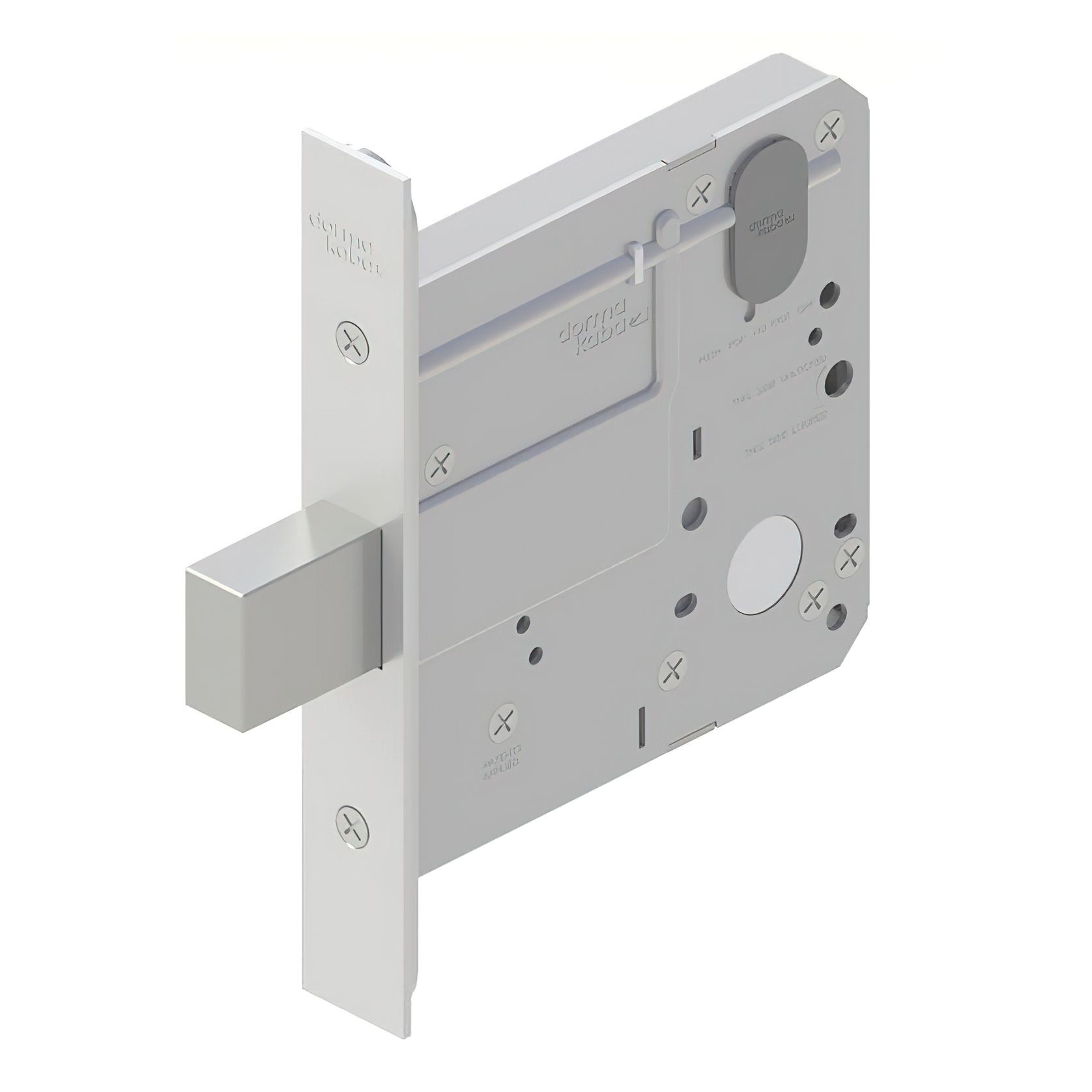

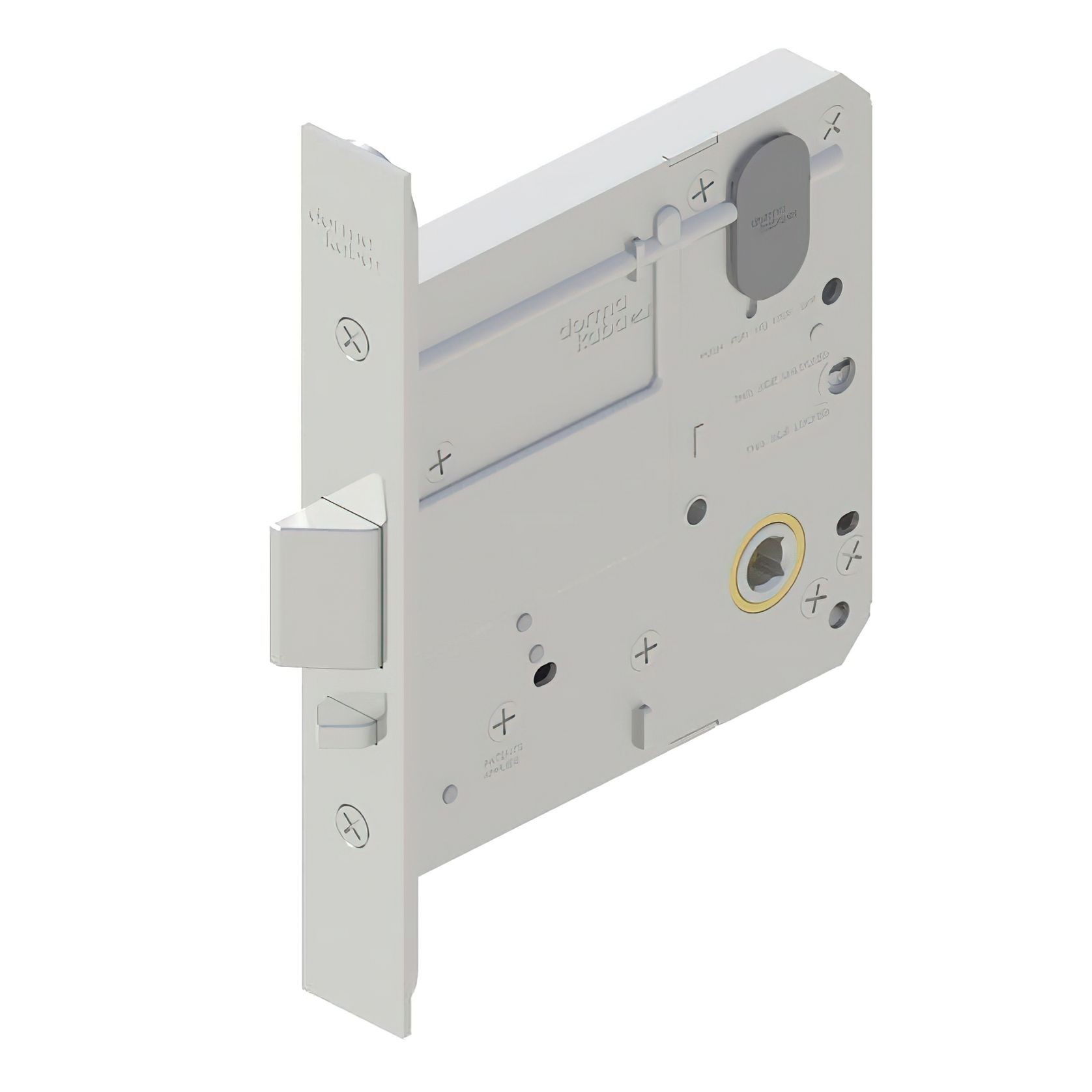

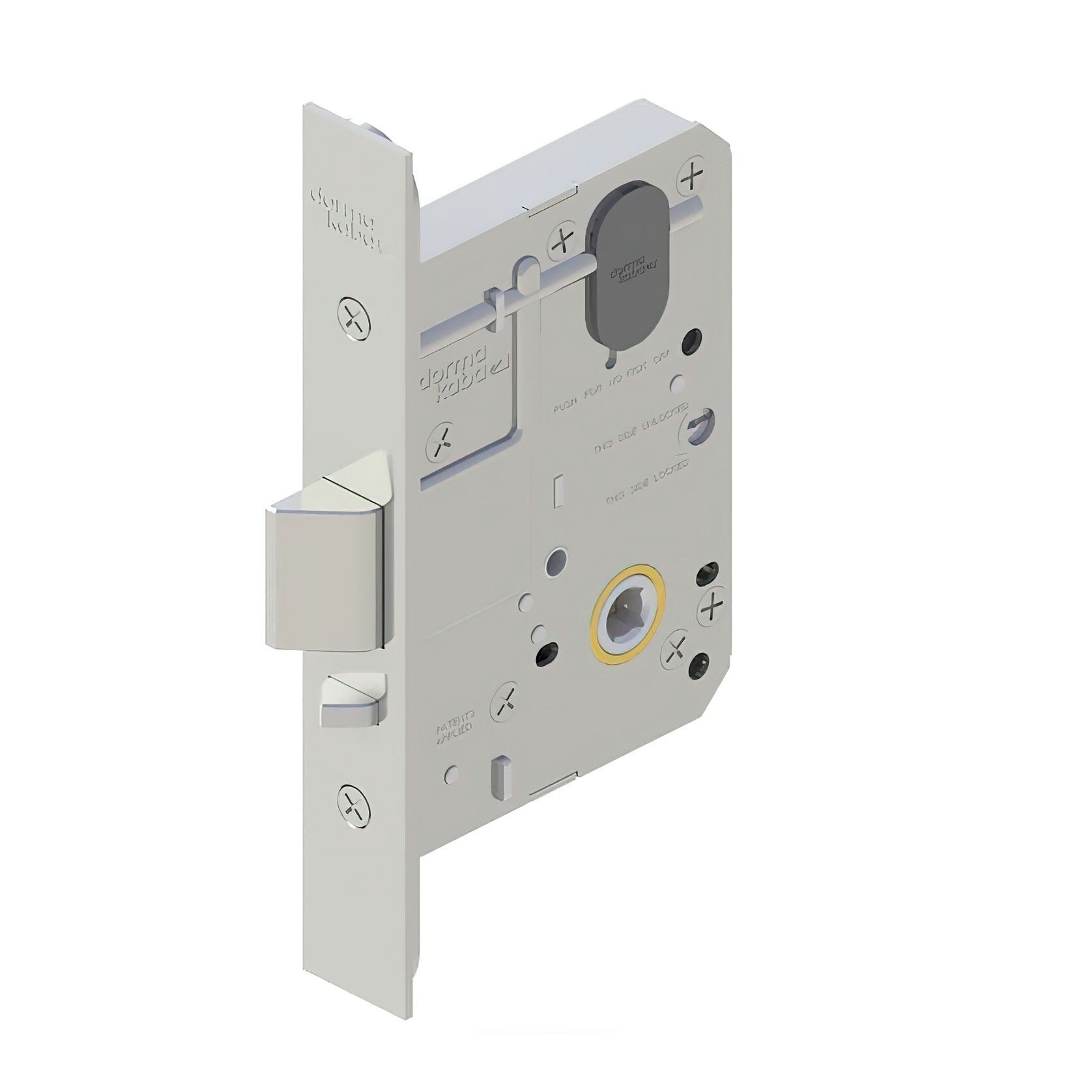

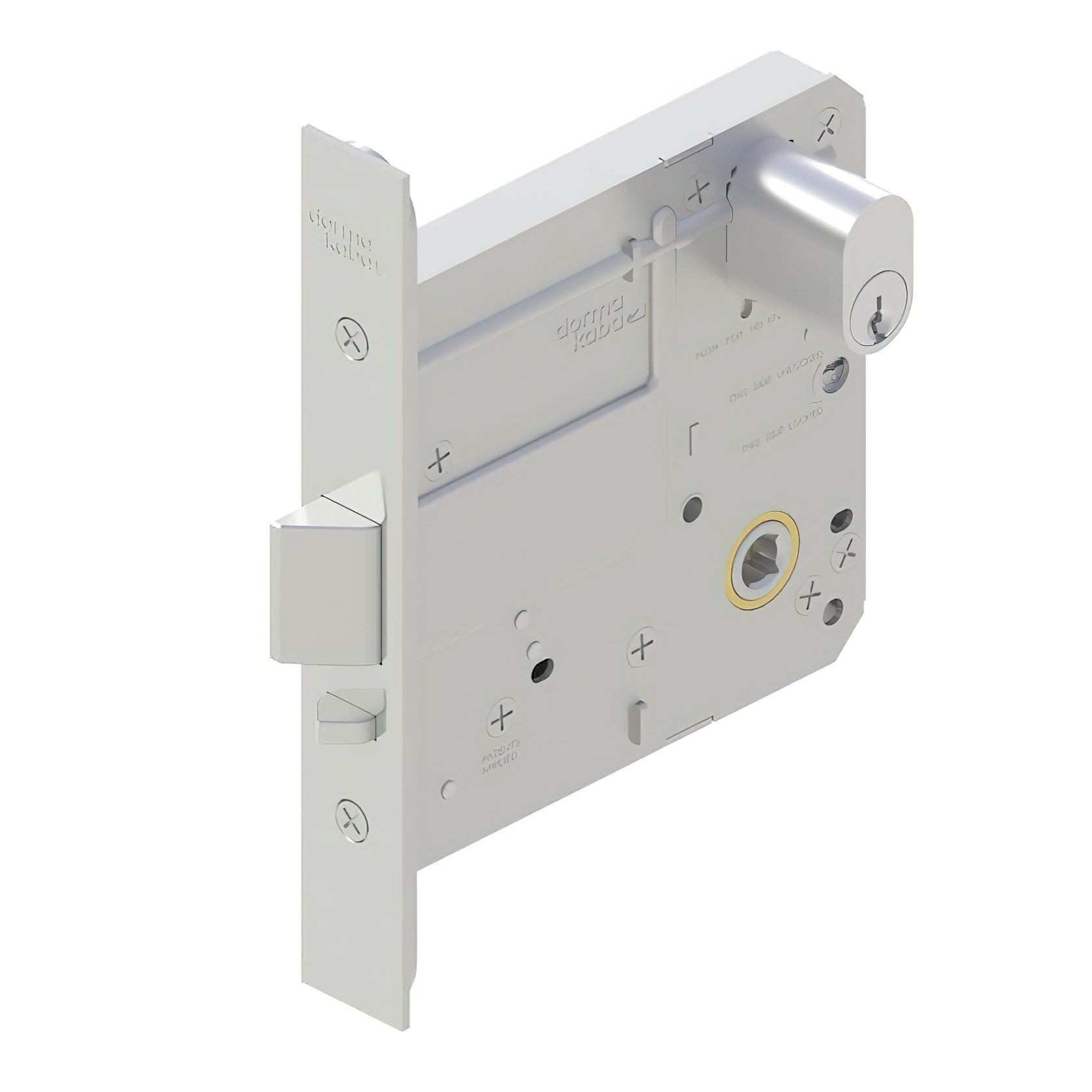

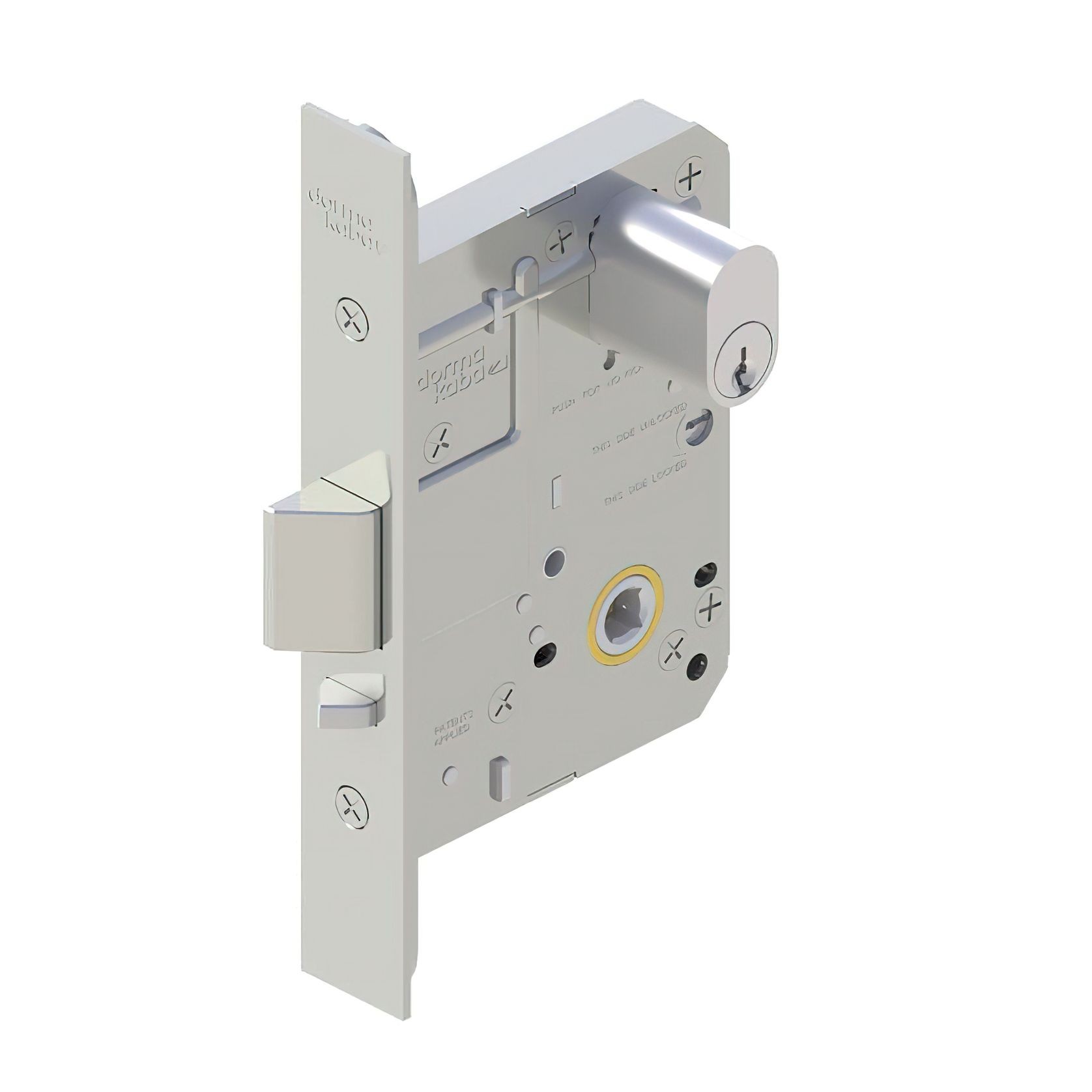

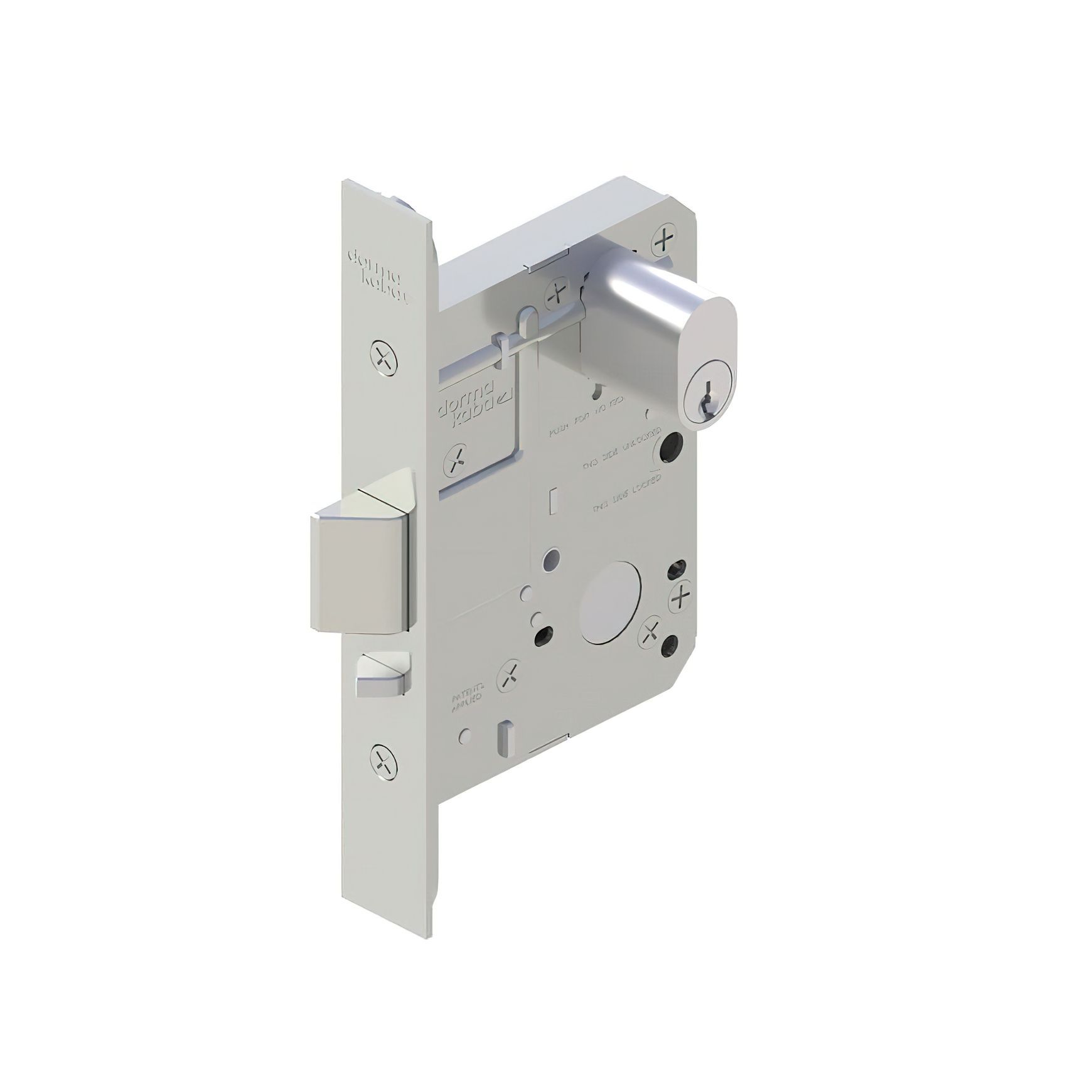

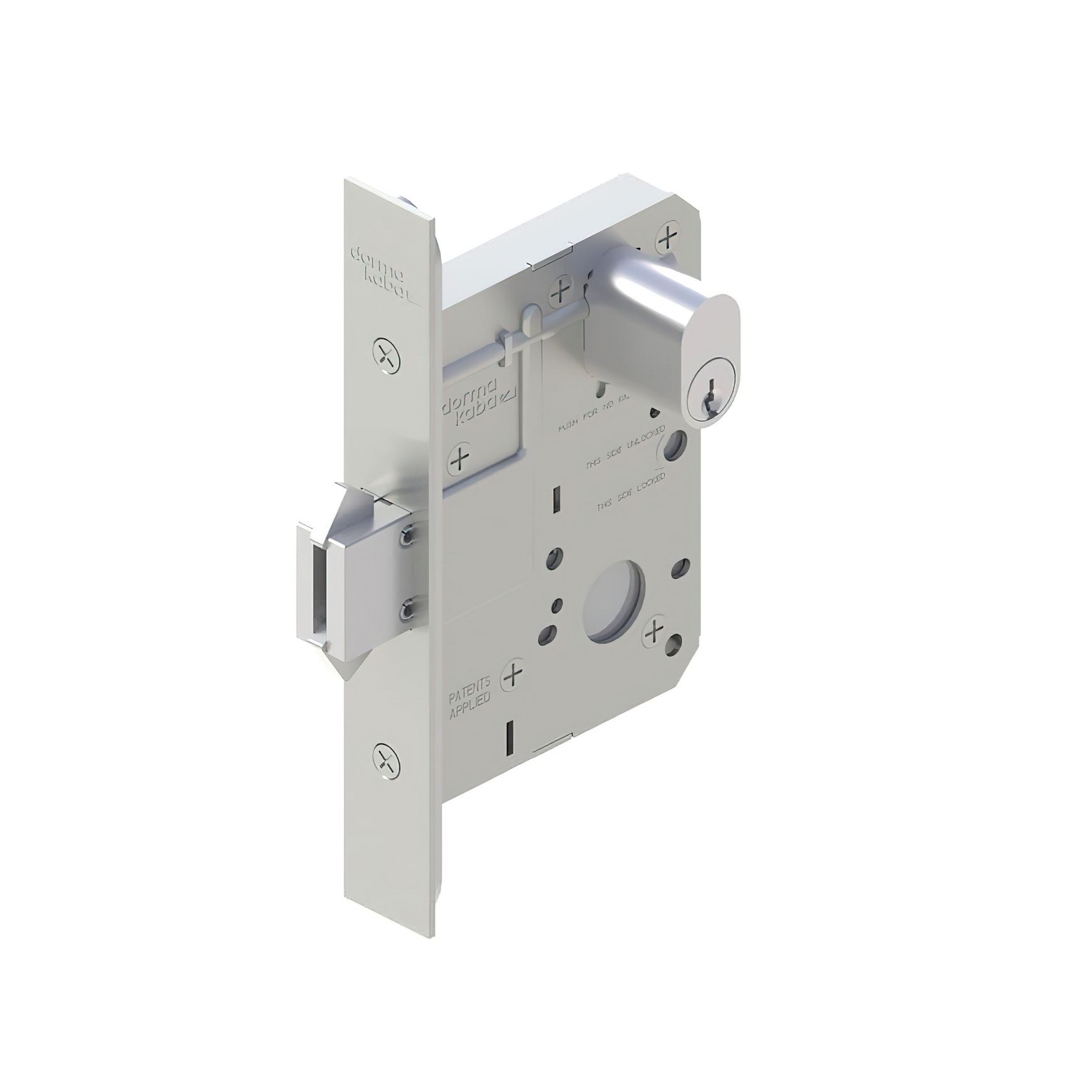

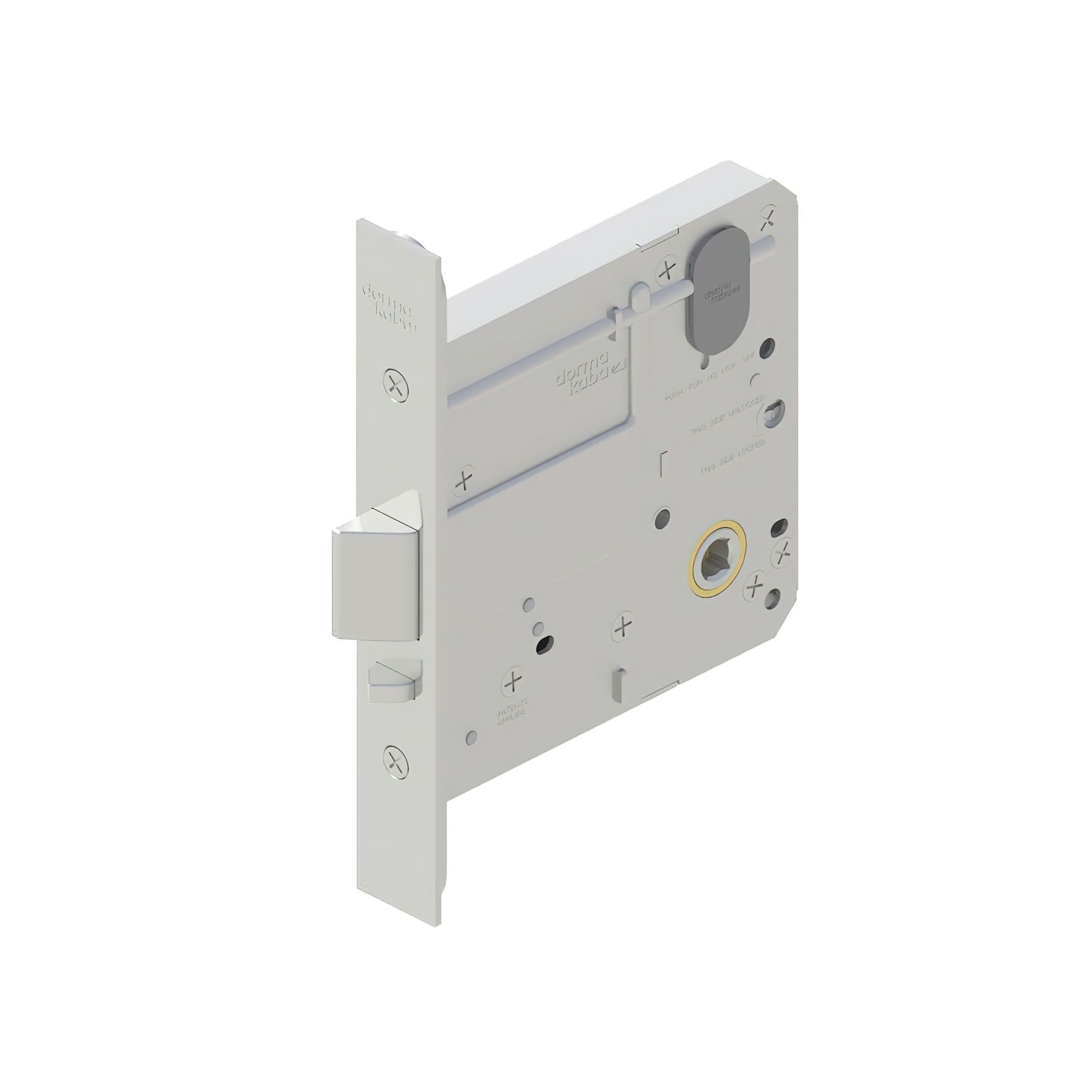

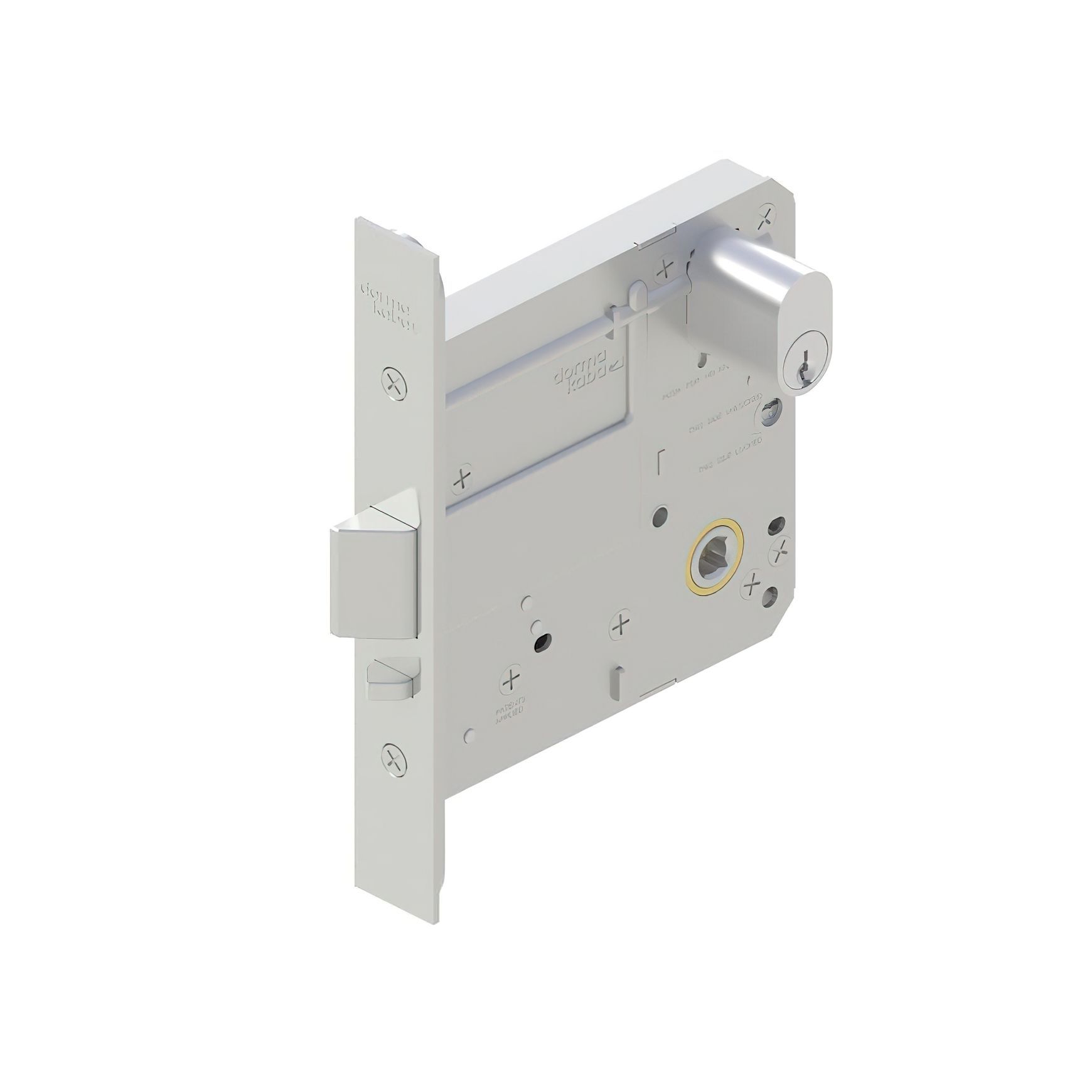

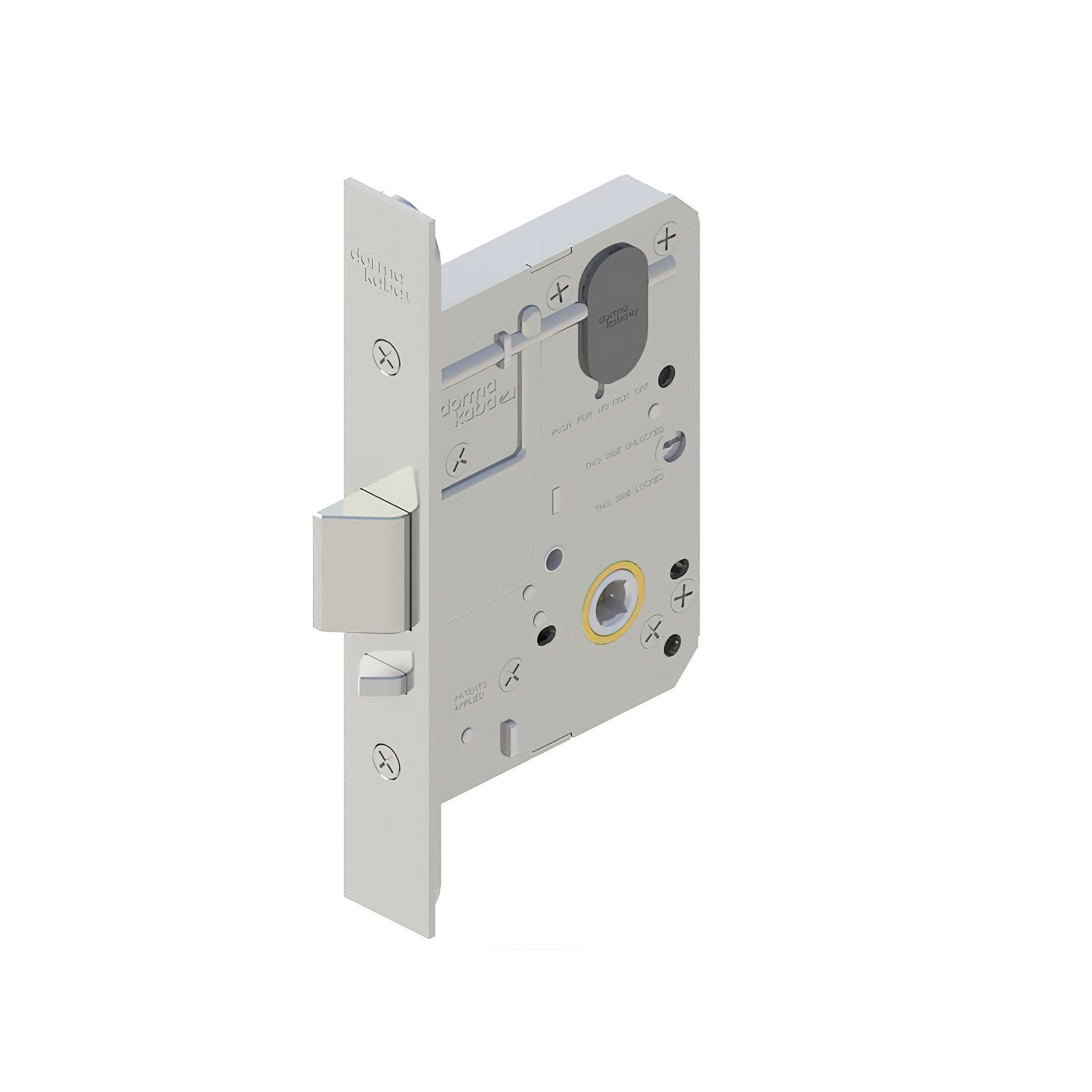

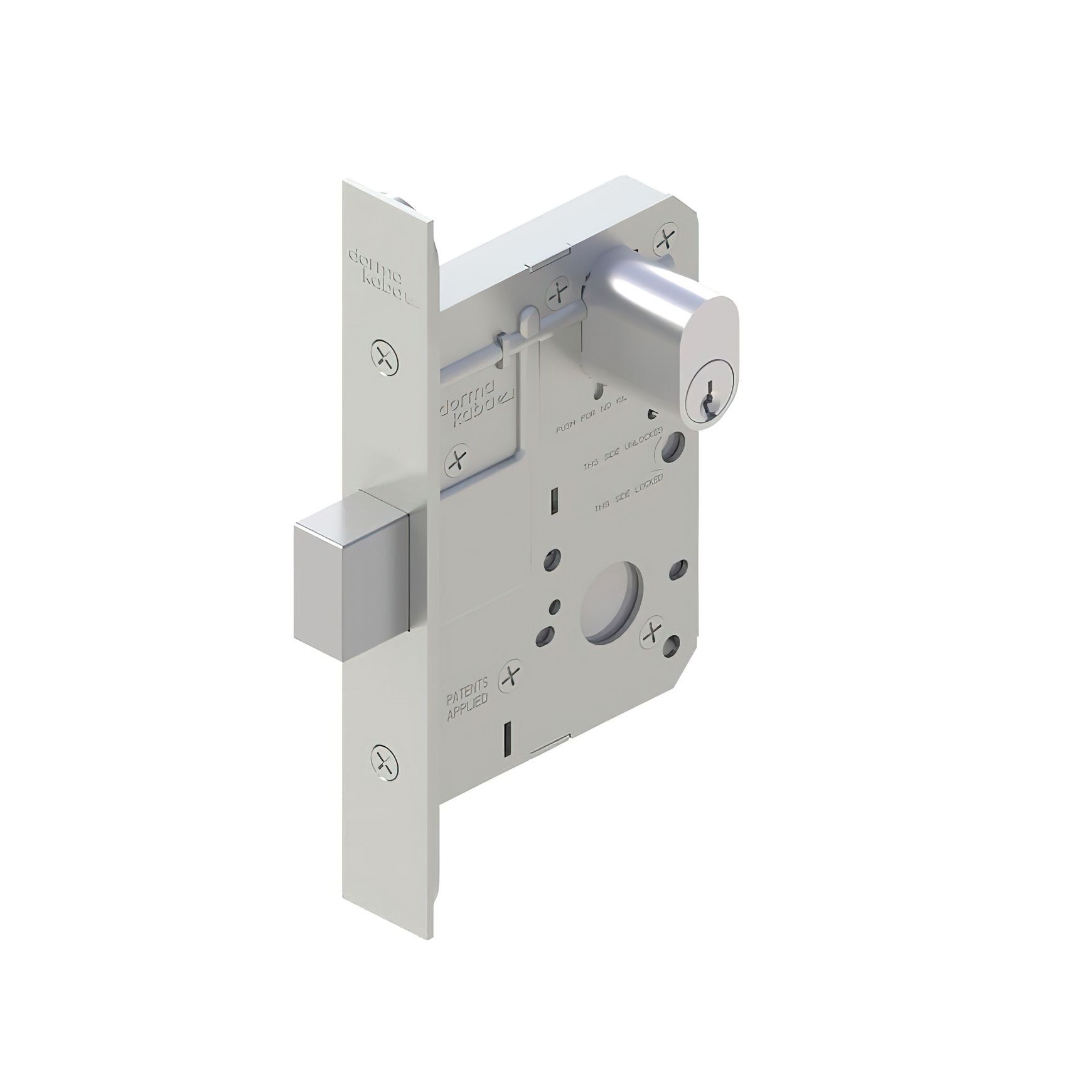

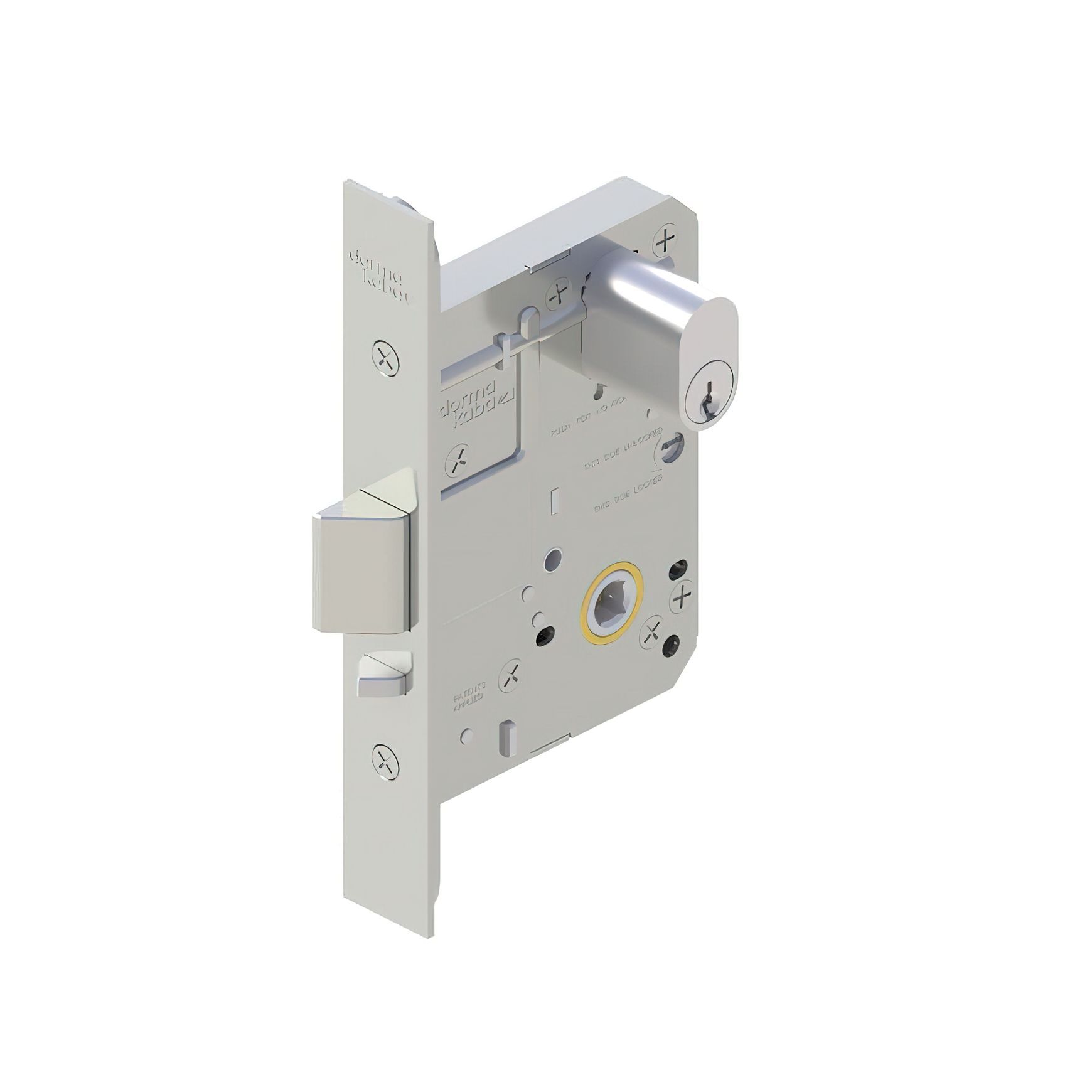

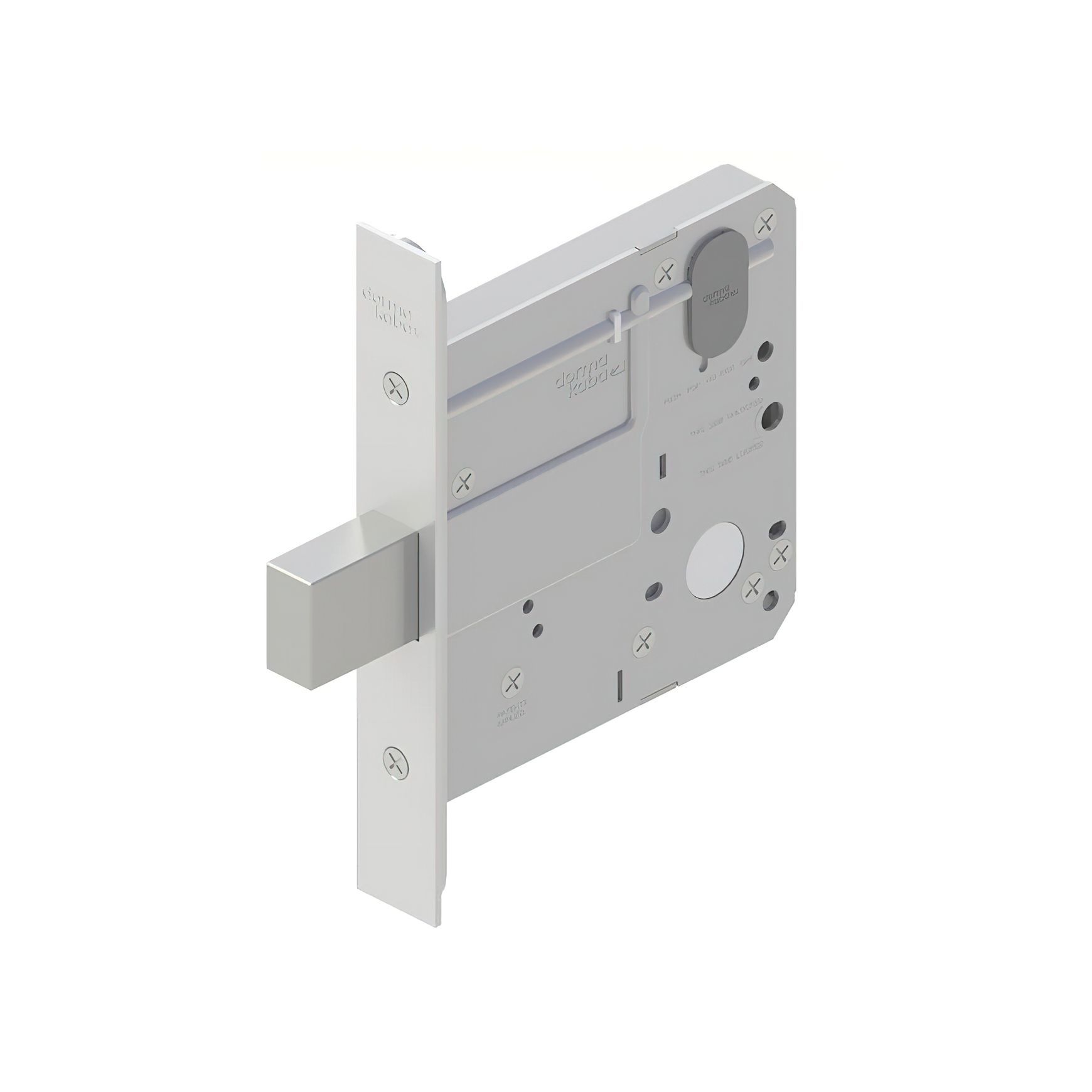

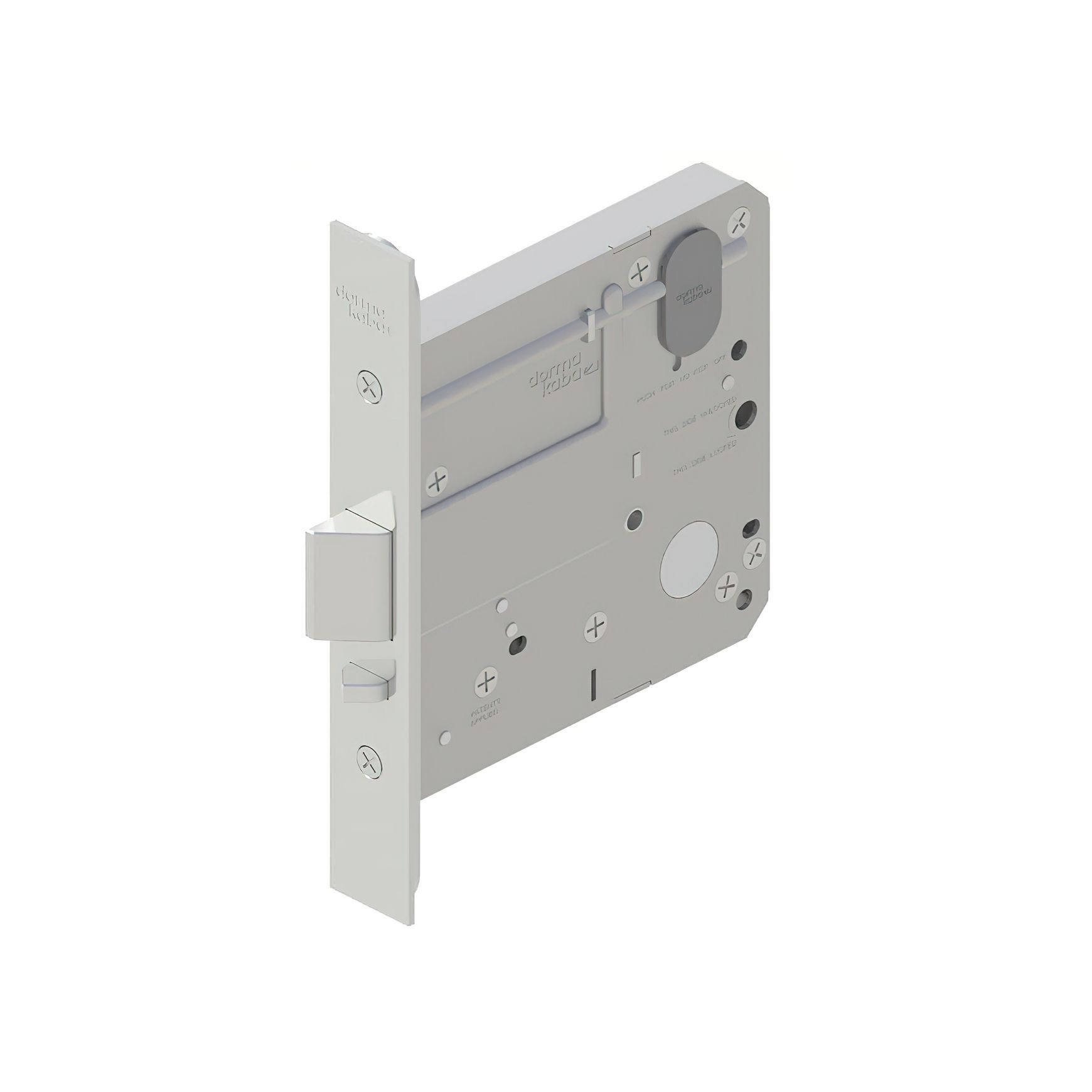

MS2600 & MS2900 Series Mortice Locks

• Standard 60mm backset. 95mm optional backset except sliding deadbolts.
• 32mm to 50mm as standard. Thicker door kits are available on application.
• 14mm latchbolt, including a separate auxiliary deadlatch with a 8mm projection.
• Standard dormakaba 130 type oval shaped cylinder.
• The dormakaba MS2600 & MS2900 Series with latch is compatible with most common electric strikes.
• The MS2600 Series lock body is non-handed.
• Anti-Lockout (Kick Off).
• Case, cover and faceplate are constructed of 304 grade stainless steel.

dormakaba MS2602 Series lock conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008

dormakaba MS2602 Series lock conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008.

All tests to Australian standards were performed by an independent NATA accredited laboratory.

The dormakaba MS2600 Series has been successfully tested on fire door assemblies in accordance with AS1905 Part 1: Fire resistant doorsets
