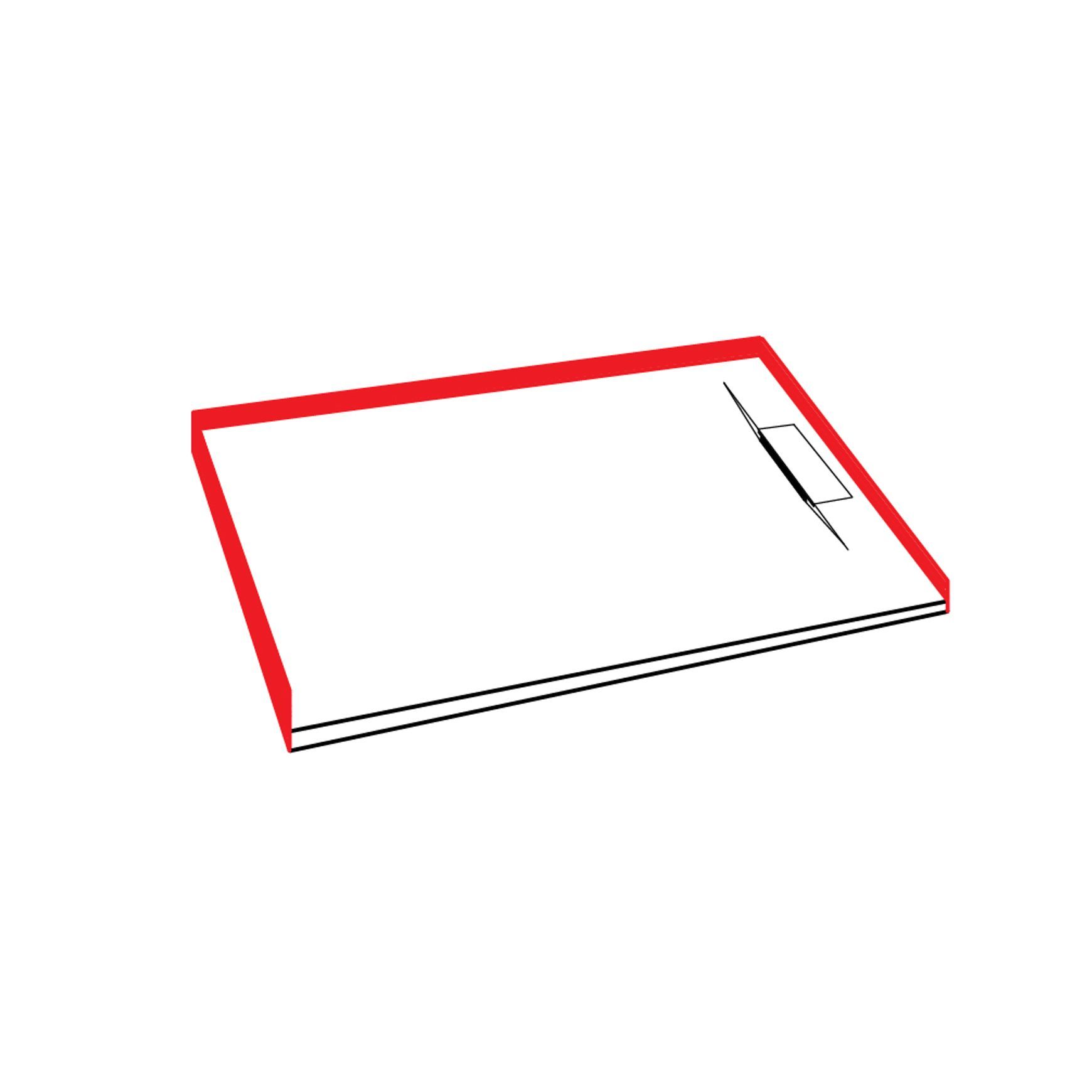

Pinnacle Alcove Tray 900x1200x900

900x1200x900 Alcove trays provide luxurious interior space and do not extend deeper than a standard shower, they can fit into almost every bathroom space.

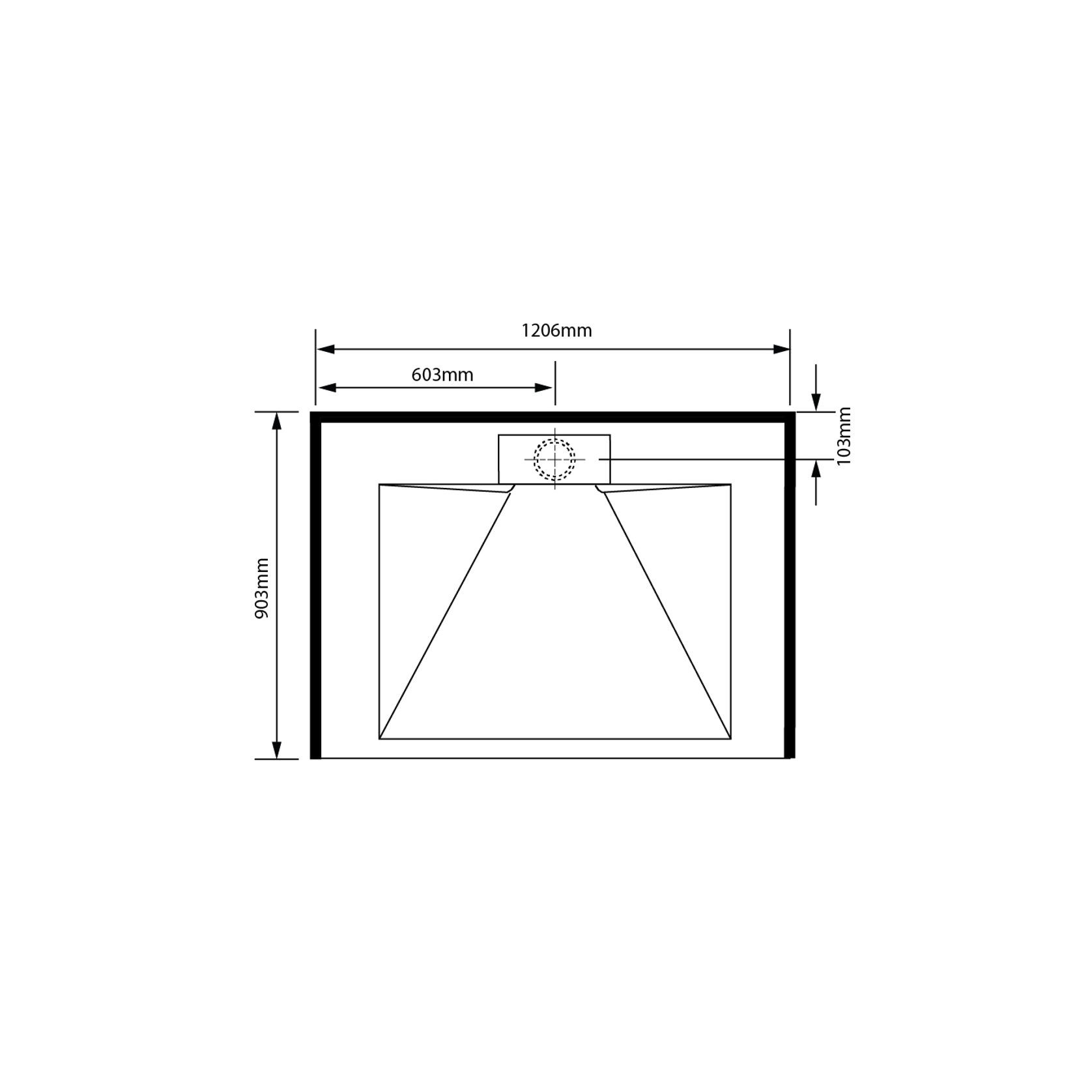

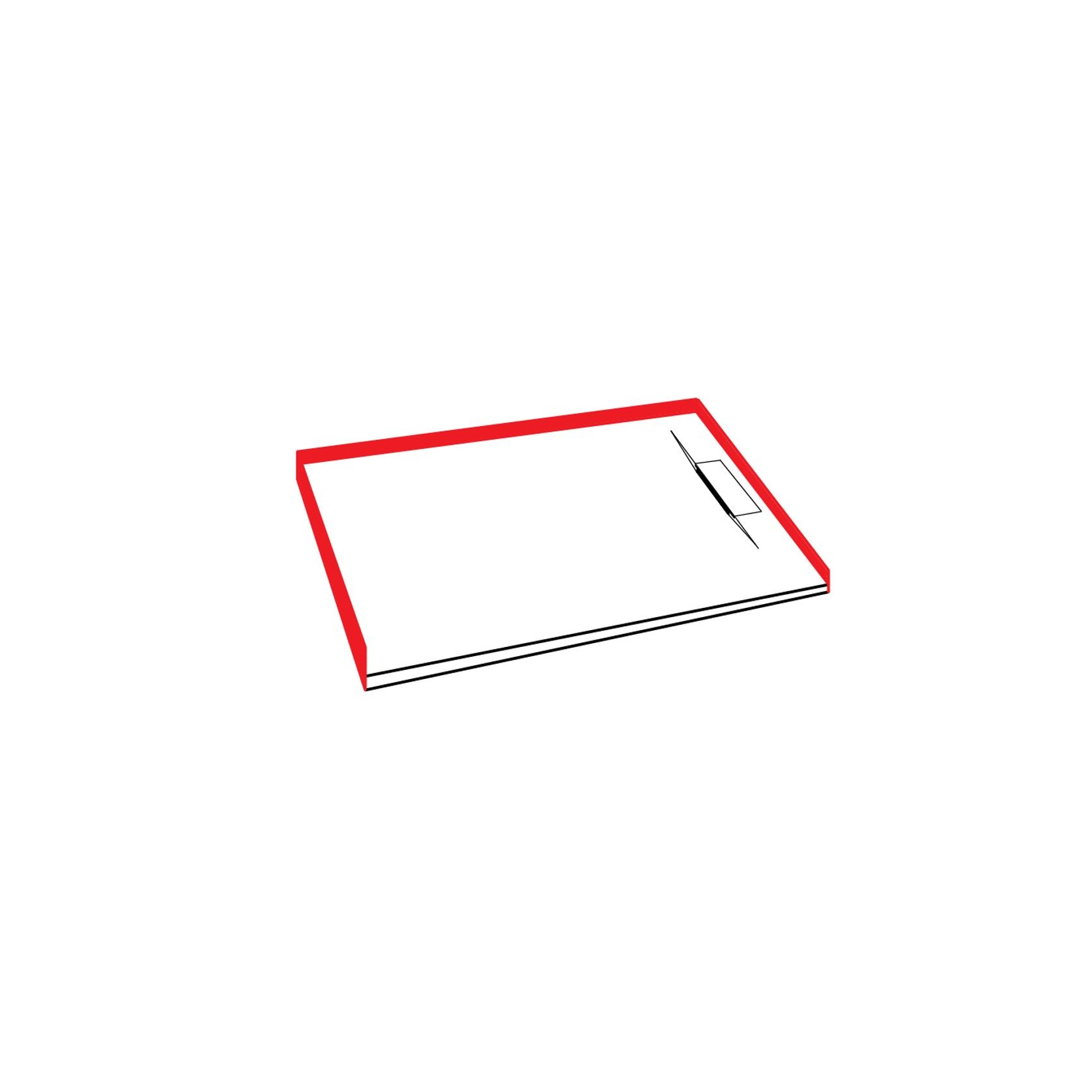

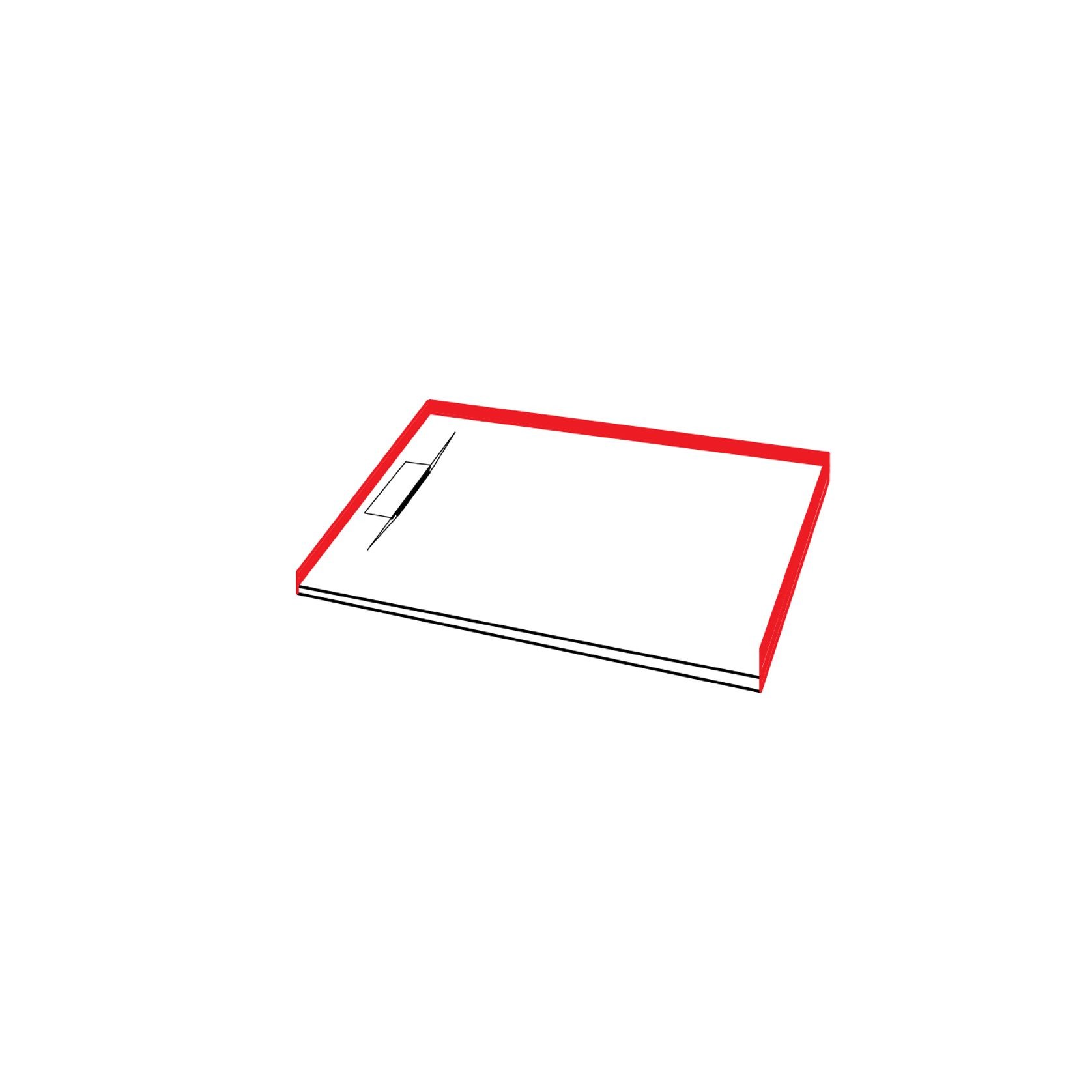

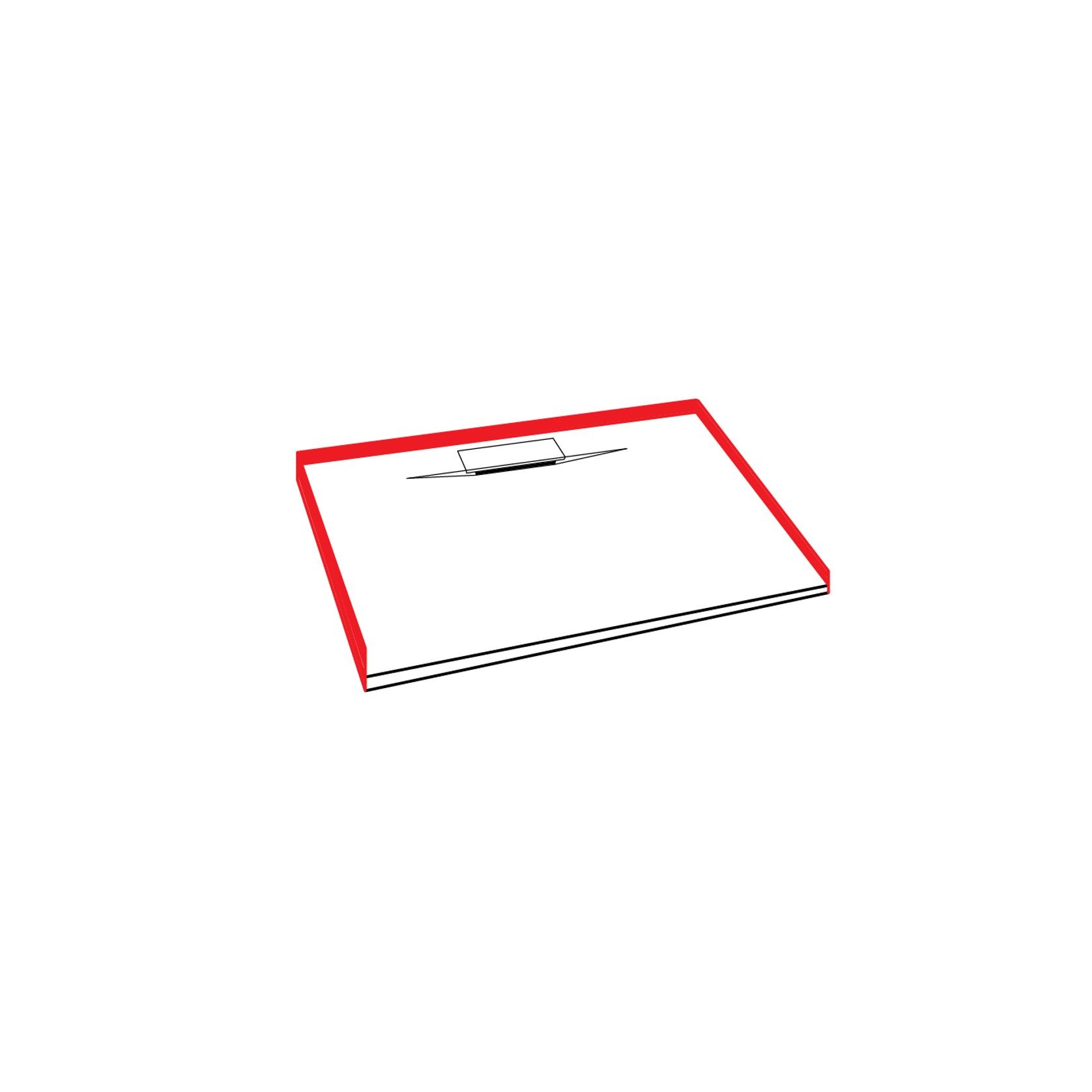

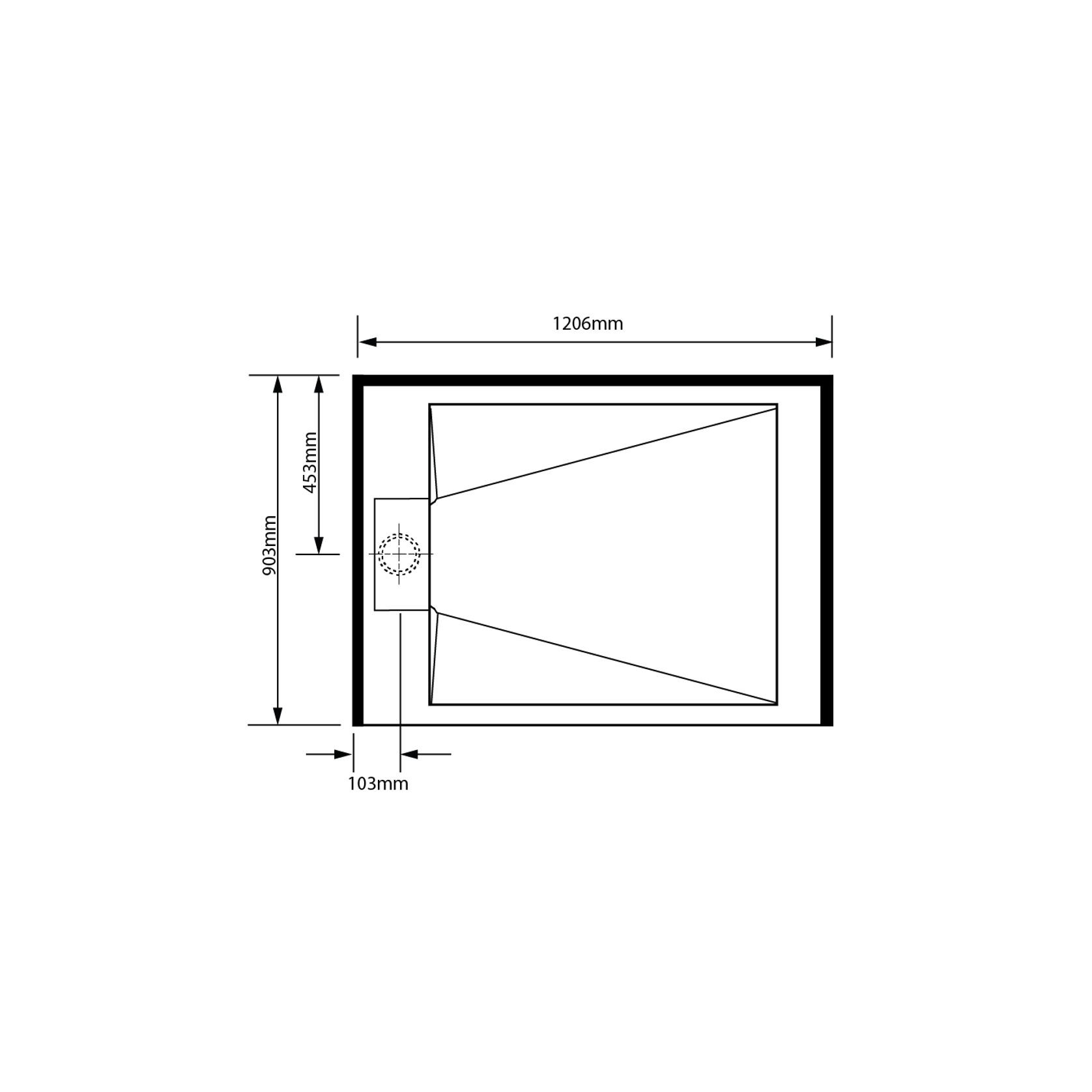

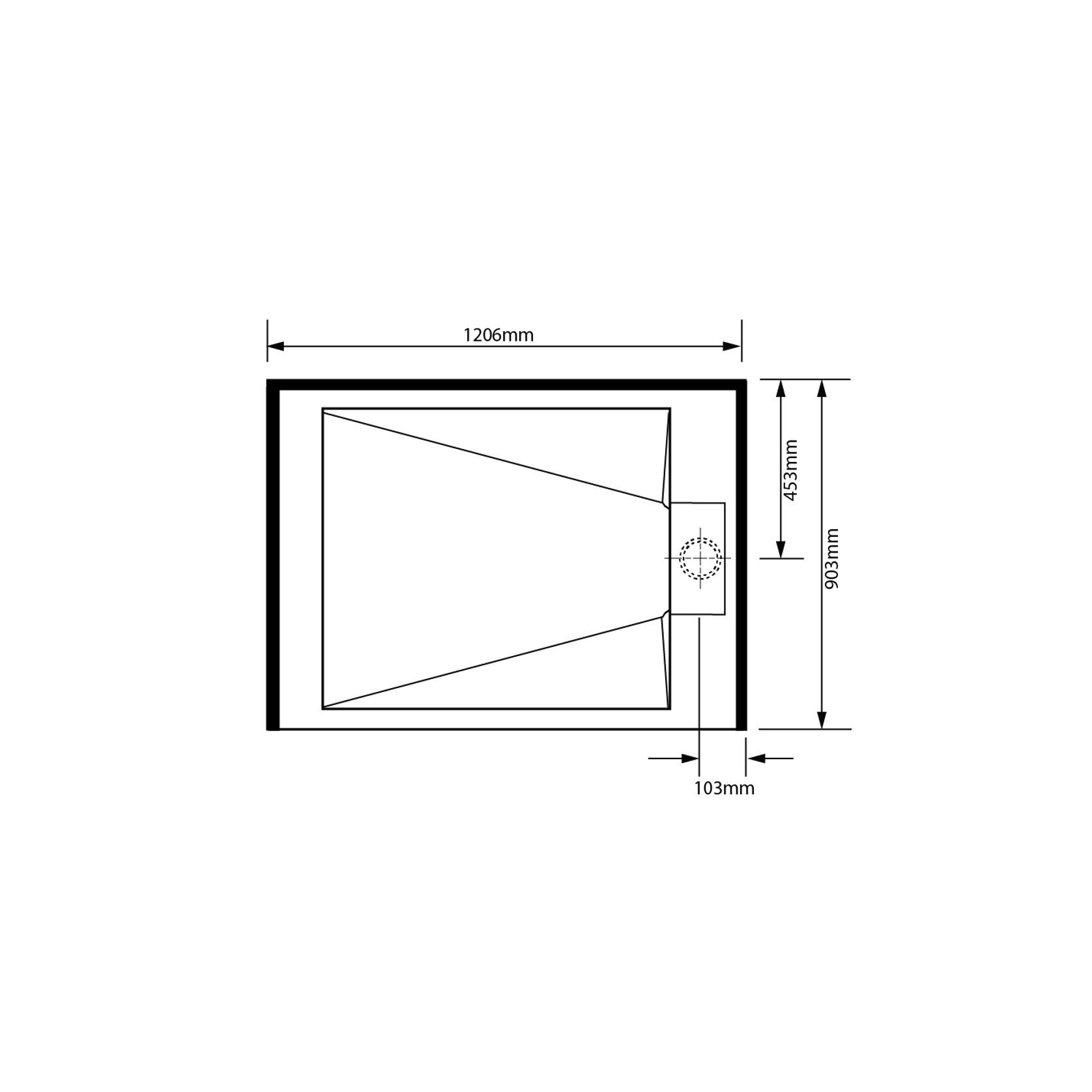

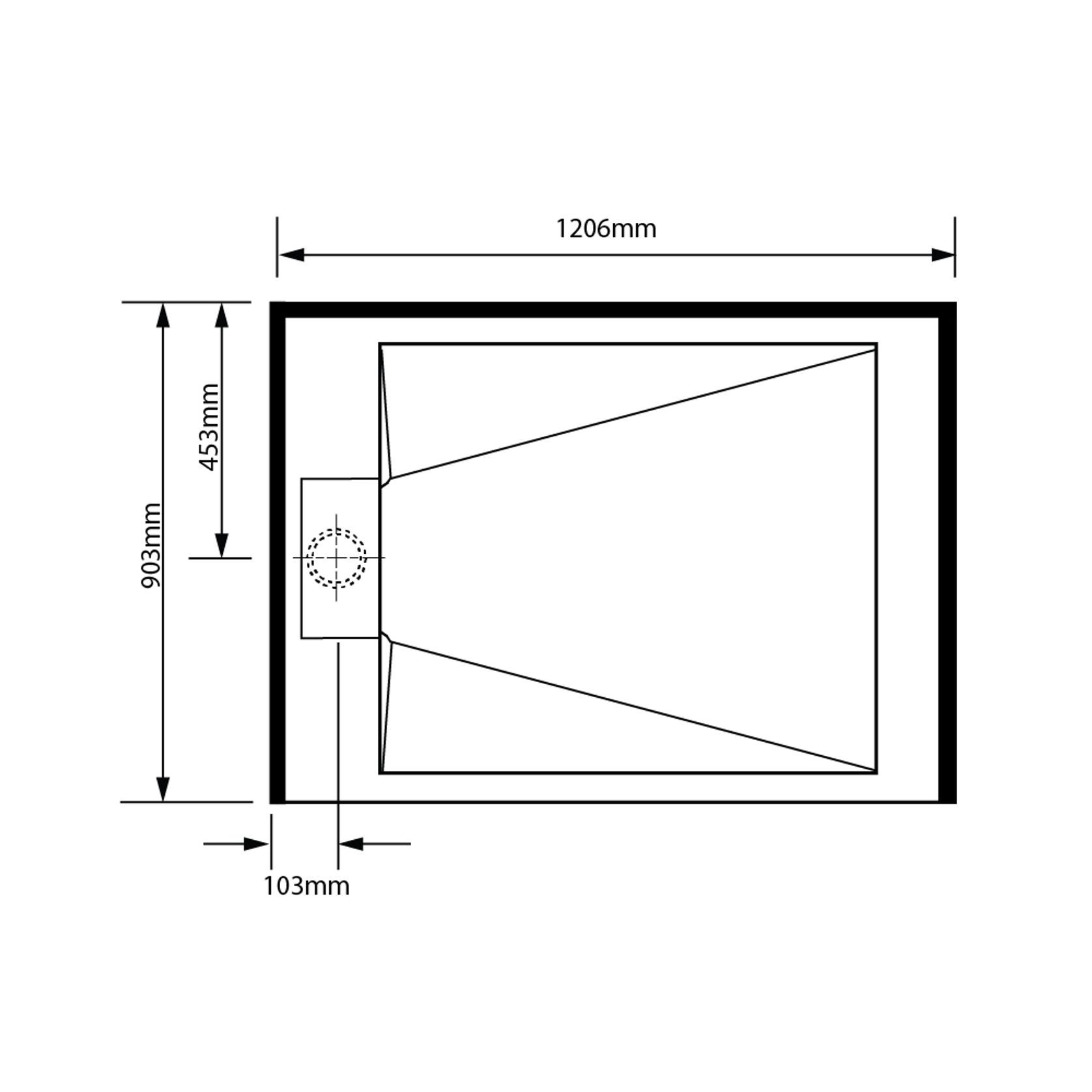

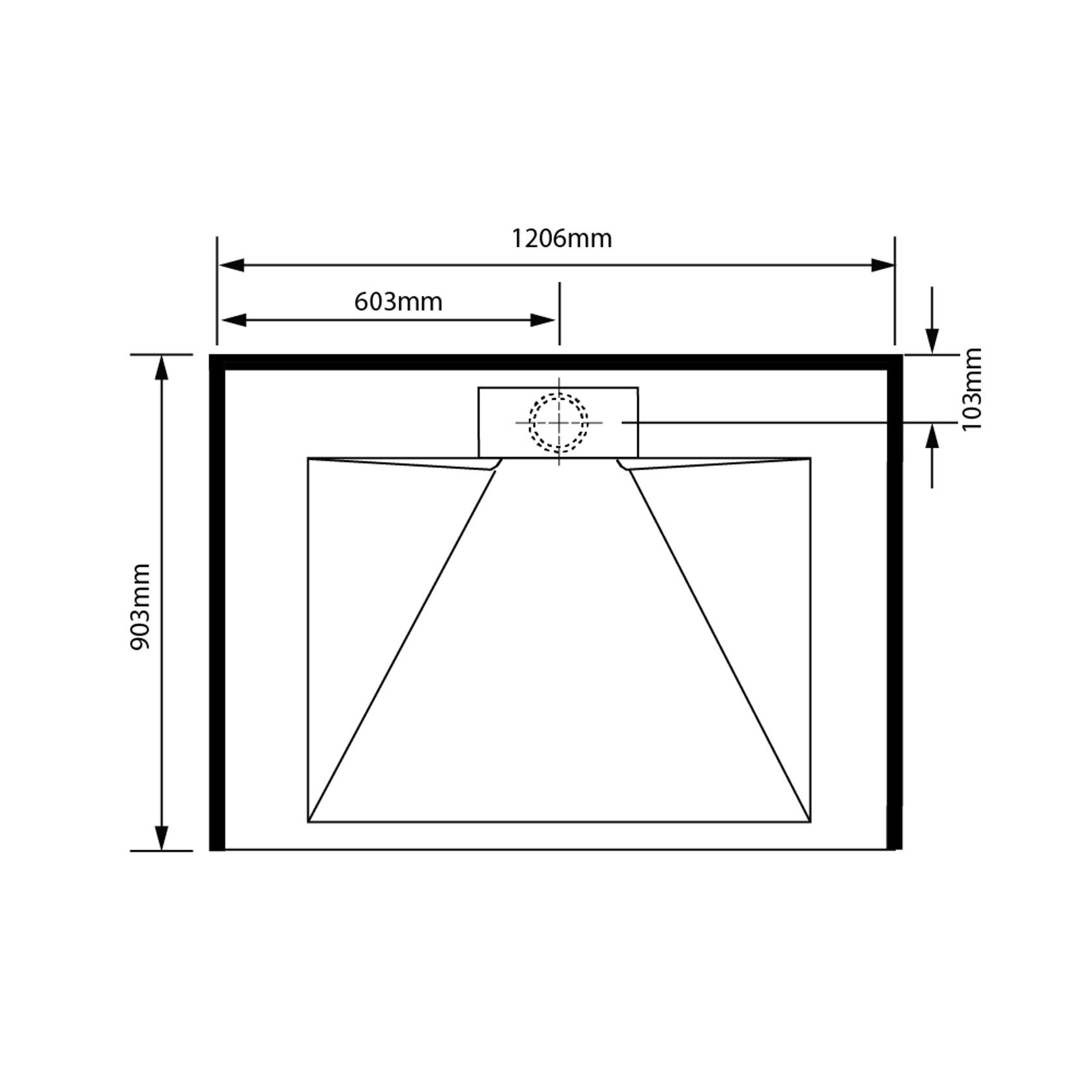

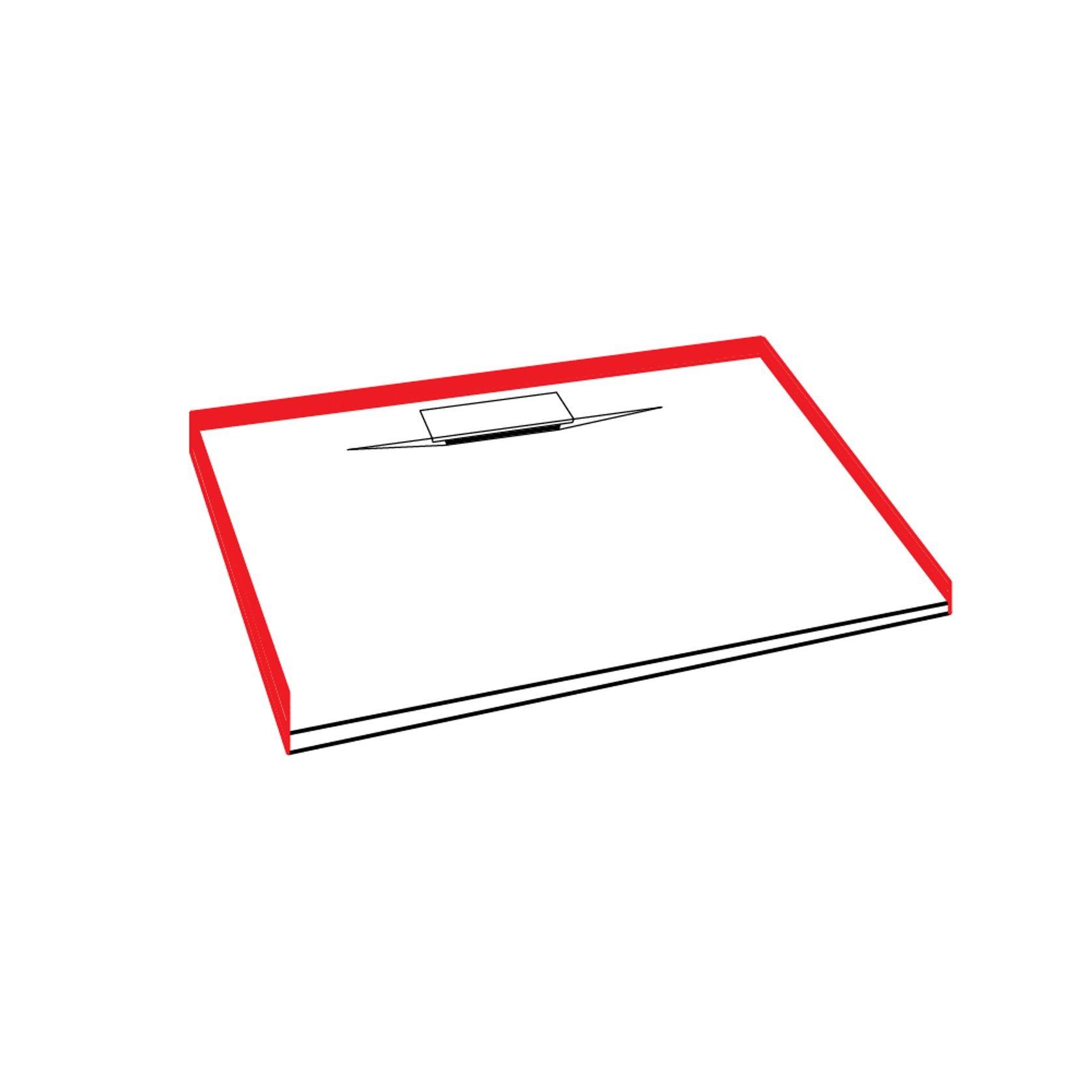

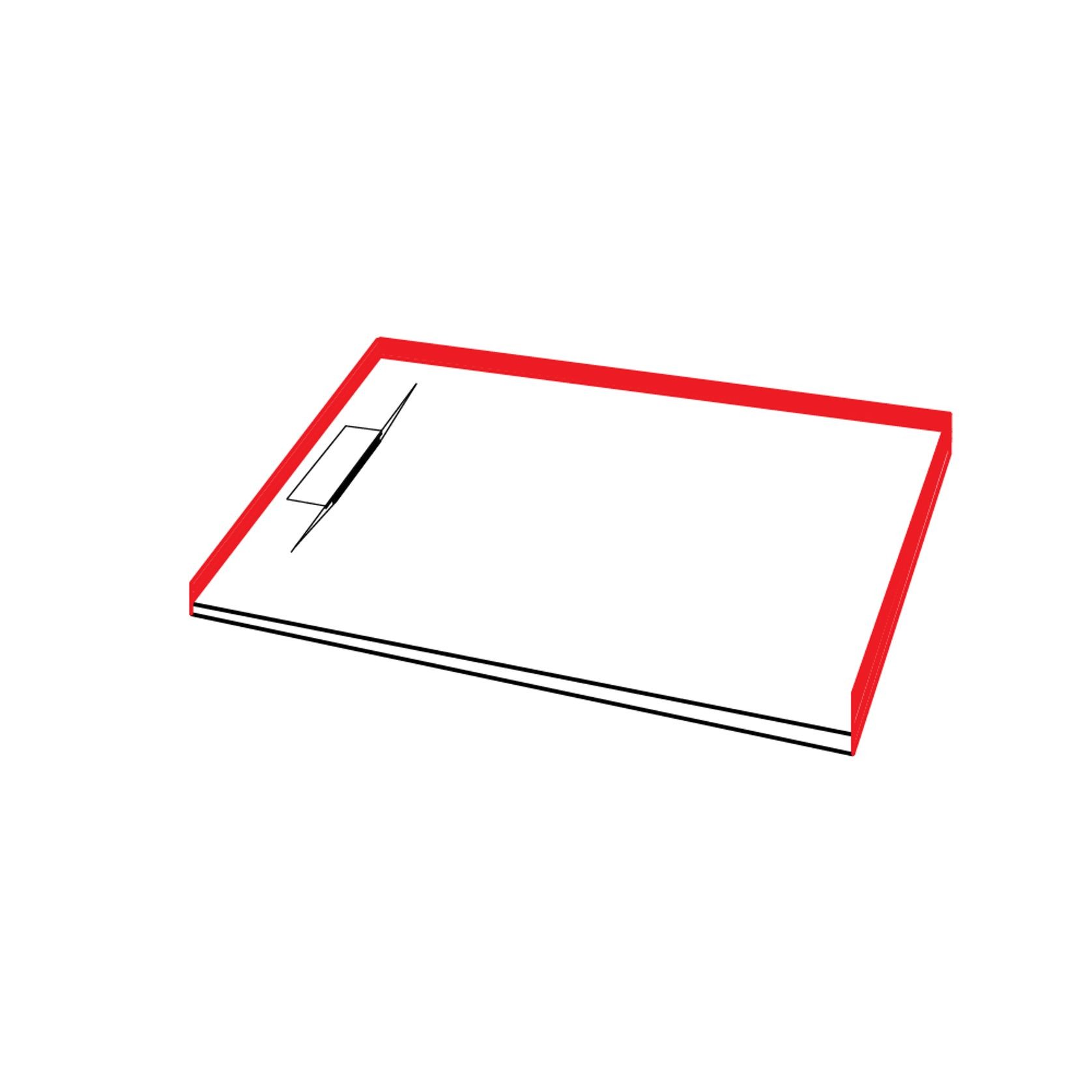

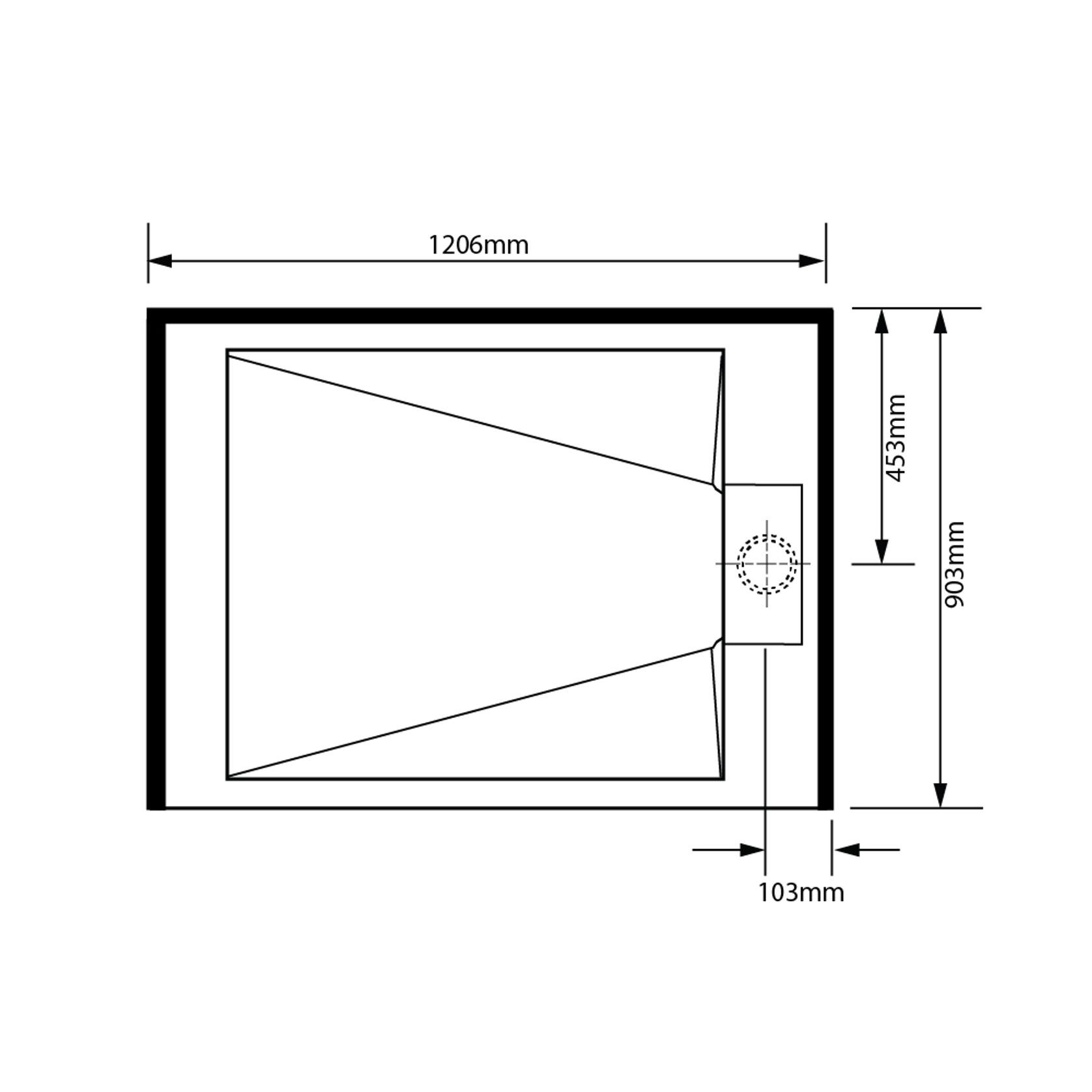

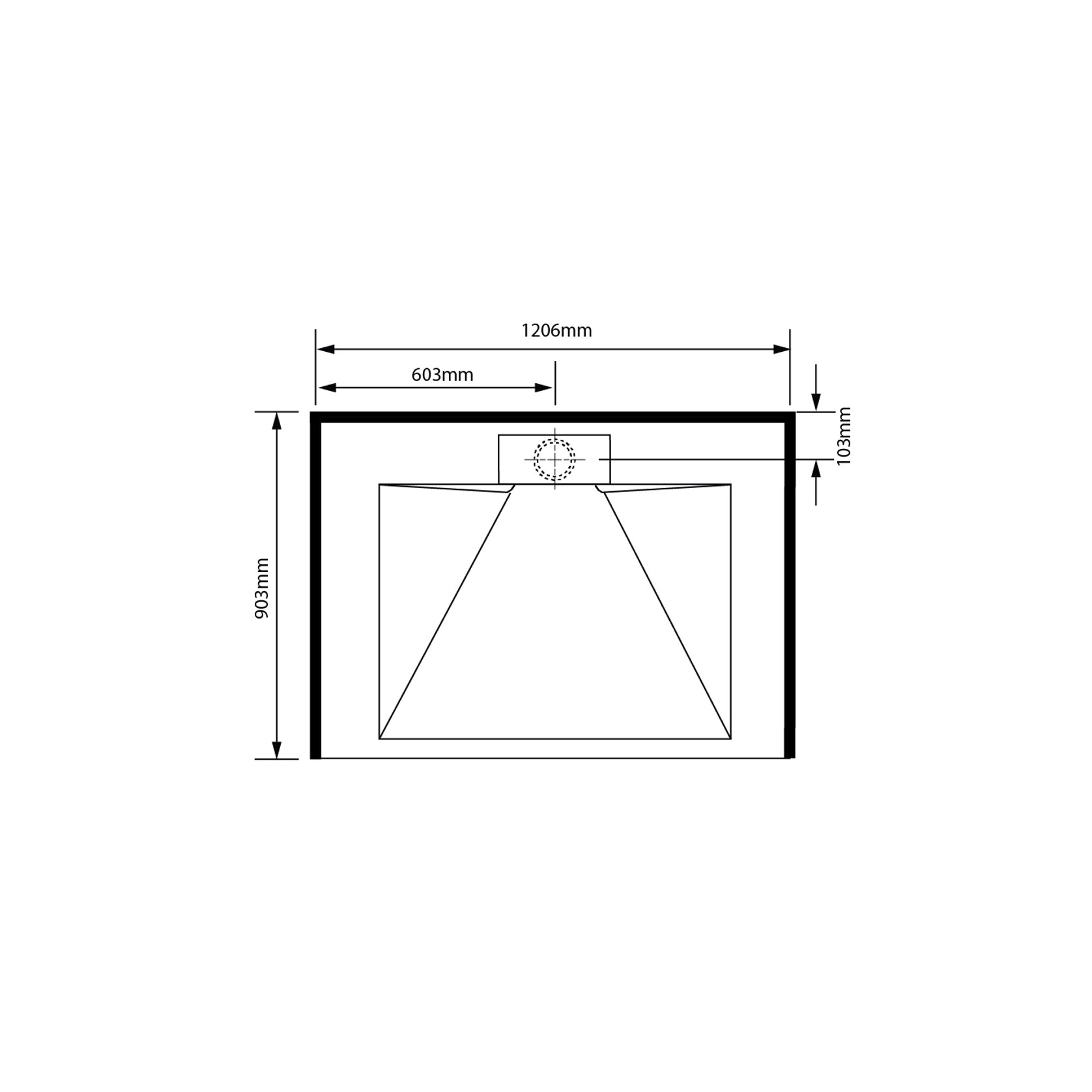

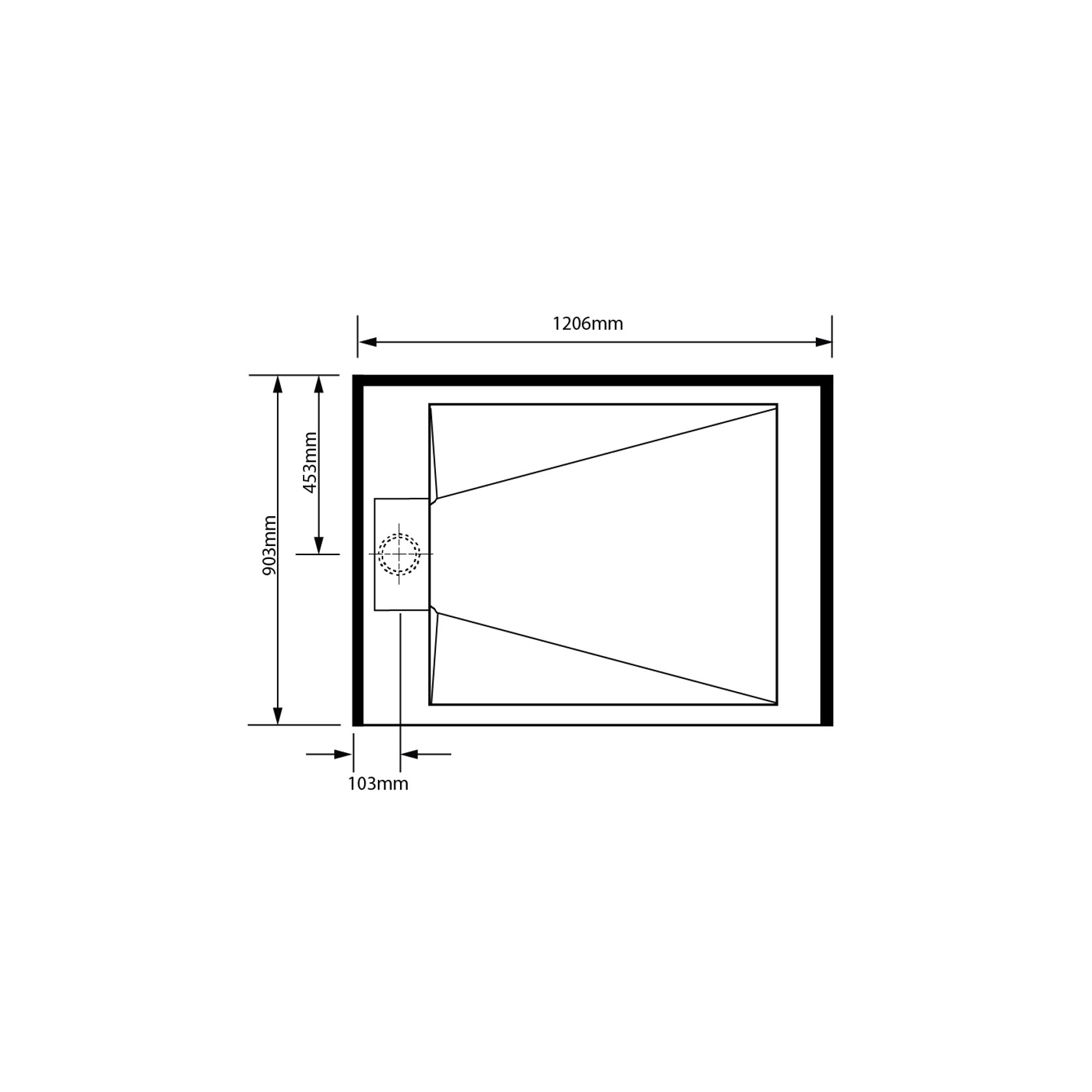

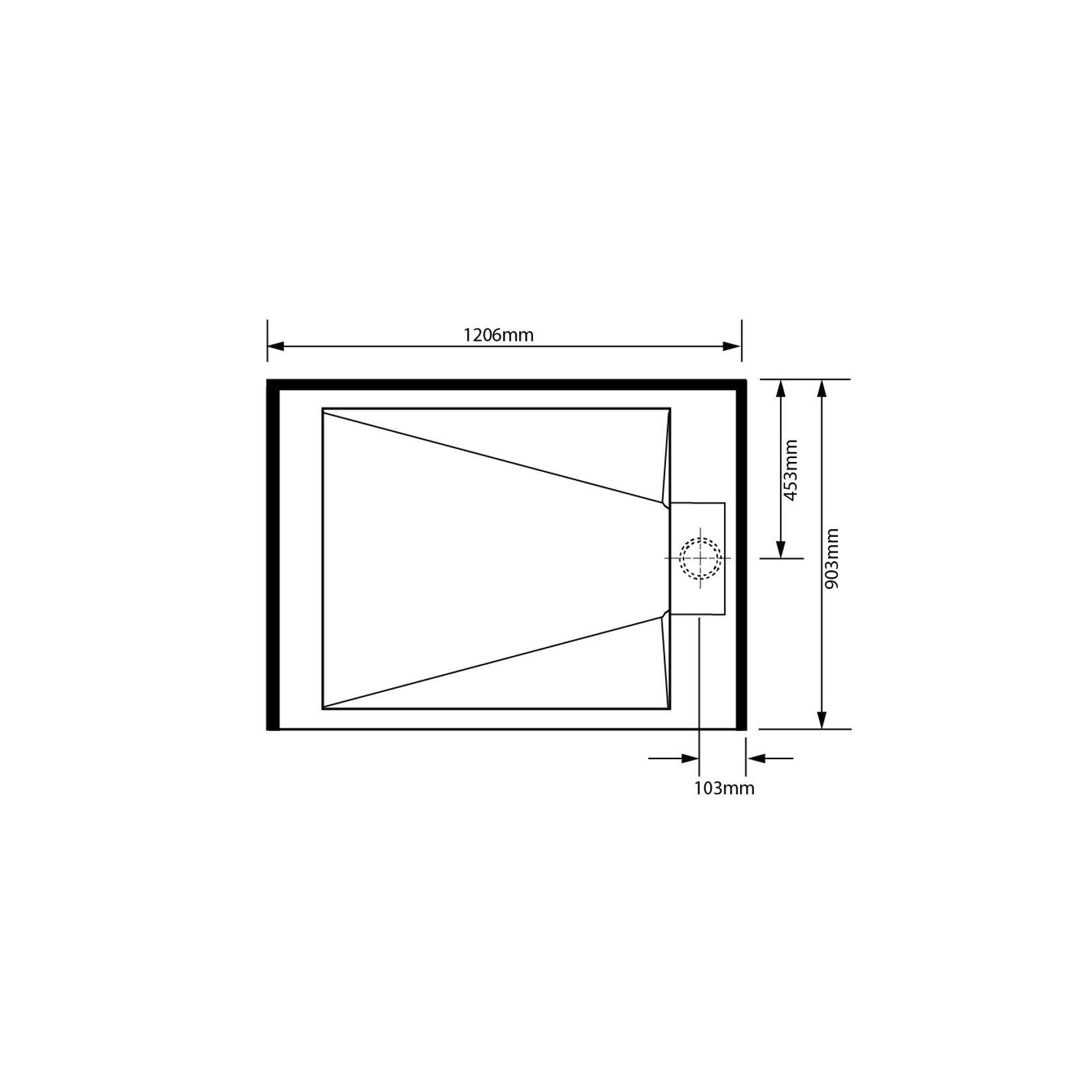

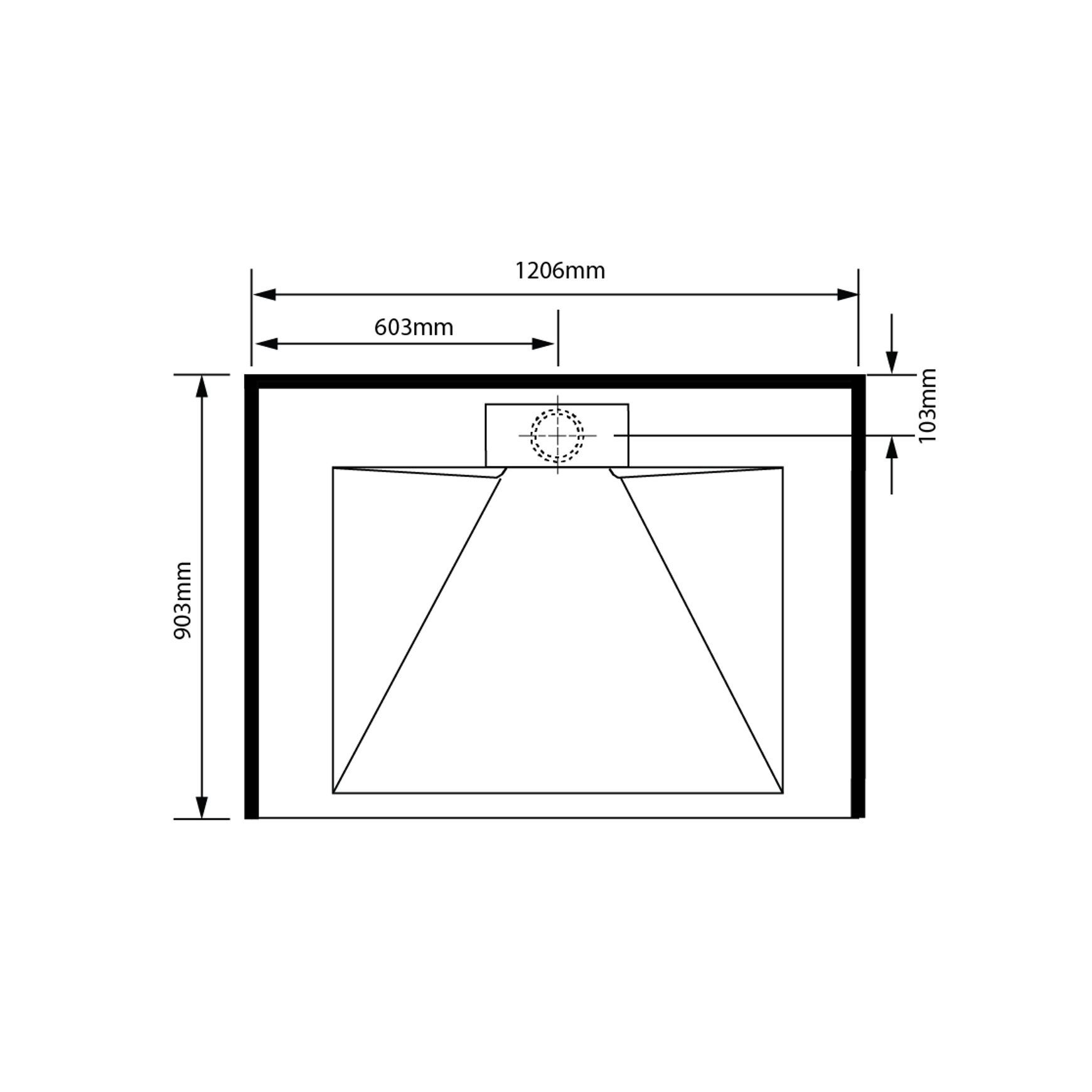

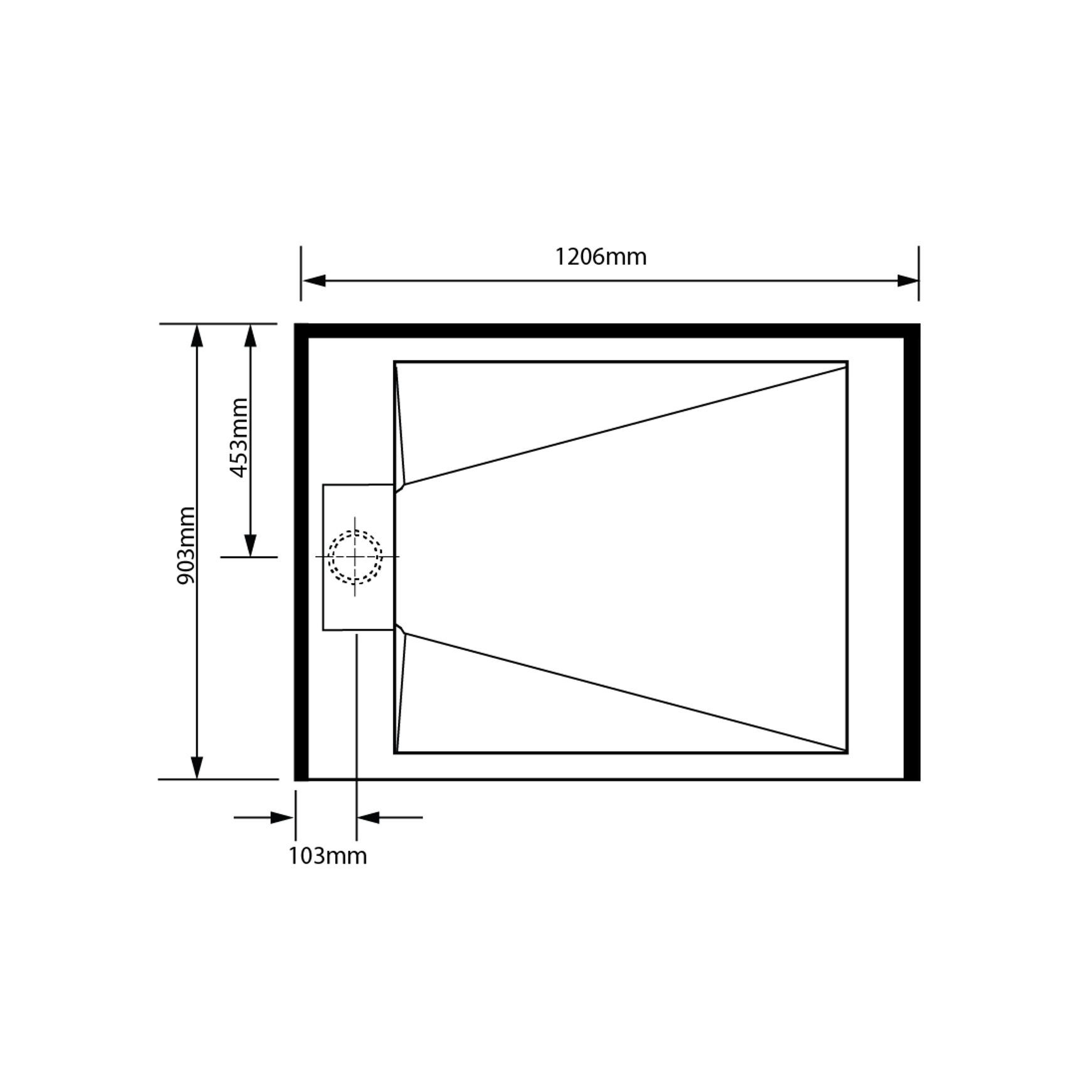

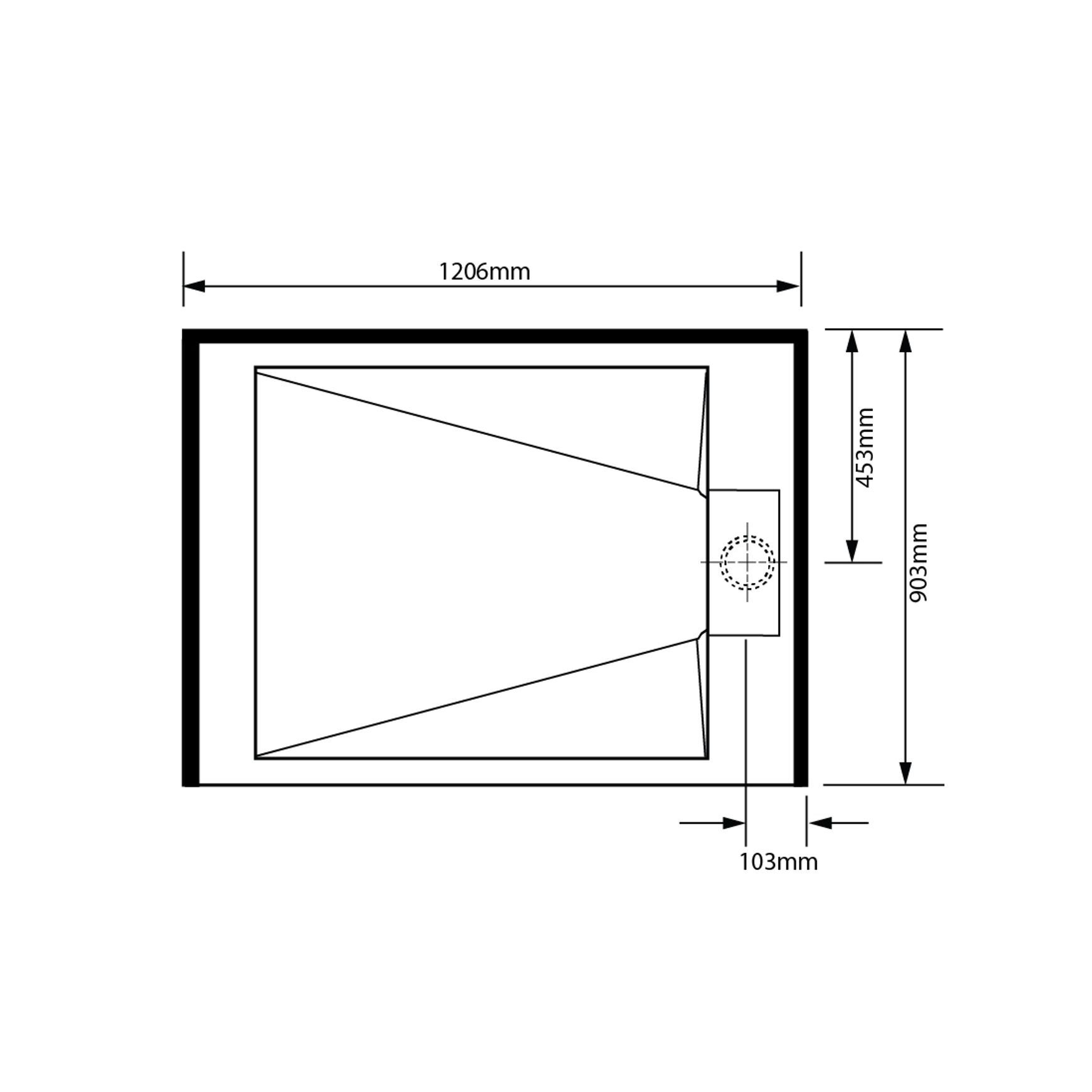

Pinnacle trays offer 3 outlet positions to cater for all waste and water outlet positions.

SEAMLESS DESIGN

Symphony Pinnacle trays feature a hidden waste design. An easy clean waste is hidden under a cover lid. Water exits the tray via a waste “slot” and when cleaning is required, the lid easily lifts up revealing the waste and the removable waste bucket.

WATERTIGHT STRENGTH

Watertightness is just as important as strength. That’s why Pinnacle trays feature factory-fitted 30mm high Aluminium Upstands which feature horizontal ribs to aid sealant or waterproofing material retention.

LOW PROFILE

Pinnacle trays have an ultra low height profile of 26mm. This could easily be lowered with flooring installation up to the side of the tray. Pinnacle trays can also be recessed into the floor if required.

DURABLE AND SAFE

SMC is a composite material made from resin, fillers and glass fibre. The material is poured into precision alloy moulds at over 150°C and compressed, leaving a precise, solid form which will not distort, discolour, or break down after years of use.

The surface is finished to mimic natural slate, which also provides a non-slip finish for added safety.
