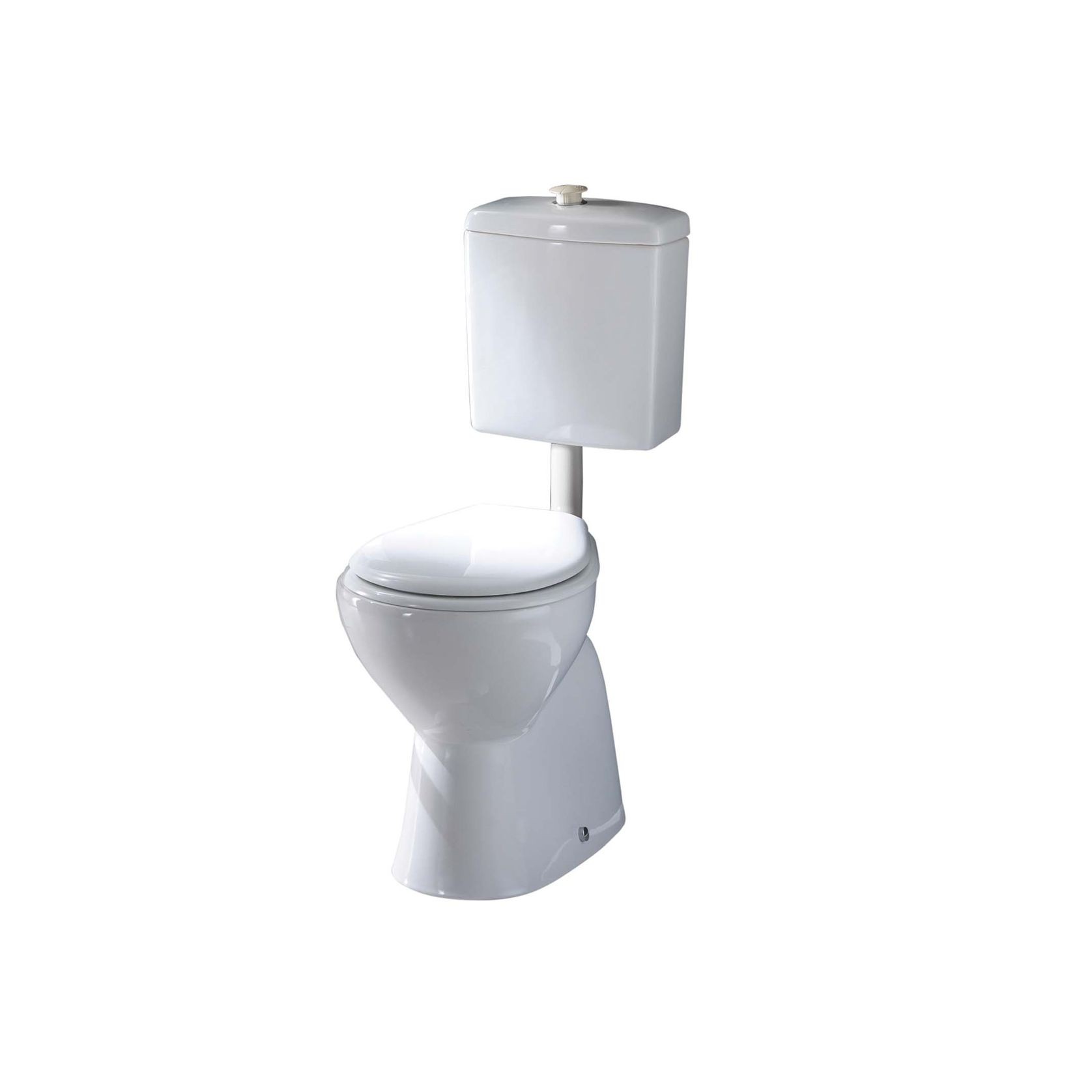

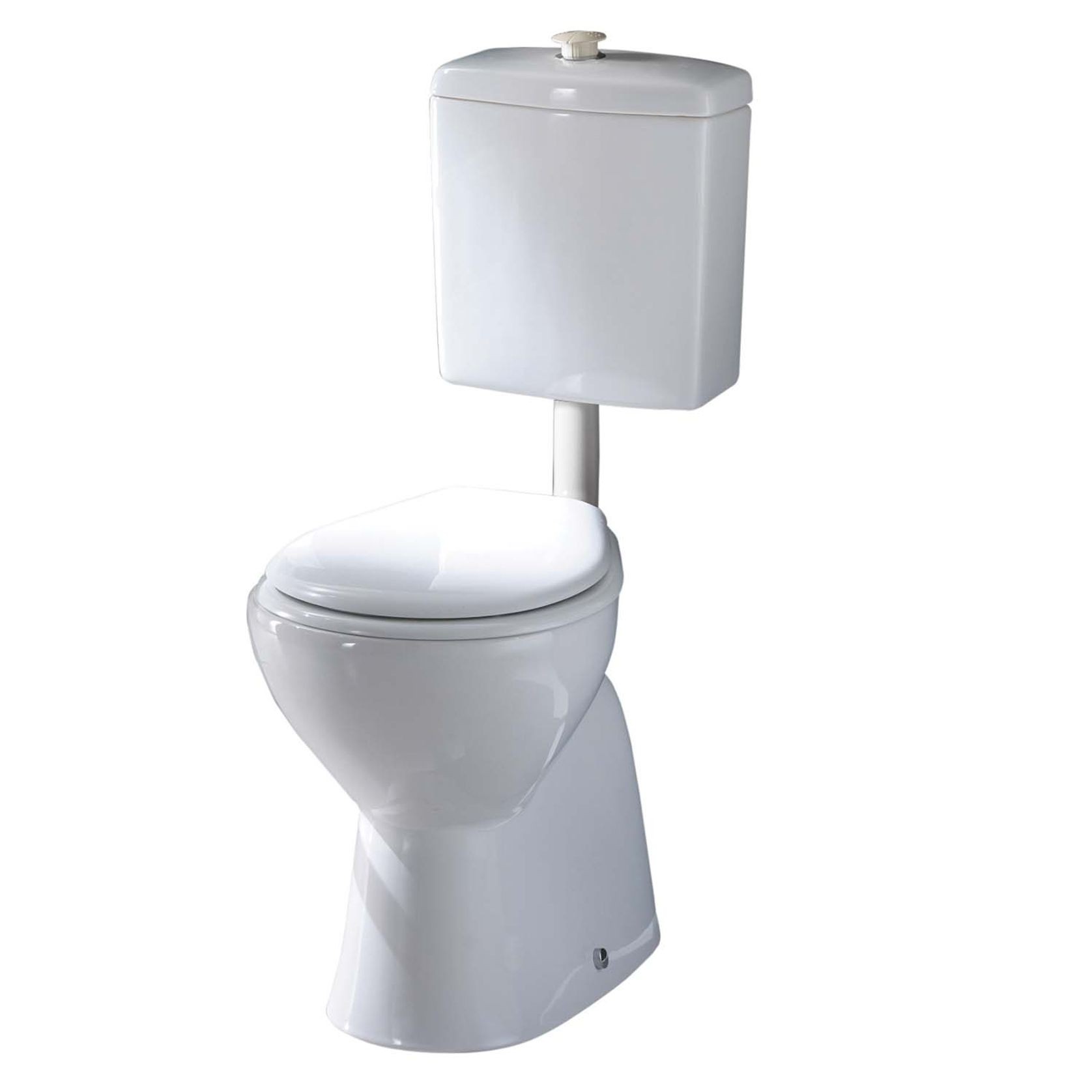

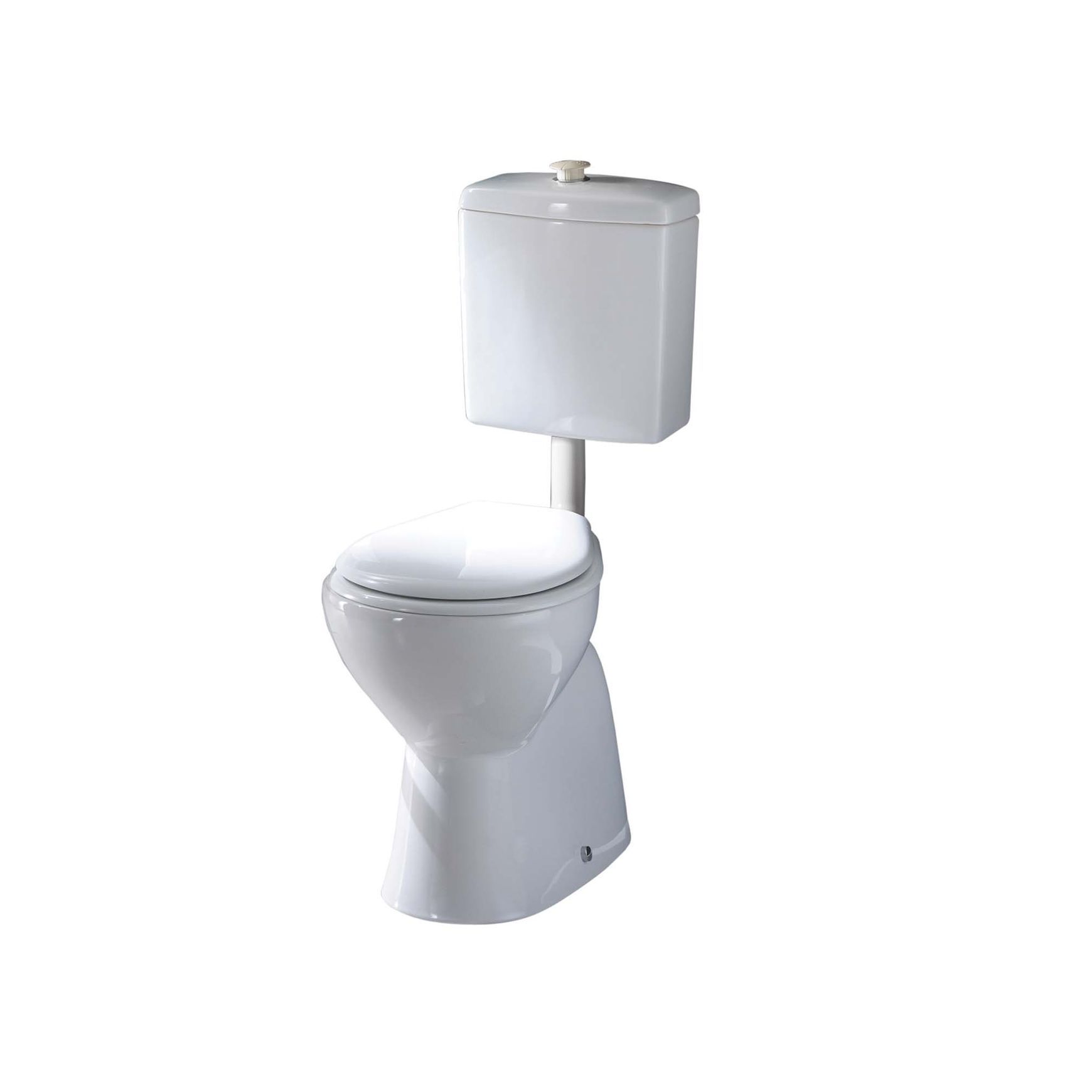

RAK Bella Accessible Link Toilet Suite

By MacDonald Industries
Visit Website

Wall faced accessible and rimless toilet suite from RAK Ceramics Compact range.

Details
  • Category
    Accessible Toilets, Commercial Toilets and Urinals
  • Range
    Bella
  • Brand
    RAK Ceramics
  • Designer
    RAK Ceramics
  • Year
    1991
  • Warranty
    1 year
General
  • Type of use
    Commercial and Residential
Specifications

The Bella accessible toilet suite has been designed exclusively to provide comfortable convenience to people with additional needs. Supplied with raised height push buttons as standard in white or select the option of blue coloured buttons for enhanced visibility.

Bella accessible range includes, link toilet suite (as shown) and wall hung basin.

Colour: Alpine white only.
Trap type: S-trap outlet connection.
Cistern: Ceramic 4.5/3L dual flush, fitted to the wall.
Inlet: ½"BSP bottom inlet connection (isolation valve not included).
Water pressure range: 10-1000kPa (50-500kPa recommended).
Fixing: FS37UK floor fixing kit included.
Seat: Bella urea care toilet seat and lid in white or blue.

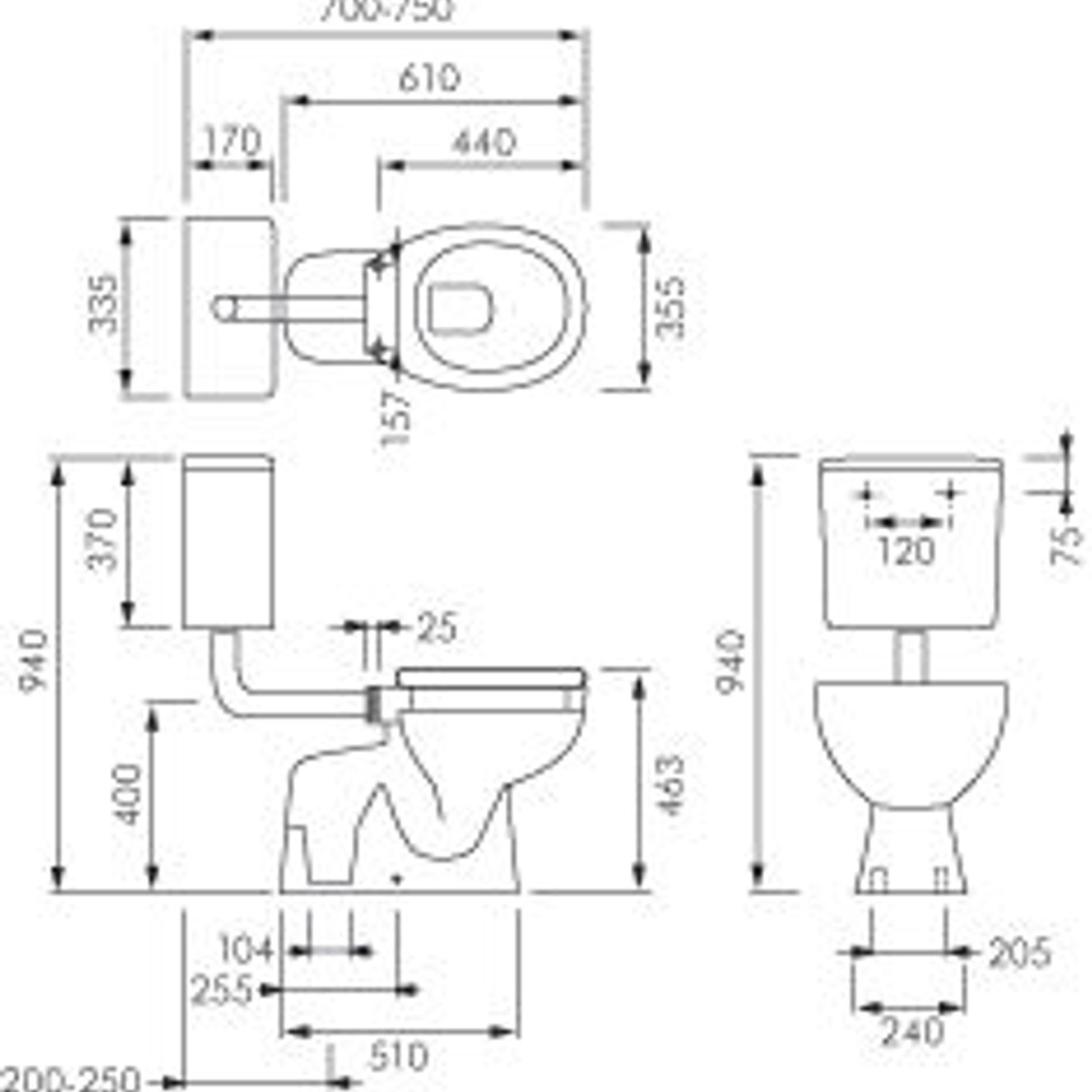

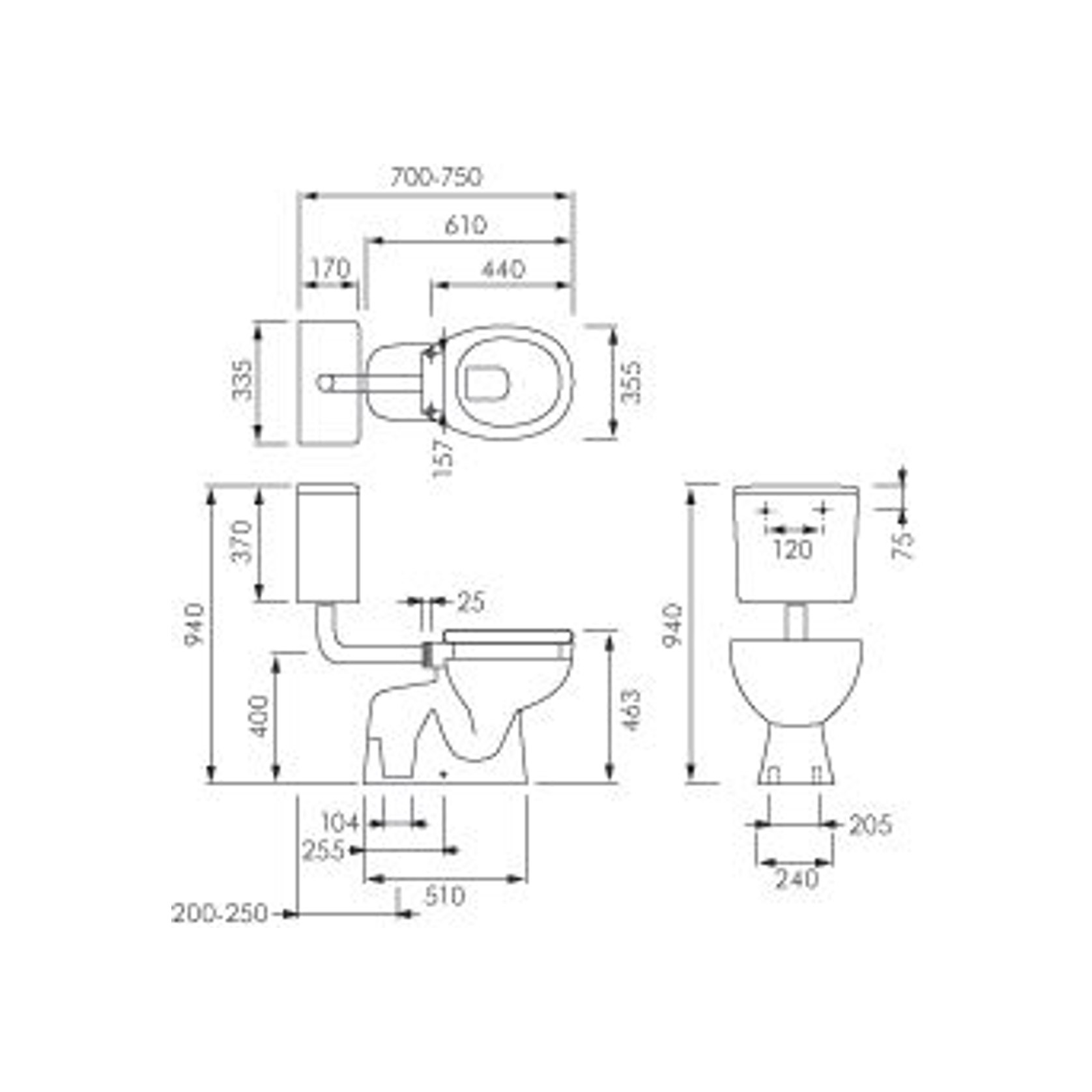

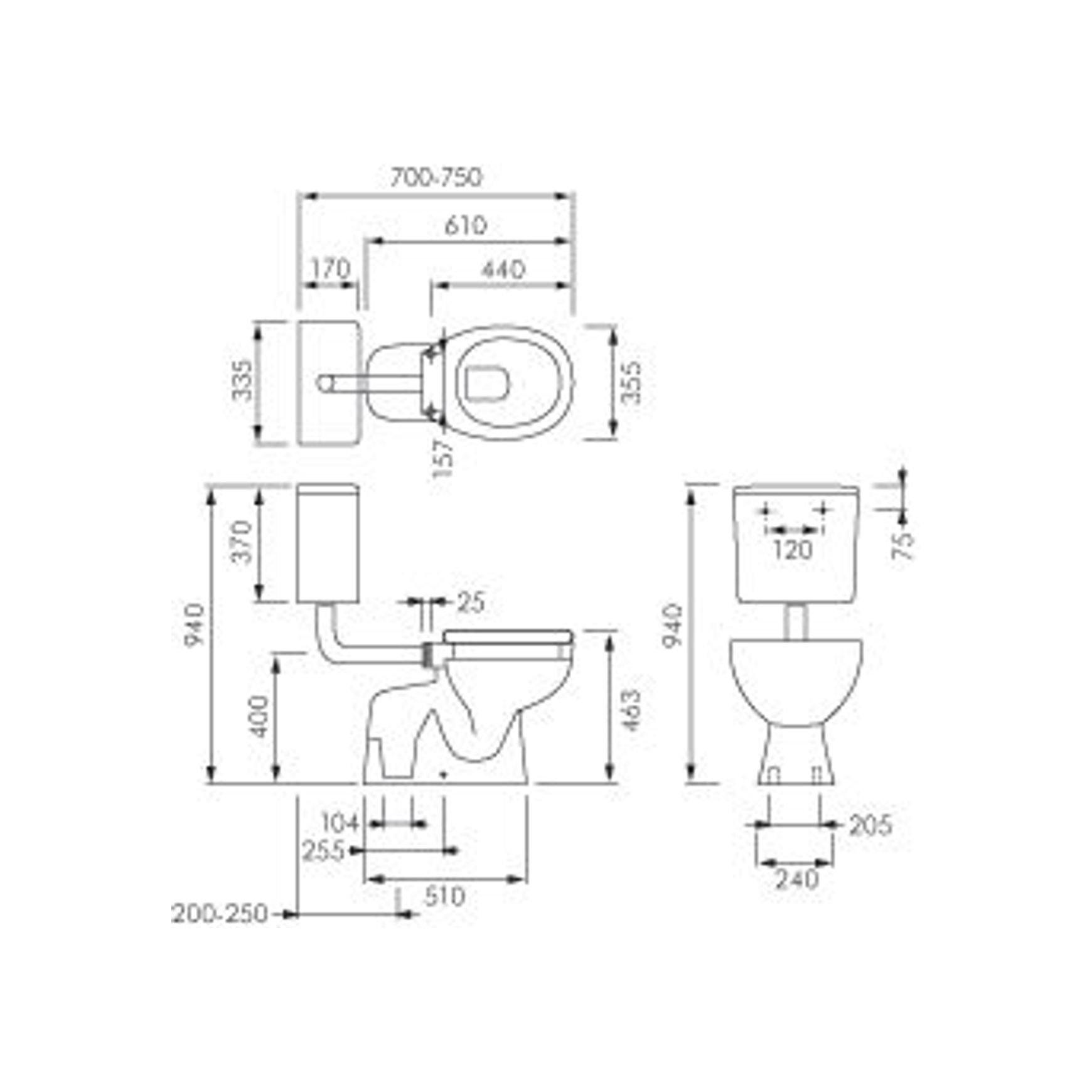

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.
Optional extra: For a back rest offering extra comfort, refer BE-BT35 in separate literature.

Scope of use

The Bella accessible toilet suite has been designed exclusively to provide comfortable convenience to people with additional needs.

Models available

RA-BE1531 - RAK Bella accessible link toilet suite S-trap complete with white toilet seat and lid.
RA-BE1531BL - RAK Bella accessible link toilet suite S-trap complete with blue toilet seat and lid.

OPTIONAL EXTRA: For blue push buttons please add suffix -BB to the end of your selected model.
For a back rest offering extra comfort, refer MacDonald BE-BT35 in separate literature.

Performance

RAK Ceramics is one of the largest ceramics brands in the world. Sourcing its raw materials locally, RAK is an expert in producing ceramics lifestyle solutions.
