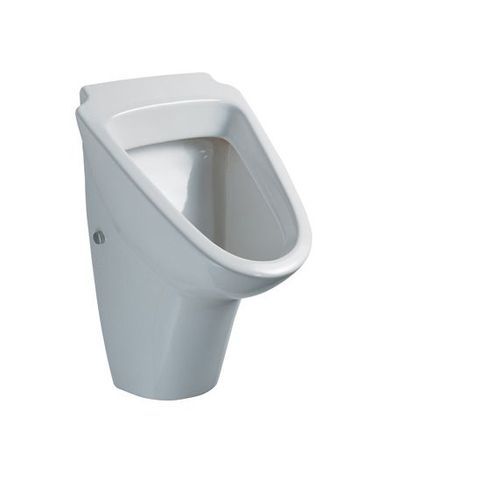

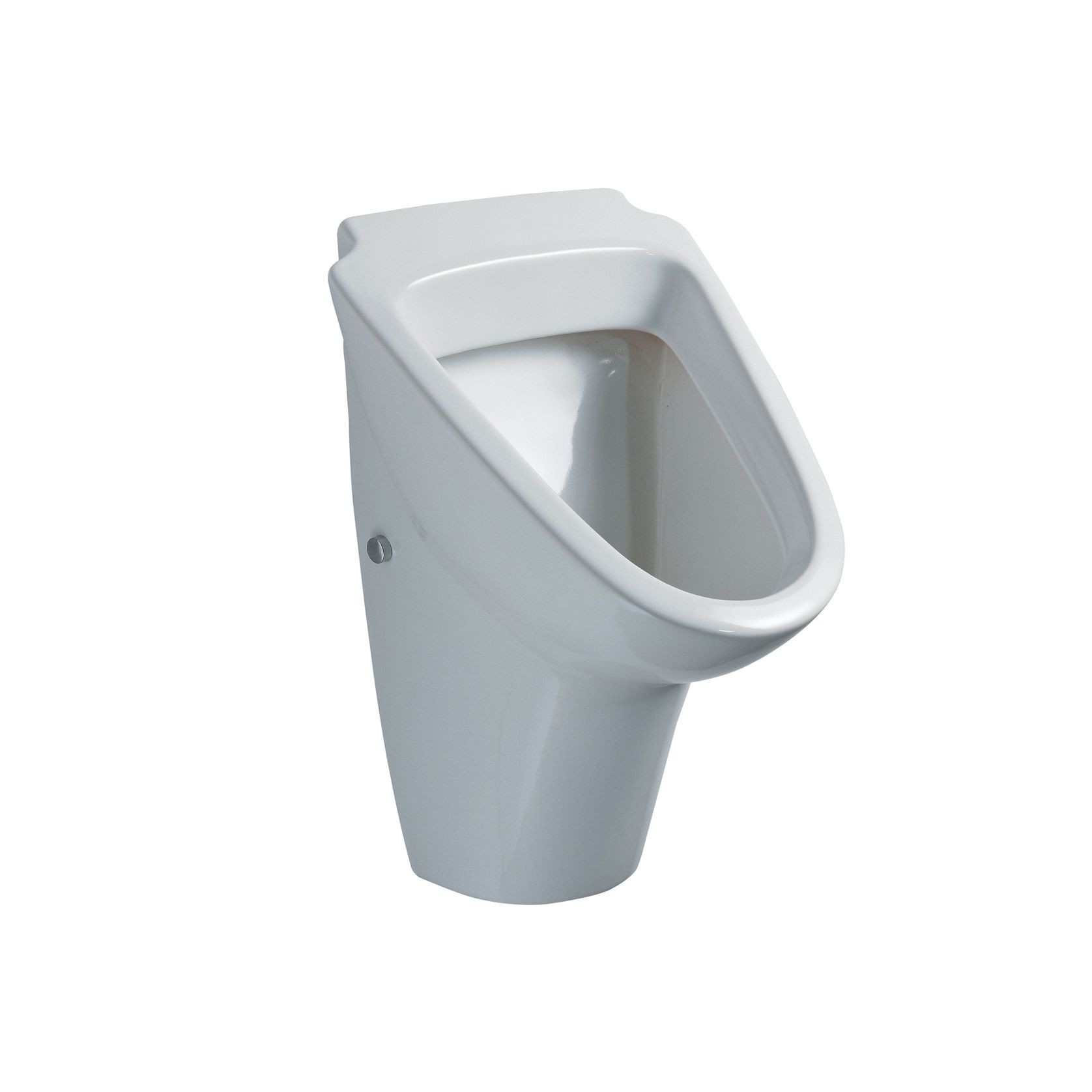

RAK Phoenix Wall Hung Urinal
Auckland
- 289.6K profile views
- 19 saves
The Phoenix wall hung urinal is a timeless design that will suit all bathrooms. The Phoenix is available with both rear inlet & top inlet water connections, and has a concealed waste trap.
Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.
Product Details
- Product
- RAK Phoenix Wall Hung Urinal
- Category
- Commercial Toilets and Urinals
- Sold by
- MacDonald Industries
- Range
- Phoenix
- Brand
- RAK Ceramics
- Country of origin
- United Arab Emirates
- Type of use
- Commercial and Residential
- Installation
- Professional installation recommended
- Warranty
- 1 year
MacDonald Industries is specified by
DCA Architects of TransformationArchitects
Mason & Wales ArchitectsArchitects
Arthouse ArchitectsArchitects
TEAM Architects AucklandArchitects
MAKE ArchitectsArchitects
Jigsaw ArchitectsArchitects
Fat Parrot ArchitectureArchitects
Sheppard & Rout ArchitectsArchitects
Stevens Lawson ArchitectsArchitects
Gel ArchitectsArchitects
Architects44Architects
PAUA Architects LtdArchitects
7D Architecture LtdArchitects
Moller ArchitectsArchitects
McCoy Wixon ArchitectsArchitects
Totem StudioArchitects
Designgroup Stapleton ElliottArchitects
Eliška Lewis ArchitectsArchitects
Architect PeopleArchitects
Studio Pacific ArchitectureArchitects
Williams Architects LtdArchitects
Ignite ArchitectsArchitects
HB ArchitectureArchitects
Stephenson&TurnerArchitects
GHD DesignArchitects
Wilson & Hill ArchitectsArchitects
August Millard LimitedBuilding Surveyors
RCPProject Managers
Henwood ConstructionConstruction
Bishop ArchitectureArchitectural Designers
Foley GroupInterior Designers
Peter Dunbar Architectural DesignerArchitectural Designers
PG Plumbing + GasfittingPlumbers & Gas Fitters
Hanlon & Partners LtdEngineers
HawkinsConstruction
AquaPro PlumbingPlumbers & Gas Fitters
Tile SpaceManufacturers and Suppliers
Peter Diver Plumbing & DrainagePlumbers & Gas Fitters
Arcline ArchitectureArchitectural Designers
AmbitecManufacturers and Suppliers
Plumbing and Heating Centre Ltd NZ
Heron PlumbingDrainage Specialists
Nixon HomesBuilders
The Phoenix wall hung urinal is a timeless design that will suit all bathrooms.
The Phoenix is available with both rear inlet & top inlet water connections, and has a concealed waste trap.
Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.
- Specs
Colour: White only.
Inlet connection: ½" BSP inlet connector included with RA-PH3200. RA-PH3100 requires flush valve connection pipe to be supplied with valve set. Refer Installation instructions for details.
Waste outlet: Waste trap included. Plumber to install Ø50 waste (socket end to urinal) pipe in wall.
Water pressure range: 100-500kPa.
Fixings: FS37UK fixing kit included.

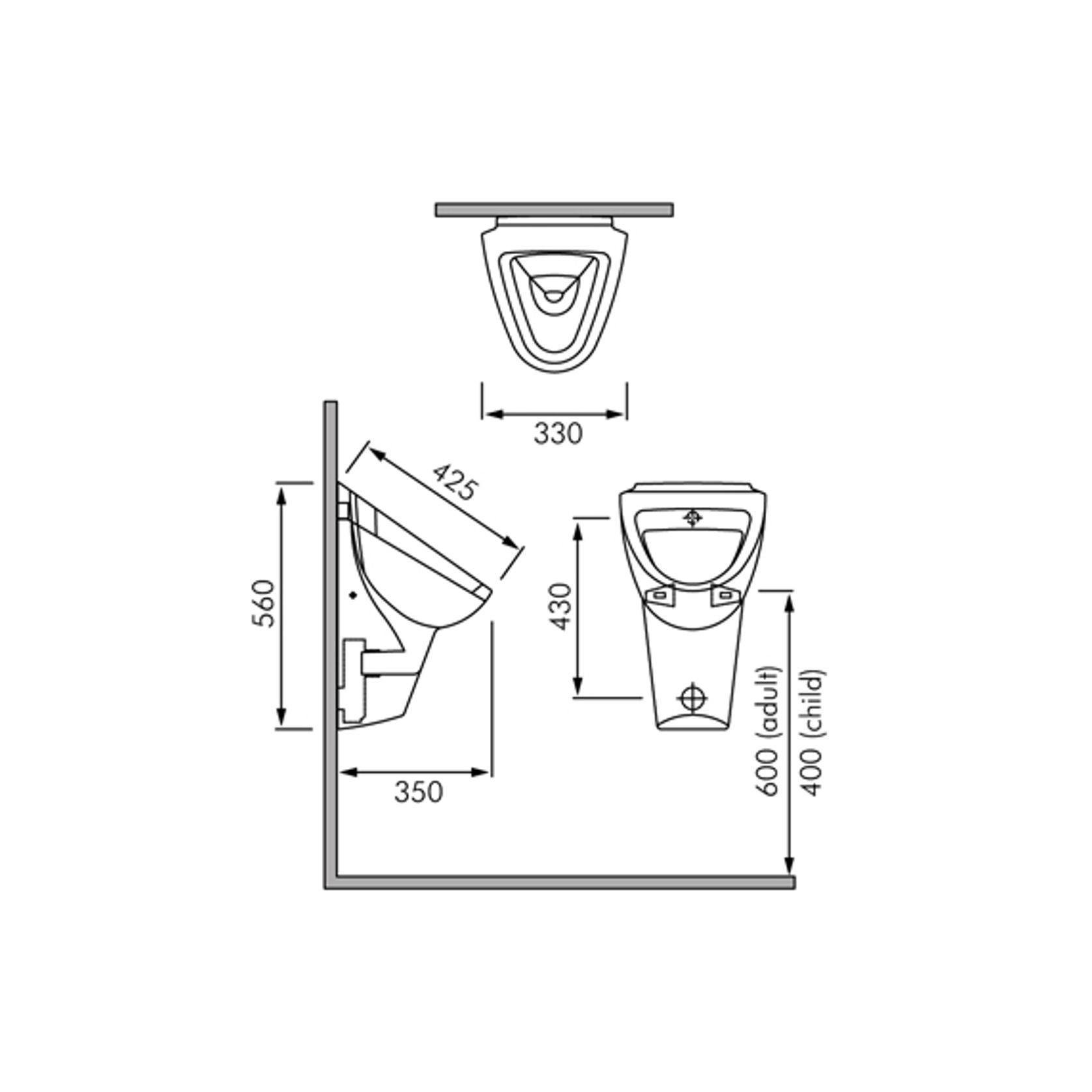

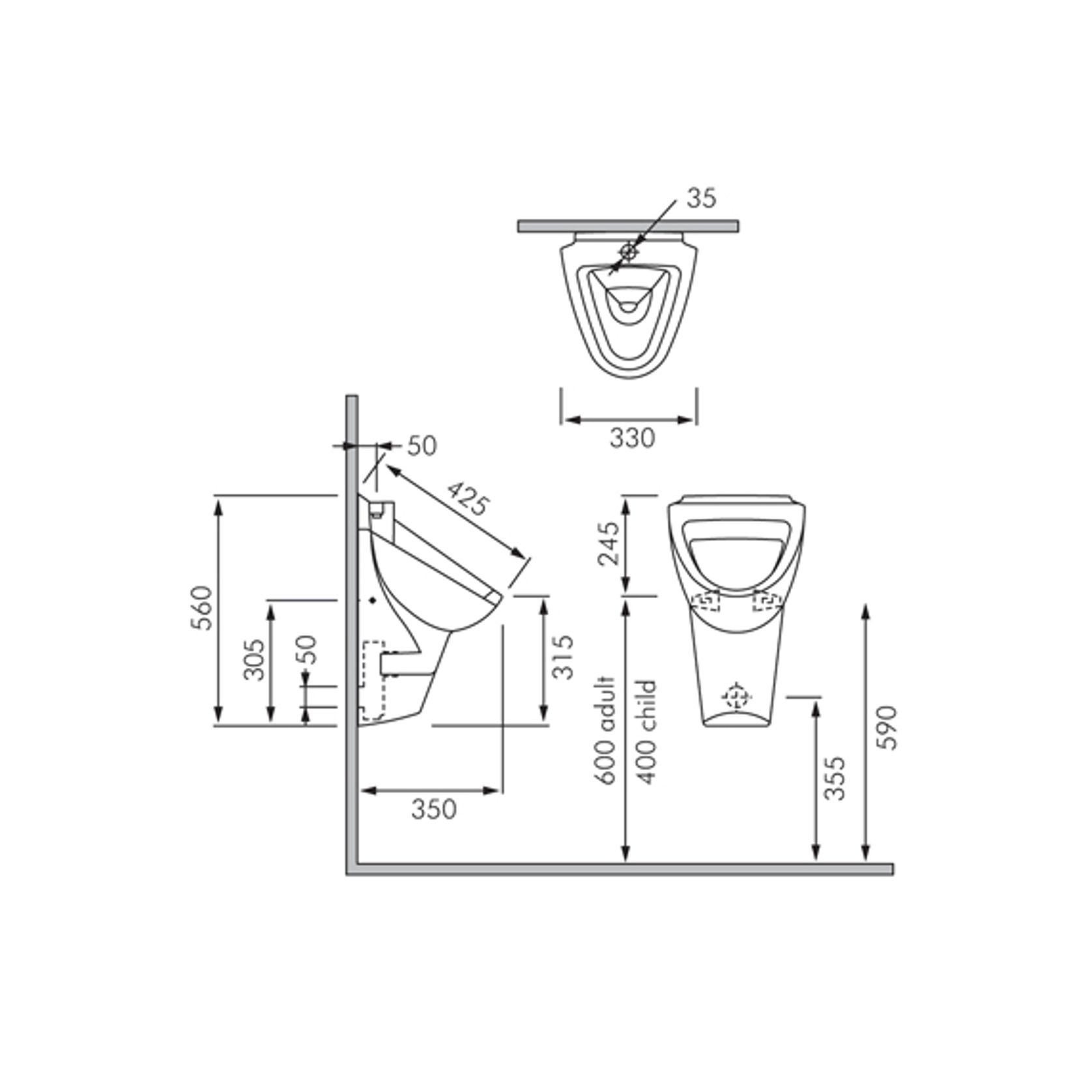

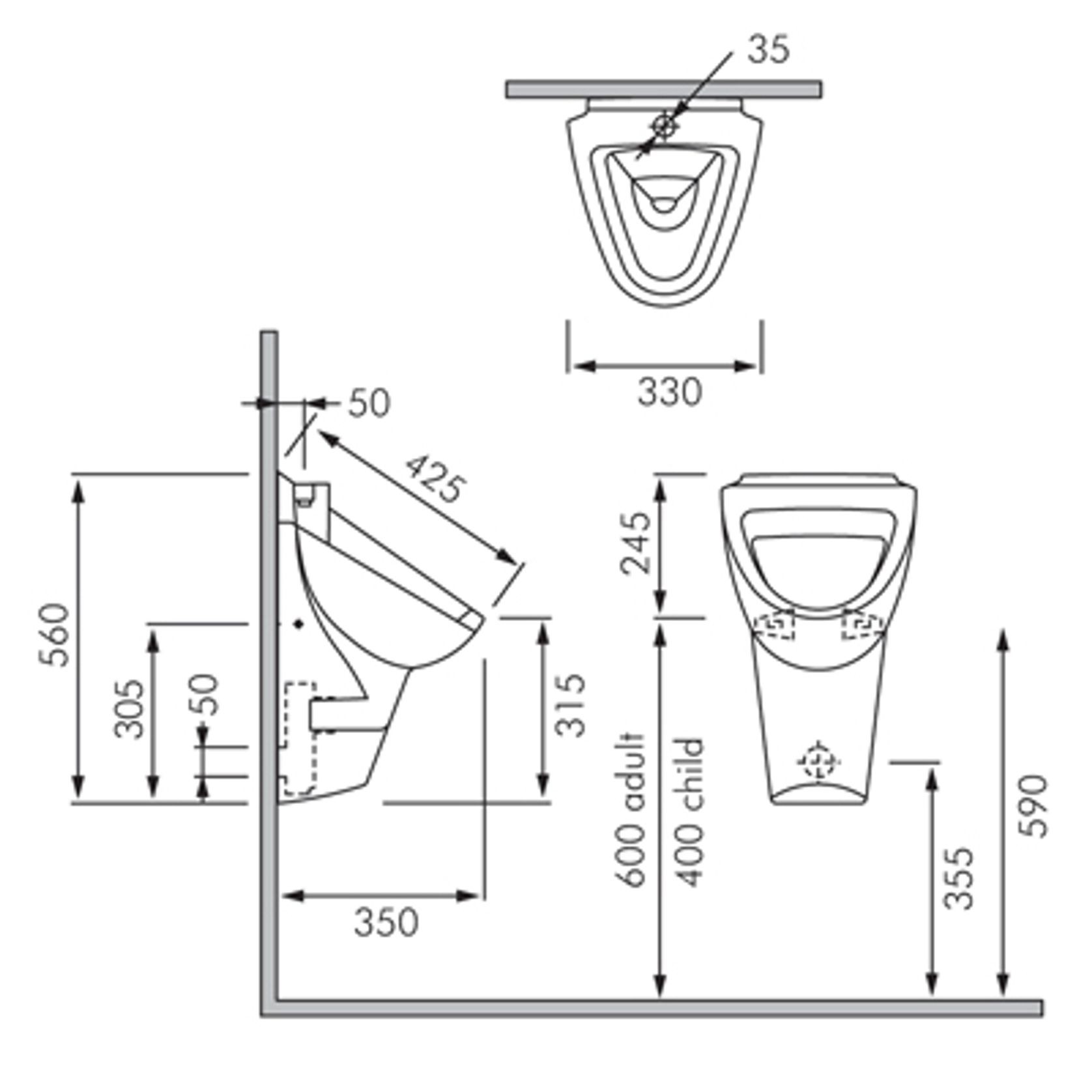

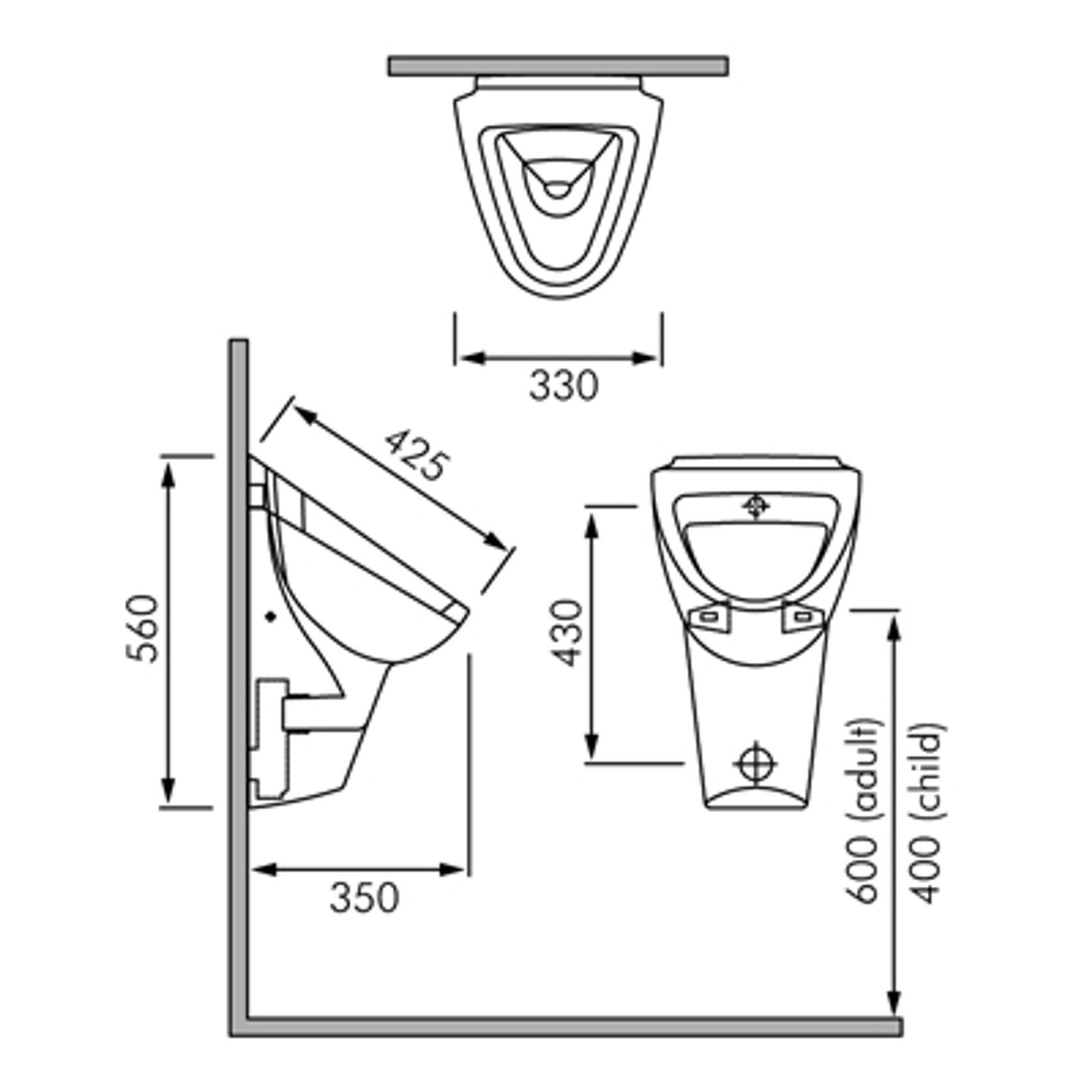

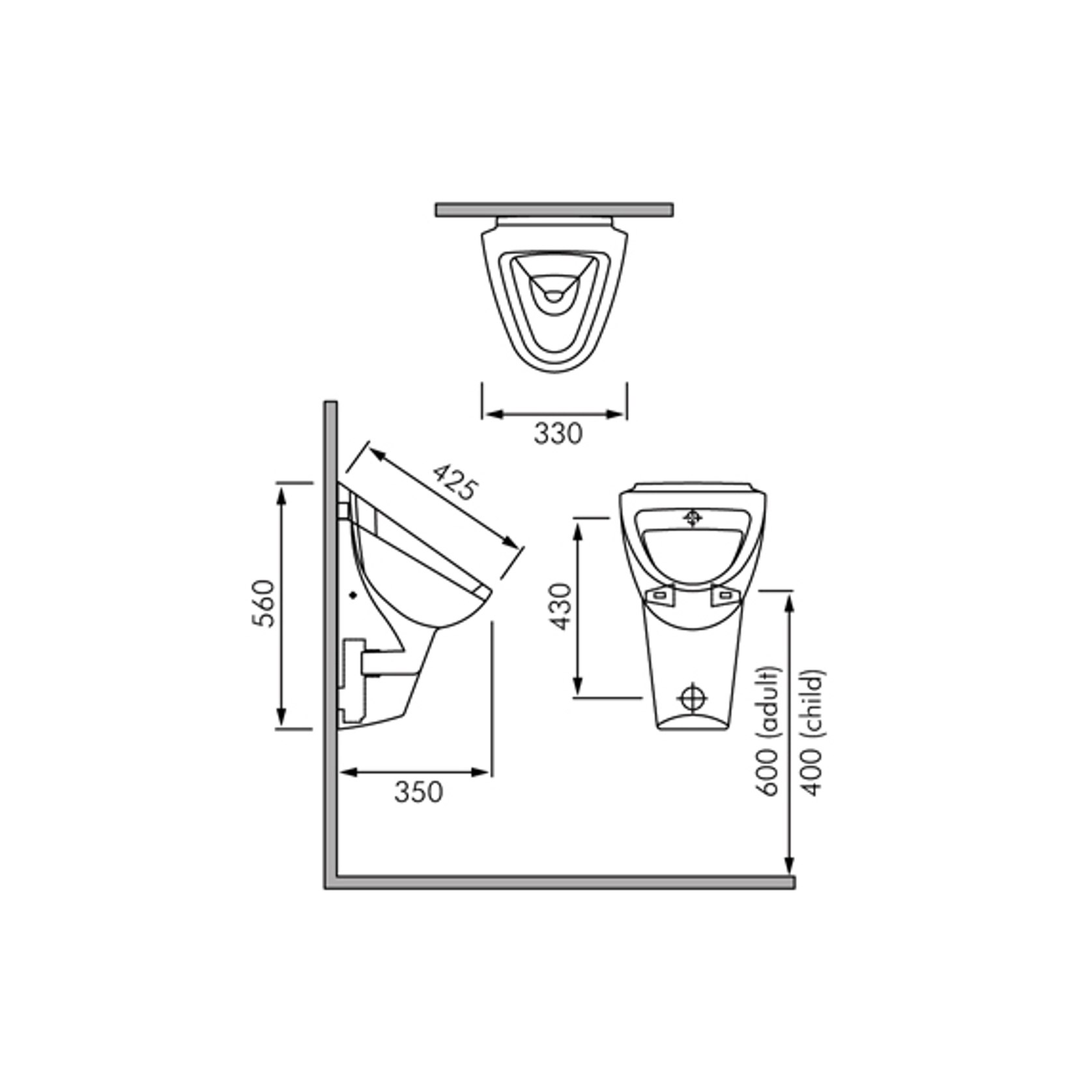

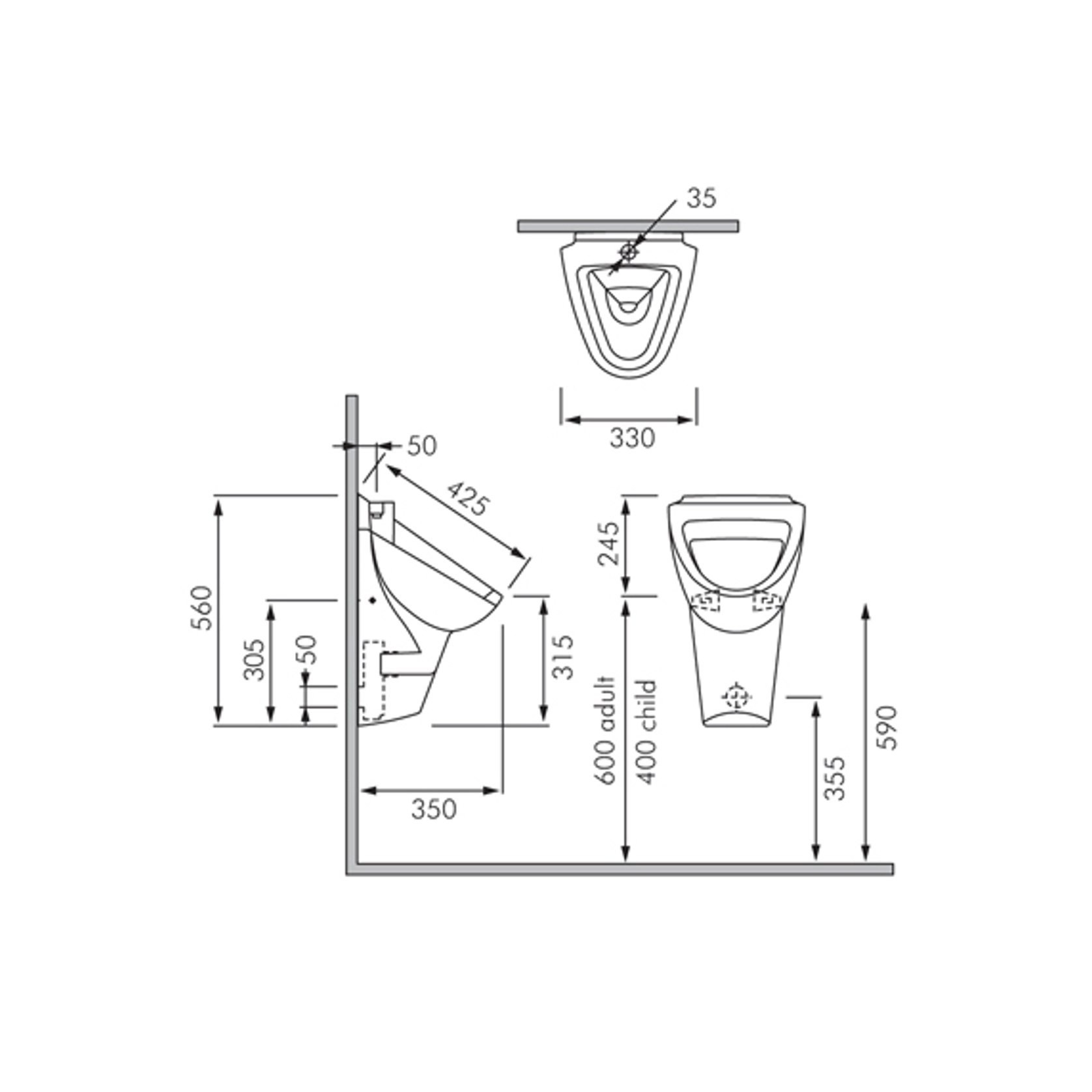

Dimensions: All dimensions in mm. tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our RAK electronic flush valves , Delabie flush valves and Zurn flush valves.- Models Available

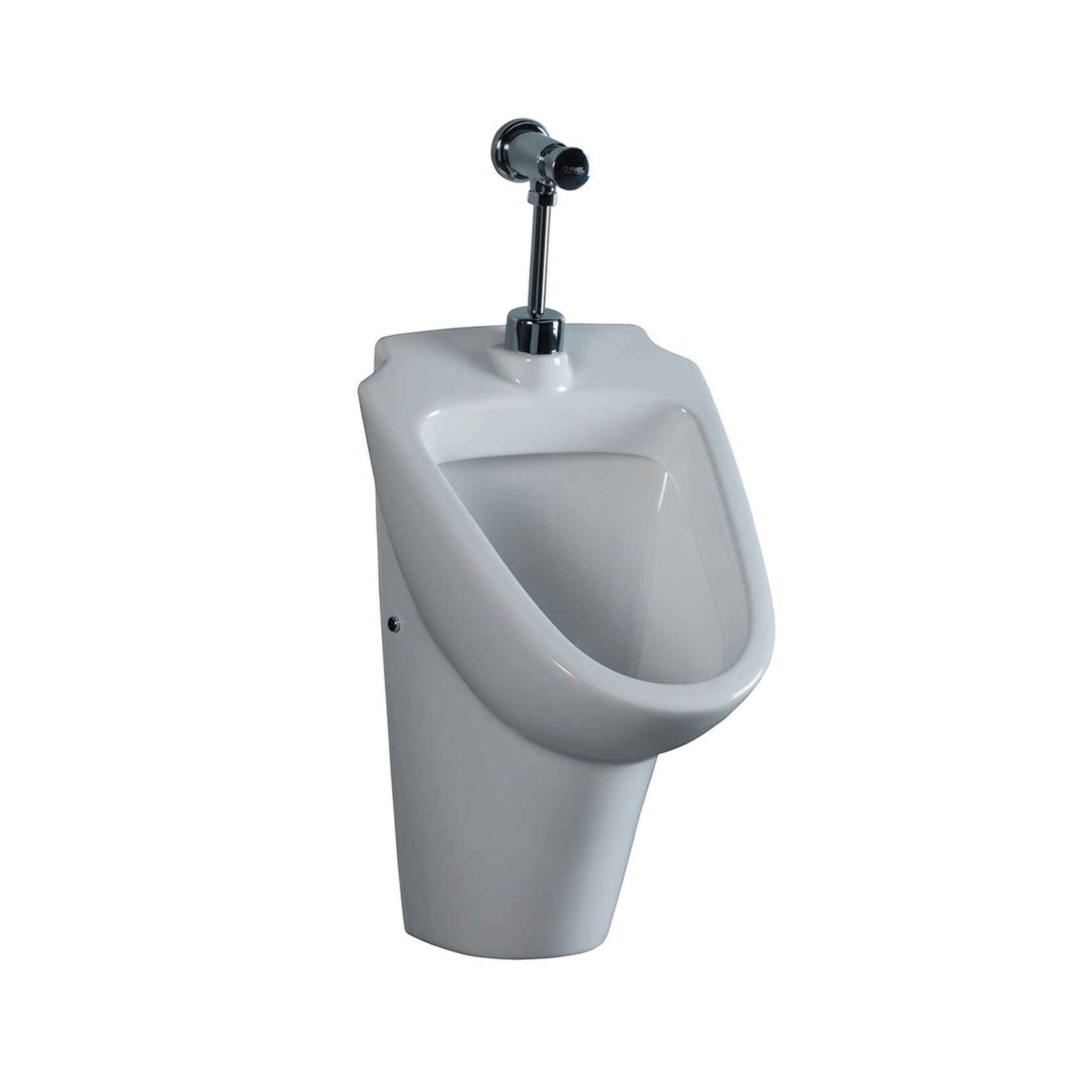

RA-PH3100 - RAK Phoenix top inlet urinal complete with fixing kit.

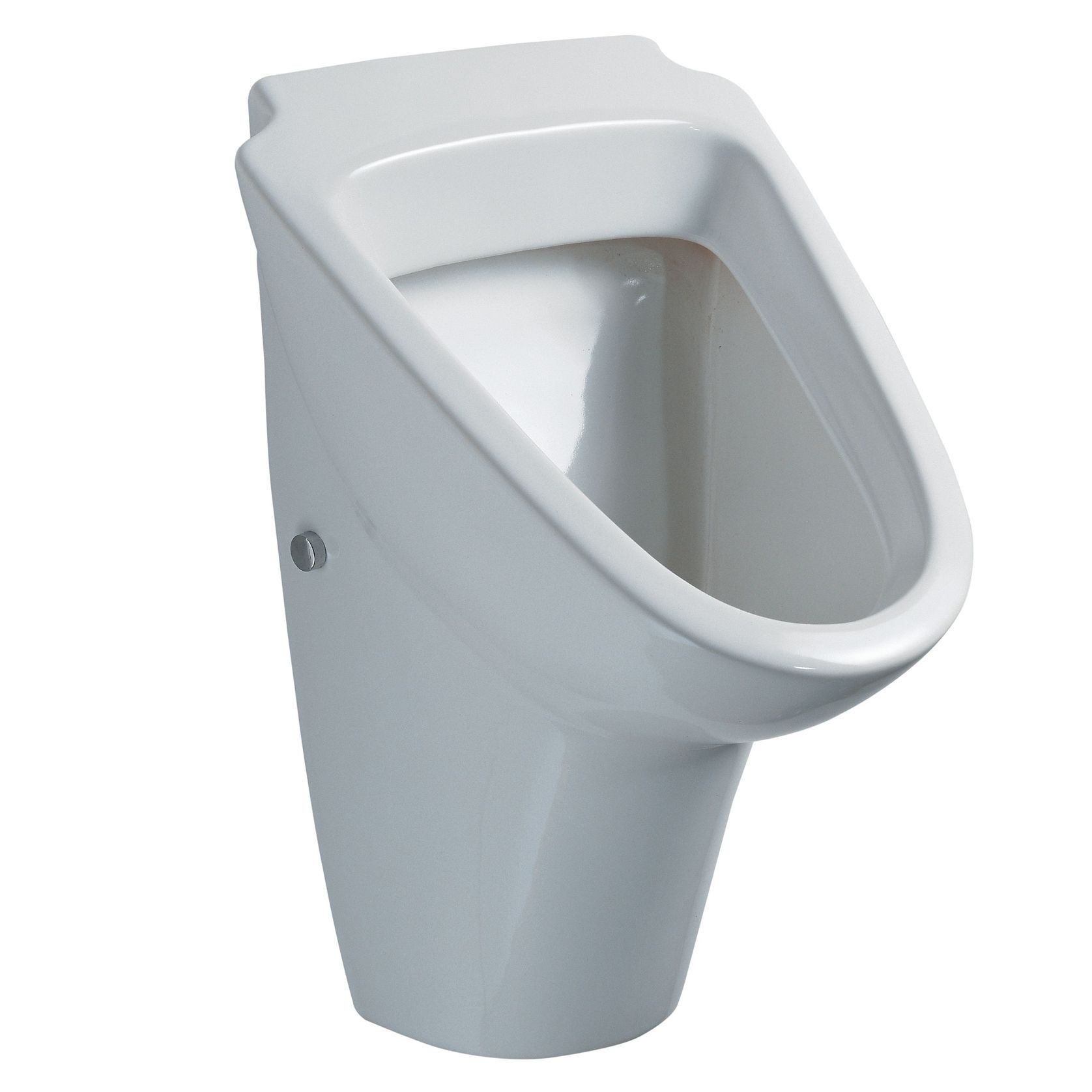

RA-PH3200 - RAK Phoenix rear inlet urinal complete with fixing kit.
