Delabie Tempomatic 4 Electronic Urinal Valve

MacDonald Industries
Visit Website
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image
Delabie Tempomatic 4 Electronic Urinal Valve gallery detail image

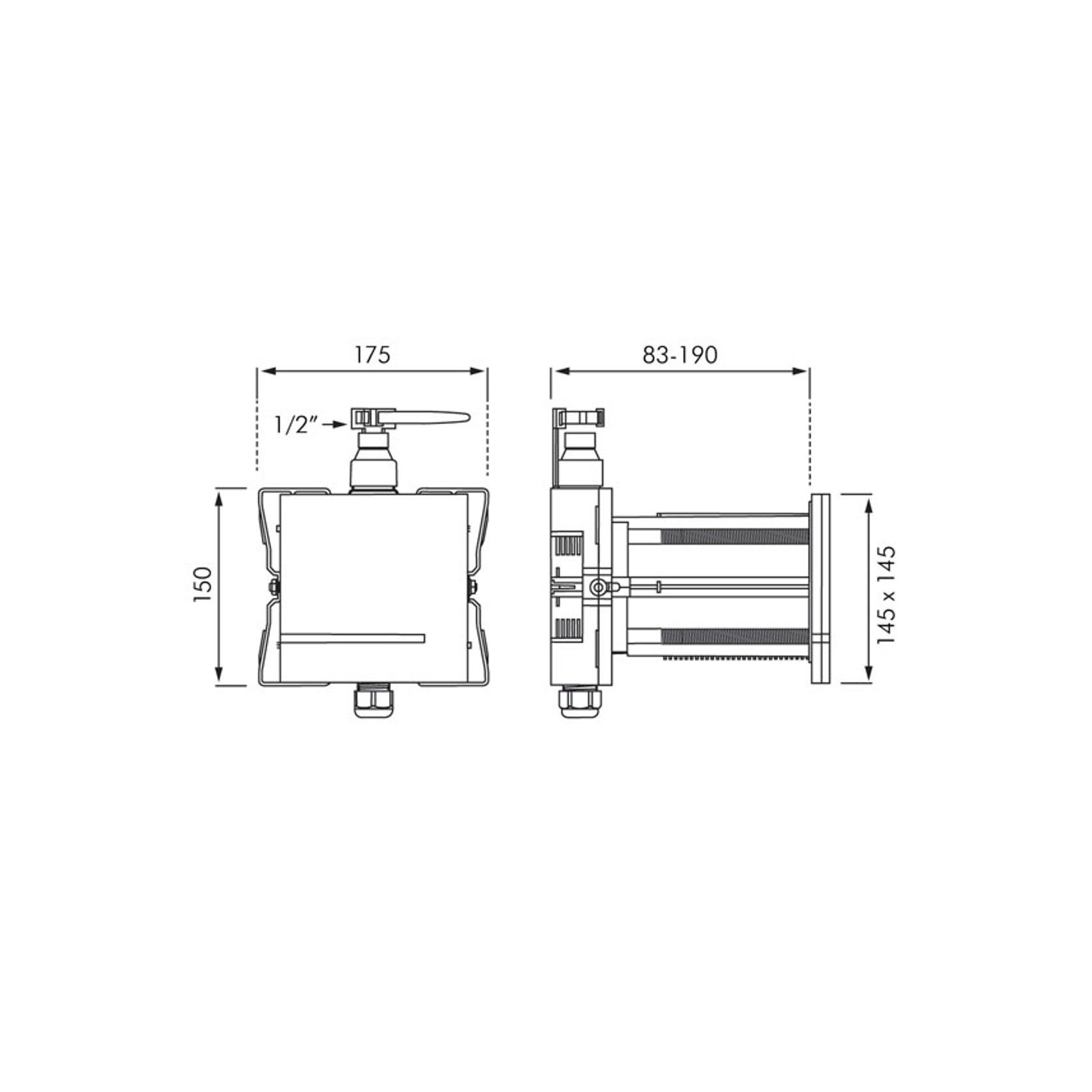

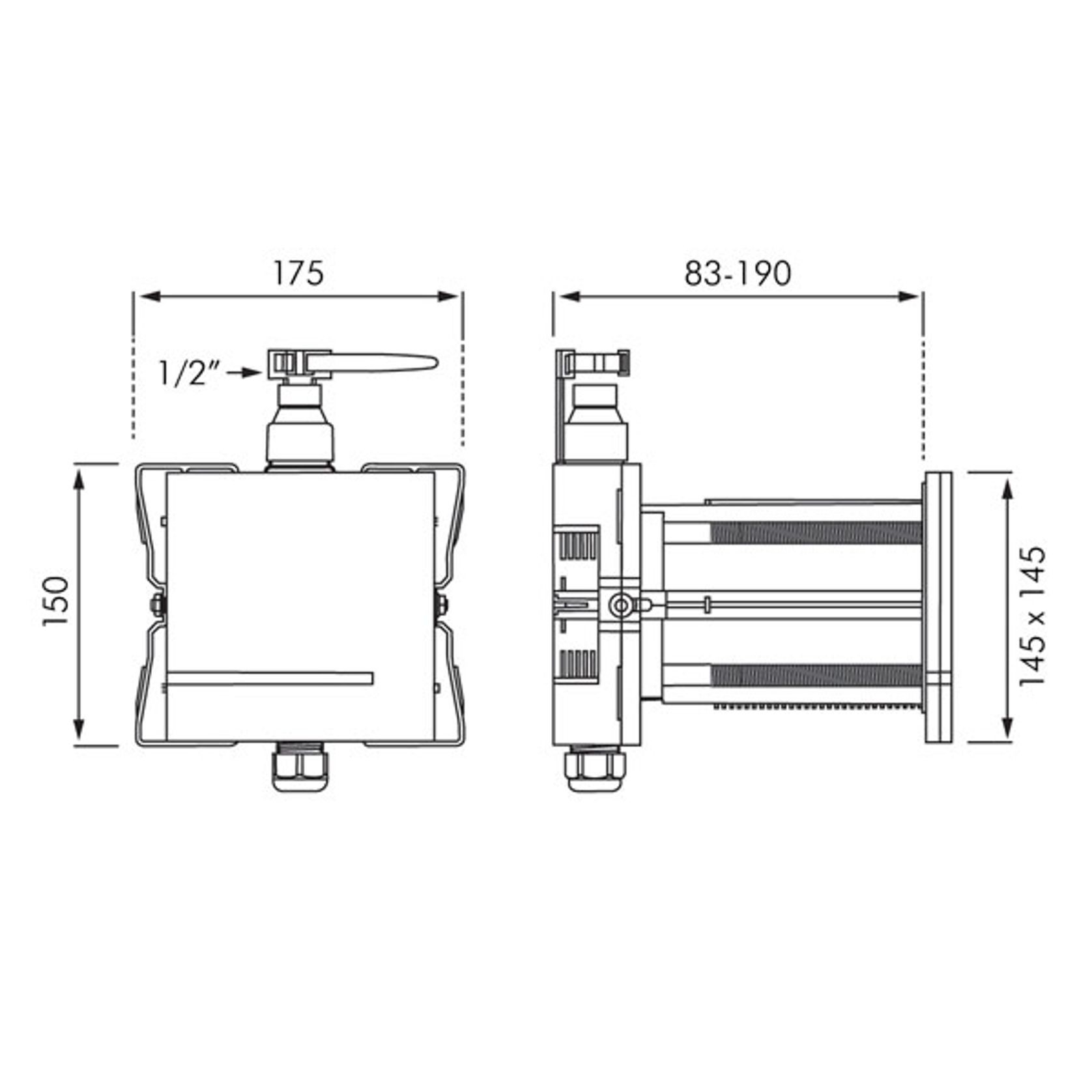

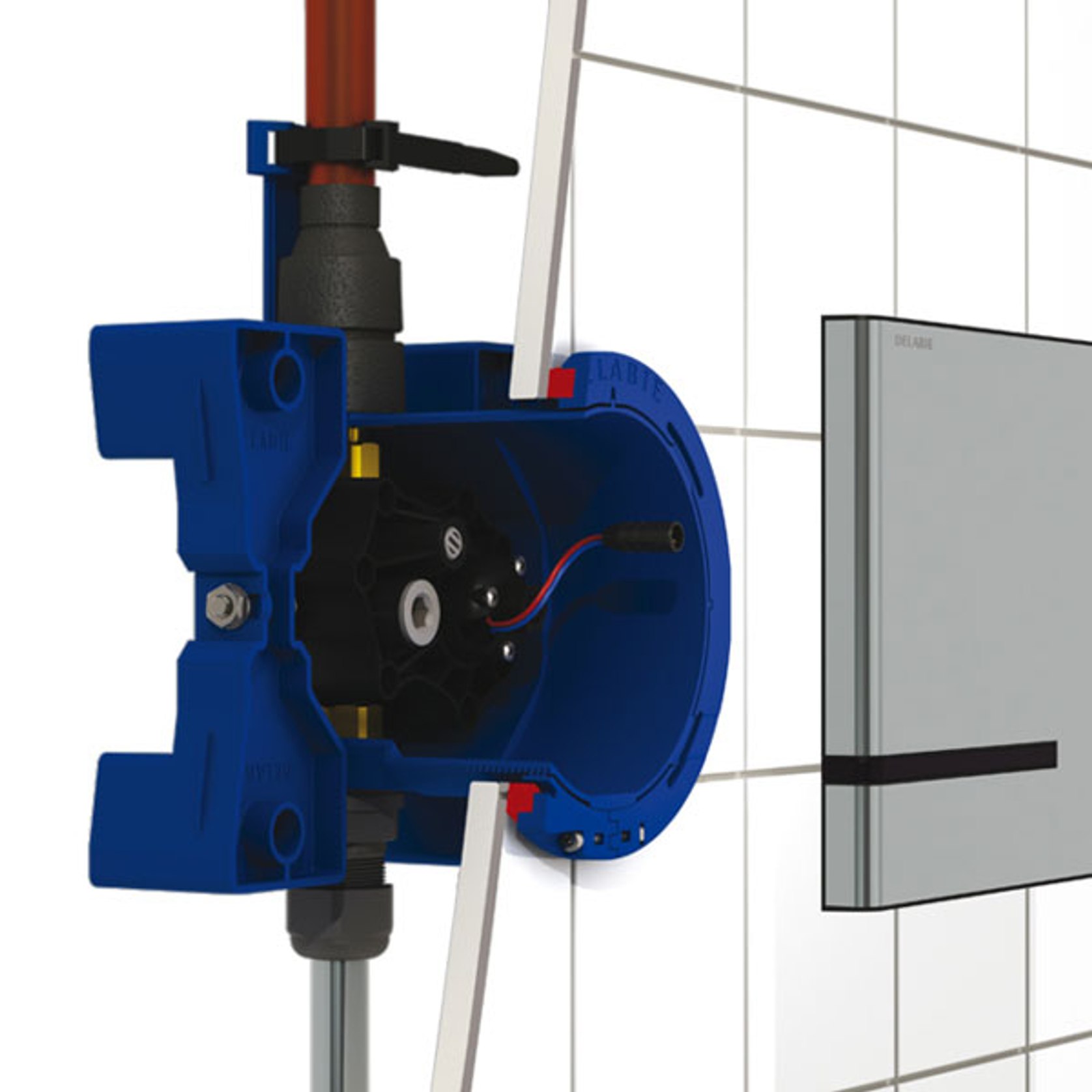

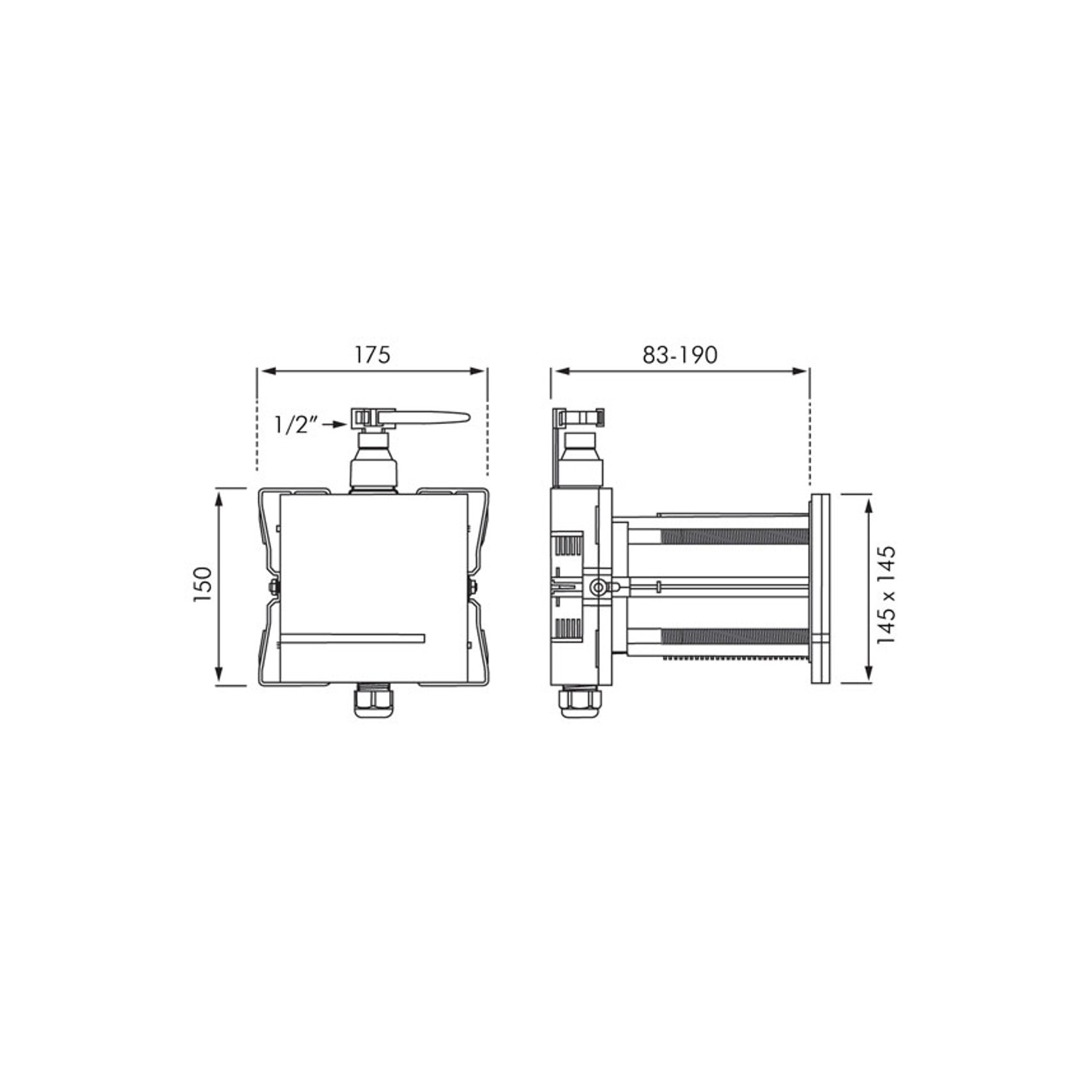

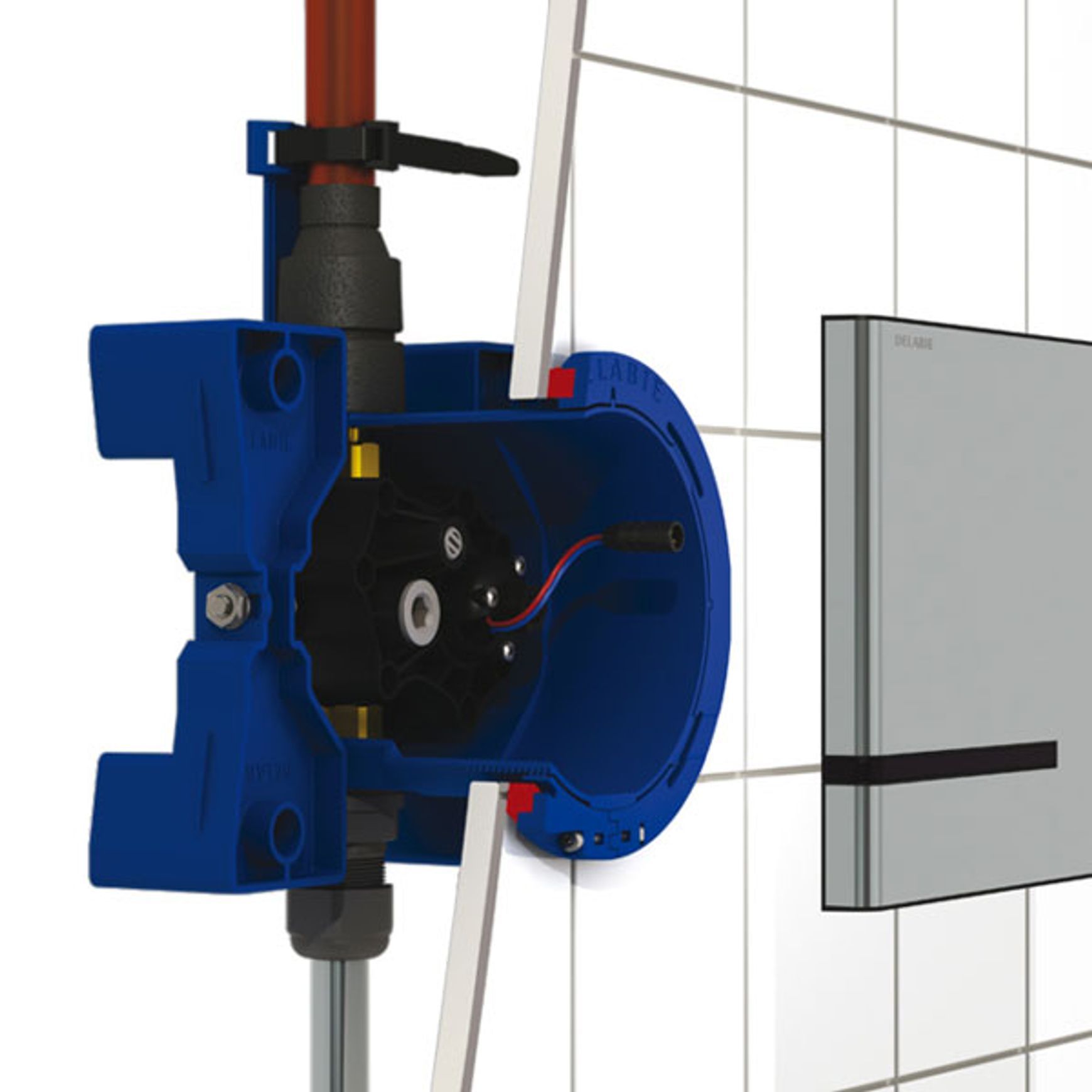

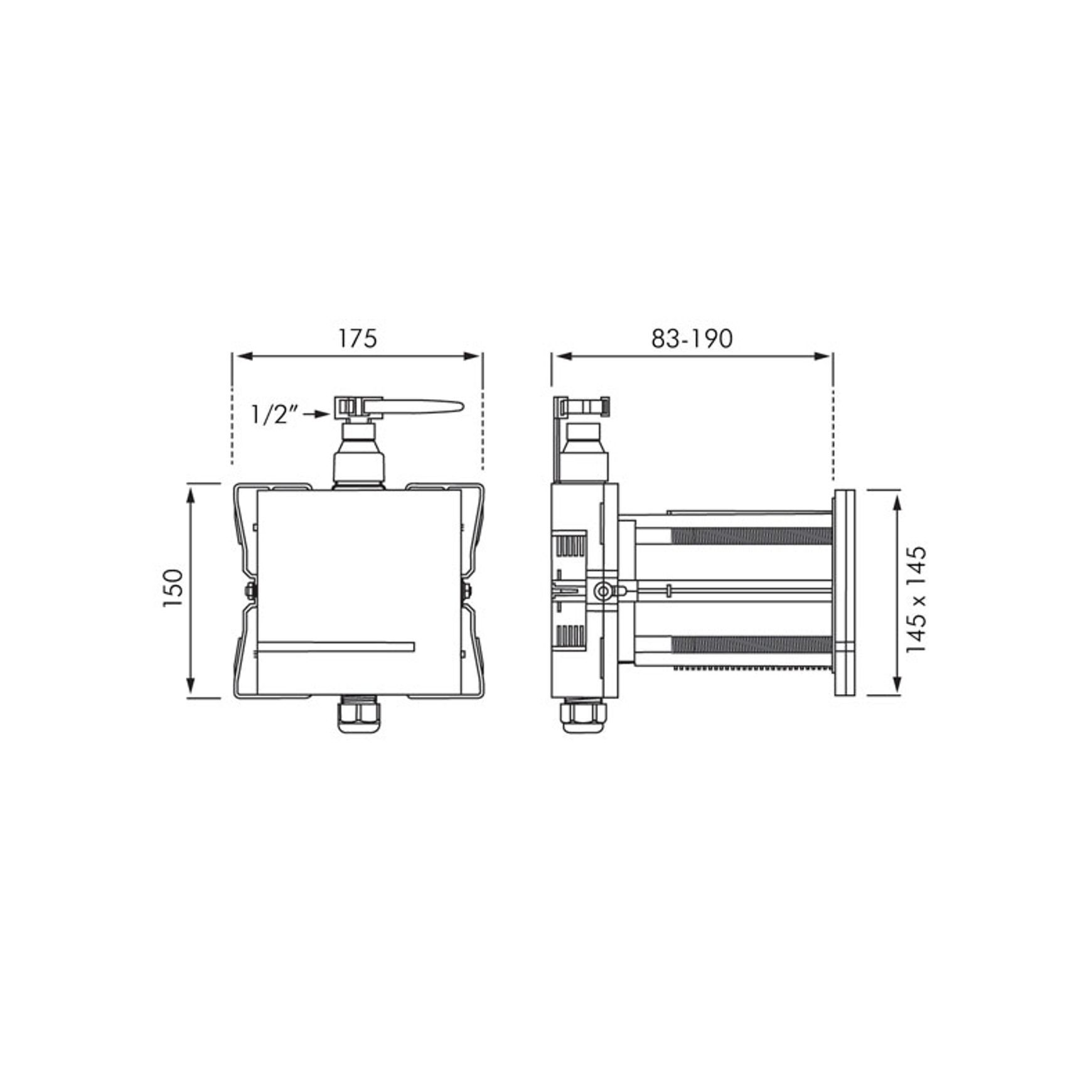

DELABIE Tempomatic 4 electronic urinal valve is an intelligent solution for flushing individual urinals. It is supplied in 2 parts: a 1st fix inwall valve housing that is installed before wall lining, and a 2nd fix electronic sensor. The inwall valve has a waterproof recessed housing that can be cut to suit the wall thickness ensuring a perfect seal. Any leaks within the valve housing are contained and guaranteed not to spill into the wall cavity.

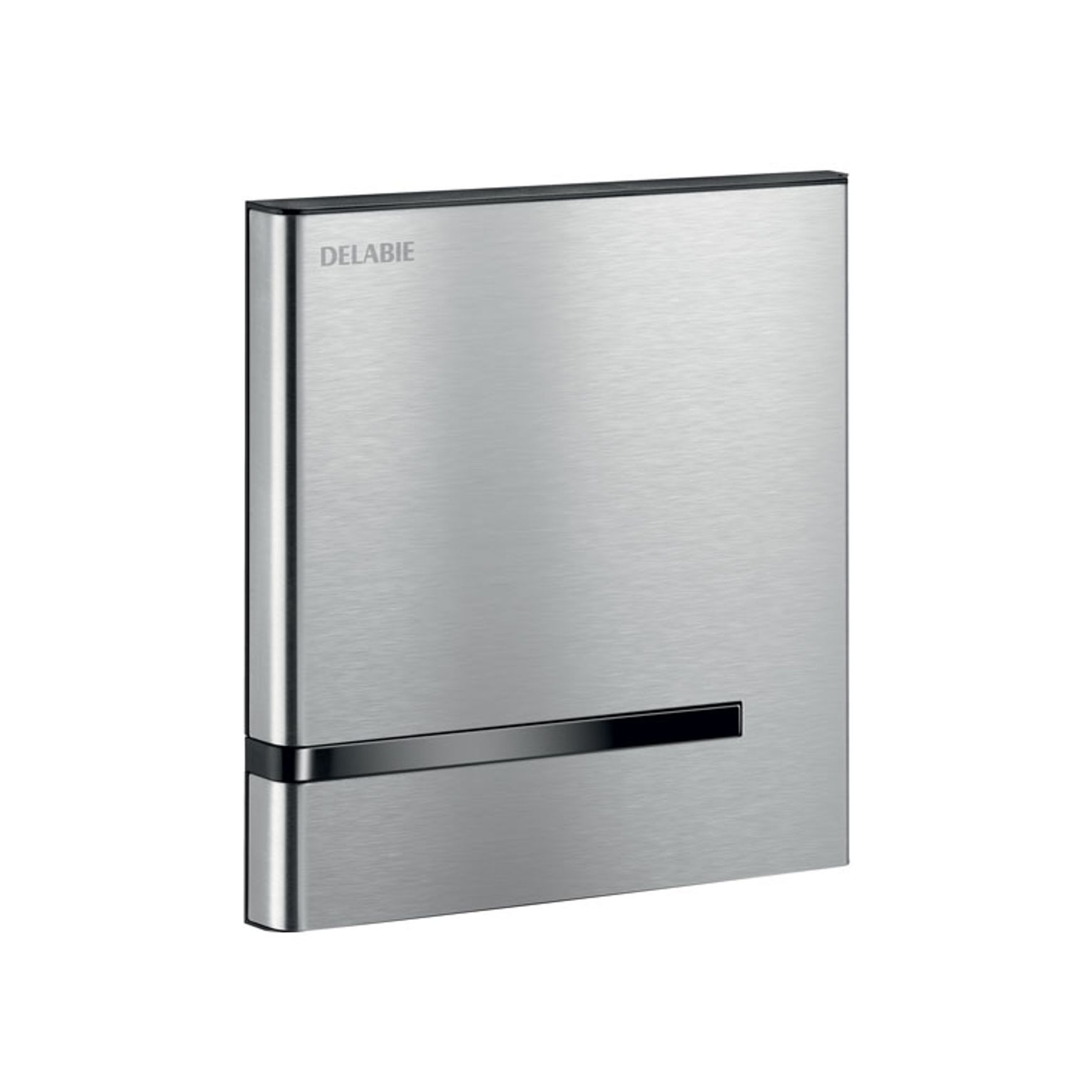

Options of 230V AC mains supply or battery operation and available with 145 x 145mm polished stainless steel, or satin stainless steel, sensor plate.

Delabie has developed an intelligent urinal valve that is able to detect high-frequency periods and adapts its rinsing accordingly. Shockproof infrared presence detector. Activates after 10 seconds of presence. 3 programmes (rinsing volume can be set according to urinal type). Hygienic duty flush, every 12 hr, 24 hr (or Off) after the last use. Flow rate pre-set at 0.15 l/sec., can be adjusted.

Each valve must be installed with either the DE752430 or DE757430 flush tube depending on the style of urinal to be installed. refer Tech Data sheet

See models for the power supply and finish required for your building.

Details
  • Category
    Urinals
  • Brand
    Delabie
General
  • Type of use
    Commercial and Residential
Specifications

Models:

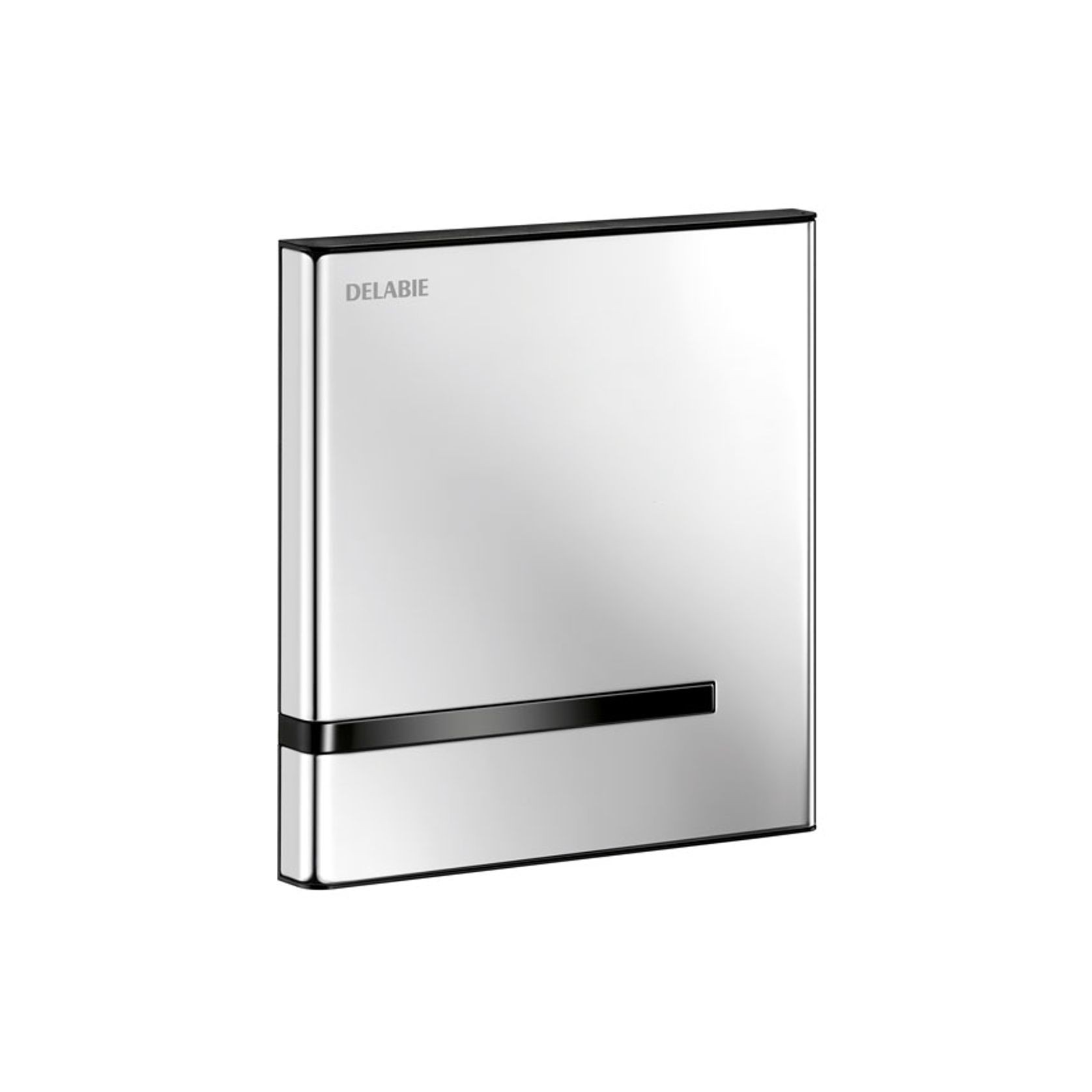

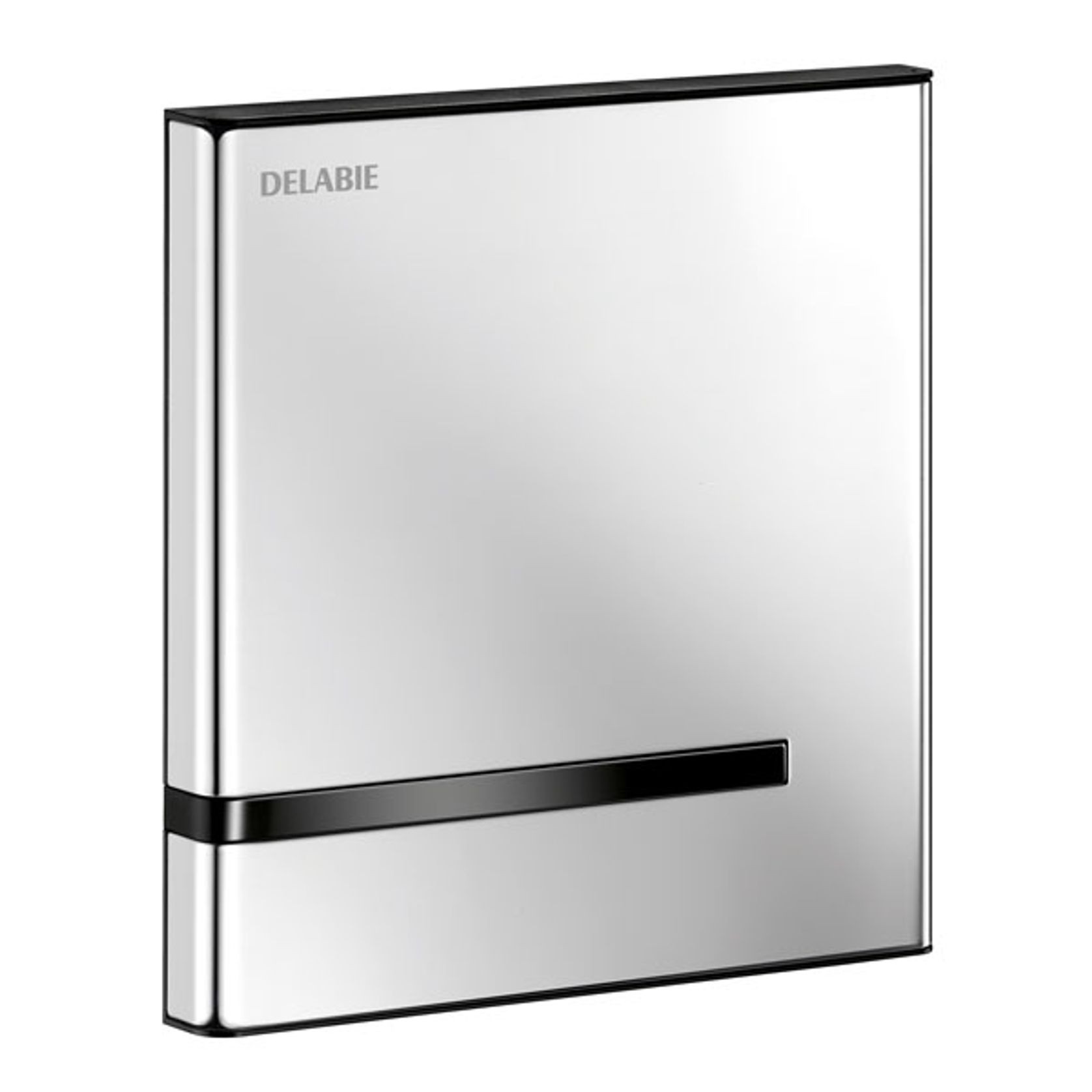

DE430016 - Stainless steel bright polished finish, 6V battery operated, complete with DE430PBOX
DE430010 - Stainless steel bright polished finish, 220V mains supply, complete with DE430SBOX

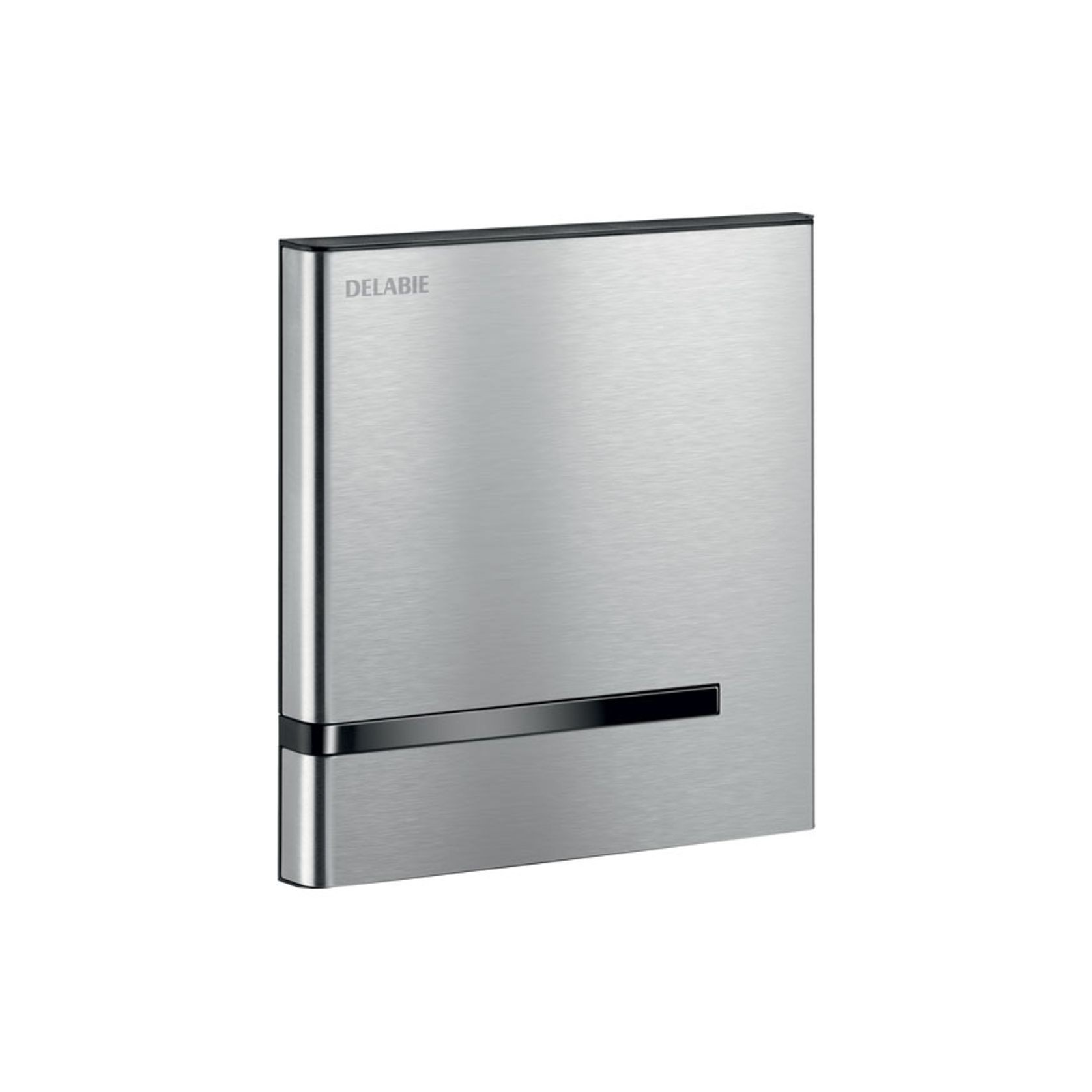

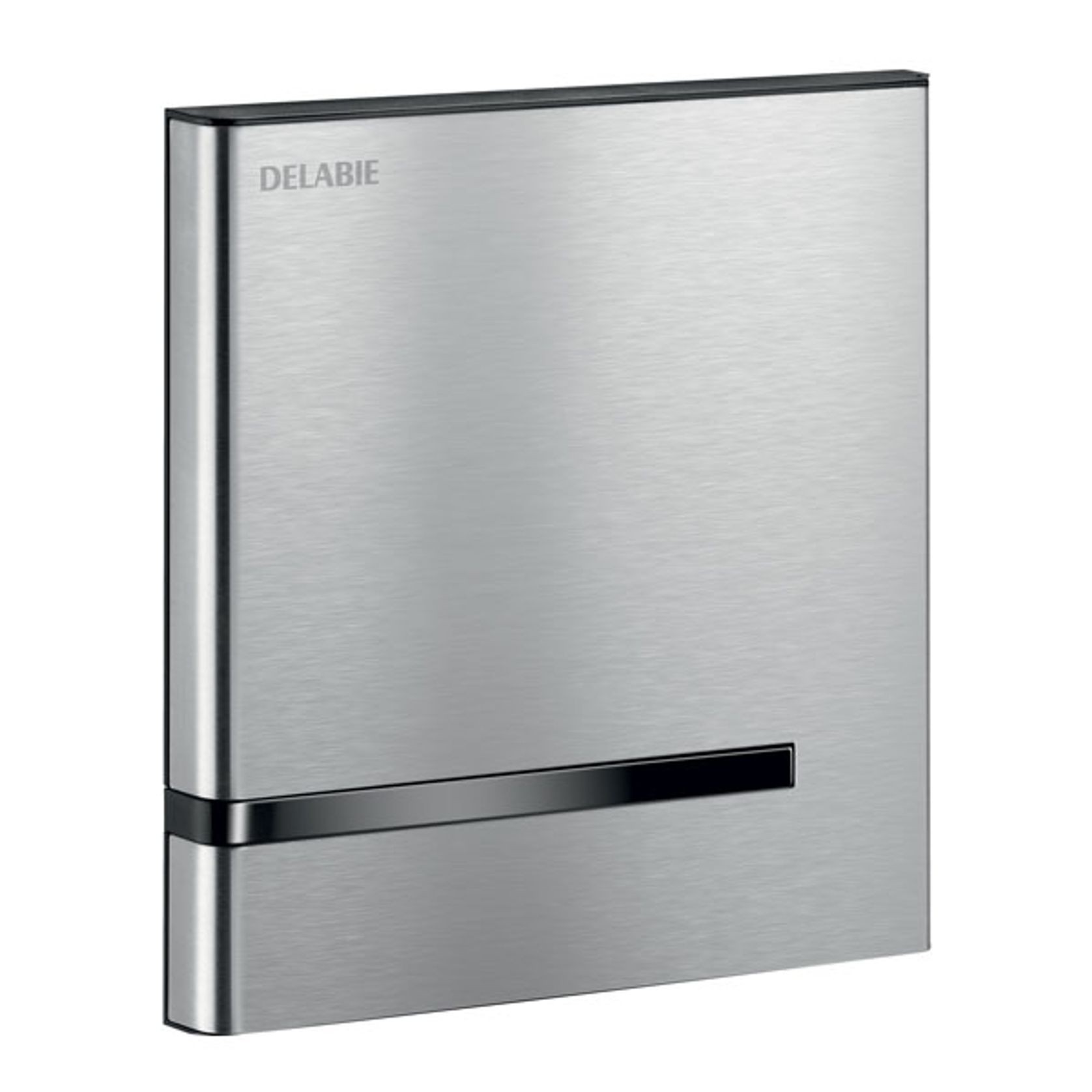

DE430006 - Stainless steel satin finish, 6V battery operated, complete with DE430PBOX
DE430000 - Stainless steel satin finish, 220V mains supply, complete with DE430SBOX

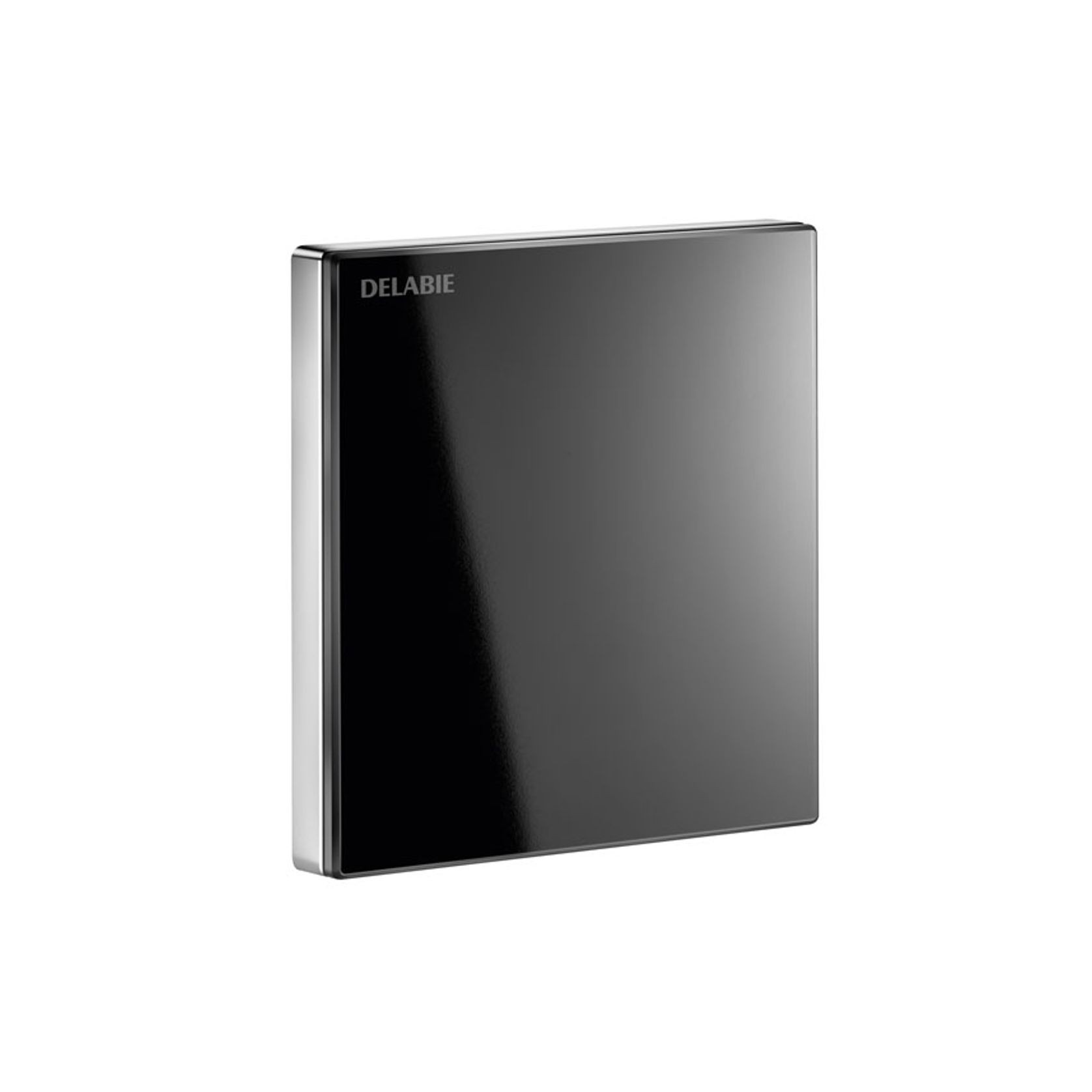

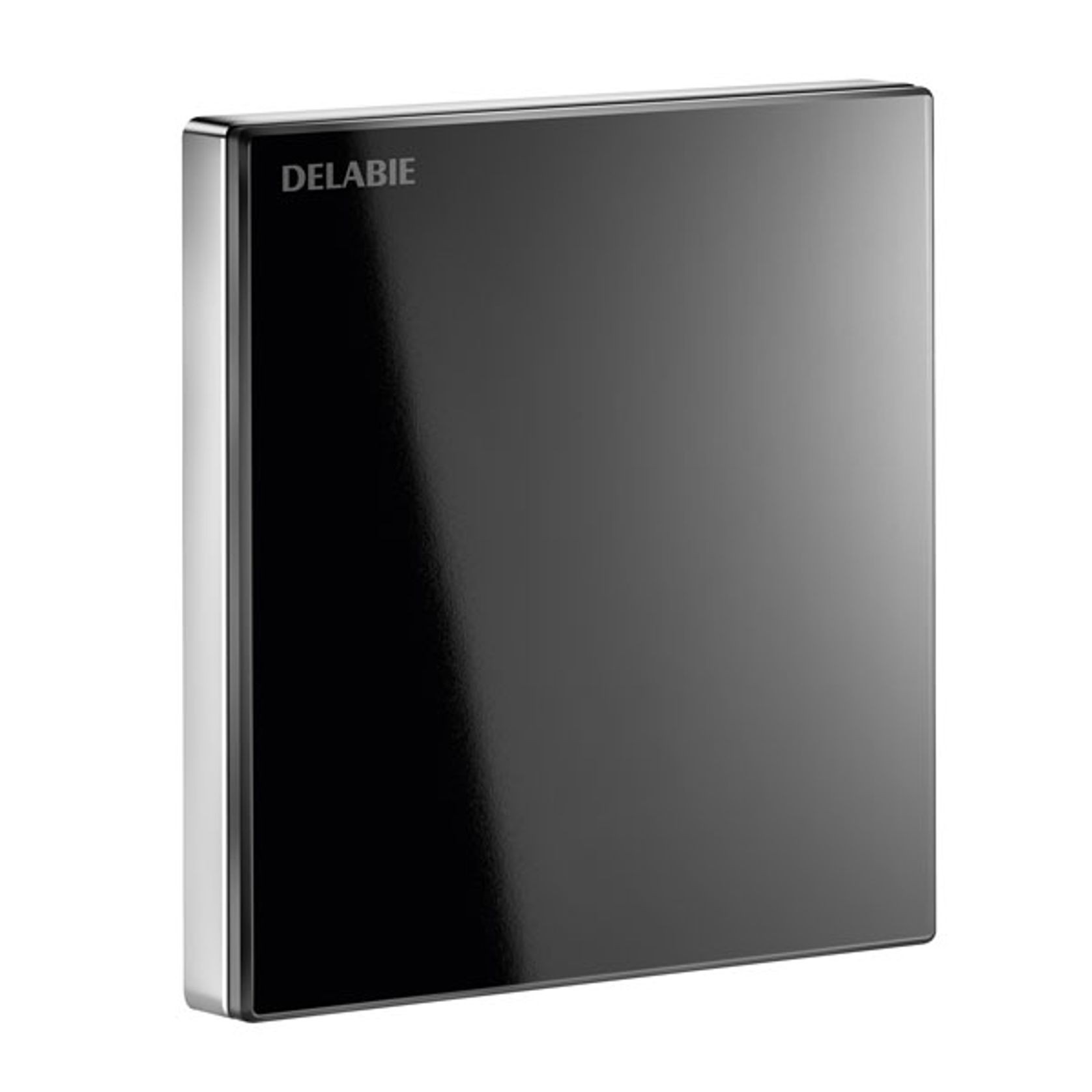

DE430036 - Black Ceramic Glass, 6V battery, complete with DE430PBOX
DE430030 - Black Ceramic Glass, 220V mains supply, complete with DE430SBOX

SELECT ONE OF THE FOLLOWING
DE752430 - Outlet connection tube for ceramic urianls
DE757430 - Outlet connection tube where flexible 1/2" connection hose is supplied with urinal, or for Caroma Torres urinals.

MacDonald Industries
View locations (2)
Visit Website

About the
Seller

New Zealand's Leading Commercial Bathroom Products Supplier

Bathrooms for public buildings have a unique set of requirements.

Unlike residential environments these bathrooms can be subject to intermittent, intensive use by a range of diverse users over short and long periods of time. Solutions need to provide robust, efficient and cost effective whole-of-life outcomes. Hydraulic design with the appropriate behind and front-of-wall fittings are vital for the long term viability of a commercial bathroom.

With over 55 years experience in the design, specification, supply and installation of bathrooms for hospitals, schools, prisons, shopping malls, swimming pools, marae's, public buildings, sports stadiums, airports and public toilets Macdonald Industries has seen it all.

Our Technical Consultants are available to support Architects, Engineers, Plumbers and installers through the most complex of installations.

Our customers demand;

- reliability
- recognised performance
- efficiency
- robustness and
- cost effectiveness.

MacDonald Industries manufacture bespoke solutions such as Warden, Waterguard and Solo electronic water controllers and choose their supply partners from leaders around the world such as Delabie, KWC-Franke, RAK, ASI, WISA and Zurn Wilkins .
