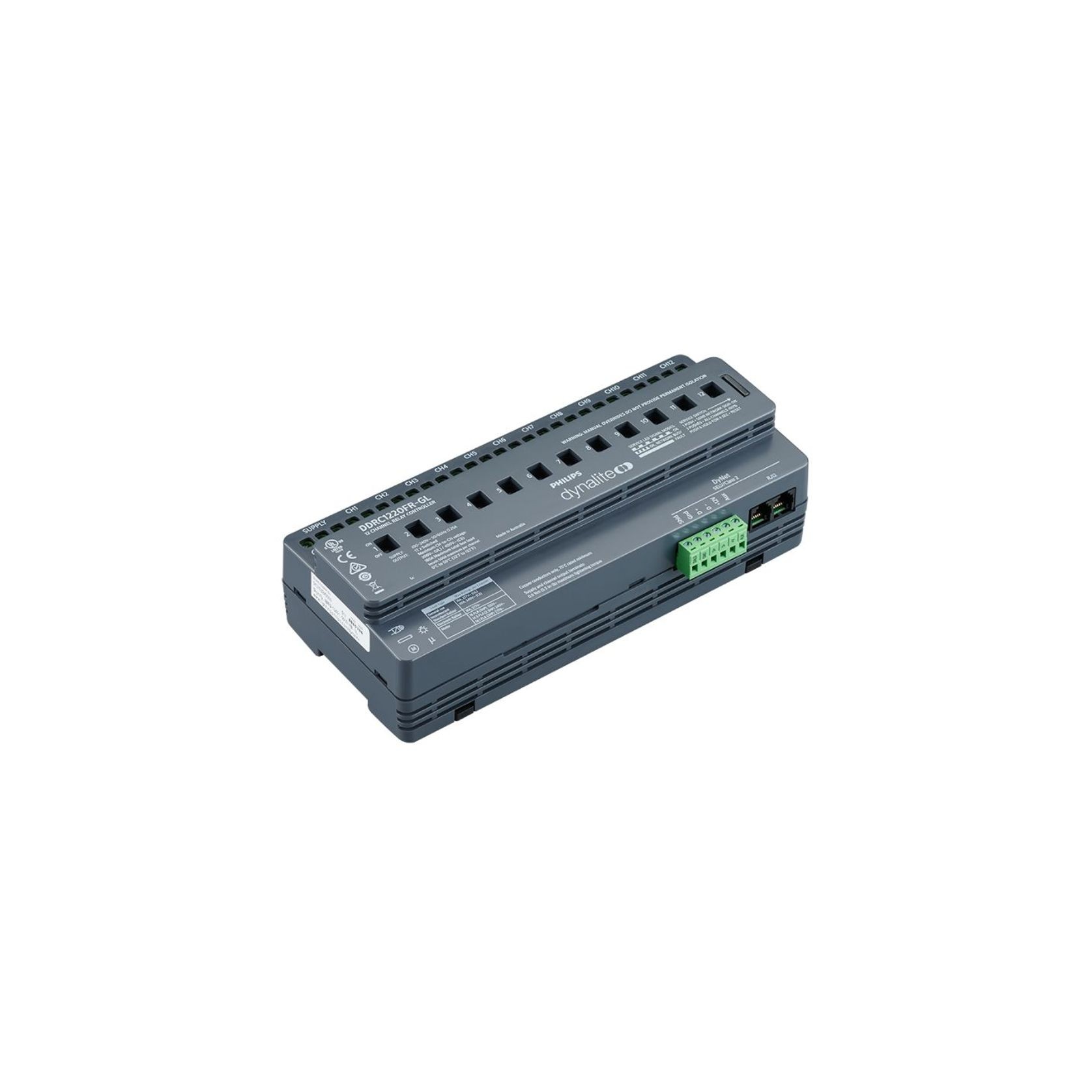

Relay Controller 12 Channel

Dynalite

The Philips Dynalite Relay Controller 12 Channel is a powerful 12-channel relay controller designed to provide seamless control over any type of switched load, including inductive loads up to 20A per channel. With a robust design capable of handling loads with a 500A inrush rating, this controller is ideal for commercial, residential, and industrial applications. Its advanced feed-through power circuit design offers the functionality of a 12-pole contactor, with the added benefit of independent control for each pole via the DyNet network.

Perfect for integration into modern electrical systems, the Relay Controller 12 Channel is DIN-rail mountable, allowing for easy installation into standard distribution boards. Its support for various wiring configurations, such as single-phase and neutral or three-phase and neutral (star) setups, further enhances this flexibility. The device also features inbuilt diagnostics, tracking circuit runtime, and providing online/offline status indicators for each channel, enabling proactive maintenance and system monitoring.

Additionally, the hardware override switch offers a convenient way to manually control circuits during servicing, adding an extra layer of reliability and ease of use.

Details
  • Category
    Controllers, Lighting Automation
General
  • Country of origin
    Australia
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation required
Features

Key Features:

  • Feed-Through Power Circuit Design: Equivalent to a 12-pole contactor, with each pole controllable via the DyNet network, allowing for precise management of any switched load up to 20A inductive.
  • Flexible Mounting Solution: Designed for DIN-rail mounting, ensuring easy integration into distribution boards and compatibility with a wide range of electrical systems.
  • Inbuilt Diagnostic Functionality: Tracks circuit runtime on each channel and provides online/offline status indicators, helping with system monitoring and maintenance.
  • Supports Multiple Wiring Schemes: Compatible with both single-phase and neutral or three-phase and neutral (star) wiring configurations, providing versatility for various applications.
  • Hardware Override: Features an easily accessible service override switch on the front panel for manual control during system maintenance or troubleshooting.
Applications

Applications:

The Philips Dynalite Relay Controller 12 Channel is ideal for:

  • Commercial Buildings: Ensures reliable control of lighting and other switched loads, enabling advanced building automation and energy efficiency.
  • Residential Automation: Provides seamless control for lighting, HVAC, and other switched loads in smart home systems.
  • Industrial Applications: Offers robust control for heavy-duty switched loads, with support for high current and versatile wiring configurations.
SKU: 10139-Dynalite
