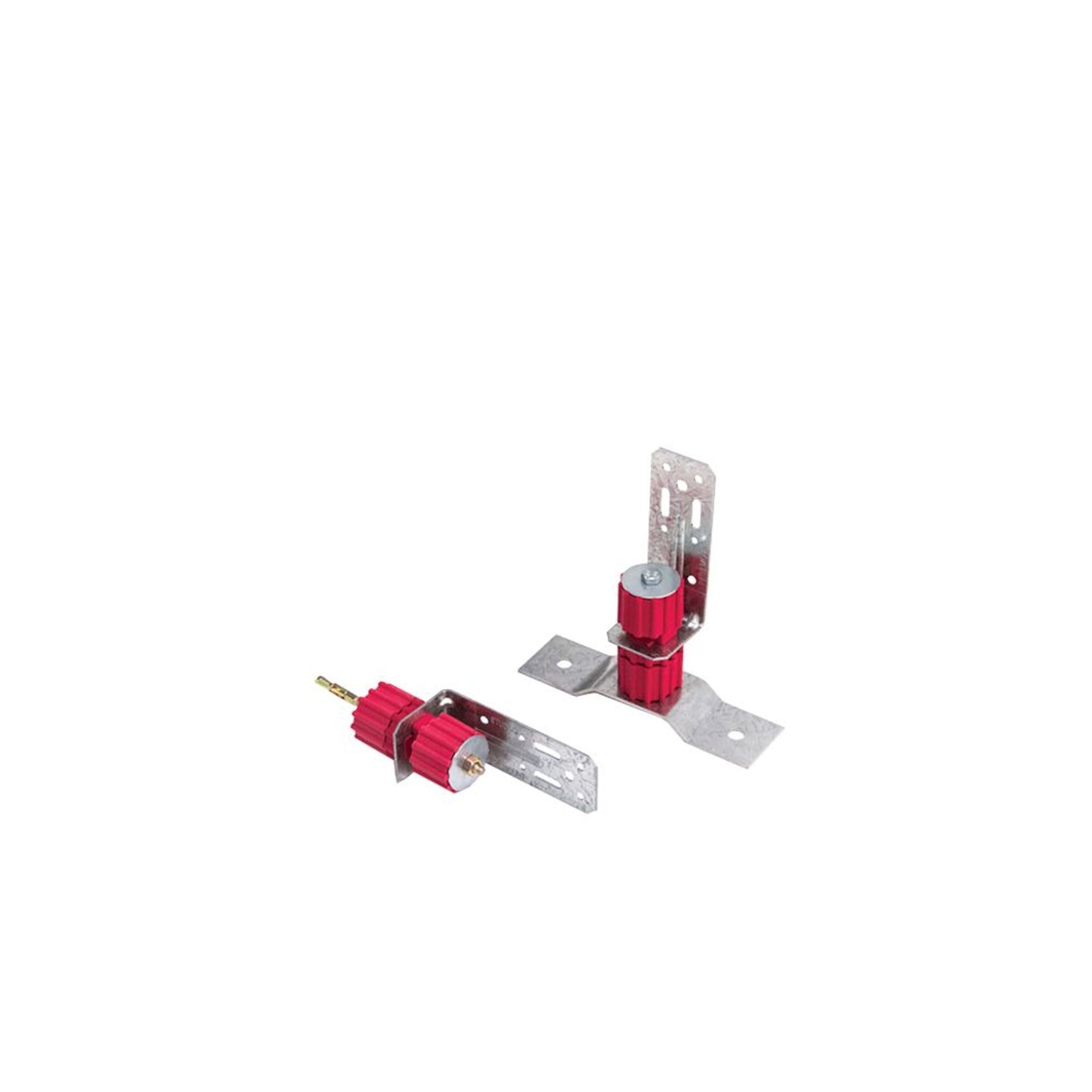

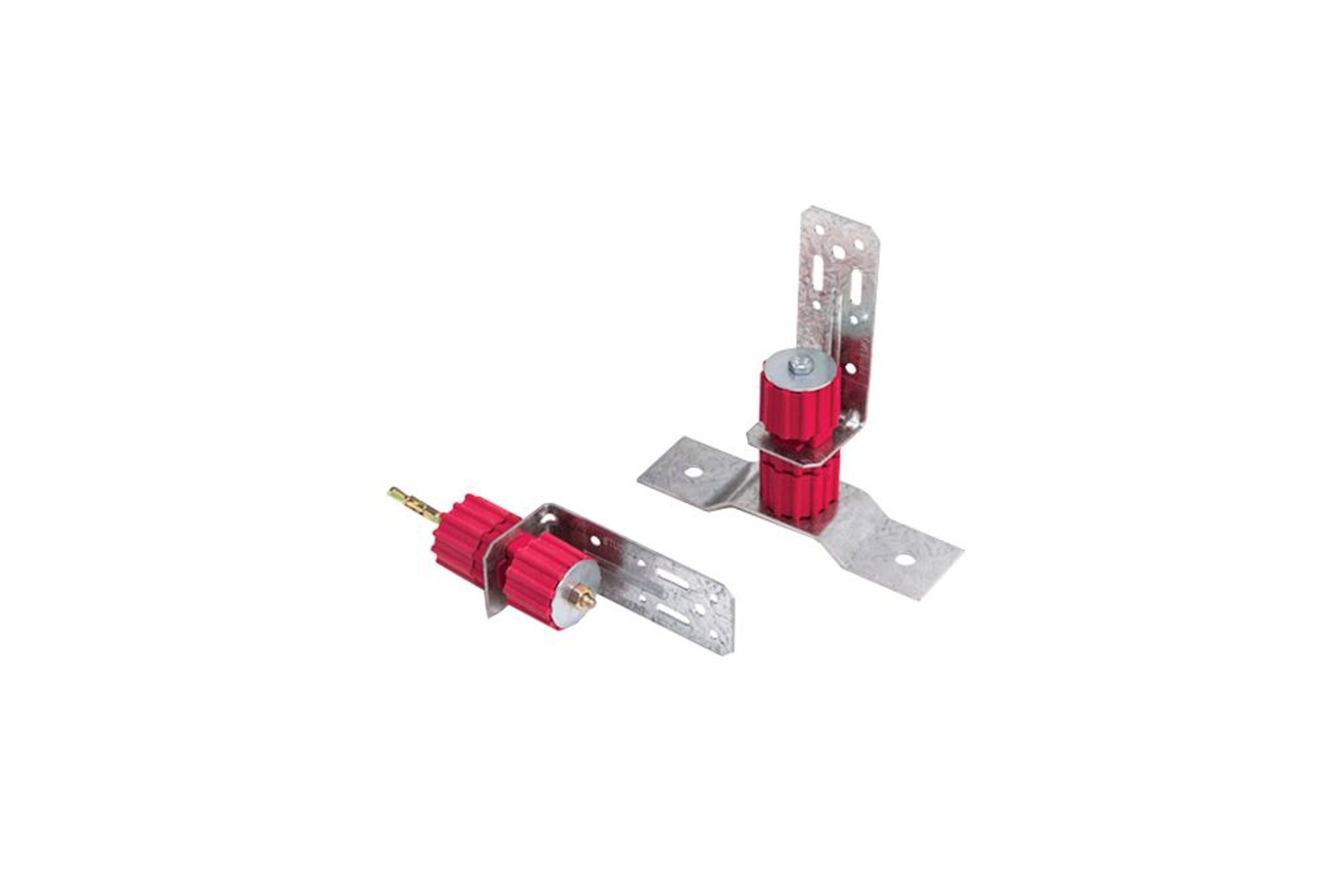

Resilmount^® M481R & M482R Static Deflection Wall Brace

Name: Resilmount® M481R & M482R Static Deflection Wall Brace
Brand: Studco
Availability: InStock

Resilmount® M481R & M482R Static Deflection Wall Brace gallery detail image

The Resilmount® M481R & M482R Static Deflection Wall Brace, a superior product from our range of Resilmount Isolation Systems by Studco. These premium polymer rubber isolation mounts have been meticulously crafted for the steel wall and ceiling industry, showcasing a dedication to innovation.

Engineered to significantly decrease vibration and sound transfer, the Resilmount Isolation Studs boast a distinctive red colouring that exceeds the requirements set forth by the Building Code of Australia and New Zealand Building Code. With acoustic testing conducted by reputable institutions such as Auckland University, PKA Acoustics, and Marshall Day Acoustics, these isolation mounts are an indispensable component in achieving optimal acoustic performance in any assembly.

Details

Category
Acoustic
Brand
Studco Building Systems
Designer
Studco Building Systems

Specifications

Resilient Mounts Isolated Wall Brace M481R - RED

Approx Kg / Piece -0.13
Sub Pack - 50
Stock Pack - 50

Resilient Mounts Isolated Wall Brace M481R - PUR

Approx Kg / Piece -0.13
Sub Pack - 50
Stock Pack - 50

Resilient Mounts Isolated Wall Brace M482R - RED

Approx Kg / Piece -0.20
Sub Pack - 25
Stock Pack - 25

Resilient Mounts Isolated Wall Brace M482R - PUR

Approx Kg / Piece -0.20
Sub Pack - 25
Stock Pack - 25

Features

Isolates tall internal walls from the building structure
Easy installations by screw fixing to stud web
Eliminates possibility of shorting to the structure
No need for installer to adjust or engage with compression bolt (M482R only)
Allows reduced stud size/spacing which reduces build cost
Can be installed after the wall framing is built
Engineered to prevent wall buckling during earthquakes
Laboratory tested to ISO 10140-2
Provides 4-6mm static deflection in accordance with the NCC
Max. loading per mount is 40kg

Downloads

Studco

Auckland

View Profile

Visit Website

Projects featuring Resilmount® M481R & M482R Static Deflection Wall Brace

Hoyts Christchurch - EntX Entertainment CentralStudco

More from Studco

Acoustic Ceiling SystemsStudco

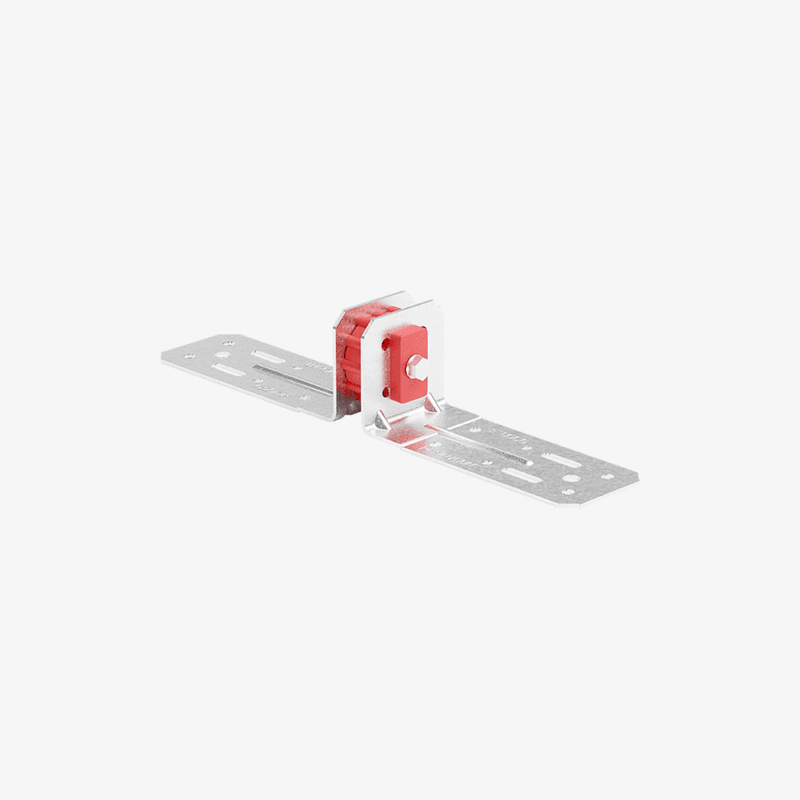

Resilmount M24R Resilient Joiner BracketStudco

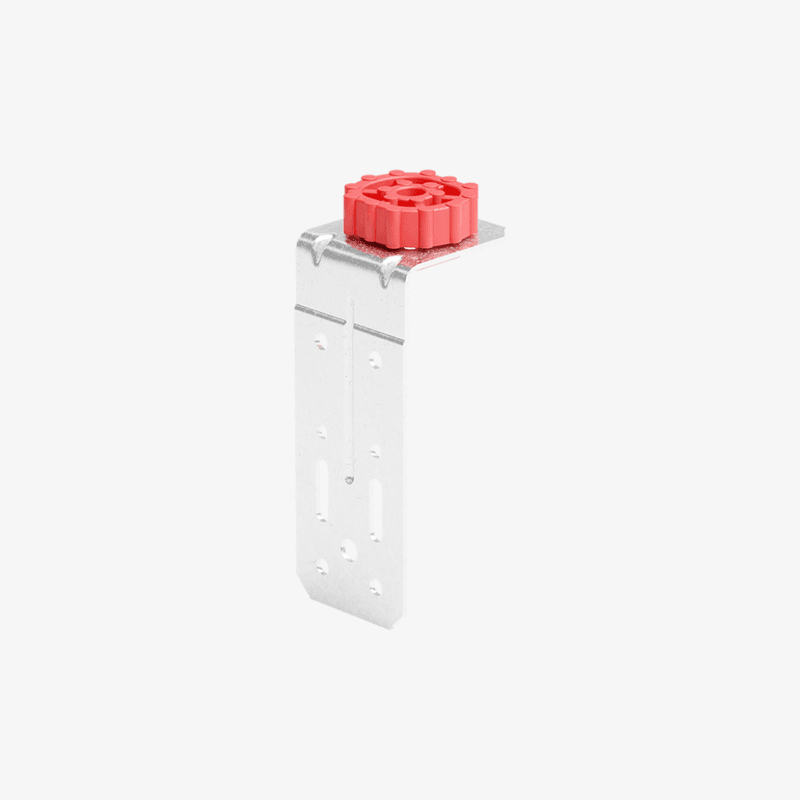

Resilmount M48R Right Angle Resilient Mount BracketStudco

M237R Furring Channel Resilient Mount Direct FixingStudco

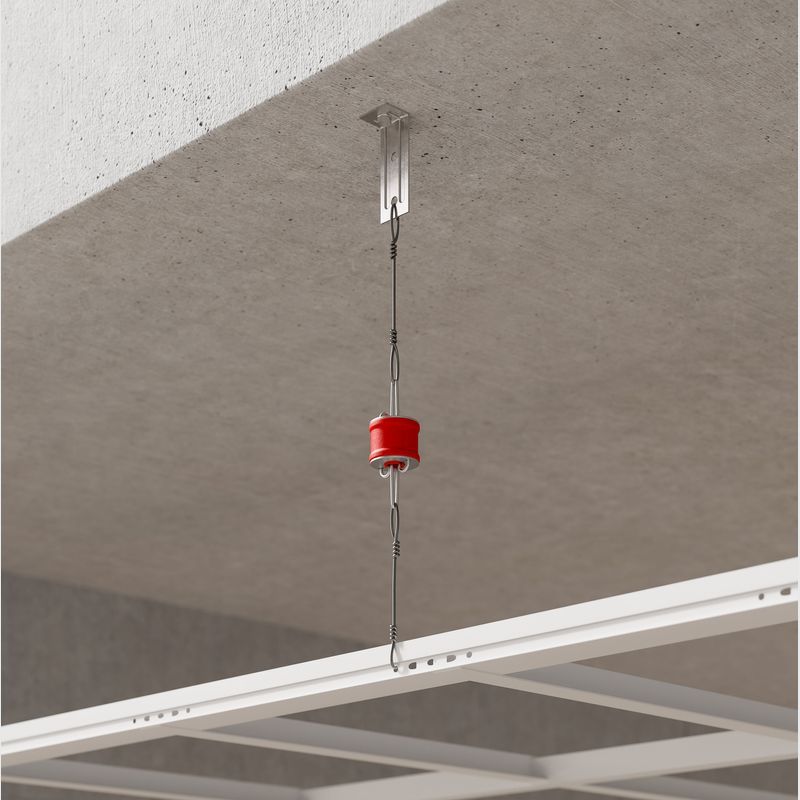

M50R Resilmount Isolation HangersStudco

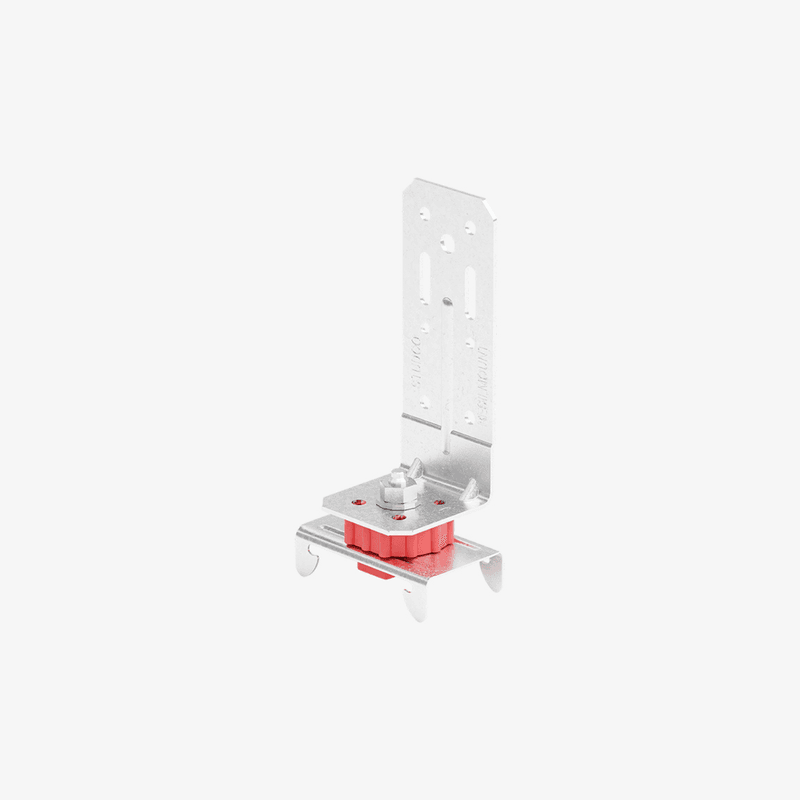

M96R Furring Channel to Purlin Resilient MountStudco
