Resilmount M326R Static Deflection Direct fix Resilient Hangers

By Studco
Website

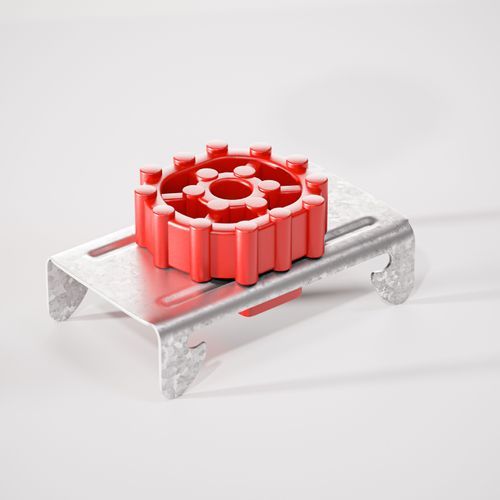

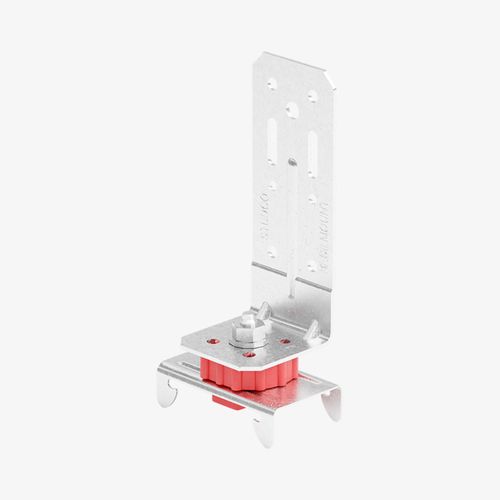

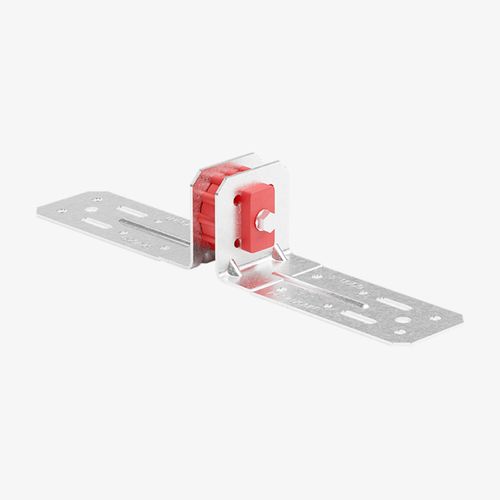

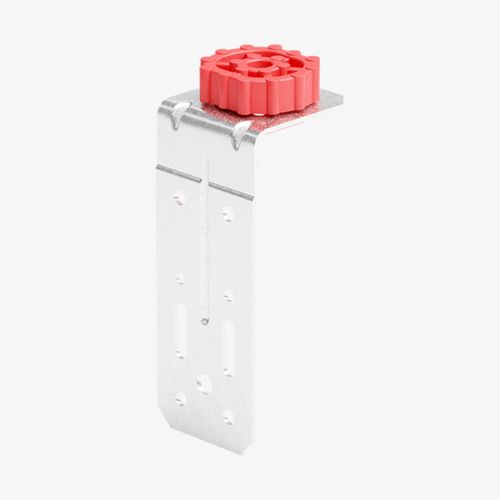

The easiest mount in the industry to install. Resilmount M326R is a direct-fix resilient hanger used in sensitive acoustic ceiling applications in conjunction with the Studco concealed and suspended ceiling systems or similar to minimise attenuation of unwanted airborne noise.

Details
  • Category
    Acoustic
  • Range
    Acoustic Mounts
Specs / Details
  •  21-46kg M326R-RED - Approx Kg / Piece: 0.03 - Sub Pack: 50 - Stock Pack: 50
  • Uses Resilmount’s patented sound cell technology
  • Specially suited for sensitive, high noise applications, such as ceilings between plant rooms and habitable spaces
  • Meets static deflection requirements for BCA compliance
  • Positive fixing to structure to reduce uplift during installation, maintenance and wind
  • Can be fixed to concrete, steel or timber structures
  • Provides total isolation from structure to ceiling system
  • Failsafe against failure of ceiling system in the event of a fire

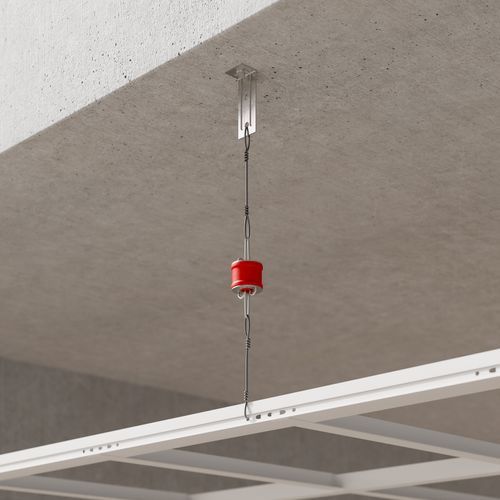

  • Wire hanger locks out of way for easy installation
  • Resilient element is locked into bracket using Resilmount patented twist-lock technology so unintended dislocation of the element is impossible
  • Provides 4-6mm static deflection in accordance with the NCC
