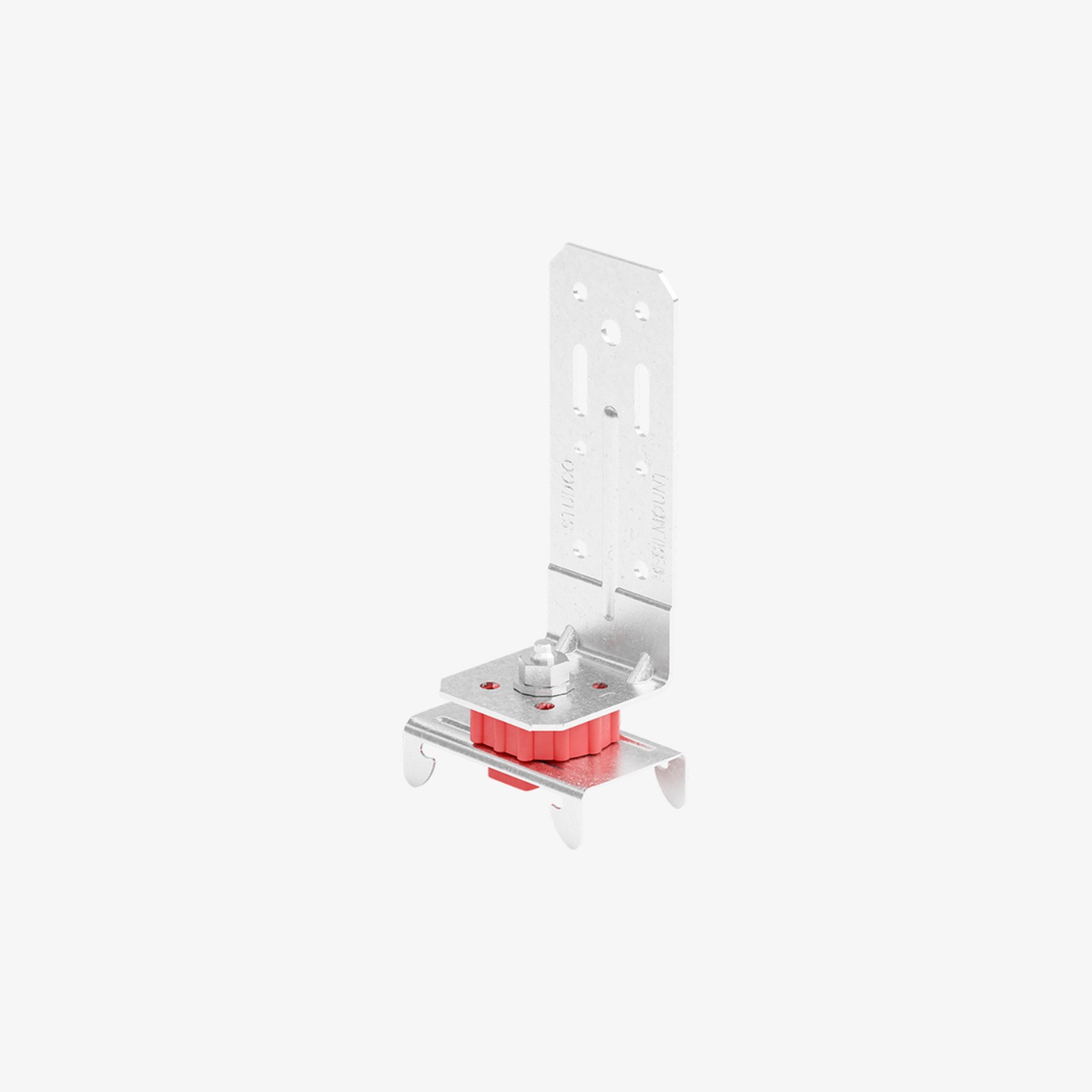

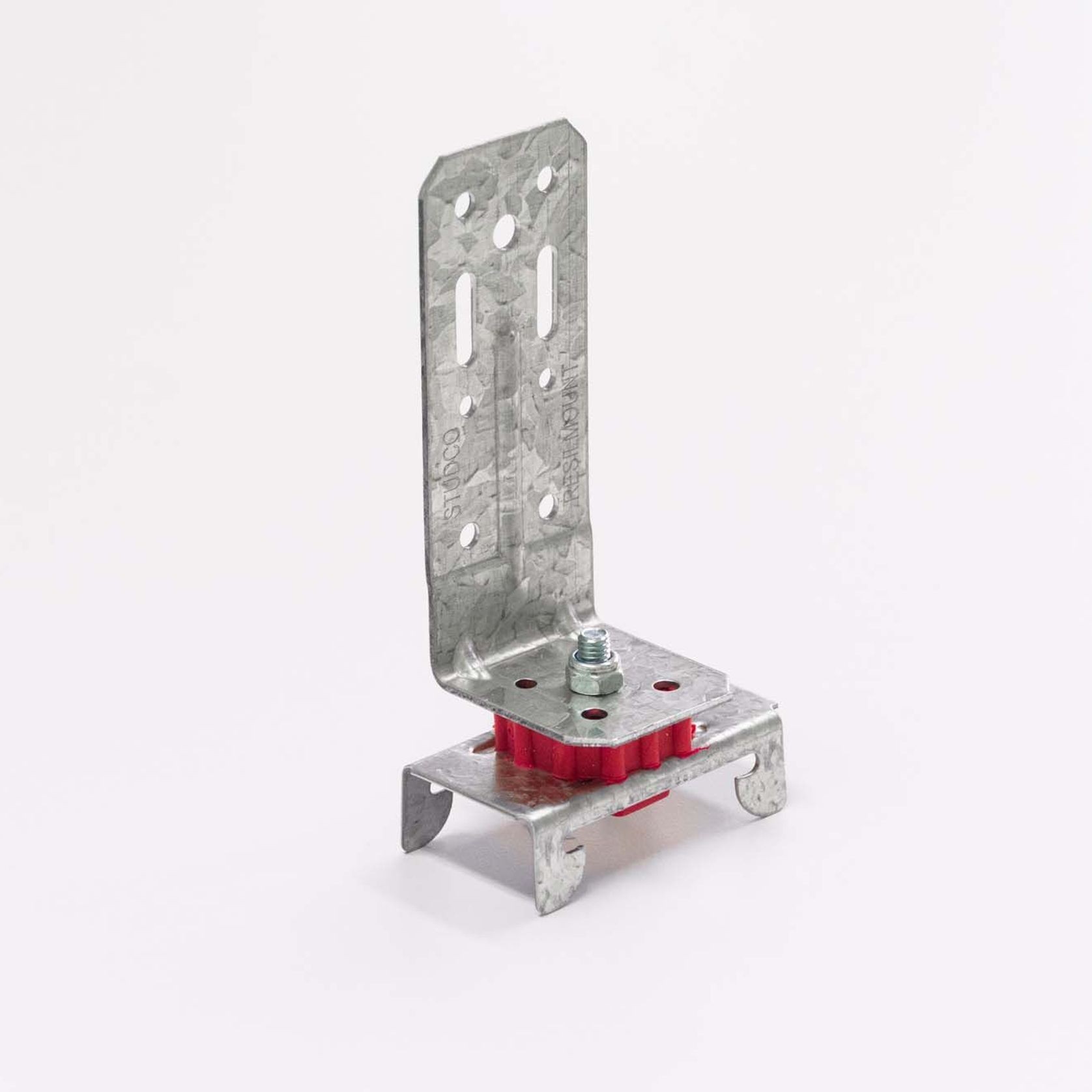

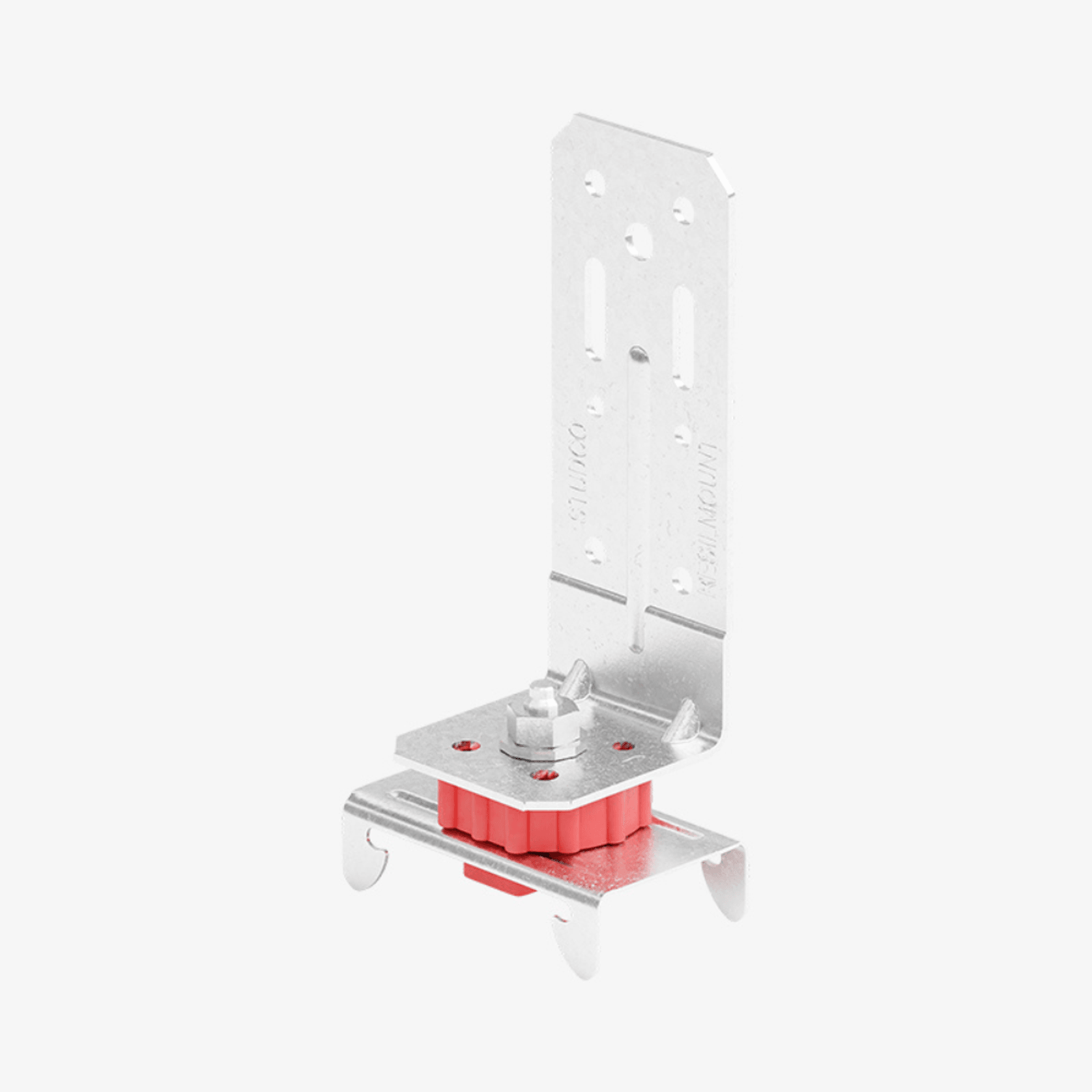

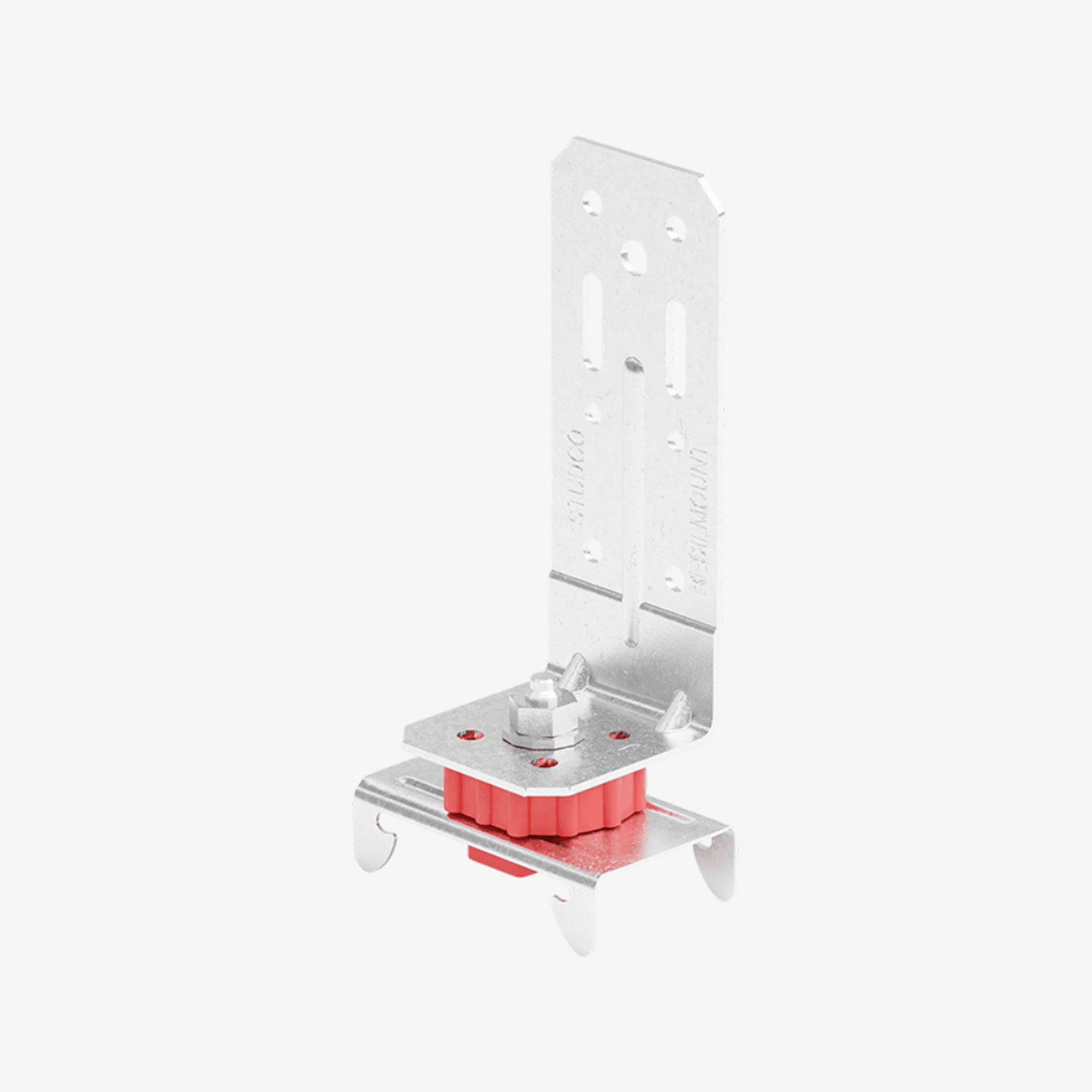

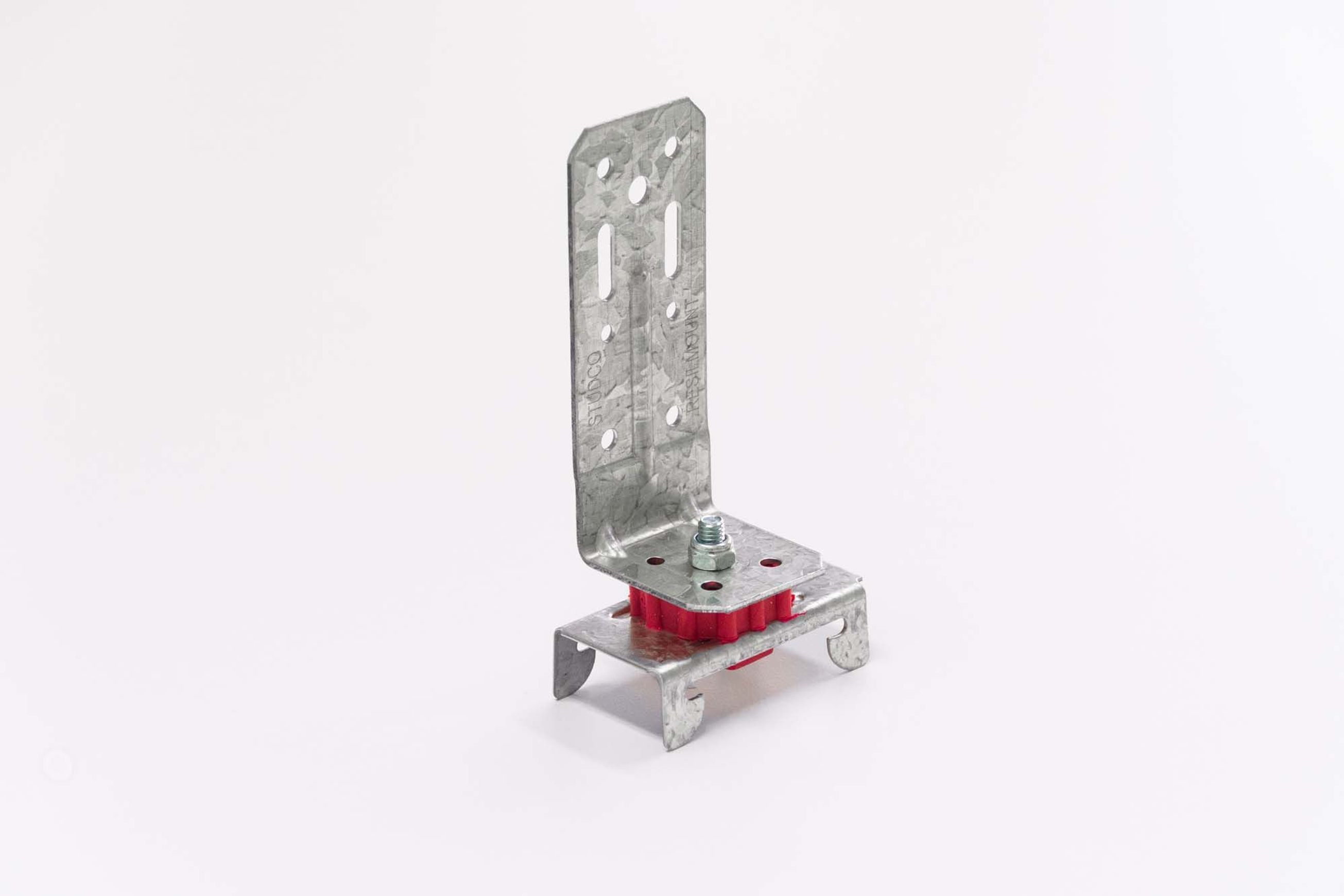

M96R Furring Channel to Purlin Resilient Mount
The M96R Furring Channel to Purlin Resilient Mount is an innovative product designed to effectively reduce sound transfer in ceiling applications. This engineered and patented mounting bracket is specifically crafted for suspending Studco furring channels below purlins or trusses, ensuring optimal sound absorption. The Resilmount® M96R features a unique sound cell design that effectively prevents sound from transferring into the body of the mount, thanks to its strong column design that minimizes contact surface area with the structure or substrate it is attached to.
This resilient mounting bracket excels in absorbing and breaking up airborne sound at its transfer point, guaranteeing a quieter and more peaceful environment. Ideal for use in the Finishes and Acoustic categories, the M96R Furring Channel to Purlin Resilient Mount offers a reliable solution for soundproofing ceilings in a variety of settings. Invest in this high-quality product to experience enhanced sound insulation and create a more comfortable living or working space.
- CategoryAcoustic
- RangeAcoustic Mounts
- BrandStudco Building Systems
- DesignerStudco Building Systems
- Unique, patented sound cell design to break up and absorb airborne sound.
- Engineered thermoplastic rubber outperforms standard rubber because of its sound absorbing characteristics.
- Consistent and reliable quality – manufactured under ISO9001 quality control system.
- M96R gives ceiling height flexibility.
- Allows for mechanicals between the ceiling and ceiling joists.
- Can be used with standard drywall furring channel.
- Strong ‘column’ design provides minimal contact area with substrate whilst maintaining maximum structural integrity.
- Provided with several ø5mm” slotted holes in bracket surface, suitable for direct fastening applications.
- Fits both 16mm and 28mm furring channels.
- Max. loading per mount is 25kg.
