Rieder GRC Form Parts | Façade Systems

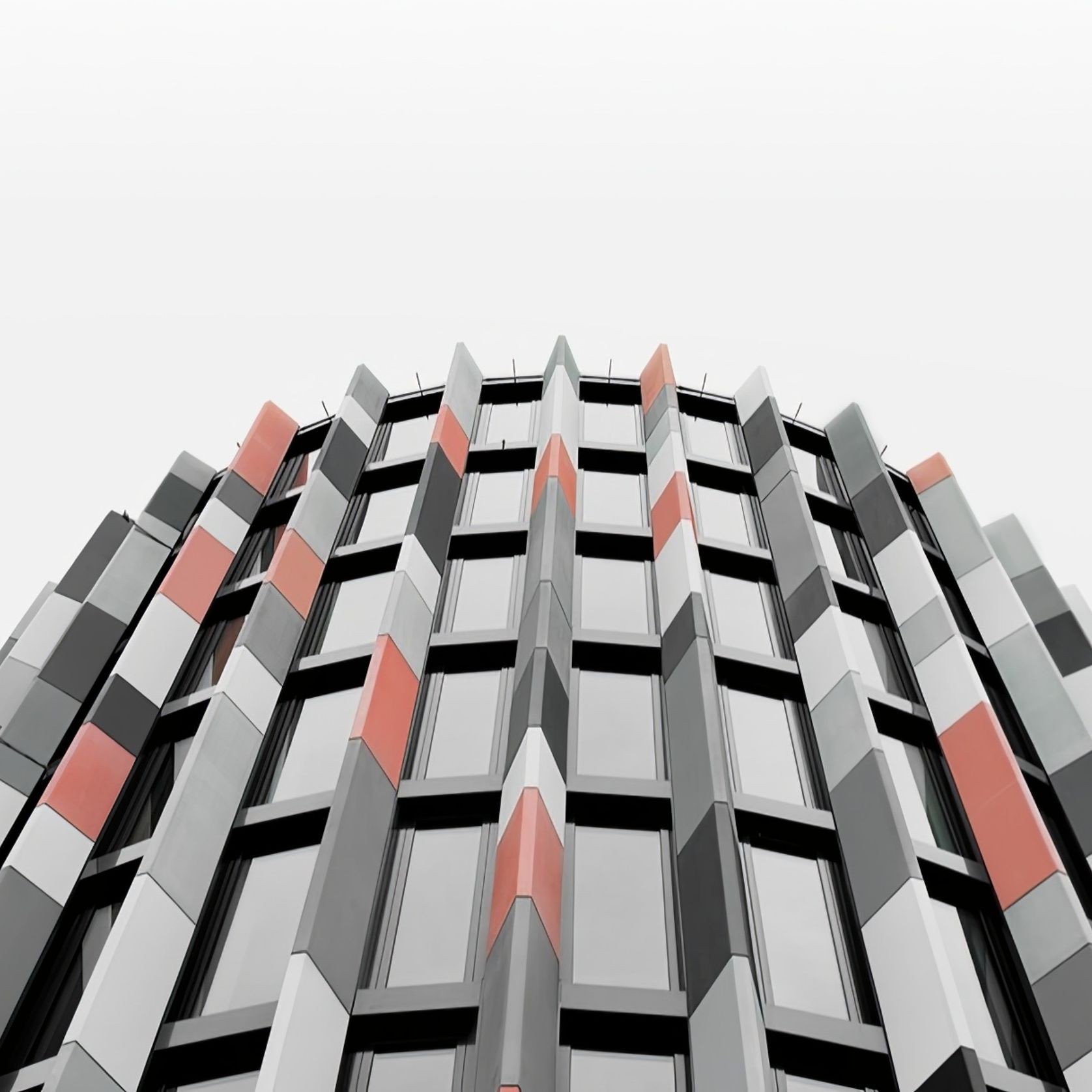

Formparts made of fibreC glassfibre reinforced concrete are monolithic concrete slats which offer a high degree of flexibility and various design options for innovative building envelopes.
The formed concrete elements with an optimised fastening system enhance glass facades and serve as a refined visual and sun protection.
Pre-assembled Formparts
The pre-assembly in the factory, independent of weather conditions, ensures a high quality standard and quick assembly on site. The elements are simply mounted and then fine tuned.
Fire-rated
Fire resistance with fire protection class A1 “non-combustible” according to DIN 4102.
Sustainable
With its ISO 9001 and ISO 14001 certifications, Rieder sets itself high standards for environmental protection. The environmental product declaration, EPD, gives precise indicators for the life cycle assessment.
- CategoryGlazed Facade Systems, Facade Screens
- RangeFacade Cladding
- BrandThe Tile People
- DesignerRieder

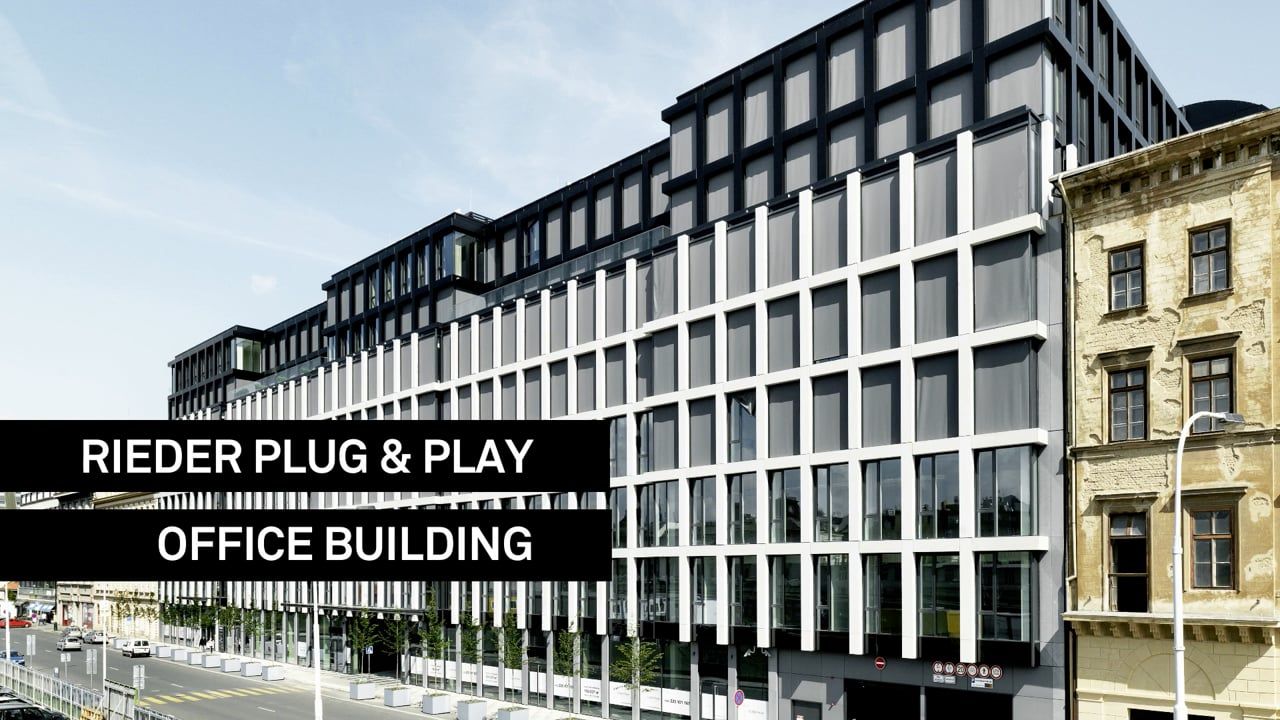

New Mounting System – Plug & Play
The jointed formed parts are connected using different mounting brackets depending on size. Rieder provides coordinated components as a system supplier, resulting in an integrated solution from a single source. The simple anchorage system allows on-site adjustment, high fitting accuracy and concealed mounting.
The mounting options are compatible with all standard supporting structures and are a time-saving, economical and sustainable alternative for mounting parts. Rieder offers a library of standard details with typical vertical and horizontal sections and more information for fire barriers, glass facades, shutter boxes, ceiling façades, roof connections and column façades. Based on project experience, an extensive collection of prepared unique solutions for mounting on various building and facade types is also available.
The formed elements are tailor-made as a single piece and are available with L- or U-cross section, as a round arch, and as special shapes with a length of up to 5 meters.
- Only 13 mm thin
- Up to 5 meters long
- Development width max. 2000 mm
- Various cross-sections
Fins are formparts with a U-shaped cross-section in a 70 x 70 mm format. They are used as slender concrete slabs for facades to serve as permanent visual and sun protection for large window areas.
Fins also create creative design accents on the building envelope. Due to the geometrical shape of the fins, the daylight creates special light effects in the interior.
Standard formats
- 70 x 70 x 1800 mm
- 70 x 70 x 3600 mm

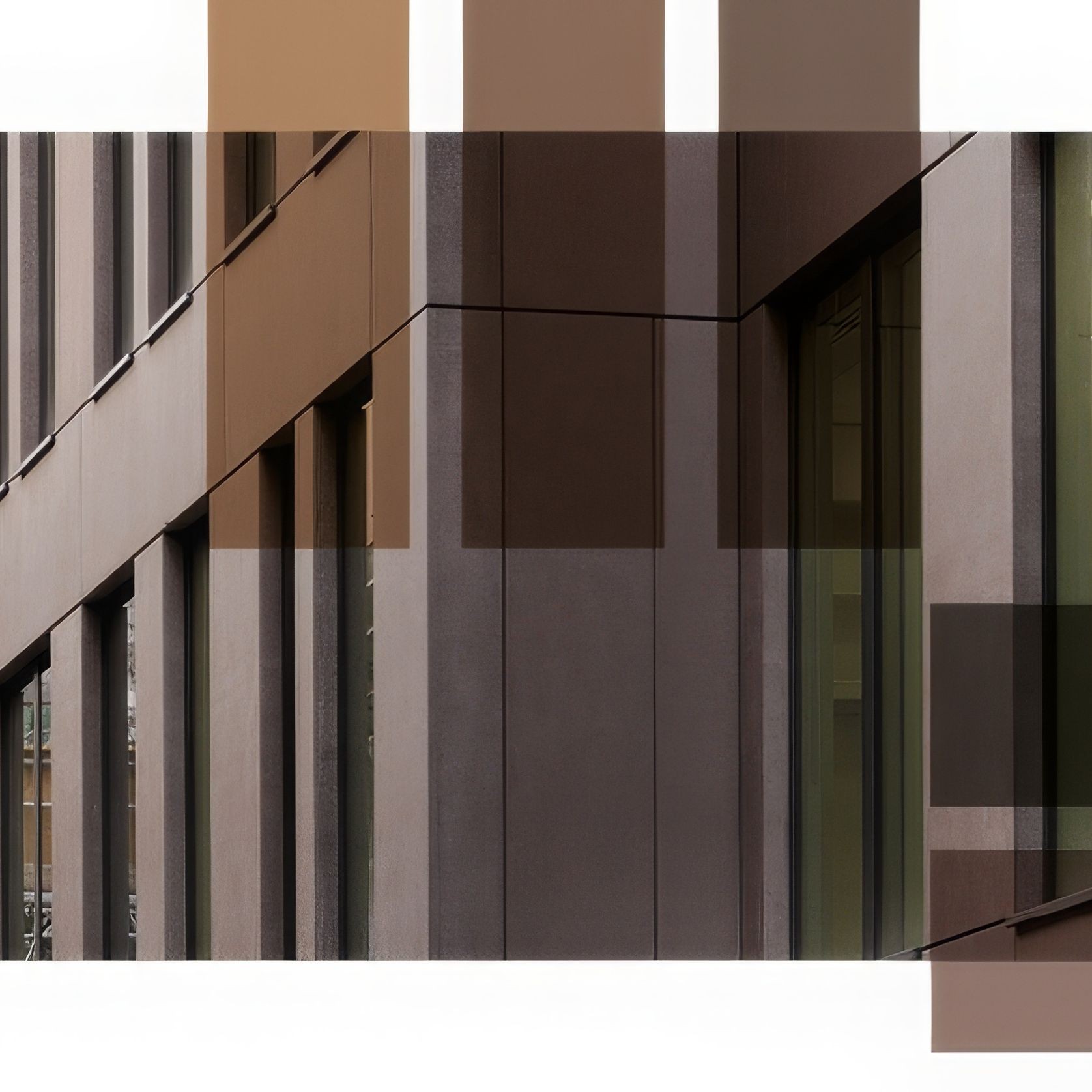

The authentic colours blend well into landscapes and correspond with nature and the environment. Colour variations within a colour tone are intended to enhance the liveliness of the building material, concrete.
Formparts.mono is available in ferro and ferro light surfaces; the form parts.fab is also available with a matt surface. They can be easily combined with concrete skin.
