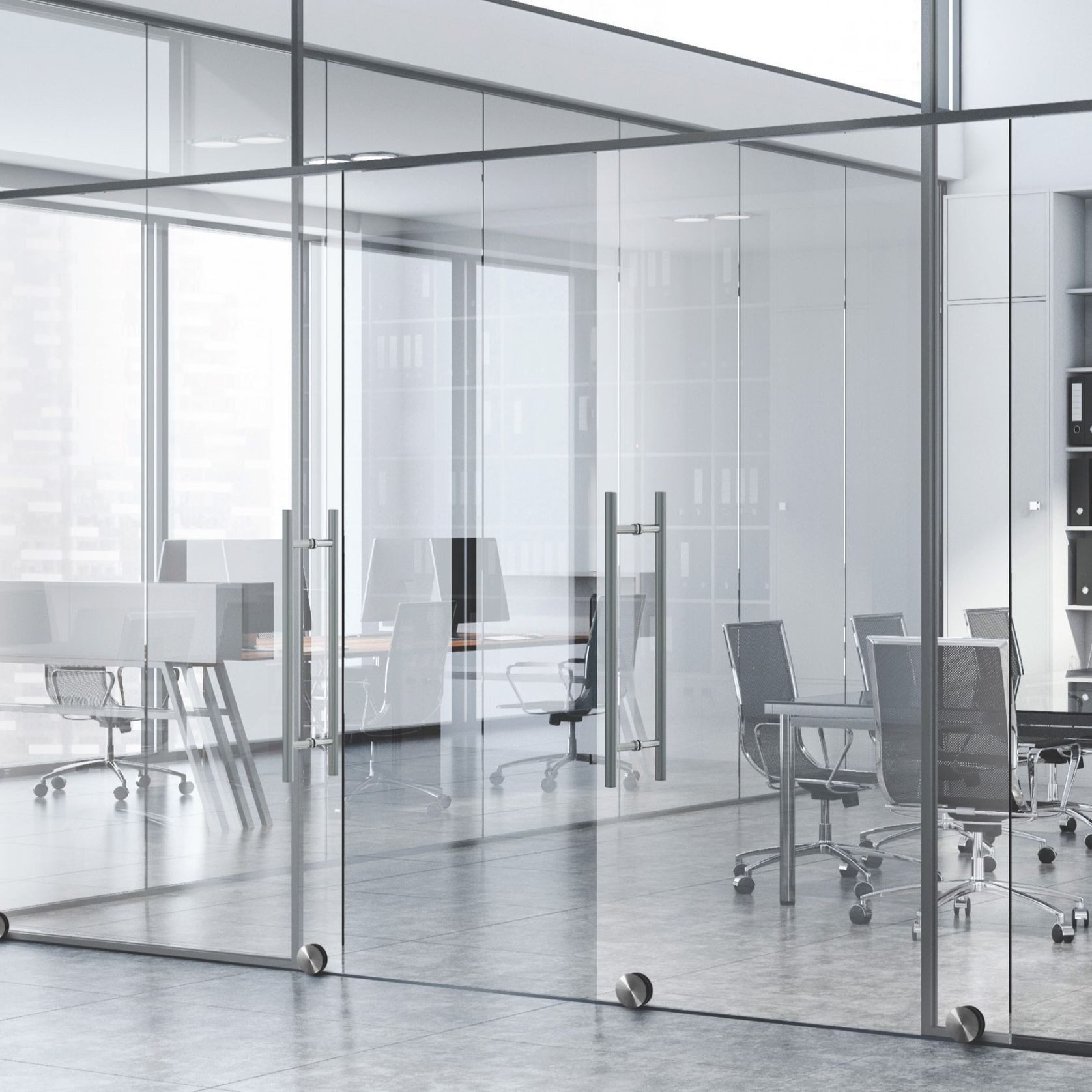

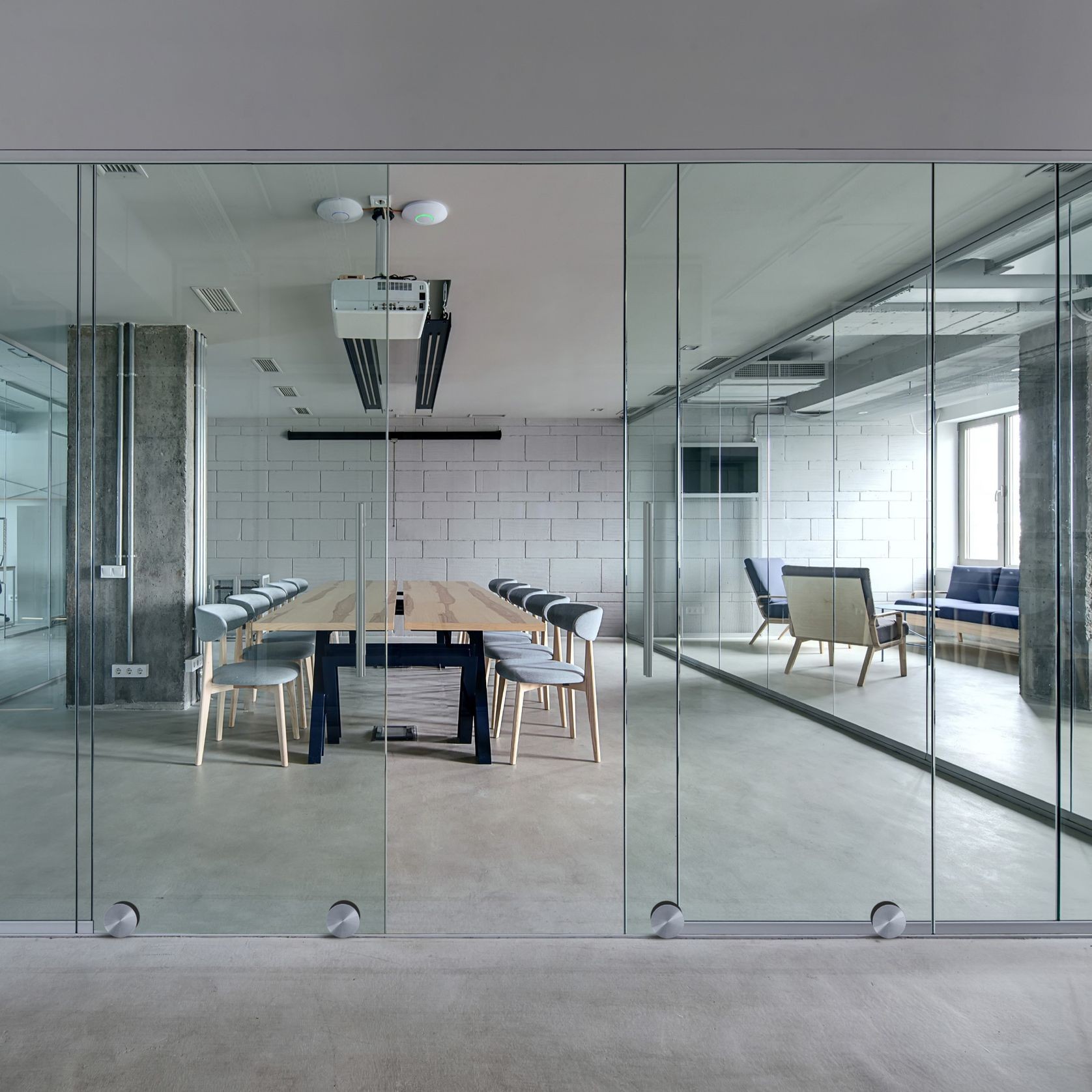

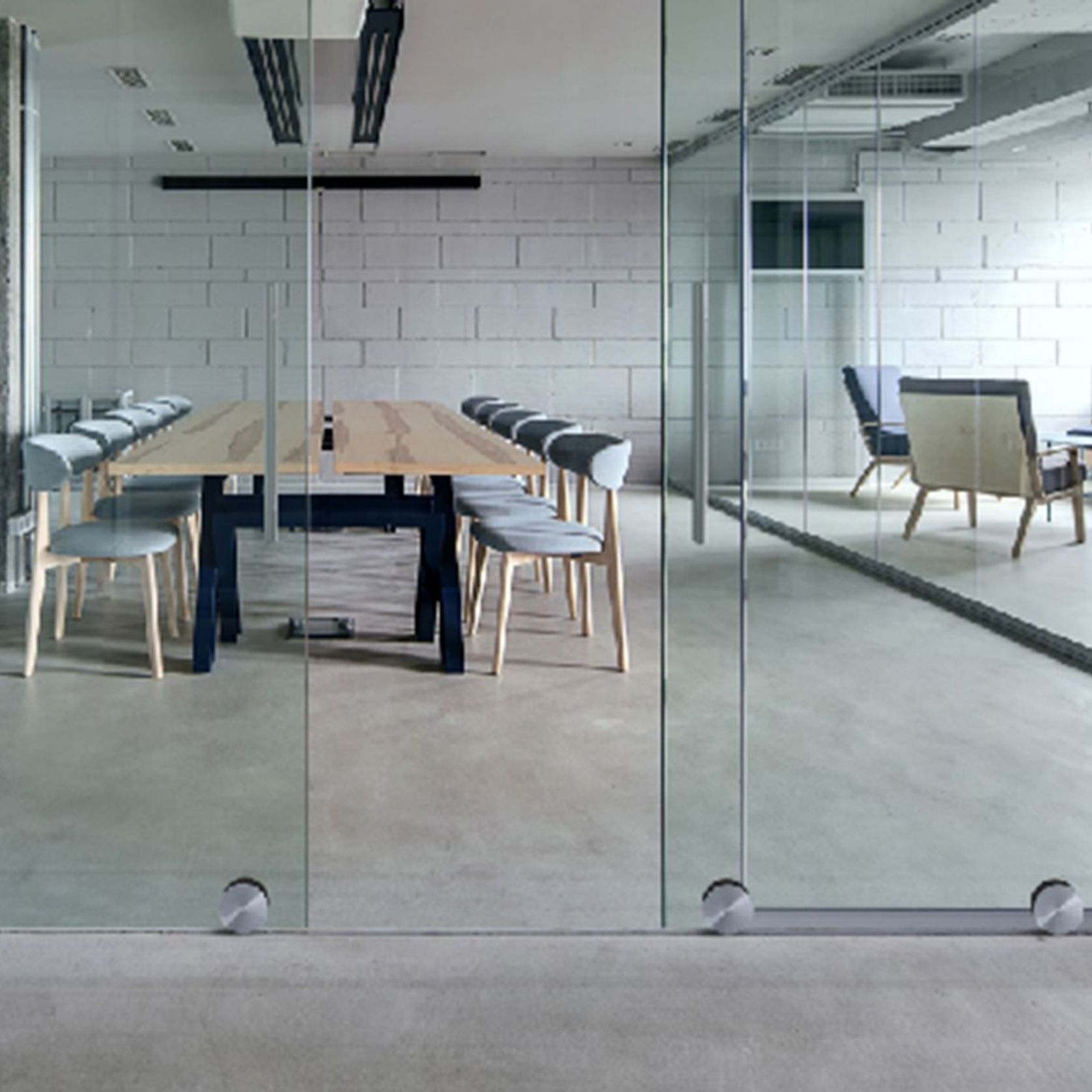

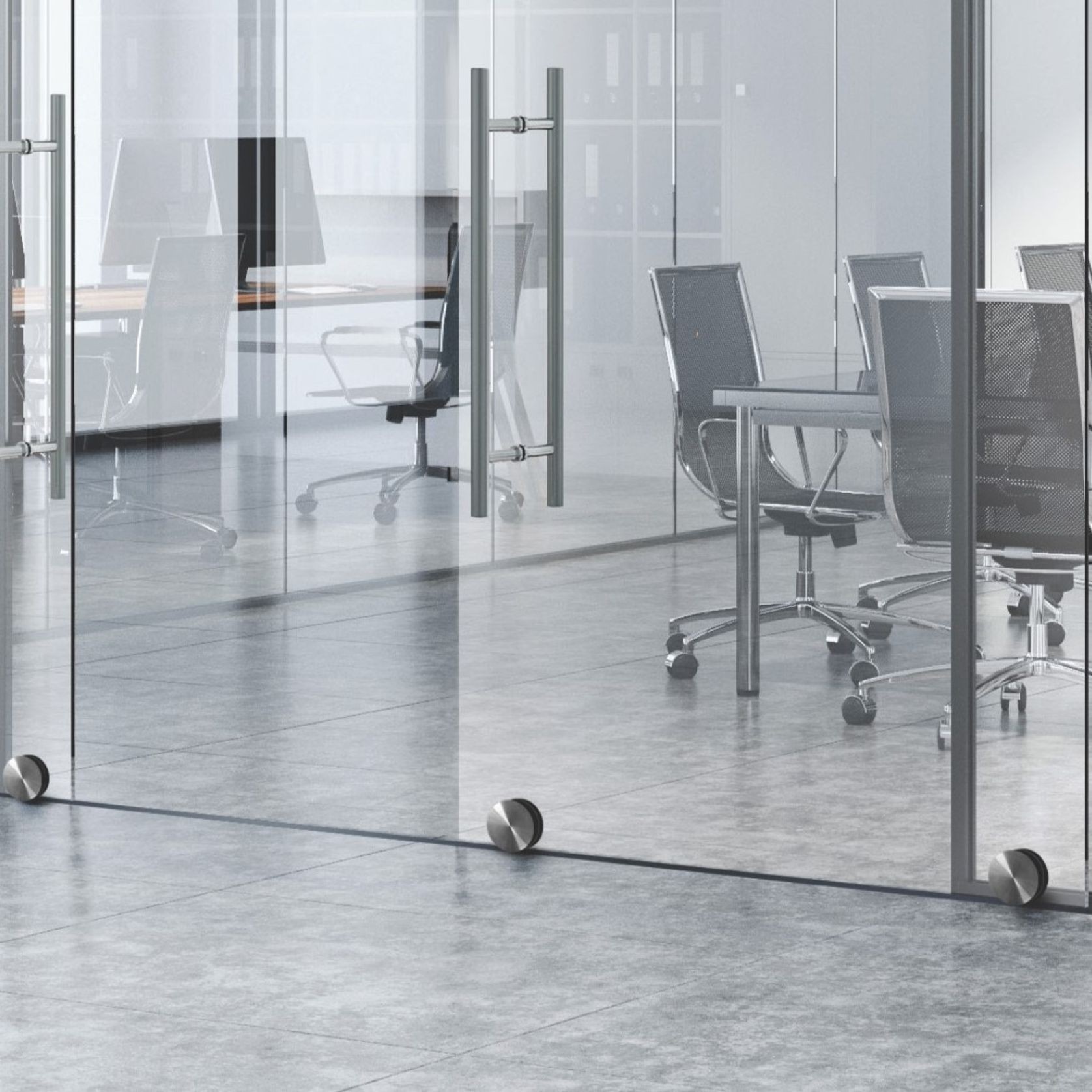

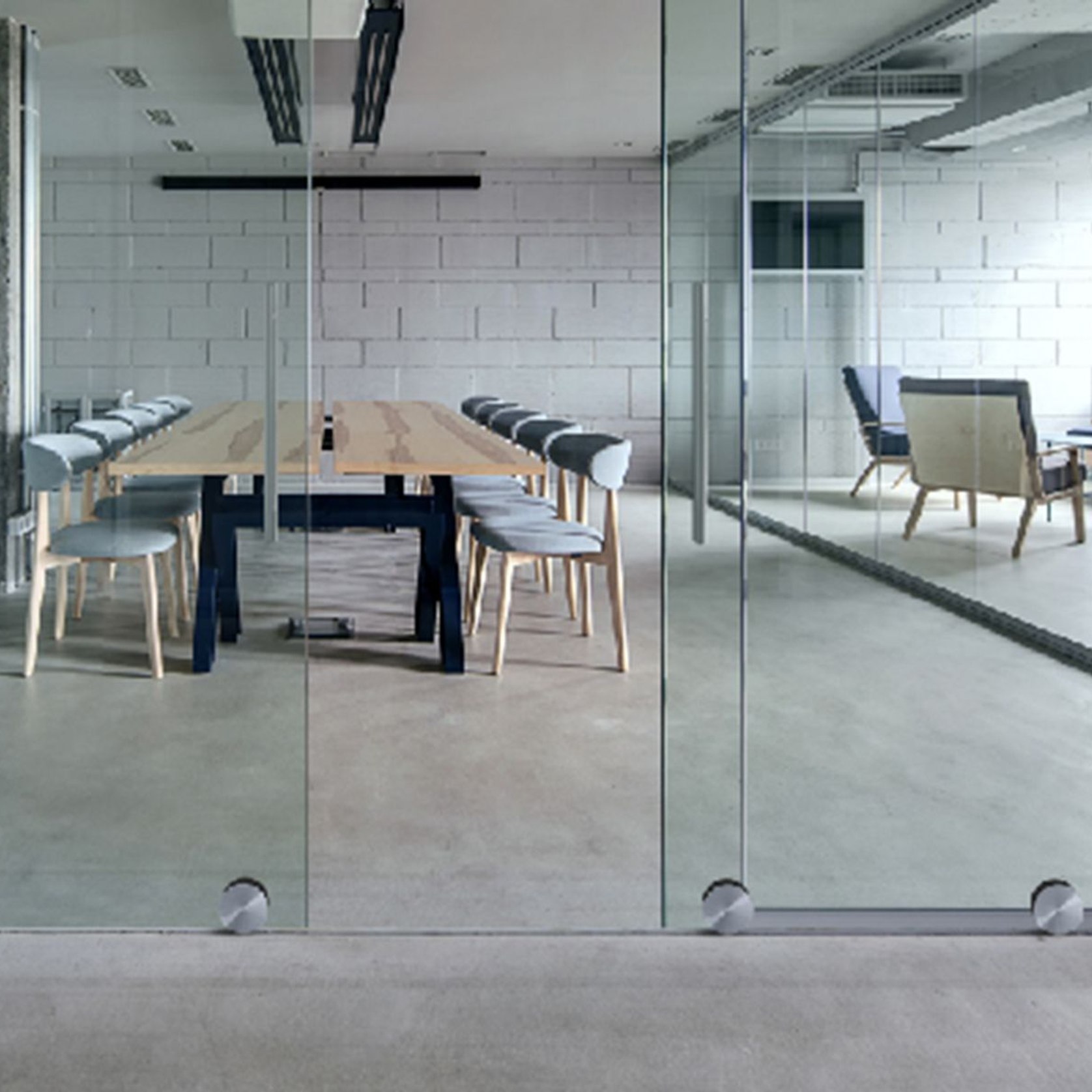

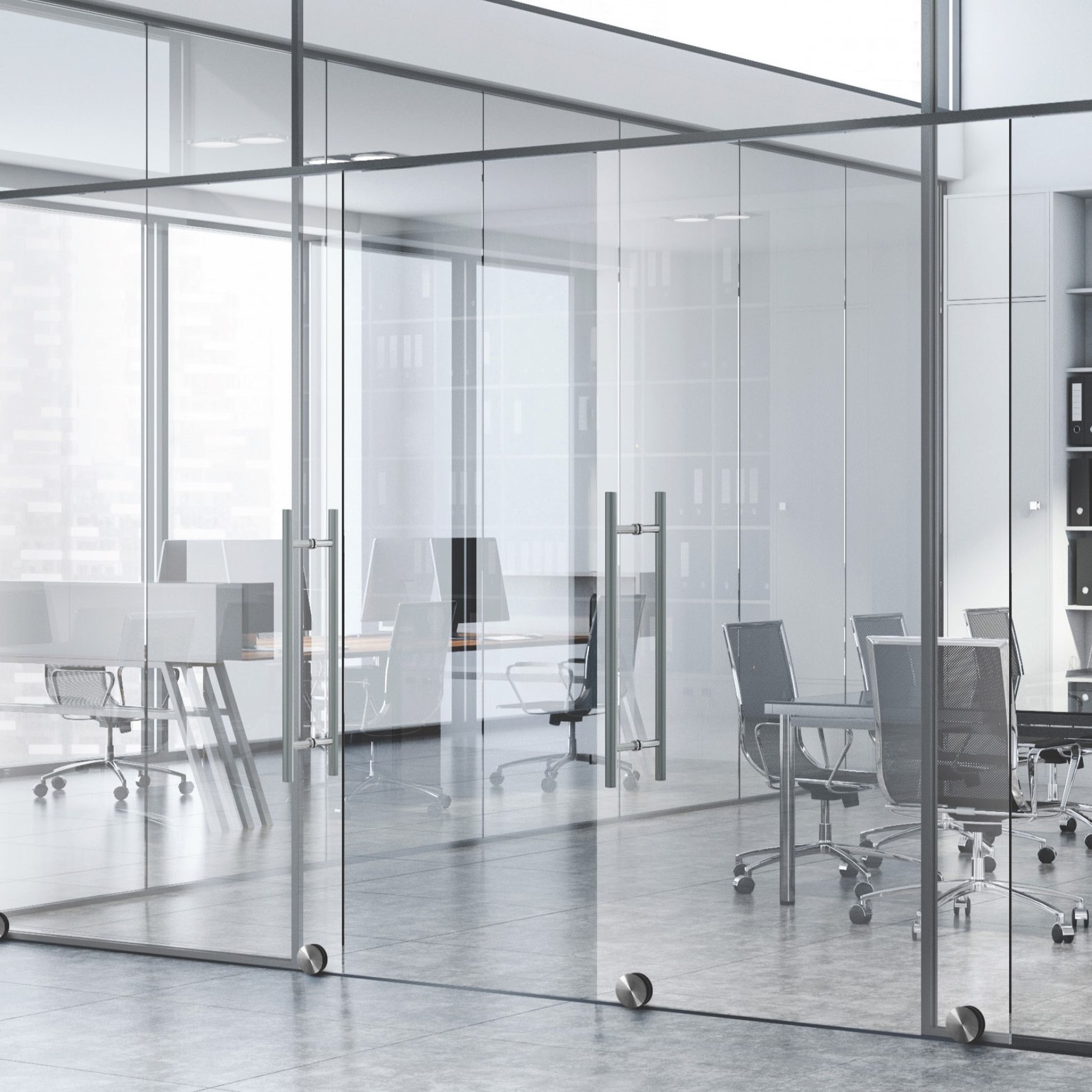

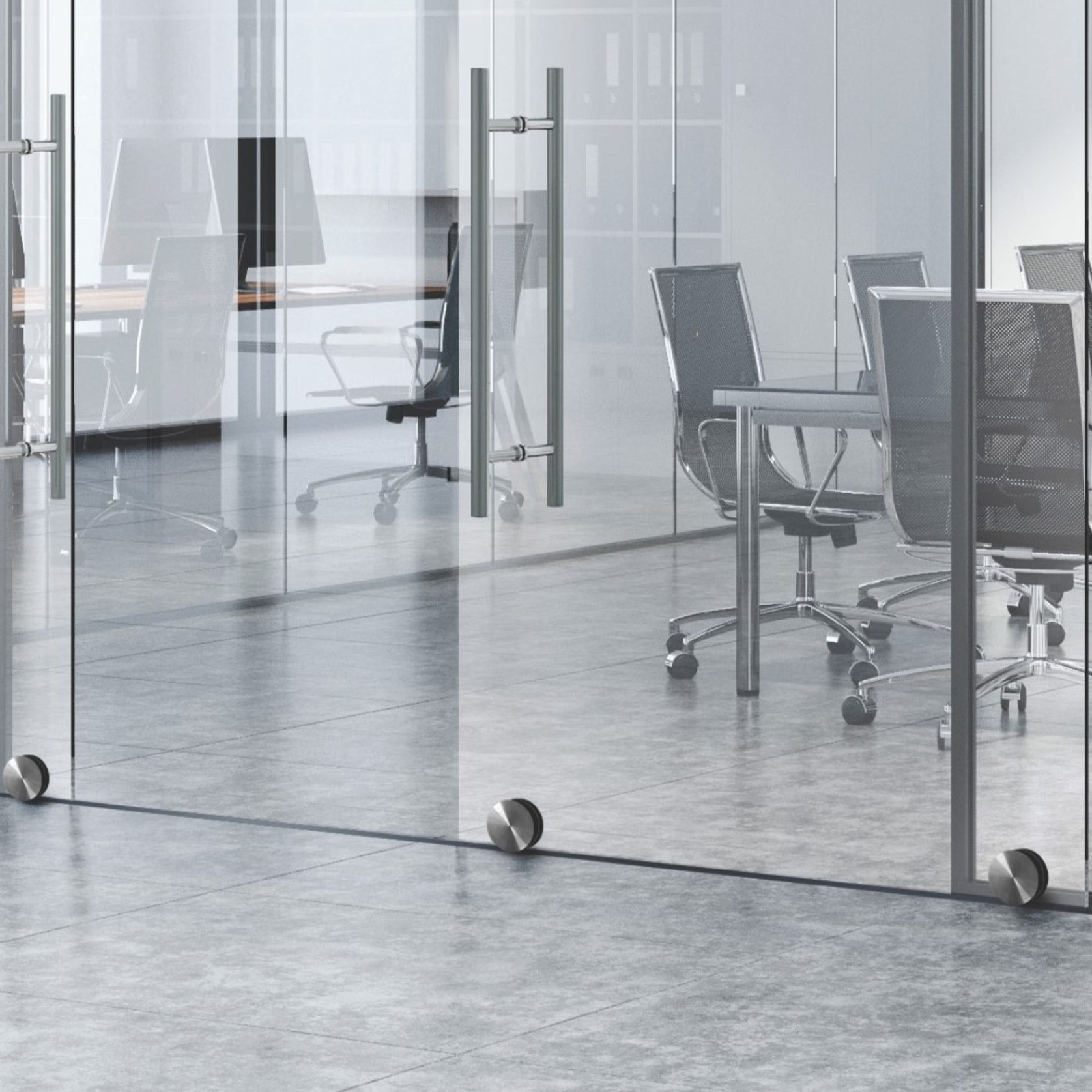

Rolline™ Frameless Glass Sliding Door System

Statement of Building Code Compliance

Compliant with the structural requirements of the New Zealand Building Code:

• B1 Structure
• B2 Durability (15 yrs)
• F2 Hazardous material
• AS/NZS 1170.0-2002 Structural Design Actions-Part 0: General Principals AS/NZS 1664.1:1997 Aluminium structures limit state design NZS4223.3:2016 Glazing in buildings — Human impact and safety requirements NZS4223.4:2008 Glazing in buildings

Other Performance Attributes

Surface Finishing — Juralco Aluminium Building Products Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials — Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance.

• Residential buildings, 3 levels max: Warranty 10 years
• Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max: Warranty 15 years
• Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings: Warranty 25 years
• Juralco products come with a minimum 5 year warranty

• Fitted with 10 or 12mm toughened glass
  • Up to 3.0m wide and 2.7m high
  • Maximum glass weight 200kg (depending on wind zone)
  • External non-waterproof applications are available for Low wind zones
  • Specifiable with a Producer Statement (PS1)

• Commercial
  • Residential
  • Internal
  • External (non-waterproof and Low wind zones)
