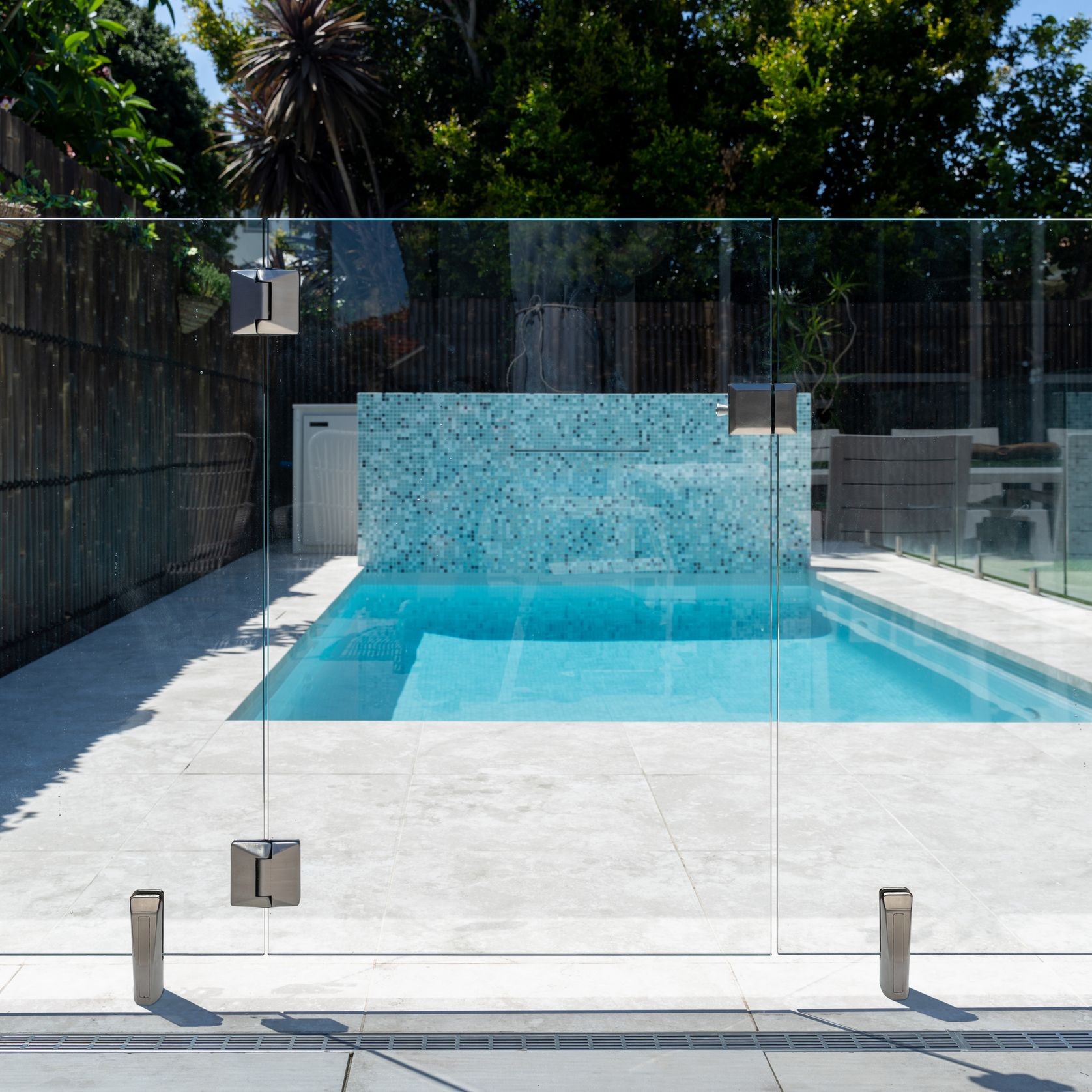

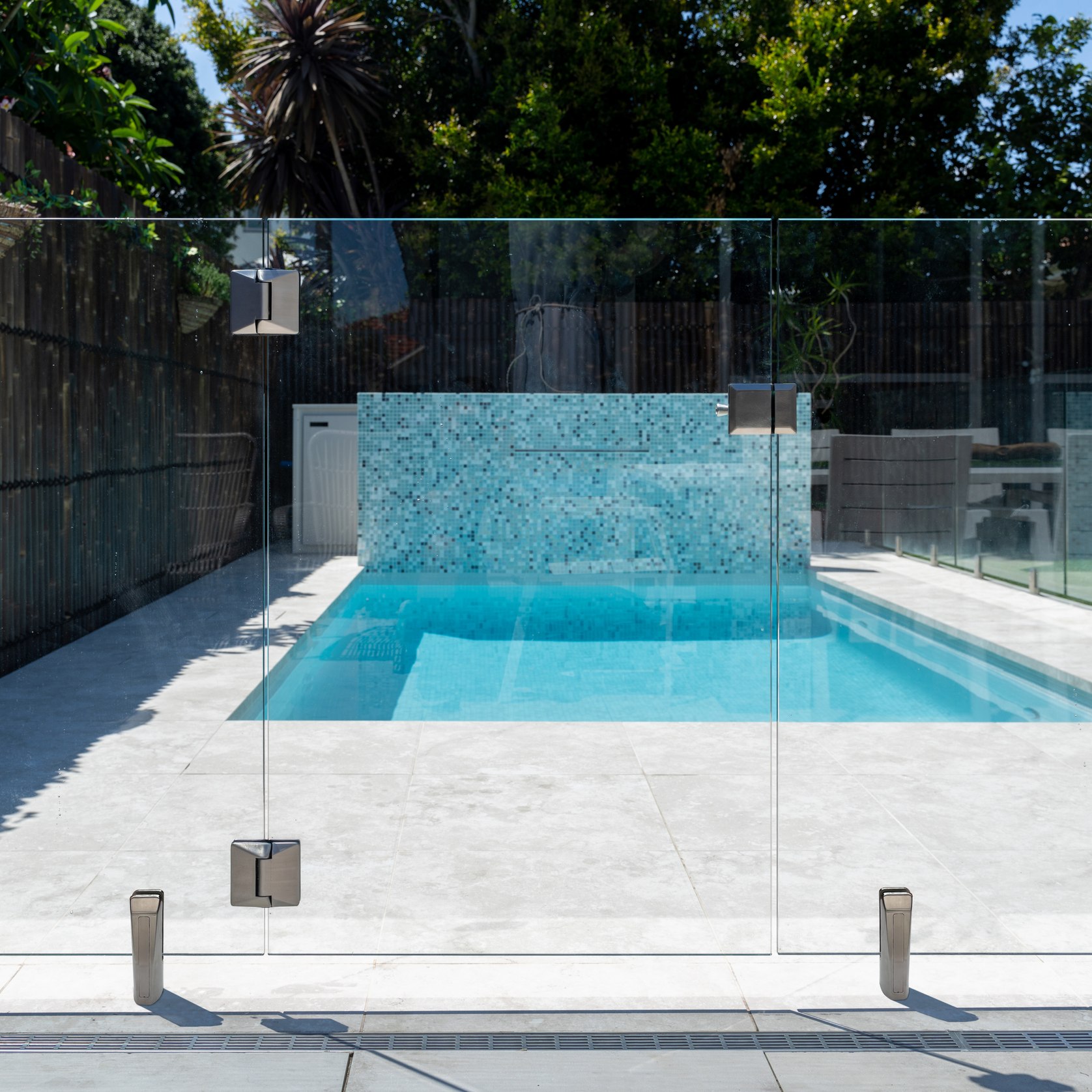

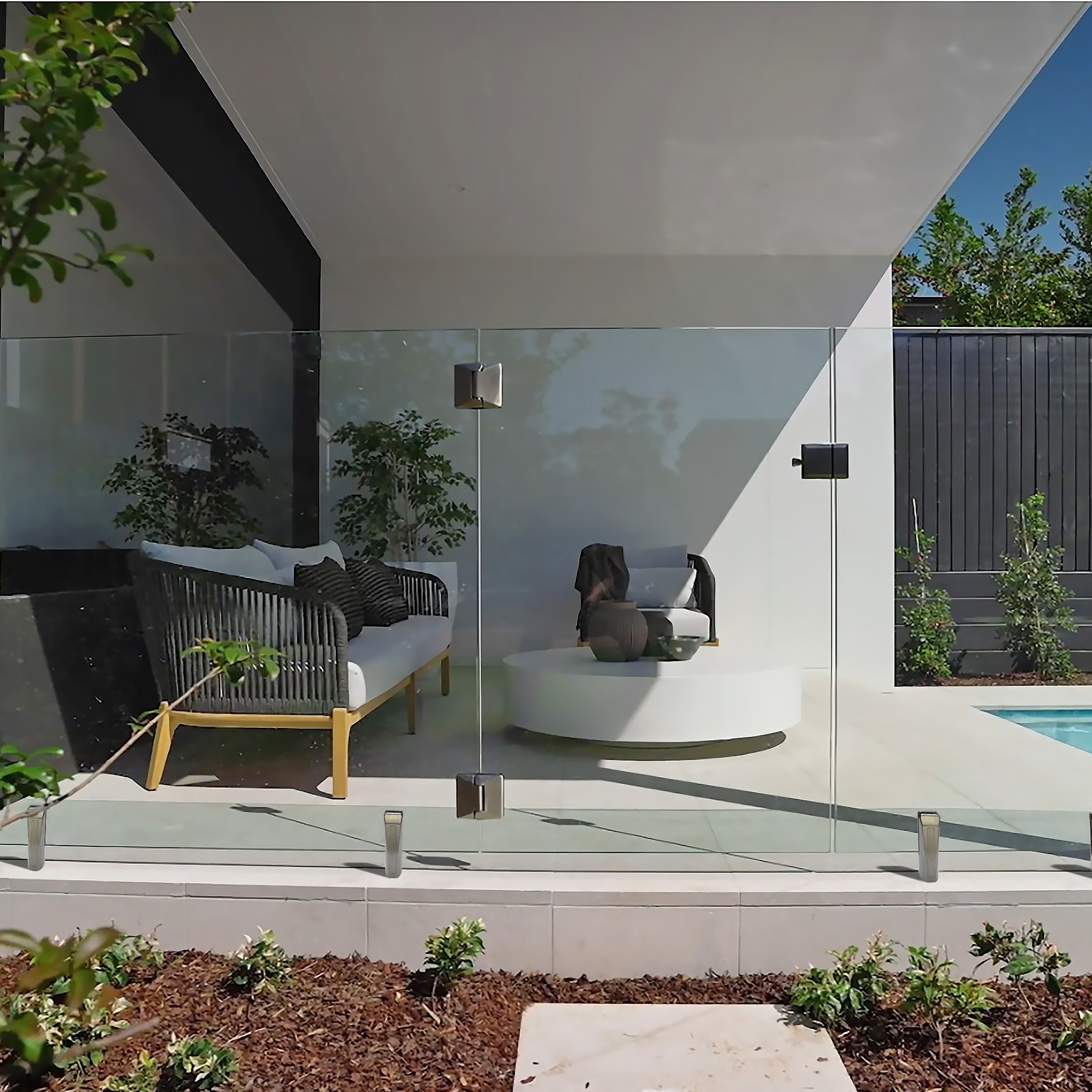

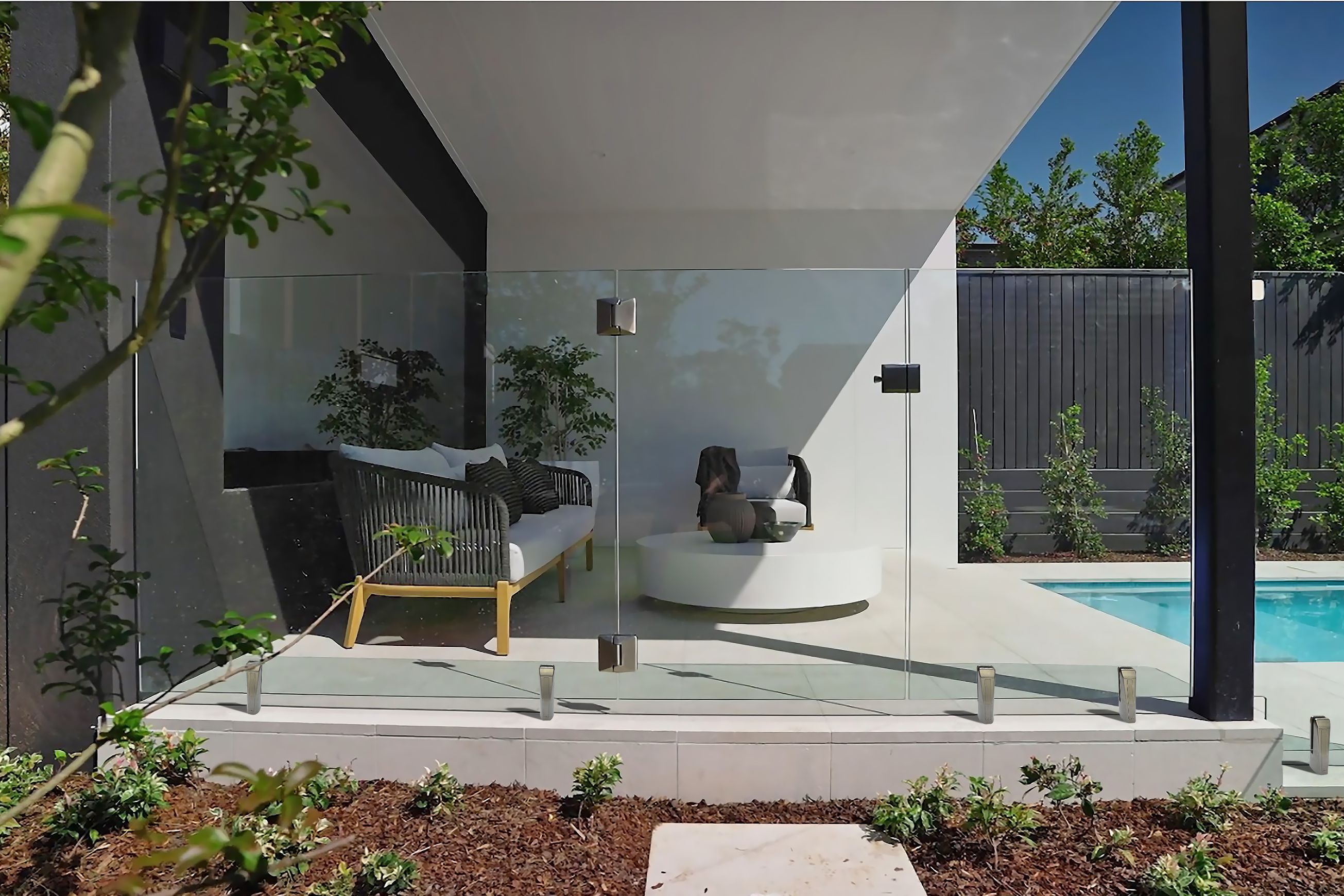

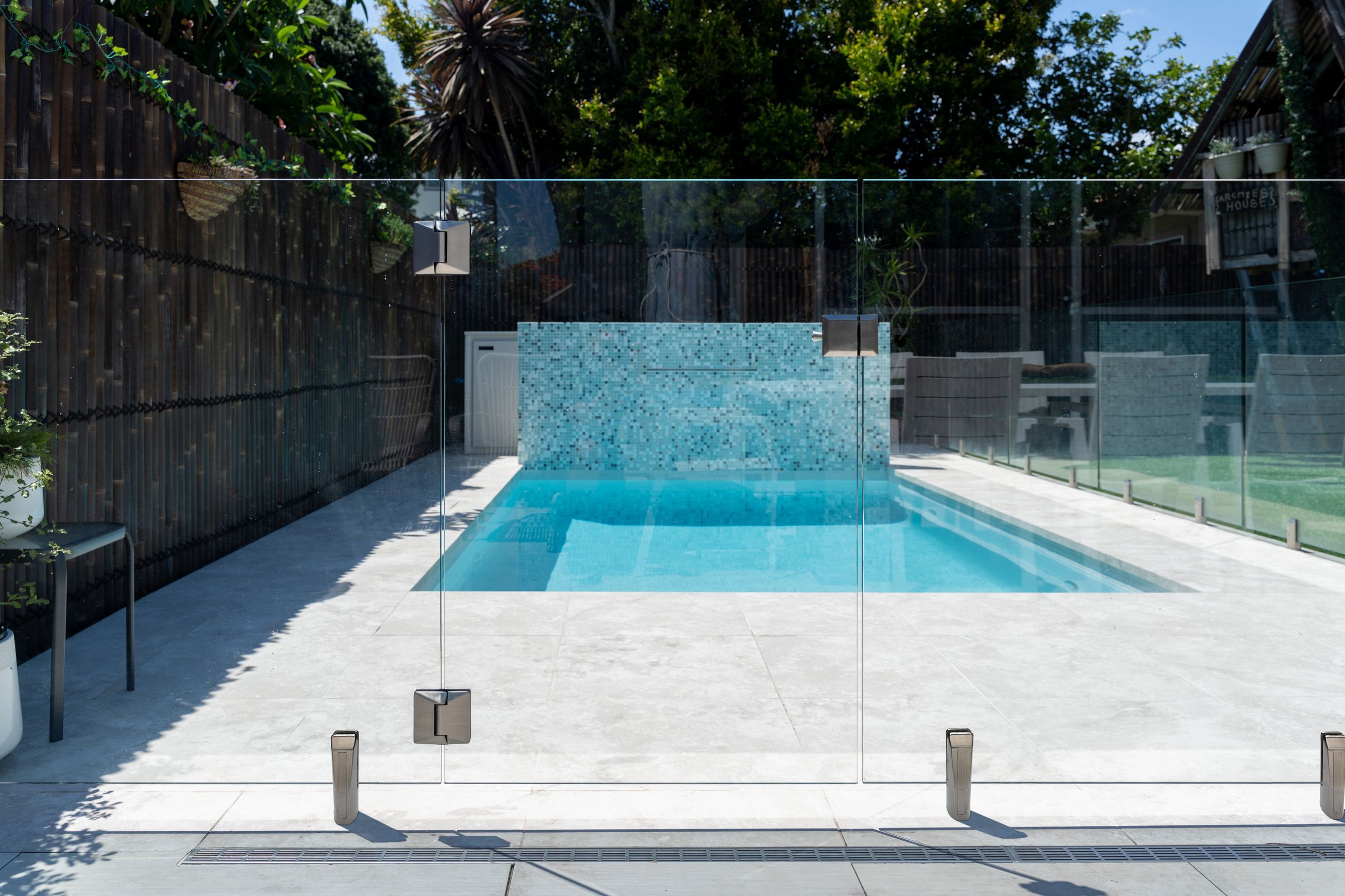

Edgetec® Atlantic and Luxe Latch Glass Pool Gate System

The Juralco Edgetec® Atlantic Hinge and Luxe Latch Glass Pool Gate System can use 10mm and 12mm toughened Glass or 13.52mm SentryGlas® panels.

Specs

• The Juralco Edgetec Atlantic and Luxe Glass Pool Gate Systems have been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and AS/NZS 1170: 2002 occupancy A, A Other and C3, NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.04 kPa
  • The Structural Engineering design includes Building Code requirements, B1 Structure, B2 Durability, F2 Hazardous material and Clause F9
  • Verification Method B1/VM1, B2/AS1
  • Complies with NZS 4223.3.2016
  • A Producer Statement 1(Design) is available
  • Building Product Information Requirements (BPIR) document is available

Features

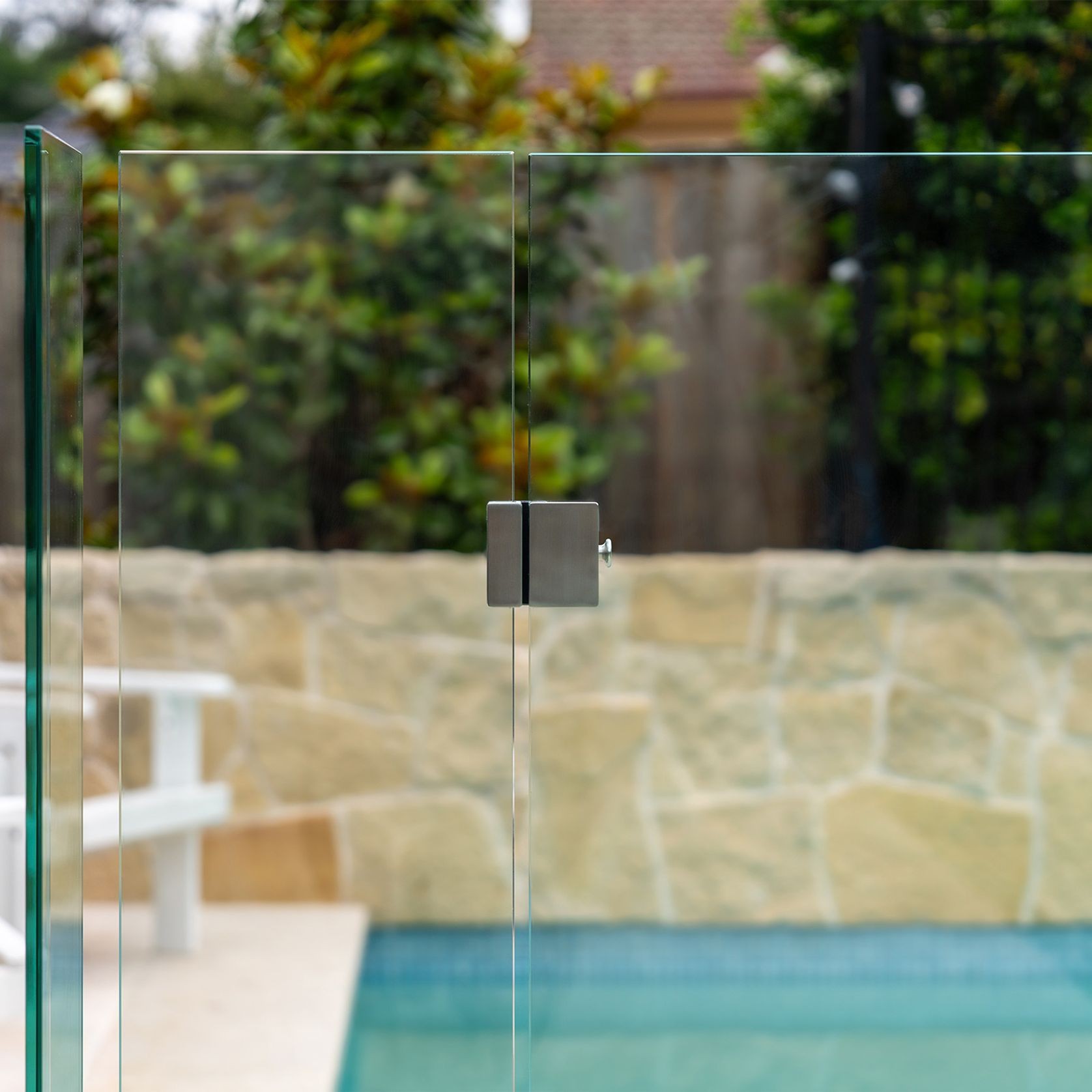

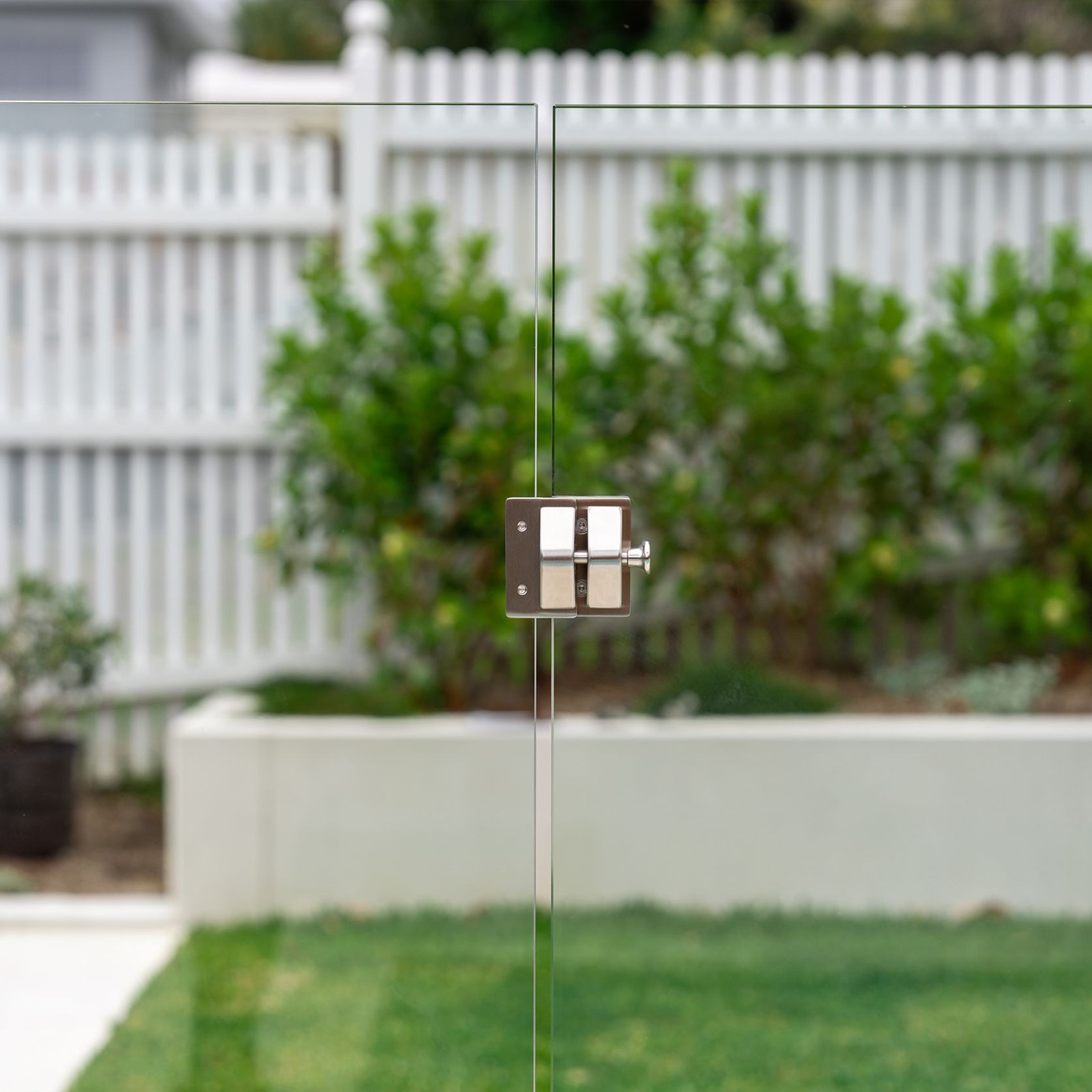

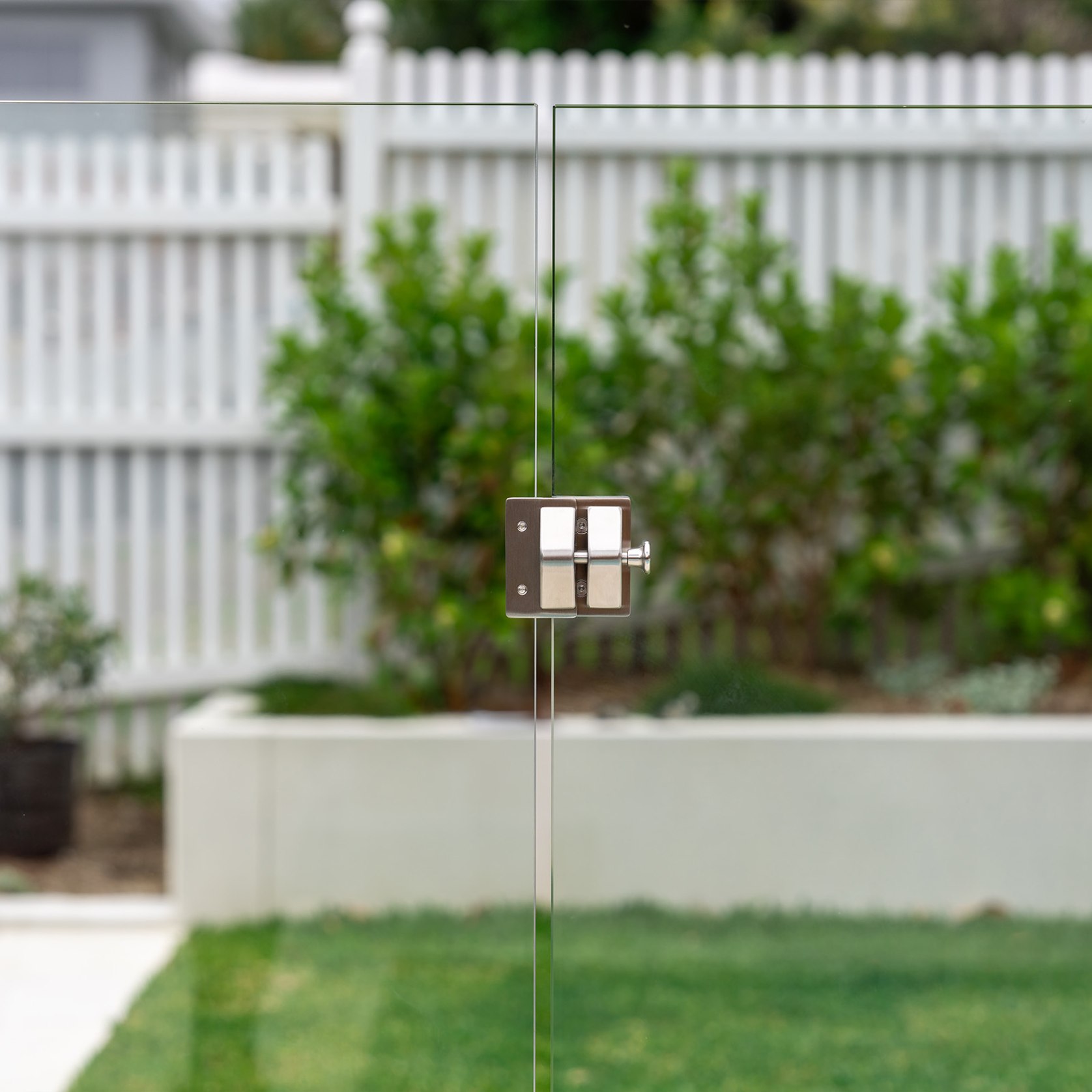

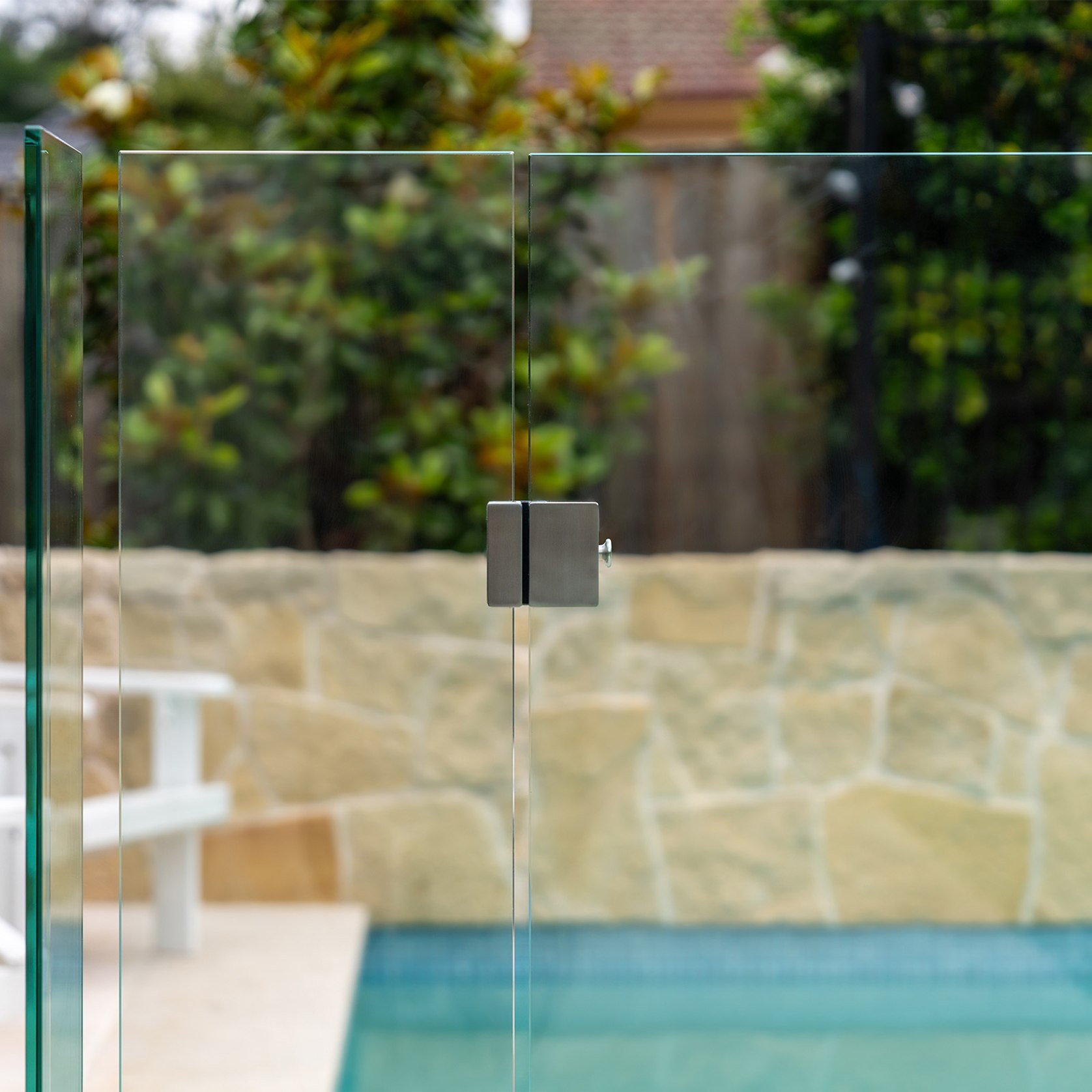

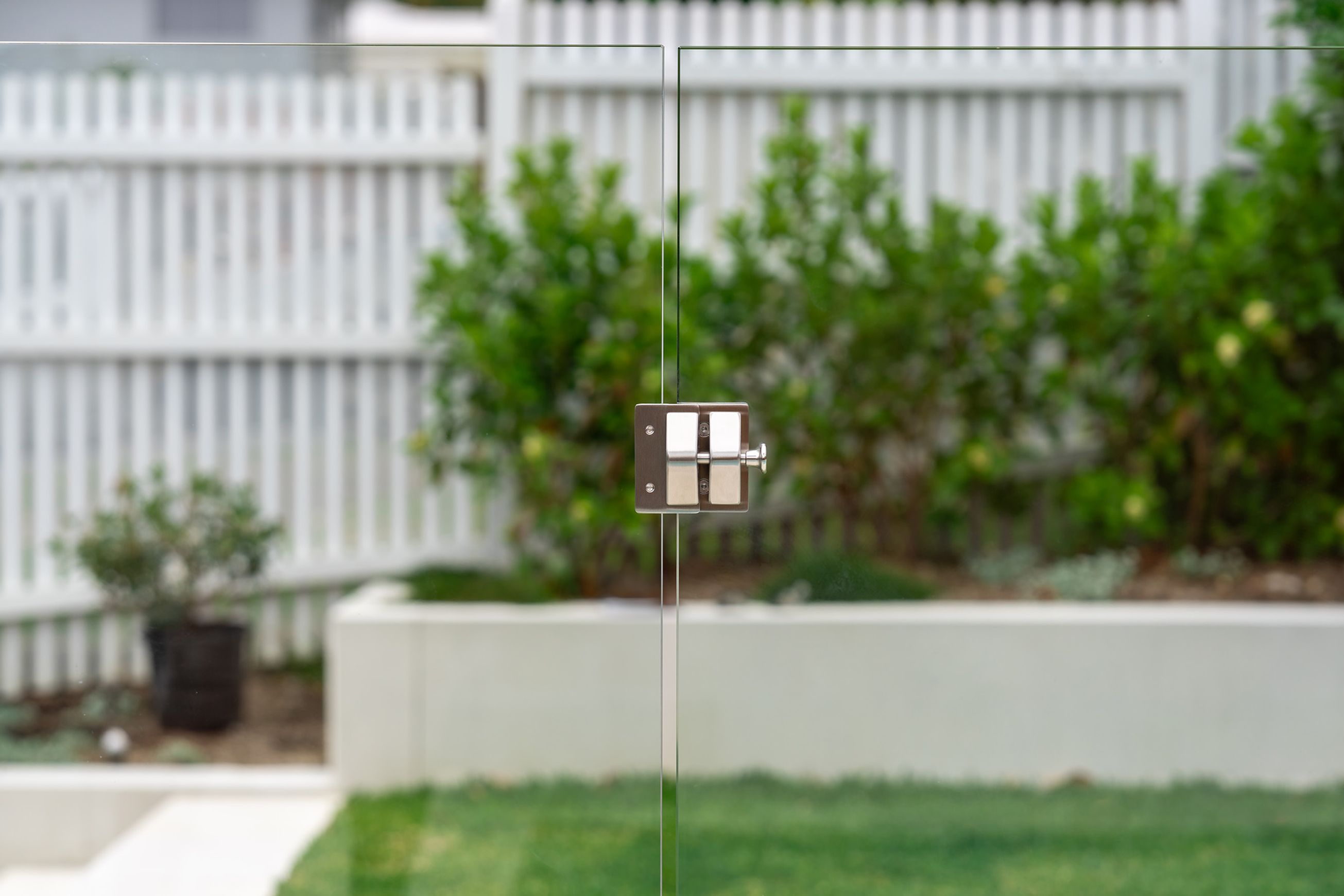

• This system utilises adjustable hydraulic self closing hinges (non-hold open) and an automatic latch.
  • The Hinges are available as 2 types
  • Glass to Glass type, suitable for all Juralco Frameless Glass Pool systems — 10mm, 12mm and 13.52mm SentryGlas®
  • Wall or Post to Glass type, suitable for Juralco EDGE Pool system — 10mm or 12mm Glass
  • Suitable with all Juralco Frameless Glass balustrade system
  • Suitable with all Juralco Semi-Frameless Glass balustrade systems
  • For 10 and 12mm Toughended Glass. The glass must have a minimum strength of 100MPa, all edges polished
  • Hinge standard finishes in Satin, Mirror Polish, Satin Black
  • Special order only finishes in Satin White and Satin Gold
  • Duplex 2205 stainless steel

Scope of use

• Suitable for all Juralco Frameless Glass Balustrade systems
  • Suitable with all Juralco Semi-Frameless Glass balustrade systems
  • 10 or 12mm toughened glass and 13.52mm SentryGlas®
  • The manufacturers documents refer to the products and requirements in relation to fixing and surface finishings
  • Suitable for Glass-to-Glass gates: Juralco Mini Post and Infinity systems
  • Suitable for Post-to-Glass Juralco Edge system
  • The glass must have a minimum strength of 100MPaThe system utilises adjustable hydraulic self-closing hinges (non-hold open) and a magnetic latch
  • Complies with the structural requirements of the New Zealand Building Code and AS/NZS 1170 : 2002 occupancy A, A Other, and C3
  • NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.04 kPa
  • Passed 640 hour salt spray test
