Shut it® Badass Strap Hinge
by ASSA ABLOY
Auckland, New Zealand
- 654.7K profile views
- 60 saves

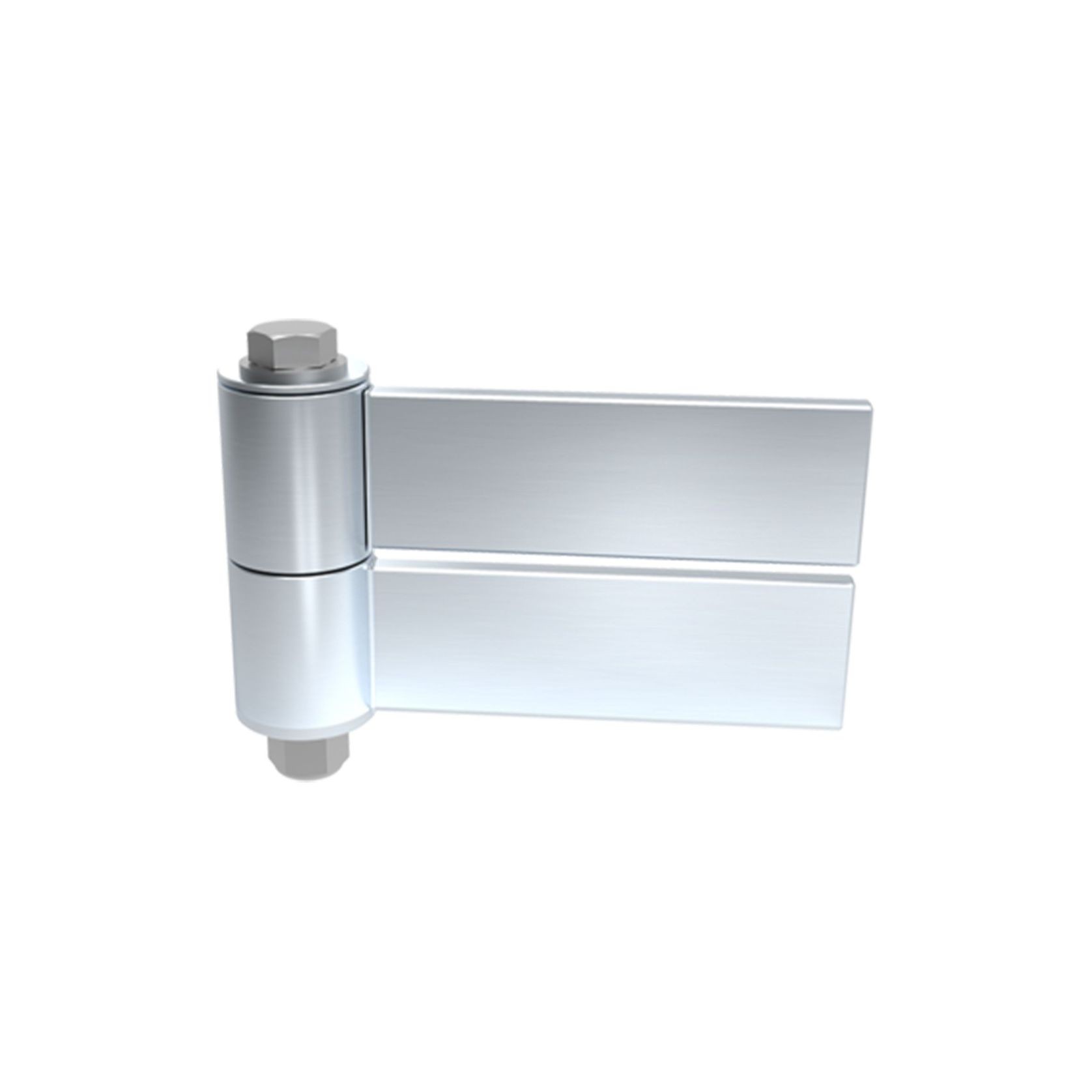

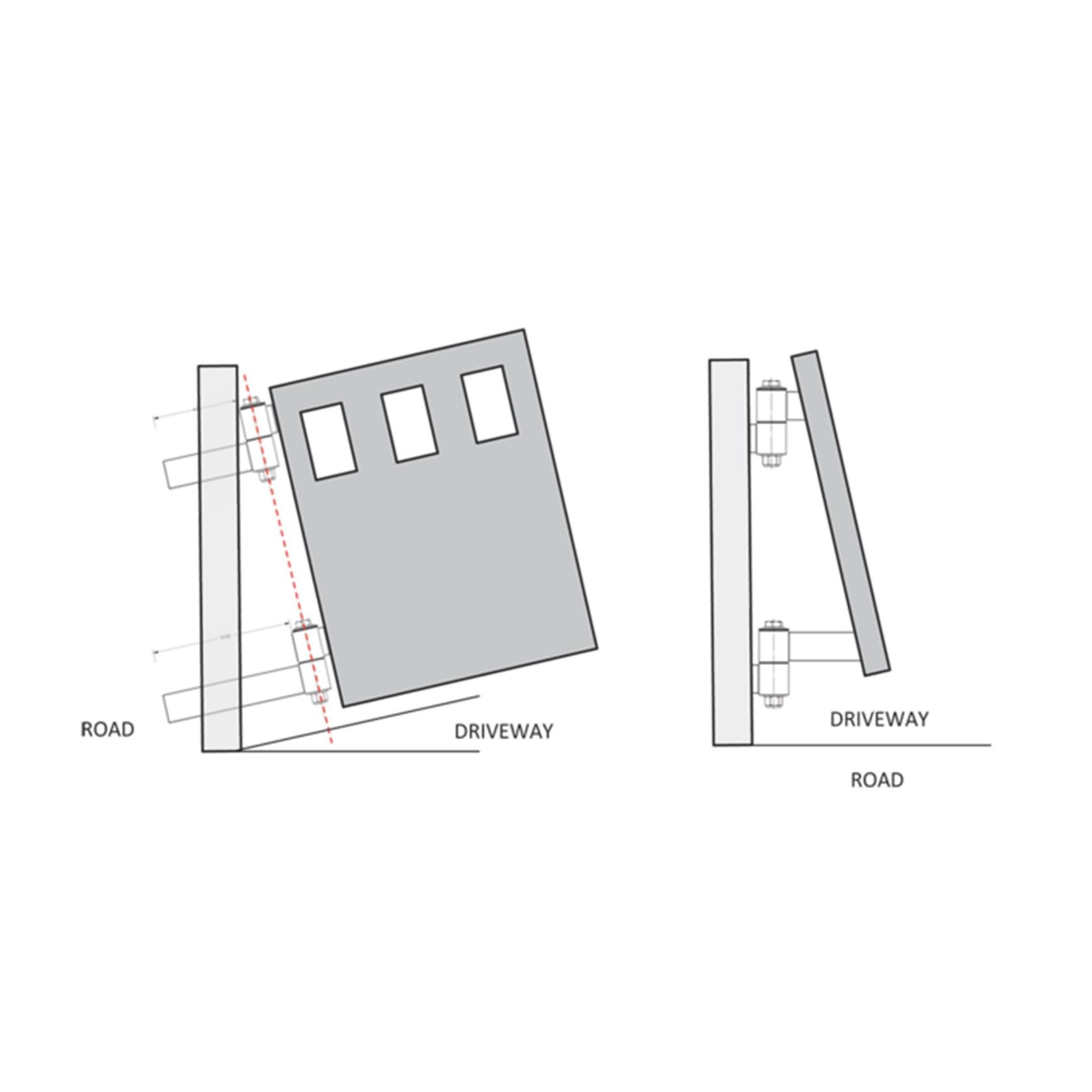

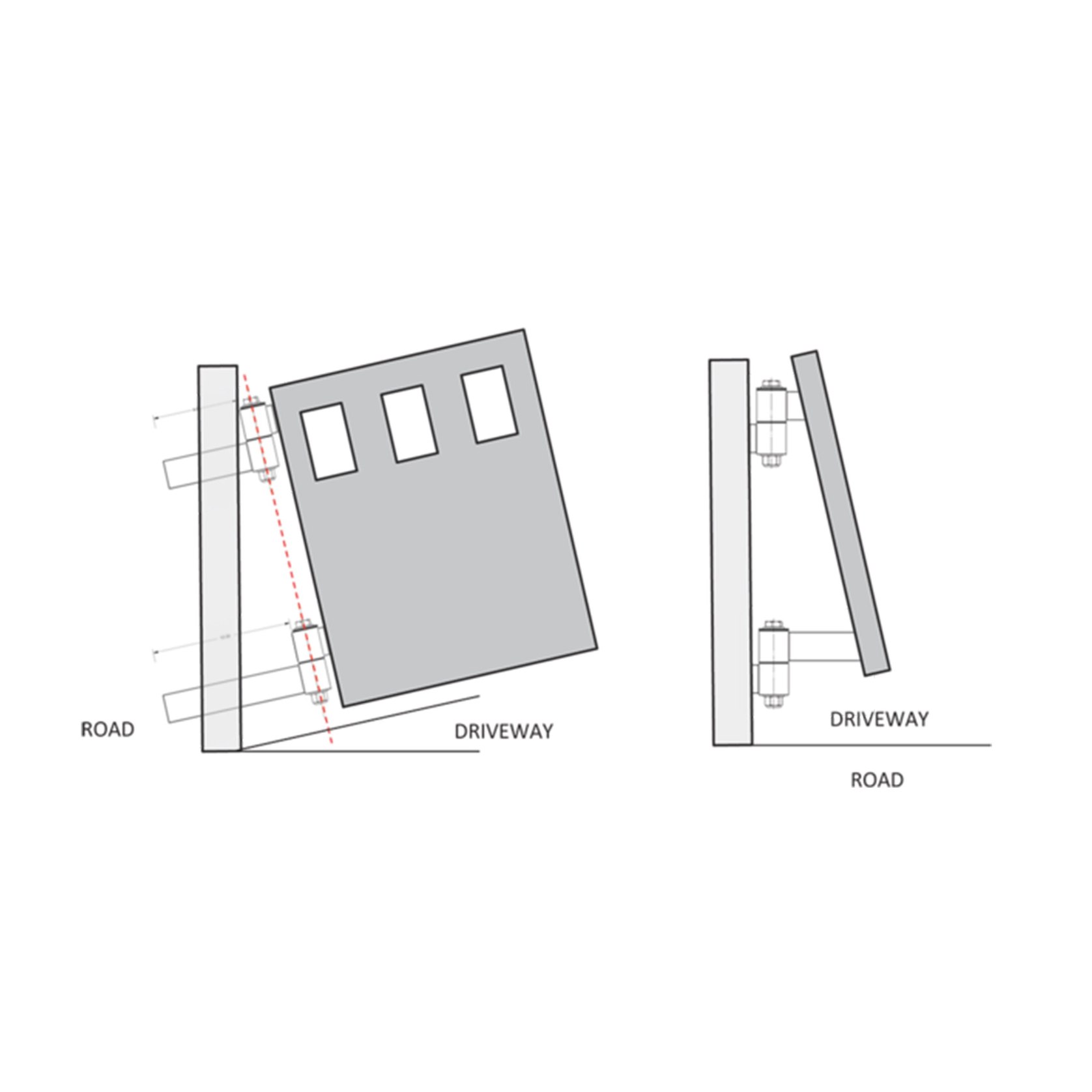

One of SHUT IT Gate Hardwares newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 6" (152mm) or 10 (254mm) strap for convenient and flexible gate installations. The strap hinge is also one of SHUT ITs strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.
Product Details
- Product
- Shut it® Badass Strap Hinge
- Category
- Gate Accessories
- Sold by
- ASSA ABLOY
- Range
- Shut it®
- Designer
- D&D Technologies
- Brand
- D&D Technologies
- Country of origin
- Australia
ASSA ABLOY is specified by
RTA StudioArchitects
Smith ArchitectsArchitects
ContextArchitects
South ArchitectsArchitects
Moller ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
YokeArchitects
Dalman ArchitectsArchitects
Chow:Hill ArchitectsArchitects
Respond ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
Francis Gp ArchitectsArchitects
Ignite ArchitectsArchitects
Jigsaw ArchitectsArchitects
+MAP ArchitectsArchitects
GHD DesignArchitects
Construkt ArchitectsArchitects
Borrmeister ArchitectsArchitects
Fat Parrot ArchitectureArchitects
Begg Security GroupLocksmiths
Fisher® Windows and Doors GisborneGlaziers
Kanda HomesBuilders
FocusplanInterior Designers
Nebulite® Windows & DoorsManufacturers and Suppliers
Vistalite® Windows and Doors ManawatuGlaziers
DuluxManufacturers and Suppliers
SSL DistributorsManufacturers and Suppliers
Fisher® Windows and Doors MarlboroughGlaziers
Fisher® Windows and DoorsManufacturers and Suppliers
Nebulite® Windows & Doors SouthlandGlaziers
Nebulite® Windows & Doors Garden CityGlaziers
eHausDesign & Build
Altus® Window SystemsJoinery Installers & Repairs
Nulook™ Windows & Doors Kumeu
Cogan Custom HomesBuilders
Design BuildersBuilders
Nebulite® TaranakiManufacturers and Suppliers
Rylock® Windows & DoorsManufacturers and Suppliers
Alpha 1 BuildersBuilders
Fisher® Windows and Doors OtagoGlaziers
E13 Performance WindowsGlaziers
Nulook® Windows & Doors New PlymouthGlaziers
JD HomesBuilders
New Zealand Green Building CouncilAssociations
Nebulite® Windows & Doors TaurangaGlaziers
Nebulite® Palmerston NorthManufacturers and Suppliers
Fisher® Windows and Doors WellingtonGlaziers
Clements Windows & DoorsGlaziers
Nulook® Windows & Doors WanganuiGlaziers
Foley GroupInterior Designers
PJM Project ManagementProject Managers
Golden Homes CanterburyDesign & Build
Morlite Aluminium – Nulook® DunedinManufacturers and Suppliers
Vistalite® Ashburton Heartland AluminiumMetal Fabricators and Welders
Supreme Lock & HardwareHardware Installers
Landmark Homes New ZealandBuilders
David Reid HomesDesign & Build
Abron GroupDesign & Build
High Performance WindowsMetal Fabricators and Welders
Whitestone Vistalite North OtagoJoinery Installers & Repairs
One of SHUT IT Gate Hardwares newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 6" (152mm) or 10 (254mm) strap for convenient and flexible gate installations.
The strap hinge is also one of SHUT ITs strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.
- Specs
- Product Code - CI3900-CI3925-CI3975
- Gate Type - Non Self-Closing
- Gate Material - Steel/Ornamental Iron
- Approx Gate Size - 2m H x 3m W - (7ft x 10ft)
- Gate Frame/ Post Shape - Square to Square
- Min Post Size - 40mm
- Ideal Gate Gap - Fixed at 13mm
- Fixing Method - Weld On
- Colour/ Finish - Zinc
- Features
- Suitable for motorised, uphill or heavy gates
- For square-posted, weld-on installations
- Zinc electroplated external components
- Swings 180, fixed gap variance 13mm (1/2")
- Leaf straps can be cut to length
- Load rating per gate: 1,360kg (3,000 lbs)
- Maximum gate weight: 680kg (1,500 lbs)
- Scope of use
Gate Application - Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
