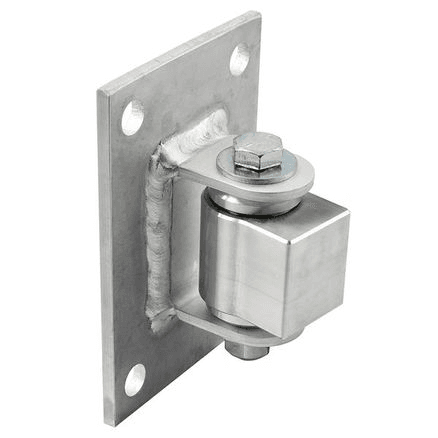

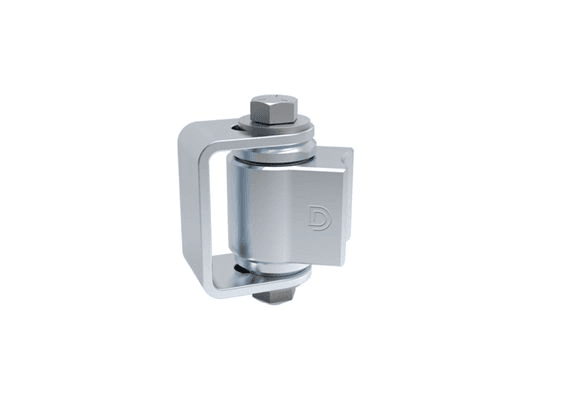

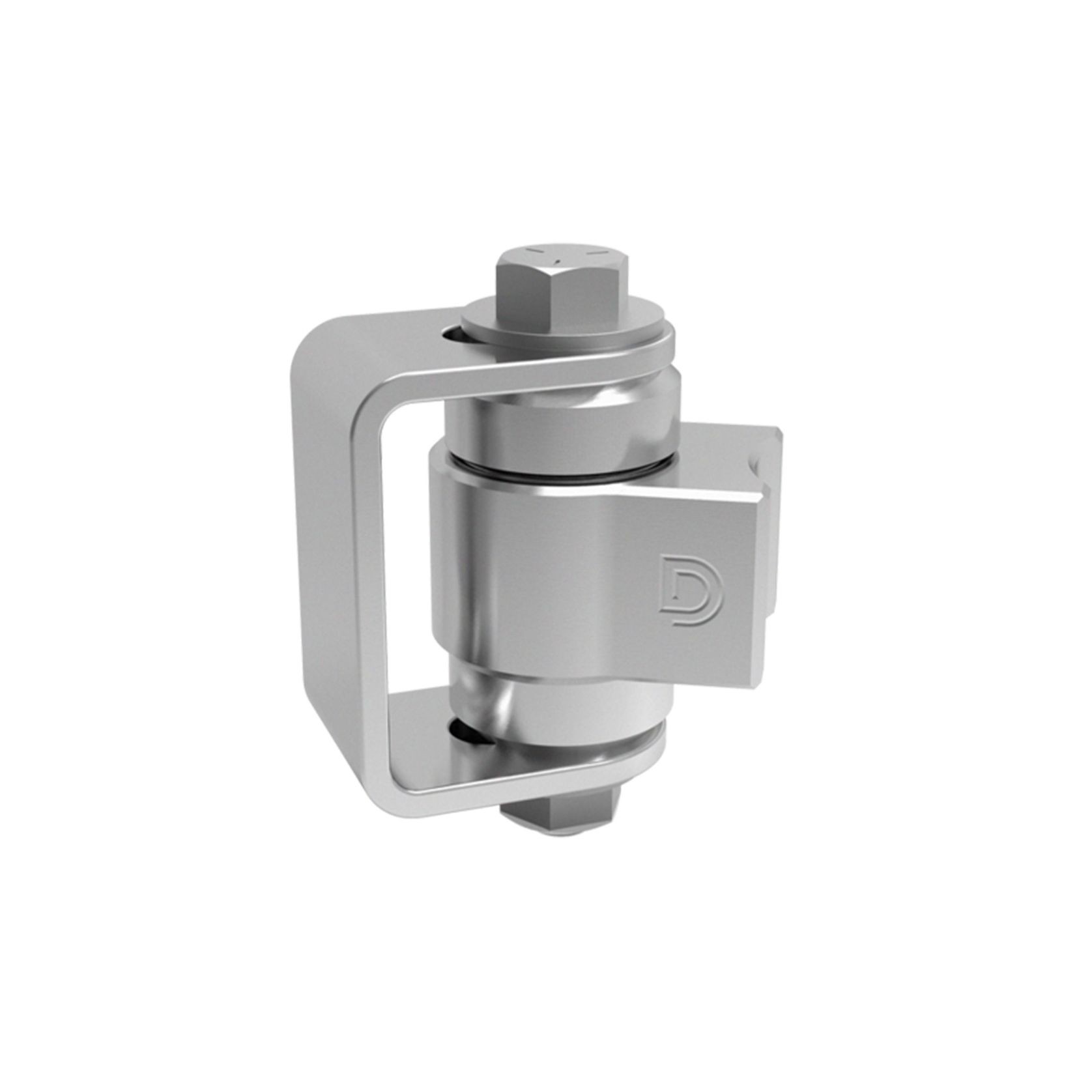

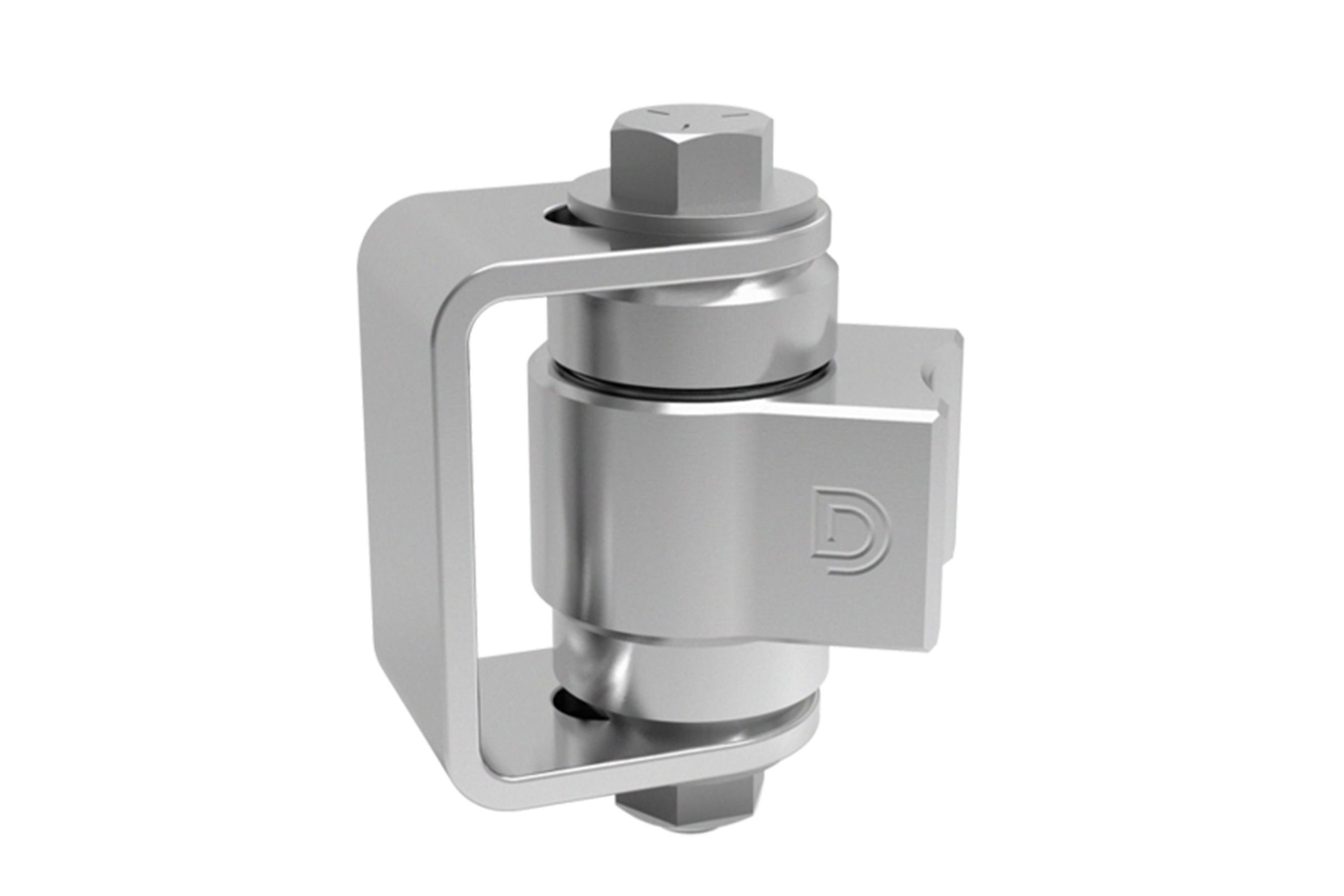

Shut it® Stainless Steel Badass Gate Hinge

Name: Shut it® Stainless Steel Badass Gate Hinge
Brand: ASSA ABLOY

by ASSA ABLOY

Auckland, New Zealand

663.0K profile views
60 saves

Visit Website

Shut it® Stainless Steel Badass Gate Hinge is CNC machined to the tightest tolerances in the industry. However, for this hinge we went all out and used stainless steel for ALL the components. Yes, we said ALL components (even the bearings).

Tags

shut it d&d technologies hardware latches hinges

Product Details

Product: Shut it® Stainless Steel Badass Gate Hinge
Category: Gate Accessories
Sold by: ASSA ABLOY
Range: Shut it®
Designer: D&D Technologies
Brand: D&D Technologies
Country of origin: Australia

ASSA ABLOY is specified by

(56) Professionals

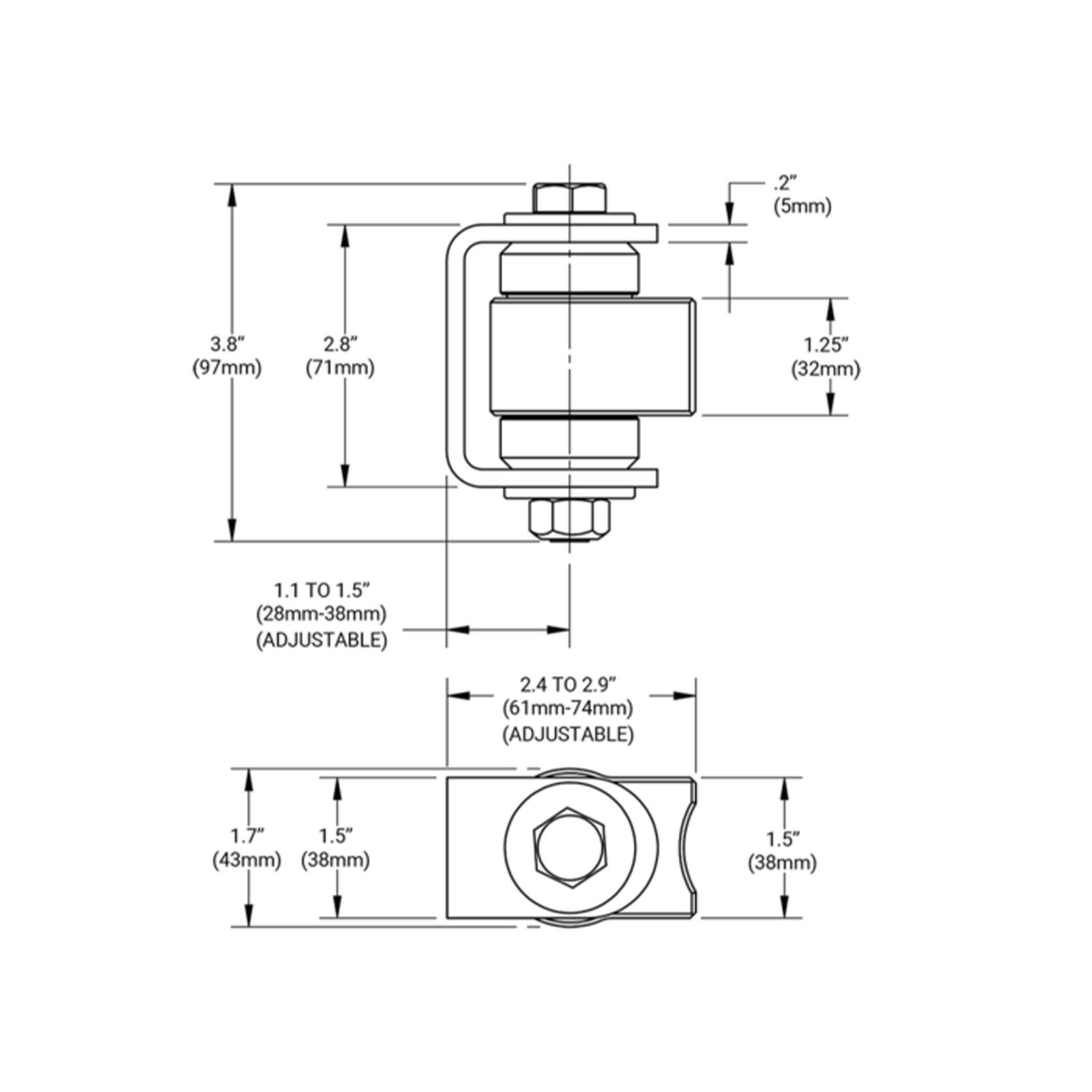

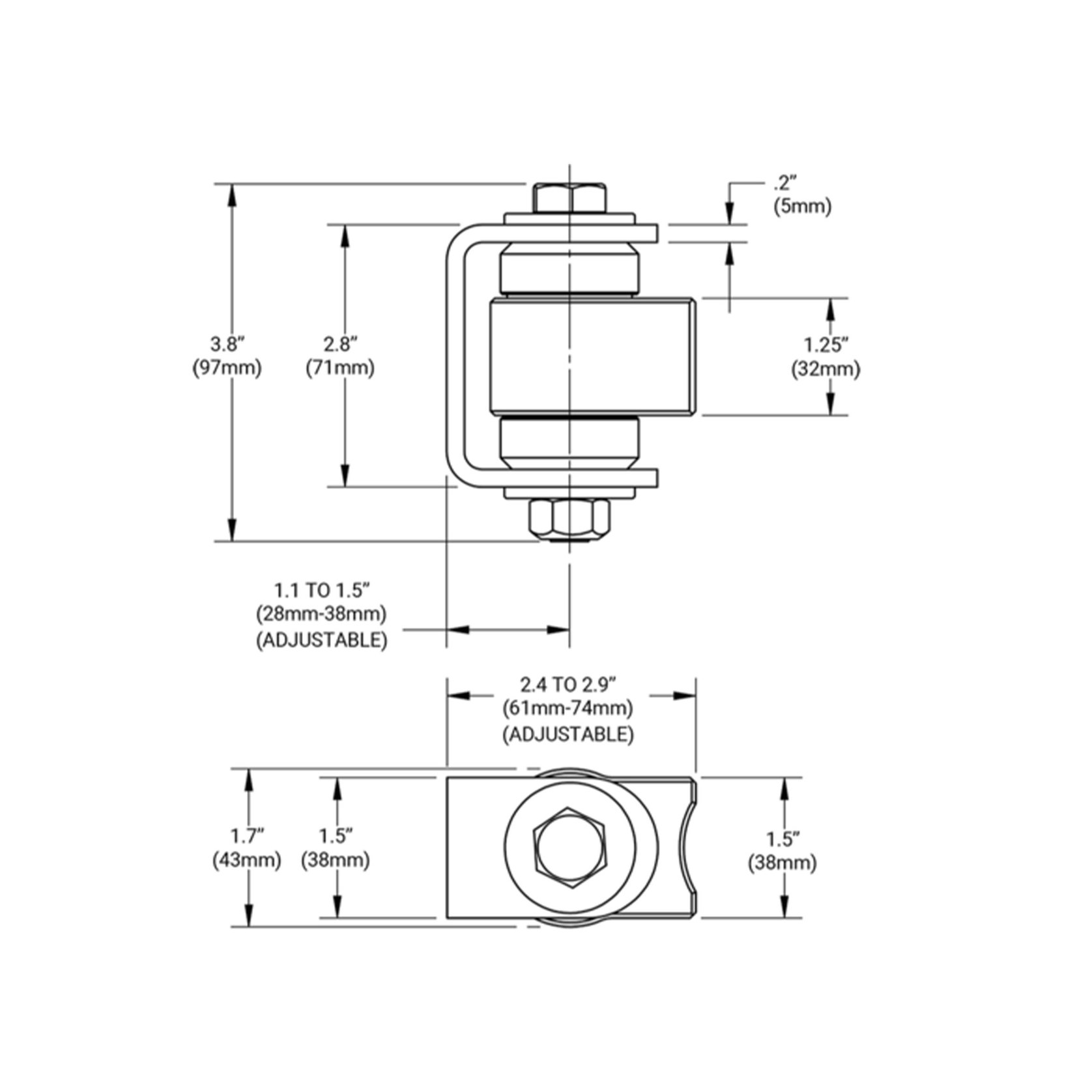

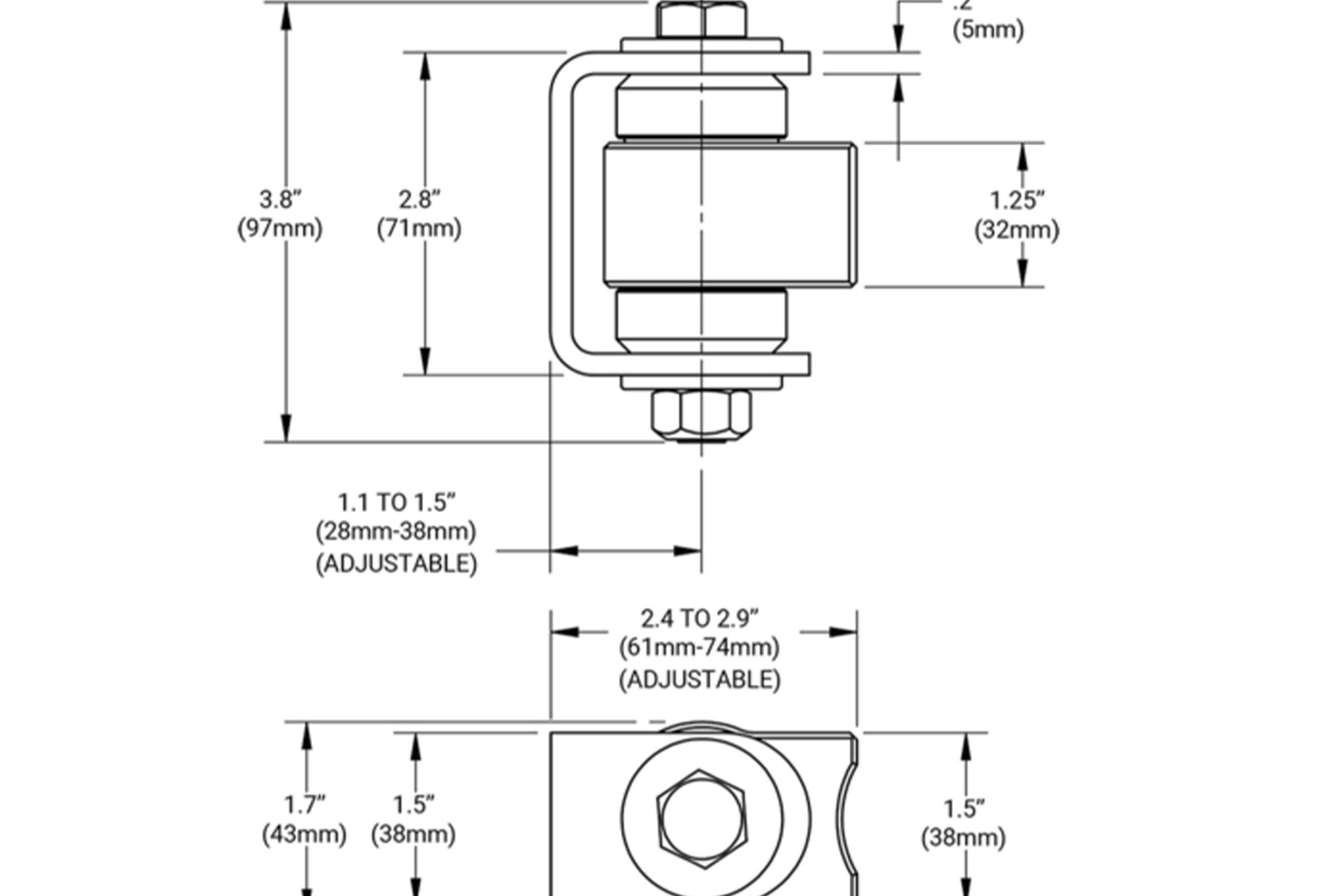

Shut it® Stainless Steel Badass Gate Hinge dimensions

Visit site

Shut it® Stainless Steel Badass Gate Hinge is CNC machined to the tightest tolerances in the industry.

However, for this hinge we went all out and used stainless steel for ALL the components. Yes, we said ALL components (even the bearings).

Specs: Product Code - C13800

Gate Type - Non Self-Closing

Gate Material - Steel/ Ornamental Iron

Approx Gate Size - 2m H x 3m W - (7ft x 10ft)

Gate Frame/Post Shape - Square to Square, Square to round

Min Post Size (mm) - 38

Ideal Gate Gap - 61-74mm

Fixing Method - Weld On

Colour/ Finish - Stainless Steel
Features: 304 stainless steel inc. the bearings, shaft (bolt), washers and lock nut

Two sealed maintenance-free bearings (no greasing)

Adjustable yoke for perfect installations• Ideal for both square and round post installations

Load rating per gate: 900kg (2,000 lbs)

Maximum gate weight: 500kg (1,100 lbs)
Scope of use: Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
