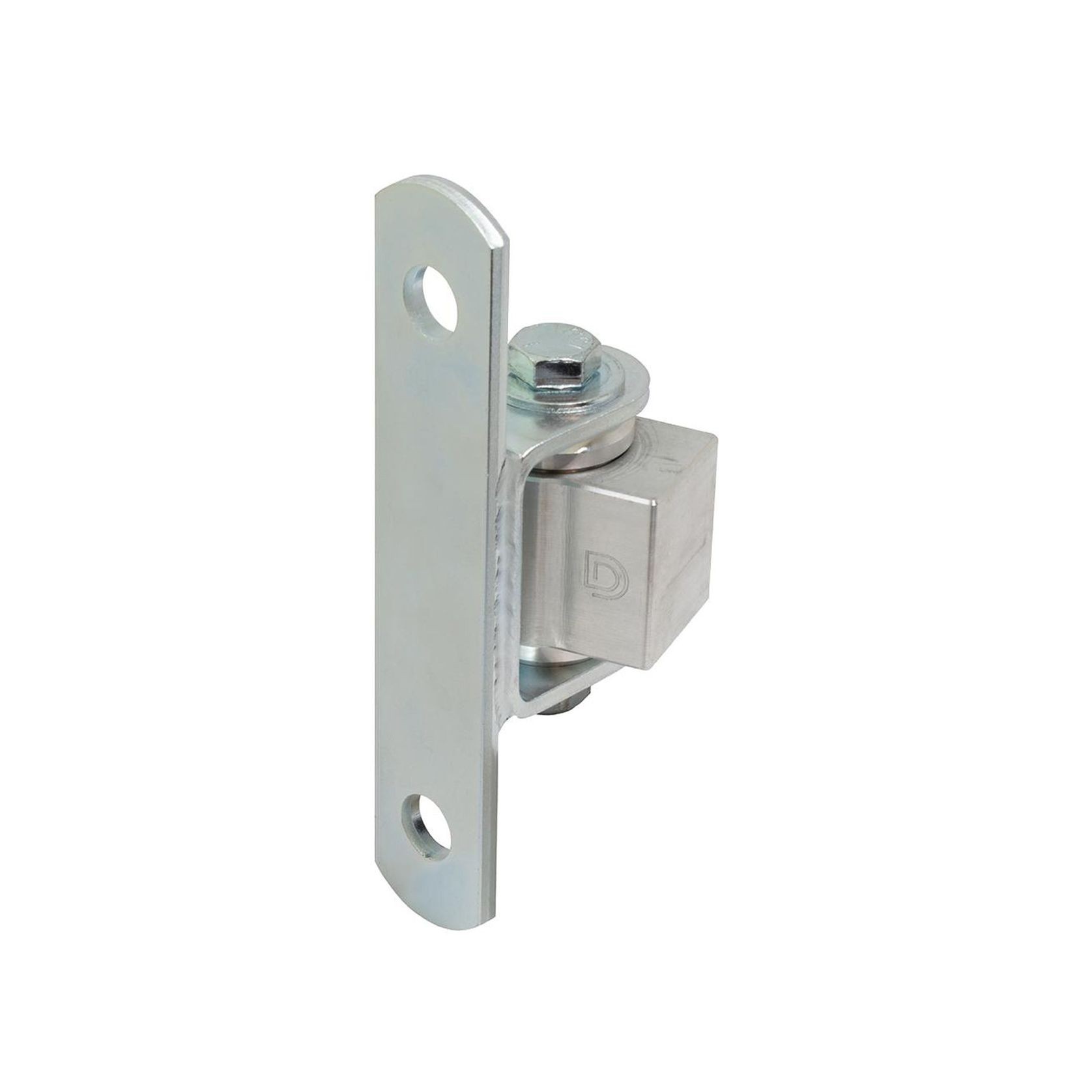

All bolt-on gate hinges by SHUT IT are CNC machined to the tightest tolerances in the industry. The Half Bolt-On BadAss was designed to be used on gates where welding the hinges to the end post is not an option (no field welder). The Half Bolt-On BadAsses produce near frictionless movement with maintenance free usage.

Details
  • Category
    Gate Accessories, Automatic Gates, Security Gates
  • Range
    Shut it®
  • Brand
    D&D Technologies
  • Designer
    D&D Technologies
General
  • Country of origin
    United States of America
Specifications
  • Product Code - CI3770
  • Gate Type - Non-Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Approx Gate Size - 2m H x 3m W - (7ft x 10ft)
  • Gate Frame/Post Shape - Square to square, square to round
  • Min Post Size (mm) - 38
  • Ideal Gate Gap - 67-80mm (2-3")
  • Fixing Method - Bolt-On, Weld-on
  • Colour/Finish - Zinc
Scope of use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Features
  • High-temperature sealed bearings – safe to powder coat with hinges installed on gate
  • Yoke material is steel, the body material is aluminium
  • No greasing, no maintenance. EVER!
  • Horizontal adjustability for perfect installations
  • Flat, bolt-on bracket for through bolting
  • Zinc plated
  • Load rating per gate: 900kg (2,000 lb)
  • Maximum gate weight: 450kg (1,000 lb)
Contact us below for more information on our products. While we do not sell directly to customers, we are more than happy to guide you to our trusted distributors and retailers who can assist you with your purchase.
