Sierra Pico Handrail Bracket
- 110.7K profile views
- 4 saves

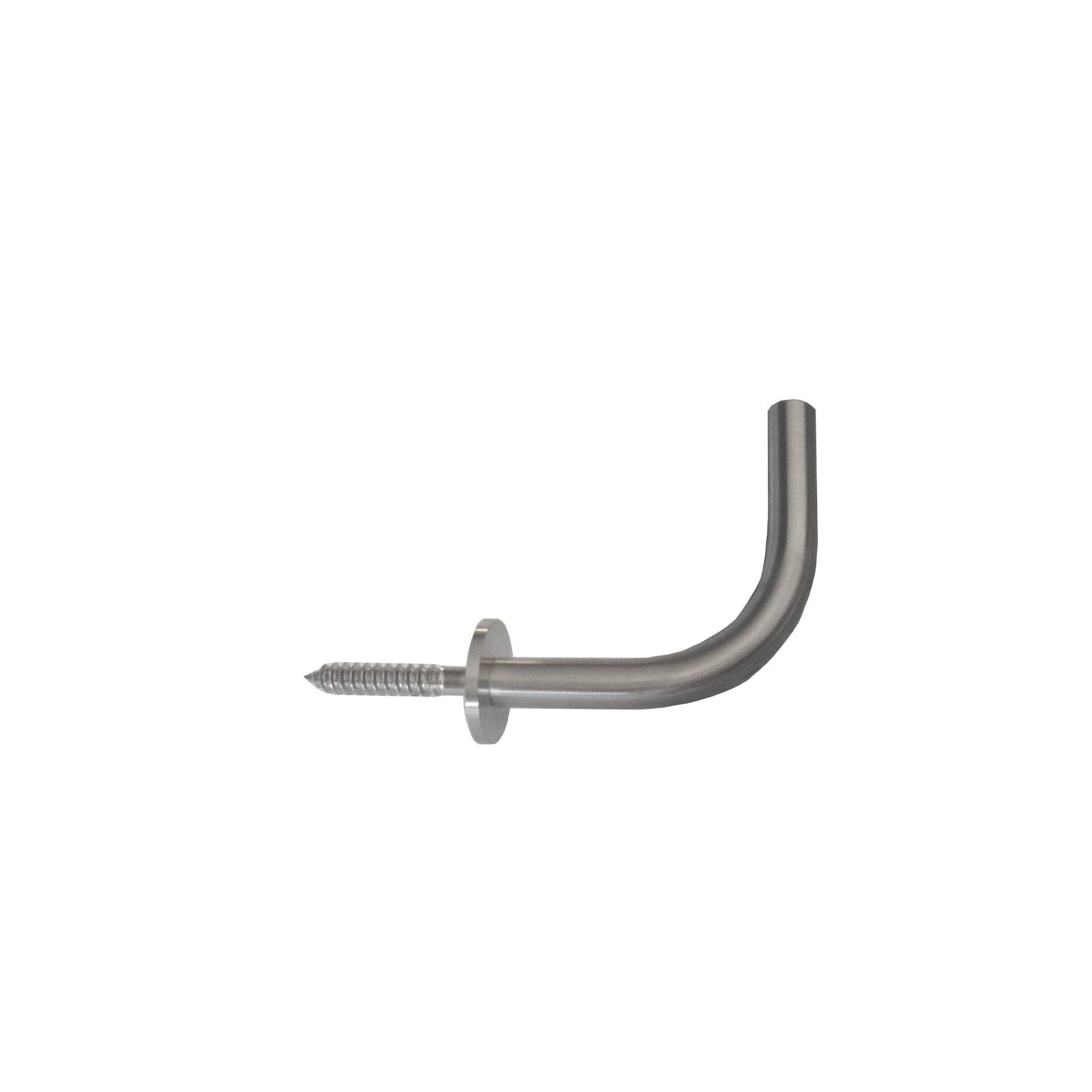

Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied)
30mm round base against the wall.
Suitable for internal & external applications.

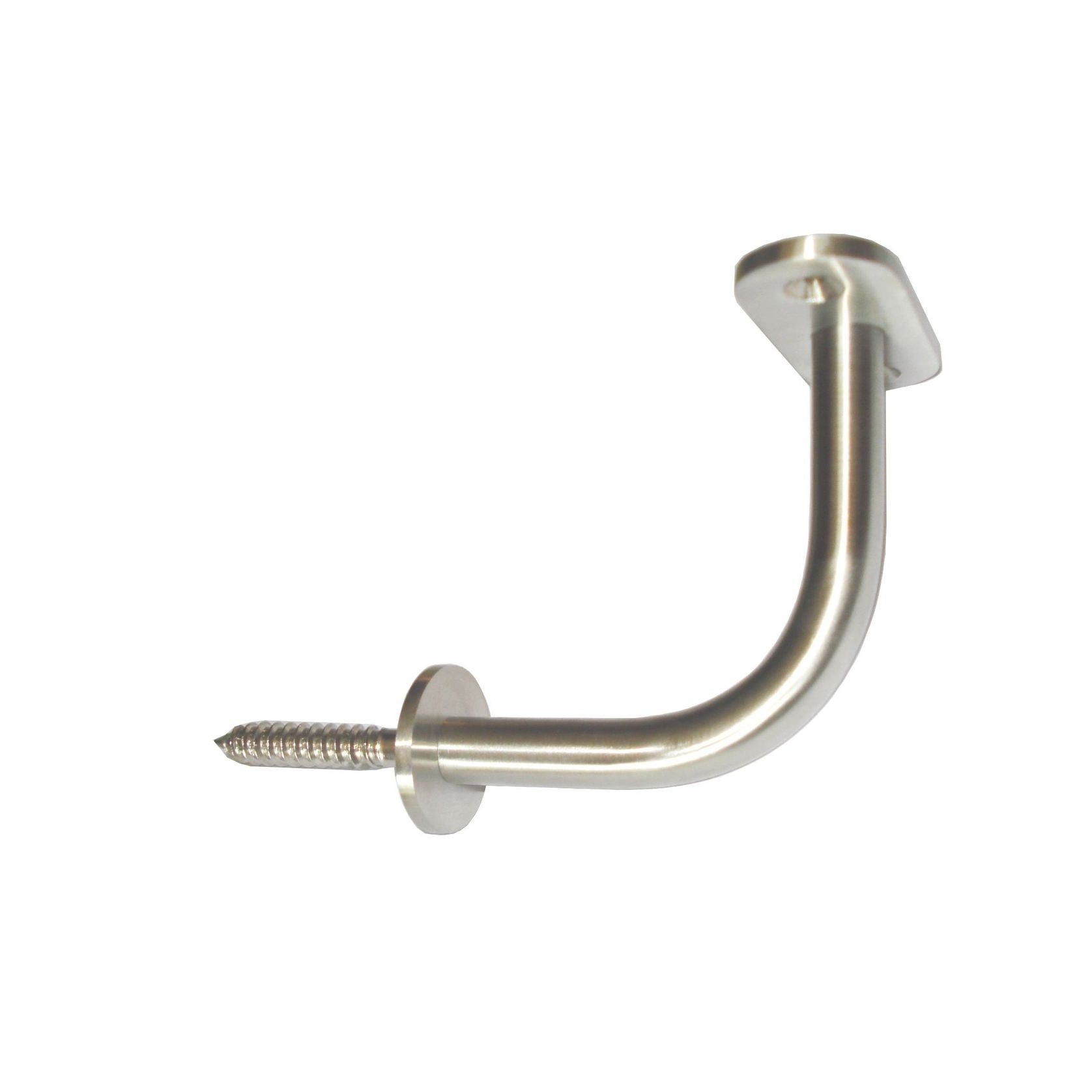

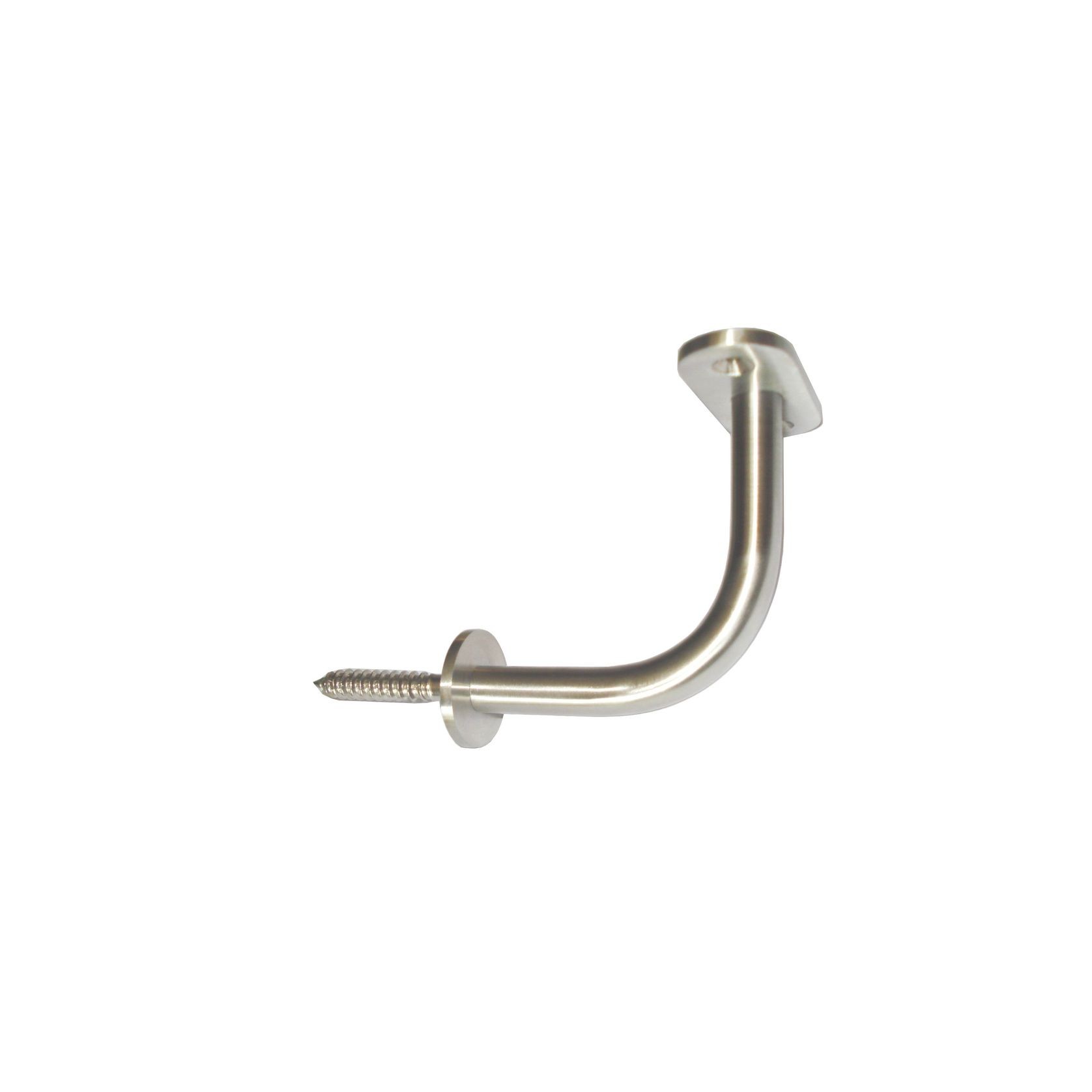

Weld on and saddle options available:
- Curved saddle to fit handrail profiles from 38mm diameter
- Flat saddle to fit flat handrail profiles
Materials Available:
- AISI 316 Satin & Mirror Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
It is recommended to only use hand tools or the bracket itself to wind the lag screws into the fixing point. Power tools could damage the lag screws.
Download Data Sheet
Product Details
- Product
- Sierra Pico Handrail Bracket
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
Material
Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied) 30mm round base against the wall.
Suitable for internal & external applications.
Weld on and saddle options available:
- Curved saddle to fit handrail profiles from 38mm diameter
- Flat saddle to fit flat handrail profiles
Materials Available:
- AISI 316 Satin & Mirror Finish
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
It is recommended to only use hand tools or the bracket itself to wind the lag screws into the fixing point. Power tools could damage the lag screws.
Download Data Sheet
- Scope of use
Residential
Commercia
Interior
Exterior
Marine
