Sierra Handrail Bracket
- 111.8K profile views
- 4 saves

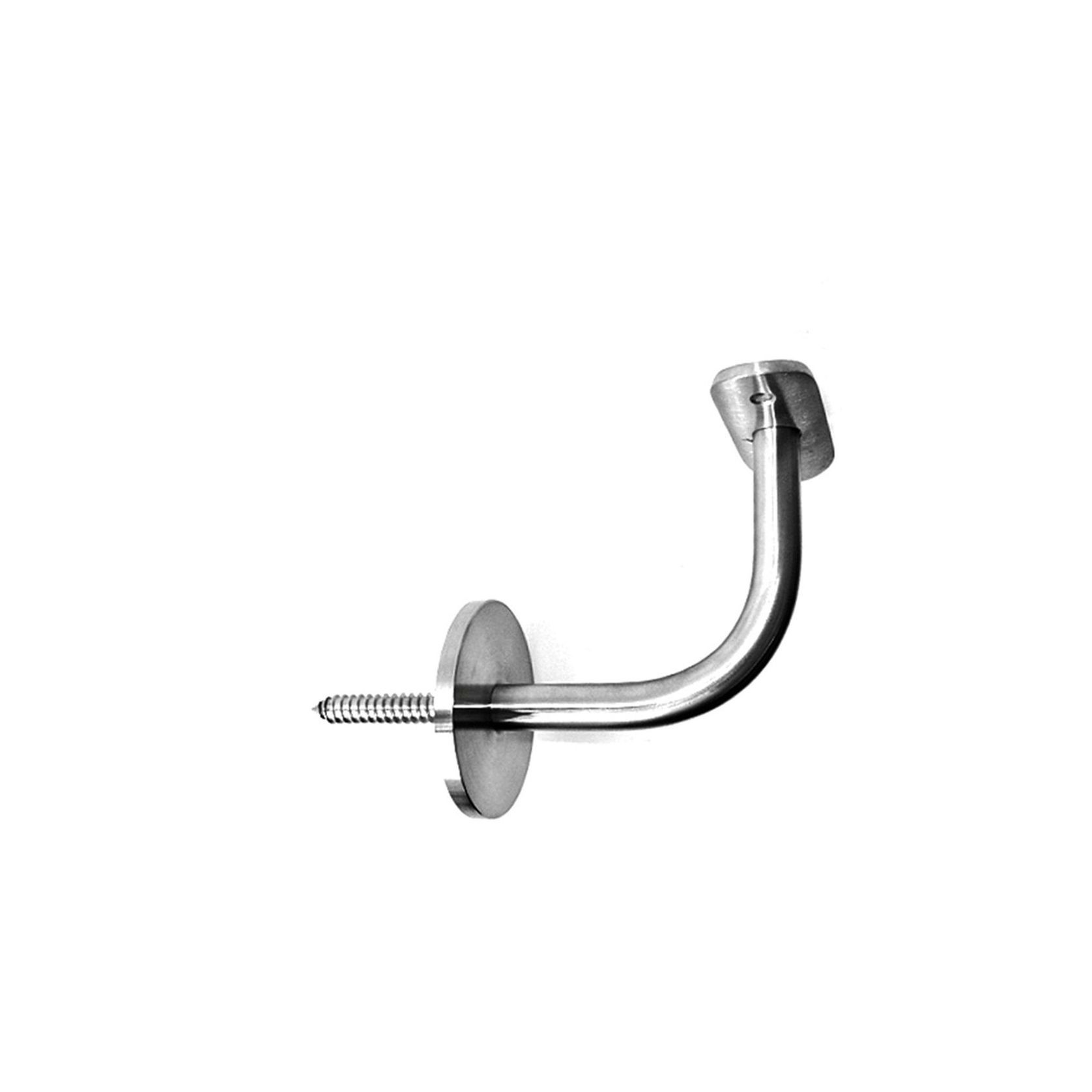

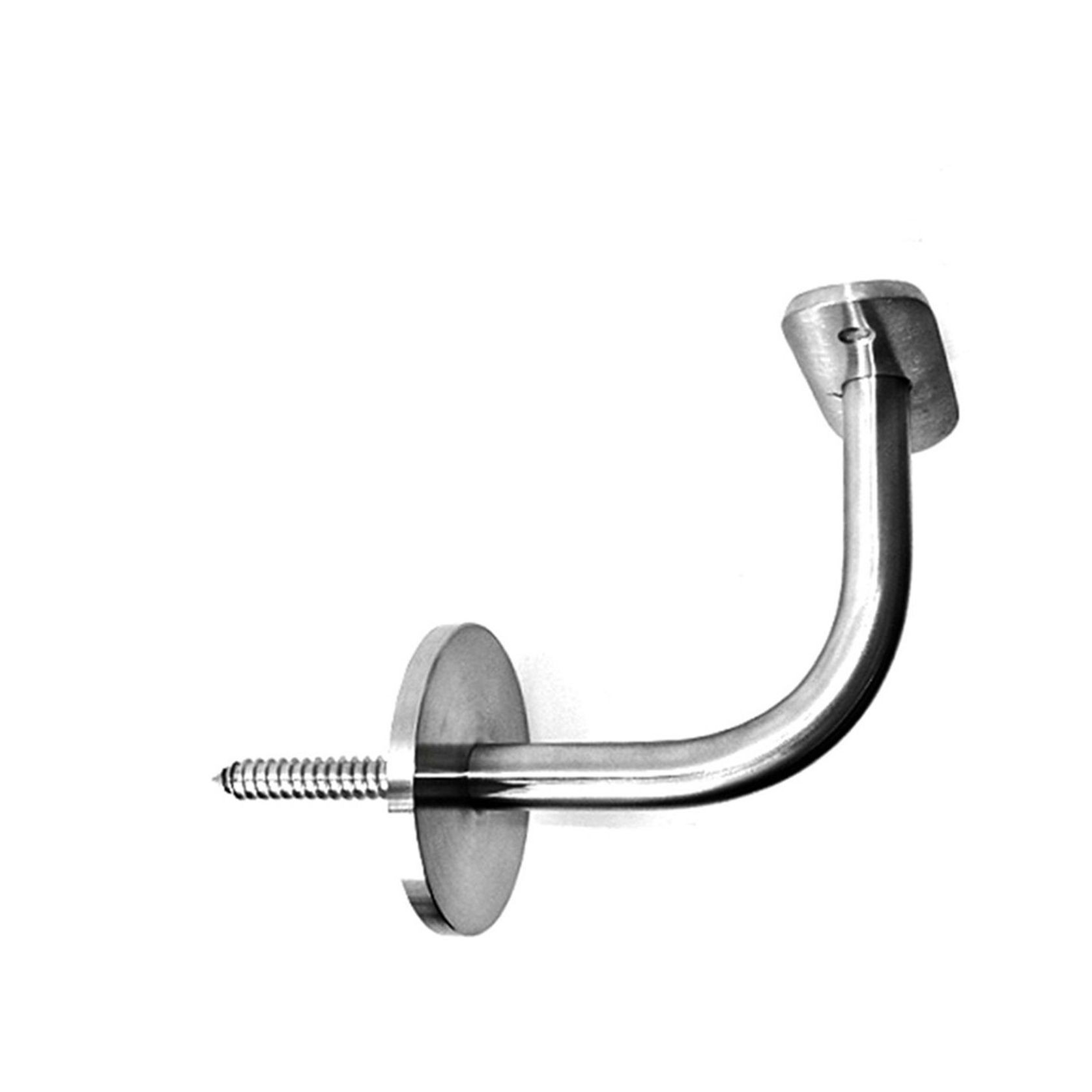

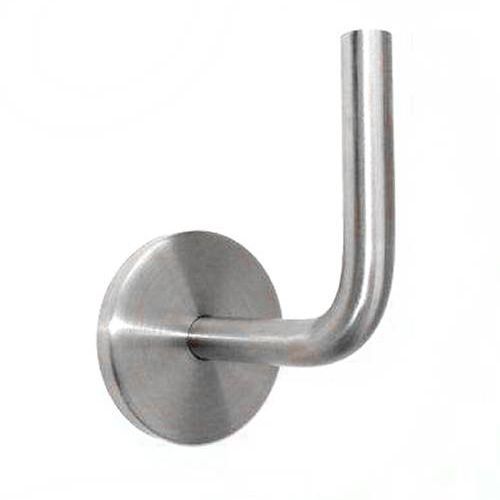

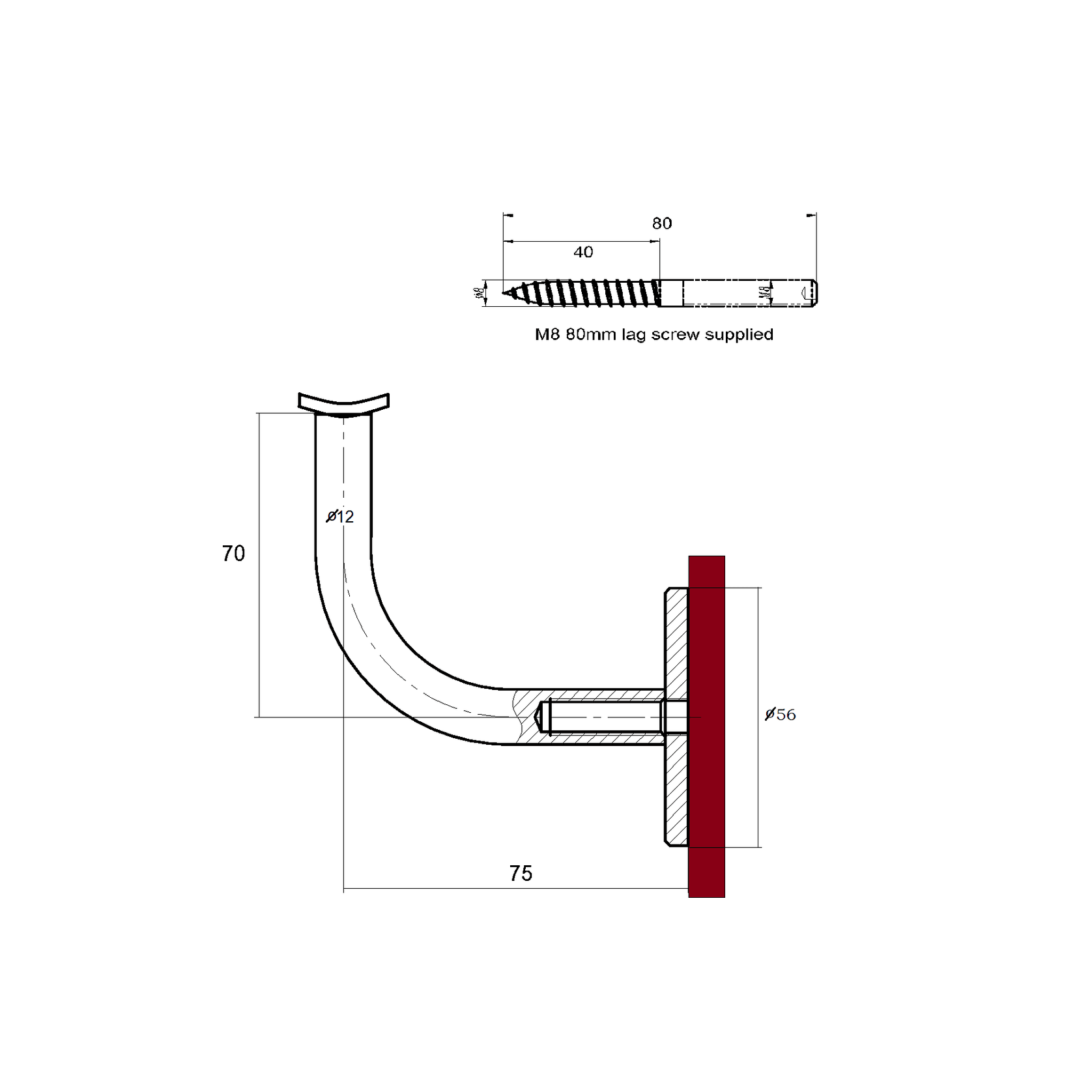

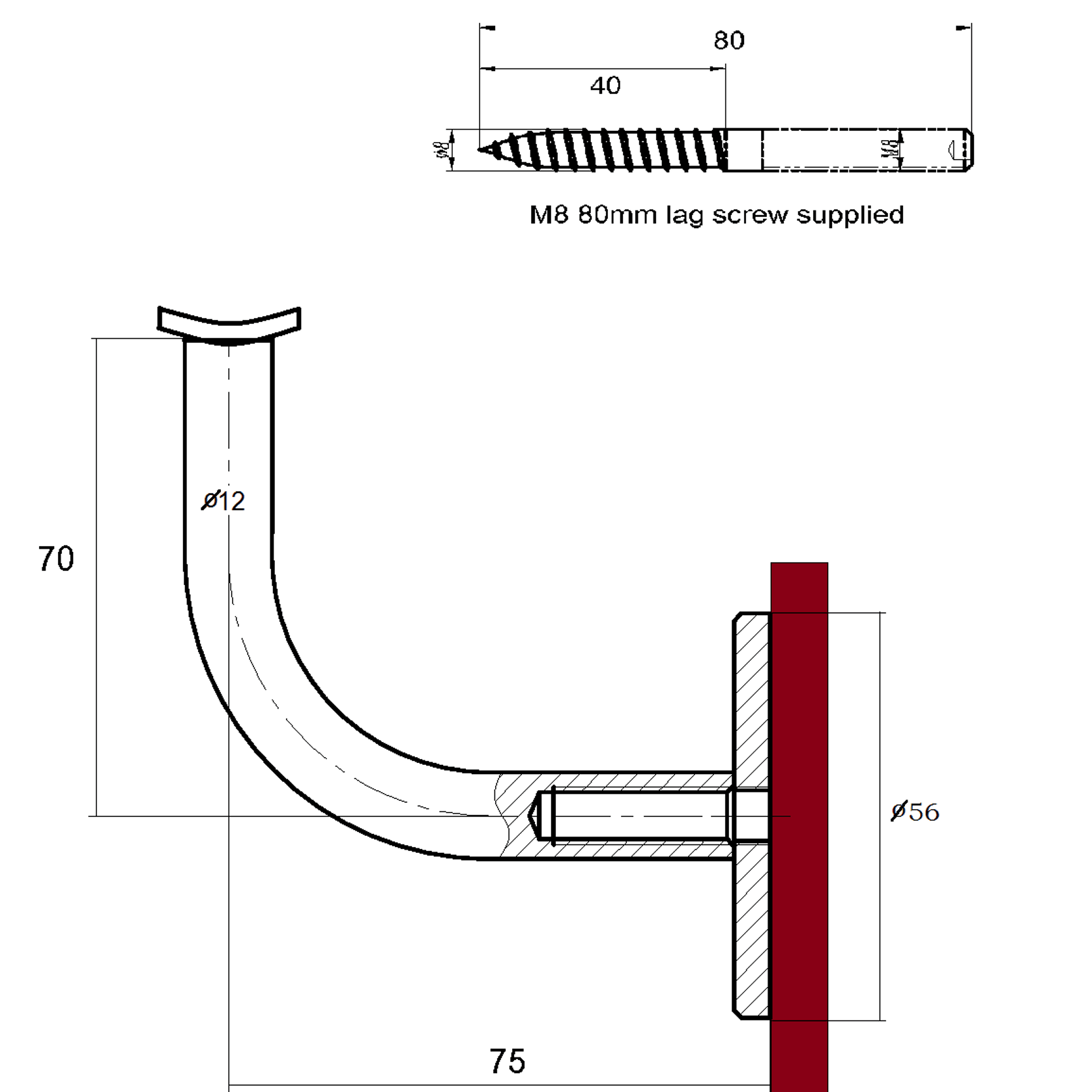

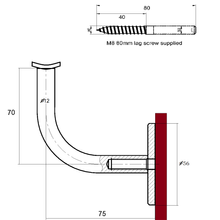

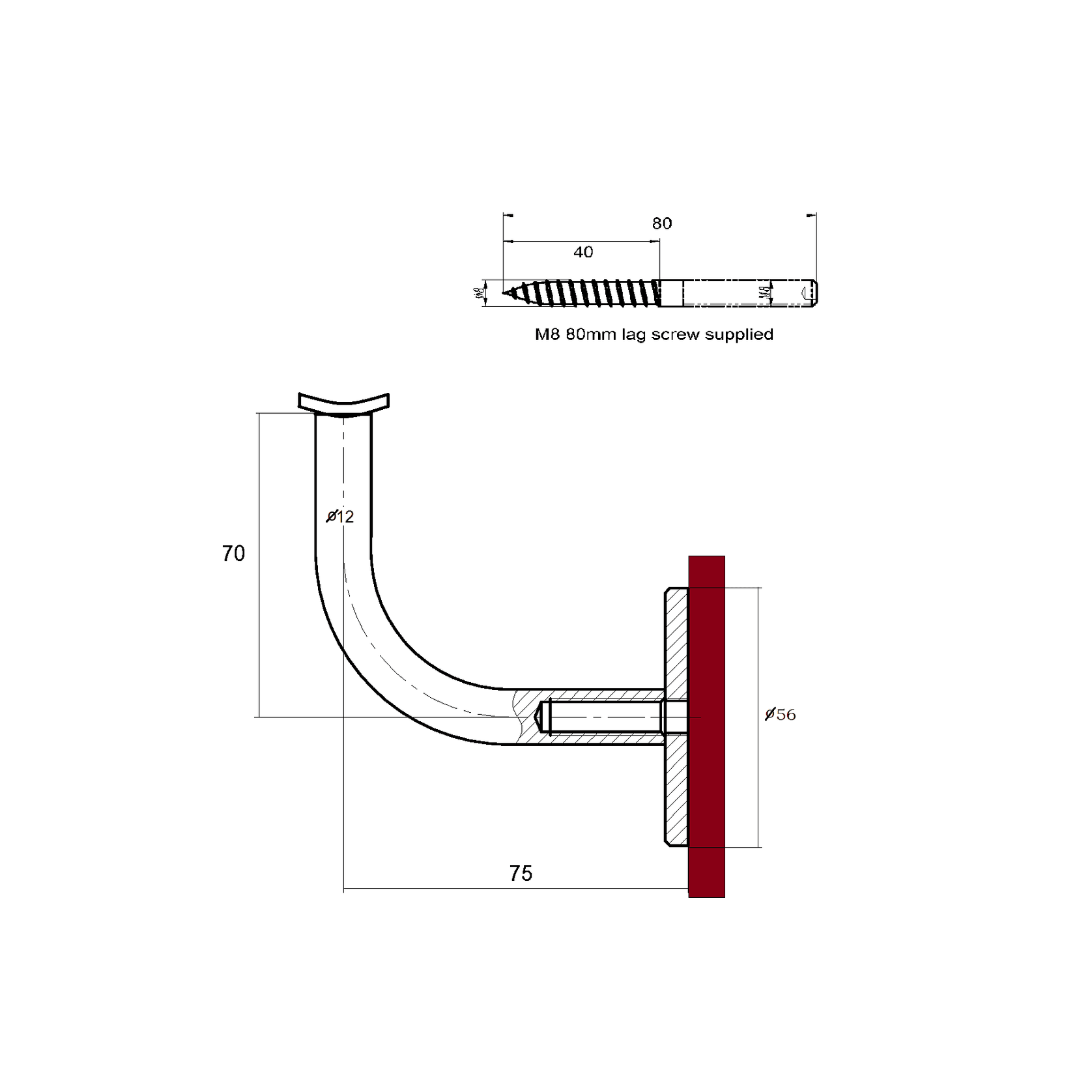

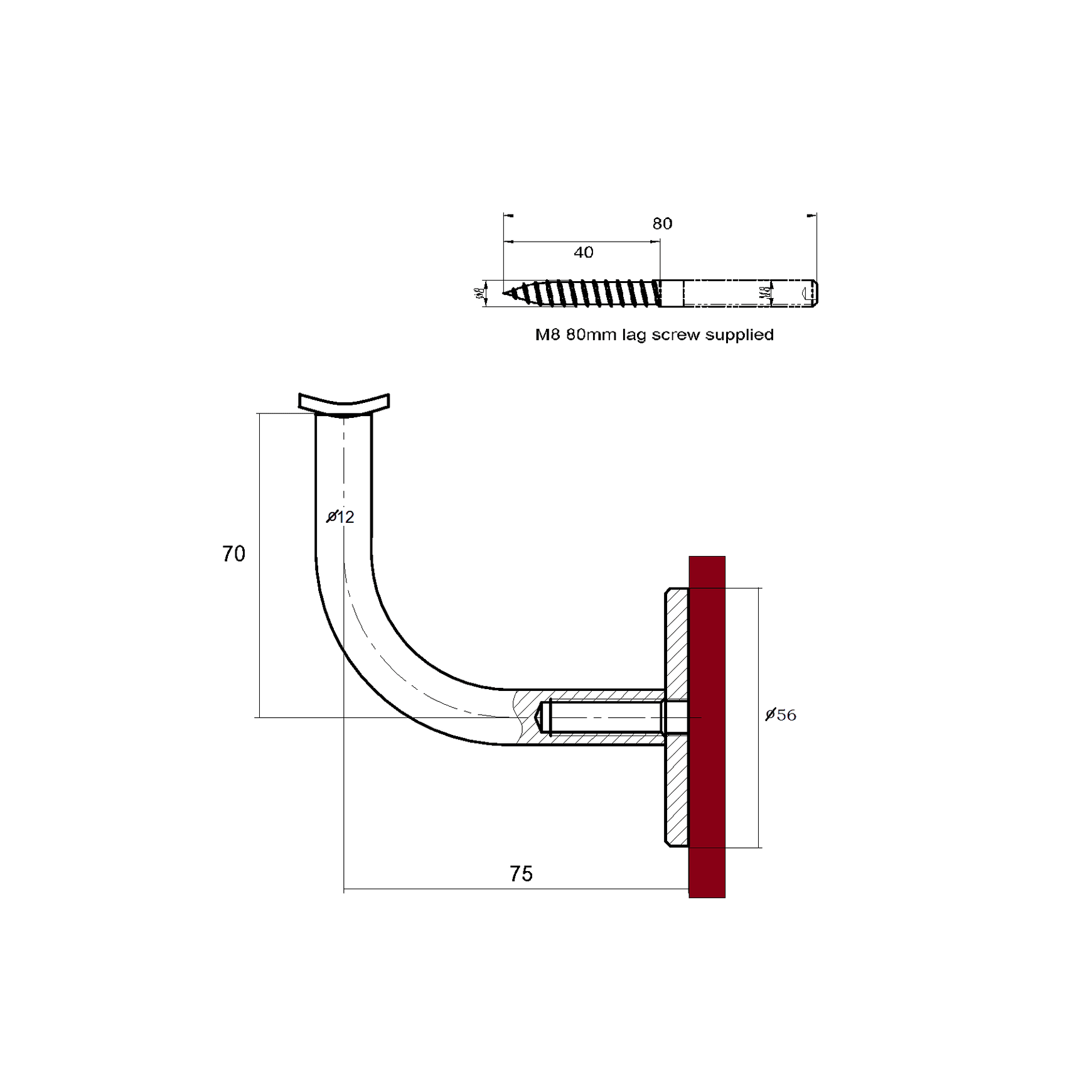

Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied)
56mm round base against the wall.
Suitable for internal & external applications.

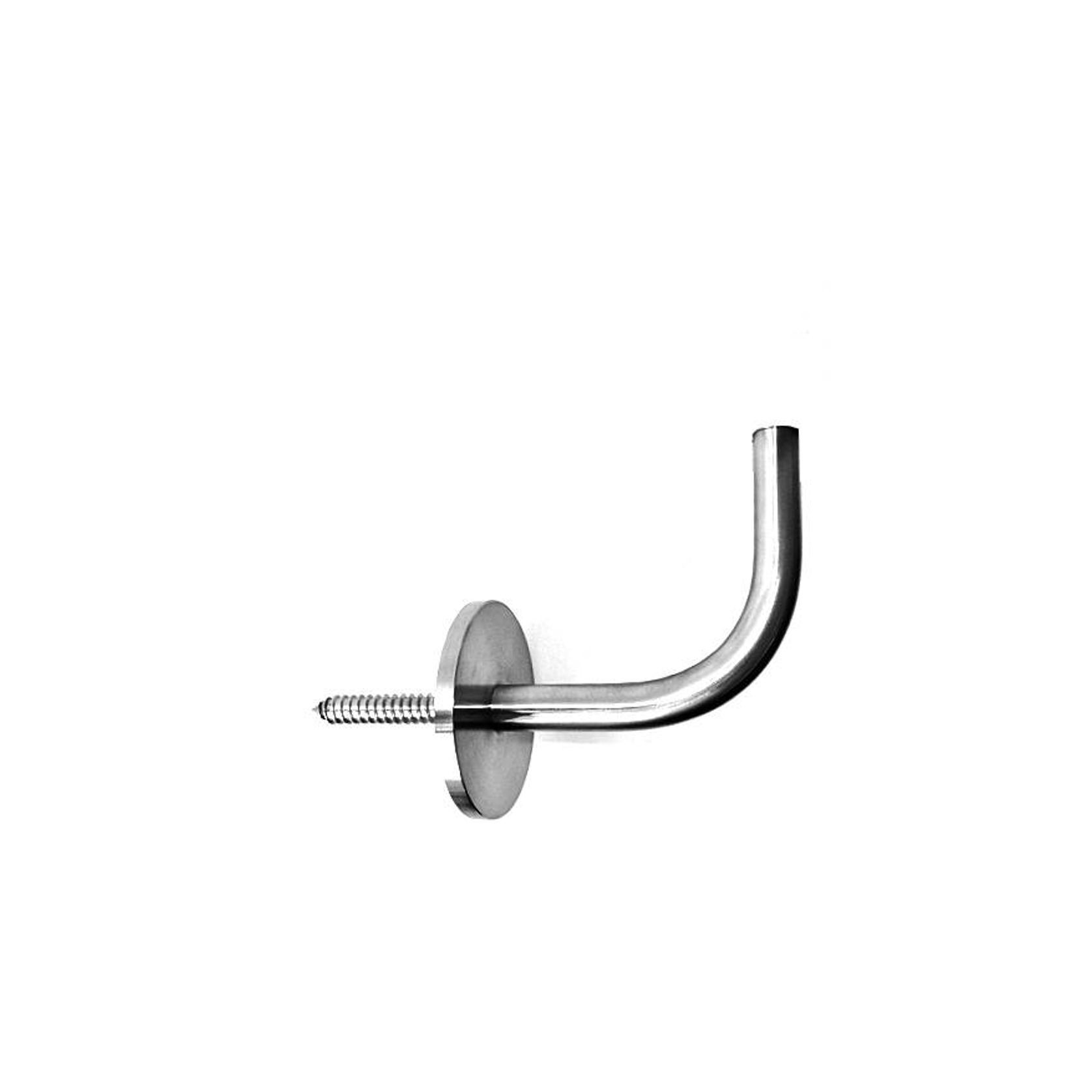

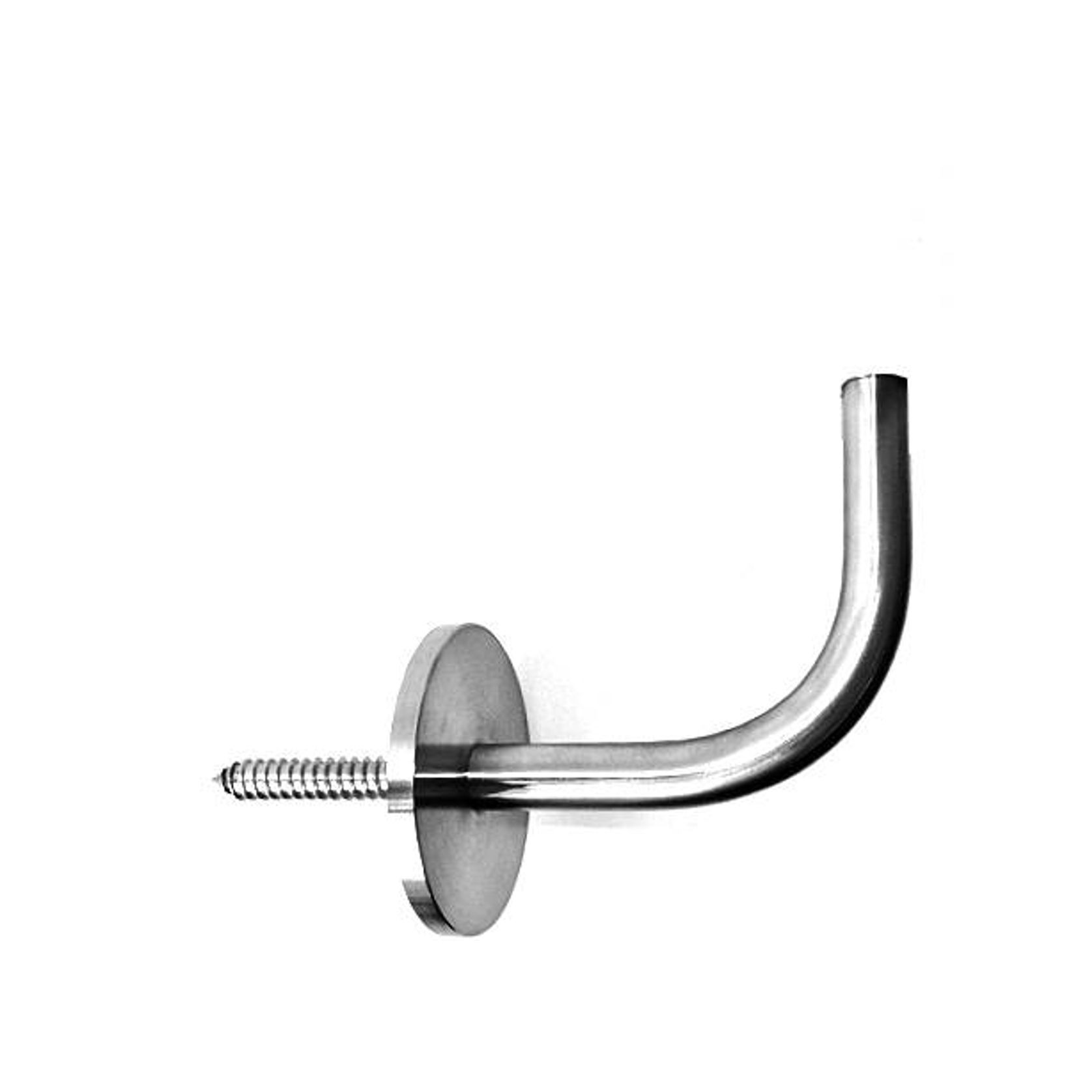

Weld on and saddle options available:
- Curved saddle to fit handrail profiles from 38mm diameter
- Flat saddle to fit flat handrail profiles
Materials Available:
- AISI 304 Satin & Mirror Finish
- AISI 316 Satin & Mirror Finish
Product Details
- Product
- Sierra Handrail Bracket
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
- Warranty
- Lifetime
Material
Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied) 56mm round base against the wall.
Suitable for internal & external applications.
Weld on and saddle options available:
- Curved saddle to fit handrail profiles from 38mm diameter
- Flat saddle to fit flat handrail profiles
Materials Available:
- AISI 304 Satin & Mirror Finish
- AISI 316 Satin & Mirror Finish
- Specs
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
It is recommended to only use hand tools or the bracket itself to wind the lag screws into the fixing point. Power tools could damage the lag screws.
- Scope of use
Commercial
Residential
Interior
Exterior
Marine
