Modena Grande 3 Hole Fixing
- 110.0K profile views
- 4 saves

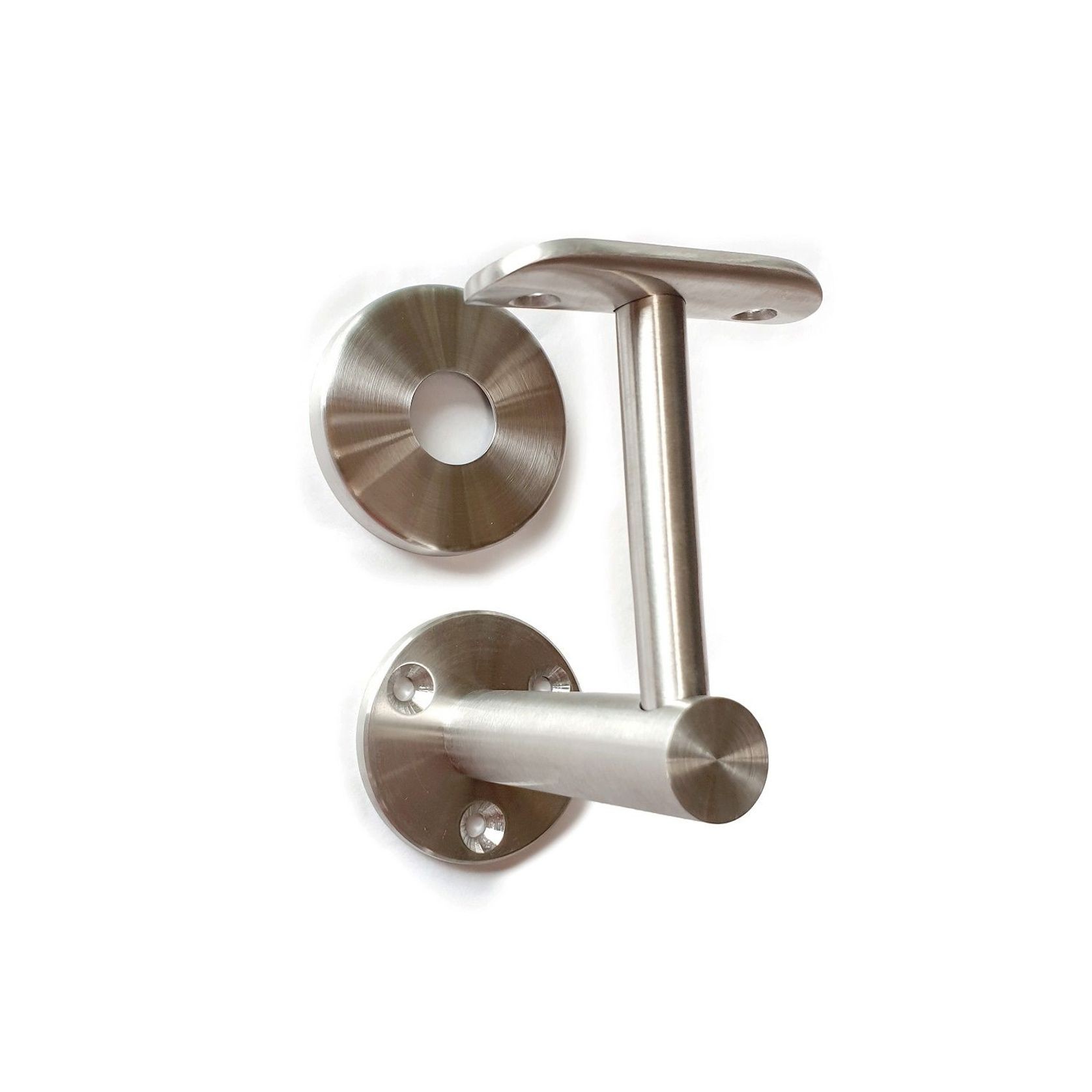

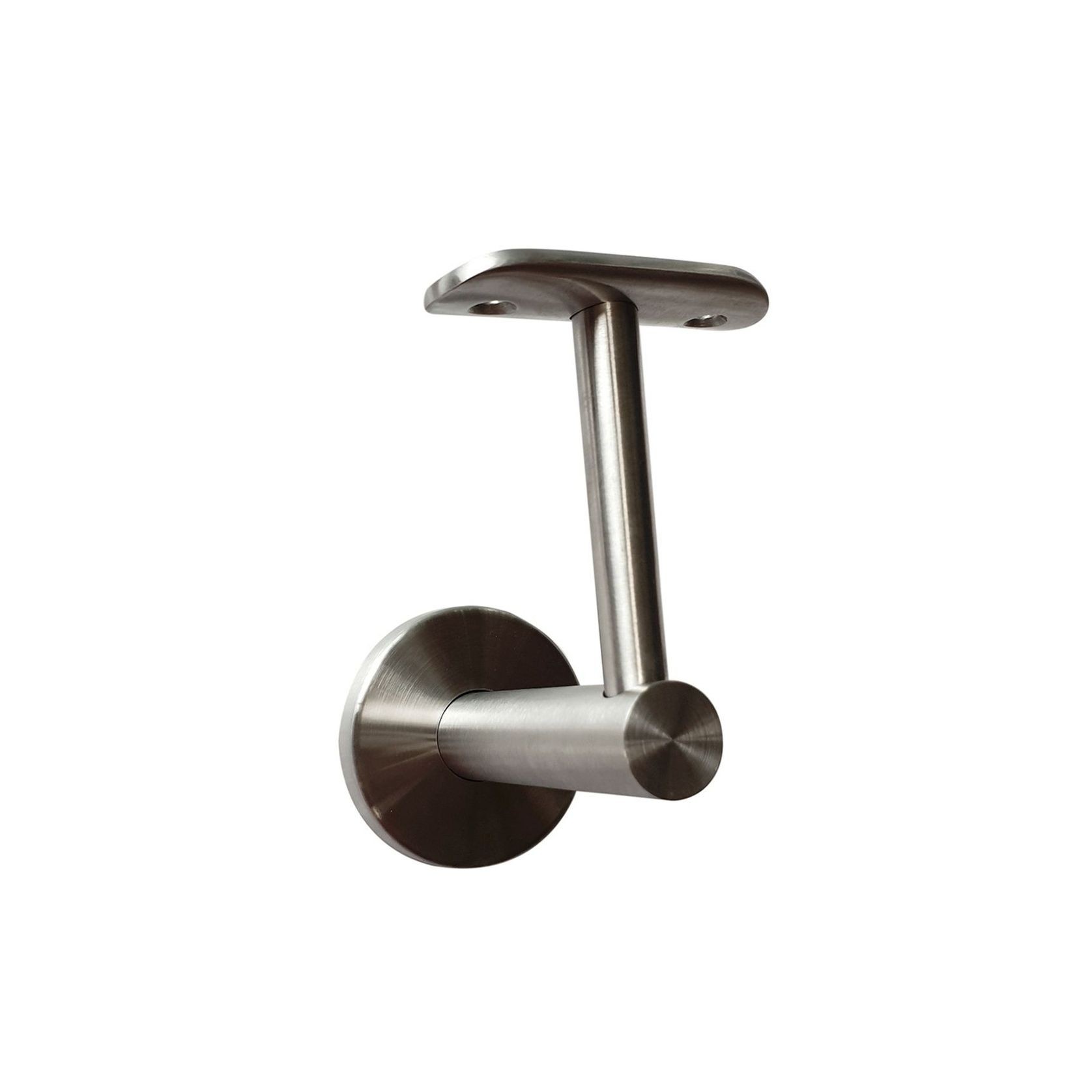

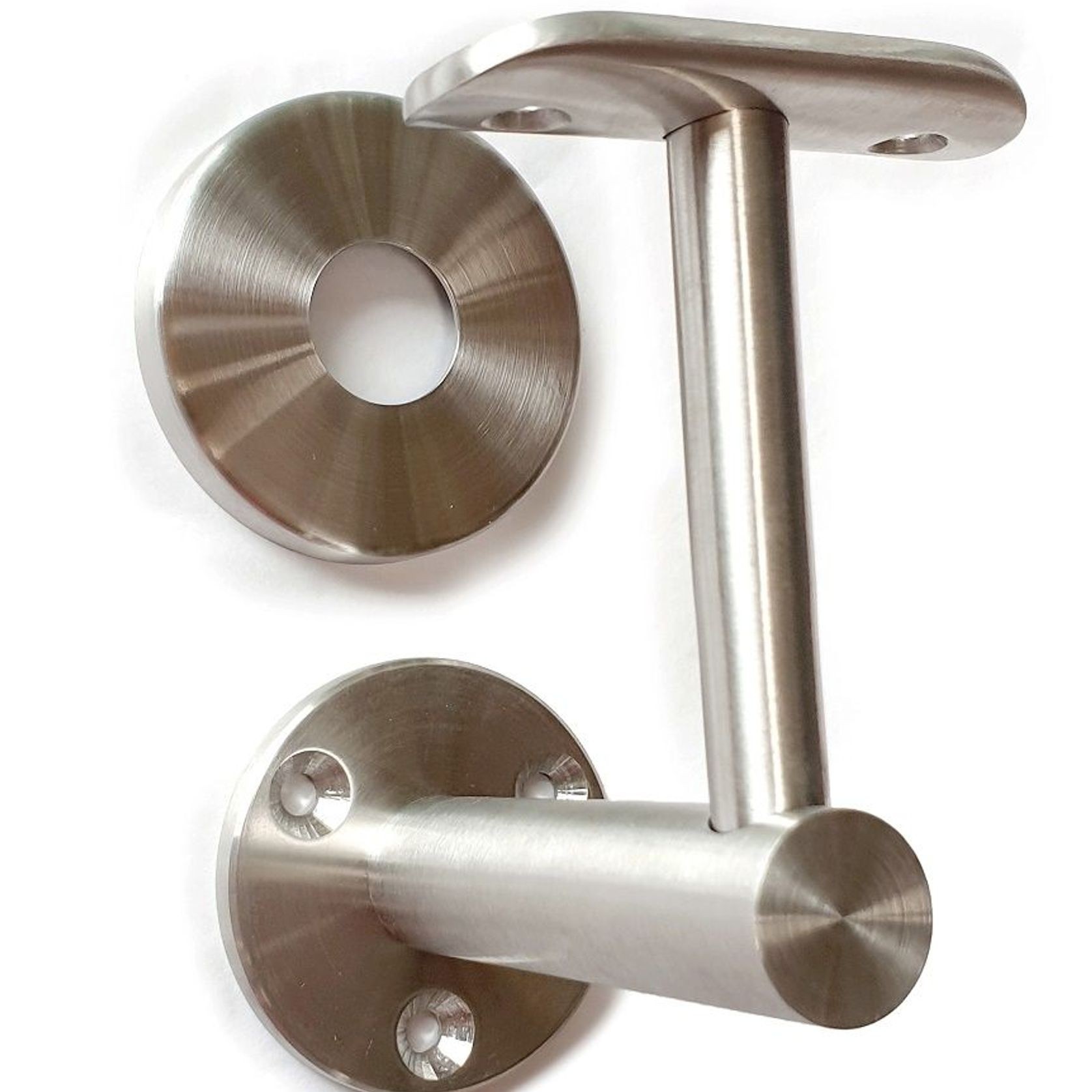

Modena Grande Handrail Bracket with a 3 Hole Fixing and Cover Plate.

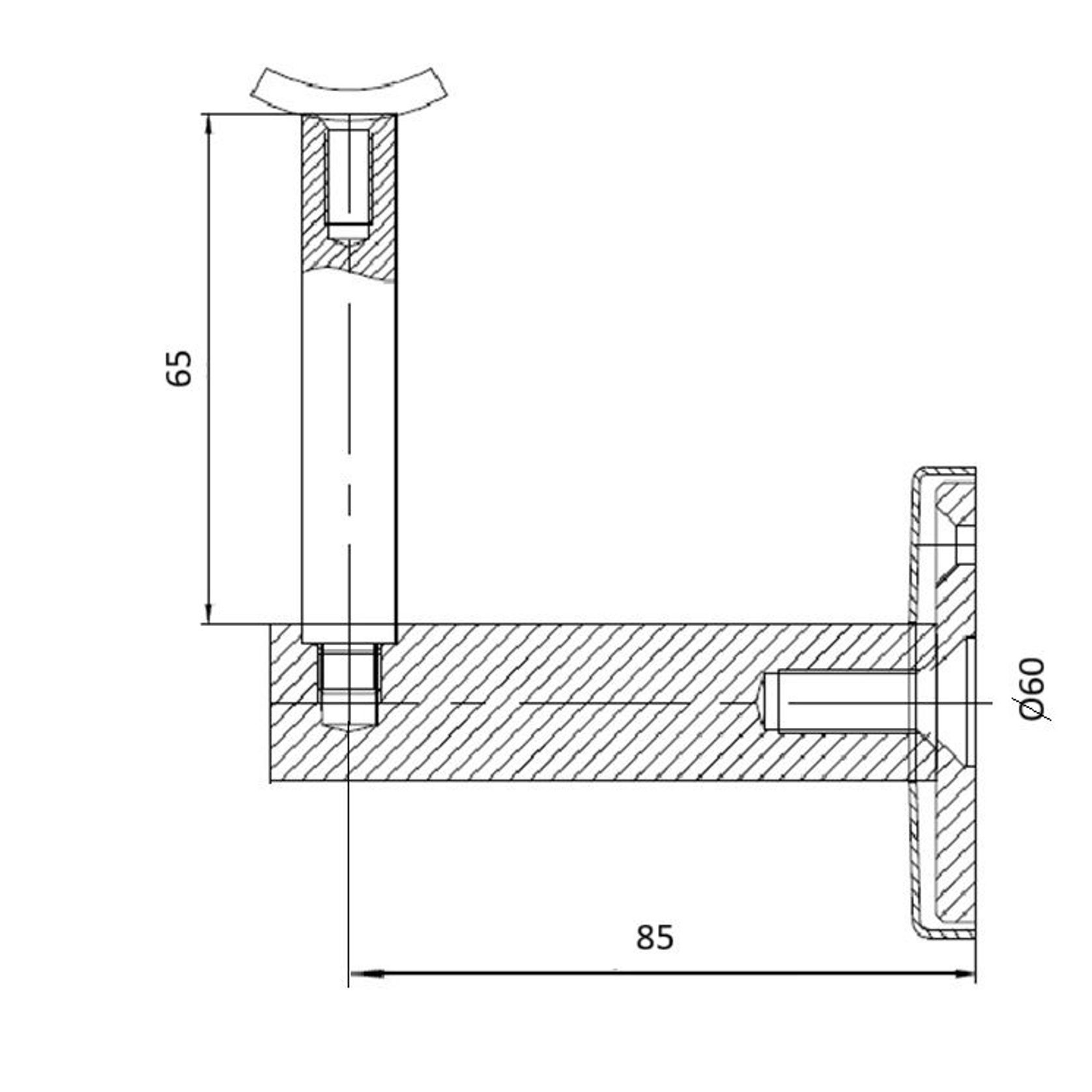

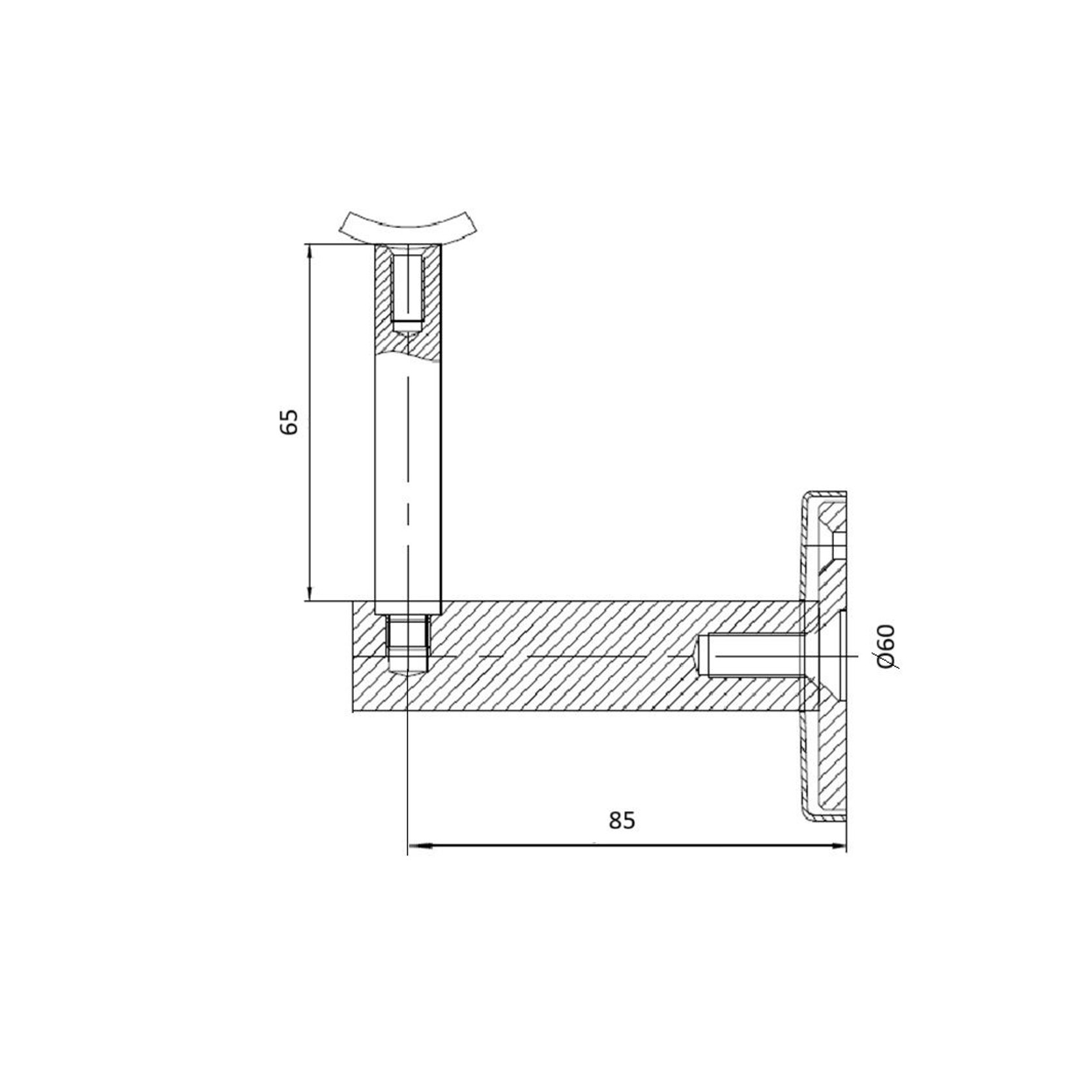

Architecturally designed 20mm diameter Solid Rod Handrail Bracket with 56mm machined Base.
Base has 3 countersunk holes for fixing. Cover plate is included.
Weld on and saddle options Weld on and saddle options available:
- curved saddle to fit handrail profiles from 38mm diameter
- flat saddle to fit flat handrail profiles
Materials available:
- AISI 304 Satin & Mirror Finish
- AISI 316 Satin & Mirror Finish available:
Product Details
- Product
- Modena Grande 3 Hole Fixing
- Category
- Stair Rail Brackets
- Sold by
- Handrail Fittings
- Brand
- Handrail Fittings
- Warranty
- Lifetime
Material
Modena Grande Handrail Bracket with a 3 Hole Fixing and Cover Plate.
Architecturally designed 20mm diameter Solid Rod Handrail Bracket with 56mm machined Base.
Base has 3 countersunk holes for fixing. Cover plate is included.
Weld on and saddle options Weld on and saddle options available:
- curved saddle to fit handrail profiles from 38mm diameter
- flat saddle to fit flat handrail profiles
Materials available:
- AISI 304 Satin & Mirror Finish
- AISI 316 Satin & Mirror Finish available:
- Specs
Recommended Spacings:
In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm. In heavy traffic areas, spacings of 600mm to 800mm are recommended.
This bracket complies with all relevant Building Codes
- Scope of use
Commercial
Residential
Interior
Exterior
Marine
