Skyrail DX Series | Glass Balustrades

Altech Systems
Visit Website

Glass Infill Balustrade System

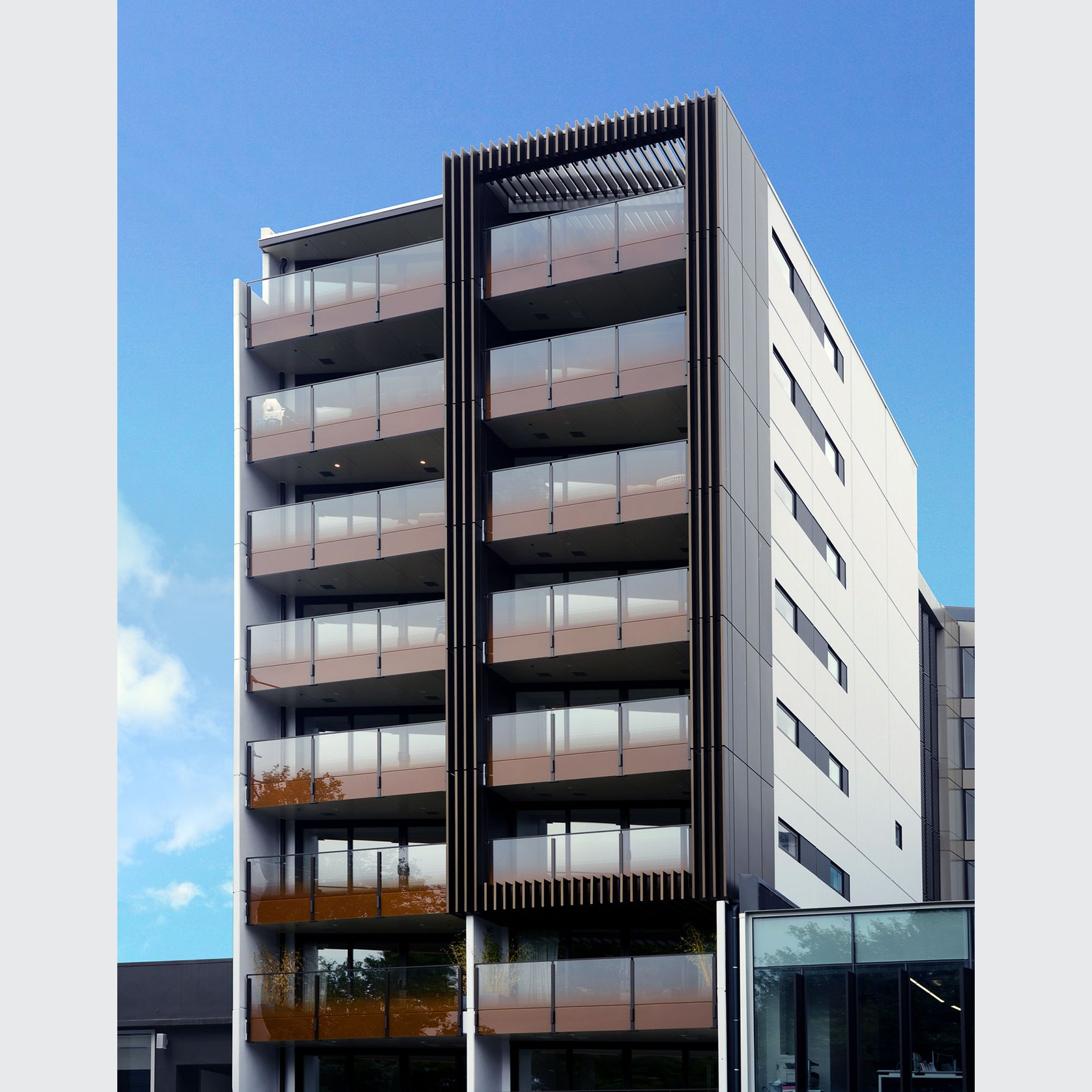

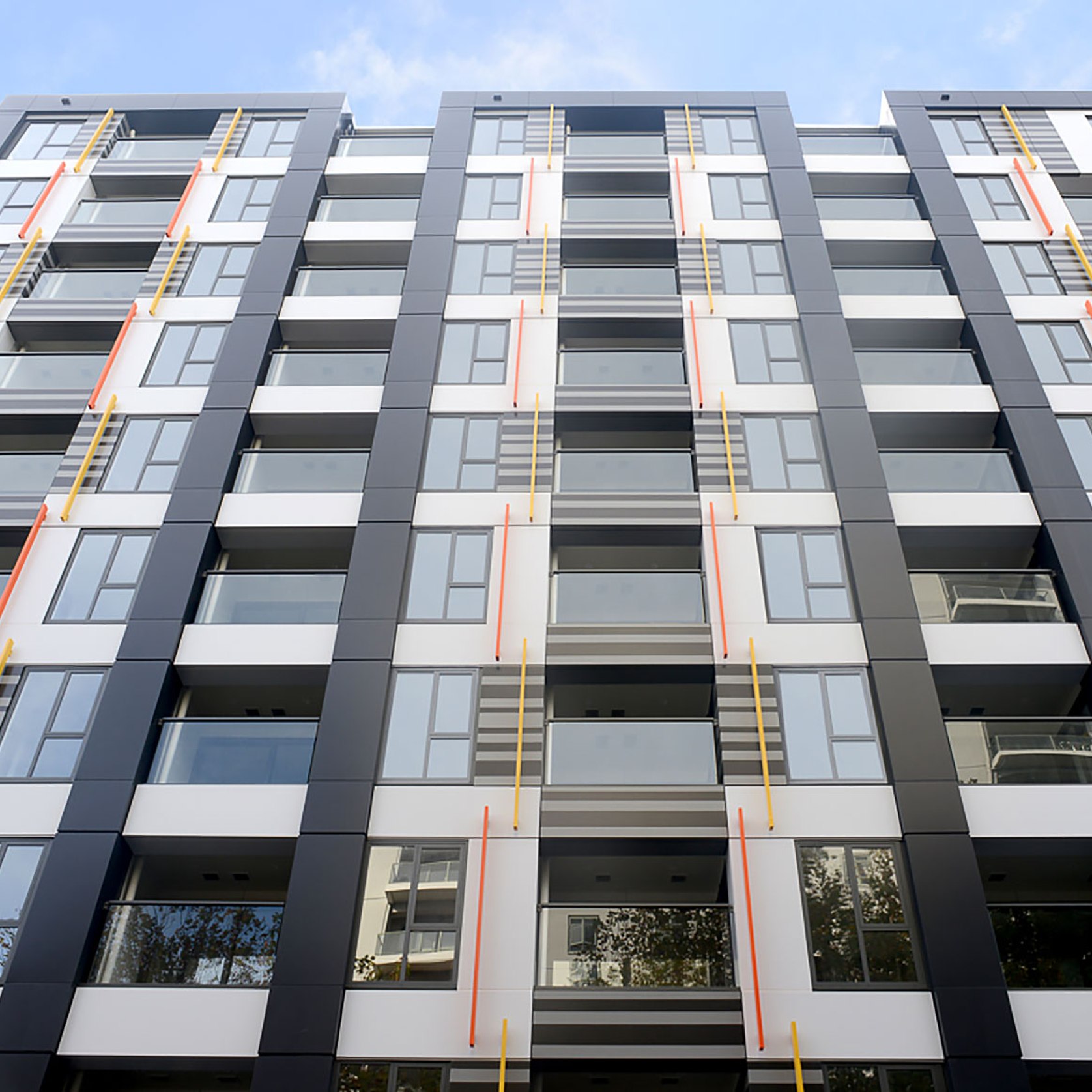

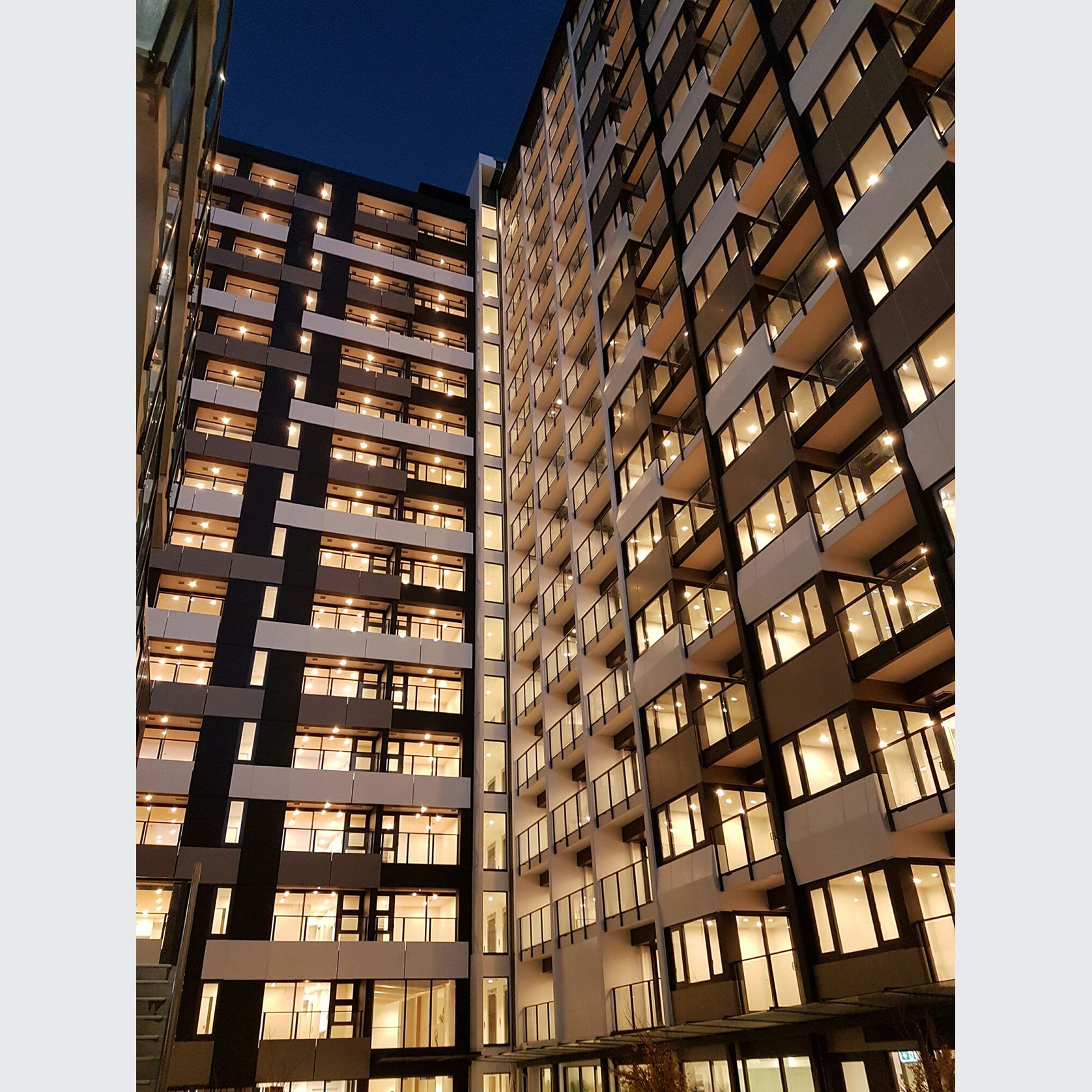

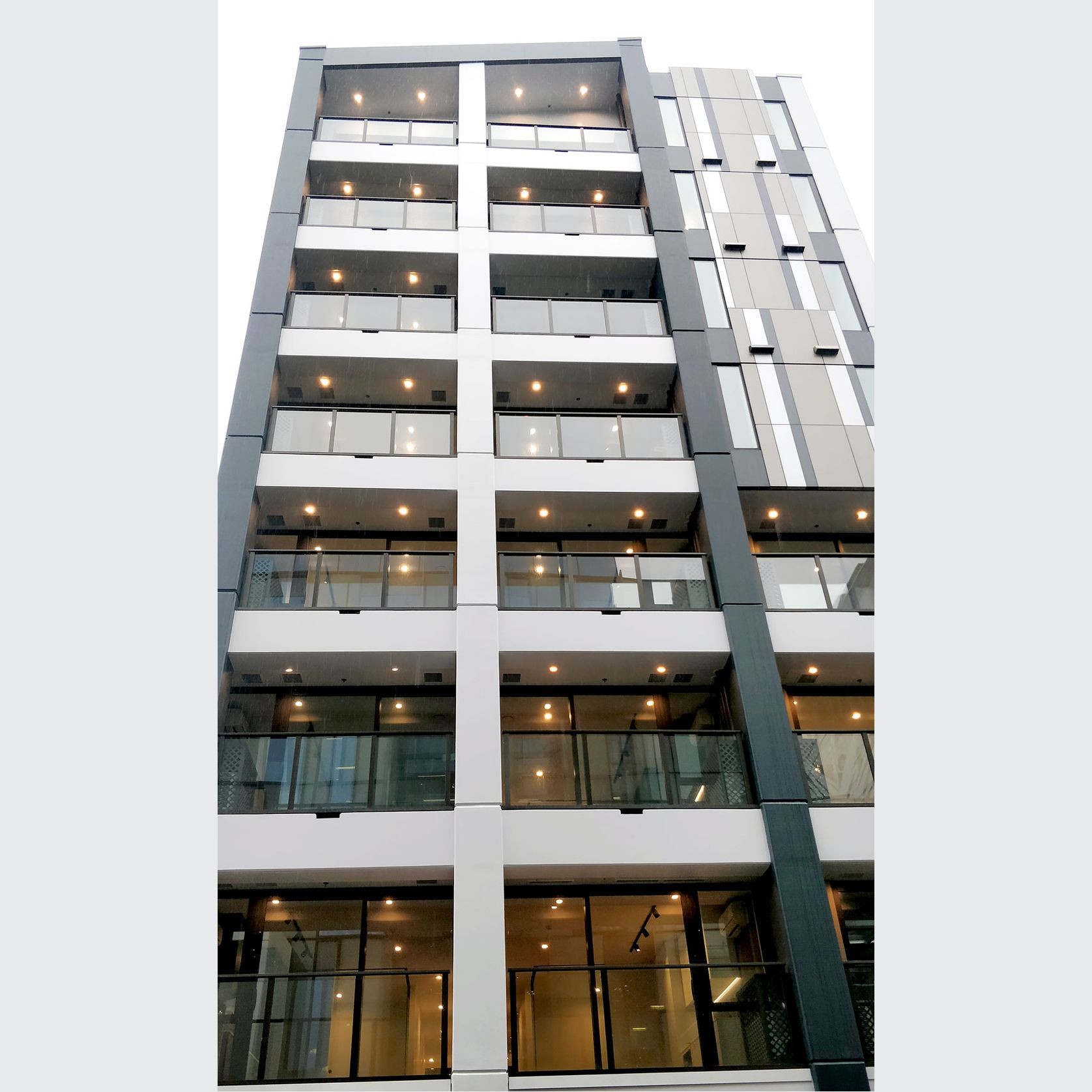

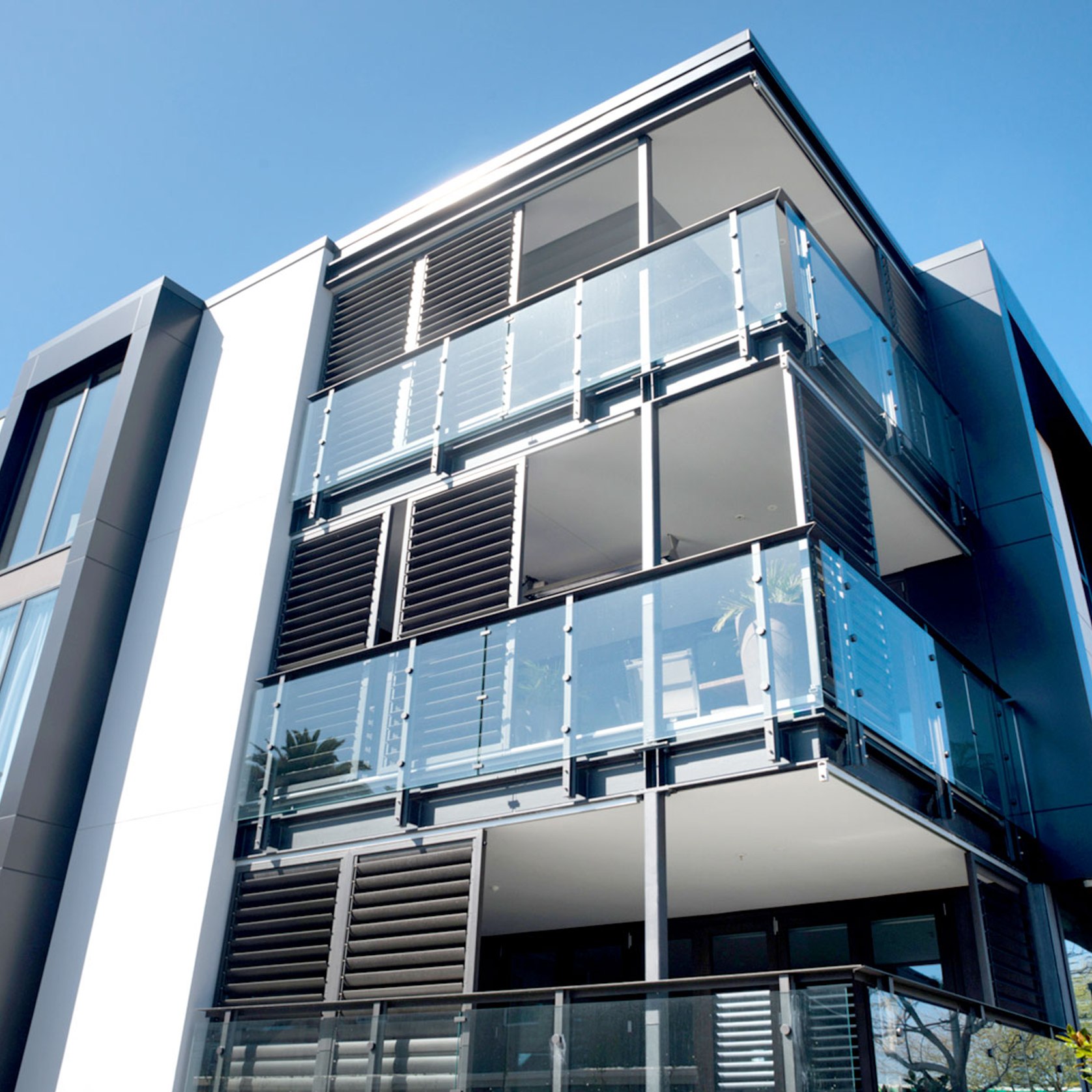

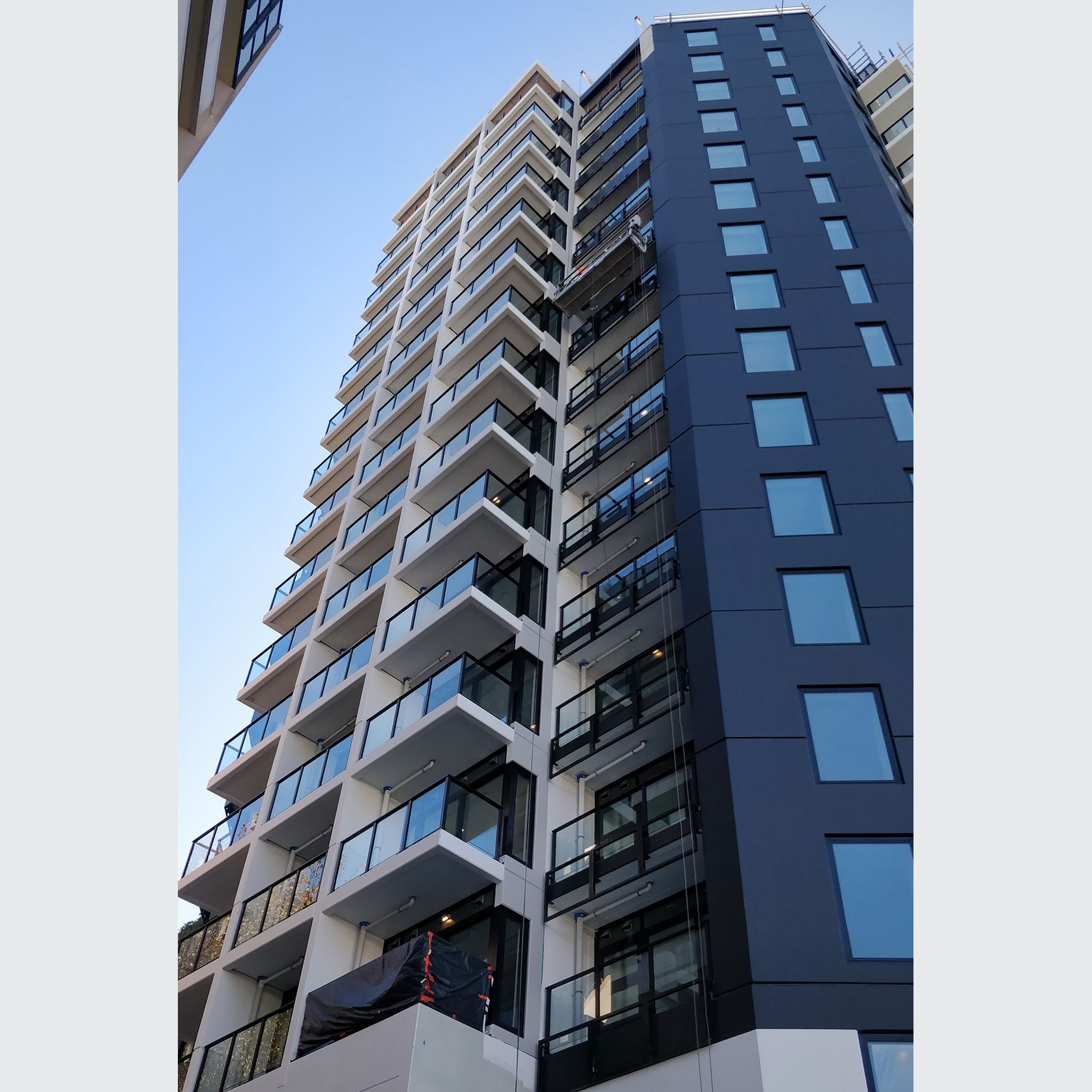

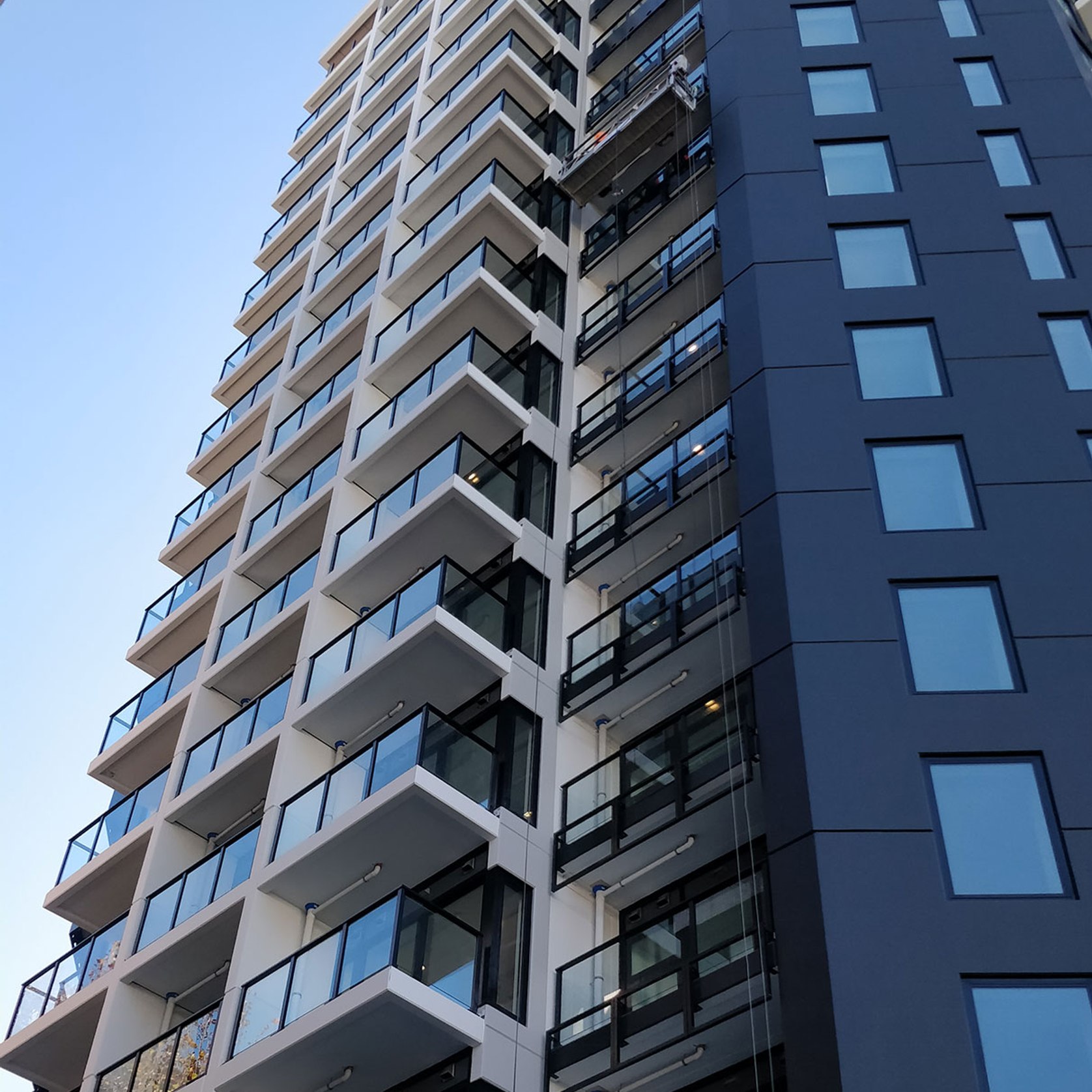

The Skyrail Dx Series is a premium aluminium and glass balustrade and fencing system, distinguished by its ability to deliver exceptional strength and safety in modern architectural applications. Available in both partially and fully framed configurations, it has been specifically engineered to withstand extreme conditions, including the extreme wind pressures common in high-rise buildings and the greater live load demands of more severe occupancies, in full compliance with NZS1170 (Table 3.3).

Engineered for versatility, the Skyrail Dx Series supports multiple installation methods, including both face-fixed and top-mounted configurations. This adaptability ensures the system can be seamlessly integrated into a variety of applications, from balconies and staircases to decks, boundary fencing, and privacy screens.

Beyond performance, the Dx Series offers extensive opportunities for customisation. Bespoke top rail profiles can be developed to complement large-scale architectural projects, while practical design solutions such as incorporating the bottom rail into a tile bar for tiled decks enhance both functionality and visual appeal. This flexibility allows designers and specifiers This flexibility allows designers and specifiers to tailor the system to the specific architectural, aesthetic, and performance requirements of each project, without compromising durability or compliance.

Details
Scope of use

Skyrail Dx Series is suitable for a wide range of residential and commercial applications, including:

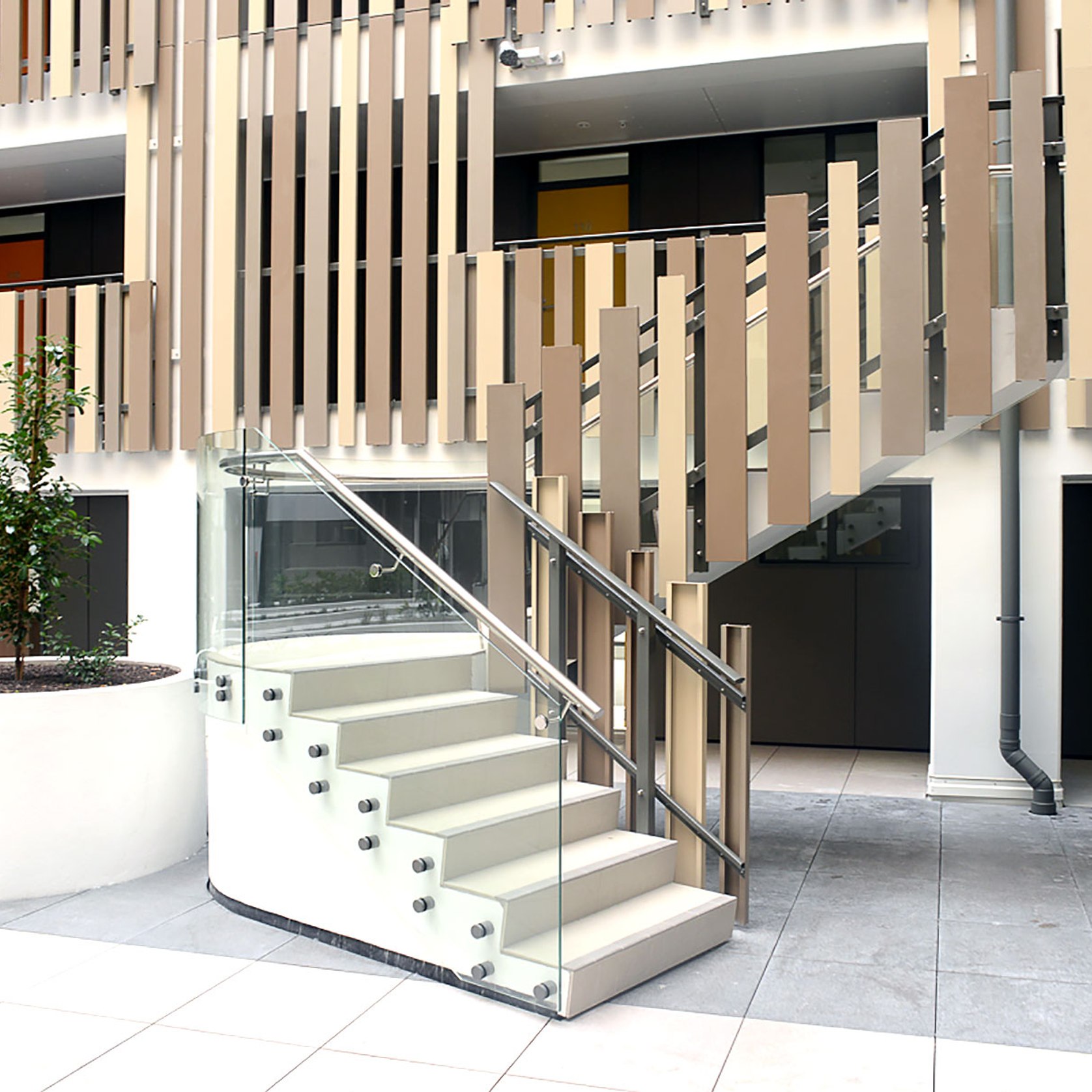

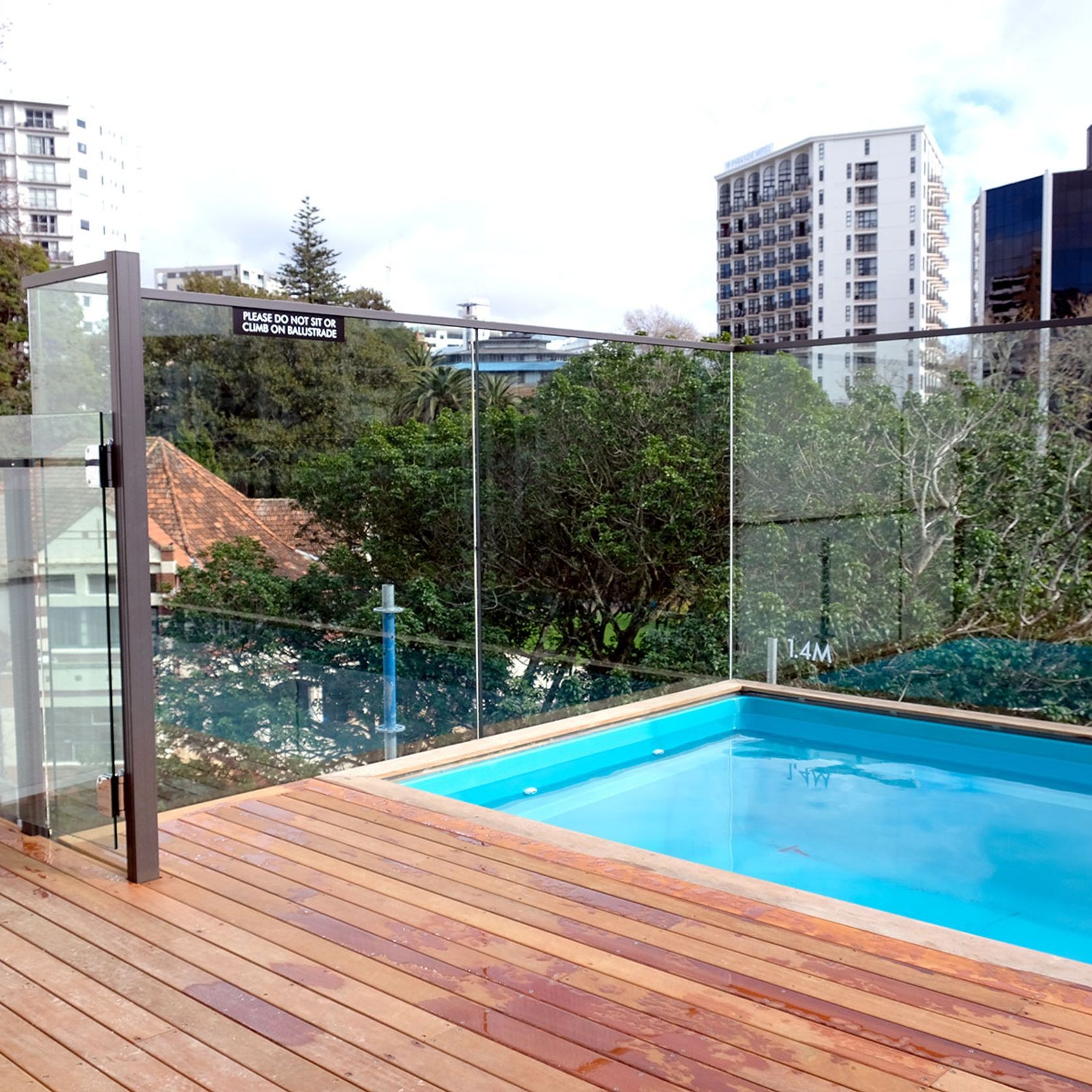

  • Decks, balconies, ramps, stairs, and pool fencing

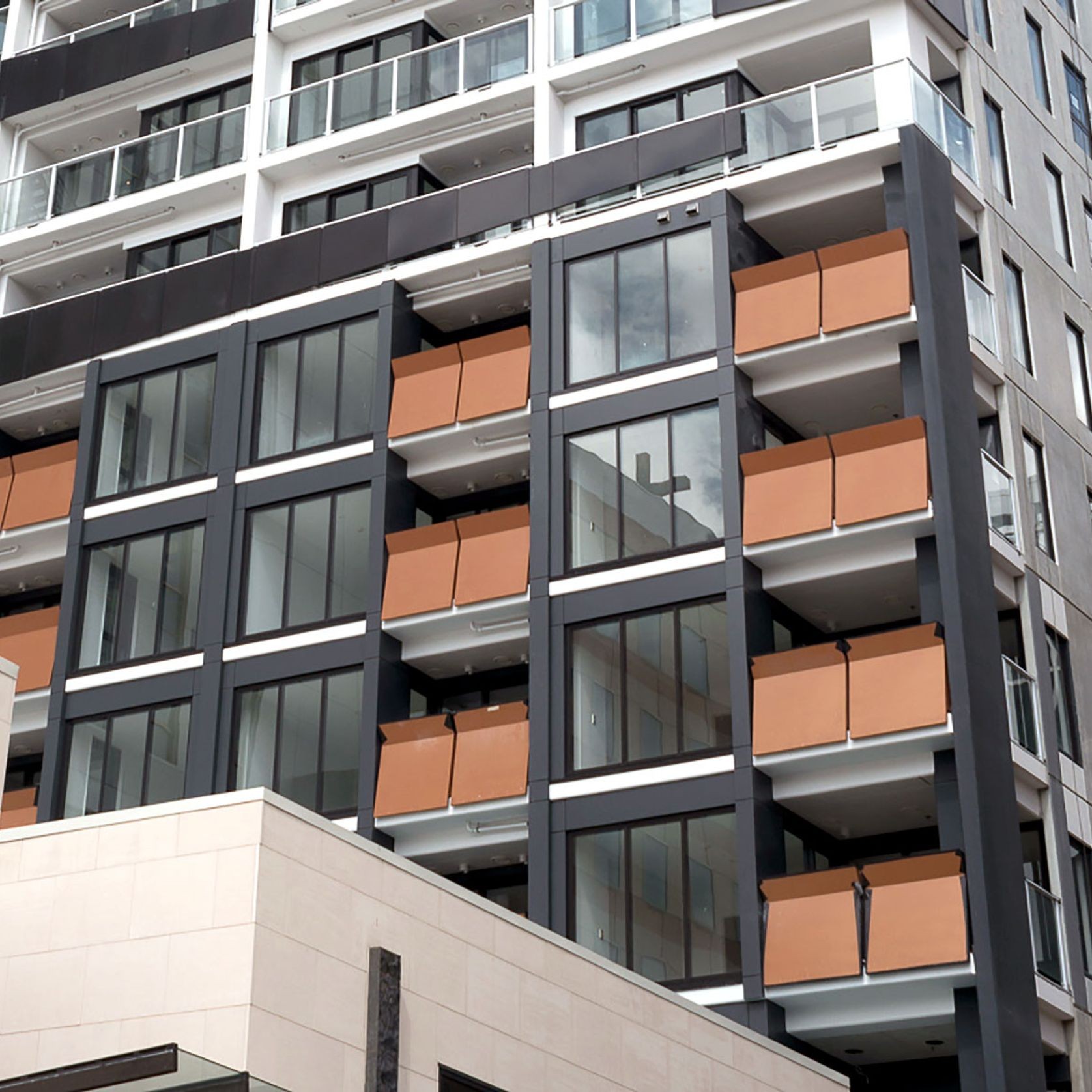

  • Screens in conjunction with balustrading
  • Occupancies where people congregate
  • Residential occupancy

The system is designed to meet the requirements of the following occupancy types in as defined in NZS 1170:

  • A (Domestic and residential)
  • A Other (External balconies)
  • B, E (Offices and workspaces)
  • C3/C2,C3, D (Areas where people may congregate)

Skyrail Dx Series has been engineered to fix to a range of substrates, including timber, concrete, and steel substrates, and is suitable for;

  • All wind zones including very high and extra high as defined by NZS 3604
  • Coastal, geothermal, and industrial environments
Features
  • High-strength fully framed balustrade system. Engineered for strength and safety in demanding environments.
  • Designed to withstand extreme wind loads (e.g. high-rise buildings) and higher live loads in severe occupancies (per NZS1170, Table 3.3) for wind loads up to 4.5kPa.

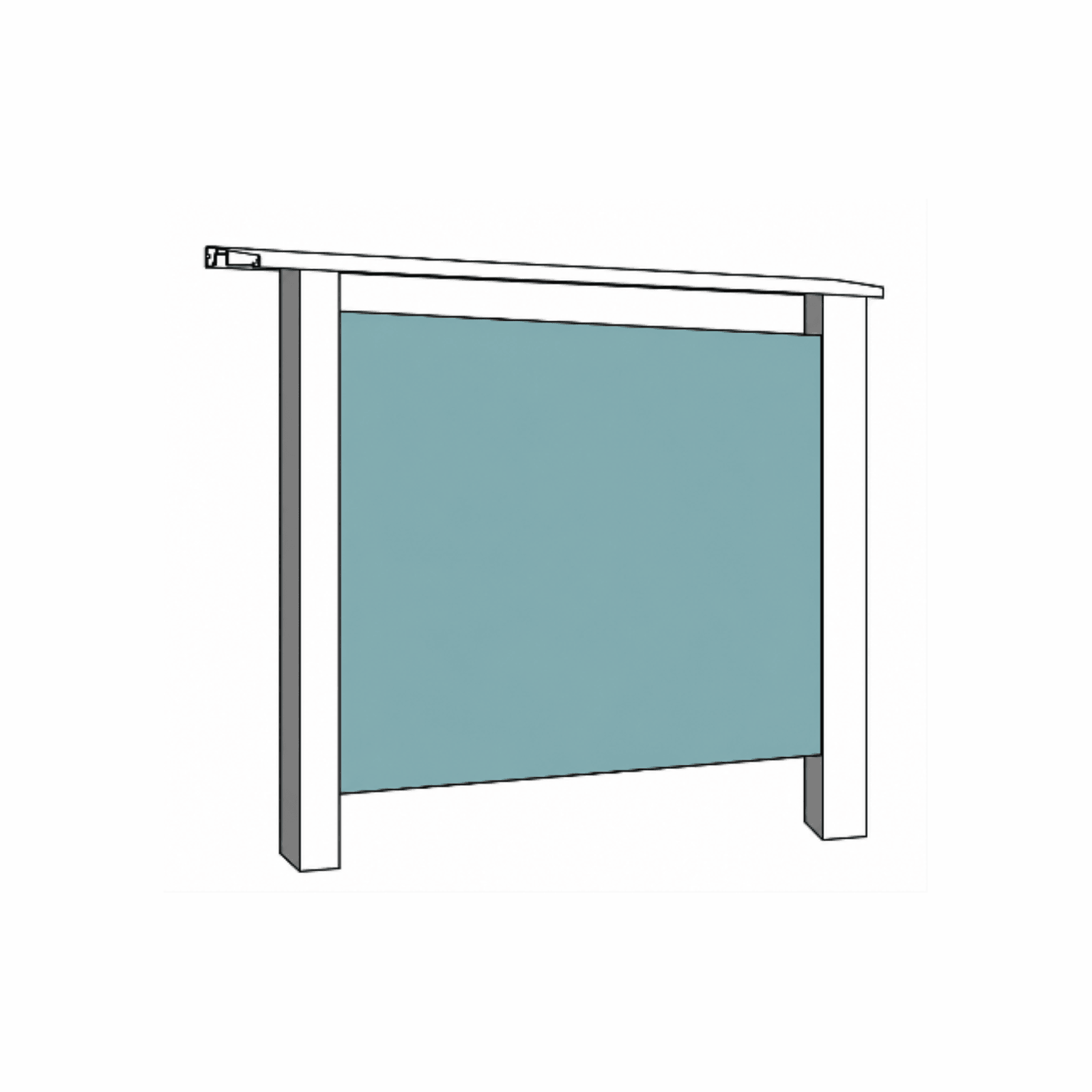

  • Available in both fully framed and partially framed configurations and supports both face-fixed and top-mounted configurations.
  • Fully customisable design for project-specific requirements.
  • Bespoke top rail profiles available for large-scale projects.
  • Bottom rail can be incorporated into the tile bar for tiled decks.
  • Combines robust performance with sleek, modern aesthetics.
  • Suitable for balconies, staircases, decks, boundary fencing, and privacy screens.
  • Compatible with both waterproof and floating deck systems.
  • Engineered for fixing to timber, concrete, and steel substrates.
  • Interoperability with other Altech balustrade products.
  • Available in a wide range of durable powder coat finish or anodised premium finish.
  • Design solutions available for cavity-clad building structures
Technical Downloads

Design confidence starts here.

Unlock the fine details. Whether you’re specifying a balustrade, louvre, screen or canopy, our technical download portal gives you instant access to the drawings and specs you need, so good design never compromises on clarity.

Select a product family below to browse and download technical documents.

  • Browse by category, preview with a click, and download individual files or full ZIP sets in one step.
  • .DWG files are packaged inside ZIPs for easy access.
  • ForSI documentation or tailored support, reach out to our team.

Find all our PDF and DWF drawings and technical specification downloads here.
