Glass Balustrade System (base channel, face mount)
The Skyrail CG-F Series is the ultimate and premium Face Fixed glass balustrade and fencing system, distinguished by its ability to offer unimpeded views combined with exceptional strength and safety in modern architectural applications.
Available in glass only configuration, using sentry type laminated glass, or with an interlinking handrail using toughened safety glass.
Engineered for versatility, the Skyrail CG-F Series has a number of innovative features:
- Its double fixing design enables it to be “stood off”, so that it can be used over cavities, flashings and membranes.
- The base channel can incorporate a fin post at ends to support an interlinking handrail and therefore not need to fix to the building wall

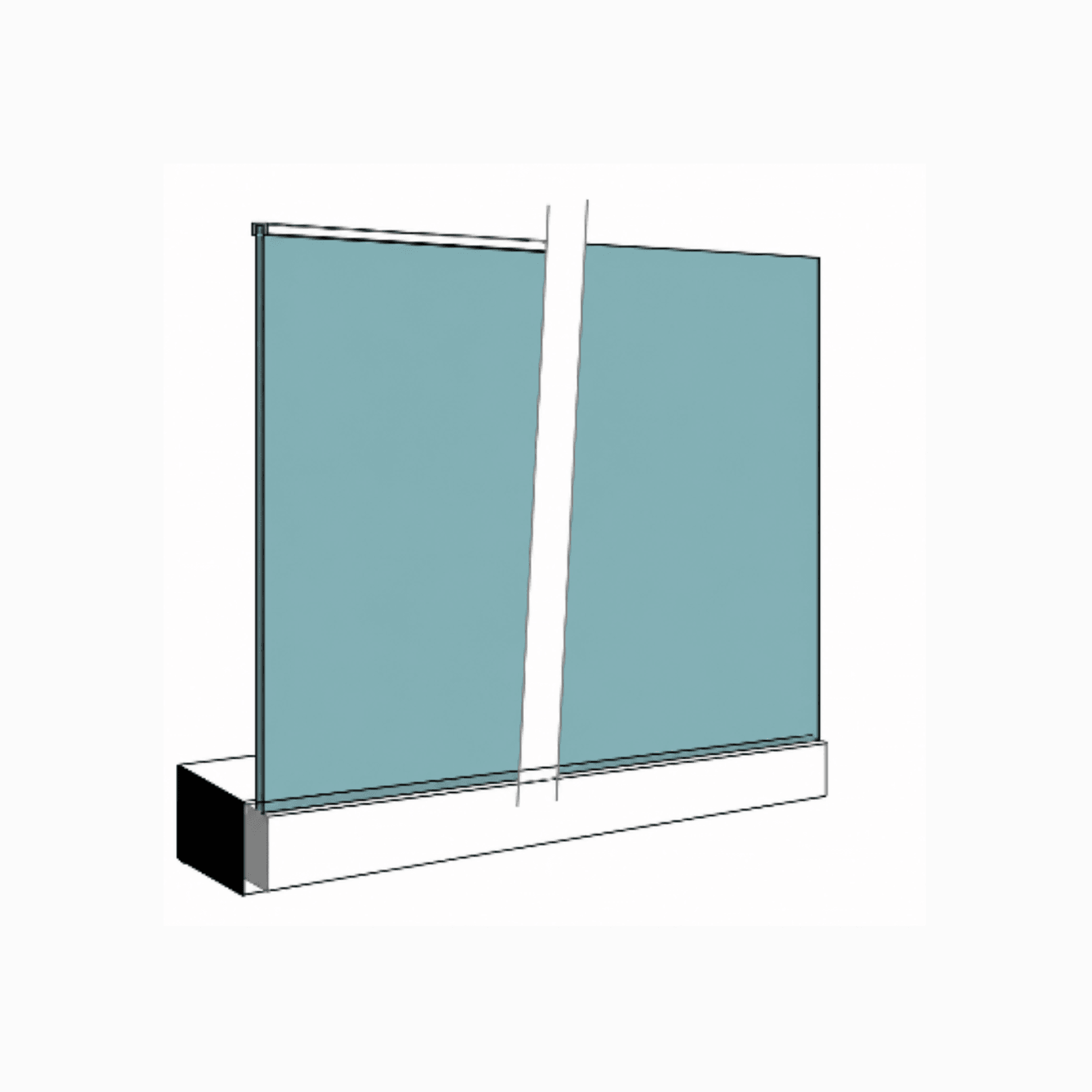

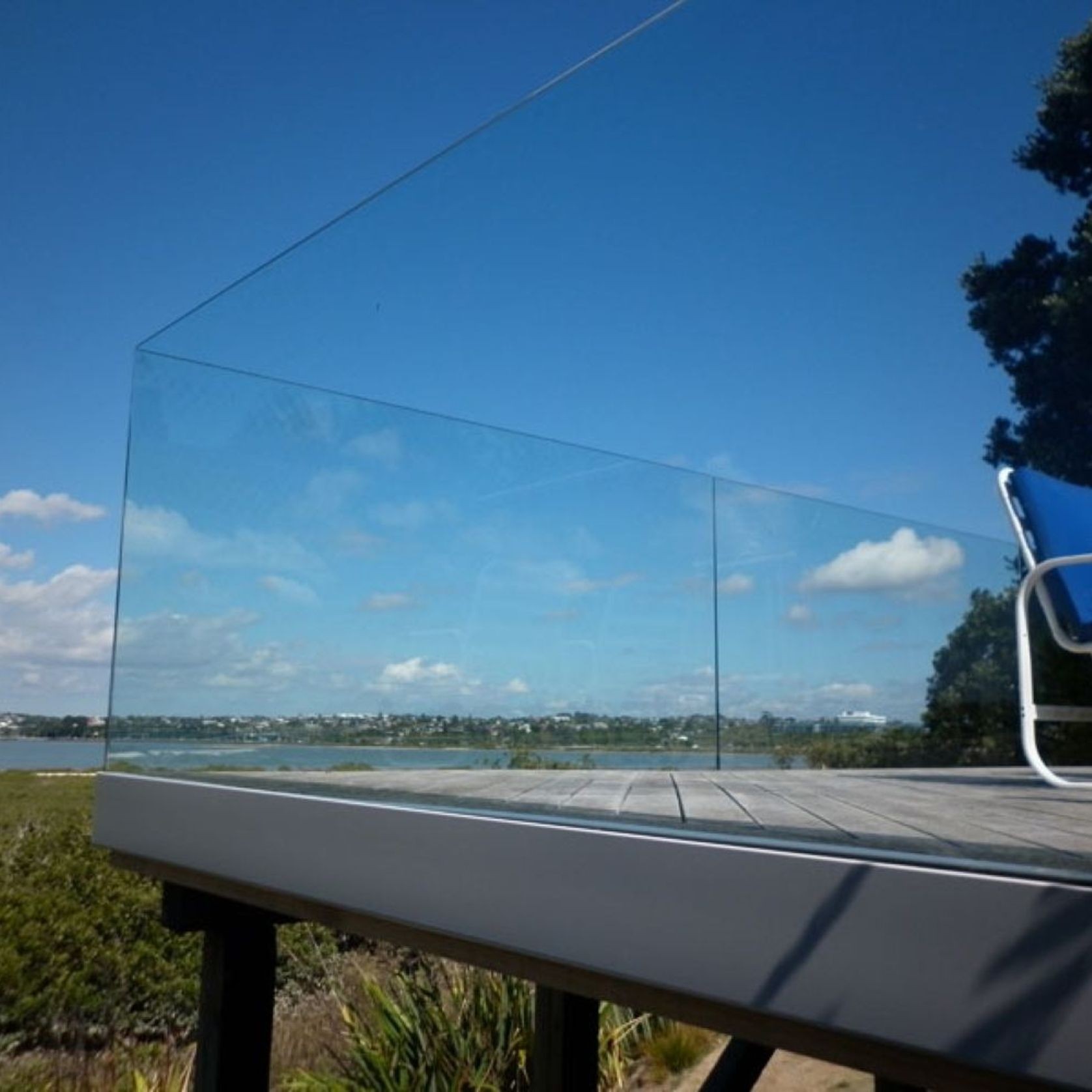

The Skyrail CG-F has a continuous base channel profile and when powdercoated offers a sleek linear design. This adaptability ensures the system can be seamlessly integrated into a variety of applications, from balconies and staircases and pool fencing.
Product Details
- Product
- Skyrail CG-F Face Mount Series | Glass Balustrades
- Category
- Glass Balustrades
- Sold by
- Altech Systems
- Range
- Glass Balustrades
- Brand
- Altech Systems
Product specified by
Glass Balustrade System (base channel, face mount)
The Skyrail CG-F Series is the ultimate and premium Face Fixed glass balustrade and fencing system, distinguished by its ability to offer unimpeded views combined with exceptional strength and safety in modern architectural applications.
Available in glass only configuration, using sentry type laminated glass, or with an interlinking handrail using toughened safety glass.
Engineered for versatility, the Skyrail CG-F Series has a number of innovative features:
- Its double fixing design enables it to be “stood off”, so that it can be used over cavities, flashings and membranes.
- The base channel can incorporate a fin post at ends to support an interlinking handrail and therefore not need to fix to the building wall
The Skyrail CG-F has a continuous base channel profile and when powdercoated offers a sleek linear design. This adaptability ensures the system can be seamlessly integrated into a variety of applications, from balconies and staircases and pool fencing.
- Features
- Face fixed
- Continuous base channel system with an integrated internal clamp for secure glass fixing.
- Glass panels do not require pre-drilled holes for installation.
- Available in 13.52mm and 15.52mm SentryGlas® (without a top rail).
- Available in 12mm and 15mm toughened glass (requires a top rail for balustrade applications).
- Designed to meet all wind zones up to EH (Extra High) classification.
- Compliant with live load requirements for residential and equivalent commercial occupancies, in accordance with NZS1170, Table 3.3.
- Dual-fixing design allows for “stand-off” installation — meaning the system does not need to bear directly on the building face.
- Suitable for use with soft claddings, cavities, membranes, and flashings, while allowing for water run-off clearance.
- Base channel enables attachment of a fin post to support a top interlinking rail, eliminating the need for wall fixing.
- Compatible with both waterproofed and floating deck systems.
- Engineered for installation on timber, concrete, and steel substrates.
- Fully interoperable with other Altech balustrade systems.
- Offered in a wide range of durable powder-coated or anodised finishes.
- Warranty: 5 years on materials (excluding surface coatings), 2 years on workmanship, and 20 years on Dulux Duratec powder coating (other coating warranties provided by the surface coating applicator
- Scope of use
Skyrail CG-F Series is suitable for a wide range of residential and commercial applications, including:

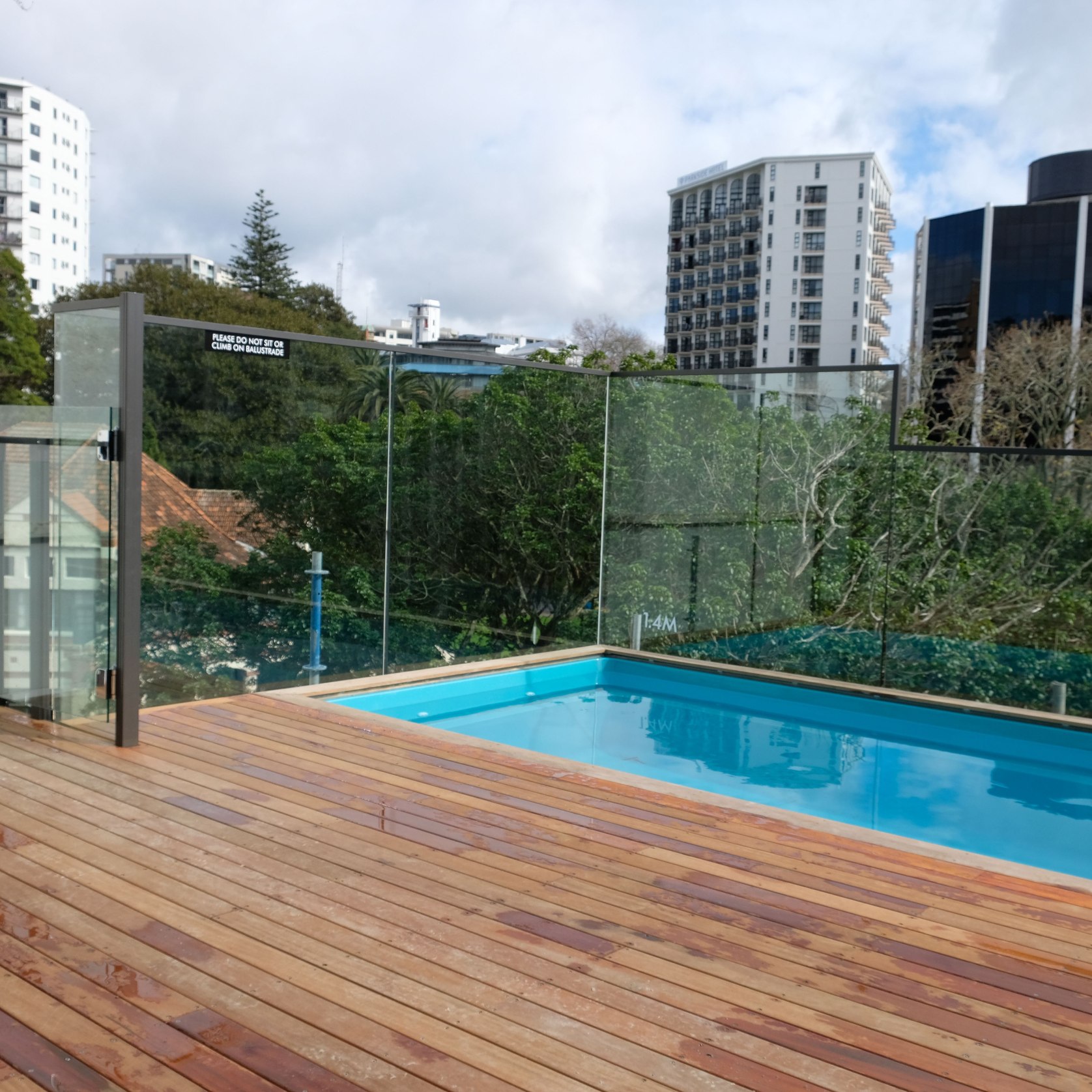

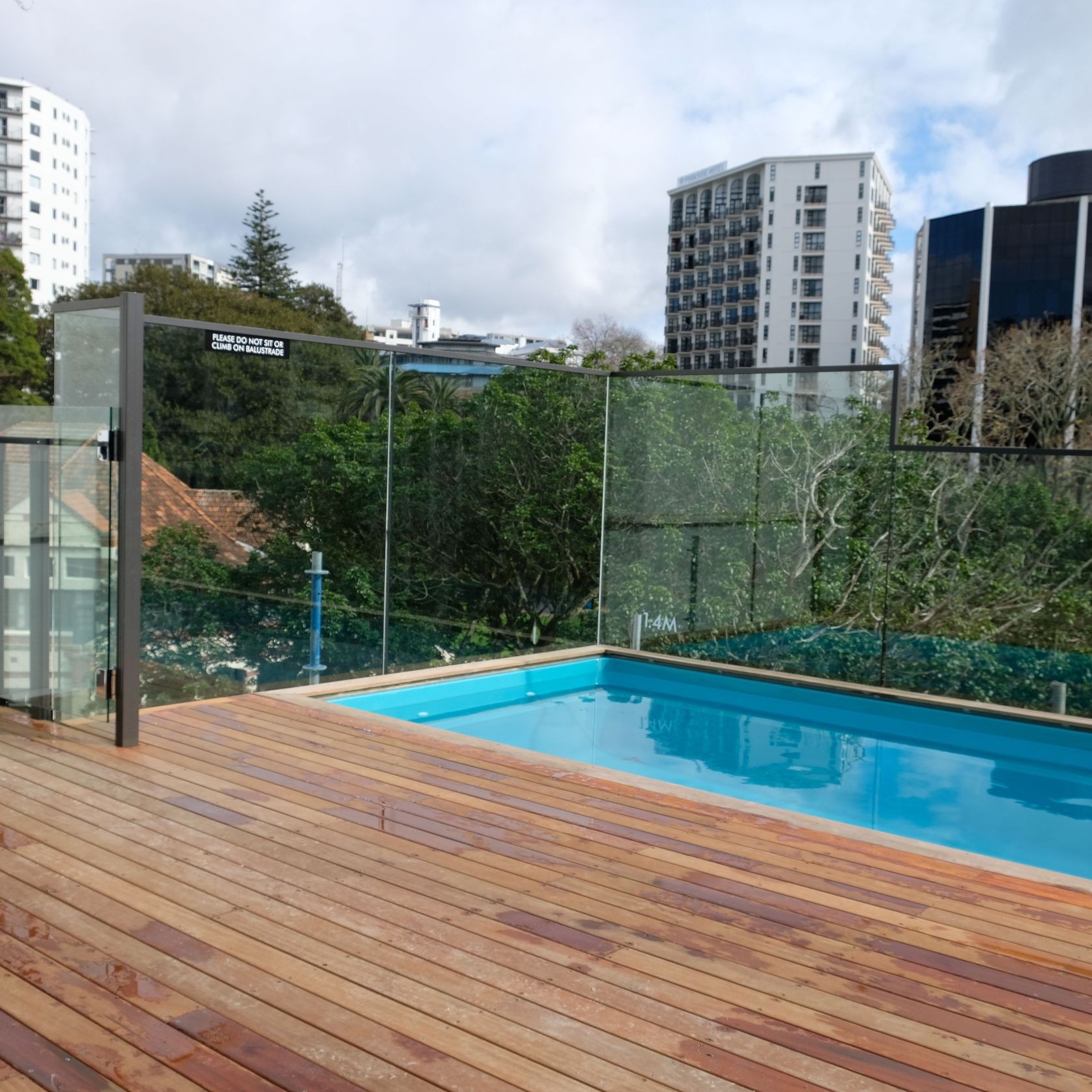

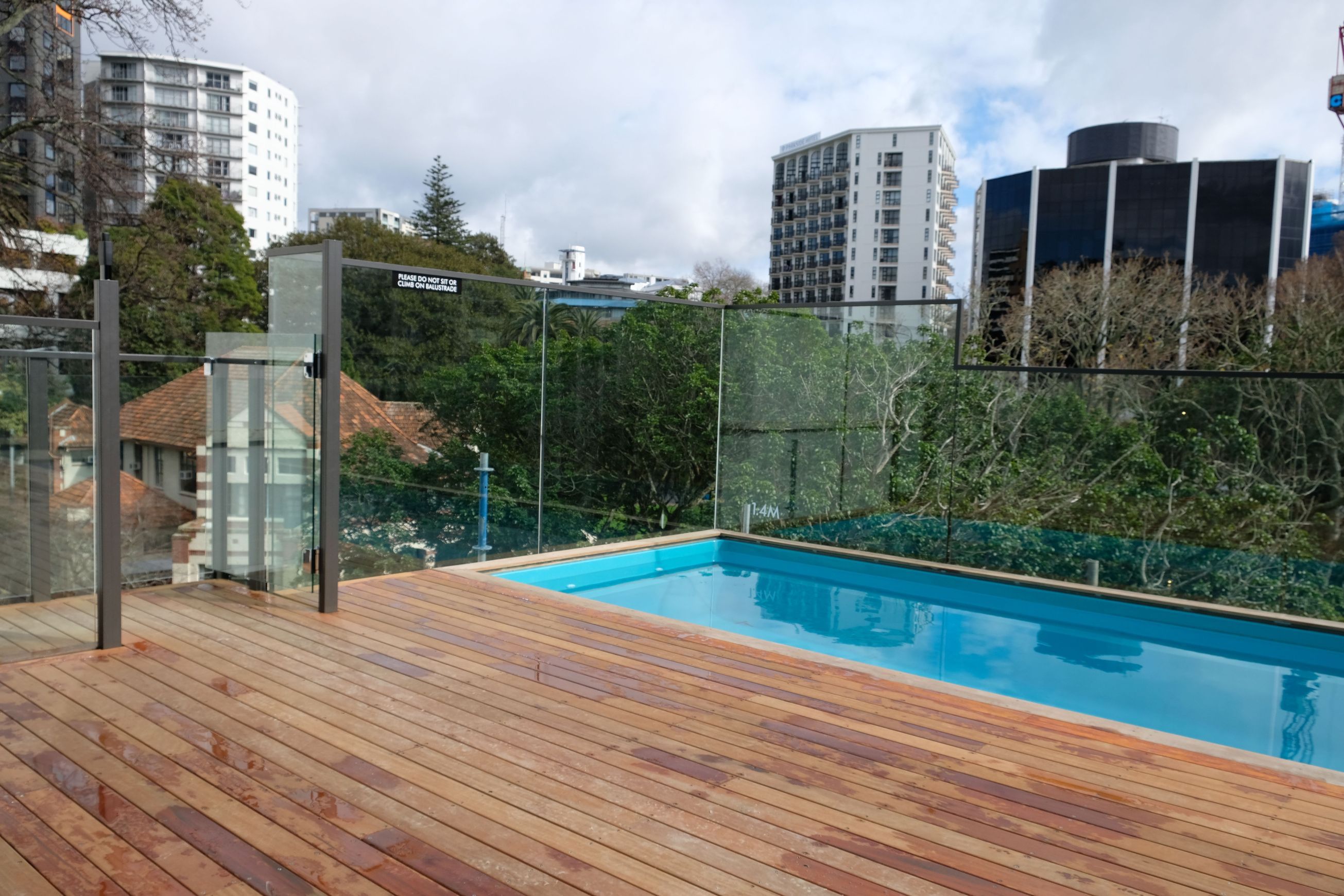

- Decks, balconies, ramps, stairs, and pool fencing

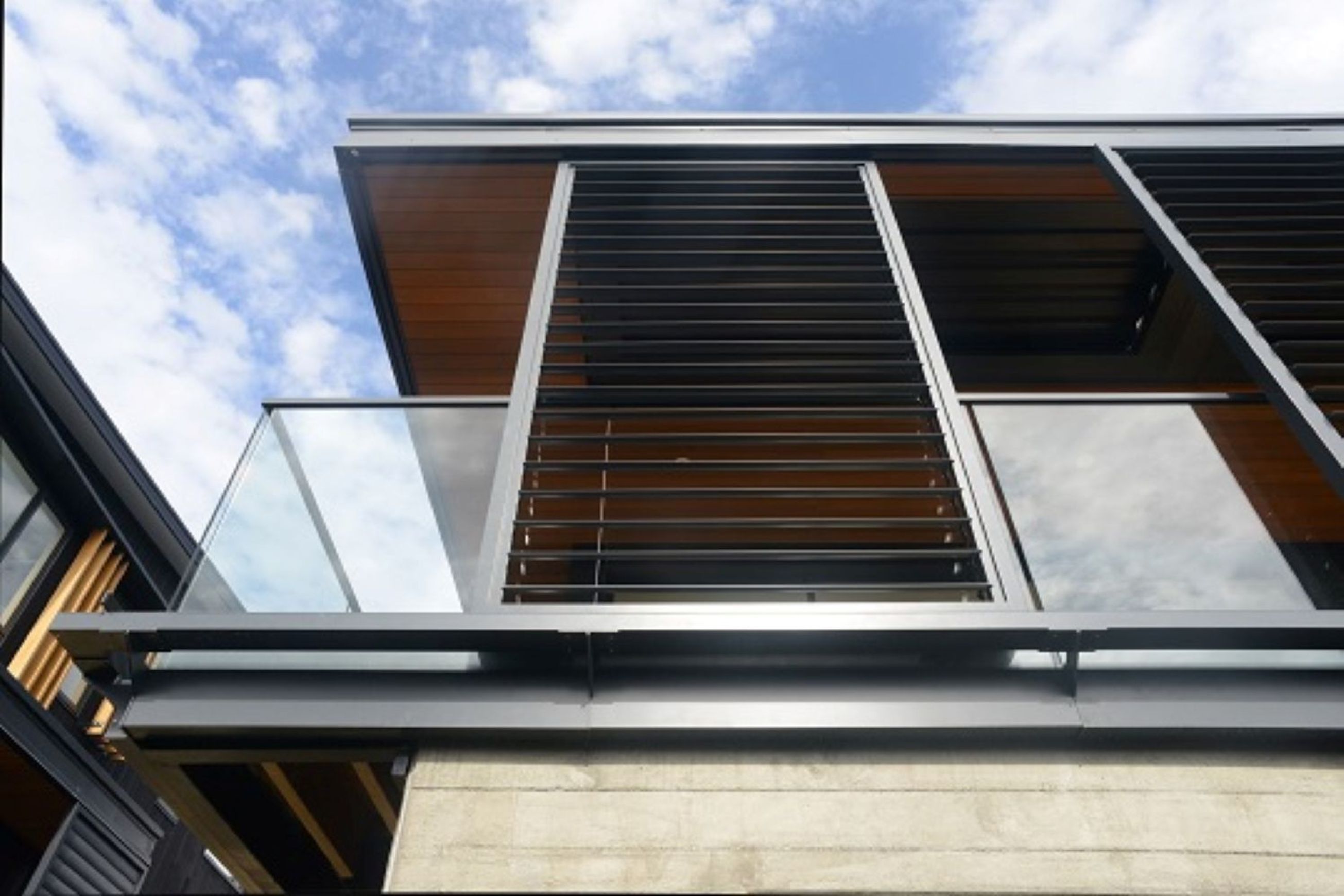

- Screens in conjunction with balustrading
- Occupancies where people congregate
The system is designed to meet the requirements of the following occupancy types in as defined in NZS 1170:
- A (Domestic and residential)
- A Other (External balconies)
- B, E (Offices and workspaces)
- C3 (Areas without obstacles)
Skyrail CG-F Series has been engineered to fix to a range of substrates, including timber, concrete, and steel substrates, and is suitable for;
- All wind zones including very high and extra high as defined by NZS 3604
- Coastal, geothermal, and industrial environments
