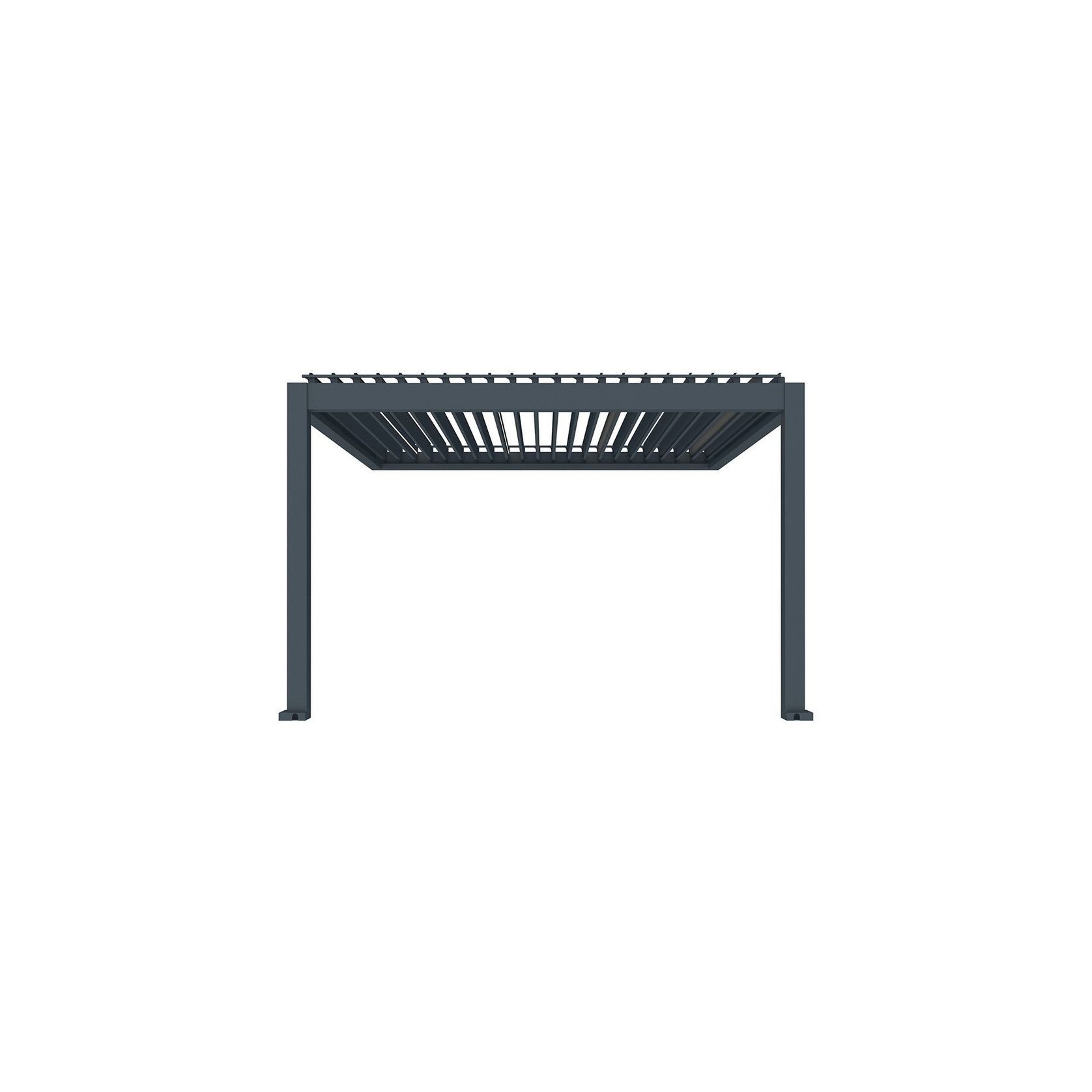

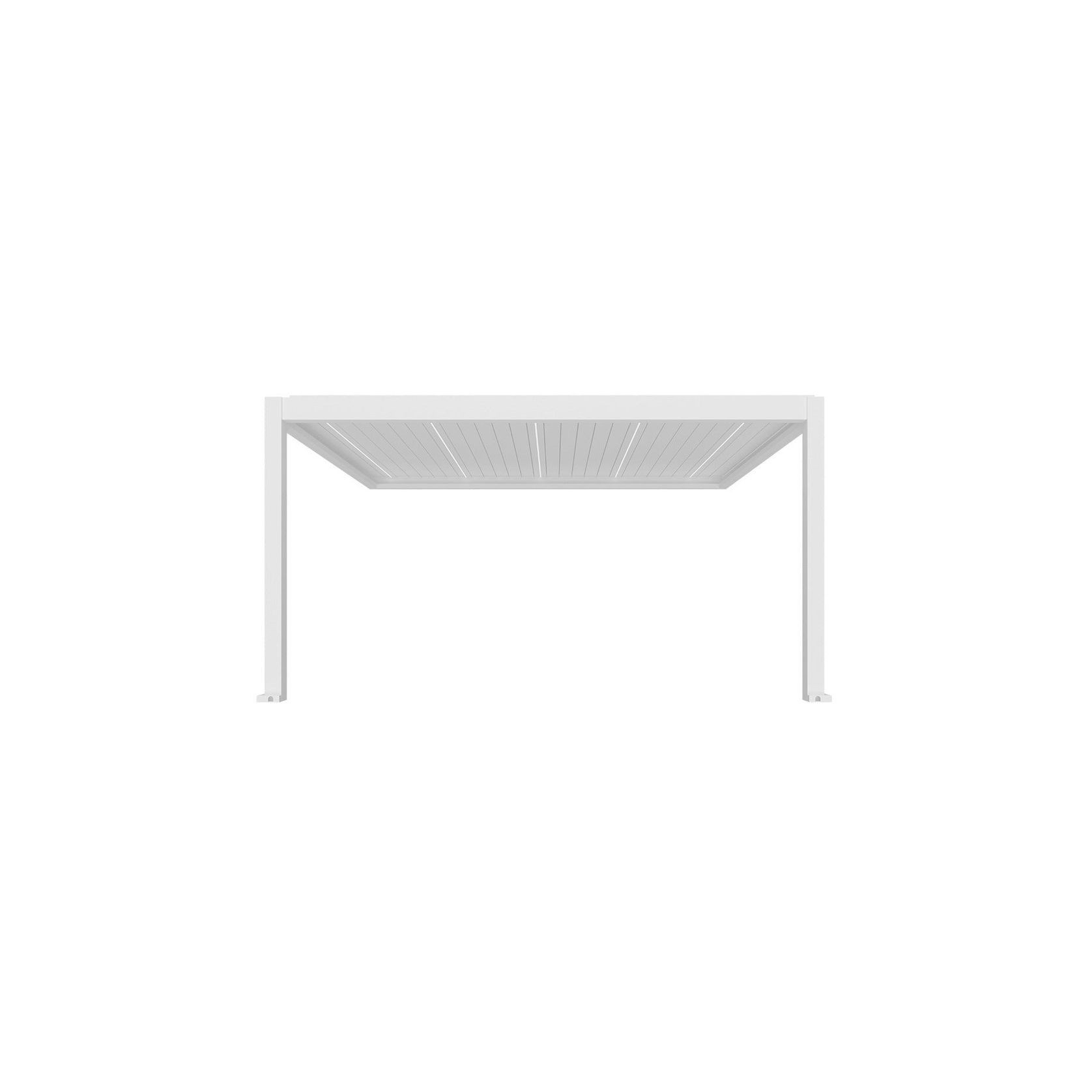

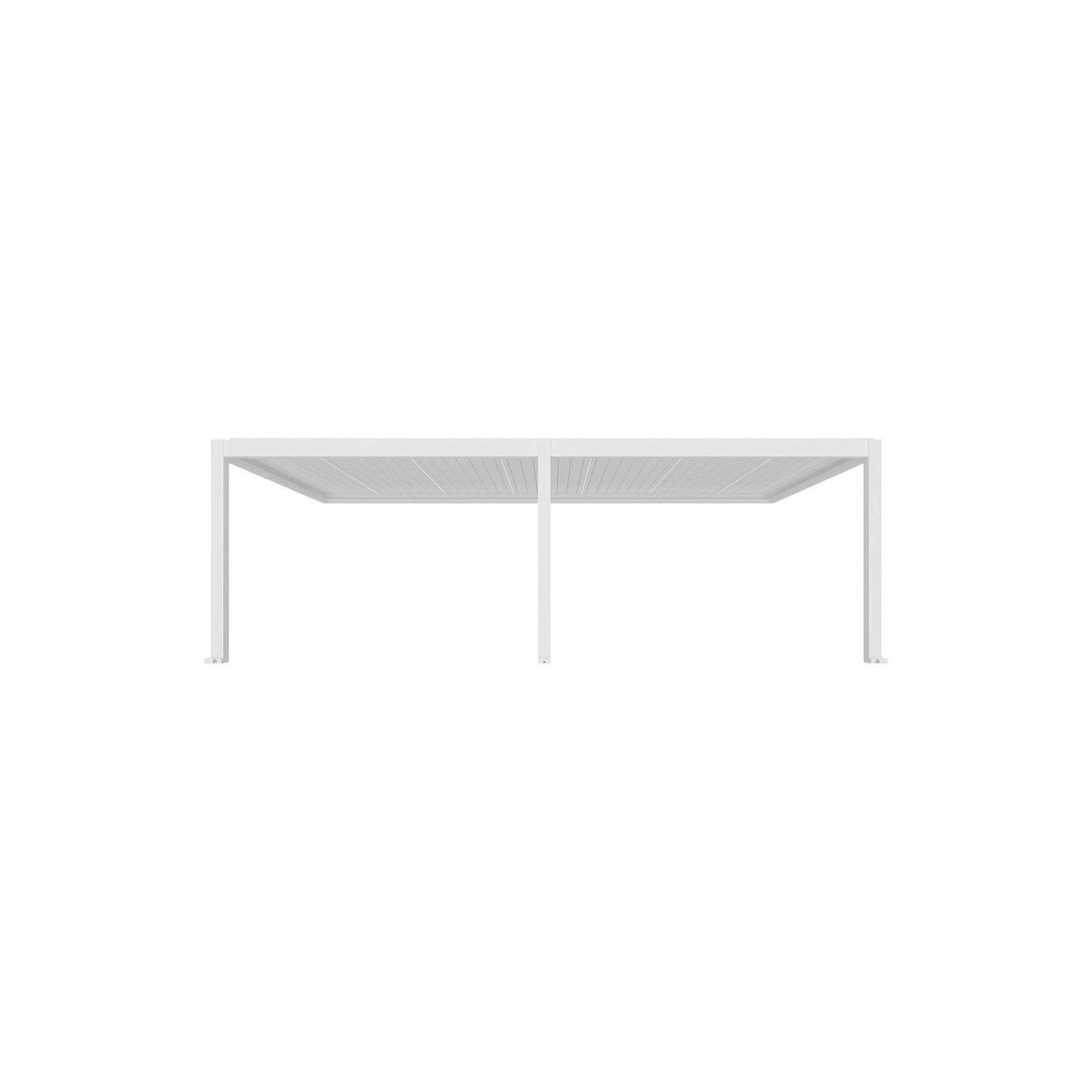

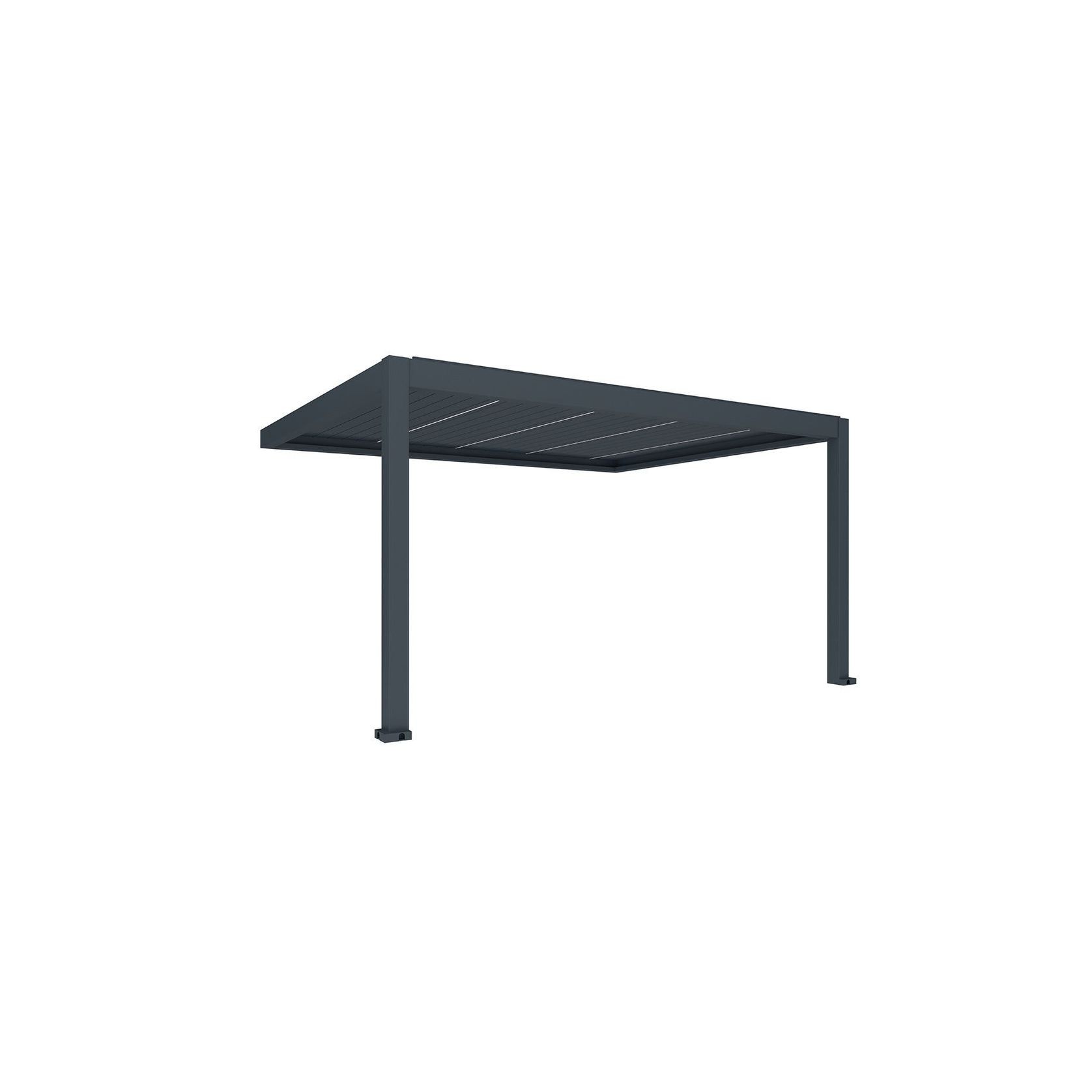

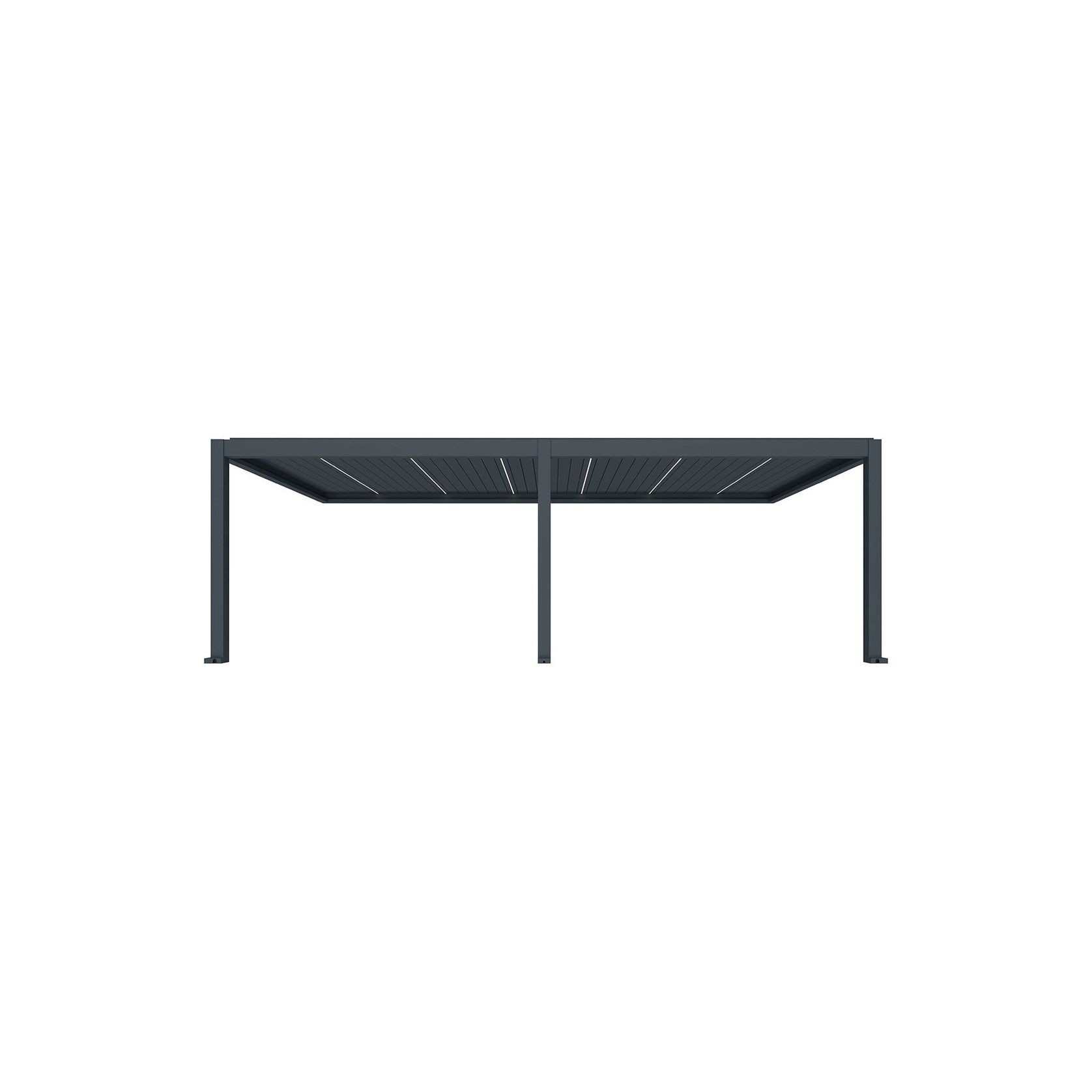

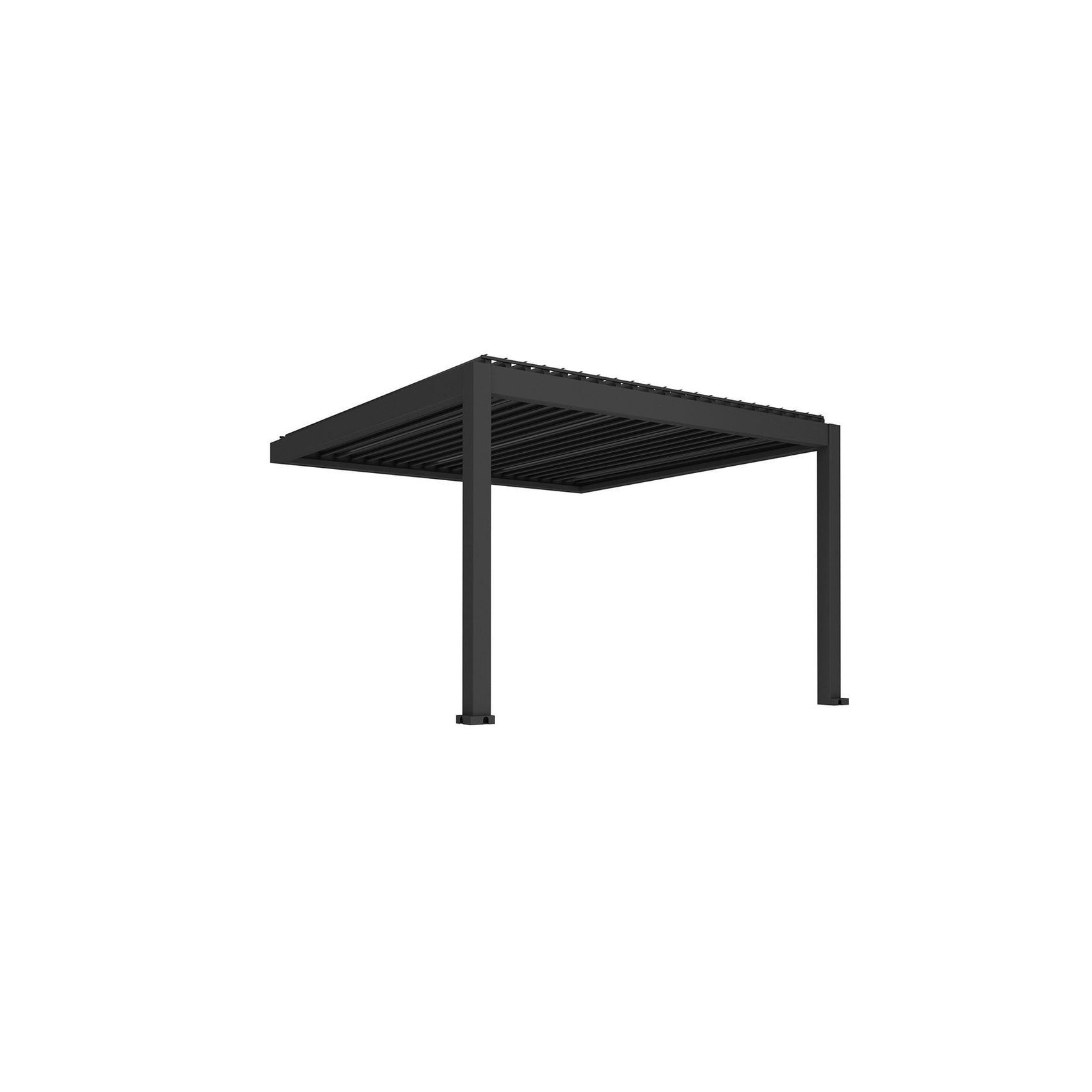

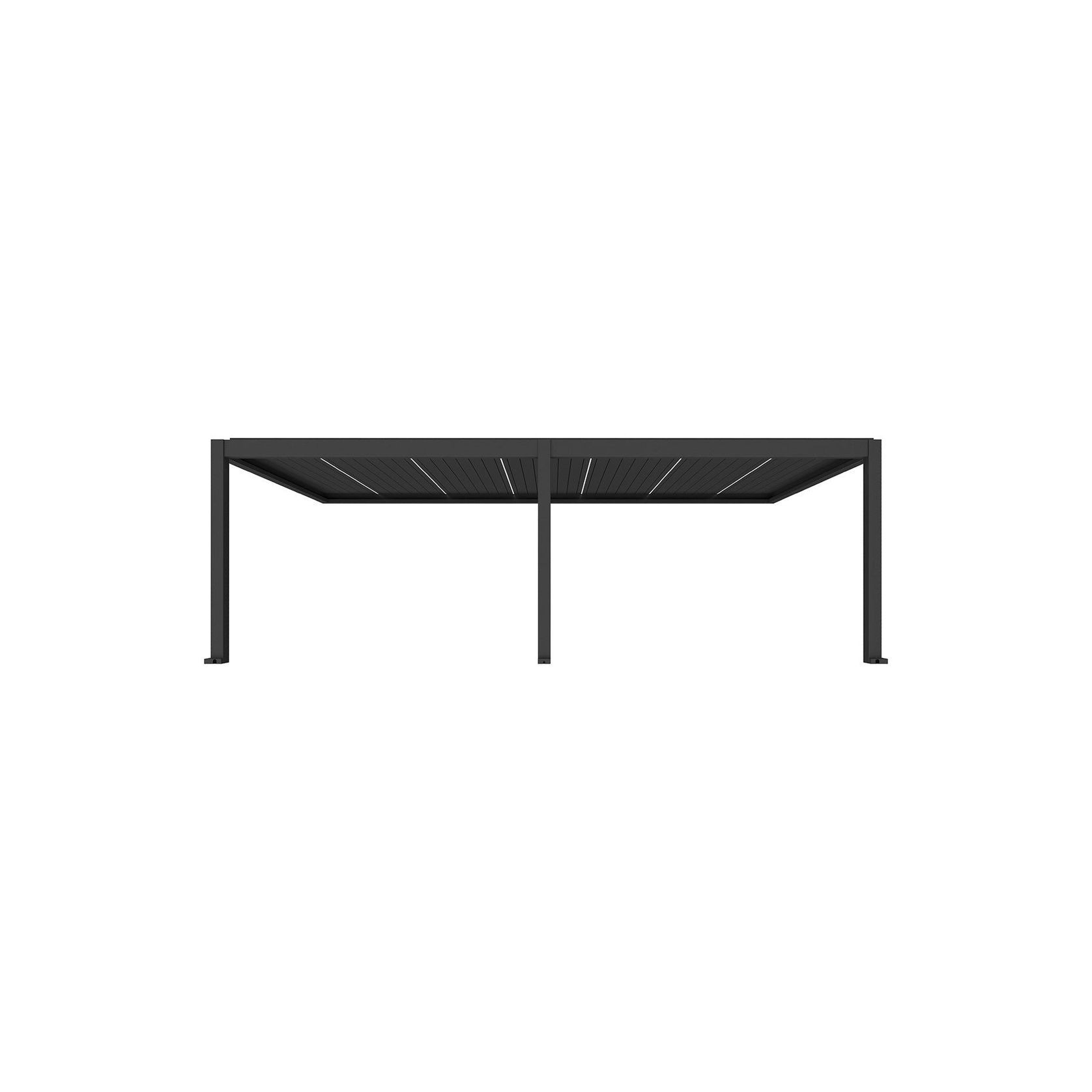

Tasman Motorised Wall Mounted Louvre Roof Aluminium Pergola

By Living Culture
$9,299
Visit Website
Black

Enjoy outdoor living at its finest with the Tasman Wall Mounted Louvre Roof.

A motorised pergola is a perfect solution for backyard shade, whether you’re entertaining or relaxing. Designed to allow for shade when you need it, protection from the elements or refreshing airflow, the Tasman Louvre Roof Pergola is remote-controlled for your convenience.

The Tasman pergola is strong and durable due to its powder-coated aluminium construction and double-layer louvres. Ideal for by the coast or on the farm, the all-weather resistant pergola is specially designed for the New Zealand climate, withstanding sun, wind, rain and snow.

Elevate your outdoor lifestyle with our motorised louvre pergola, a fusion of craftsmanship and innovative engineering. From intimate gatherings to tranquil solo moments, this pergola promises to be your ultimate outdoor retreat. Don't just enhance your space; redefine it with our premium offering. Choose excellence, choose durability, choose a motorised louvre pergola that's designed to make your outdoor dreams a reality.

For more important  information on our installation options, please get in touch with our team today via email at support@livingculture.co.nz Our experienced team offer a range of install options nationwide. This is an excellent option to guarantee the professional quality and performance of your pergola.

Details
  • Category
    Fixed Canopy Roof, Pergolas
  • Range
    Louvred Pergolas
  • Warranty
    10 years
Specifications

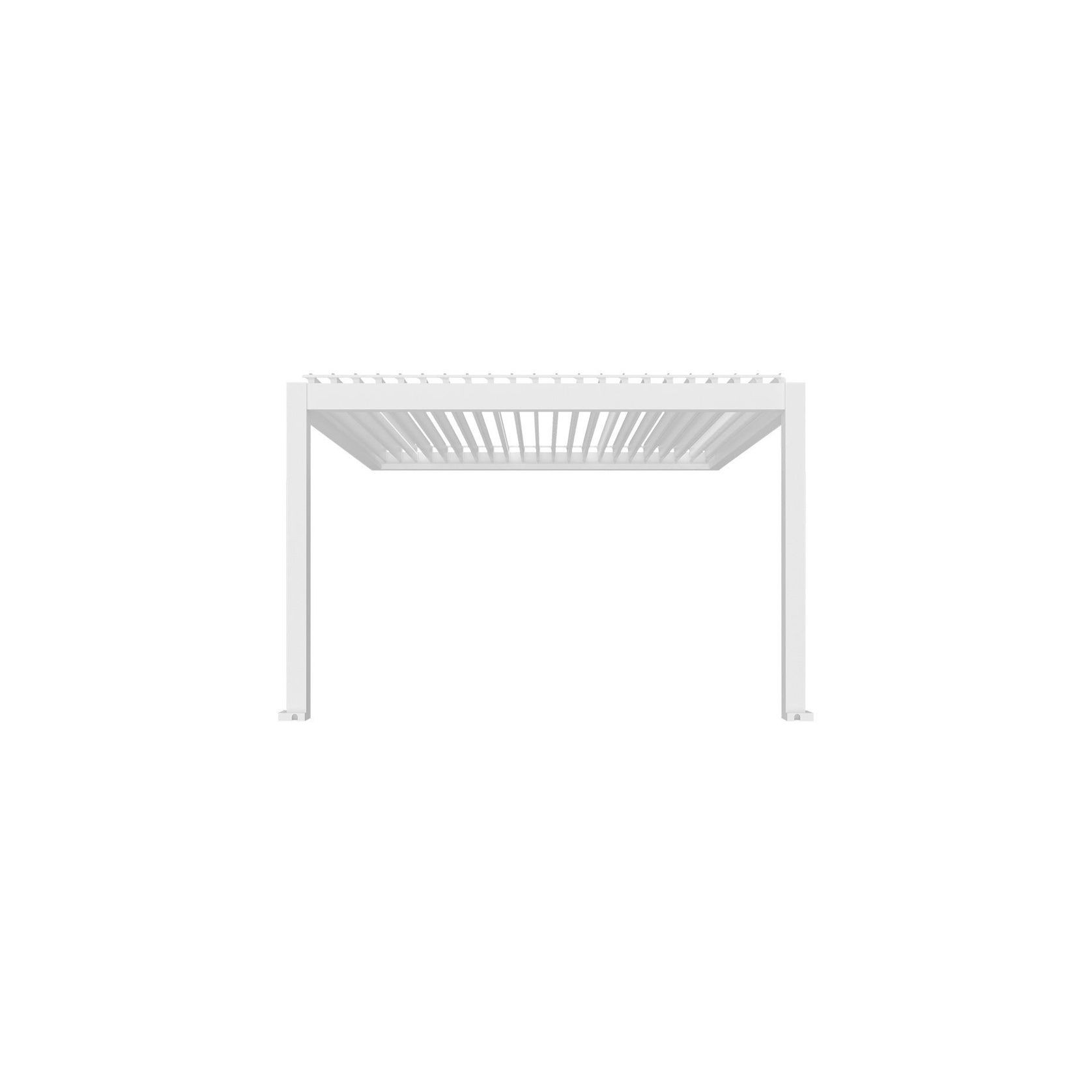

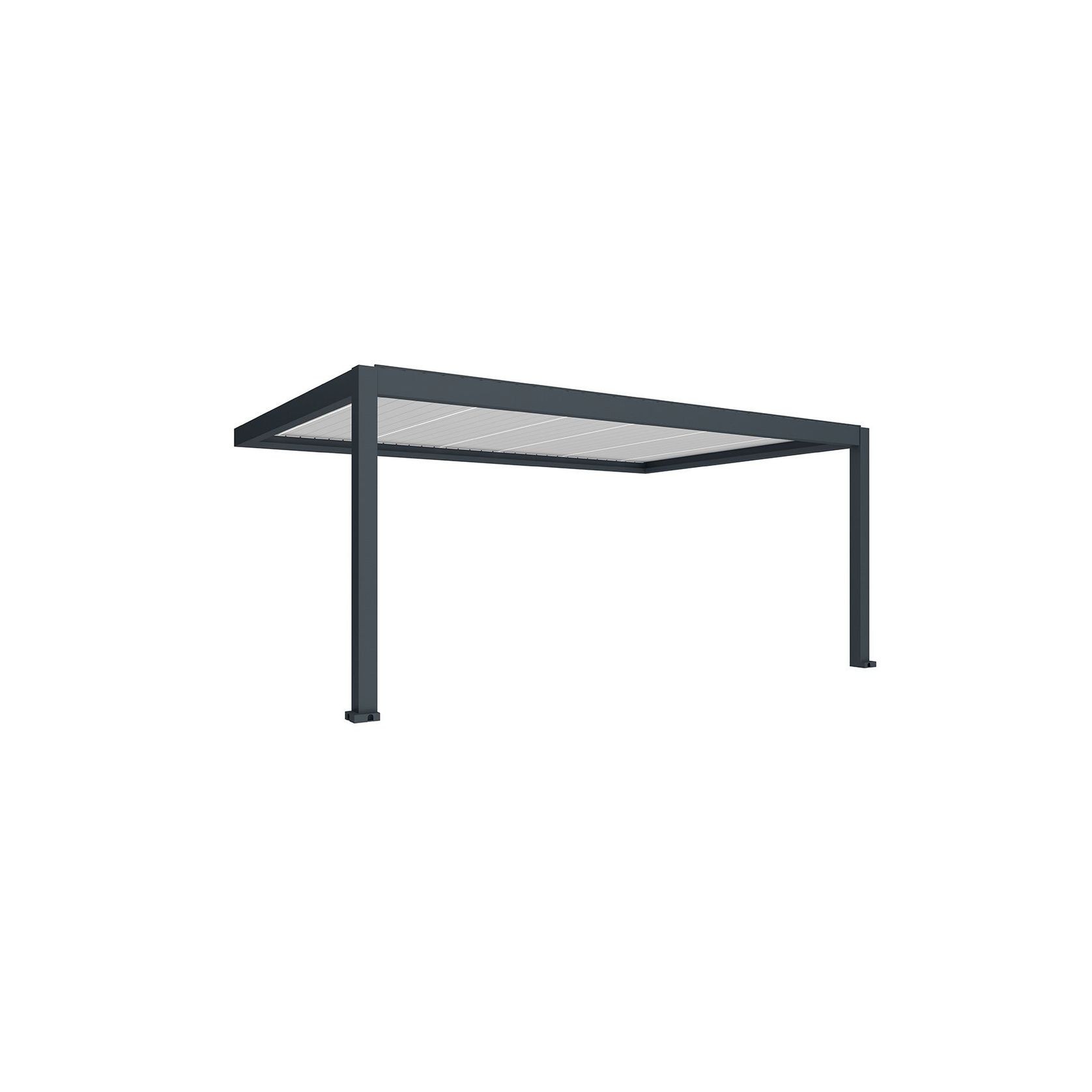

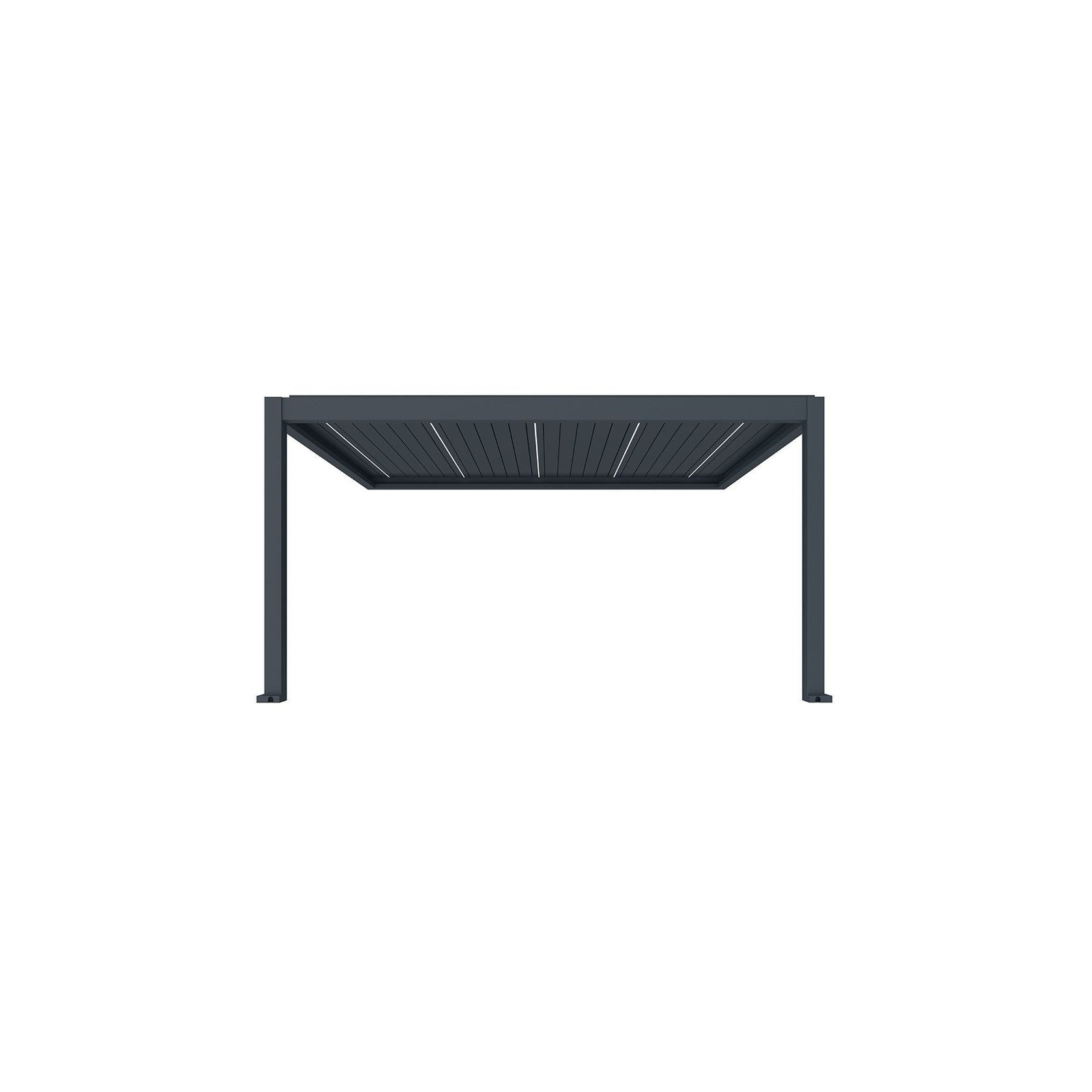

  • Colour: Black / White / Charcoal
  • Material：Aluminium alloy 6063-T6
  • Blades：193x40x1.6-1.7mm
  • Beam with Gutters：200X123X3mm

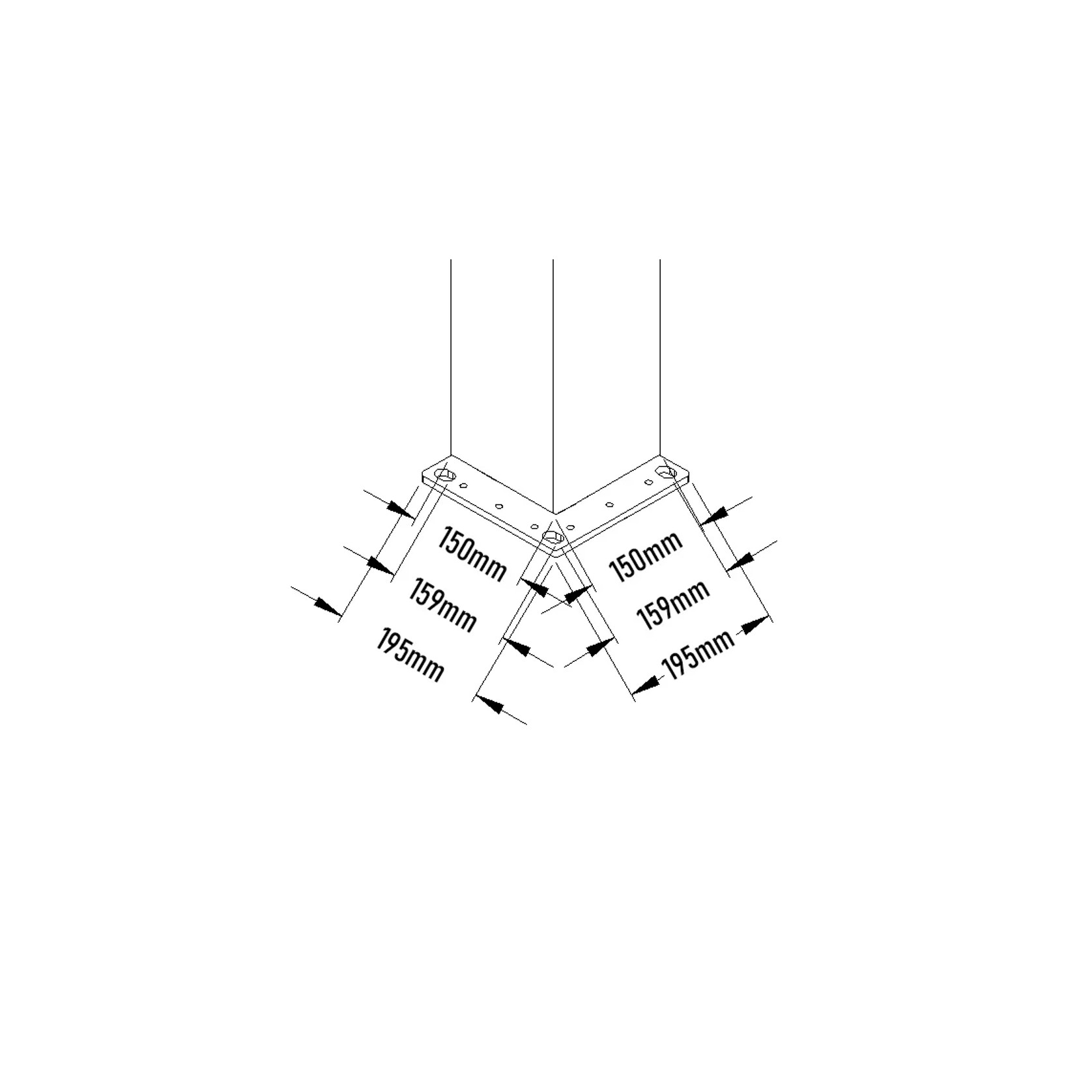

  • Posts：150X150X2.0-3.0mm
  • Finish：AKZO Powder Coated
  • Motor：Grade IP67
  • Light：3000K warm light+6000k white light, stepless dimming
  • Tilt Range: 110 Degrees
  • Wind resistance: 170 - 200km/h
  • Snow Load: 110 - 300KG/m²（56 - 70cm thickness）
  • Packaging Material: Carton
  • 10-year warranty on structure and 3-year warranty on electric motors
Features
  • Modern and simple style with timeless appeal
  • No need to open the louvre when it's raining or snowing.
  • The frame structure is made of 6063-T6 aluminium alloy, which is bend resistant and never rusts
  • Coated with internationally renowned brand AkzoNobel powder: strong adhesion, high colour fastness, and weather resistant
  • The column and the sink beam are quick to assemble and sturdy
  • Unique blade structure design: water tight, and can withstand extreme weather

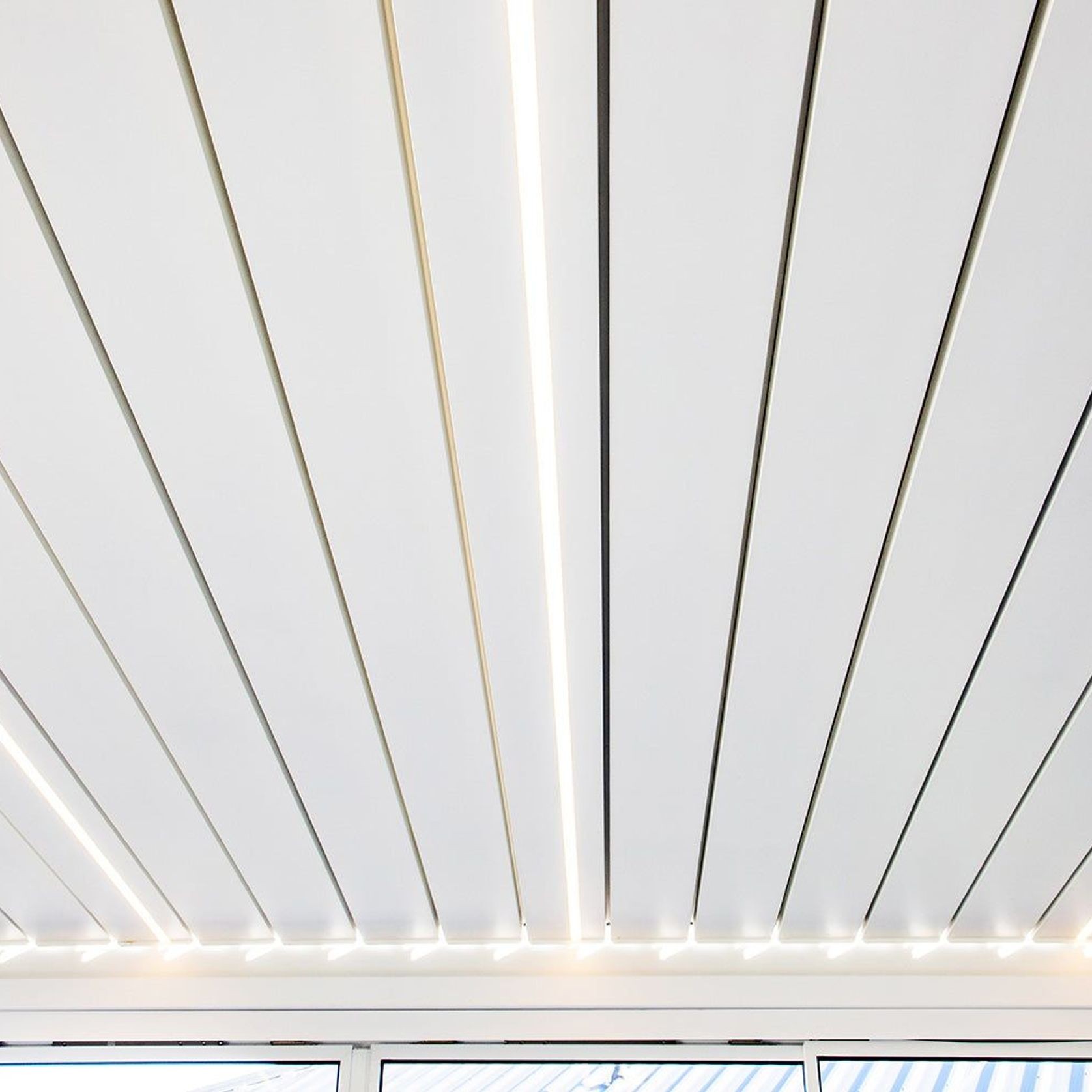

  • Standard two-colour blade light strip (3000K warm light + 6000K white light), stepless dimming, with dimming memory function
  • The blades can be rotated and opened at any angle within 0 to 110 degrees
  • Allow at least 10cm clearance above the frame for when louvres are fully open
  • Height with blades open 2985mm
Packages

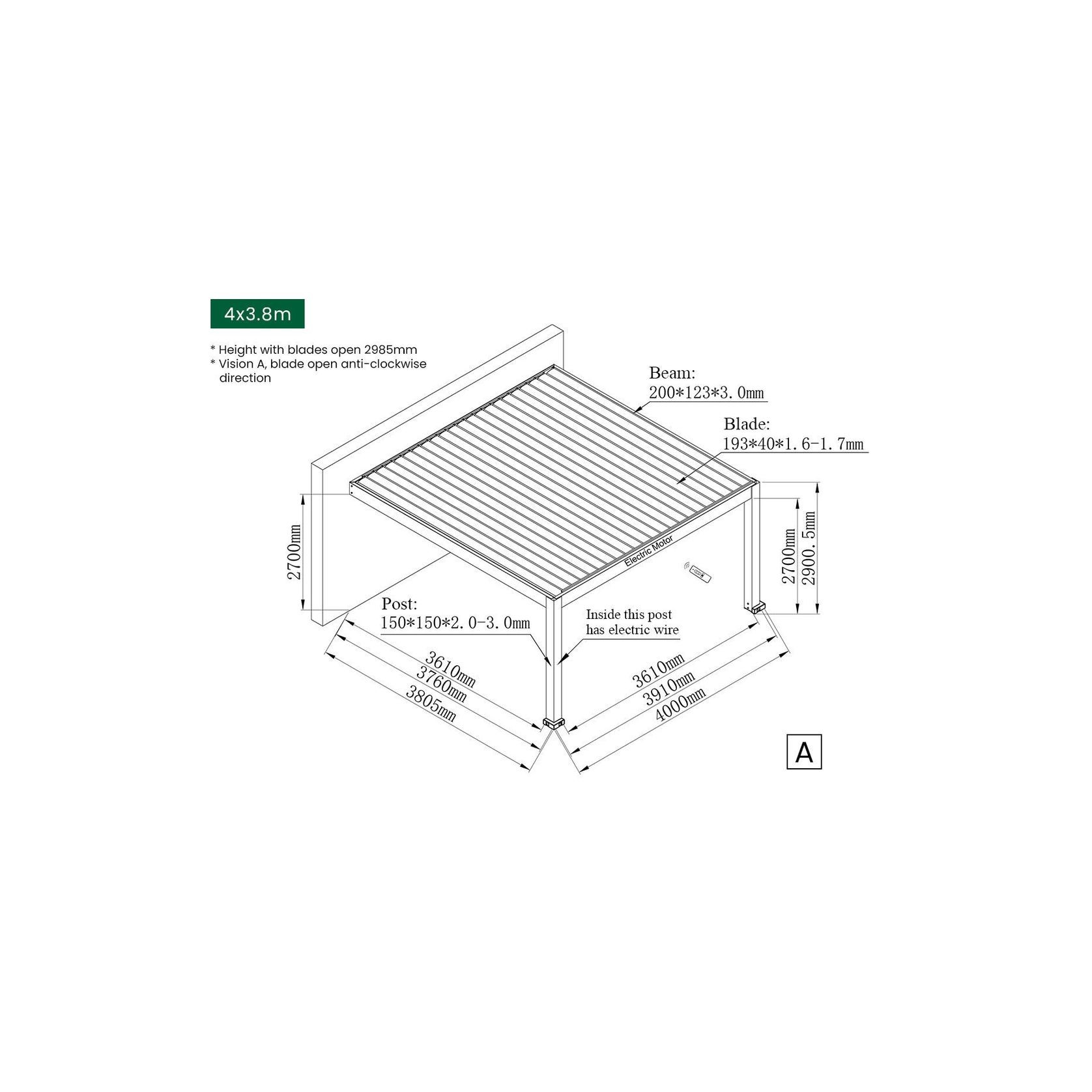

4 x3.8m

  • LED Stripe: 4pcs
  • Gross Weight: 372.7kg
  • Package 1: 393.3 x 25.9 x 21.9cm,59.7kg
  • Package 2: 375 x 25.9 x 21.9cm,48.5kg
  • Package 3: 377 x 25.3 x 30.8cm,64.4kg
  • Package 4: 377 x 25.3 x 30.8cm,63.6kg
  • Package 5: 377 x 25.3 x 21.8cm,43.1kg
  • Package 6: 377 x 25.3 x 21.8kg,43.1kg
  • Package 7: 293.5 x 36 x 17cm,35.3kg
  • Package 8: 46 x 30 x 24cm,15kg

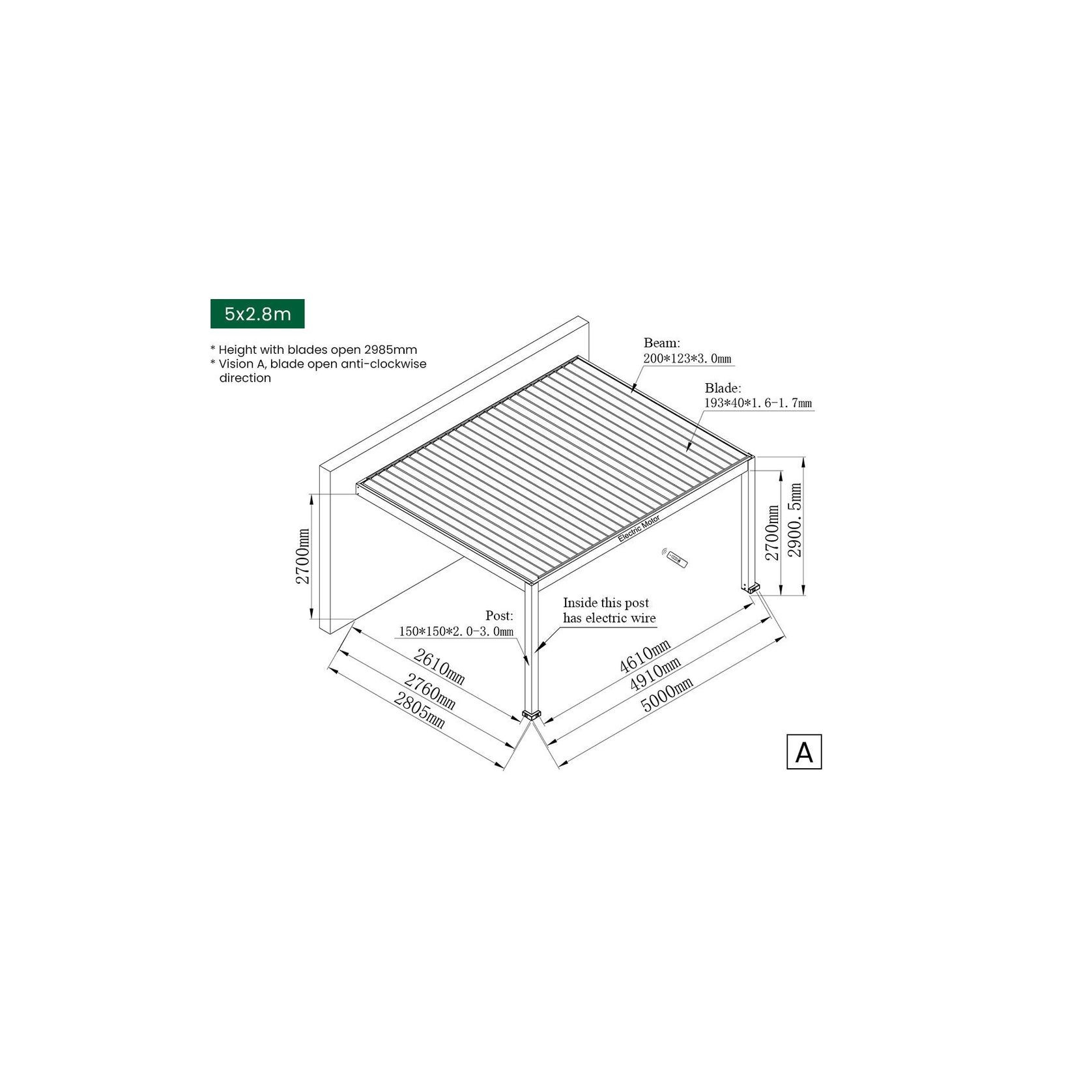

5 x 2.8m

  • LED Stripe: 5pcs
  • Gross Weight: 418.2kg
  • Package 1: 482.7 x 25.5 x 21.5cm,70kg
  • Package 2: 283 x 25.6 x 22cm, 36kg
  • Package 3: 290.6 x 25 x 29cm, 48.8kg
  • Package 4: 290.6 x 25 x 29cm, 48.8kg
  • Package 5: 290.6 x 25 x 29cm, 48.8kg
  • Package 6: 290.6 x 25 x 29cm, 48.8kg
  • Package 7: 290.6 x 25 x 20.6cm, 33kg
  • Package 8: 268.6 x 36 x 32cm, 62kg
  • Package 9: 46 x 25 x 34cm, 22kg

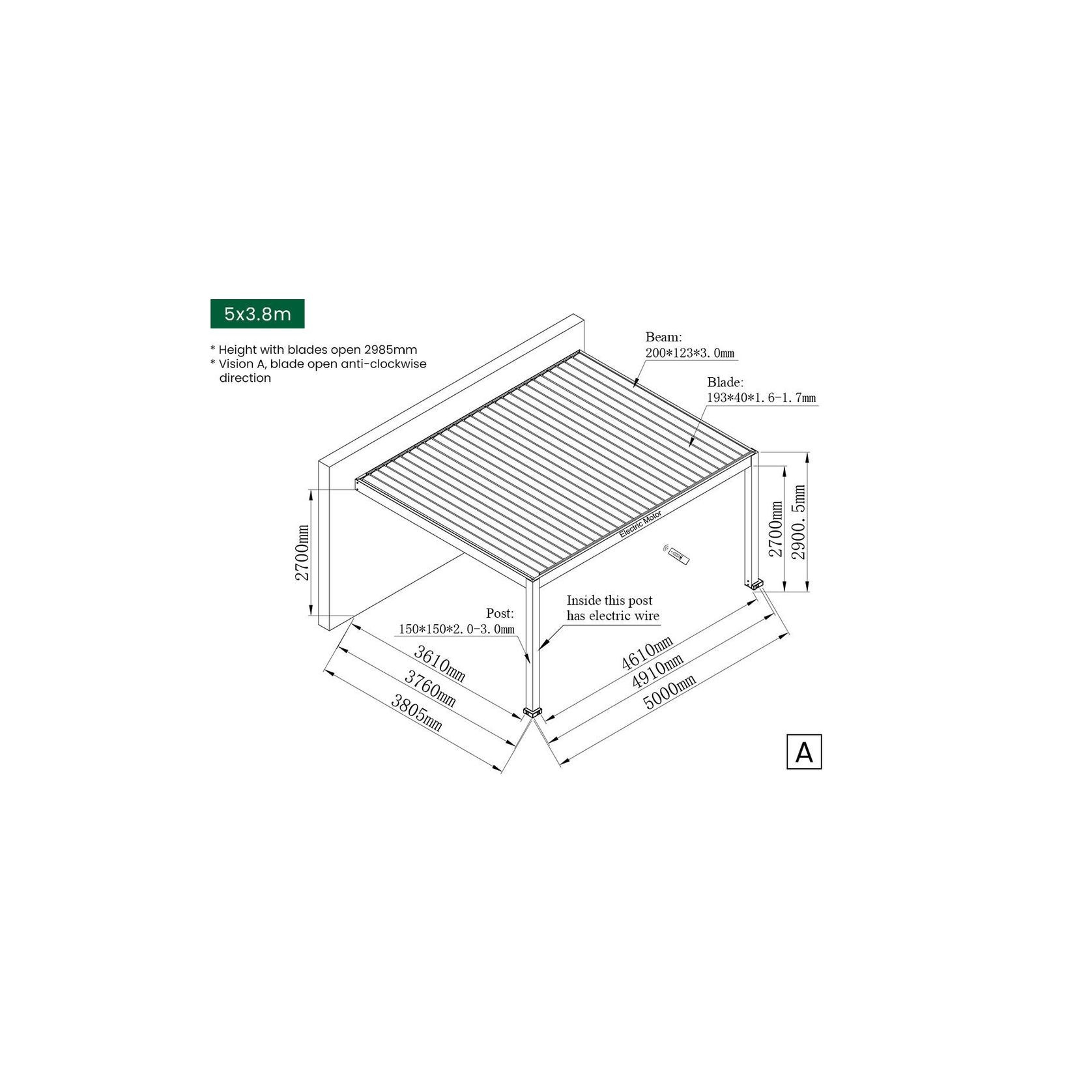

5 x 3.8m

  • LED Stripe: 5pcs
  • Gross Weight: 502KG
  • Package 1: 482.5 x 25.2 x 22.2cm,70kg
  • Package 2: 385 x 25.2 x 22cm, 47.5kg
  • Package 3: 391.5 x 25 x 28cm, 66kg
  • Package 4: 391.5 x 25 x 28cm, 66kg
  • Package 5: 391.5 x 25 x 28cm, 66kg
  • Package 6: 391.5 x 25 x 28cm, 66kg
  • Package 7: 391.5 x 25 x 20cm, 45.5kg
  • Package 8: 268 x 35.5 x 31.5cm, 56kg
  • Package 9: 46 x 25 x 32cm, 20kg

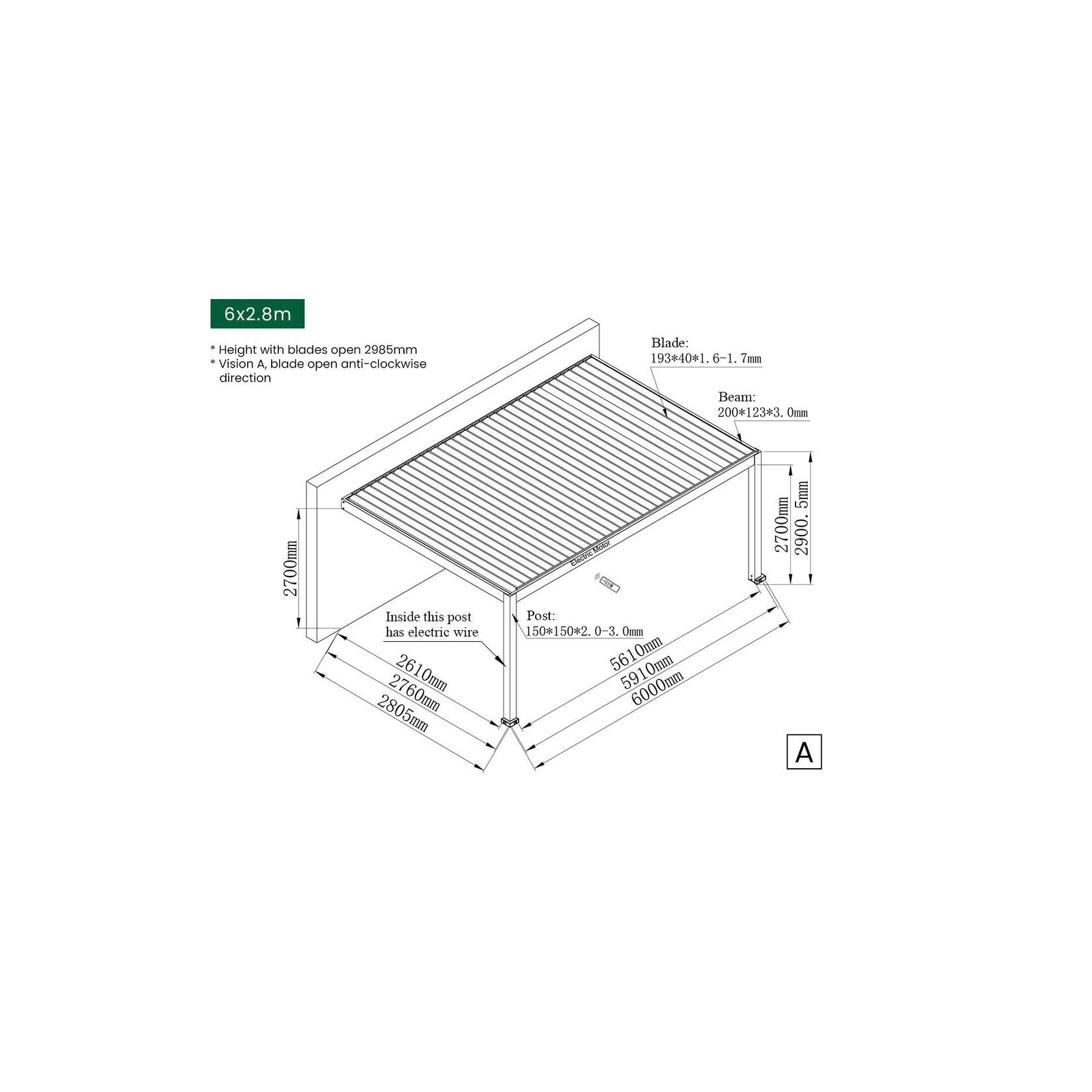

6 x 2.8m

  • LED Stripe: 6pcs
  • Gross Weight: 471kg
  • Package 1: 581 x 25 x 21.5cm, 83.5kg
  • Package 2: 281 x 25 x 21.5cm, 36kg
  • Package 3: 289 x 25 x 29.5cm, 47.5kg
  • Package 4: 289 x 25 x 29.5cm, 47.5kg
  • Package 5: 289 x 25 x 29.5cm, 47.5kg
  • Package 6: 289 x 25 x 29.5cm, 47.5kg
  • Package 7: 289 x 25 x 29.5cm, 47.5kg
  • Package 8: 289 x 25 x 20.5cm, 32kg
  • Package 9: 267 x 35.5 x 32cm, 62kg
  • Package 10:46 x 25 x 32cm, 20kg

6 x 3.8m

  • LED Stripe: 6pcs
  • Gross Weight: 582.1KG
  • Package 1: 587.5 x 25.5 x 21.5cm, 83.3kg
  • Package 2: 384 x 25 x 21.5cm, 46.6kg
  • Package 3: 392 x 25 x 29cm, 66.1kg
  • Package 4: 392 x 25 x 29cm, 66.1kg
  • Package 5: 392 x 25 x 29cm, 66.1kg
  • Package 6: 392 x 25 x 29cm, 66.1kg
  • Package 7: 392 x 25 x 29cm, 66.1kg
  • Package 8: 392 x 25 x 20.5cm, 44.7kg
  • Package 9: 298 x 35.5 x 32cm, 67kg
  • Package 10: 46 x 32 x 25cm, 10kg
Package Contents

1x Tasman Motorised Wall Mounted Louvre Roof Aluminium Pergola

1x Instruction Manual

SKU: tasman-motorised-wall-mounted-louvre-roof-aluminium-pergola-5 x 2.8m-Black
