ThermalPlus™ has two or more panes of glass with a factory sealed air (or gas) gap between, and is often known as Double Glazing (DG).
A single pane of glass has very poor thermal resistance. The addition of an airgap increases the insulation value significantly by eliminating heat transfer since air is a very good insulator.
ThermalPlus™ works to insulate in both winter and summer conditions and reduce the cost of heating and cooling in buildings. The measurement of thermal performance is known as the U-Value, and this can range from 3 down to 1 W/m2k depending on the air space and glass type.
Common gases used in the sealed gap are air, argon and krypton. Air is the most common as it is cheaper and more widely available. Argon and krypton have better insulating properties than air.
ThermalPlus™ can be used in conjunction with other Woods Glass products such as Infinit E™, Keramo™ and EnduraLam™ to create increased performance metrics in solar control and safety.
Product Details
- Product
- ThermalPlus™ | Insulating Glass Units
- Category
- Glazed Facade Systems
- Sold by
- Woods Glass
ThermalPlus™ has two or more panes of glass with a factory sealed air (or gas) gap between, and is often known as Double Glazing (DG).
A single pane of glass has very poor thermal resistance. The addition of an airgap increases the insulation value significantly by eliminating heat transfer since air is a very good insulator.
ThermalPlus™ works to insulate in both winter and summer conditions and reduce the cost of heating and cooling in buildings. The measurement of thermal performance is known as the U-Value, and this can range from 3 down to 1 W/m2k depending on the air space and glass type.
Common gases used in the sealed gap are air, argon and krypton. Air is the most common as it is cheaper and more widely available. Argon and krypton have better insulating properties than air.
ThermalPlus™ can be used in conjunction with other Woods Glass products such as Infinit E™, Keramo™ and EnduraLam™ to create increased performance metrics in solar control and safety.
- PERFORMANCE/SPECIFYING
ThermalPlus insulating glass units are designed to increase the thermal insulation of buildings. This is best measured using the U-Value, which is a measure of the rate of heat gain or loss through glazing due to temperature differences of the internal and external environments. ThermalPlus can be combined with other products to increase the performance of the IGU. All glass must be engineered to specific code and design, please contact Woods Glass to find out more information.
We recommend using Masterspec 4611WG Woods Glass Exterior Glazing when specifying this system.
- CLEANING/MAINTENANCE
Normally when cleaning glass, a vinegar-based glass cleaner or mild dish soap and water with a soft, lint-free cloth or paper products is recommended. A squeegee or soft cloth may be carefully used to dry the glass and help avoid water spots.
It is not recommended to use petroleum-based cleaners or solvents as they can streak the glass and weaken the seal between the glass and frame. Avoid washing in direct sunlight to reduce streaking on the glass.
Never use razor blades, steel wool, putty knives or abrasive pads as they may damage the glass, particularly on toughened glass.
- RANGE
Many different thicknesses, air gap sizes and product combinations are available with ThermalPlus. Different gasses and spacers can be used to further increase the thermal properties of the IGU. Please contact Woods Glass to discuss special requirements.
Downloads
Downloads (3)3 Direct downloads • 11 Available on request
Frequently asked questions about
ThermalPlus™ | Insulating Glass Units
The ThermalPlus™ | Insulating Glass Units is supplied by Woods Glass. It is also on their website, and you can browse every product Woods Glass lists on ArchiPro.
Woods Glass does not publish a price for the ThermalPlus™ | Insulating Glass Units on ArchiPro. for pricing, or visit their website.
It is listed under Glazed Facade Systems on ArchiPro, where you can compare it with glazed facade systems from other suppliers.

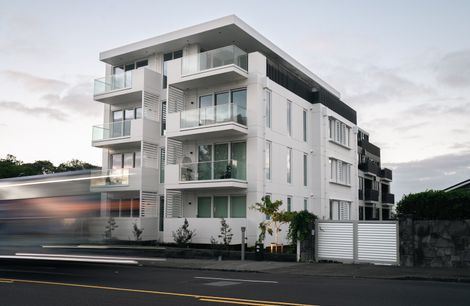

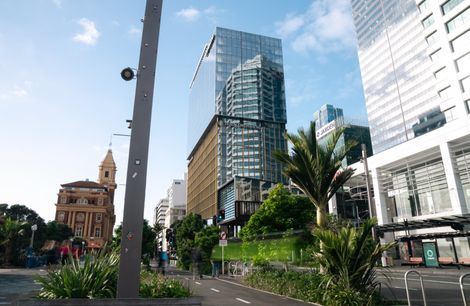

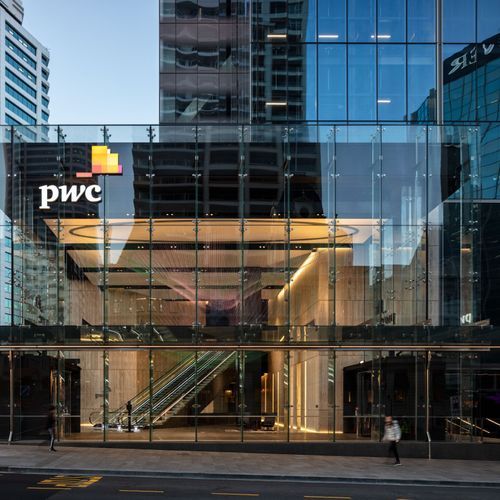

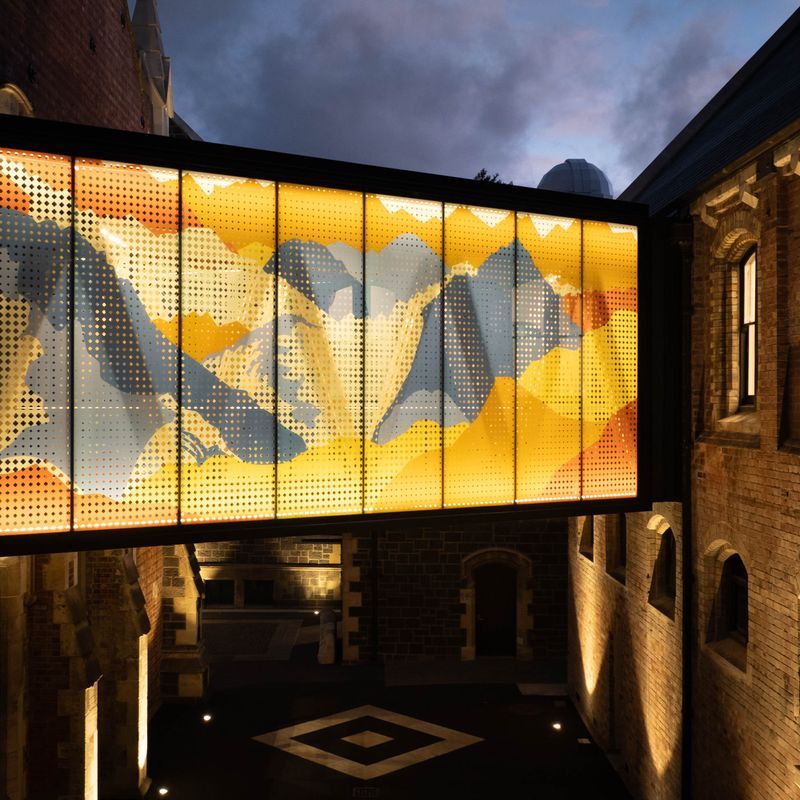

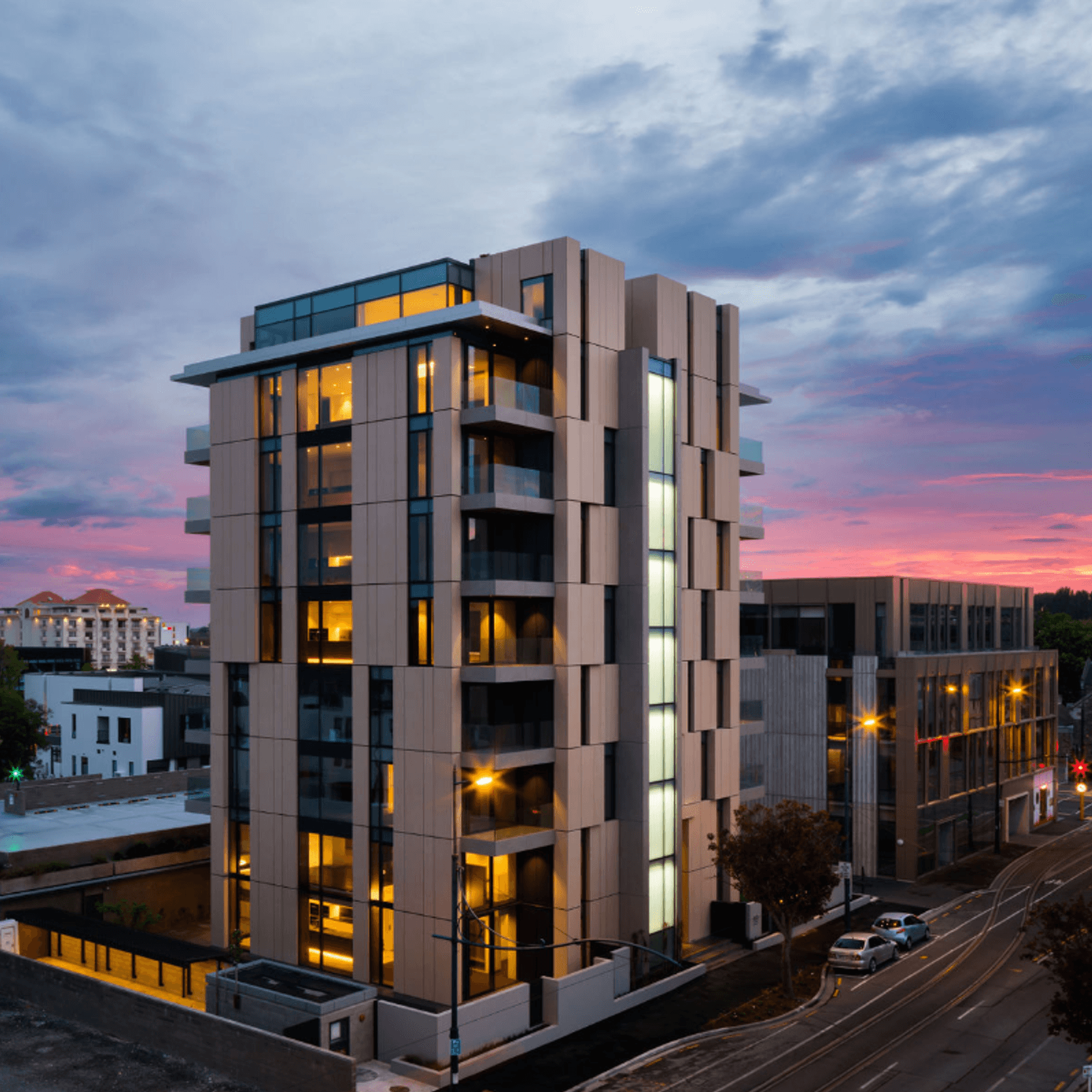

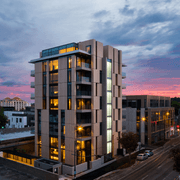

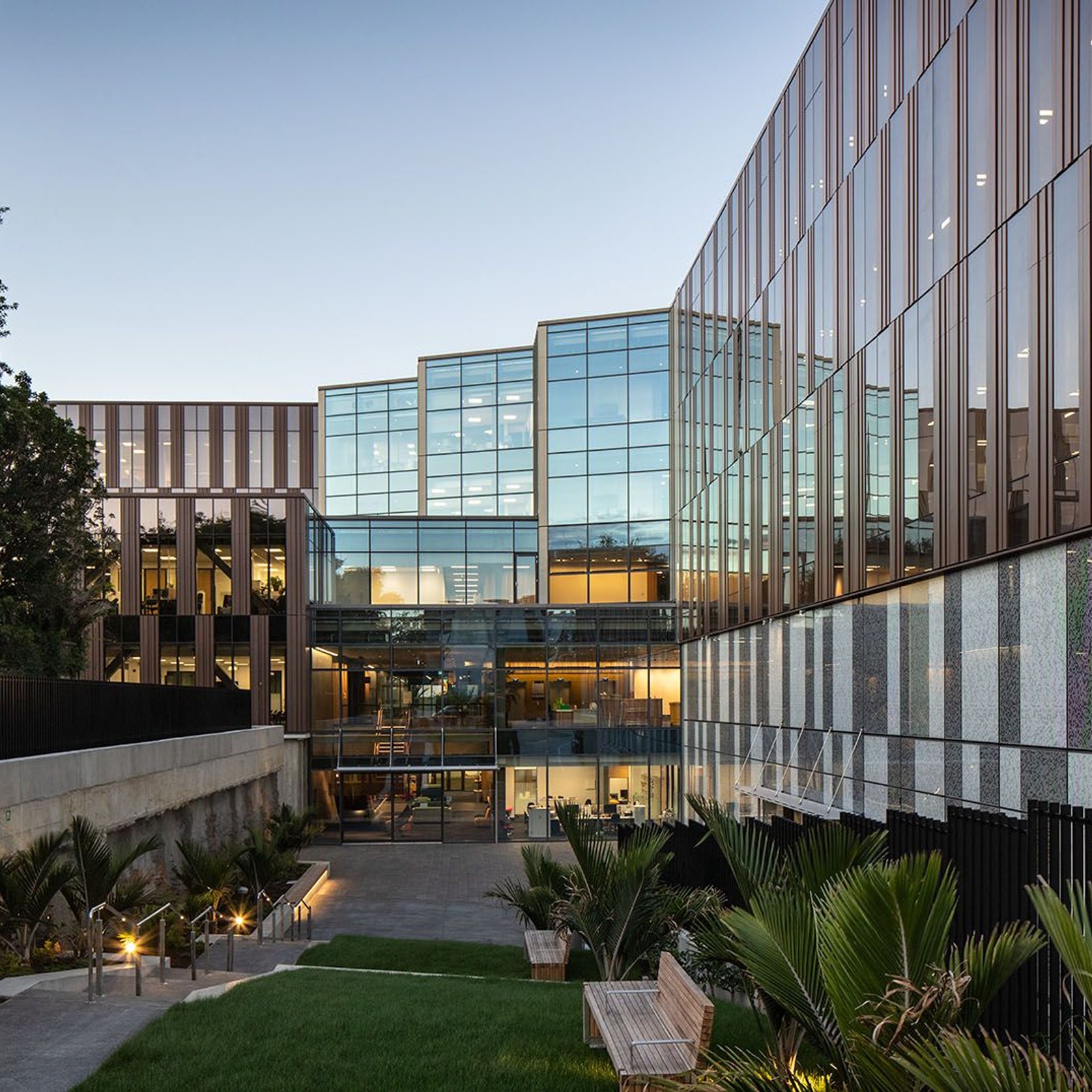

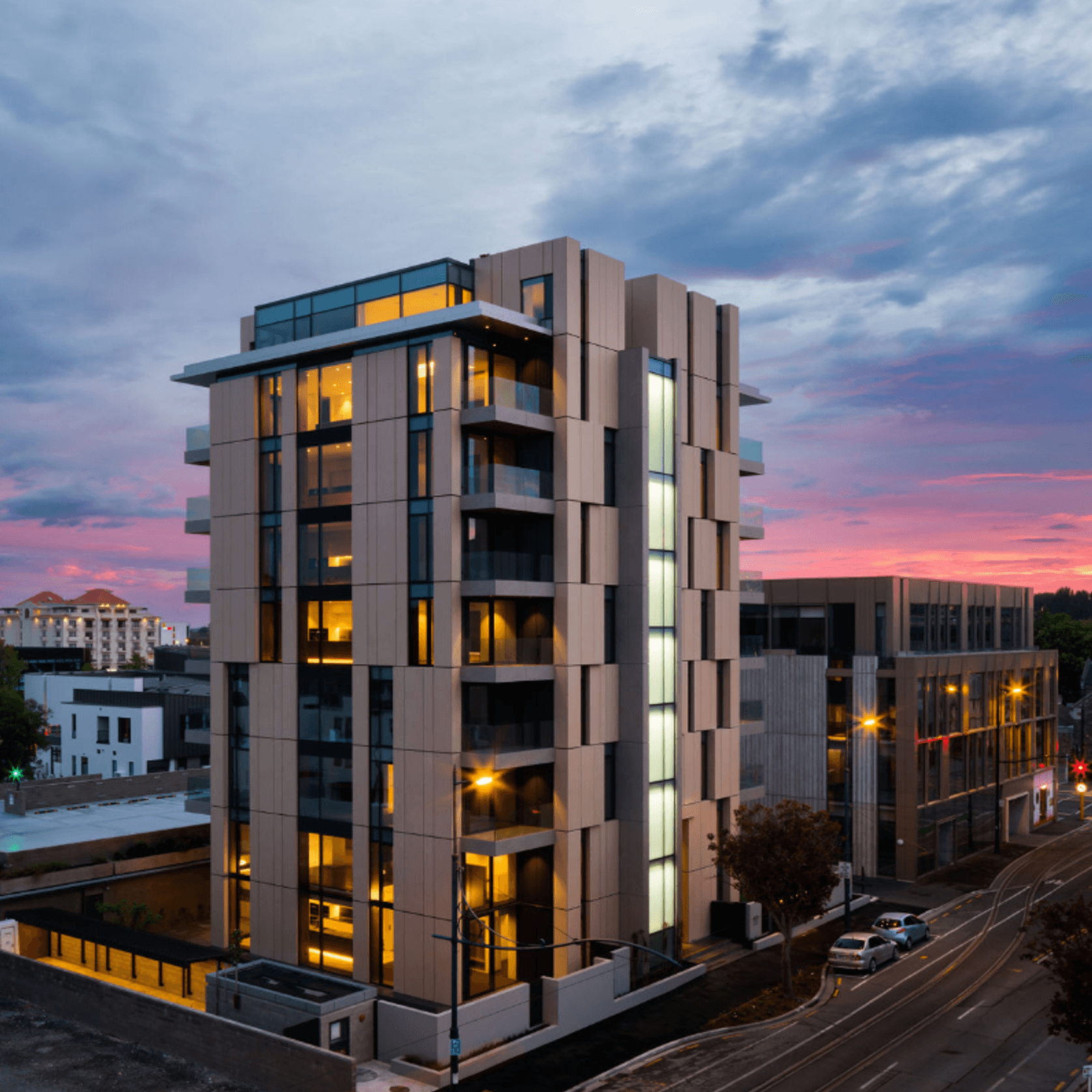

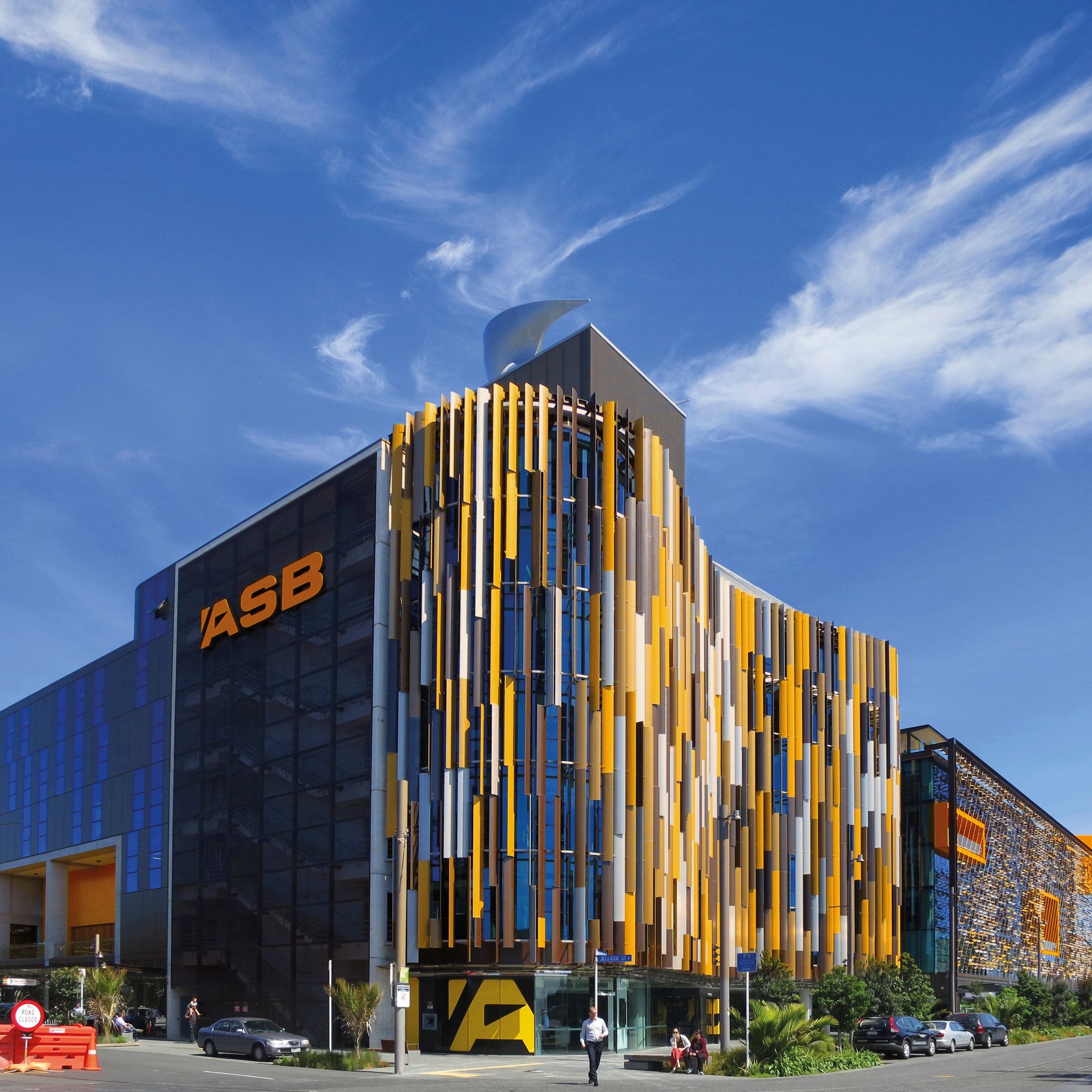

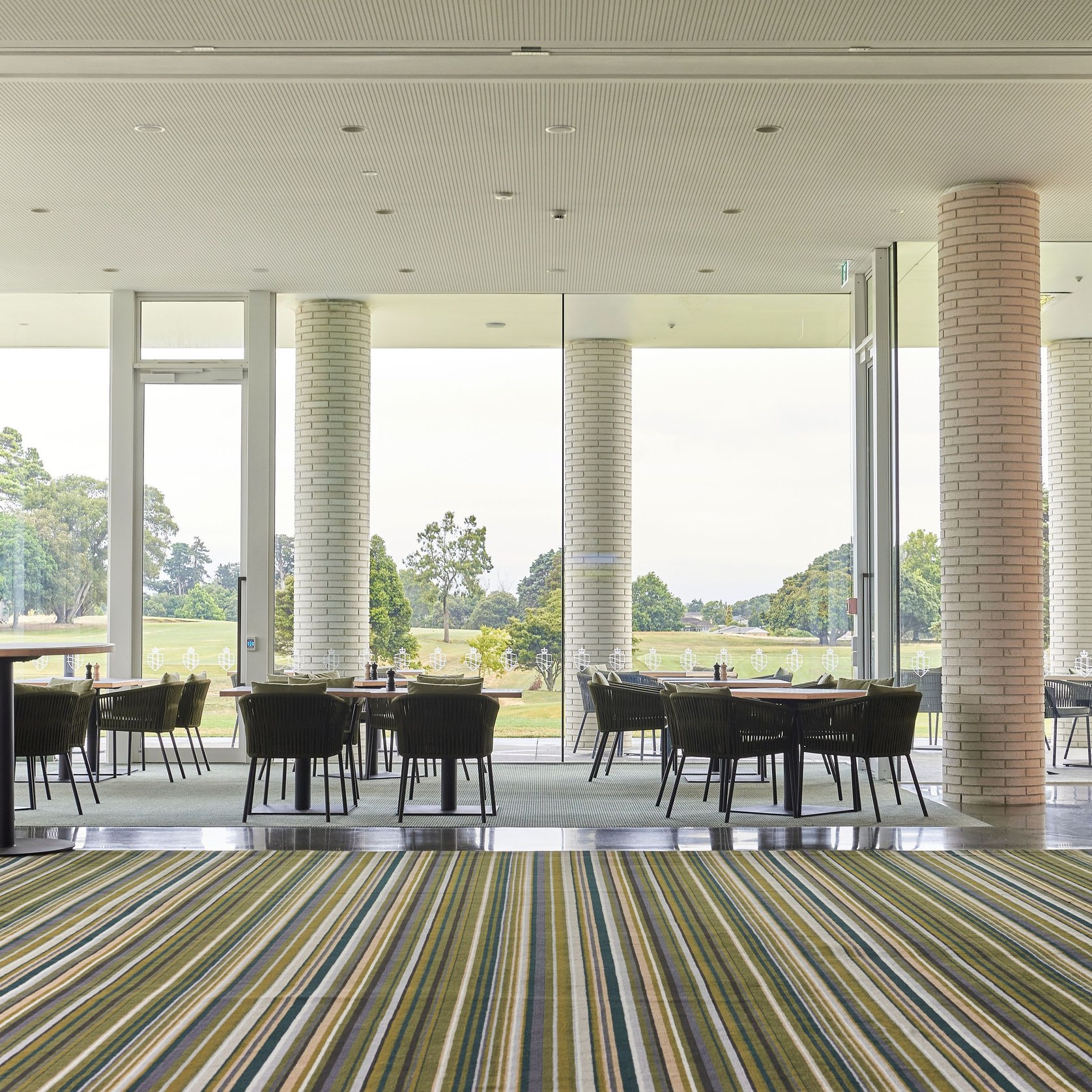

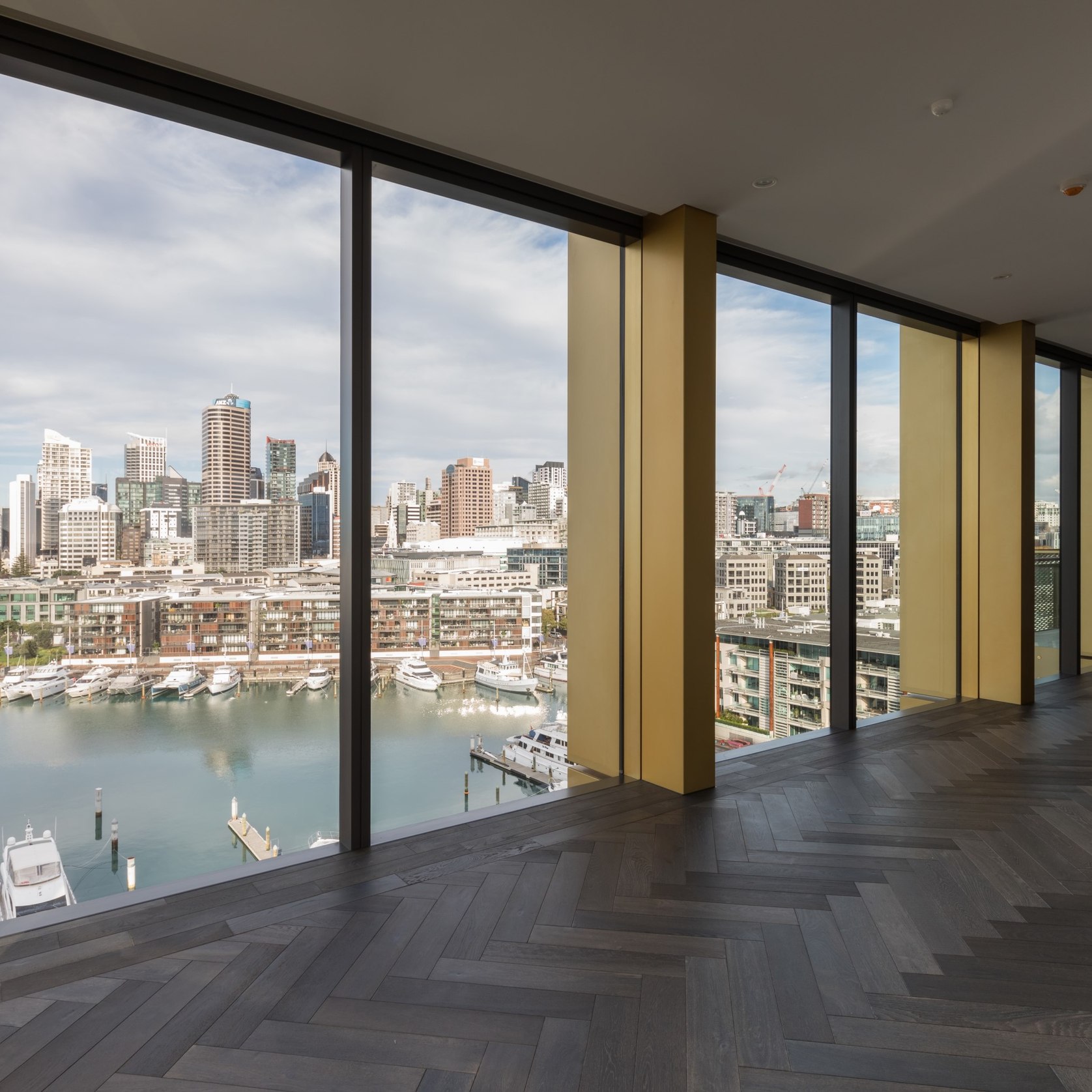

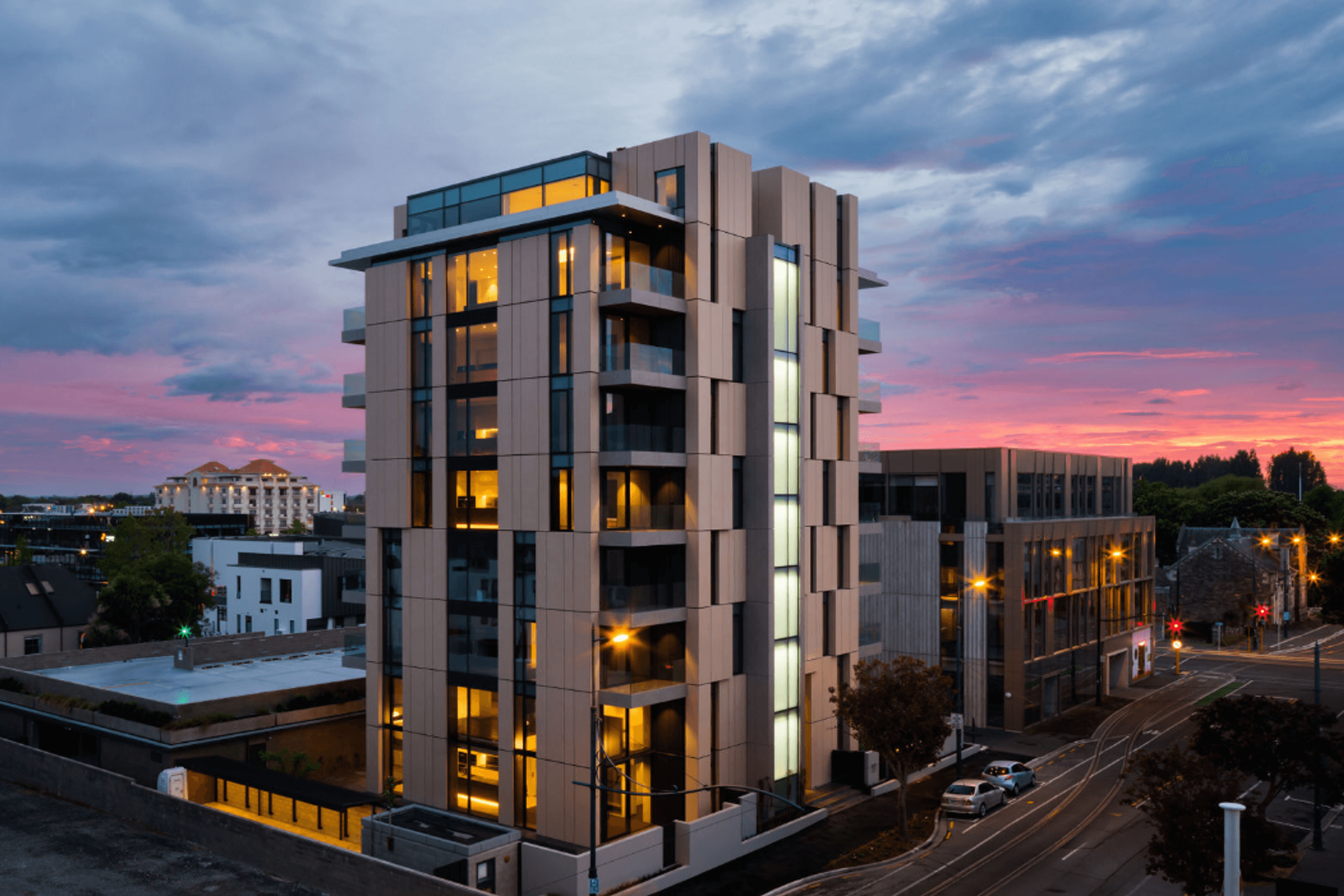

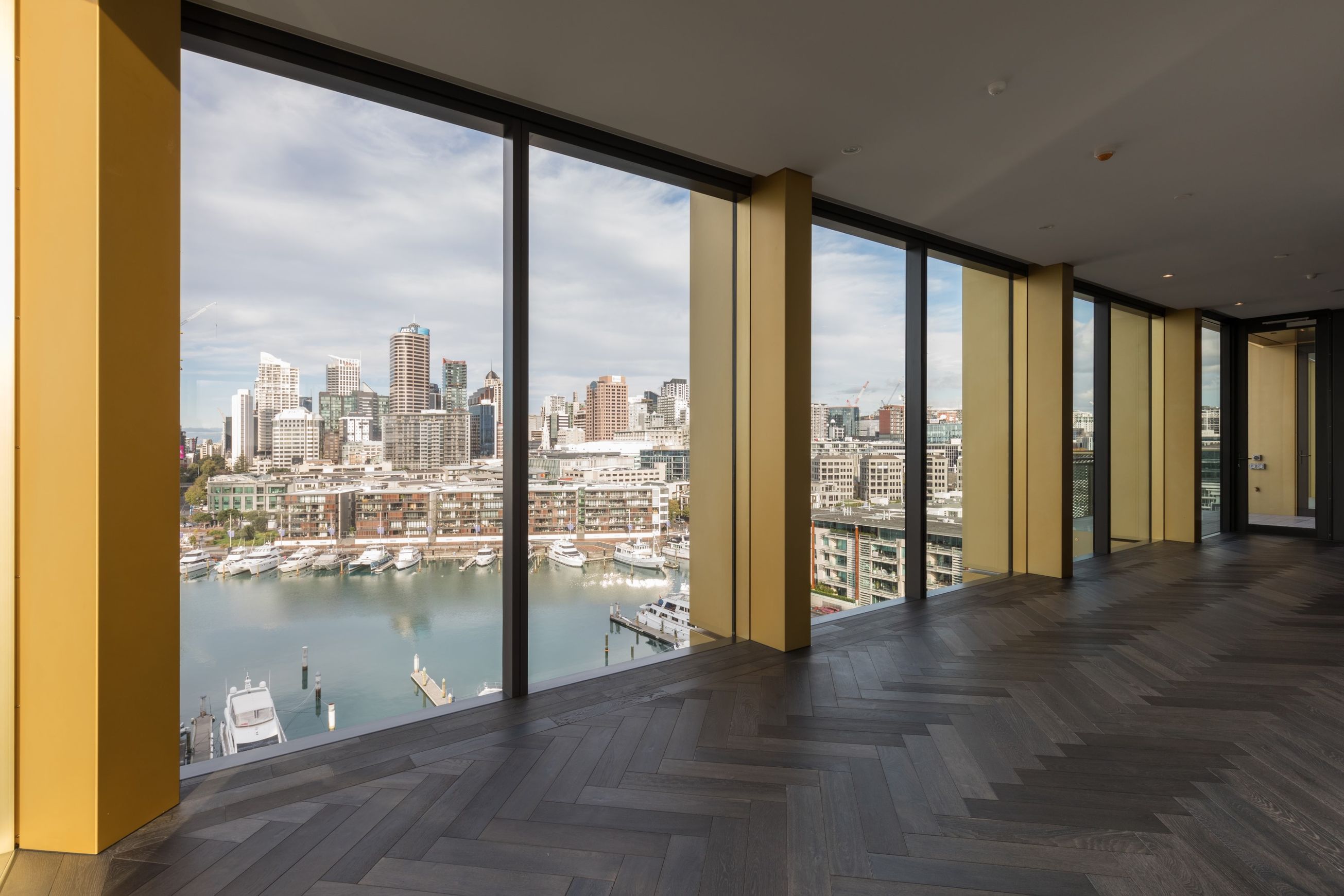

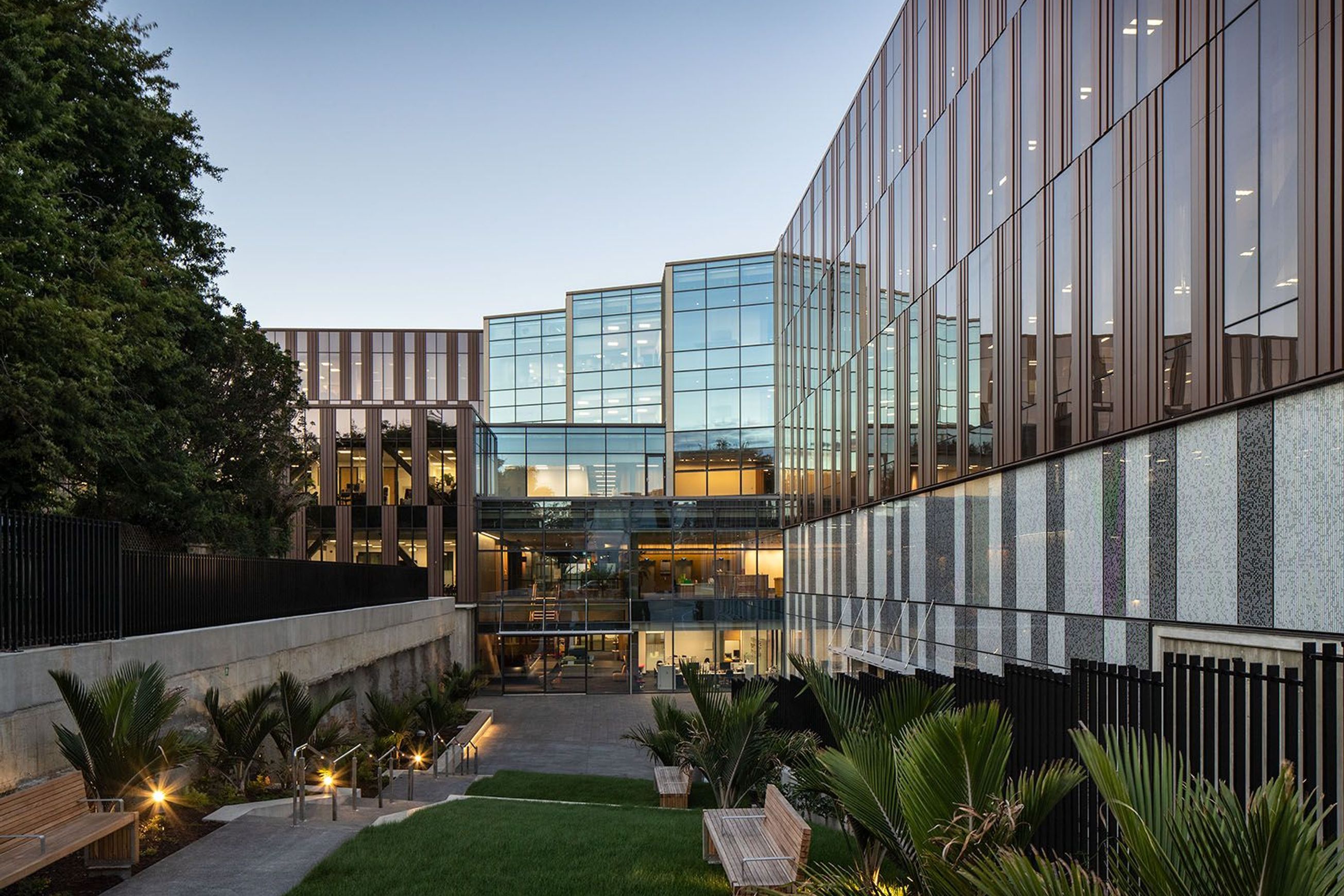

Yes. It has been specified in projects on ArchiPro, including One Saint Stephens by Woods Glass, Wairua Apartments by Woods Glass and Queen Street Project by Woods Glass. See how it was used in a finished space.
